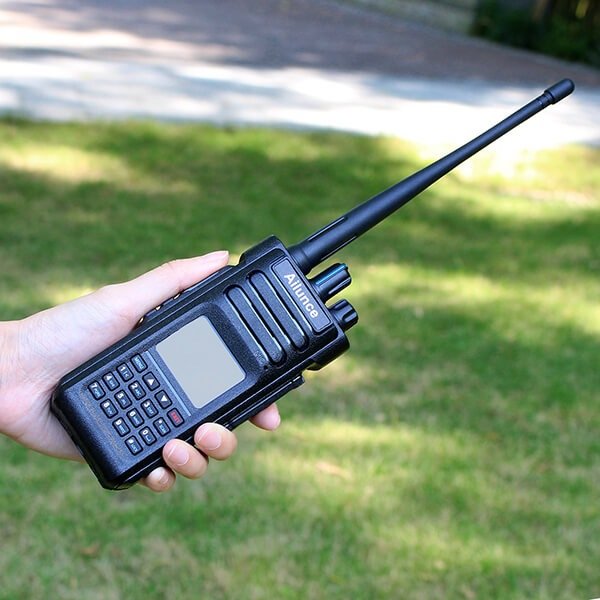

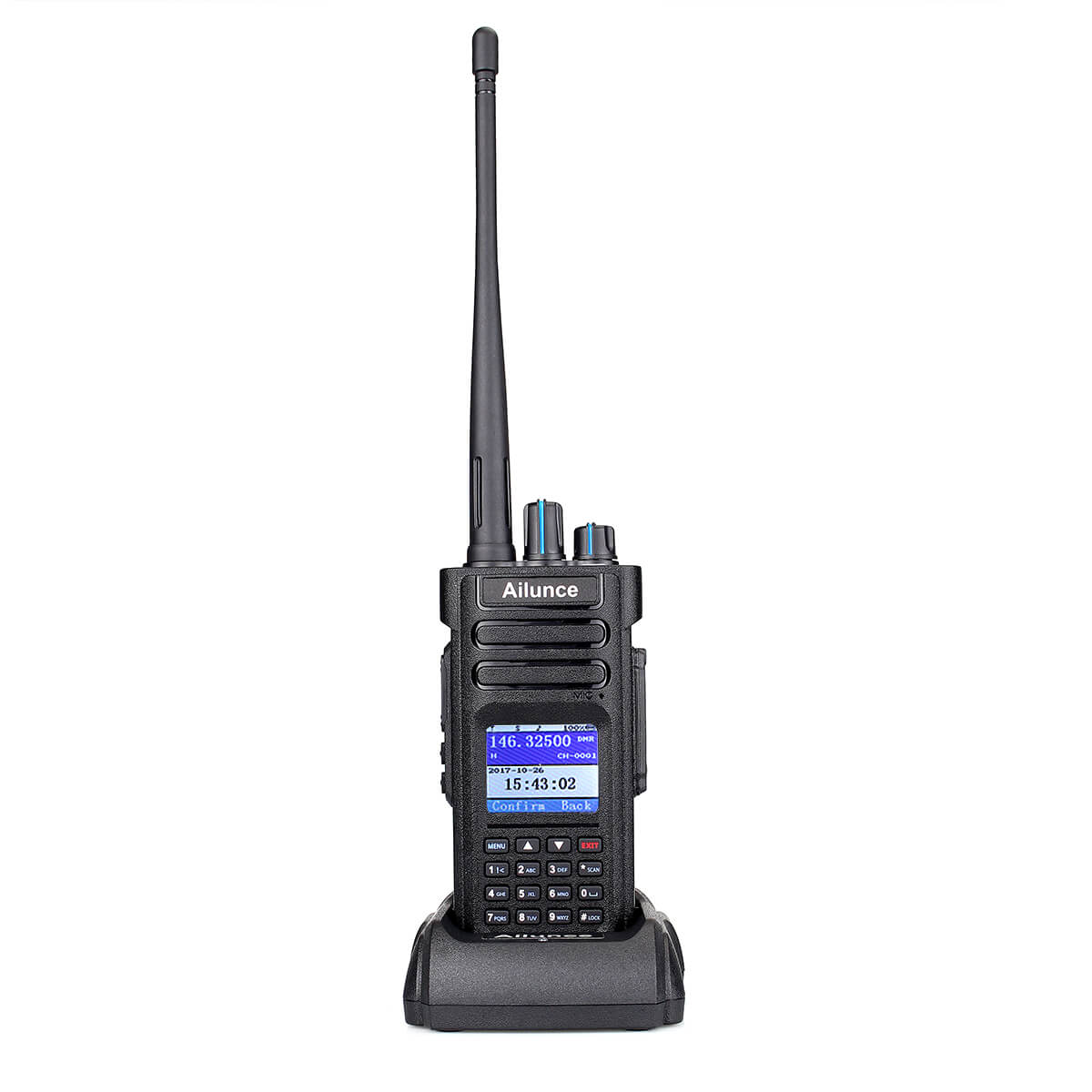

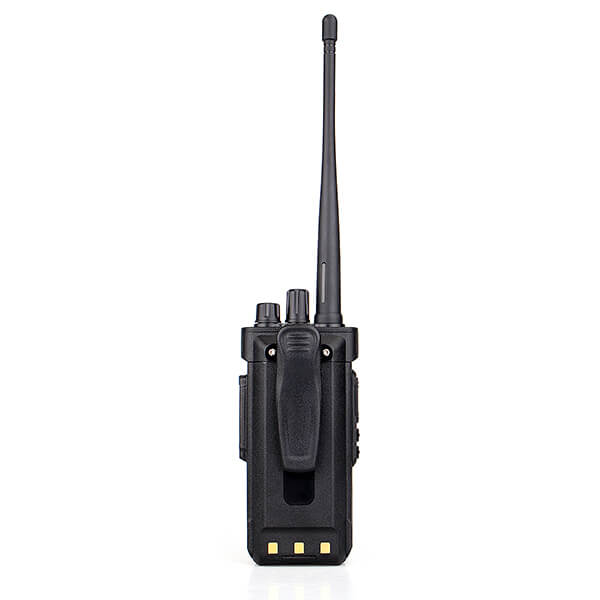

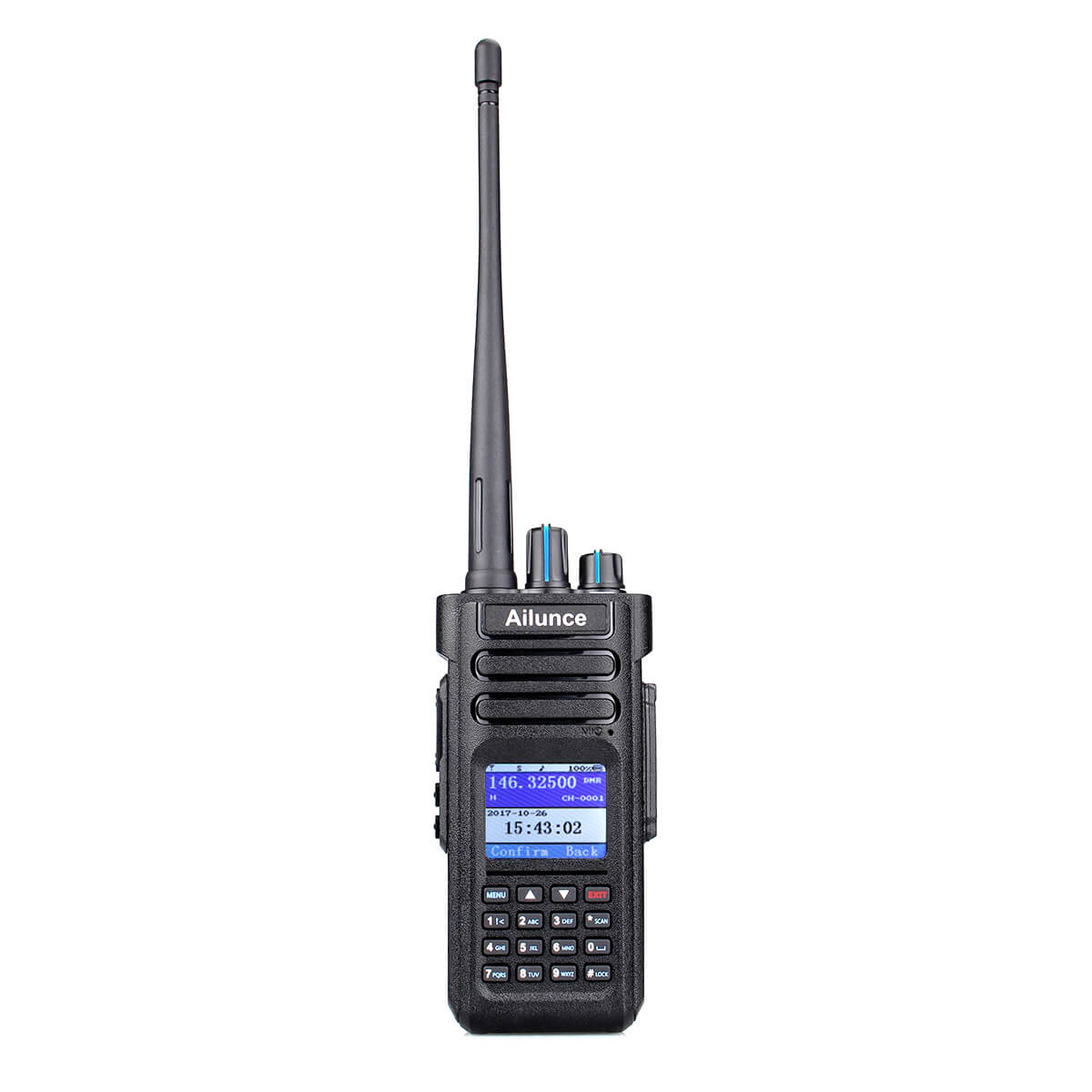

HD1 IP67 FPP Dual Band Ham Radio


Shipping calculated at checkout.


Generally In Stock, Please Confirm Before Ordering

AILUNCE HD1 DMR Digital VHF/UHF Handheld Radio With CTCSS/DCS TONE SQUELCH. Long range waterproof walkie talkies for Business, and outdoor activities.

HD1 ip67 dual band ham radio

Supports both digital and analogue modes, compatible with existing analogue systems, users can gradually switch analogue terminal settings according to budget and actual communication needs.

HD1 digital-analog

Dual time slot for point to point supports two group calls in one channel under direct model; 3000 channels, 20000 priority contacts enable you to call the people important to you more convenient.

HD1 3000Chanel

Waterproof walkie-talkie HD1 has VFO mode; very easy to learn and use.3200mAh battery enable normal use 7 days standby / 2-3 days typical use / Continues use 12-16 hours.0

HD1 large battery

HD1 has GPS positioning function, GPS function gives you lat / long; altitude; bearing; and speed information SMS function support to text the information to another radio with the same DNA protocol. In the event of an emergency, GPS can be used to locate the team's location for emergency rescue.

HD1 GPS position

IP67 waterproof rating, can be immersed in 1 meter of the water for 30 minutes. Waterproof and dustproof function, can be used in rainy and snowy weather, very suitable for outdoor skiing activities.

HD1 ip67 waterproof

package and details

HD1 package detail


Frequency 136-174 /400-480MHz  /76-107.95MHz (Receive only )
Channels 3000
Operating Temperature -30℃~+60℃
Operating Voltage / Power supplied voltage 7.4V DC / 12V DC
Dimension / Weight / Display 150 x 64x 40mm / 360g (with battery ) / LCD Colour
Channel Spacing Analog 25/20/12.5KHz /  Digital 12.5KHz
Battery Type / Battery Capacity Li-ion / 3200mAh
Global Position System (GPS) TTFF – 49sec Cold start / 8sec Warm start  /  Horizontal accuracy ≤2.98meter
Antenna Impedance 50 Ω
Transmit Power/ Current VHF 10W/5W/1W  / UHF 8W/4W/1W - Selectable
Frequency Stability + - 1.0 ppm
FM modulation mode 12.5KHz@11K0F3E 25KHz@16K0F3E
4FSK Digital Mode 12.5KHz(data only):7K60 FXD / 12.5KHz (data and voice):7K60FXW
Modulation distortion <5%
Vocoder AMBE+2TM
Adjacent channel power 60dBm@12.5KHz / 70dBm@25KHz
Audio Response +1~ -3dB
Digital Protocol ETSI-TS102 361-1,-2,-3
Analogue Sensitivity 0.16 uV (12dB SINAD)
Digital Sensitivity 0.14 uV (5% BER)
Inter modulation 70dB
Spurious Response TIA603C:75dB ETSI:70dB
Audio Response +1~-3dB
Rated Audio Distortion ≤3% (Type)
Audio Power ≥500mW


General Specifications:

GPS Function: Gives you lat long, altitude, bearing, and speed Support to text the information to another radio with the same DMR protocol.

VFO mode: Supports VFO and Channel model switch easily via EXIT key.

Group call match: Call freely without group restrictions.

Dual time slot: Supports Dual time slot and point to point

ID Setting: Supports save and edit radio ID via keypad FM Function: Support receive signal from other radios when you listening radio

Dual Band DMR Radio

Analog and Digital Combined

Compatible with Motorola Tier Ⅰ & Ⅱ

200000 Contacts

1000 Priority Contacts

Dual Time Slot for Point to Point

Firmware Upgrade-able

IP67 Waterproof

Scan: Time/Search/Carrier

Lone Worker

Single/Group/All call

Remote kill/stun/activate

Colour LCD Display

Transmit/Transceiver interruption


Analog Monitor

Comply with Digital Protocol ETSI TS 102 361-1,-2,-3



Talk around


Keypad Lock

LED Indicator

Password Lock

Battery Save

Voice Annunciation

HD1 IP67 FPP Dual Band Ham Radio
