Antlia

ANT-3.0HA-50PRO

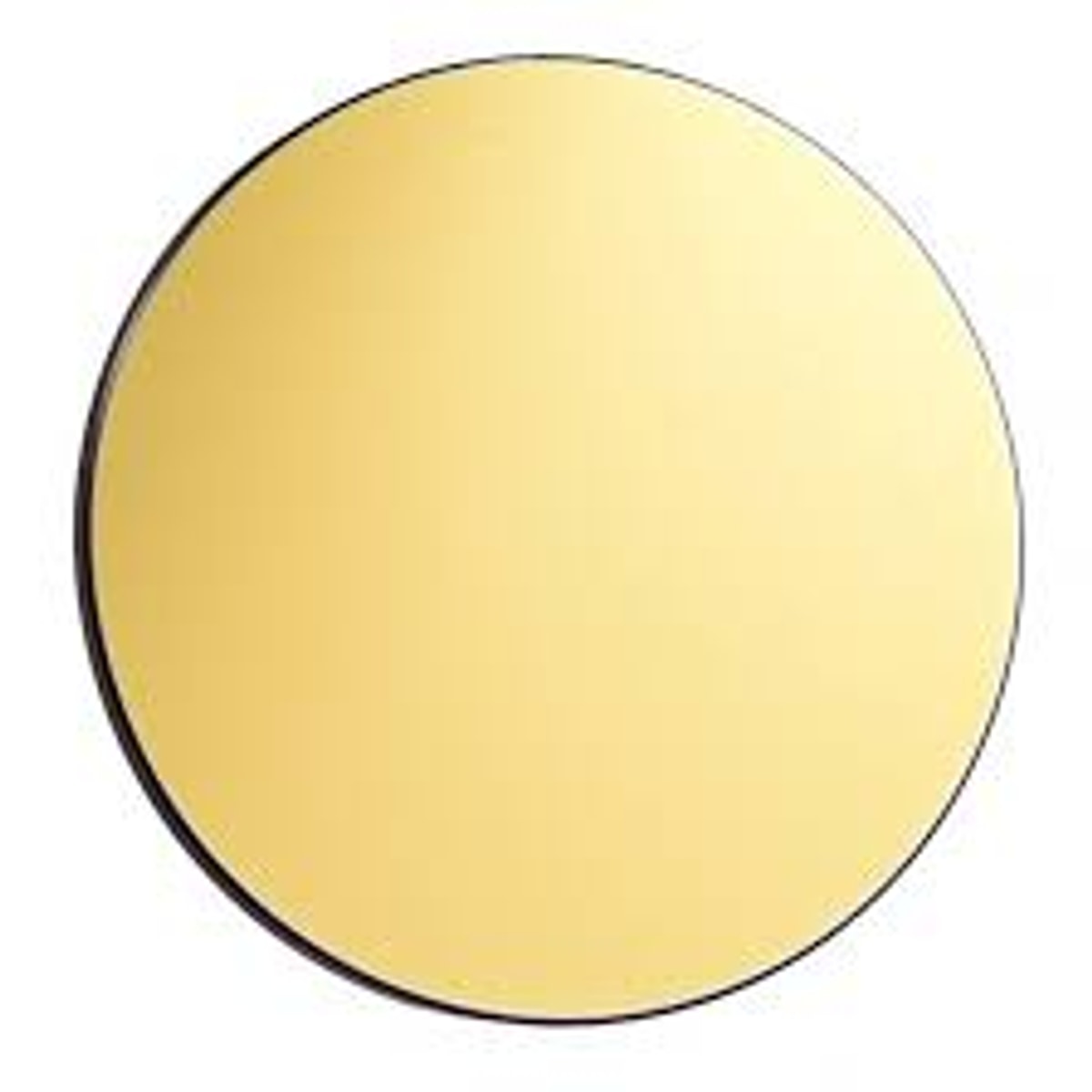

Antlia PRO Ultra Narrowband 3.0nm H-alpha Filter - 50mm Unmounted

£513.00

Tax included. Free UK Shipping - Estimate US & Europe Shipping at checkout.

Quantity

Generally In Stock, Please Confirm Before Ordering

Antlia PRO H-Alpha (Ha) 3.0nm Ultra-Narrowband Filter - 50mm Round Unmounted (glass only)

Antlia H-alpha Pro narrowband filter optimizes the FWHM (full width half maximum) to 3nm bandpassAs the bandwidth becomes narrower, the 3nm Pro narrowband filters enhance contrast of emission targets by lowering the unwanted background signal. Antlia H-alpha 3nm Pro filters are designed to deliver 88% transmission at the 656.3nm line which provides you with the maximum signal and well defined nebulae structures.

Conventional broader narrowband filters cause a heavy loss in transmission due to the strong Center Wavelength (CWL)-shift. We guarantee T>88% within 1nm range of the center bandwidth, which means that the 3nm Pro narrowband filter can guarantee high transmittance for working with both long focal ratios and fast optical systems. Blue-shift data shows that Antlia 3nm Pro filters can be used with nearly all systems as fast as f/3 with minimal loss in emission signal and meets the requirements of fast optics like Hyperstar and RASA.

The out of band blocking specification is rated OD5 (0.001%) which delivers an excellent SNR(signal to noise ratio) and effective cut-off rate to minimize interference from other wavelengths. Improved sharp cut-off astrophotography 3nm Pro filters are designed to minimize halos around bright stars.

Application and Performance:

  • Ultra-narrow 3.0 nm bandwidths, designed for astronomy imaging in both light polluted areas and at dark sites;
  • Suitable for imaging of H-Alpha emission in nebulae, planetary nebulae and supernova remnants;
  • With the Ha, SII, OIII set of filters you are able to process your images to achieve the impressive Hubble color palette;
  • With the Ha and OIII filters these can be used to achieve great narrowband results using the Bi-Color process;
  • High transmission of typically 90% and sharp cut-off delivers an excellent boost in contrast for Ha emitting objects;
  • All Antlia Narrowband filters are edge blackened to minimize interference from stray light;
  • This filter is not suited to deep sky objects that do not contain Ha emissions. It can be used to image Ha regions in galaxies and such images can be combined into LRGB images to better highlight the Ha emitting regions of galaxies.
  • Extends imaging time when the moon is up

Technical Data:

Basic Substrate: Schott optical substrate

Filter Thickness:   3mm+/-0.05mm for Dia50mm unmounted

FWHM (Full width at half maximum): 3nm

CWL (Central Wavelength)656.3nmnm

Peak Transmission: >88%

Blocking: > 5 OD(0.001% out of band blocking) @ 300-1000nm

Surface Quality: S/D (scratch/dig)= 60/40 (Refer to MIL-O-13830)

Transmitted Wavefront: Lambda/4 or better.

Parallelism: less than 30 arcsec

Single / Non-glued substrate

Warranty: 3-years against delamination

Available Sizes:

  • Mounted: 1.25” & 2” (2mm thickness)
  • Unmounted:Dia 31mm,Dia 36mm (2mm thickness)
  • Unmounted:Dia 50mm (3mm thickness)
  • Unmounted:50*50mm,65*65 square (3mm thickness)

Not Recommended:

  • Solar Observing and imaging.
  • Visual observation
    • IMPORTANT! DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS.
      Serious eye damage will result if you fail to observe the warning.
