Pegasus FocusCube 2 Universal
Focus fast, reliable, and accurate your telescope by using the “FocusCube 2“. The evolution of technology in astronomy requires a system that will assist the focusing of the telescope with great accuracy.
Fast optics and modern camera devices require automatic focusing in every small period of time as the temperature can affect the focal length and modify the optimal focus position. Pegasus FocusCube has been developed to meet all of these requirements.
Successful installation to following telescopes
We have succesfully installed the Universal L bracket to the following focusers
Baader Diamond Steeltrack
Explore Scientific Focuser
Skywatcher Esprit Series Focuser
Starlight Feathertouch Series
Takahashi FS-60, TSA-120, Epsilon Focusers
Takahashi FSQ & TOA Focuser
William Optics GT71
William Optics RedCat
Lifts more than 6kg (13 lbs) of imaging equipment
when telescope point to zenith
FocusCube has a very low backlash and high torque suitable to focus in micron scale.
Due to its high resolution and torque, the FocusCube should be placed on the coarse knob / direct shaft of your telescope focuser
Geared Stepper Motor
in an aluminum enclosure
Designed in a high-quality CNC body with modern electronics, FocusCube provides digital precise focus control, for absolute position focusing.
Solid motor couplers in package
Five solid, different bore size, motor couplers are provided so you can select the coupler that fits to your focuser’s shaft. Choose between 4mm to 8mm couplers

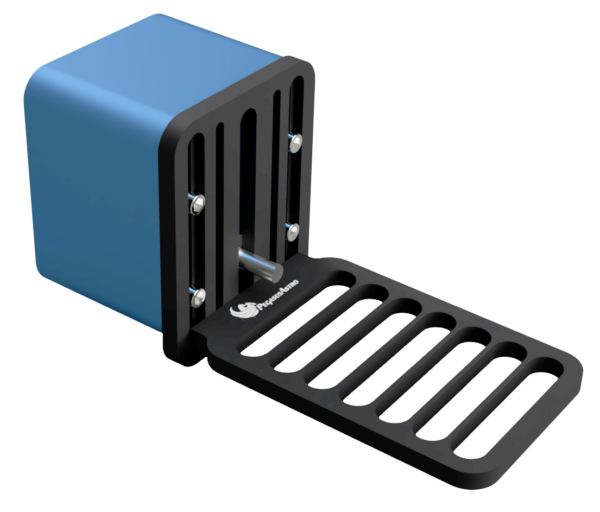

We have designed the L-shaped bracket to easily fit onto most focusers in the market. The lower part of the redesigned bracket can be replaced with a slimmer rail (included) for better compatibility with Newtonian and other low-profile focusers. This L-shaped black anodized aluminum bracket is hard to bend, has cut rails, and can be attached to a wide range of focusers.
Accurate and repeatable focus v-curves
An external digital temperature sensor input is located on the side of the focuser. A digital temperature sensor is included in the package. The probe can be placed near the focuser so the exact temperature of the focuser / environment can be seen through the supplied software or ASCOM driver.
Expansion Port / Manual Focus

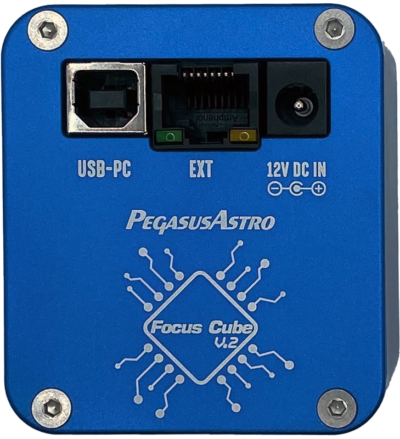

FocusCube includes an expansion RJ45 port at the back of the enclosure. This port provides input for the temperature sensor. An optional hand controller for manual focus control can be acquired for those who might want to add this functionality.. This is an Optional Accessory
ASCOM and INDI support
FocusCube v2 supports latest ASCOM and INDI framework.
Firmware upgrade support
Firmware supports re-programming via the USB 2.0 connection using upgrade software ((only available for Windows), for future upgrades which may become available. We constantly receive feedback from our customers and keep updating the firmware and software with new features.
Dimensions & Weight
56 x 63 x 39 mm / Weight 280g
Unity Platform support
Full control of the FocusCube device can be achieved through Unity Platform.
Different profile names can be used to identify each setup
Pegasus Astro Unity Platform is our new all around application. Our goal is to provide a robust and modern application that is going to support current and future products under one roof.
In the Box
1 x FocusCube V2
Different sizes (Pairs of M3x10, M4x10, M4x40 M5x10, M6x10, ) of metric screws and washers
4 x M3x6mm length screws (to attach the enclosure on the bracket)
|Supply Voltage||DC 12-14V|
|Motor Output||None, Stepper Motor is embedded|
|USB Connectivity||USB 2.0 Type B plug|
|Thermal Sensor Resolution||9-bit Celsius temperature measurements|
|Power Input Connector||2.1mm Centre Positive Socket|
|Motor||High resolution geared stepper motor
(Step Angle (Deg) 7.5 / 120 Gearbox
|Dimensions||56 mm x 63 mm x 39 mm|
|Operating Tempetature||-40 °C to +80 °C|
