The world’s first electronic tilt adjuster
Wanderer ETA M54
5mm thickness M54 electronic tilt and back focus adjuster

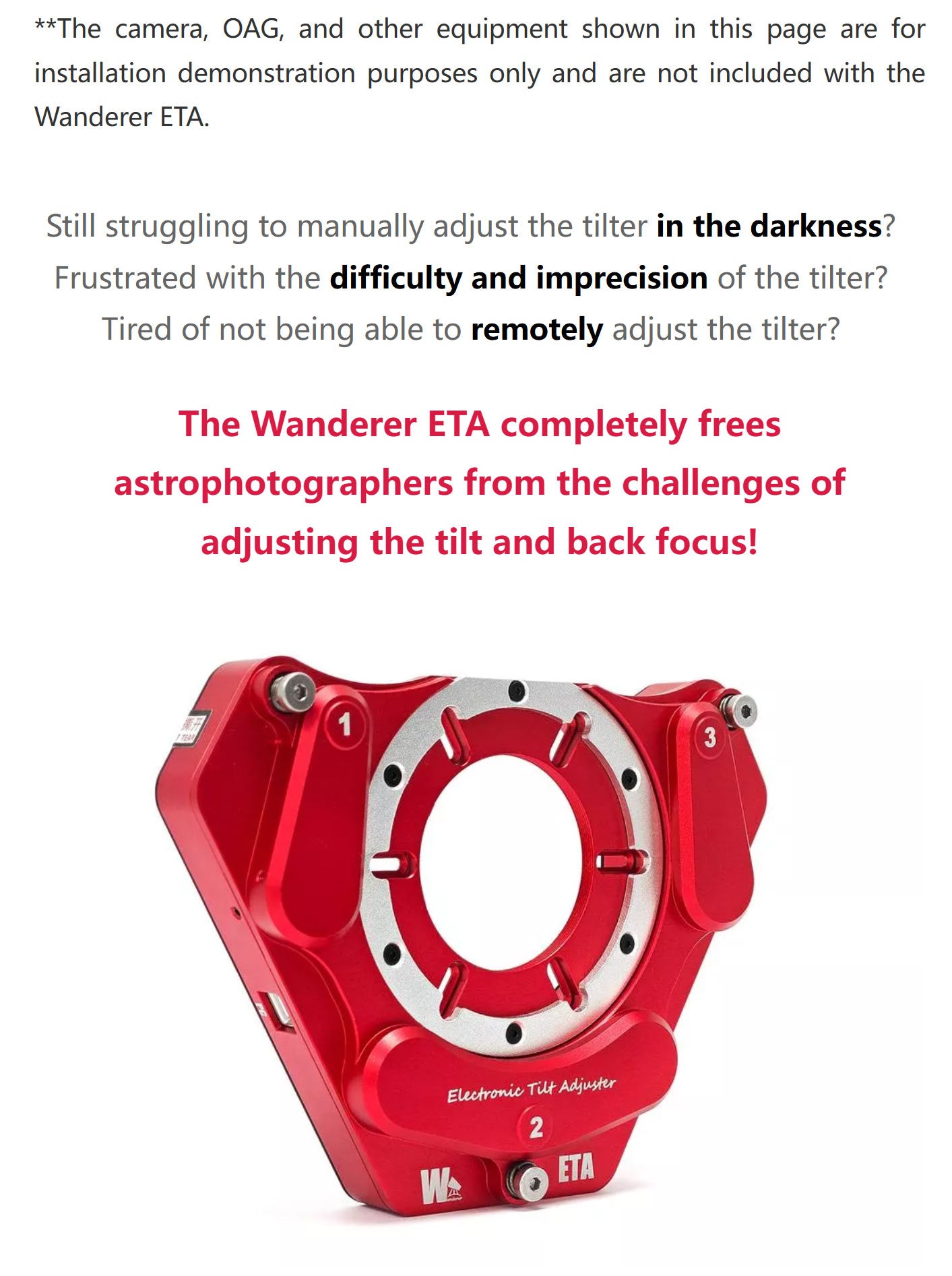

Still struggling to manually adjust the tilter in the darkness?
Frustrated with the difficulty and imprecision of the tilter?
Tired of not being able to remotely adjust the tilter?
The Wanderer ETA completely frees astrophotographers from the challenges of adjusting the tilt and back focus!
Unique Patented Structural Design
With an ultra-thin thickness, the Wanderer ETA occupies only 5mm of back focus or focuser travel when directly connected to the OAG or camera using screws. It weighs just 470g. Additionally, it features a dual-layer nested structure that eliminates any light leakage.

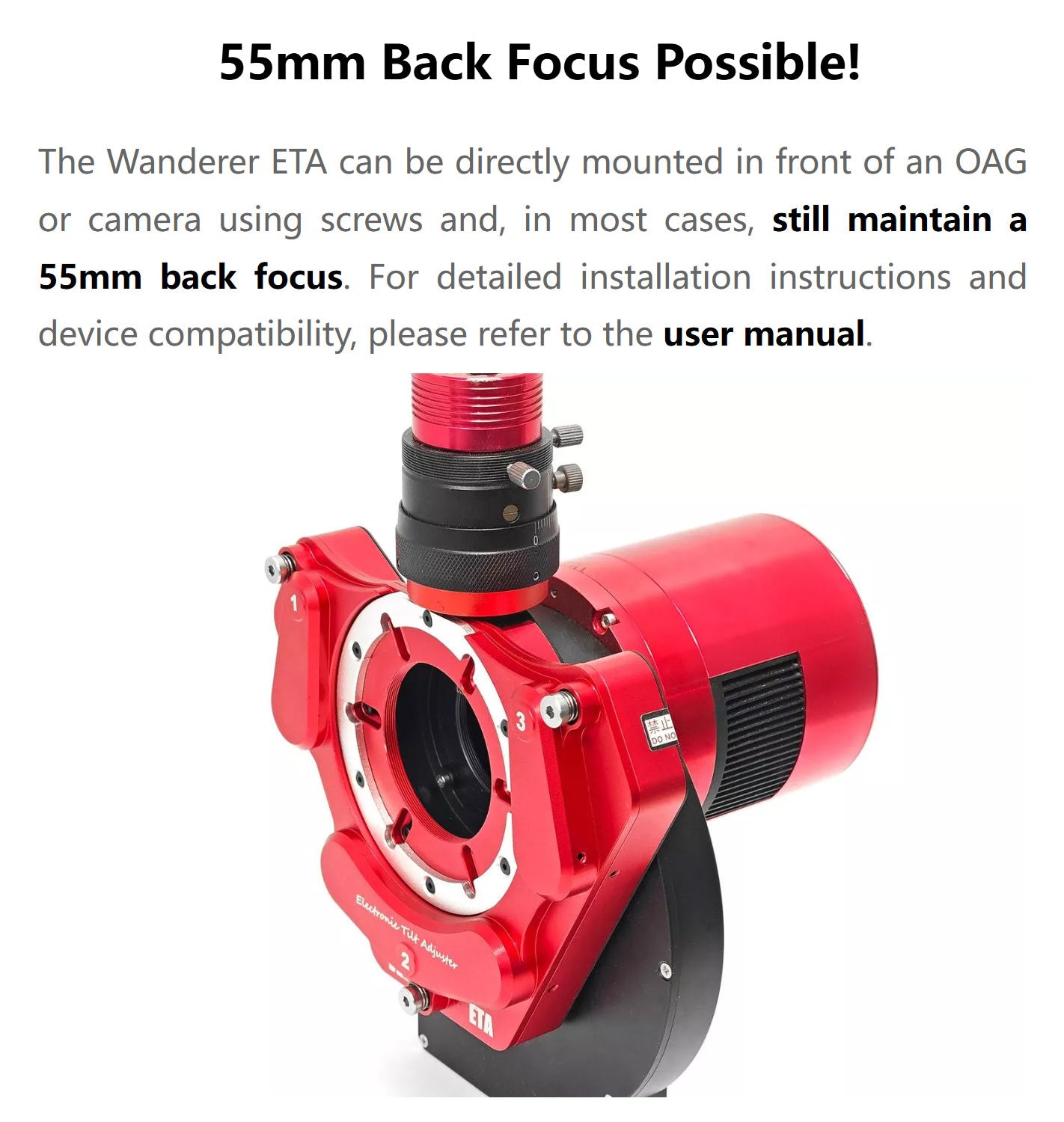

55mm Back Focus Possible!
The Wanderer ETA can be directly mounted in front of an OAG or camera using screws and, in most cases, still maintain a 55mm back focus. For detailed installation instructions and device compatibility, please refer to the user manual.

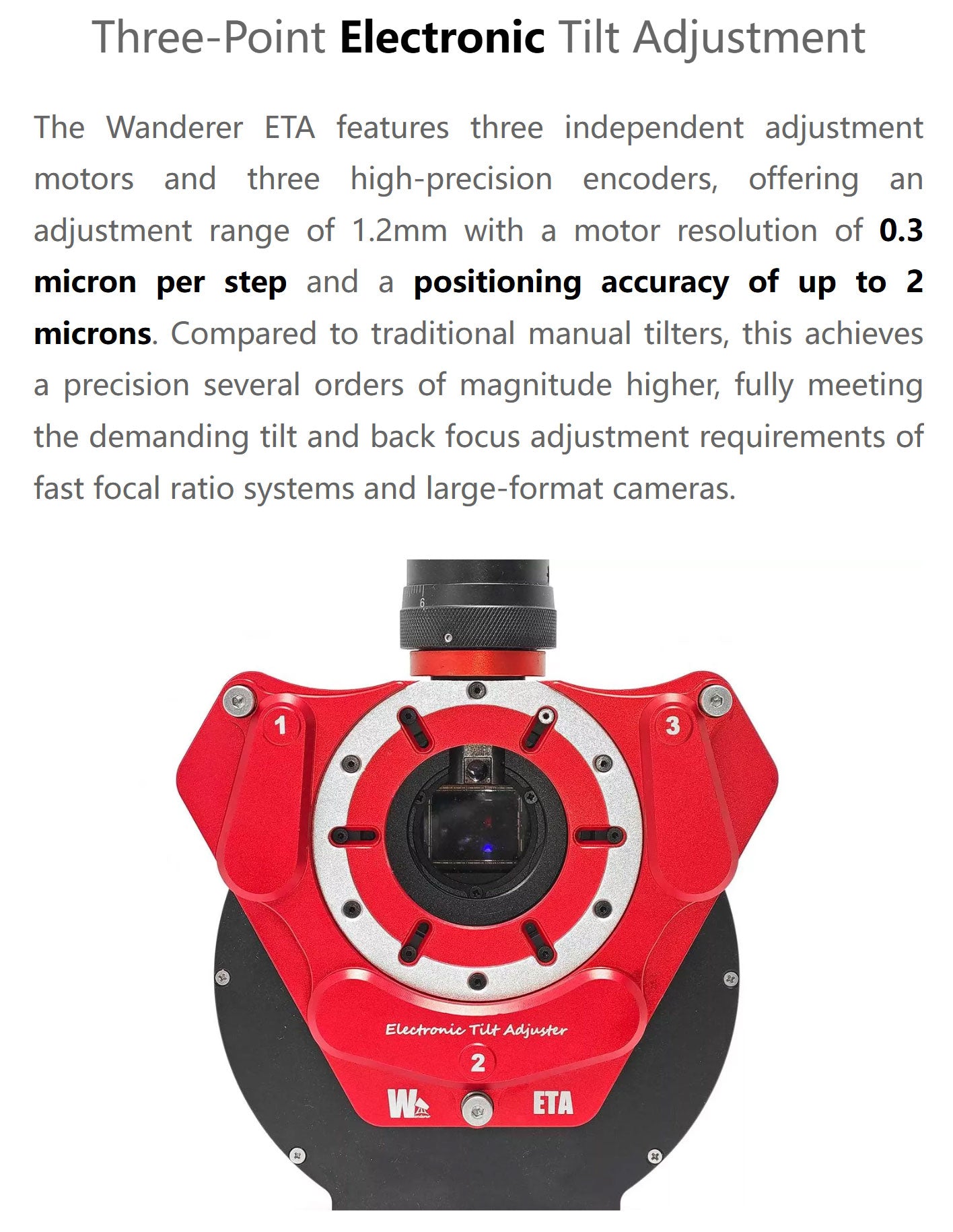

Three-Point Electronic Tilt Adjustment
The Wanderer ETA features three independent adjustment motors and three high-precision encoders, offering an adjustment range of 1.2mm with a motor resolution of 0.3 micron per step and a positioning accuracy of up to 2 microns. Compared to traditional manual tilters, this achieves a precision several orders of magnitude higher, fully meeting the demanding tilt and back focus adjustment requirements of fast focal ratio systems and large-format cameras.
Low Temperature Resistant Design
Tested under extreme conditions, the Wanderer ETA remains fully operational even at -20°C (-4℉), making it resilient against harsh winter environments.

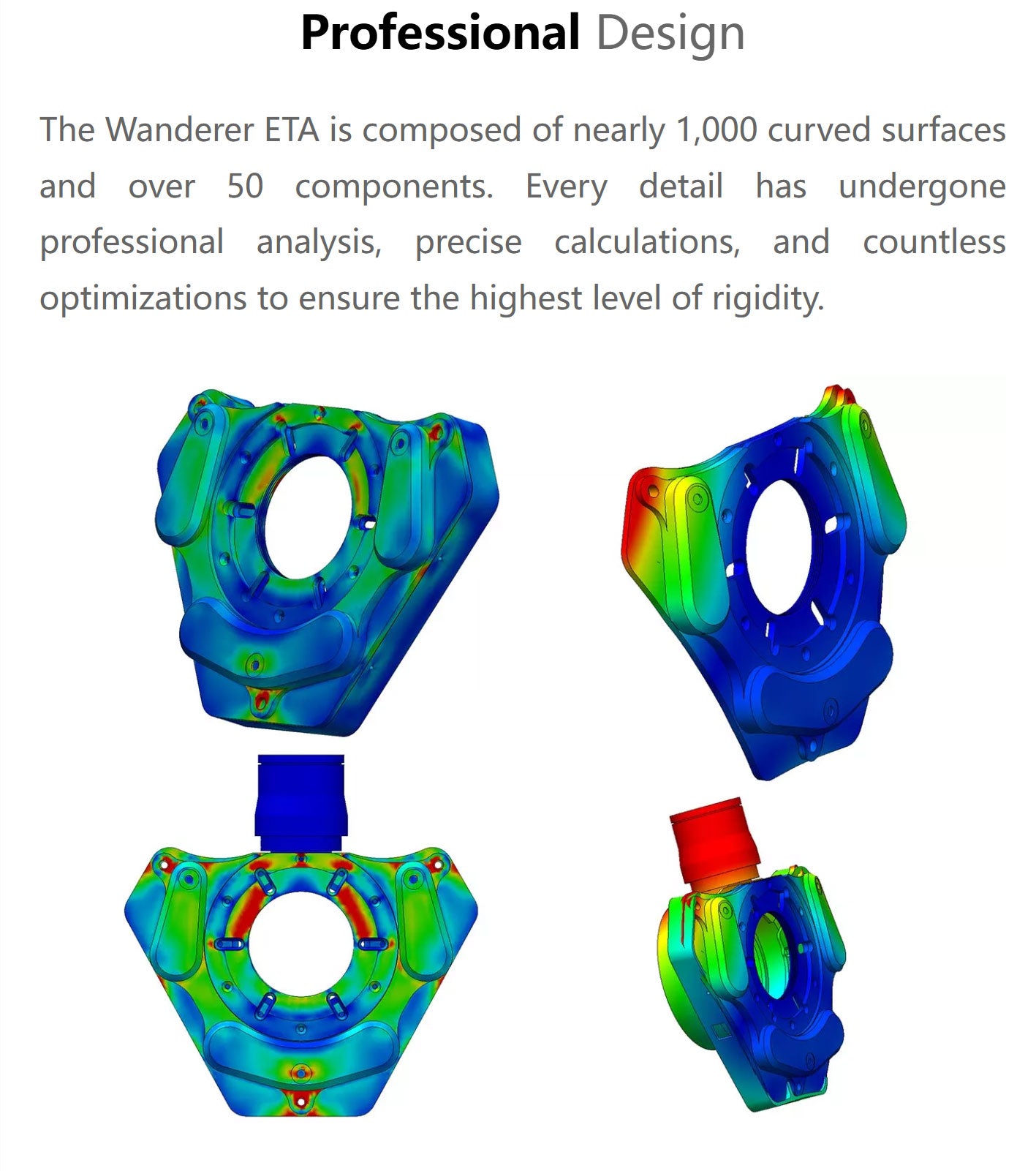

Professional Design
The Wanderer ETA is composed of nearly 1,000 curved surfaces and over 50 components. Every detail has undergone professional analysis, precise calculations, and countless optimizations to ensure the highest level of rigidity.
Unparalleled Aesthetic Design
WandererAstro's aesthetic design never disappoints. Every rounded corner and every carefully sculpted curve make the Wanderer ETA not just a precision instrument but also a beautifully crafted piece of art.

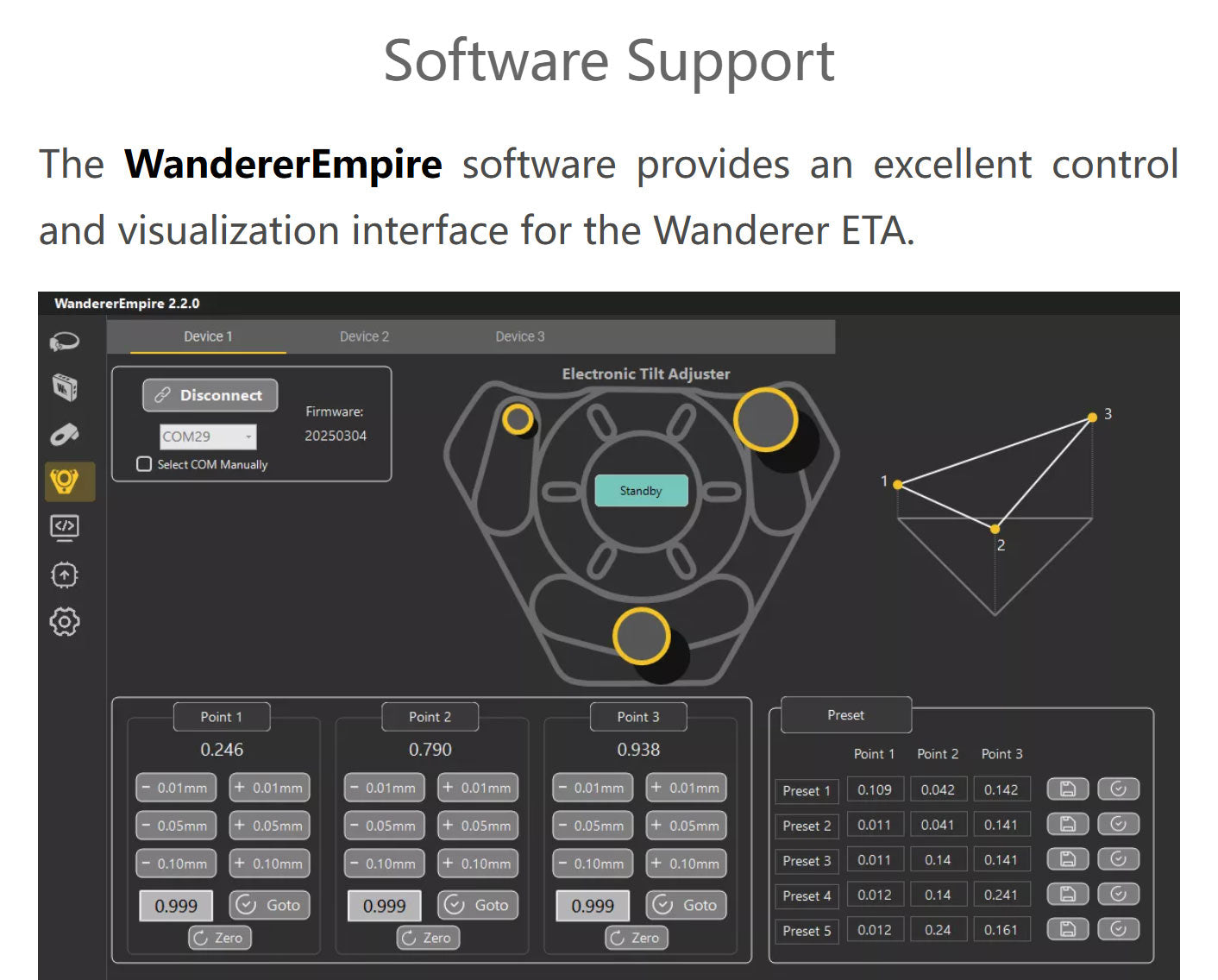

Software Support
The WandererEmpire software provides an excellent control and visualization interface for the Wanderer ETA.
Gallery
Related Accessories

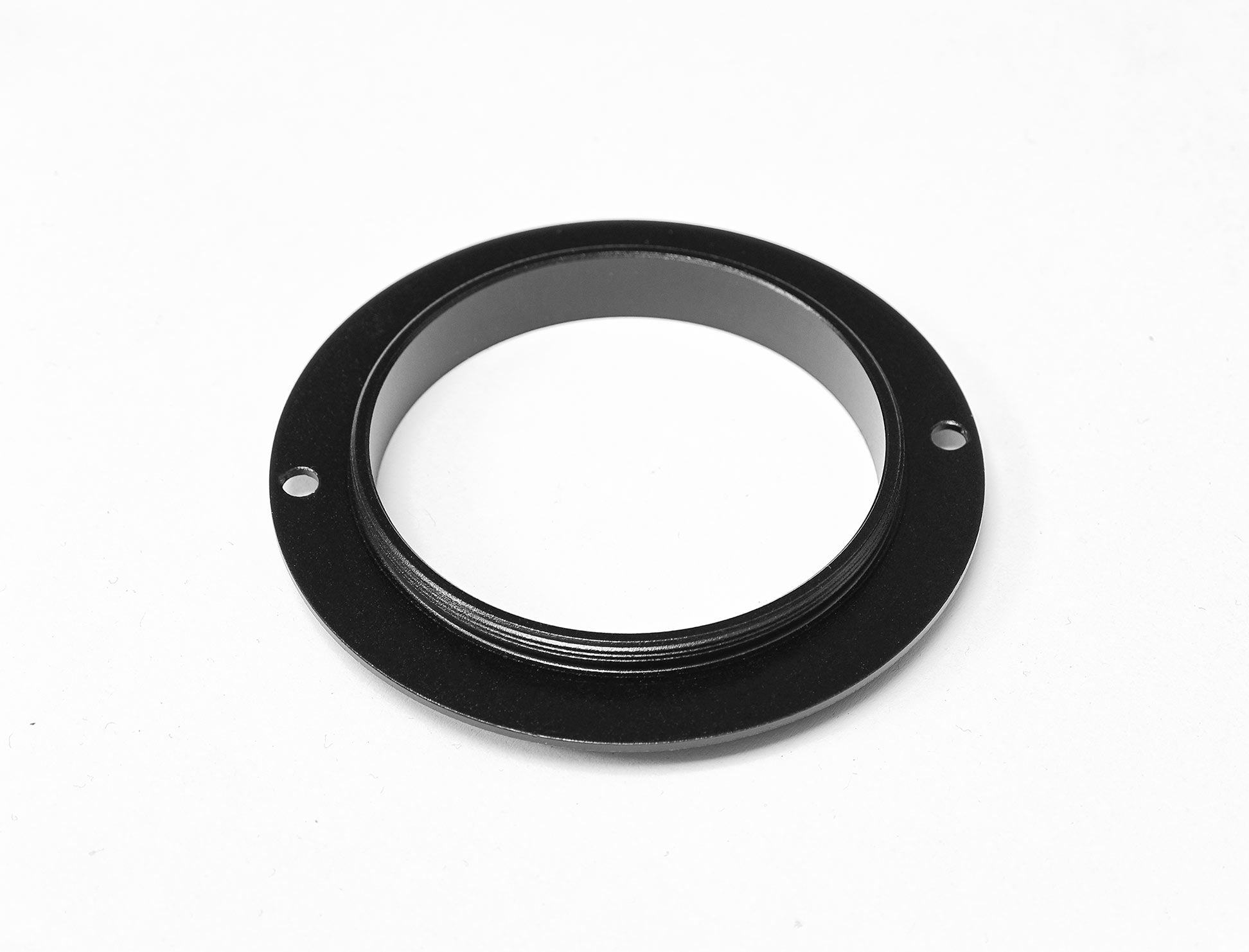

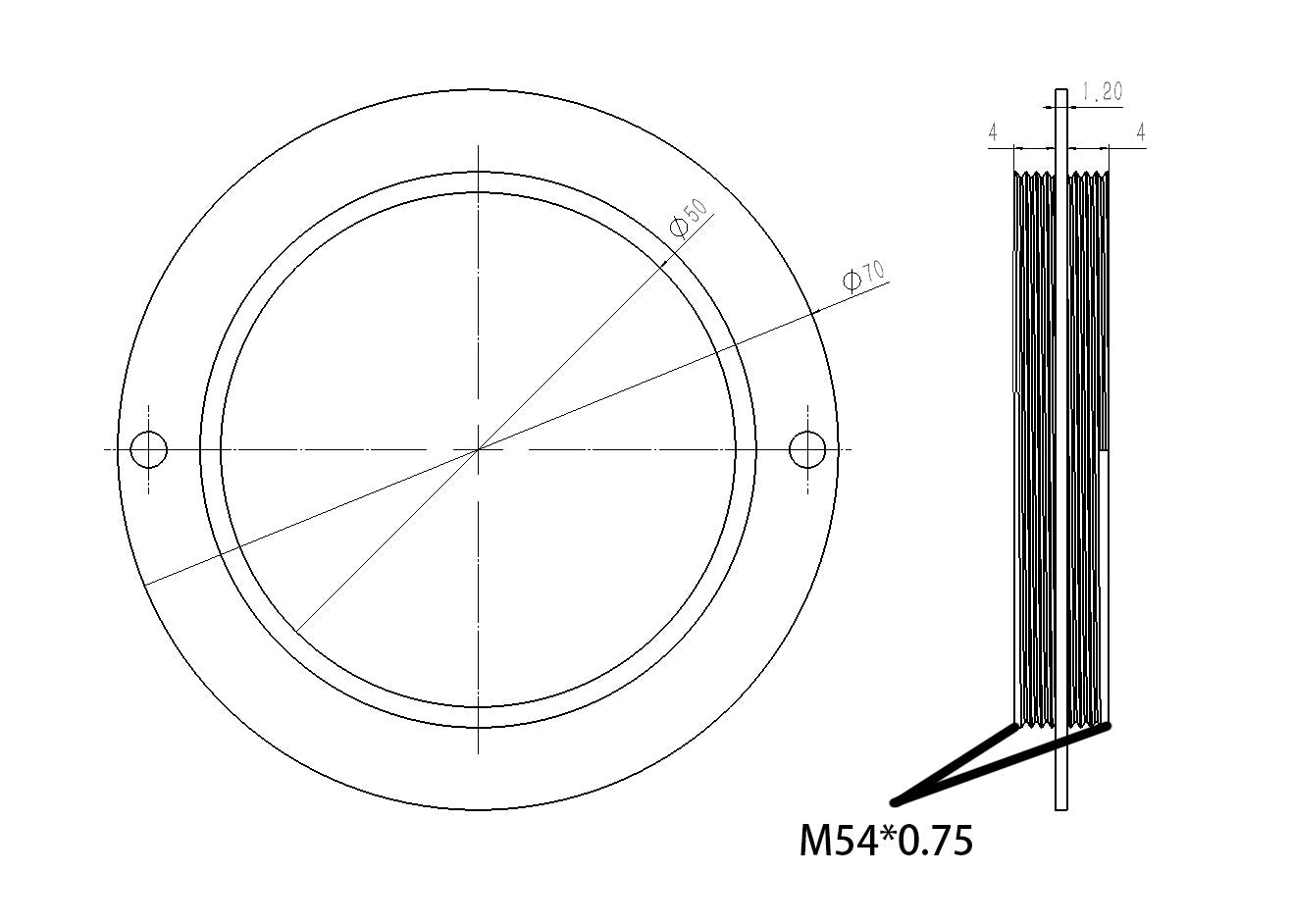

Connect to camera/OAG/filter wheel etc. via M54 thread
Ideal for Takahashi Epsilon 130/160/180

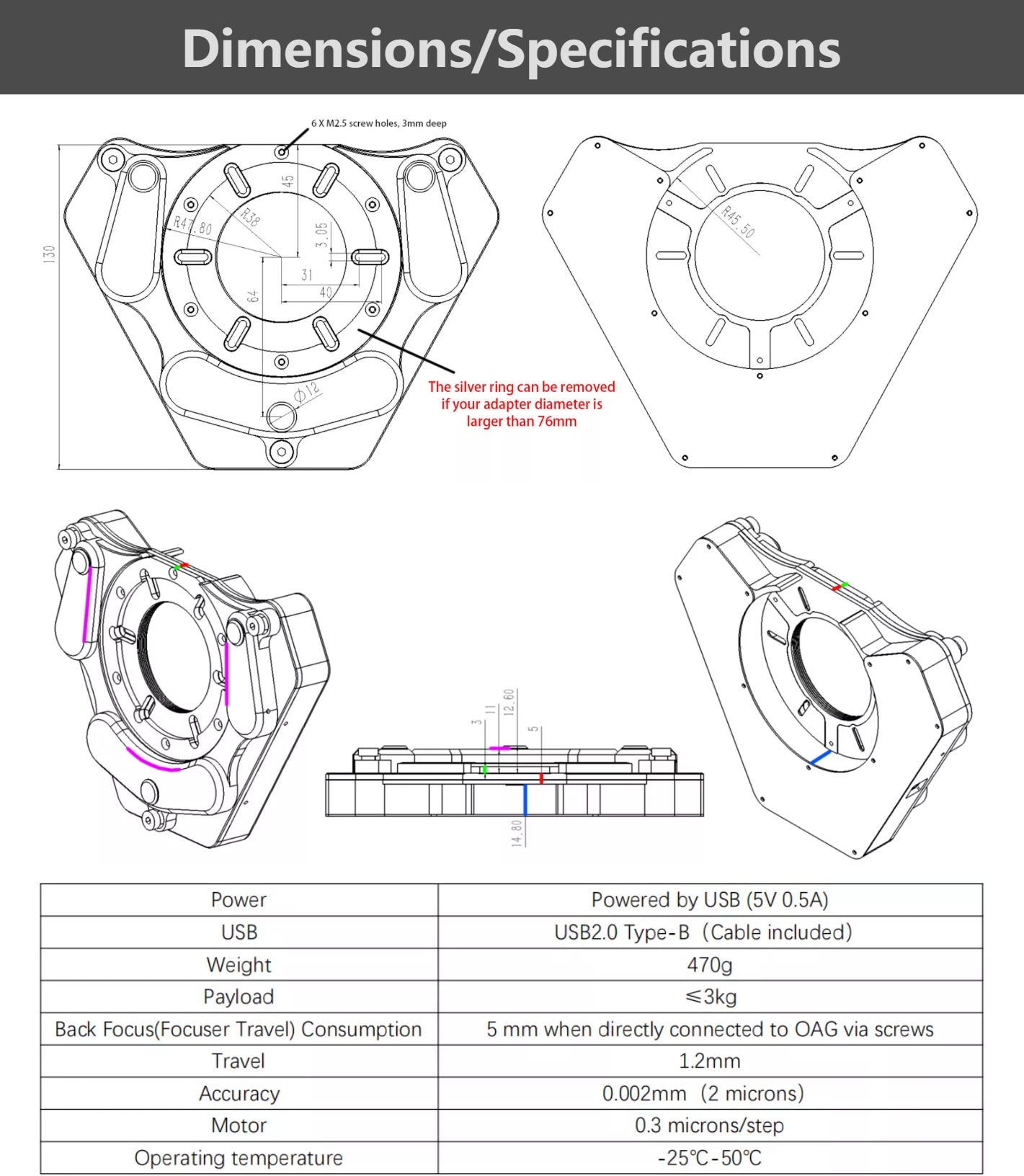

Dimensions/Specifications

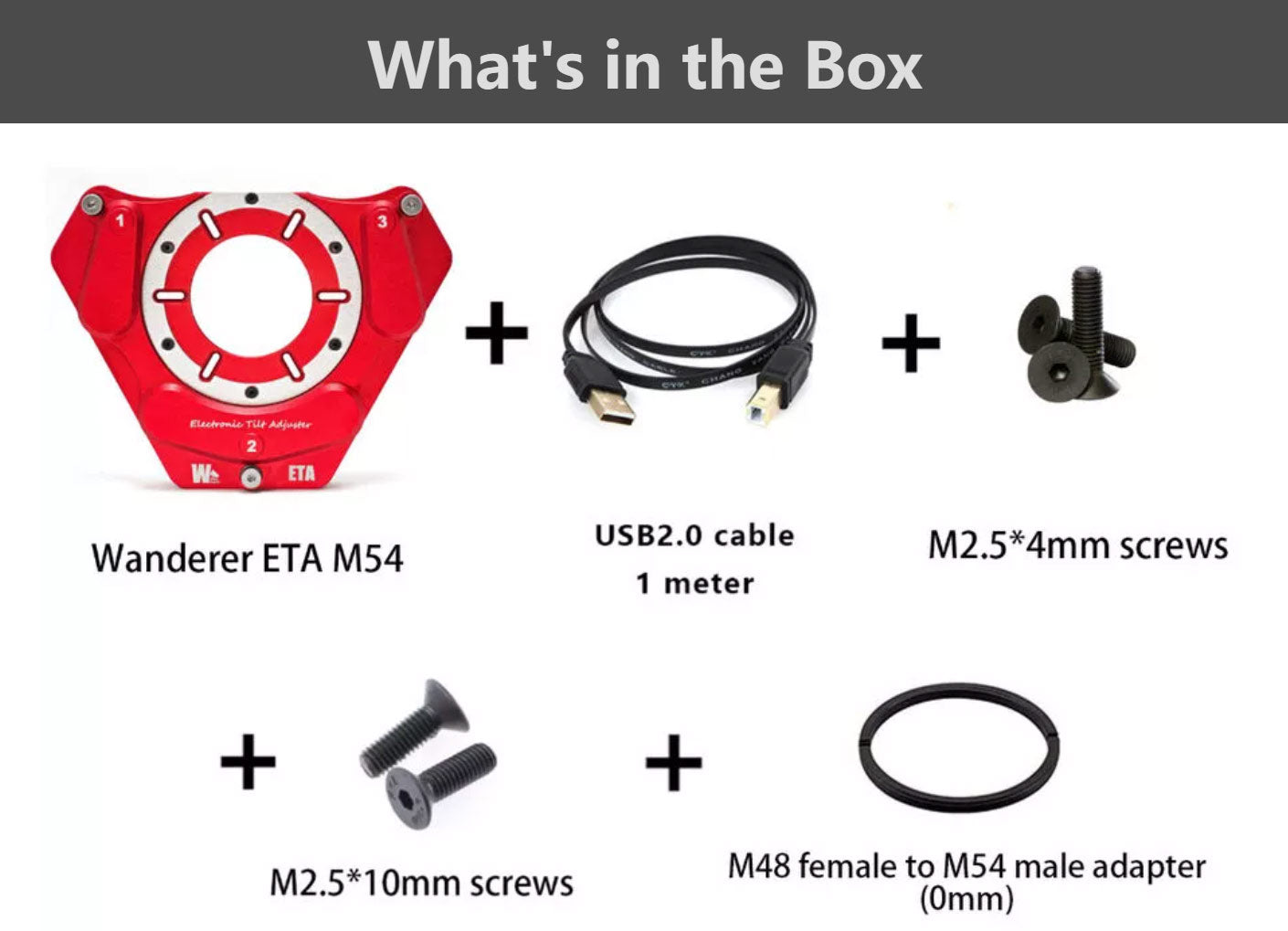

What's in the Box
