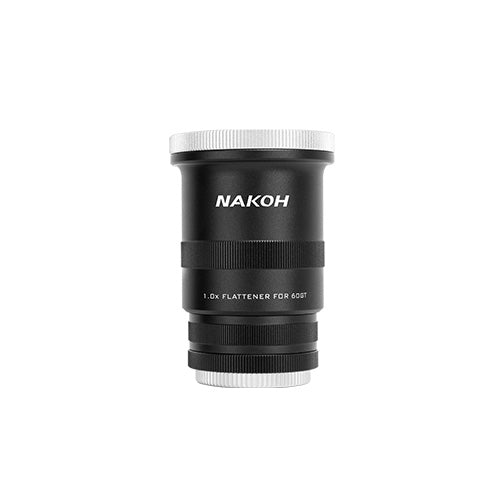

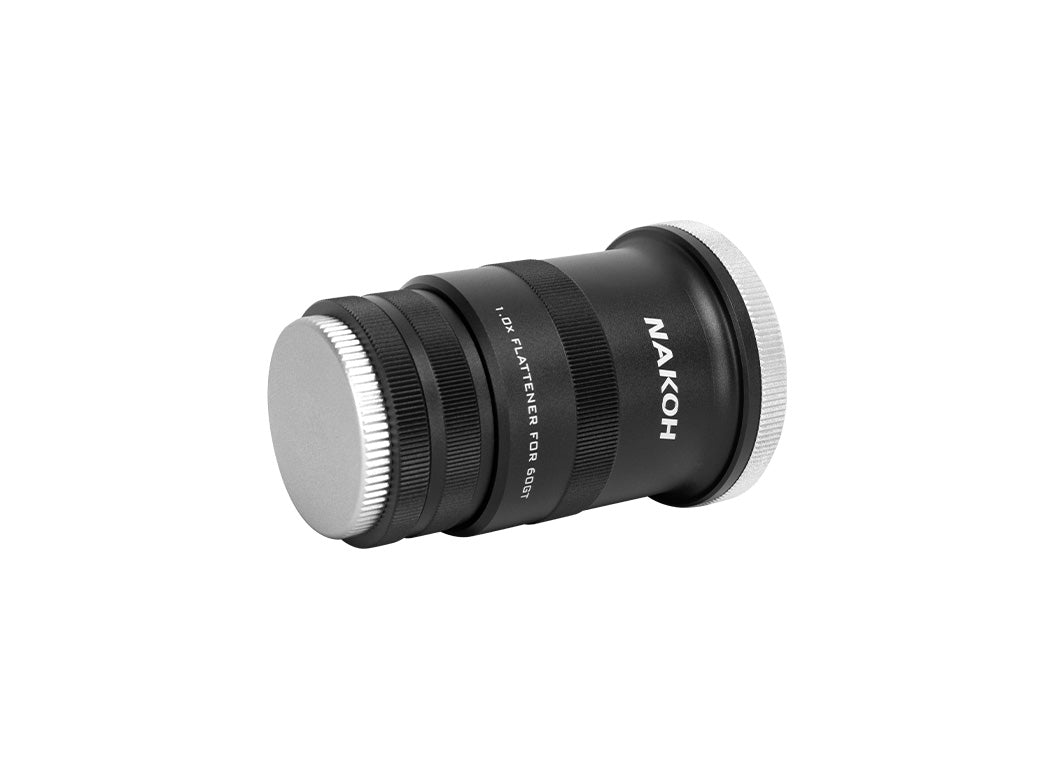

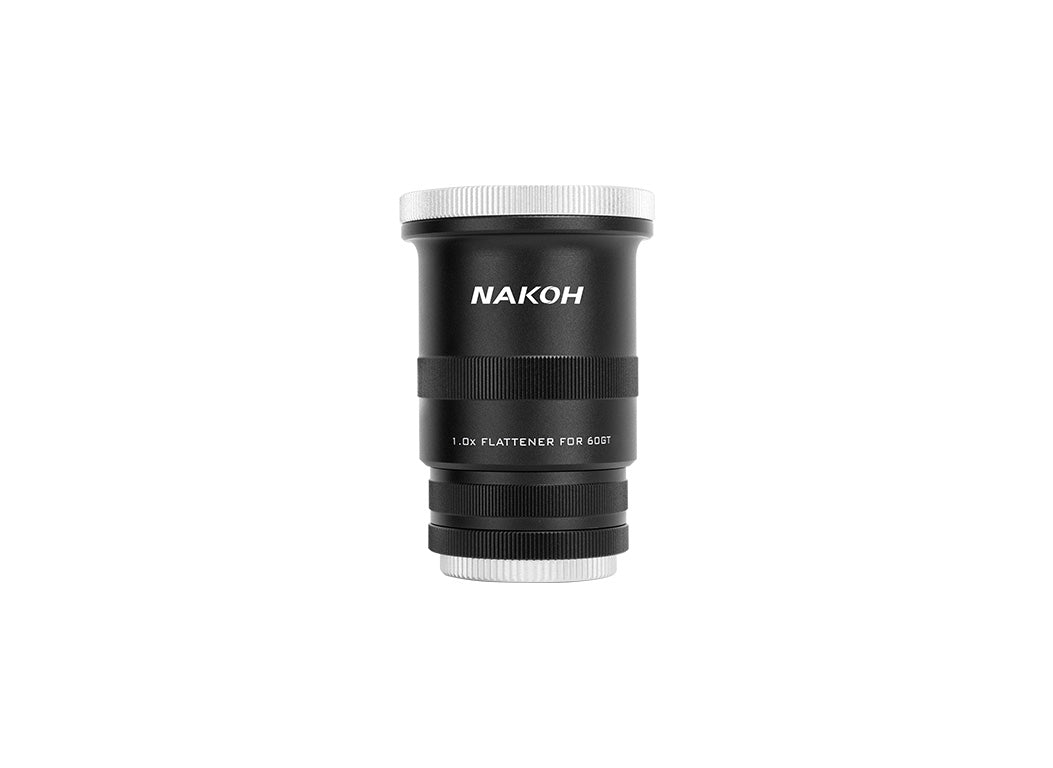

A 1.0× field flattener designed specifically for the NAKOH 60GT, unlocking its full-frame imaging potential by correcting field curvature while preserving the telescope’s native focal length and f/6 focal ratio.

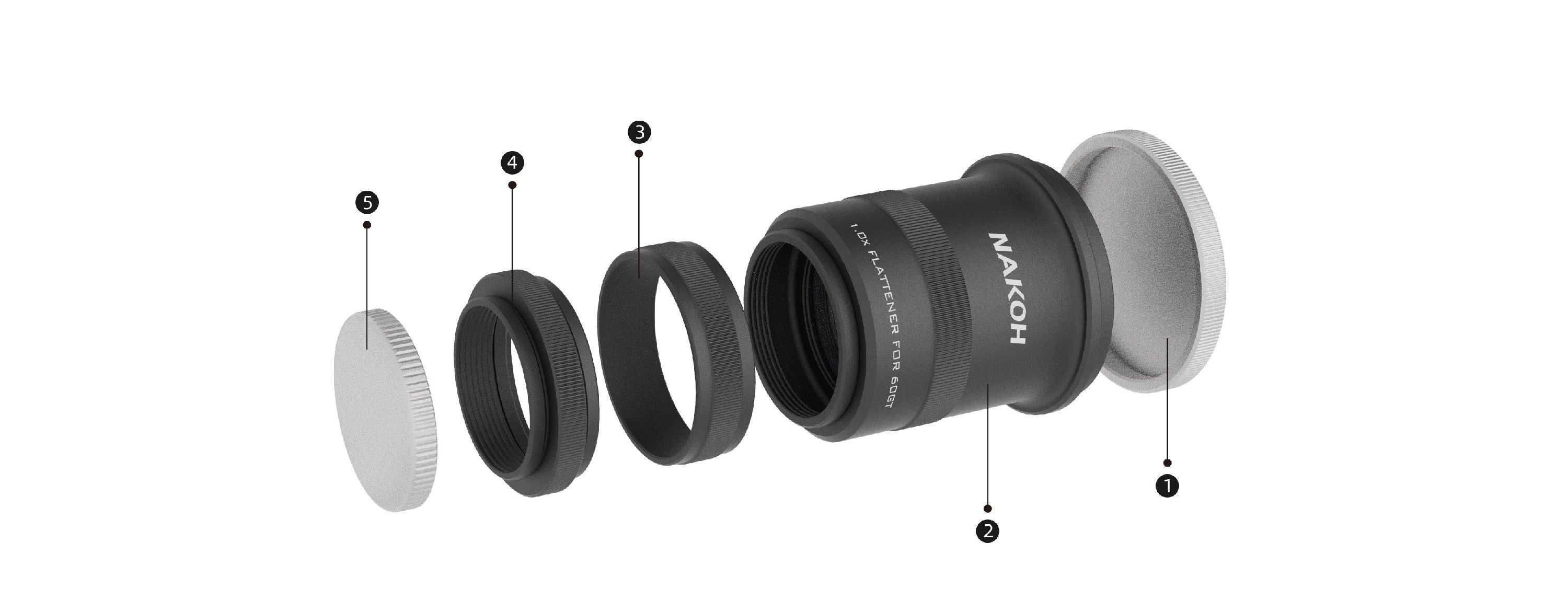

Package Contents
|
|
Specifications
| Product Name | 60GT Specific 1.0× Flattener |
| Dimensions (W × D × H) | 112 × 75 × 75 mm |
| Magnification | 1.0× |
| Optical Design | Triplet |
| Effective Focal Ratio | f/6 |
| Image Circle | Ø44mm |
| Back Focus | 55mm |
| Connection Threads |
Telescope side: M68×1 Camera side: M48×0.75, M54×0.75 |
| Weight | 0.53 kg |
| Standard Accessories |
1.0× Flattener ×1 Front & Rear Caps ×2 Instruction Manual ×1 Warranty Card ×1 |
Design Features
Uniform Flat Field
Precisely corrects field curvature, delivering evenly sharp and round stars from the centre to the edges of the frame.
Bright, Vivid Imaging
Maintains over 95% relative illumination across full-frame sensors, effectively suppressing vignetting and preserving image brightness.
Native Focal Ratio
Preserves the 60GT’s original 360mm focal length and f/6 focal ratio, ensuring optical performance remains fully optimised.
Full-Frame Optimised
Triplet optical construction ensures a flat field and sharp stars from centre to corner when used with full-frame cameras.
Astrophotography Samples
Product Size & Connection Diagrams
