Extra height and clearance for your tripod setup

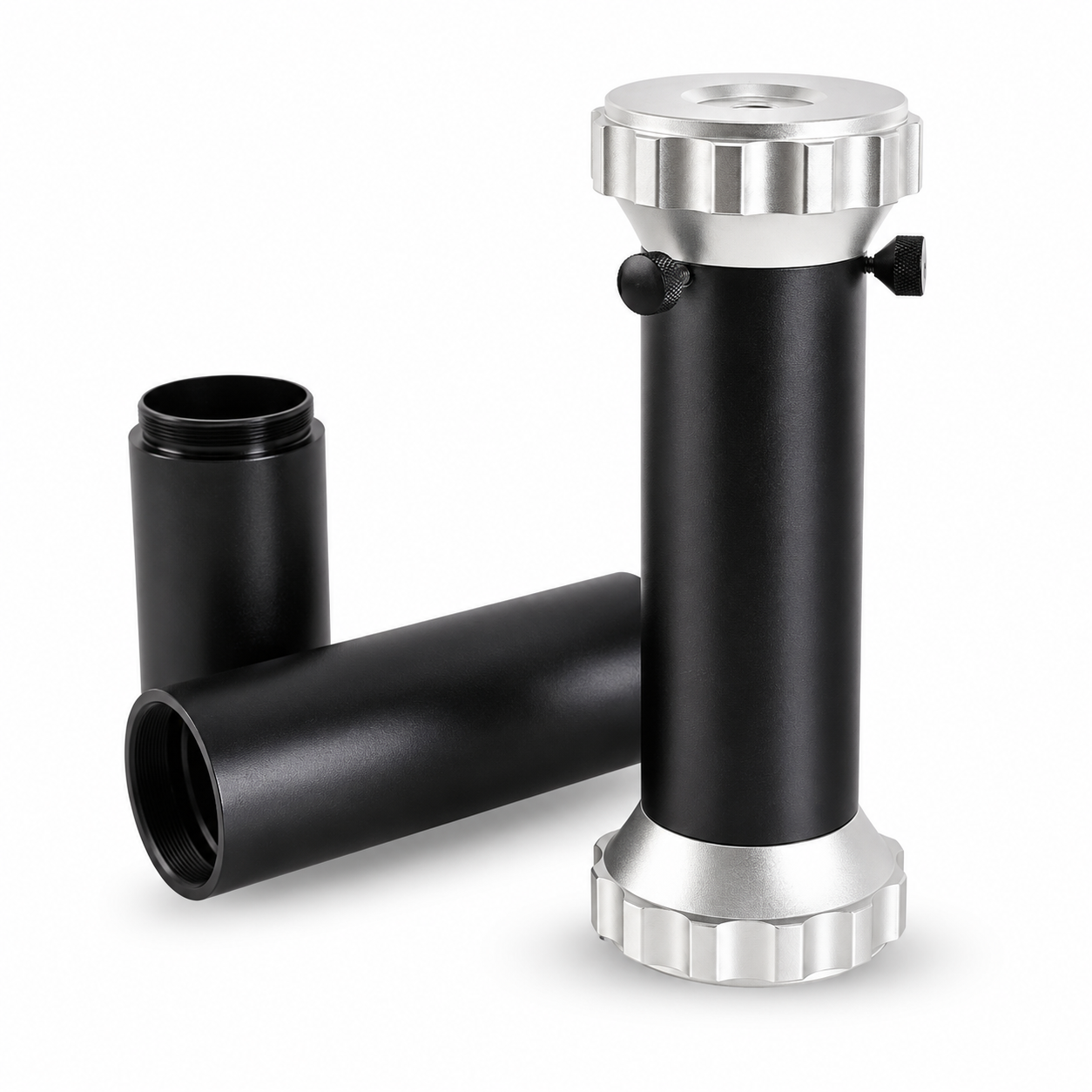

The DCS Photo Tripod Extension Set raises a compatible tripod head or mount above the tripod platform, giving you more room to position your equipment. Its modular design lets you choose a shorter setup or add extension sections when you need greater height.
With a 3/8-inch male connection at the top and a 3/8-inch female connection at the base, the kit is intended for photographic and astronomy equipment with matching mounting interfaces.
Choose the height that suits your equipment
The set includes a main extension and two additional tubes. Fit the sections needed for your setup using the configurations below.
| Configuration | Approximate assembled height |
|---|---|
| Main extension | 215 mm |
| With the shorter additional extension | 320 mm |
| With the longer additional extension | 370 mm |
| With both additional extensions | 470 mm |
Practical, modular construction
- Aluminium construction: black extension tubes with silver end fittings.
- Removable top platform: separates from the main body for access during setup.
- Threaded extension sections: configure the kit for the height you need.
- Hand-operated fittings: scalloped collars and thumbscrews provide accessible grip.
Check the mounting connection
Your tripod needs a suitable 3/8-inch male mounting stud to connect to the kit's base, and the head or mount above it needs a matching female connection. Check the mounting surfaces, thread engagement and clearance as well as the thread size.
Mounts with proprietary bases, locating pins or recessed fittings may need a dedicated adapter. A matching thread size alone does not guarantee fit. If you are unsure, contact Dark Clear Skies with your tripod and mount models before ordering.
What is included?

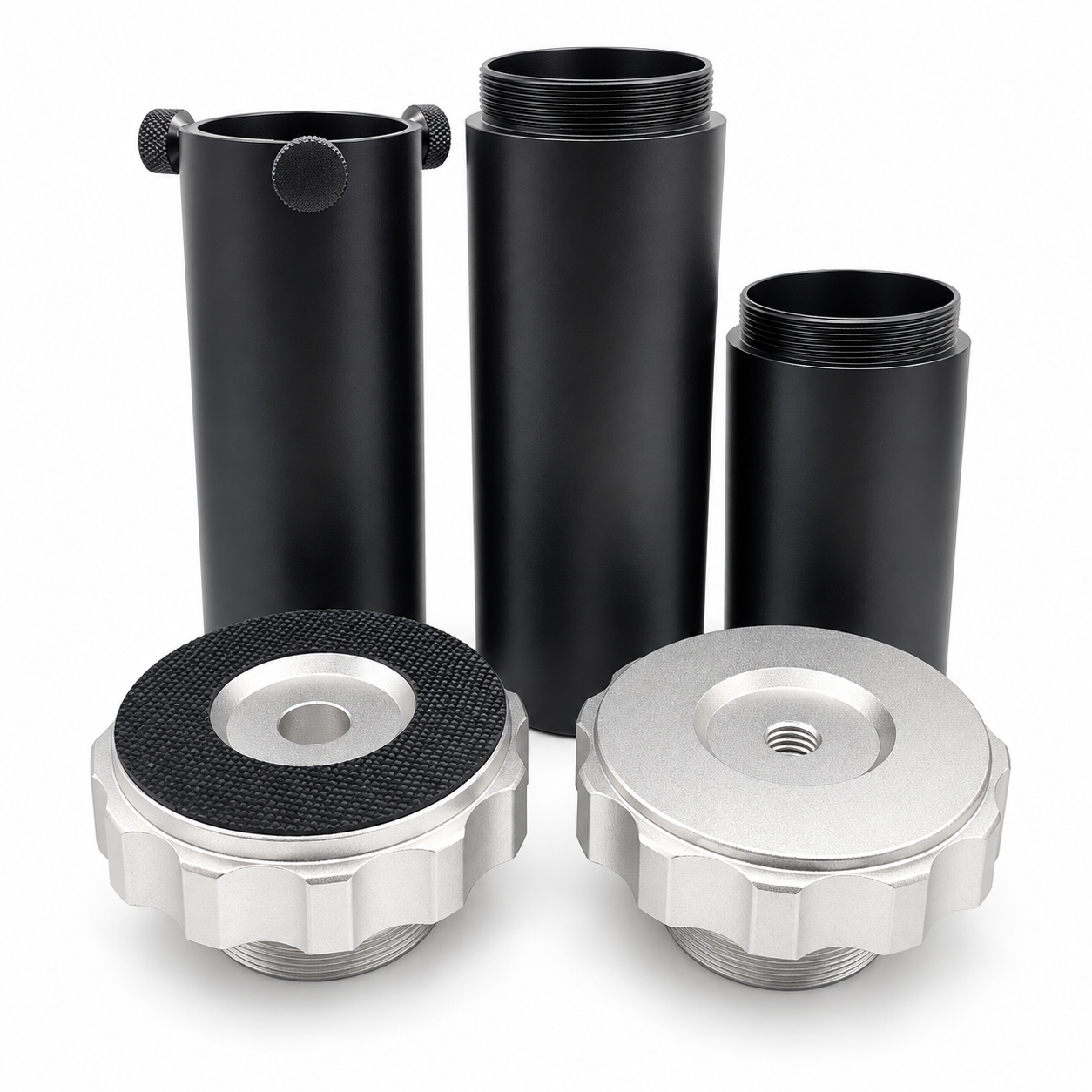

- Main tripod extension assembly with removable end fittings
- Two additional extension tubes

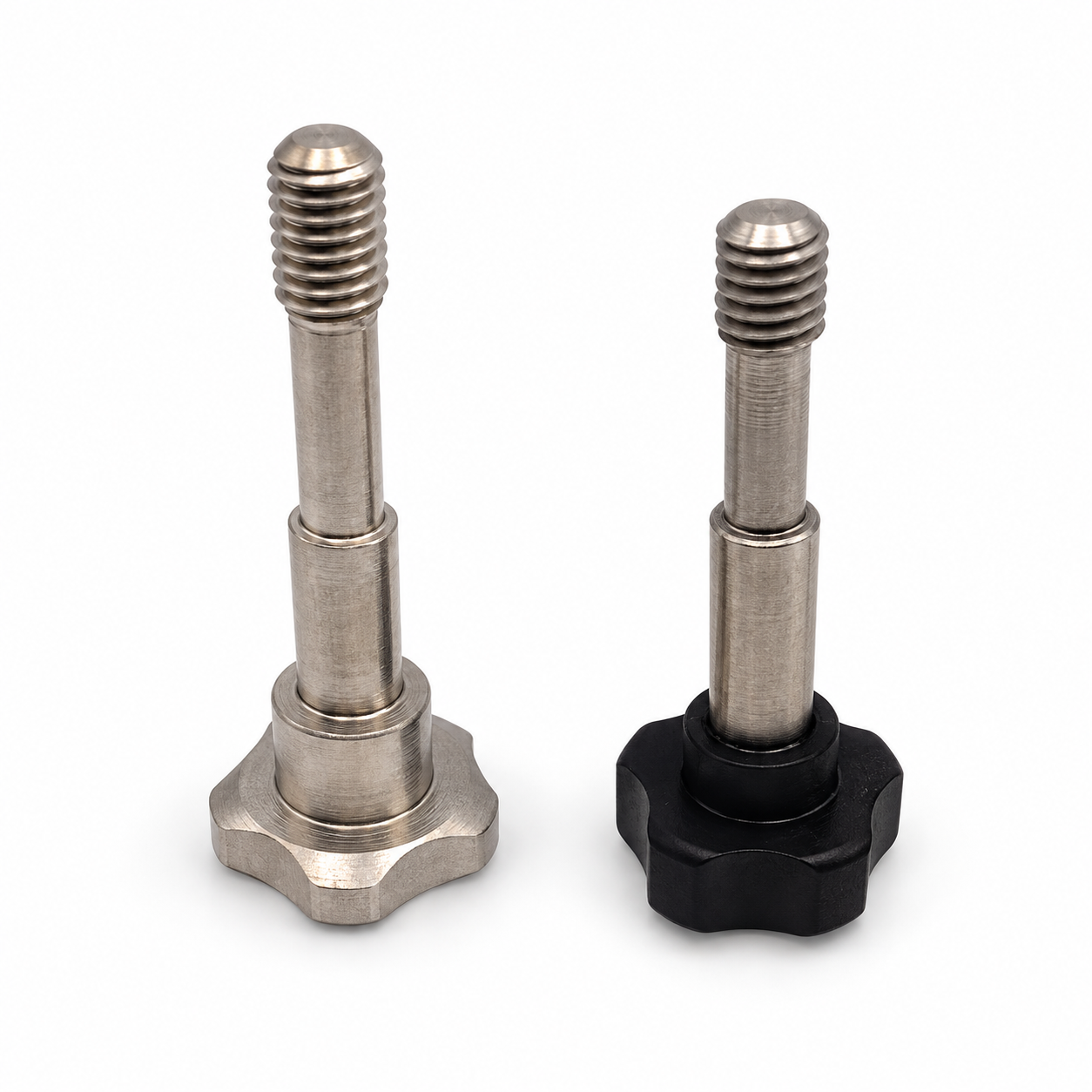

- Mounting fixings shown in the product photographs
Tripod, head, telescope and camera are not included. Use the shortest configuration that provides the clearance you need, and keep within the limits of every component in your setup.
