Description

Dark Clear Skies · ZWO mounting accessories

ZWO pier extensions & mounting accessories

Choose the right part for your setup.

Raise your mount above the tripod with a complete PE200 or PE160 pier extension, or select a spare plate, pillar set or counterweight bar for your existing equipment. This listing brings those options together so you can choose the component you need.

200mmPE200 pier extension
160mmPE160 pier extension
5 optionsSelect one item or set

Your selection determines what you receive. The two complete pier extensions, spare plate, three-pillar set and counterweight bar are separate purchase options. They are not supplied together as one kit.

Two ways to gain tripod clearance

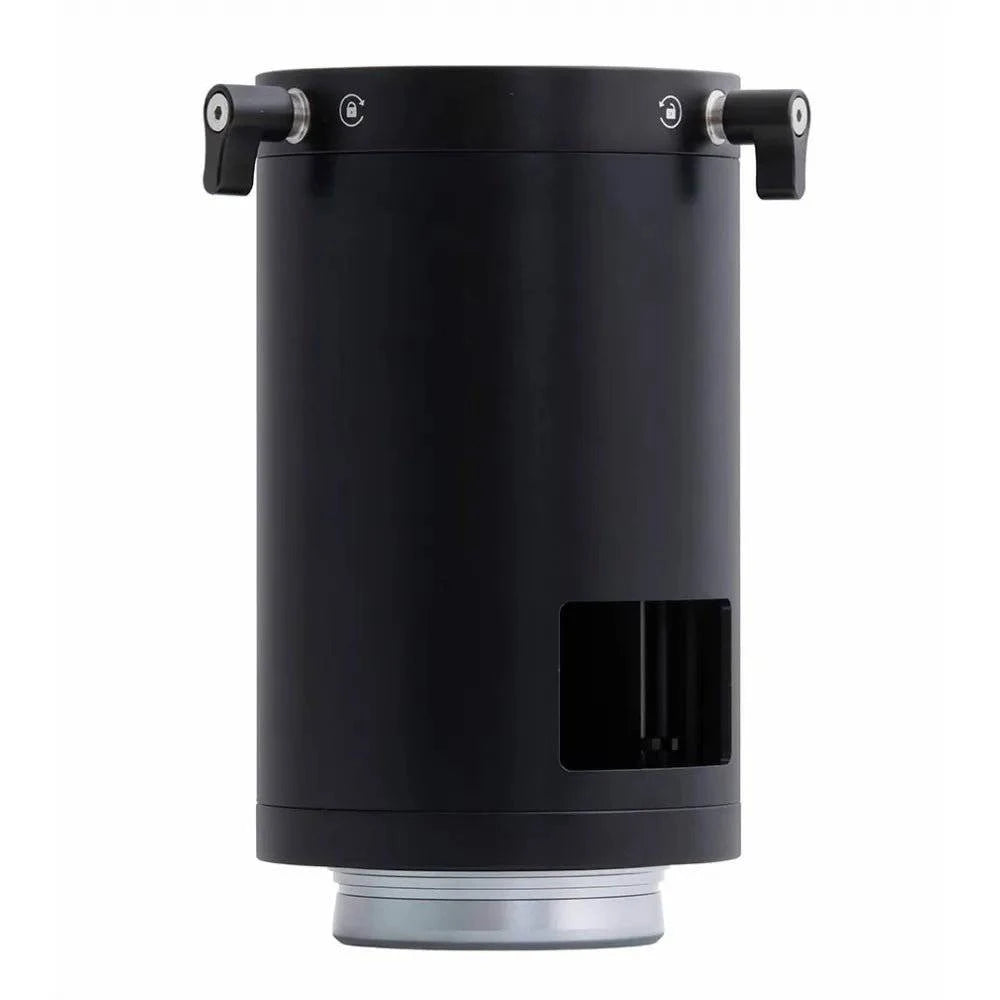

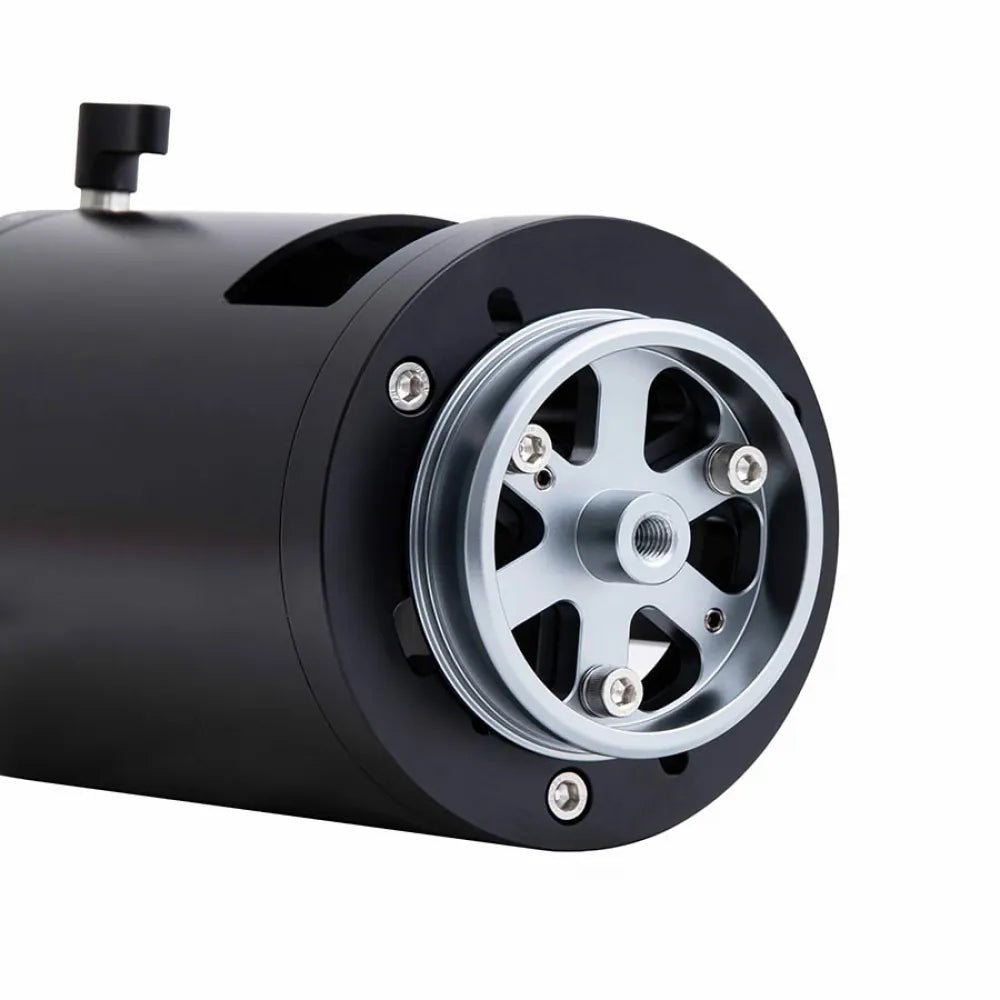

ZWO PE200 cylindrical pier extension with locking levers and silver base fitting
PE200. The taller 200mm option, with an enclosed body and an access opening near the base.

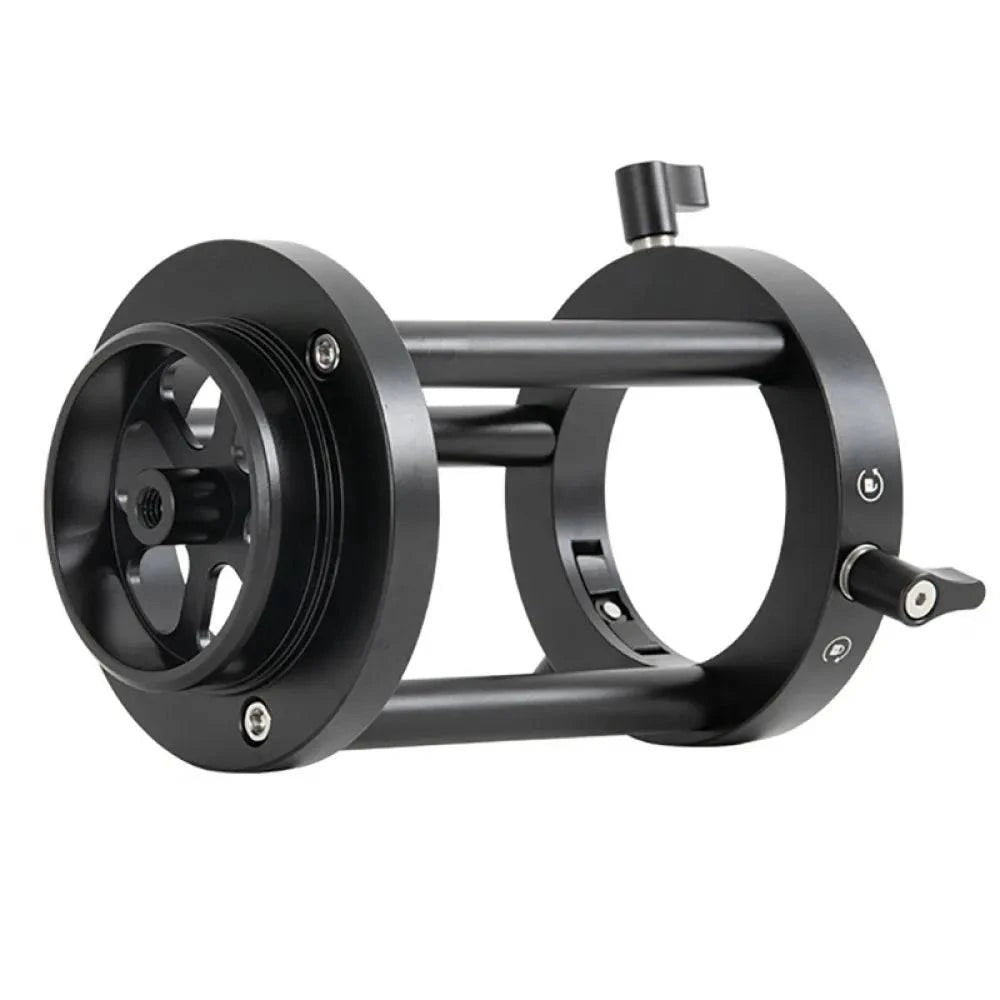

ZWO PE160 open three-pillar pier extension with mounting plates and locking levers
PE160. A shorter 160mm extension with an open three-pillar construction.

A pier extension moves the mount head farther above the tripod platform. This can give a long telescope, diagonal or camera more room as the mount moves. Choose the height around your complete telescope and accessory arrangement, then check clearance through the positions you intend to use.

Specification PE200 PE160
Extension height 200mm 160mm
Diameter 124mm 124mm
Weight 1.6kg Approximately 1.0kg
Manufacturer's extension load rating Up to 50kg Up to 10kg
Mount application listed here ZWO AM5 ZWO AM3 and AM5

Check the whole support system. These are ratings for the extensions themselves. They do not increase the rated payload of your mount or tripod. Account for everything supported by each component, including the mount head, telescope, camera and accessories, and follow the relevant equipment limits.

Select a complete pier or an individual part

Option What you are choosing

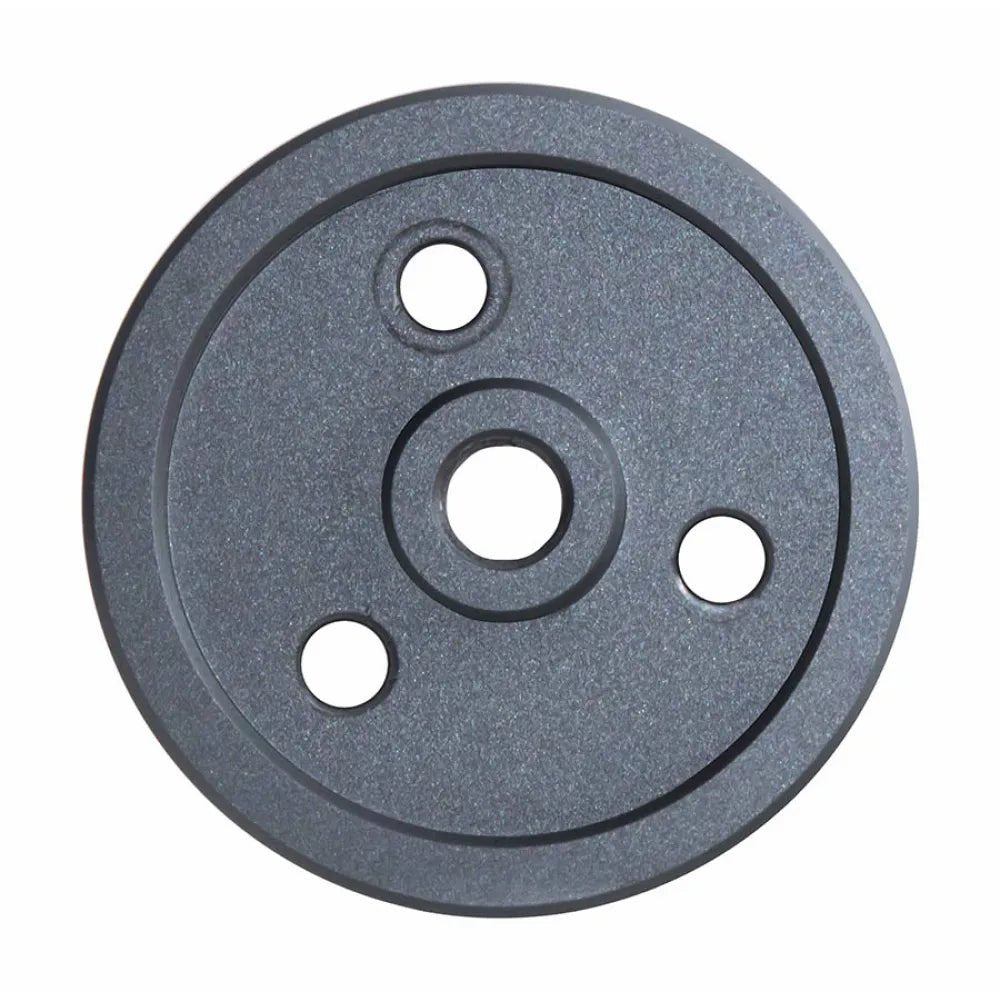

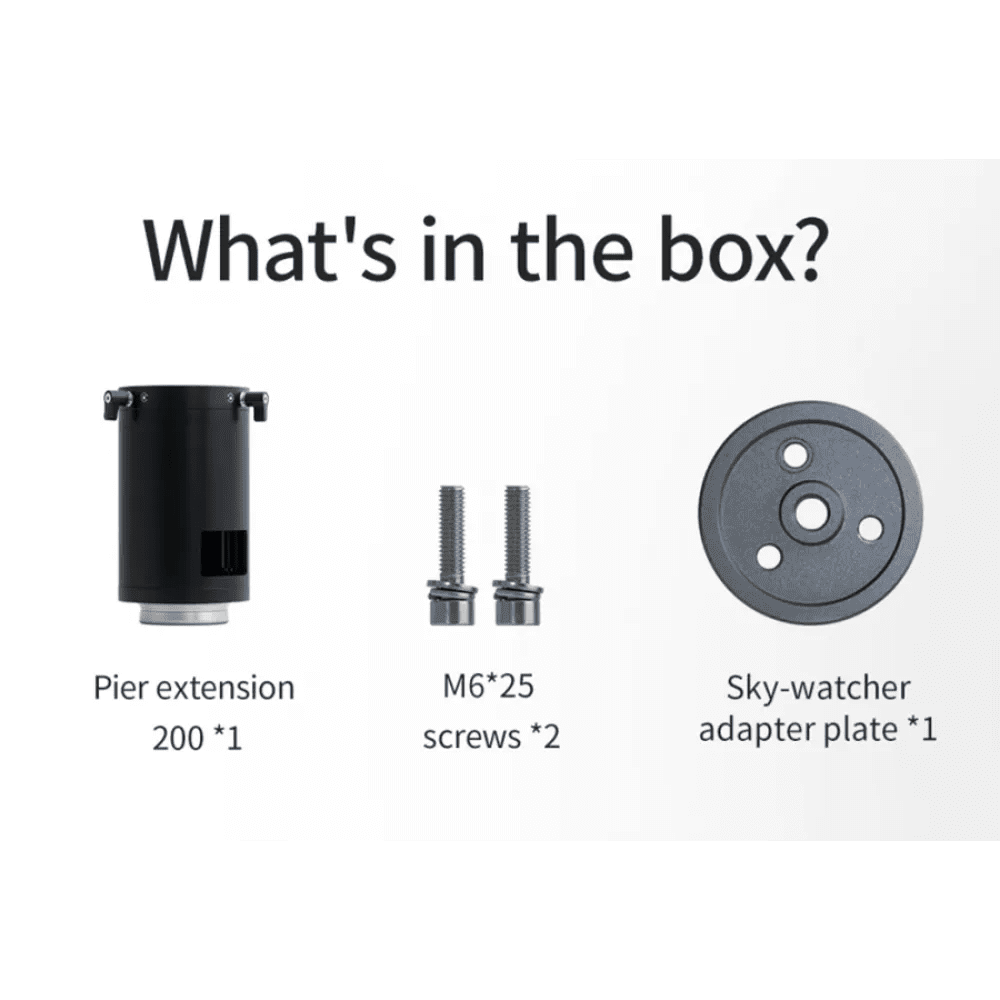

PE200 · 200mm A complete PE200 pier extension. ZWO's published package includes the extension, two M6 × 25 screws and a Sky-Watcher adapter plate.
PE160 · 160mm A complete PE160 pier extension for the AM3/AM5 application listed above.

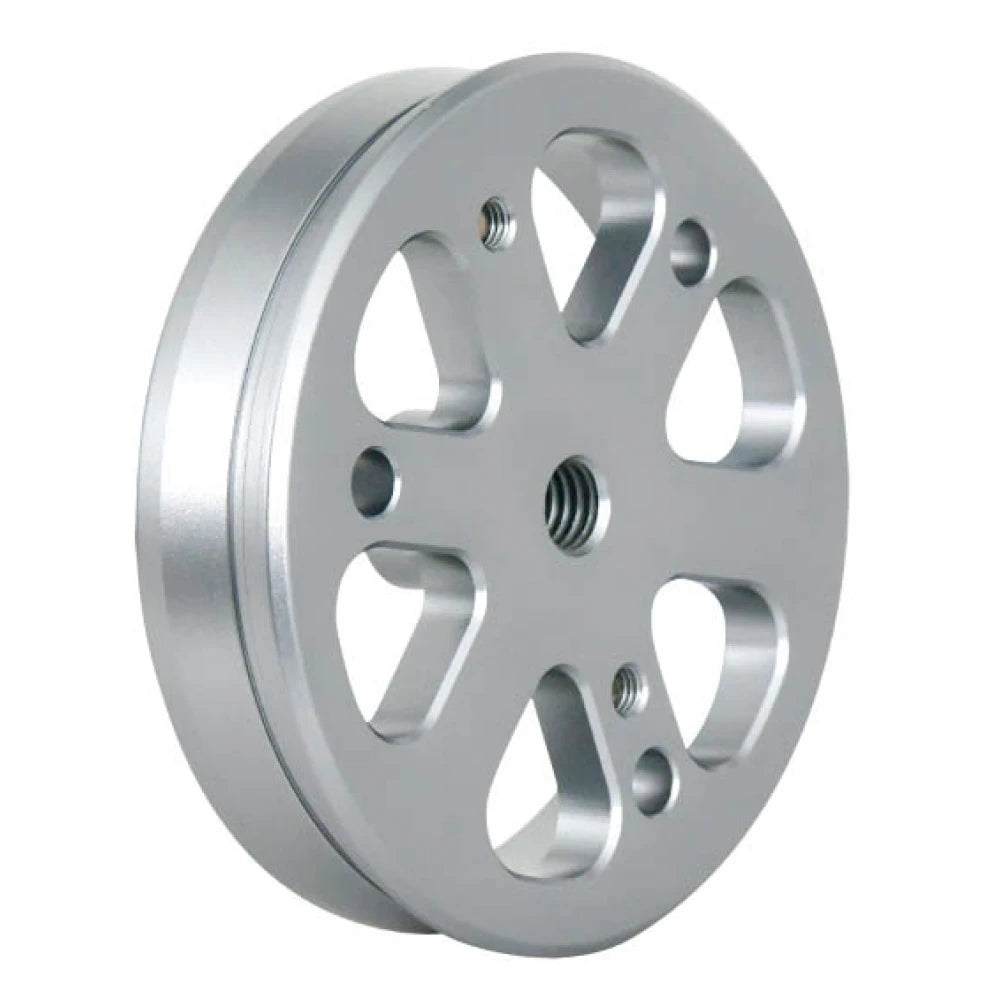

TC40 silver plate A spare aluminium connection plate for the ZWO TC40 tripod. This option supplies the plate rather than a complete tripod or pier.

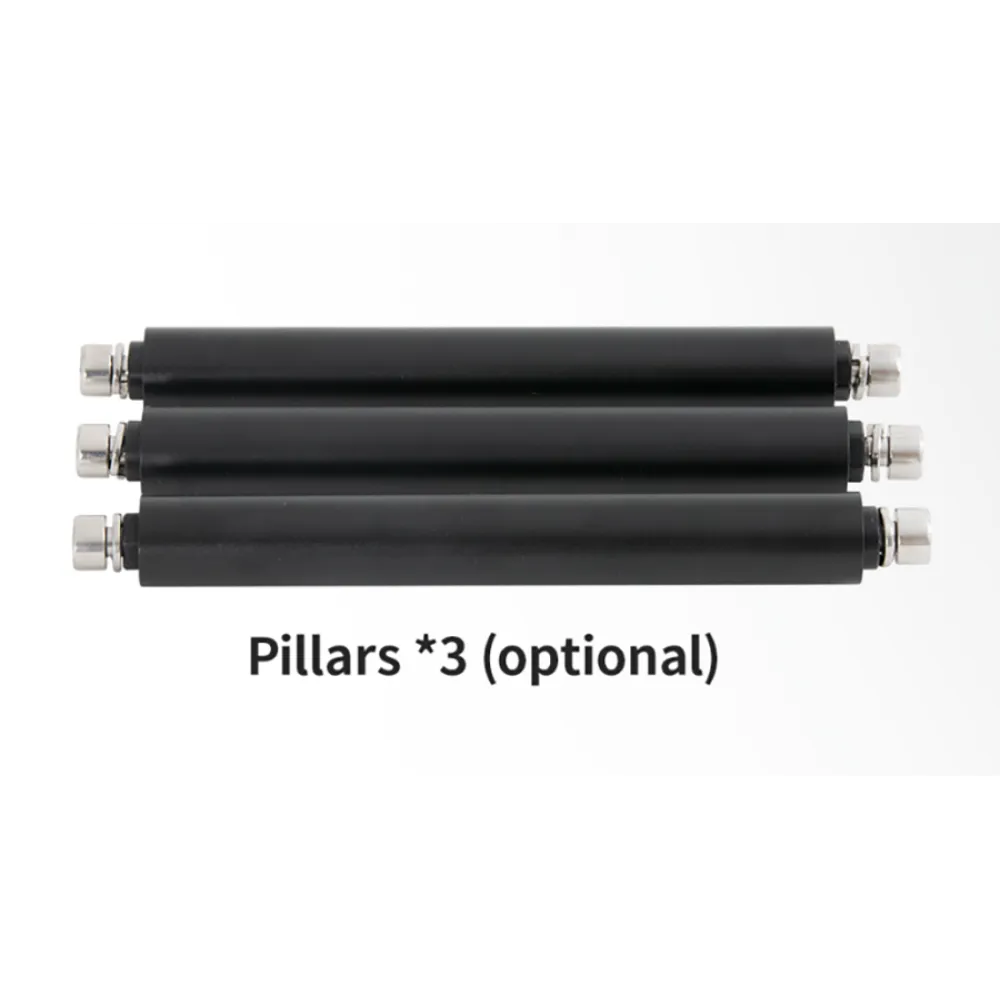

PE200 pillar set A set of three pillar rods for the PE200. Check the required configuration against your existing extension; the rods alone are not a complete pier.

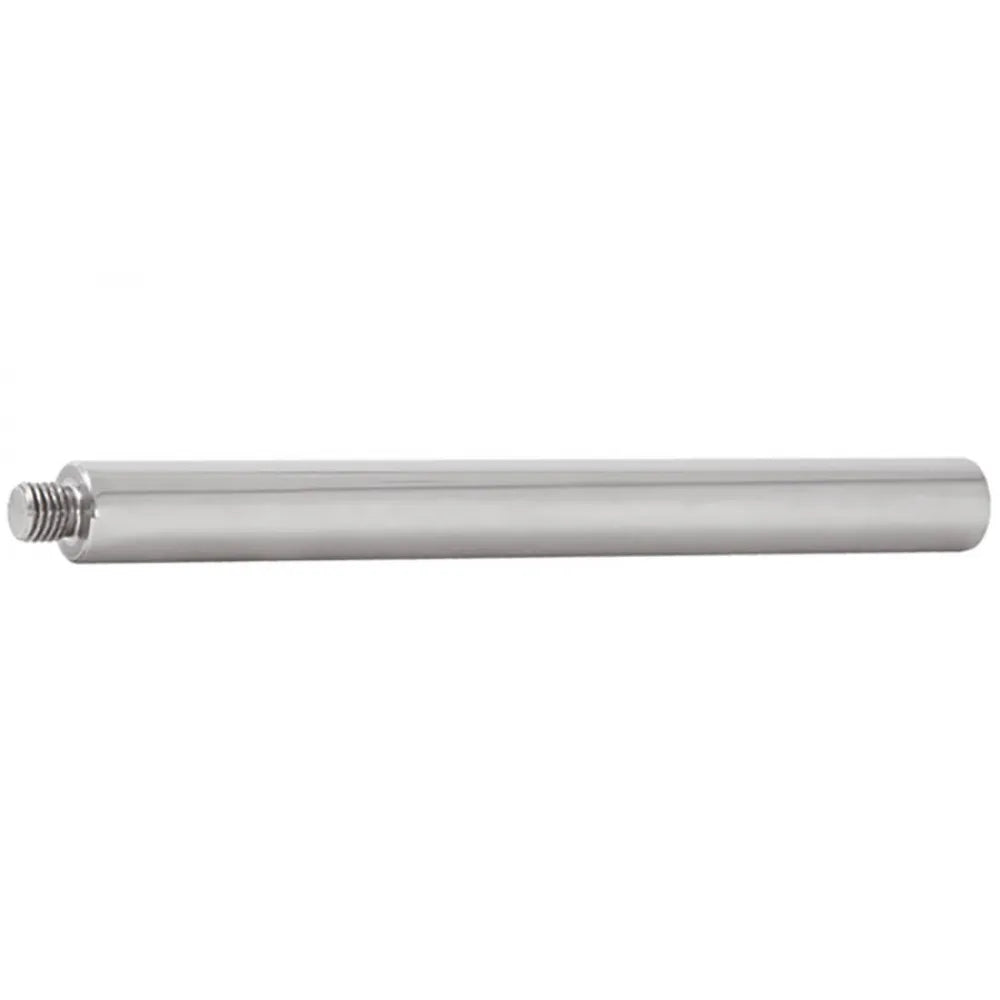

BC230 counterweight bar A counterweight rod for the AM5. It screws into the mount's counterweight connection. A counterweight is purchased separately.

Match both mounting interfaces

Check the connection at the mount and the tripod before ordering. The ZWO TC40 tripod is part of the ZWO mounting system; other tripods may require a model-specific adapter or fastener arrangement. A supplied adapter plate does not establish compatibility with every tripod carrying the same brand name.

For newer mount revisions or a mixed-brand setup, send DCS the exact mount and tripod models so we can check the required connection. A pier's added height also makes cable routing and the overall balance of the assembled system worth checking.

Before you order

Will a pier extension stop every telescope-to-tripod collision?

The extra height can improve clearance, but the result depends on tube length, balance position, camera and diagonal size, and tripod geometry. Check the assembled setup through its intended movement.

Is the counterweight bar part of the pier?

No. The BC230 is a separate accessory that attaches to the mount. Choose it only if you need that part, and check the mount's counterweight guidance for your load.

Does each option include a mount or tripod?

No. The purchase supplies the selected extension or accessory. Mount heads, tripods, telescopes, cameras and counterweights are separate items unless explicitly stated in a different bundle.

Get the connection right first time

Tell us which ZWO mount and tripod you use, and whether you need a complete extension or a replacement part.

Ask DCS about your setup
Dark Clear Skies · Passion for the Night Sky, Delivered.

ZWO Pier Extensions

Regular price £219.00
Or £73.00 × 3 interest-free with PayPal

In stock · 2 available

ZWO-PE200

  • ZWO Pier Extension for AM5 Mount - 200mm
  • ZWO Pier Extension for AM3 & AM5 Mounts - 160mm
  • ZWO Spare Silver (Aluminium) Plate for TC40 Carbon Fibre Tripod
  • ZWO 3pcs of Pillar rods for Pier Extension PE200
  • ZWO C/w rod for AM5 Mount

Dark Clear Skies · ZWO mounting accessories

ZWO pier extensions & mounting accessories

Choose the right part for your setup.

Raise your mount above the tripod with a complete PE200 or PE160 pier extension, or select a spare plate, pillar set or counterweight bar for your existing equipment. This listing brings those options together so you can choose the component you need.

200mmPE200 pier extension
160mmPE160 pier extension
5 optionsSelect one item or set

Your selection determines what you receive. The two complete pier extensions, spare plate, three-pillar set and counterweight bar are separate purchase options. They are not supplied together as one kit.

Two ways to gain tripod clearance

ZWO PE200 cylindrical pier extension with locking levers and silver base fitting
PE200. The taller 200mm option, with an enclosed body and an access opening near the base.
ZWO PE160 open three-pillar pier extension with mounting plates and locking levers
PE160. A shorter 160mm extension with an open three-pillar construction.

A pier extension moves the mount head farther above the tripod platform. This can give a long telescope, diagonal or camera more room as the mount moves. Choose the height around your complete telescope and accessory arrangement, then check clearance through the positions you intend to use.

Specification PE200 PE160
Extension height 200mm 160mm
Diameter 124mm 124mm
Weight 1.6kg Approximately 1.0kg
Manufacturer's extension load rating Up to 50kg Up to 10kg
Mount application listed here ZWO AM5 ZWO AM3 and AM5

Check the whole support system. These are ratings for the extensions themselves. They do not increase the rated payload of your mount or tripod. Account for everything supported by each component, including the mount head, telescope, camera and accessories, and follow the relevant equipment limits.

Select a complete pier or an individual part

Option What you are choosing
PE200 · 200mm A complete PE200 pier extension. ZWO's published package includes the extension, two M6 × 25 screws and a Sky-Watcher adapter plate.
PE160 · 160mm A complete PE160 pier extension for the AM3/AM5 application listed above.
TC40 silver plate A spare aluminium connection plate for the ZWO TC40 tripod. This option supplies the plate rather than a complete tripod or pier.
PE200 pillar set A set of three pillar rods for the PE200. Check the required configuration against your existing extension; the rods alone are not a complete pier.
BC230 counterweight bar A counterweight rod for the AM5. It screws into the mount's counterweight connection. A counterweight is purchased separately.

Match both mounting interfaces

Check the connection at the mount and the tripod before ordering. The ZWO TC40 tripod is part of the ZWO mounting system; other tripods may require a model-specific adapter or fastener arrangement. A supplied adapter plate does not establish compatibility with every tripod carrying the same brand name.

For newer mount revisions or a mixed-brand setup, send DCS the exact mount and tripod models so we can check the required connection. A pier's added height also makes cable routing and the overall balance of the assembled system worth checking.

Before you order

Will a pier extension stop every telescope-to-tripod collision?

The extra height can improve clearance, but the result depends on tube length, balance position, camera and diagonal size, and tripod geometry. Check the assembled setup through its intended movement.

Is the counterweight bar part of the pier?

No. The BC230 is a separate accessory that attaches to the mount. Choose it only if you need that part, and check the mount's counterweight guidance for your load.

Does each option include a mount or tripod?

No. The purchase supplies the selected extension or accessory. Mount heads, tripods, telescopes, cameras and counterweights are separate items unless explicitly stated in a different bundle.

Get the connection right first time

Tell us which ZWO mount and tripod you use, and whether you need a complete extension or a replacement part.

Ask DCS about your setup
Dark Clear Skies · Passion for the Night Sky, Delivered.
