Availability: Please contact us for current UK availability and delivery arrangements before ordering.
More Aperture on the Wireless NexStar Evolution Platform

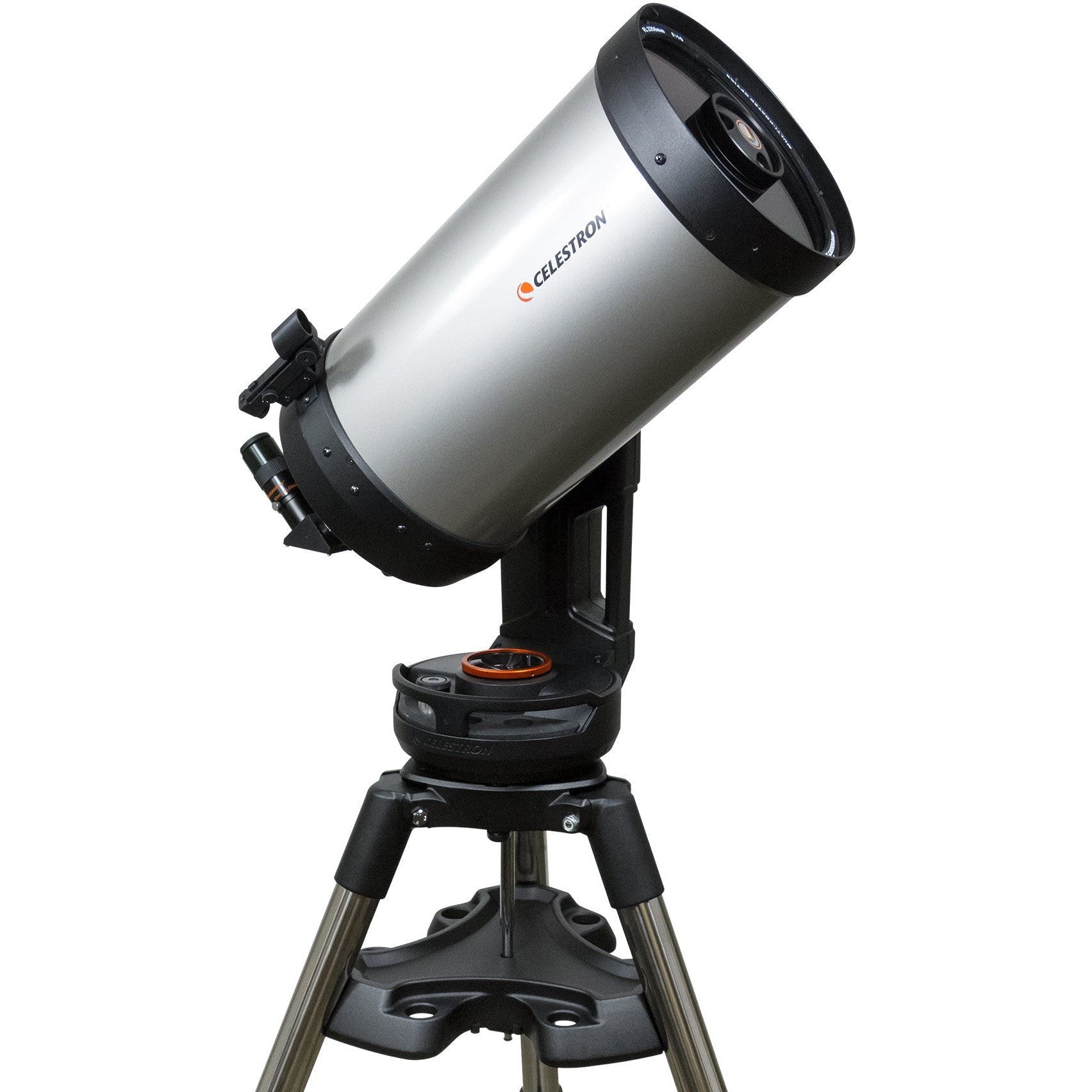

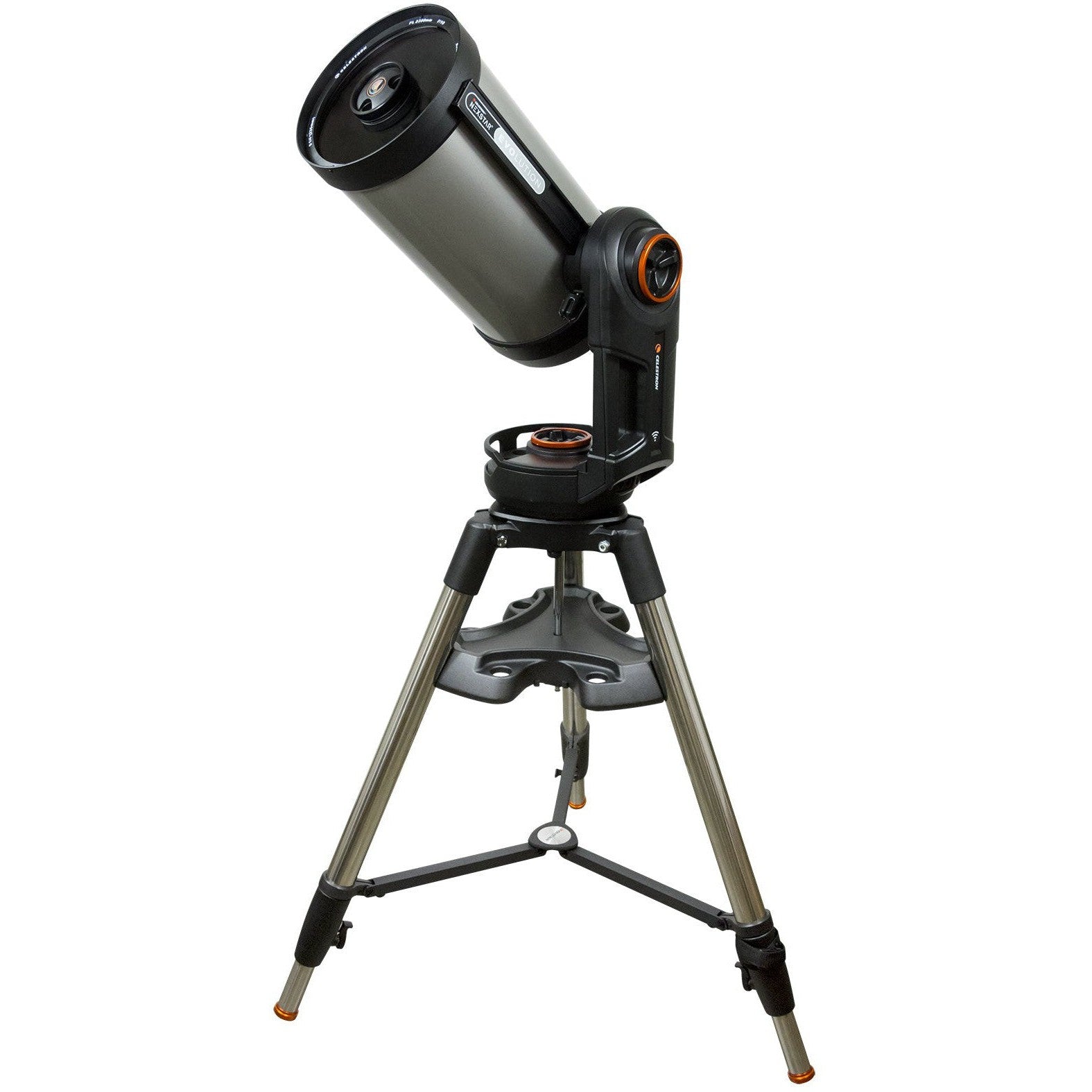

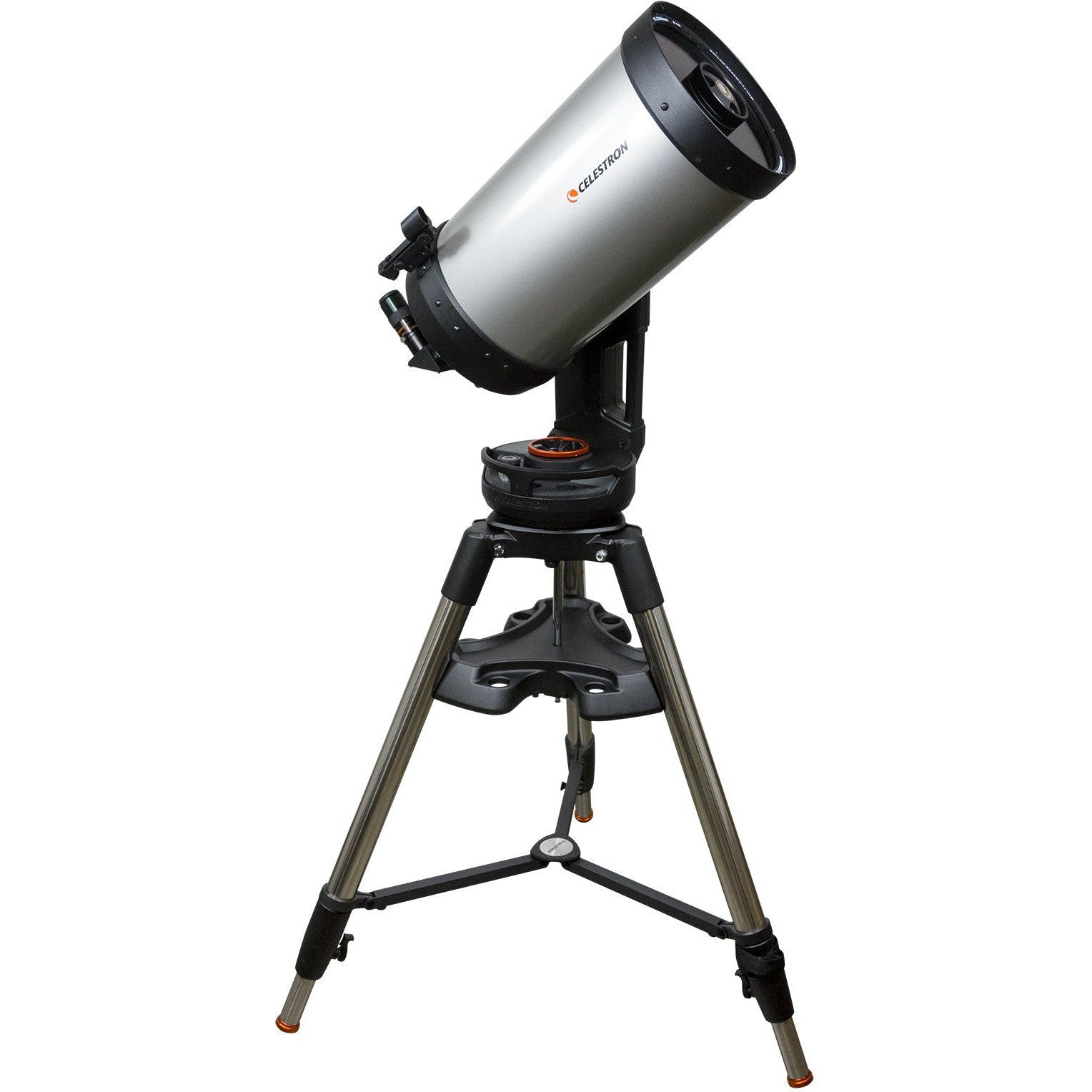

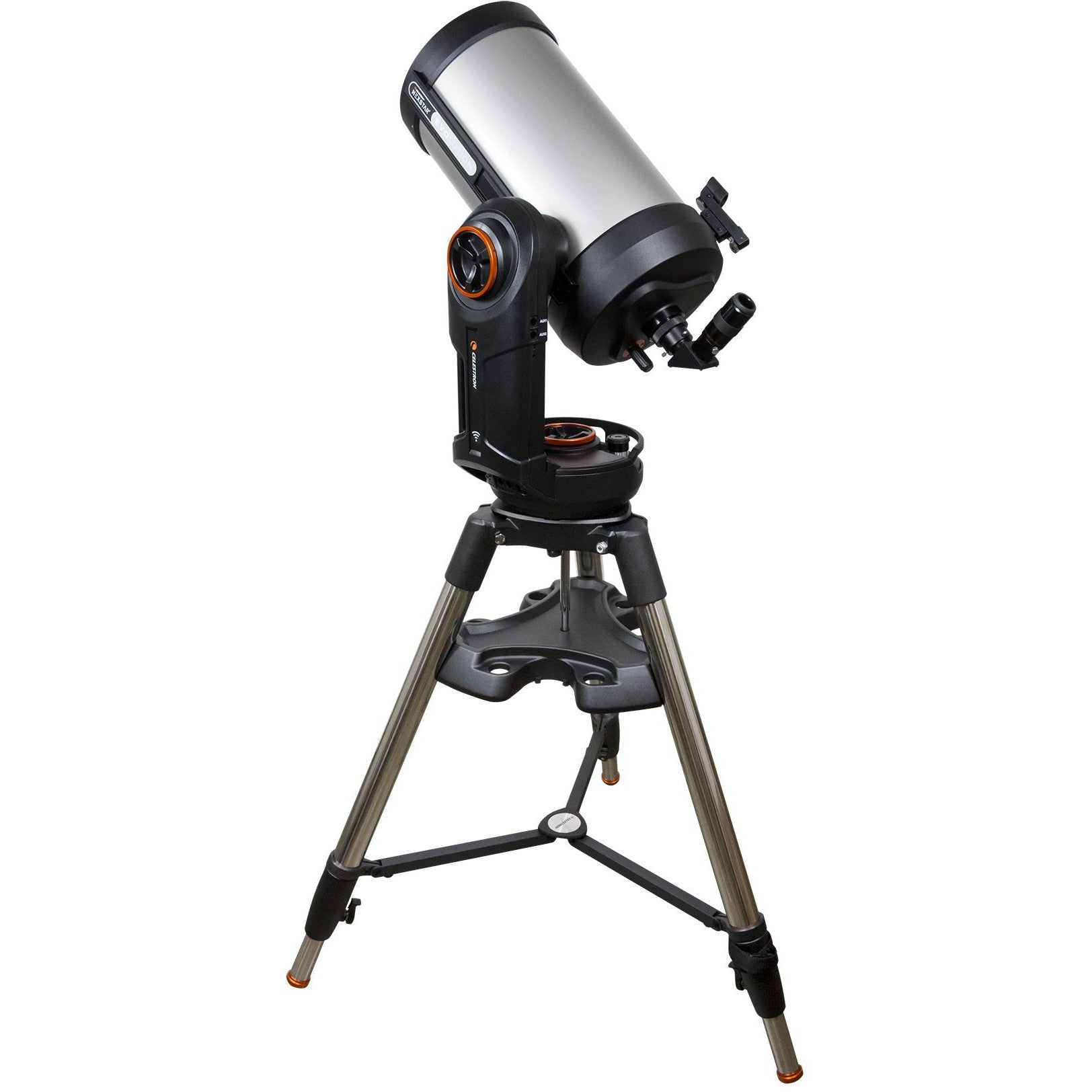

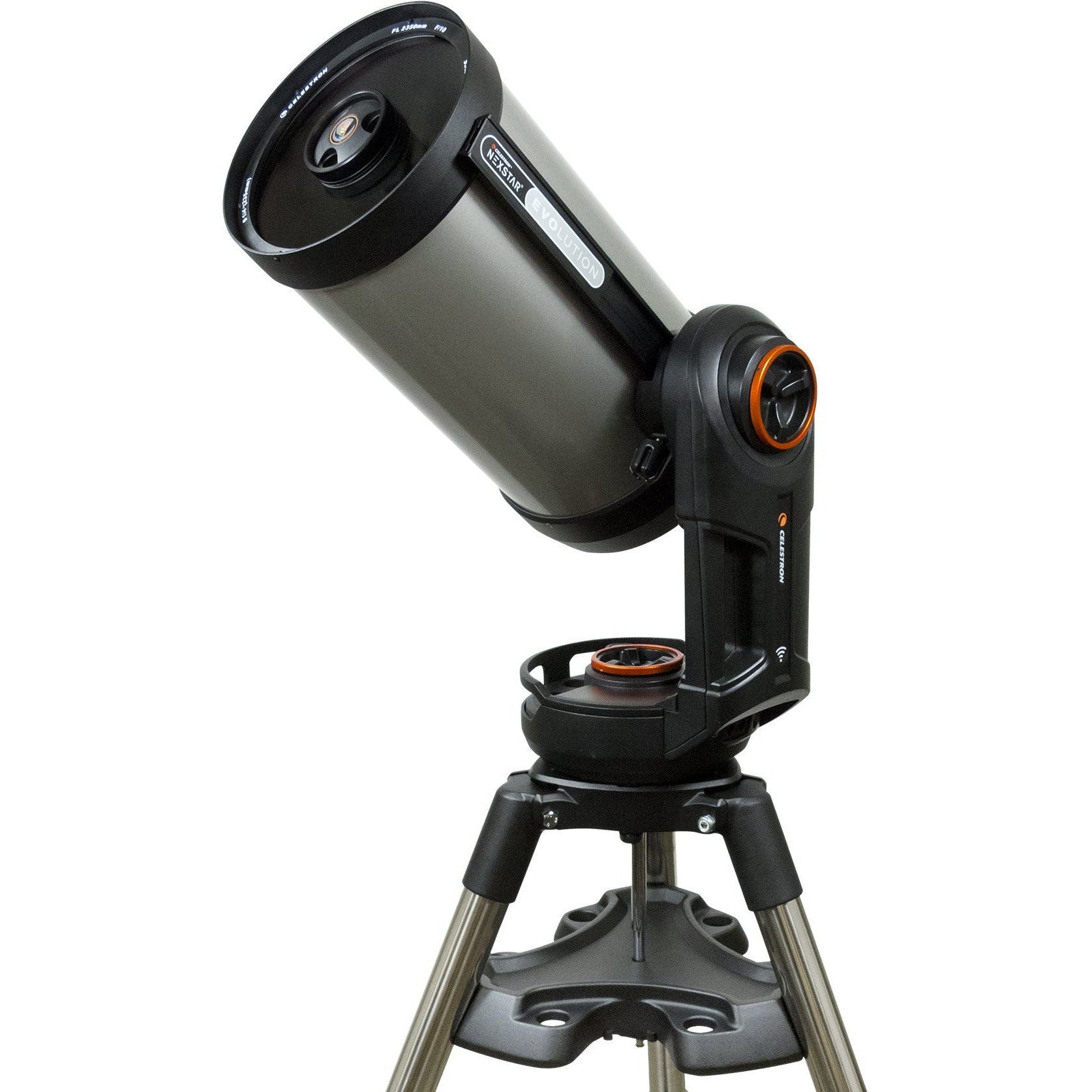

The Celestron NexStar Evolution 9.25 combines a 235mm Schmidt-Cassegrain optical tube with the Evolution computerised GoTo mount, built-in Wi-Fi and rechargeable LiFePO4 battery. Its additional aperture and heavy-duty 2-inch stainless-steel tripod make it an excellent choice for serious visual observing from a garden, observatory or dark-sky site.
- 235mm f/10 Schmidt-Cassegrain optical tube with StarBright XLT coatings
- Built-in Wi-Fi control through the Celestron SkyPortal app
- NexStar+ hand controller with a database of more than 40,000 objects
- Integrated LiFePO4 battery for up to 10 hours of observing
- Heavy-duty 2-inch stainless-steel tripod
- Fastar compatible for use with a suitable optional imaging conversion system
Wireless Control or Included Hand Controller

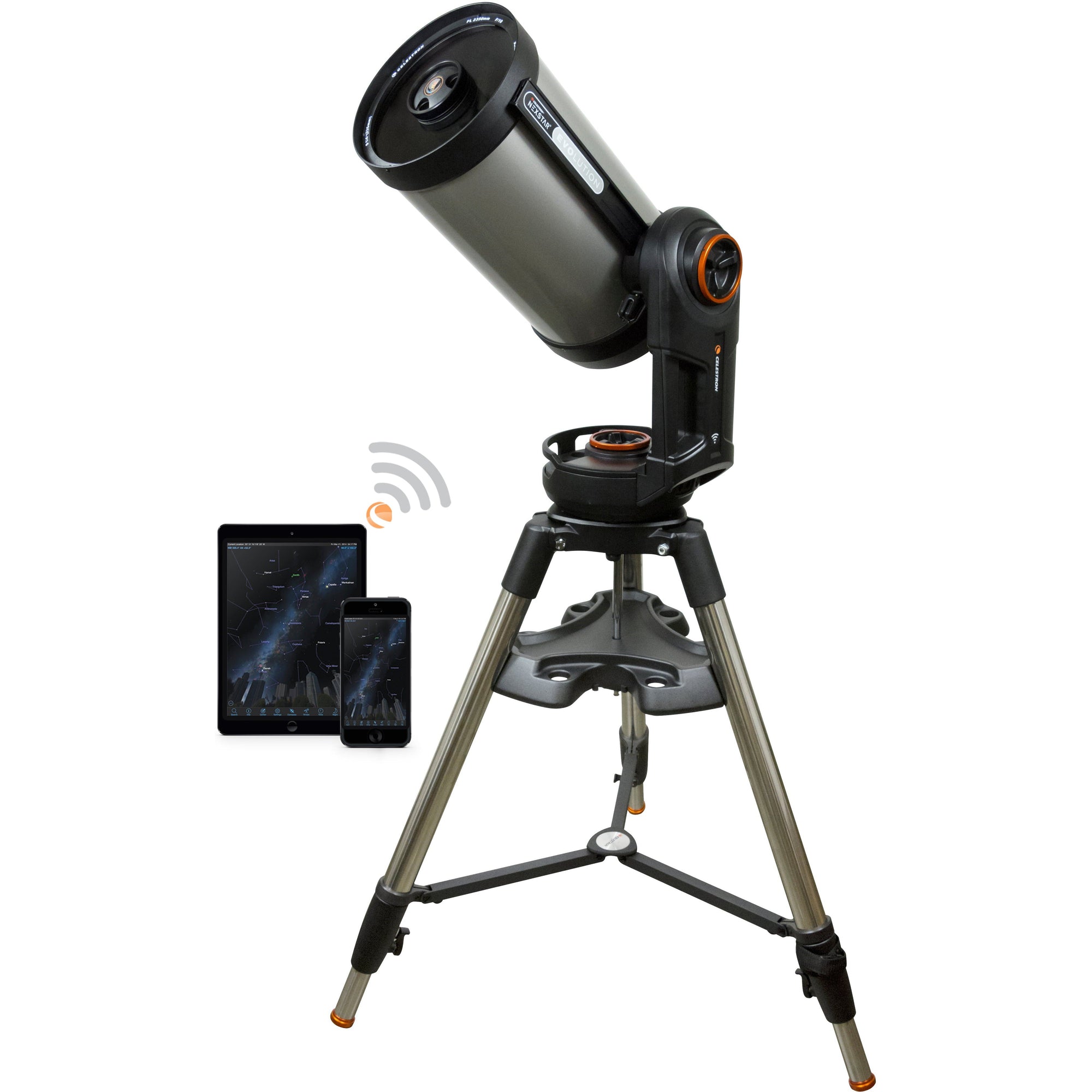

The built-in Wi-Fi network lets a compatible smartphone or tablet connect directly to the mount without an external router. Use the Celestron SkyPortal app to align the system, browse the sky and command GoTo slews. The included NexStar+ hand controller provides a conventional alternative and access to more than 40,000 catalogue objects.
The mount’s own Wi-Fi network allows normal field operation without an internet connection. Date, time and observing-location information are supplied by the connected mobile device when using the app.
235mm Schmidt-Cassegrain Light Gathering
The 9.25-inch optical tube gathers approximately 34% more light than an 8-inch aperture, helping to reveal fainter deep-sky detail and providing extra resolution for lunar and planetary observing when conditions allow. The 2350mm focal length gives useful image scale for planets, globular clusters, planetary nebulae and double stars, while the folded Schmidt-Cassegrain design remains considerably shorter than a comparable long-focus reflector or refractor.
Evolution Mount and Internal Battery

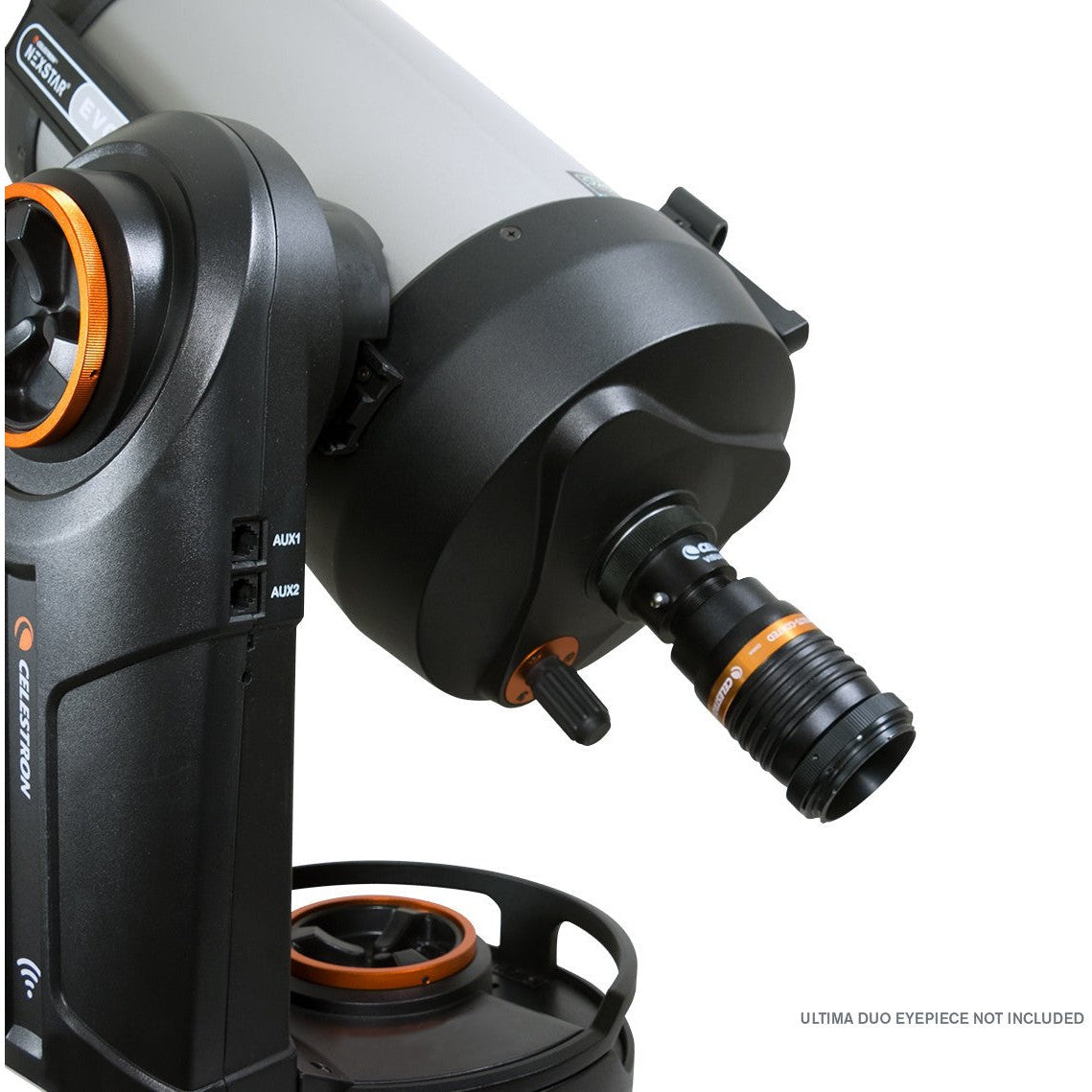

The Evolution mount incorporates DC servo motors, precision brass worm gears, manual altitude and azimuth clutches, four AUX ports and a USB output for charging a mobile device. The 9.25-inch package uses Celestron’s larger CPC-style 2-inch stainless-steel tripod for greater stability under the heavier optical tube.
The battery can be charged or the telescope operated from the supplied AC adapter. Celestron recommends keeping the battery charged during storage and using the supplied charger or a suitable certified 12V DC supply rated for at least 2A.
Visual Observing and Astroimaging
The telescope is well suited to lunar and planetary imaging and can be used for shorter-exposure work on brighter deep-sky subjects. The altazimuth mount introduces field rotation during long exposures. An optional NexStar Evolution wedge can convert the system to equatorial operation for more advanced imaging. Cameras, adapters, reducer, wedge and other imaging accessories are sold separately.
This telescope is not a fully automated smart-imaging system: a compatible camera and all required imaging adapters must be selected separately.
Transport and Setup
This is a substantial portable telescope rather than a lightweight grab-and-go system. The complete kit weighs 28.4kg: 9.07kg for the optical tube, 7kg for the mount head and 12.06kg for the heavy-duty tripod. The three main parts separate for transport and setup.
The optical tube attaches to the mount through a CG-5-format dovetail bar. Large integrated handles on the mount and practical tripod features simplify assembly, but users should still assess lifting requirements and the route to their observing location.
What Is Included?
- 235mm f/10 Schmidt-Cassegrain optical tube
- NexStar Evolution computerised single-arm mount

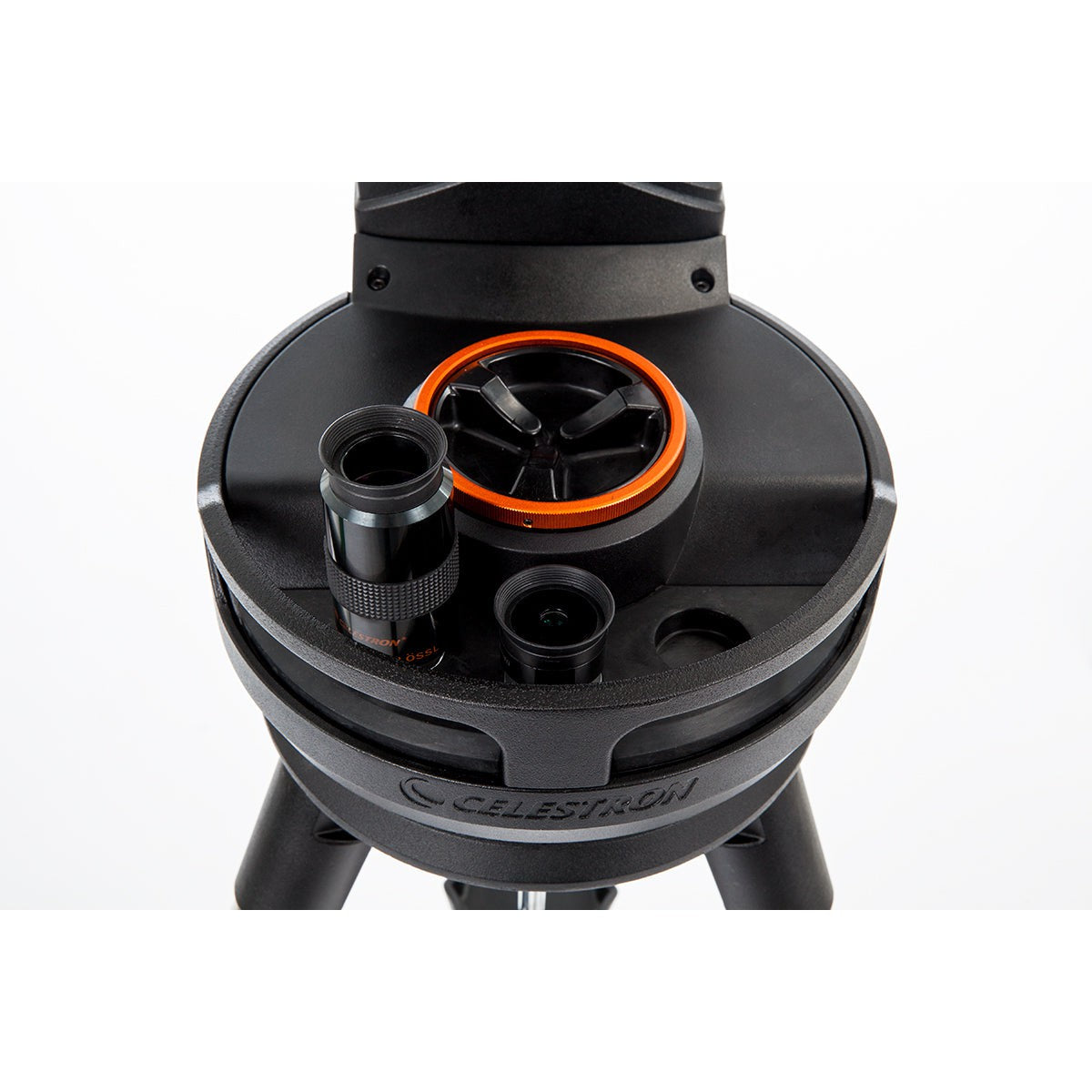

- Heavy-duty adjustable 2-inch stainless-steel tripod and accessory tray
- Integrated Wi-Fi and rechargeable LiFePO4 battery
- StarSense hand controller
- 40mm and 13mm Plössl eyepieces (1.25-inch)
- StarPointer red-dot finderscope
- 1.25-inch visual back and star diagonal
- AC charger with US, EU, UK and AU plug fittings
- Celestron Starry Night Special Edition software and SkyPortal app
Please note: A smartphone or tablet, imaging camera, camera adapters, dew-control equipment, equatorial wedge, focal reducer and HyperStar/Fastar conversion optics are not stated as included unless specifically listed above.
Specifications
Optical Tube
| Optical design | Schmidt-Cassegrain |
|---|---|
| Aperture | 235mm (9.25 inches) |
| Focal length | 2350mm (93 inches) |
| Focal ratio | f/10 |
| Optical coatings | StarBright XLT |
| Included eyepiece(s) | 40mm and 13mm Plössl eyepieces (1.25-inch) |
| Included eyepiece magnification | 59× and 180× |
| Finderscope | StarPointer red-dot finderscope |
| Star diagonal | 1.25-inch star diagonal |
| Highest useful magnification | 555× |
| Lowest useful magnification | 34× |
| Limiting stellar magnitude | 14.4 |
| Rayleigh resolution | 0.59 arcseconds |
| Dawes resolution | 0.49 arcseconds |
| Light-gathering power | 1127× compared with the human eye |
| Secondary obstruction | 85mm (3.35 inches); 36% by diameter and 13% by area |
| Optical tube length | 559mm (22 inches) |
| Optical tube diameter | 271.78mm (10.7 inches) |
| Optical tube weight | 9.07kg (20lb) |
| Dovetail | CG-5 dovetail bar |
Mount, Electronics and Weight
| Mount type | Computerised altitude-azimuth single fork arm |
|---|---|
| Instrument load capacity | 11kg (25lb) |
| Height adjustment range including mount and tripod | 1244.6–1651mm (49–65 inches) |
| Tripod legs | 50.8mm (2-inch) stainless steel |
| Mount head weight | 7kg (16lb) |
| Tripod weight | 12.06kg (26.6lb) |
| Slew speeds | Nine, with a maximum of 4° per second |
| Tracking rates | Sidereal, Solar and Lunar |
| Tracking modes | Alt-Az, EQ North and EQ South |
| Dovetail compatibility | CG-5 saddle plate |
| AUX ports | Four; the hand controller can use any AUX port |
| Autoguide port | No |
| USB | Hand-controller input and mount output for mobile-device charging |
| Power | Internal 9.6V, 4.5Ah LiFePO4 battery |
| Motor drive | DC servo motors |
| Alignment procedures | SkyAlign, 1-Star, 2-Star, Auto 2-Star, Solar System, Quick-Align, Last Alignment and EQ North/EQ South with an optional wedge |
| Periodic error correction | No |
| Hand controller | NexStar+ hand controller with backlit LCD and USB connection |
| Object database | More than 40,000 objects, including 220 selected deep-sky and Solar System objects |
| Software | Celestron Starry Night Special Edition and SkyPortal app |
| Total telescope kit weight | 28.4kg (62.6lb) |
Solar Safety
Warning: Never look at the Sun through this telescope unless a suitable certified aperture solar filter is securely fitted over the complete front aperture.
Never use an eyepiece-type solar filter, a Herschel wedge or the telescope to project an image of the Sun. Unfiltered sunlight can cause immediate and permanent eye damage and may damage the telescope or attached accessories.
Never leave the telescope unattended, especially when children are present. If the suitability or fit of a solar filter cannot be confirmed, do not point the telescope at or near the Sun.
Instruction Manuals
The official NexStar Evolution manual covers items 12090, 12091 and 12092 and is supplied in English, French, German, Spanish and Italian.
