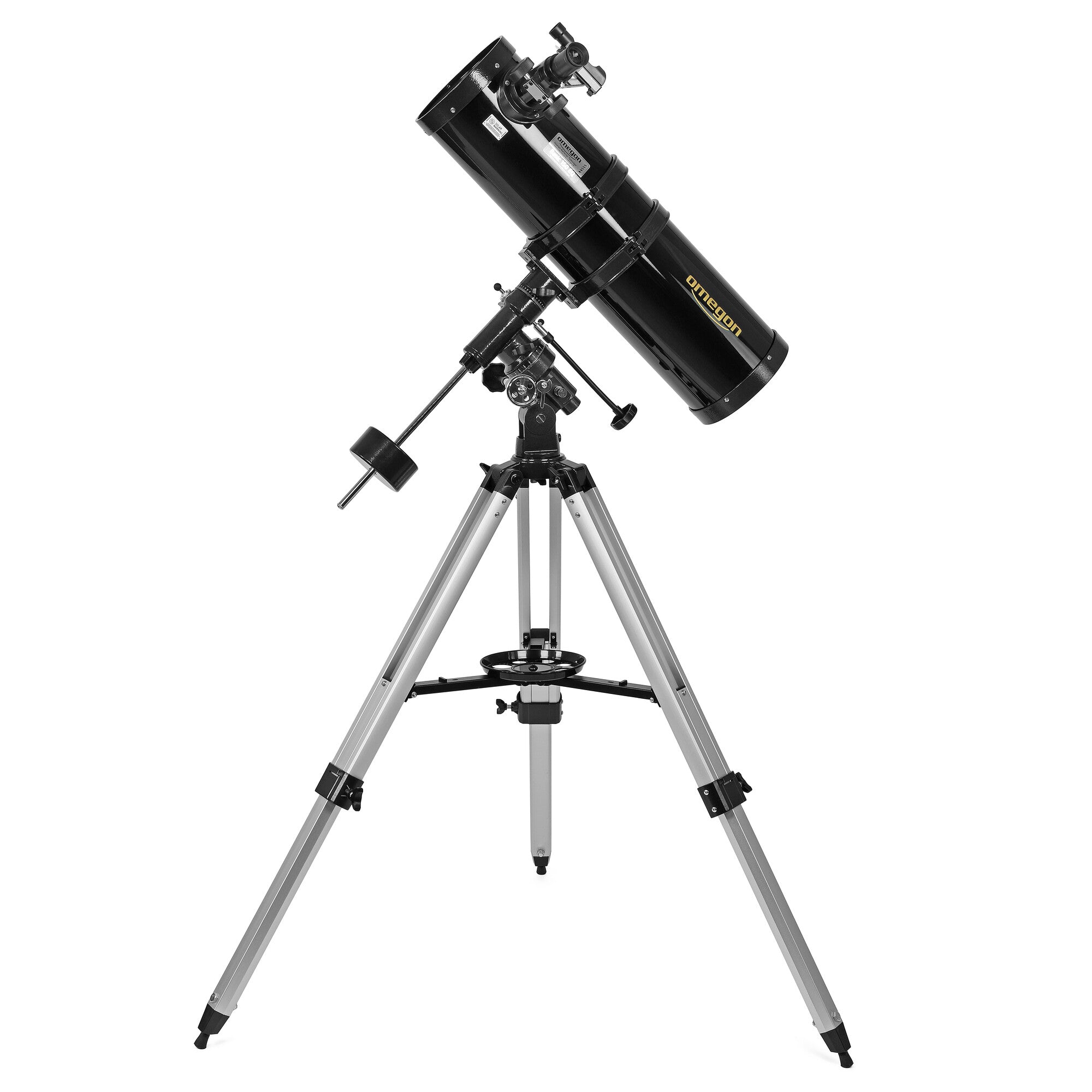

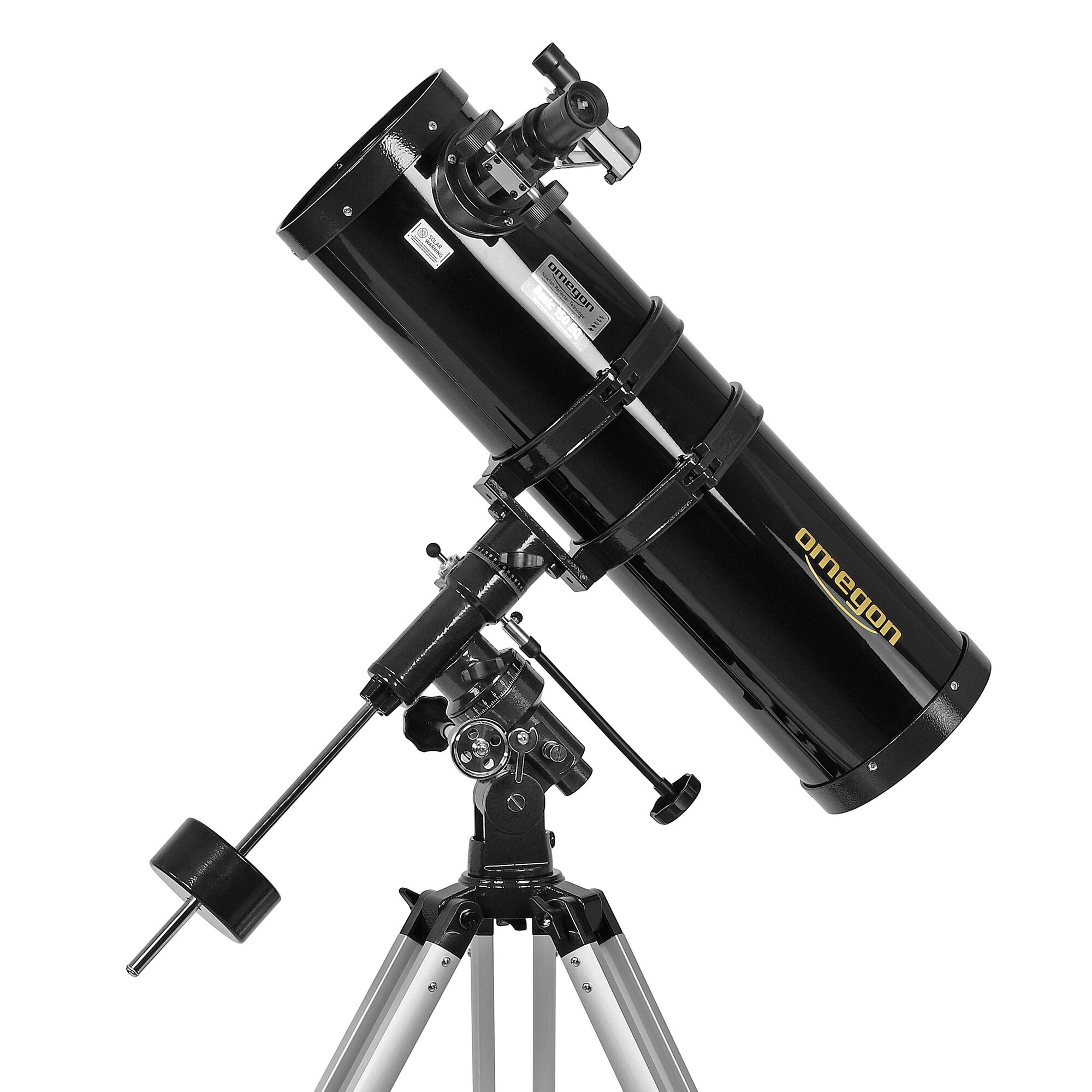

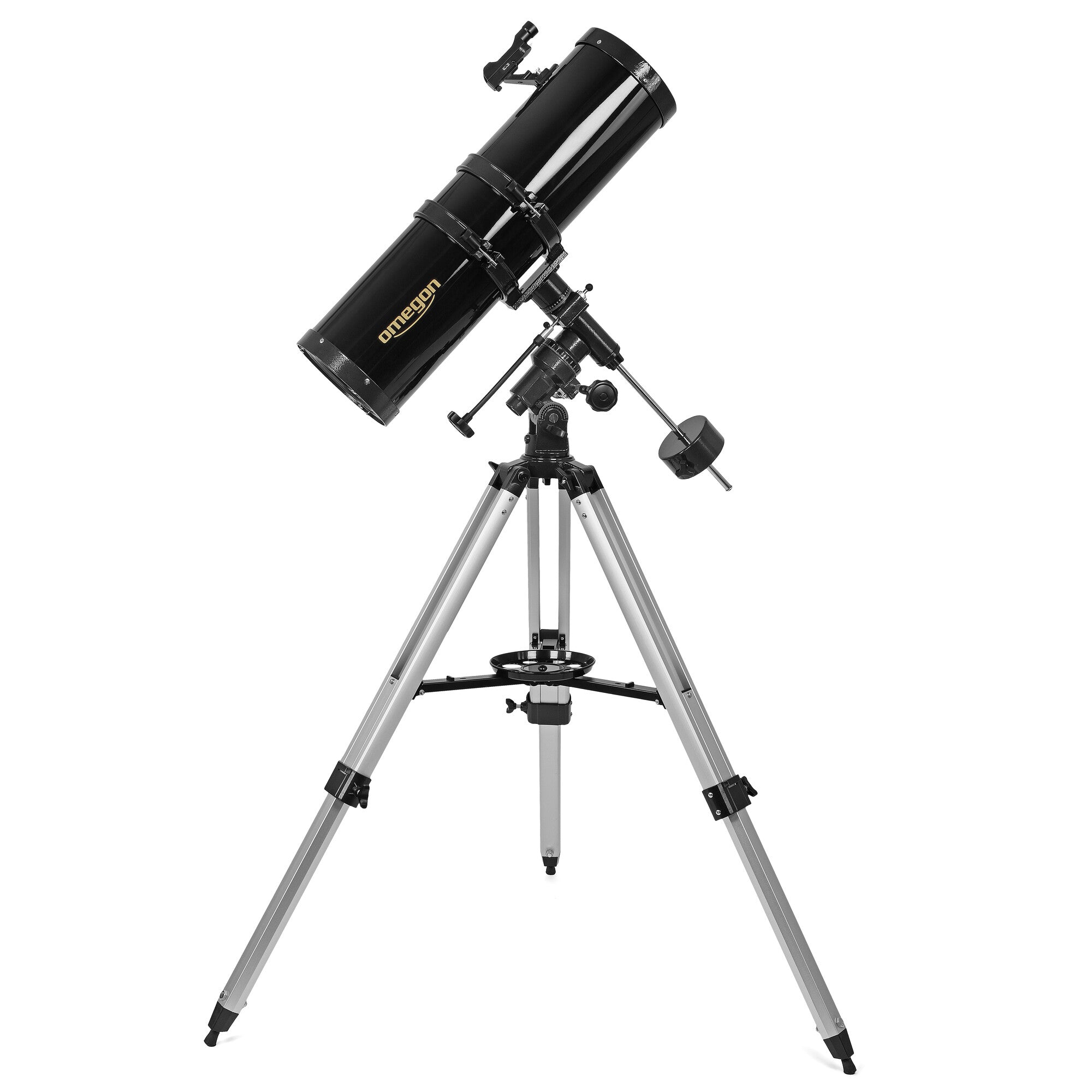

Omegon 150/750 EQ-3 Newtonian Reflector Telescope

The Omegon 150/750 EQ-3 is a capable 150mm Newtonian reflector designed as an accessible introduction to visual astronomy. Its combination of a generous 150mm aperture, compact 750mm focal length and f/5 focal ratio makes it particularly well suited to exploring the Moon, planets, star clusters, nebulae and brighter galaxies.

Supplied with an EQ-3 equatorial mount, aluminium tripod, two Plössl eyepieces, red dot finder and 2x Barlow lens, this is a complete observing package for beginners looking to move beyond smaller entry-level telescopes.

150mm Aperture for Exploring the Night Sky

Aperture is one of the most important characteristics of a visual telescope, and the Omegon 150/750 provides a substantial 150mm diameter primary mirror. Its specified light-gathering capacity of 460 gives the telescope the ability to reveal considerably more than smaller beginner instruments.

Under suitable observing conditions, globular clusters such as M13 and M92 can begin to resolve into individual stars, while brighter galaxies and emission nebulae become accessible targets. Objects such as the Orion Nebula and Omega Nebula are excellent examples of the type of deep-sky object that benefits from the telescope's combination of aperture and relatively short focal length.

Fast f/5 Newtonian Optics

With a focal length of 750mm and an aperture of 150mm, this Newtonian operates at f/5. The relatively short focal length keeps the optical tube compact while providing the wider fields of view that are useful when searching for and observing larger deep-sky objects.

The telescope uses a conventional Newtonian optical system rather than incorporating a built-in Barlow lens into the optical path. Both the primary and secondary mirrors are provided with adjustment screws, allowing the telescope's collimation to be adjusted when required.

Moon and Planetary Observing

The 150mm aperture also gives the Omegon 150/750 plenty to offer when observing Solar System objects. Lunar craters, mountain ranges and other surface structures can be explored at progressively higher magnifications as seeing conditions permit.

On Jupiter, the telescope has sufficient aperture to show features including the planet's main cloud belts and, under favourable conditions, the Great Red Spot. Transits and shadows produced by Jupiter's major moons are also within reach.

The specified resolving capacity is 0.77 arcseconds, with a manufacturer-stated maximum useful magnification of 300x.

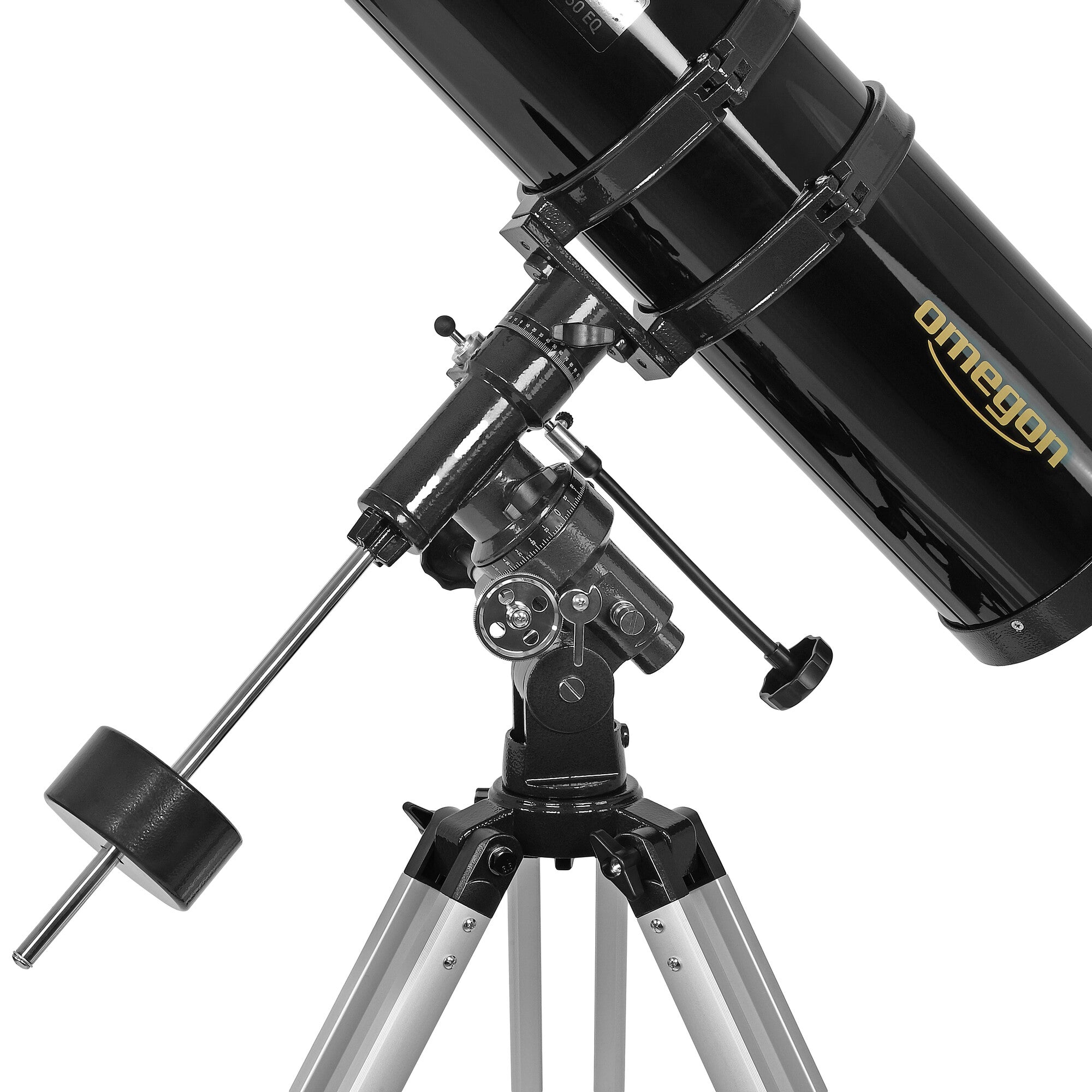

EQ-3 Equatorial Mount

Rather than using a simple alt-azimuth mount, the telescope is supplied on an EQ-3 equatorial mount. Once correctly polar aligned, an equatorial mount allows celestial objects to be followed as they move across the night sky.

Fine adjustment controls on the right ascension and declination axes help with accurately positioning and tracking objects during visual observation. A counterweight is used to balance the optical tube on the mount.

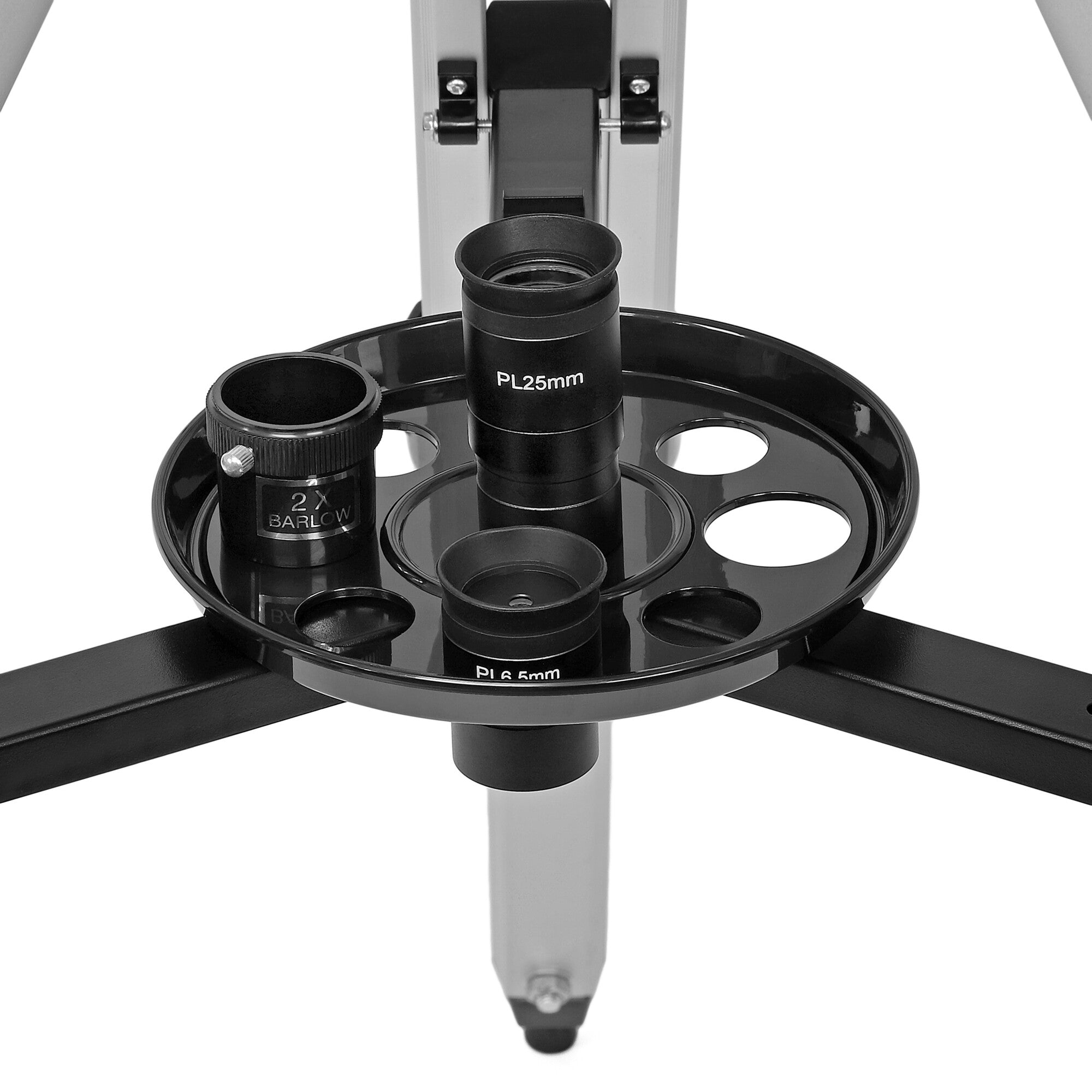

The mount sits on an extendable aluminium tripod and includes an accessory shelf for keeping eyepieces and other small observing accessories conveniently to hand.

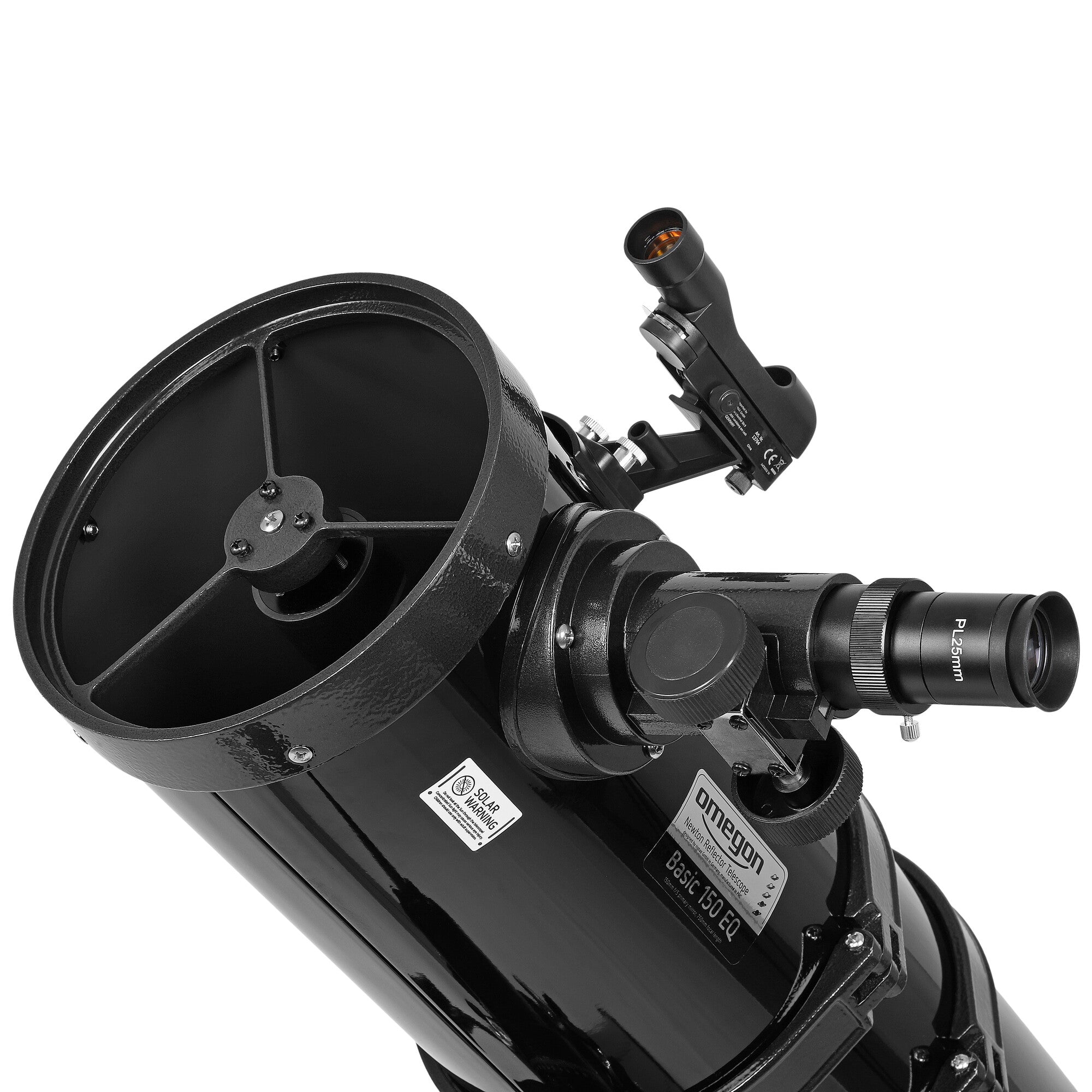

1.25-Inch Rack-and-Pinion Focuser

Focusing is handled by a rack-and-pinion focuser accepting standard 1.25-inch eyepieces. This common fitting also provides access to a wide range of compatible 1.25-inch astronomical eyepieces and accessories should you wish to expand your observing setup in the future.

Supplied Ready for Visual Observing

The Omegon 150/750 EQ-3 includes the essential accessories needed to begin visual observing.

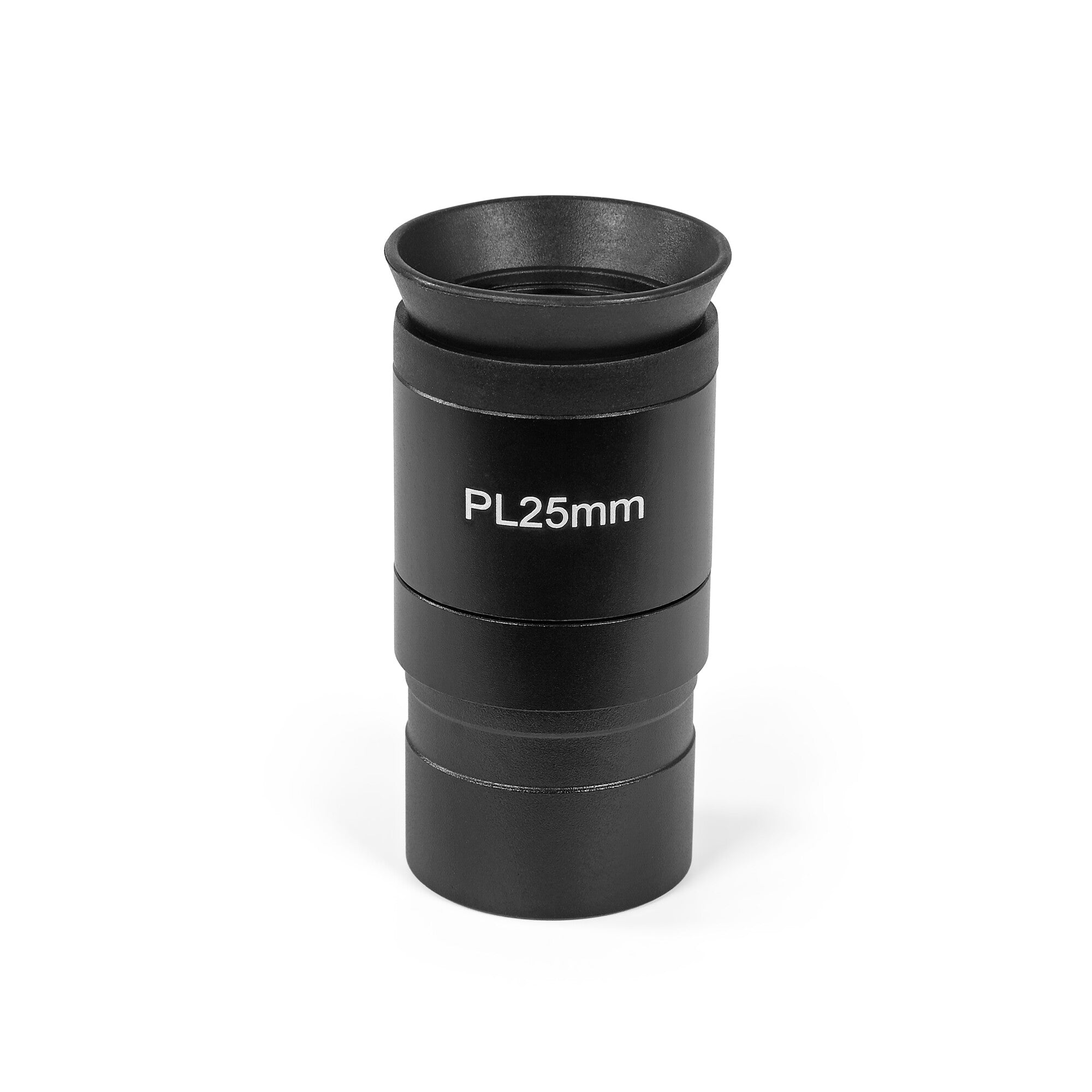

• 25mm Plössl eyepiece – provides approximately 30x magnification

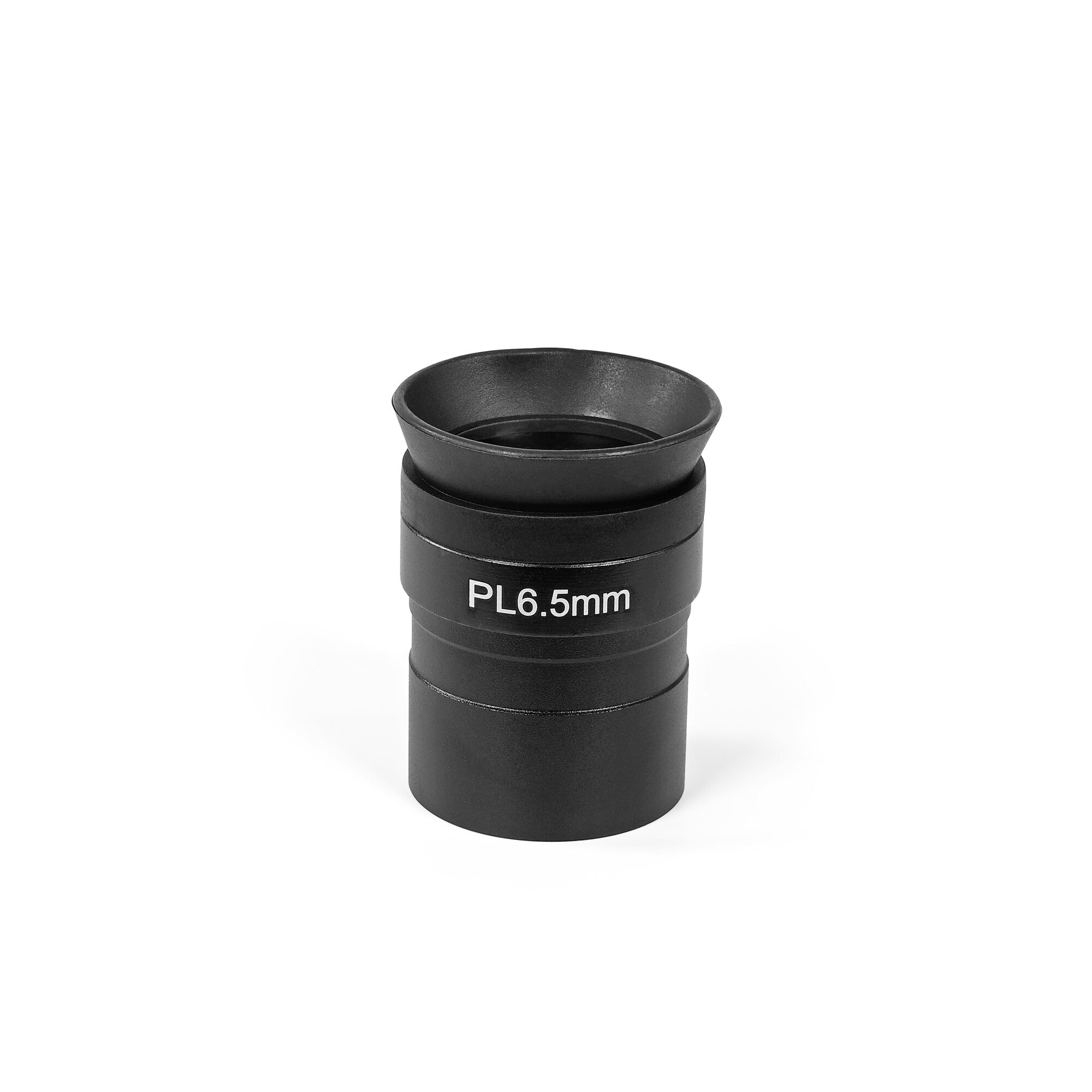

• 6.5mm Plössl eyepiece – provides approximately 115x magnification

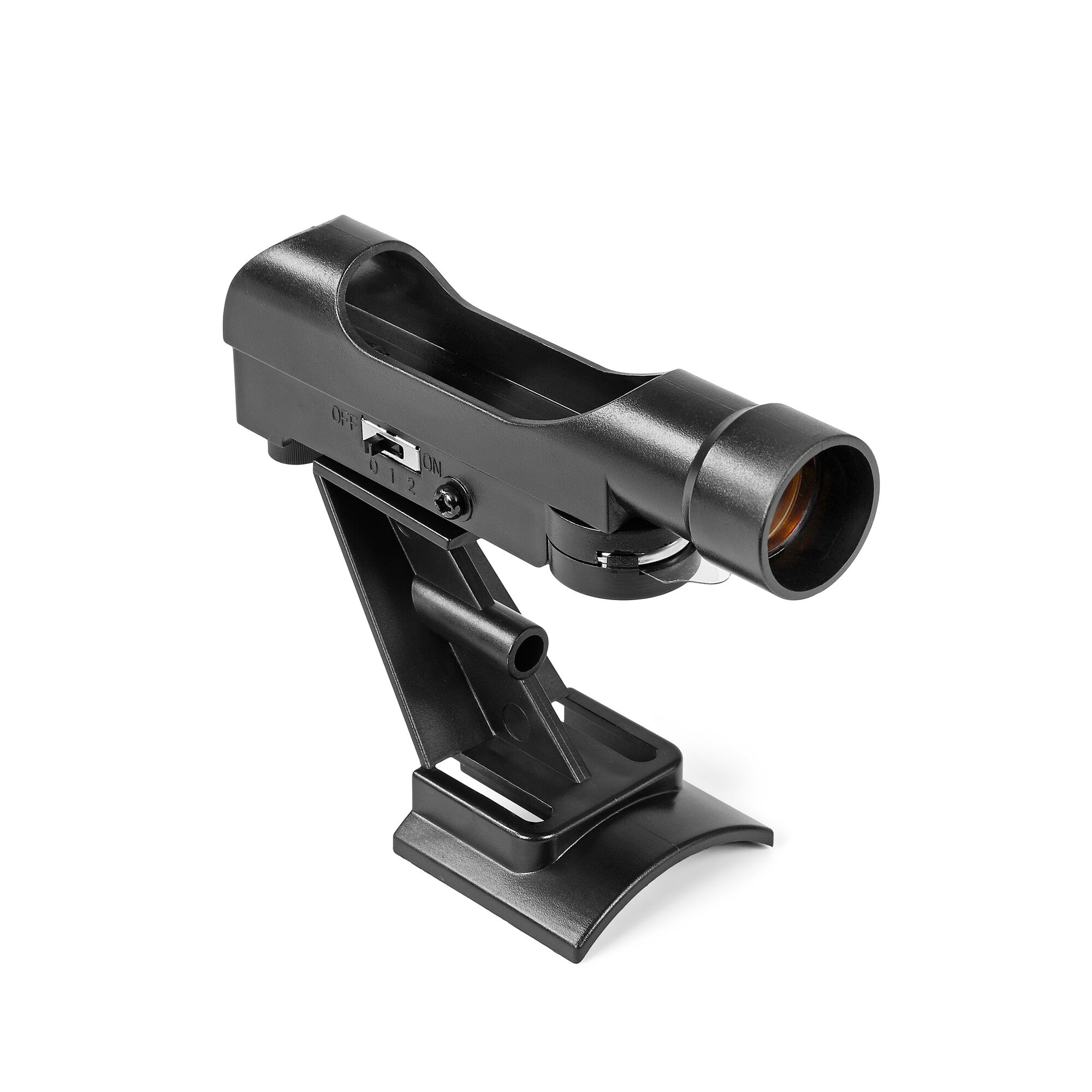

• Red dot finder – assists with locating celestial objects

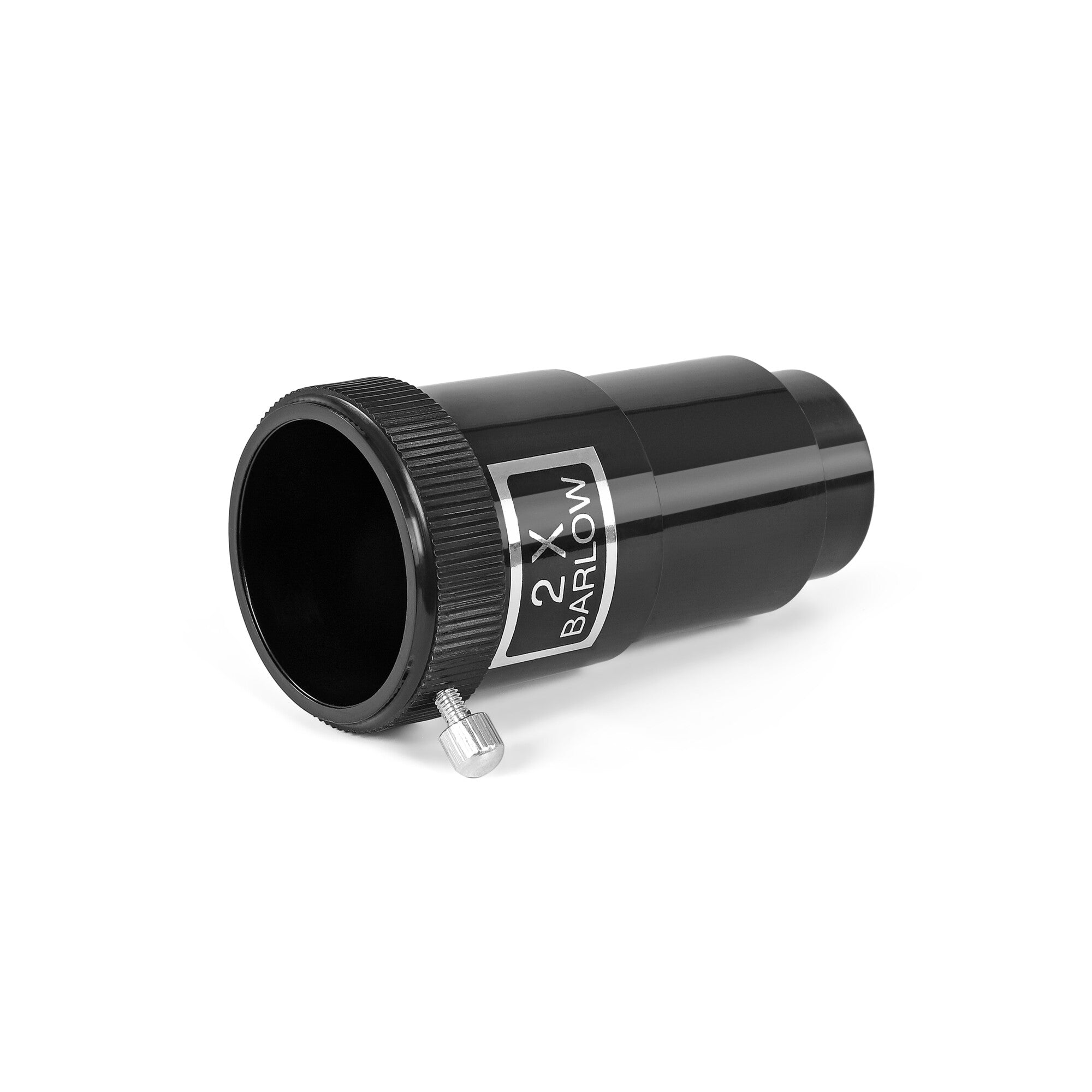

• 2x Barlow lens – doubles the magnification produced by an eyepiece
• EQ-3 equatorial mount
• Aluminium tripod

A Practical First 150mm Telescope

A 150mm Newtonian is a popular step into more serious visual astronomy because it provides enough aperture to make a meaningful difference on both Solar System and deep-sky targets while remaining relatively compact.

The Omegon 150/750 optical tube is approximately 66cm long with an outside tube diameter of approximately 185mm. Combined with the EQ-3 mount, it provides beginners with an opportunity to learn not only the night sky, but also the principles of equatorial alignment, telescope balancing, focusing and Newtonian collimation.

Technical Specifications

Optics

Focuser

Mount

Tripod

Included Accessories

General

Area of Application

Recommended For

Omegon 150/750 EQ-3 Instruction Manual

For assembly, setup and operating guidance, the English instruction manual for the Omegon 150/750 EQ-3 is available below.
