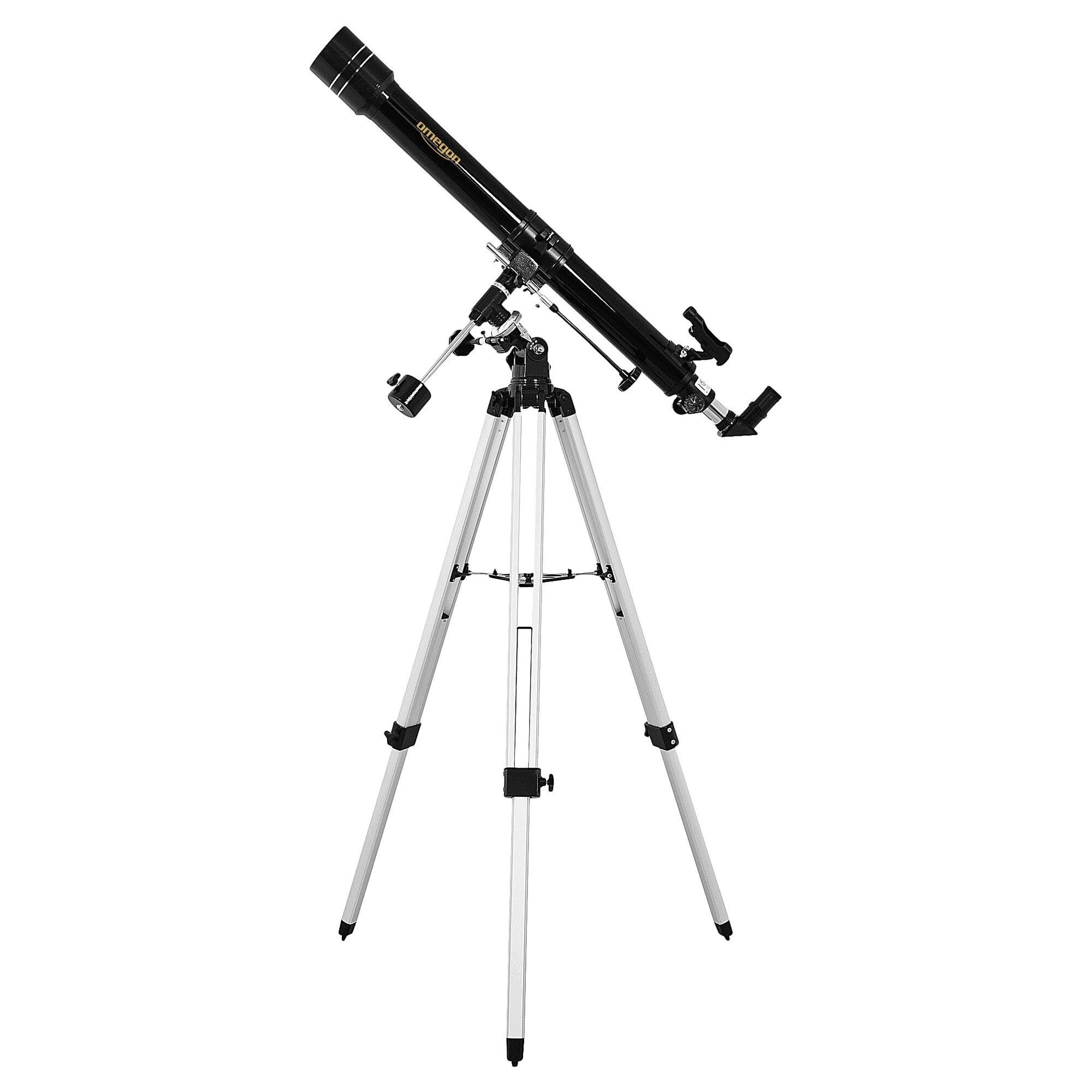

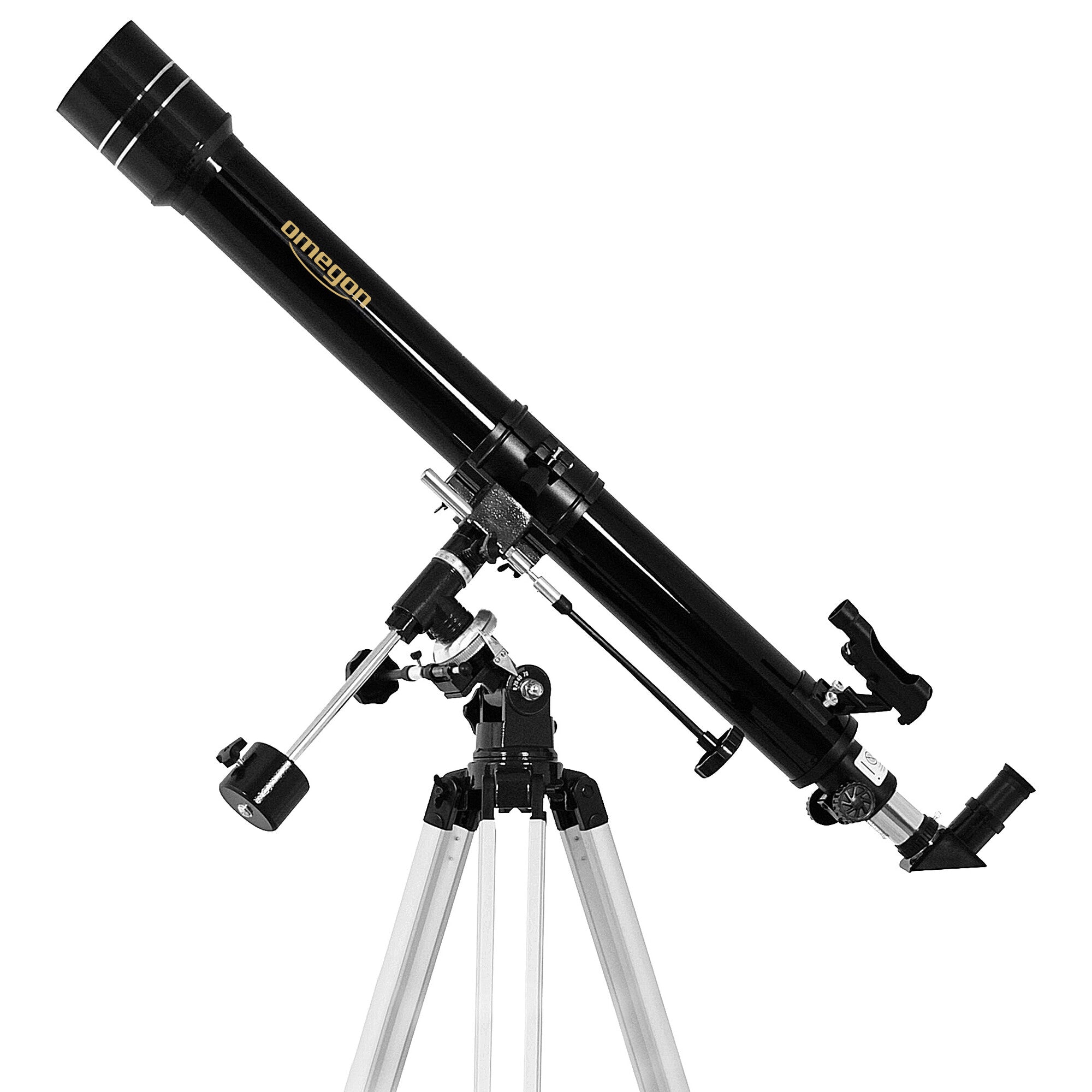

Omegon AC 70/900 EQ-1 Refractor Telescope

The Omegon AC 70/900 EQ-1 is a straightforward beginner's refractor for discovering the Moon, planets and brighter objects in the night sky. Its combination of a 70mm achromatic objective, 900mm focal length and EQ-1 equatorial mount provides a traditional introduction to practical astronomy without unnecessary complexity.

Compared with a typical 60mm starter telescope, the 70mm aperture gathers approximately 36% more light. The relatively long f/12.9 focal ratio is particularly well suited to lunar and planetary observation.

A 70mm Refractor for Your First Views of the Night Sky

The 70mm objective gathers around 100 times as much light as the unaided human eye, giving new astronomers access to considerably more detail than can be seen by eye alone.

The Moon is an obvious first target. Craters, mountain ranges and changing shadows along the lunar terminator provide an impressive introduction to telescopic observing.

The brighter planets are also rewarding targets. Depending on observing conditions, the telescope can reveal features on objects such as Jupiter, Saturn and Mars. The manufacturer's specified maximum useful magnification is 140x.

Long-Focal-Length Achromatic Optics

The telescope uses a 70mm achromatic refractor with a 900mm focal length, giving an aperture ratio of f/12.9.

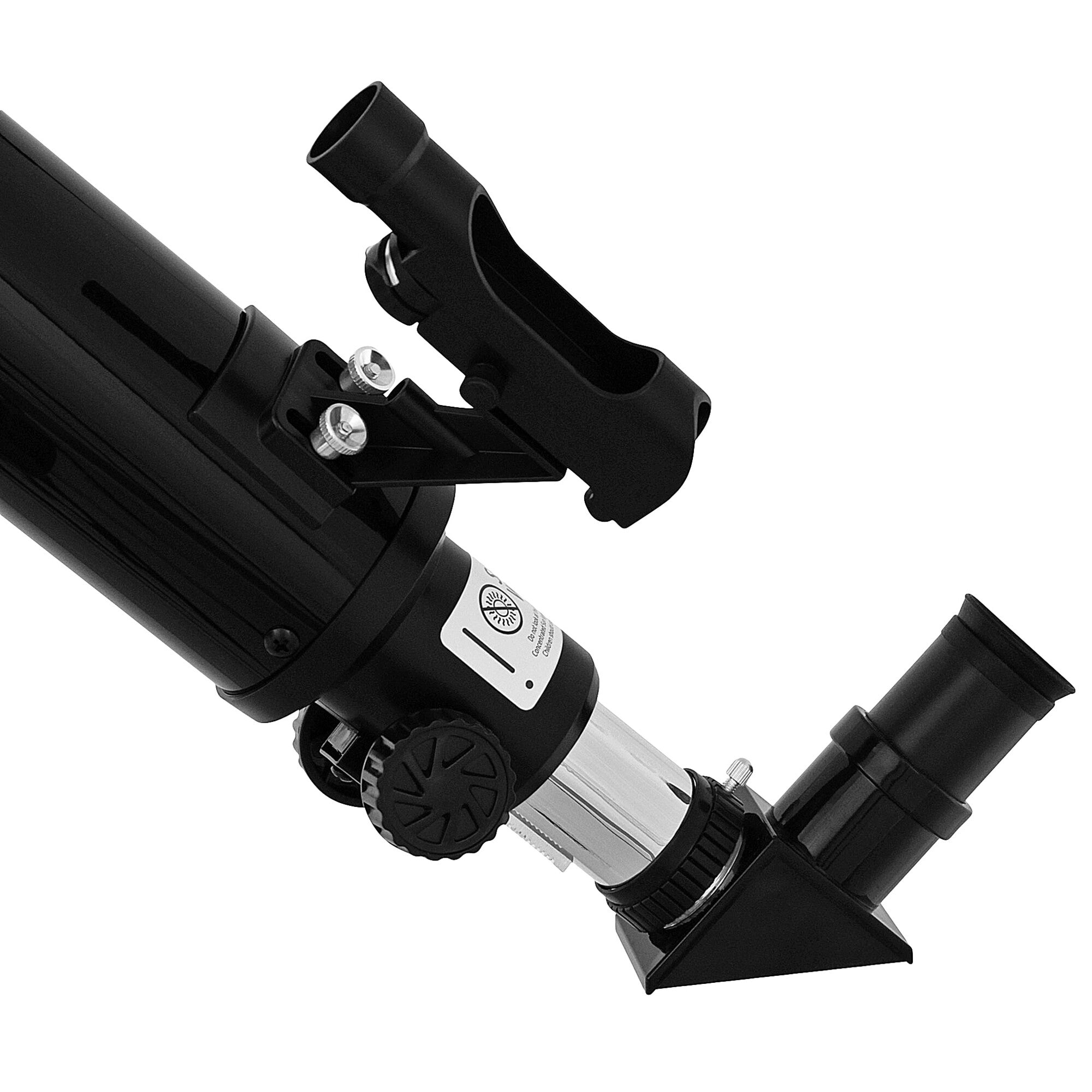

Refractors are particularly approachable for beginners because the optical system is enclosed within the tube and requires relatively little routine adjustment. Focusing is handled by a conventional rack-and-pinion focuser.

The focuser accepts standard 1.25-inch astronomical eyepieces, allowing additional compatible eyepieces to be added later as your observing interests develop.

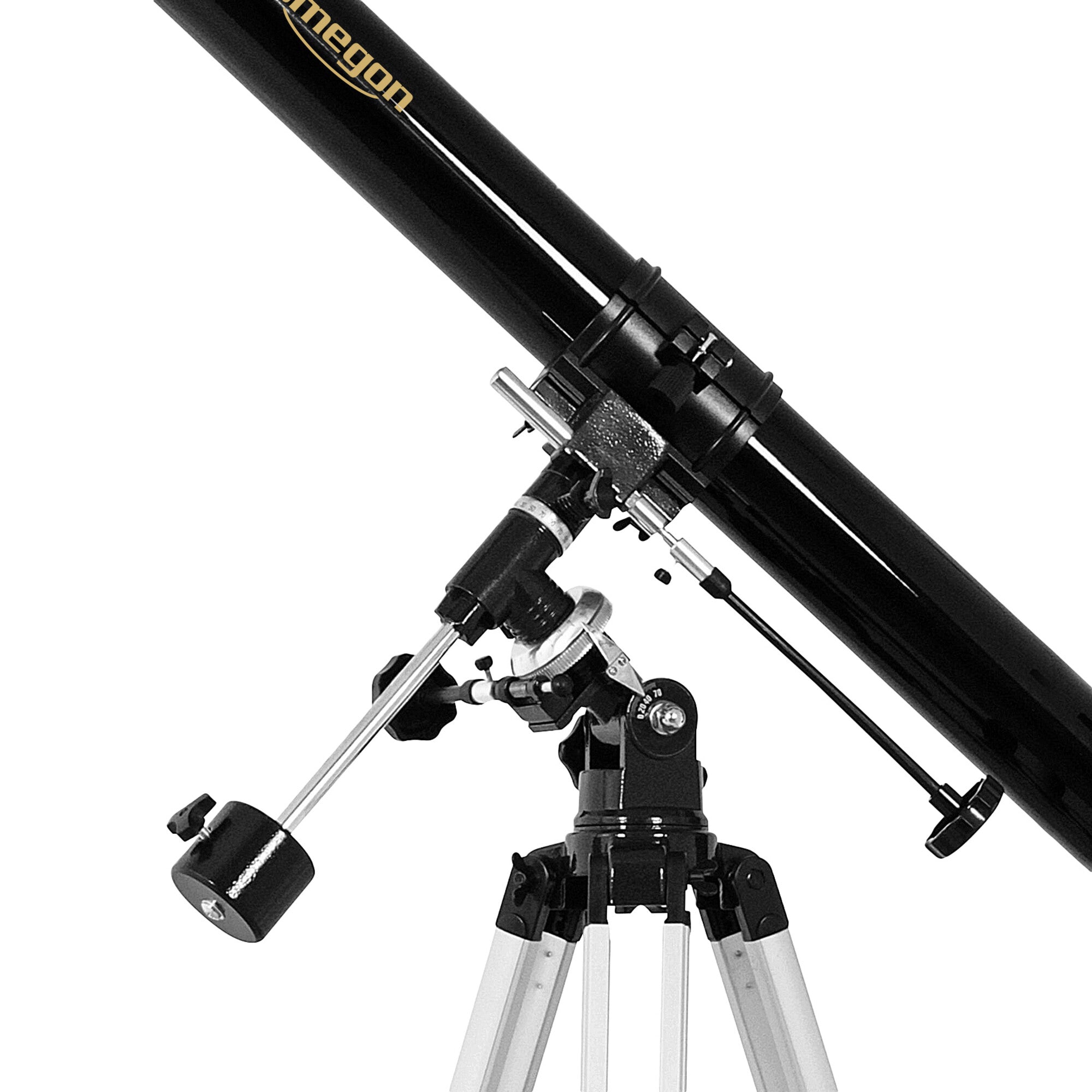

Learn Astronomy with an EQ-1 Equatorial Mount

The telescope is supplied on an Omegon EQ-1 equatorial mount. Unlike a simple up-down, left-right alt-azimuth mount, an equatorial mount can be aligned with the Earth's rotational axis.

Once correctly polar aligned, celestial objects can be followed more naturally as they appear to move across the night sky.

Slow-motion controls on the Right Ascension and Declination axes provide finer adjustment when positioning and following a target, while the supplied counterweight balances the telescope on the mount.

Aluminium Tripod

The EQ-1 is supported by an aluminium tripod. The supplied technical specification lists a tripod height of 120cm, providing a practical observing platform while keeping the complete telescope manageable for beginners.

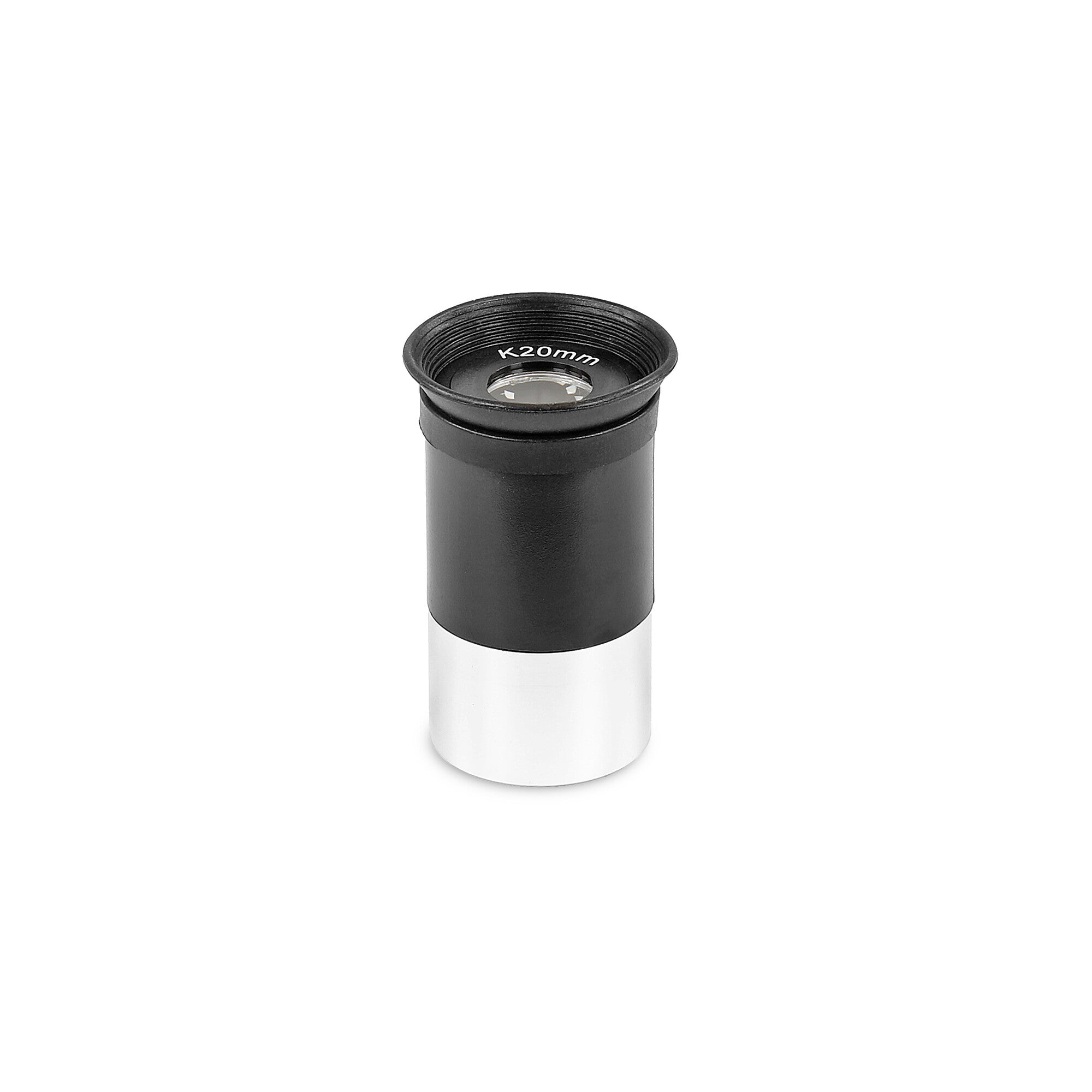

Two Eyepieces Included

Two 1.25-inch eyepieces are supplied, giving you two useful magnifications straight from the box:

• 20mm eyepiece – 45x magnification

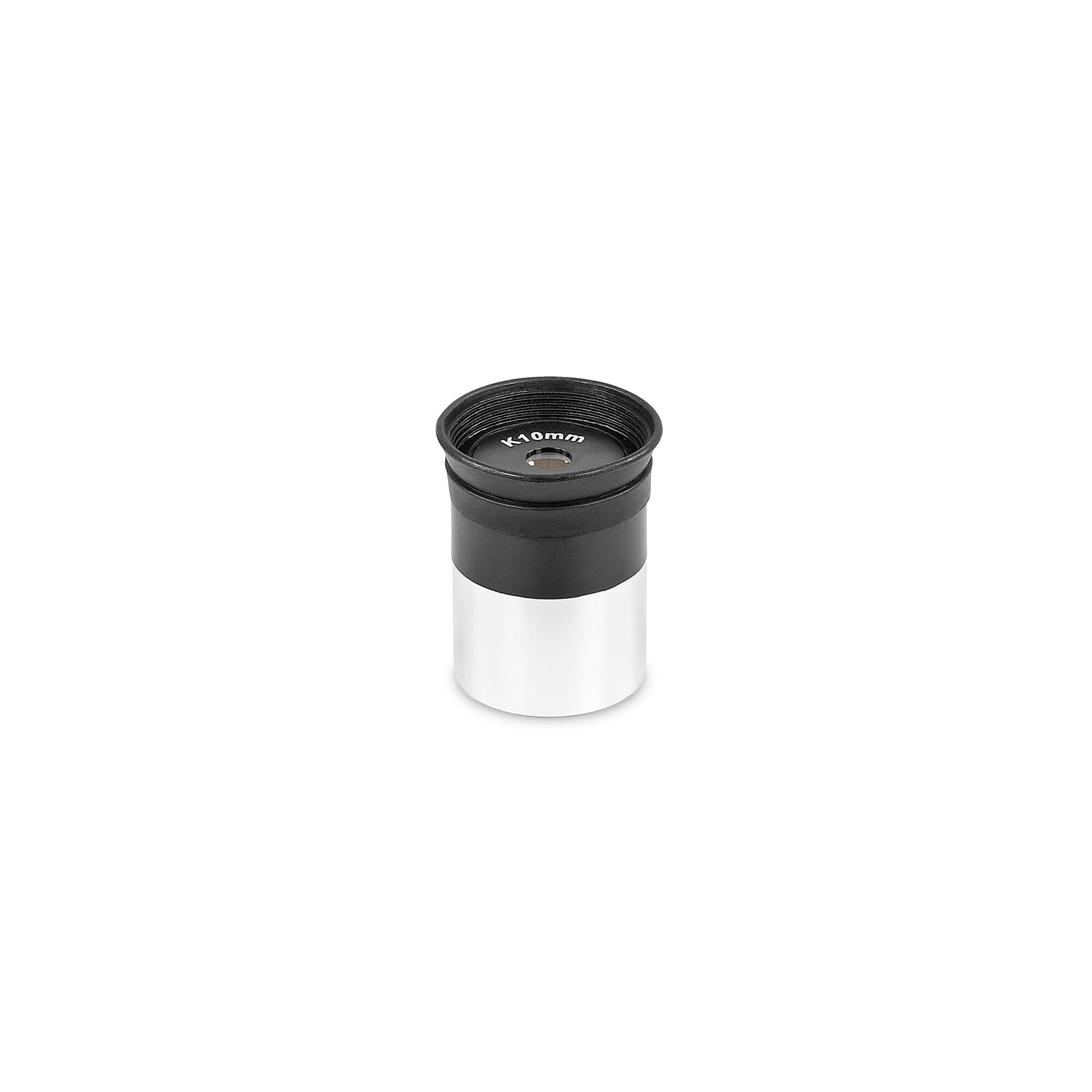

• 10mm eyepiece – 90x magnification

The 20mm eyepiece provides the lower-power view and is a good starting point for locating targets. The 10mm increases the magnification for closer examination of smaller targets such as the Moon and planets.

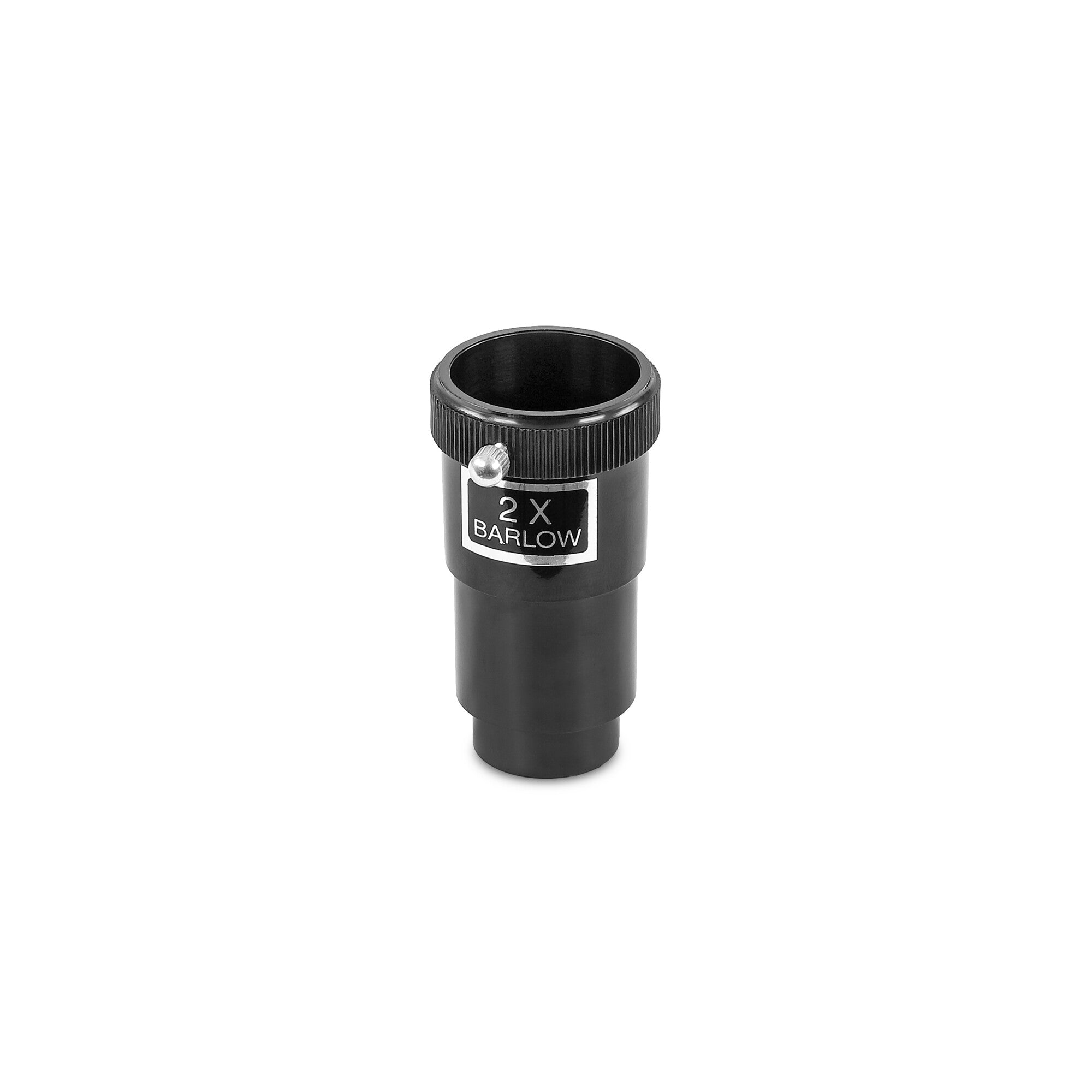

2x Barlow Lens

A 2x Barlow lens is also included. A Barlow increases the effective magnification of a compatible eyepiece, providing additional flexibility when conditions and the chosen target allow.

Remember that more magnification does not automatically mean a better image. The practical limit depends on the telescope, atmospheric conditions and the object being observed, with the manufacturer specifying 140x as the maximum useful magnification for this telescope.

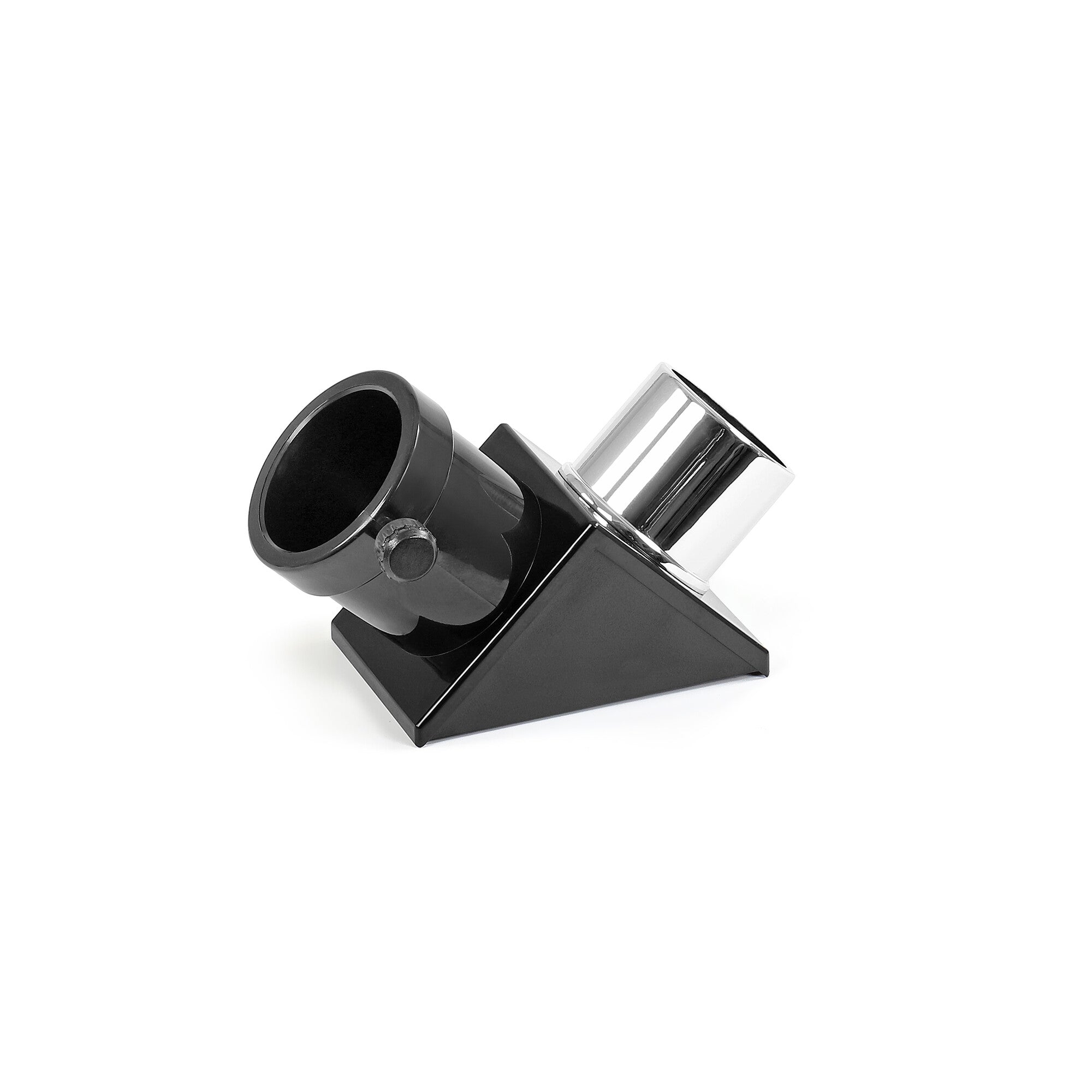

90° Star Diagonal

The supplied 1.25-inch 90° star diagonal provides a much more comfortable viewing position when the telescope is pointing upwards, reducing the need to position yourself directly behind the optical tube.

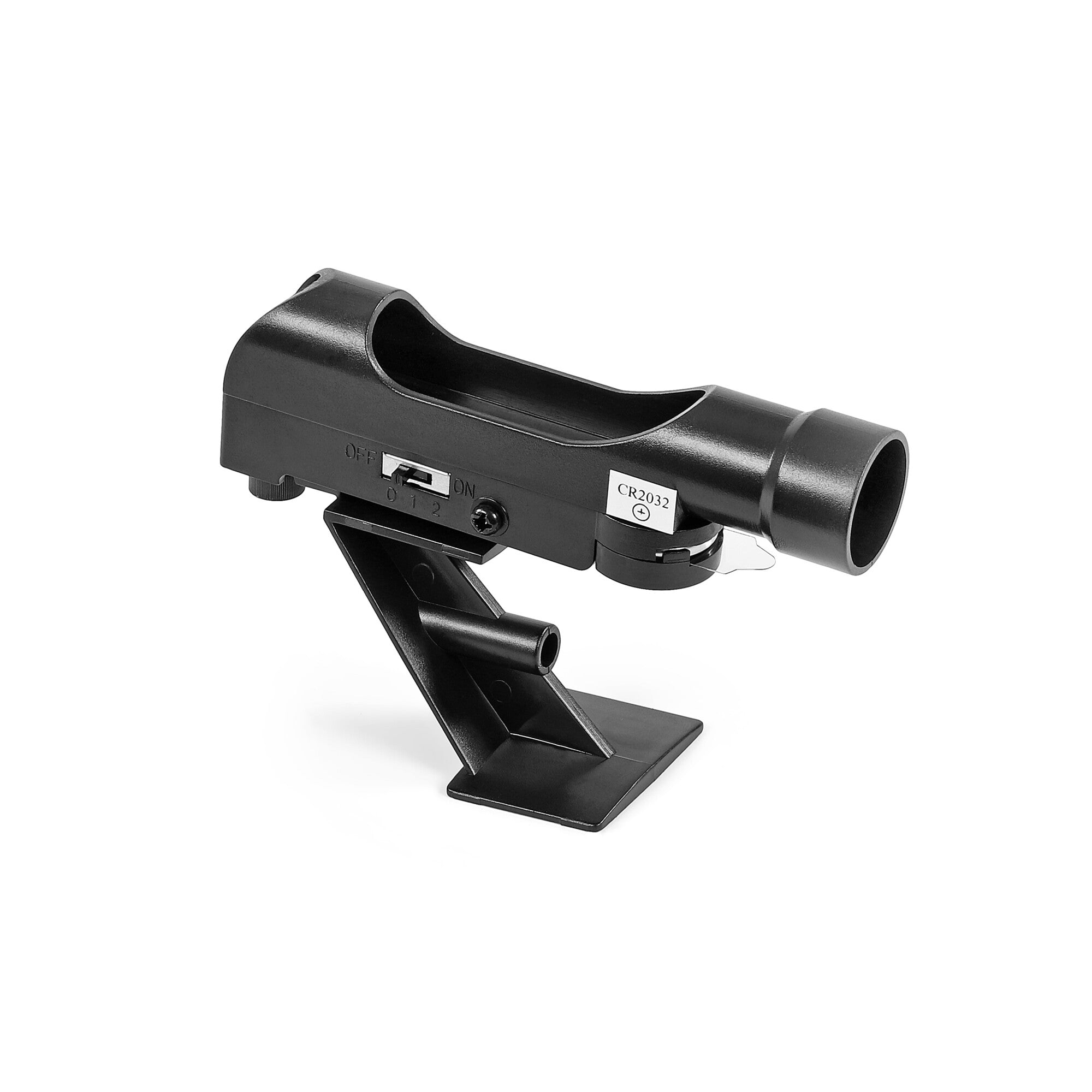

Red Dot Finder

A red dot finder is included to help point the telescope towards your chosen target. Looking through the finder provides a simple aiming reference against the sky, making it easier for beginners to move from identifying an object by eye to viewing it through the main telescope.

Suitable for Daytime Nature Observation

The manufacturer's application data also identifies the AC 70/900 as suitable for nature observation. An appropriate erecting accessory would be required when a correctly orientated terrestrial view is desired; an erecting lens or Amici prism is not listed among the supplied accessories for this telescope.

Who Is the Omegon 70/900 EQ-1 For?

This is fundamentally a beginner's telescope. It is a good choice for someone who wants to learn how to use a traditional telescope and equatorial mount while concentrating primarily on the Moon and planets.

The manufacturer's application ratings do not recommend this model for deep-sky observing or astrophotography. Buyers primarily interested in faint galaxies and nebulae should consider a telescope with a larger aperture, while serious astrophotography requires a more specialised mount and optical setup.

Key Features

• 70mm achromatic refractor
• 900mm focal length
• f/12.9 focal ratio
• Maximum useful magnification of 140x
• EQ-1 equatorial mount
• RA and DEC slow-motion adjustment
• Aluminium tripod
• 1.25" rack-and-pinion focuser
• 20mm and 10mm eyepieces included
• 2x Barlow lens included
• 1.25" 90° star diagonal included
• Red dot finder included
• Designed primarily for beginner lunar and planetary observing

What's Included?

• Omegon AC 70/900 achromatic refractor optical tube
• Omegon EQ-1 equatorial mount
• Aluminium tripod
• Counterweight
• 20mm 1.25" eyepiece
• 10mm 1.25" eyepiece
• 2x Barlow lens
• 1.25" 90° star diagonal
• Red dot finder

Technical Specifications

Optics

Focuser

Mount

Tripod

Included Accessories

General

Area of Application

Recommended For

Instruction Manual

View or download the Omegon EQ-1 / EQ-2 mount instruction manual. Please note that the supplied manual is provided in German, French, Italian, Portuguese and Spanish.
