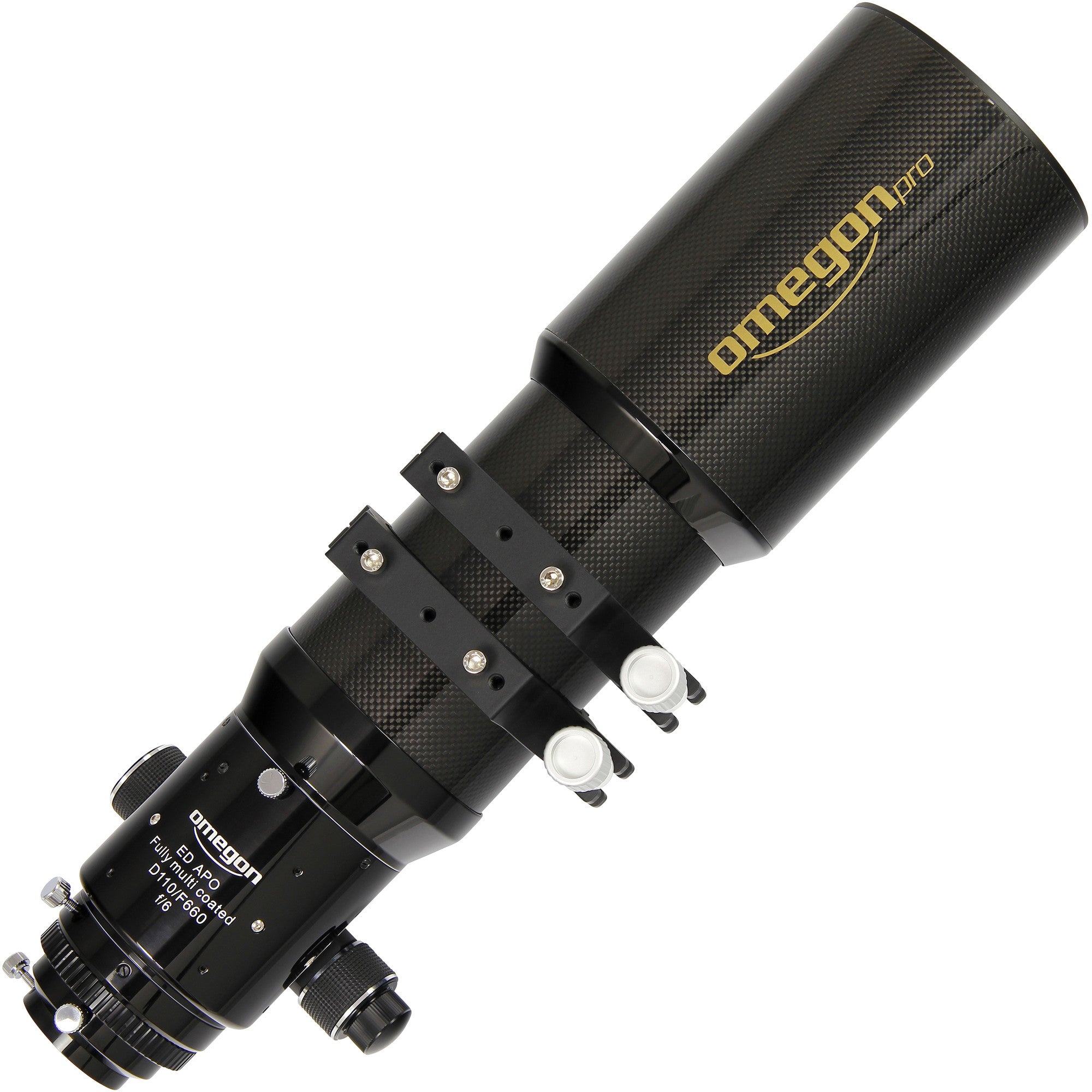

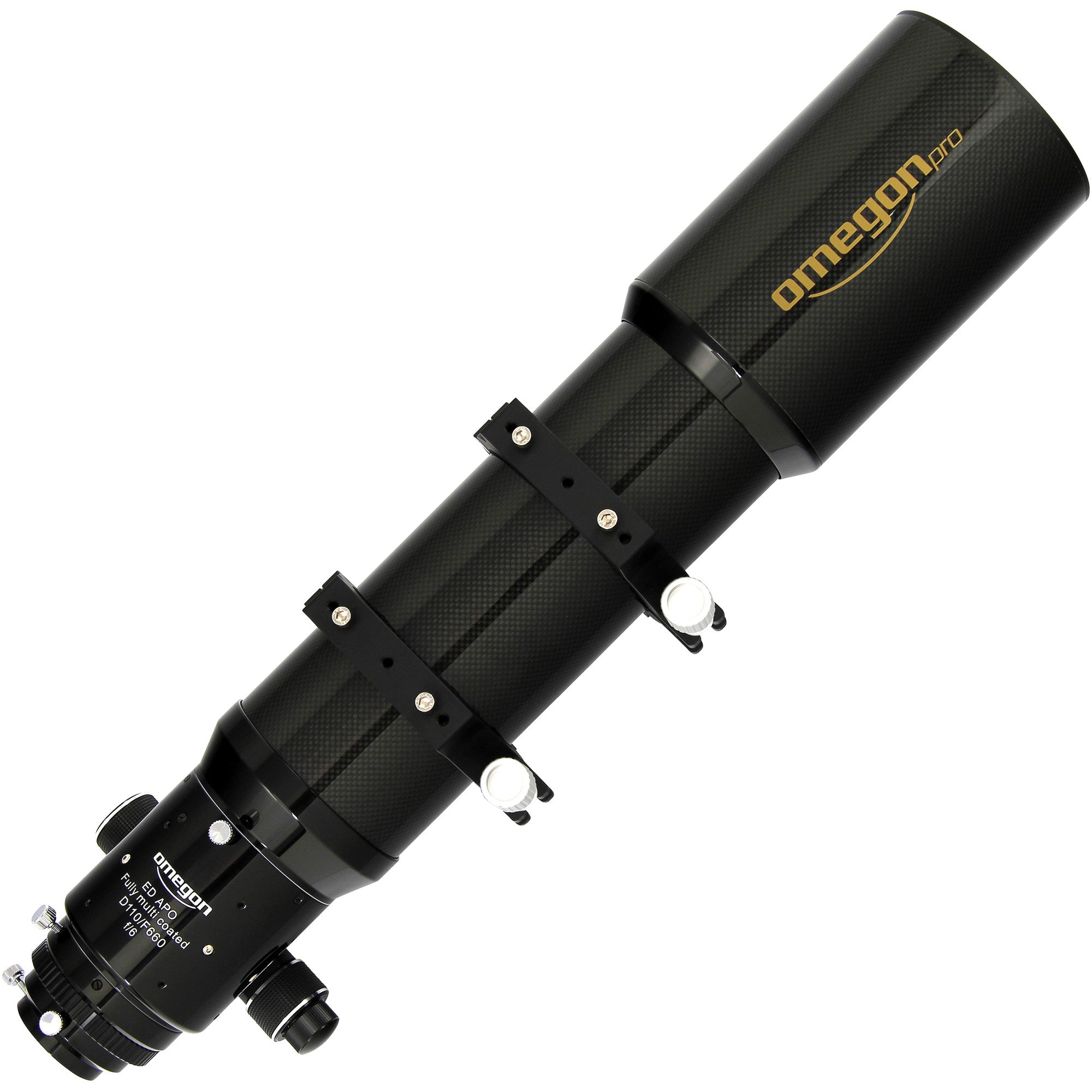

Omegon Pro APO 110/660 ED Carbon Apochromatic Refractor

A lightweight 110mm ED apochromatic refractor combining premium FPL-53 optics, a carbon-fibre optical tube and a high-capacity precision focuser for serious astrophotography and visual astronomy.

The Omegon Pro APO 110/660 ED Carbon gives astrophotographers considerably more aperture while retaining the portability that makes a refractor so appealing. Its 110mm objective gathers significantly more light than smaller imaging refractors, revealing finer detail while the relatively fast f/6 optical system is particularly attractive for deep-sky imaging.

Despite the increased aperture, the carbon-fibre construction keeps the OTA to approximately 4.8kg, making this an unusually capable telescope for its size.

110mm ED Apochromatic Optics

The 110/660 uses a two-element apochromatic objective combining premium Ohara FPL-53 and S-NBM51 glass. This carefully selected ED glass combination is designed to provide excellent colour correction, light transmission and contrast.

The result is crisp stellar imaging and finely resolved detail with greatly reduced chromatic aberration compared with conventional achromatic refractors.

• 110mm aperture for increased light gathering and resolution
• 660mm focal length
• f/6 focal ratio
• FPL-53 and S-NBM51 ED glass
• Multi-coated optical surfaces
• High-contrast, sharply defined star images
• Internal baffling designed to suppress unwanted reflections

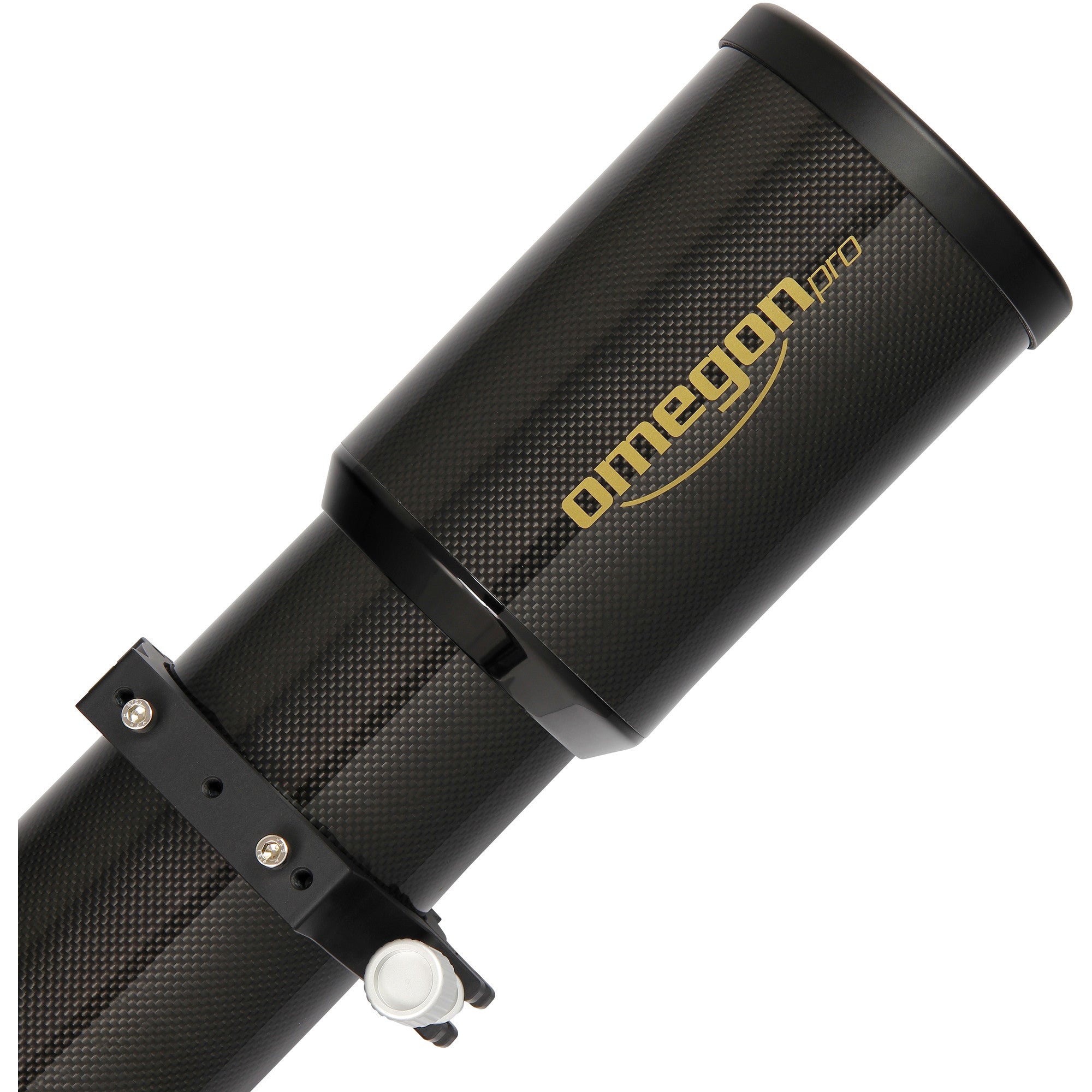

Carbon-Fibre Optical Tube

The optical tube and retractable dew shield are manufactured from carbon fibre. Besides giving the telescope a premium finish, carbon fibre offers important practical benefits for astrophotography.

Its combination of low weight, high rigidity and minimal thermal expansion helps the telescope maintain focus as temperatures change during a long imaging session. This can be particularly valuable when collecting exposures over several hours.

The retractable carbon-fibre dew shield is internally lined to help control stray light and reflections.

Designed for Astrophotography

The combination of a 110mm aperture and 660mm focal length provides an excellent imaging scale for a wide range of deep-sky targets. Nebulae, galaxies and larger star clusters can all be approached with a telescope that remains substantially easier to transport and mount than many larger-aperture instruments.

Its unobstructed refractor design also makes it an impressive visual instrument, providing high-contrast views of the Moon, planets and brighter deep-sky objects.

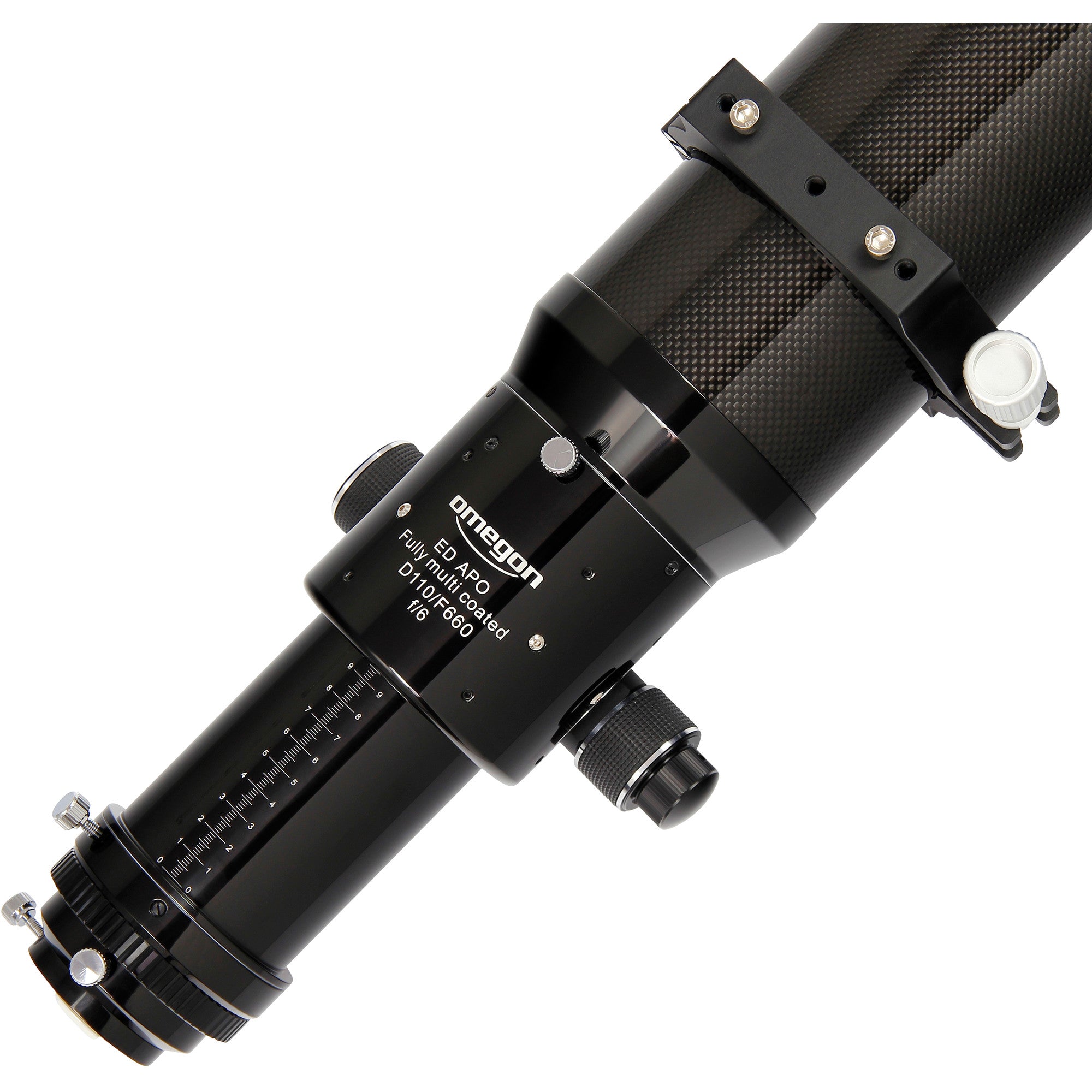

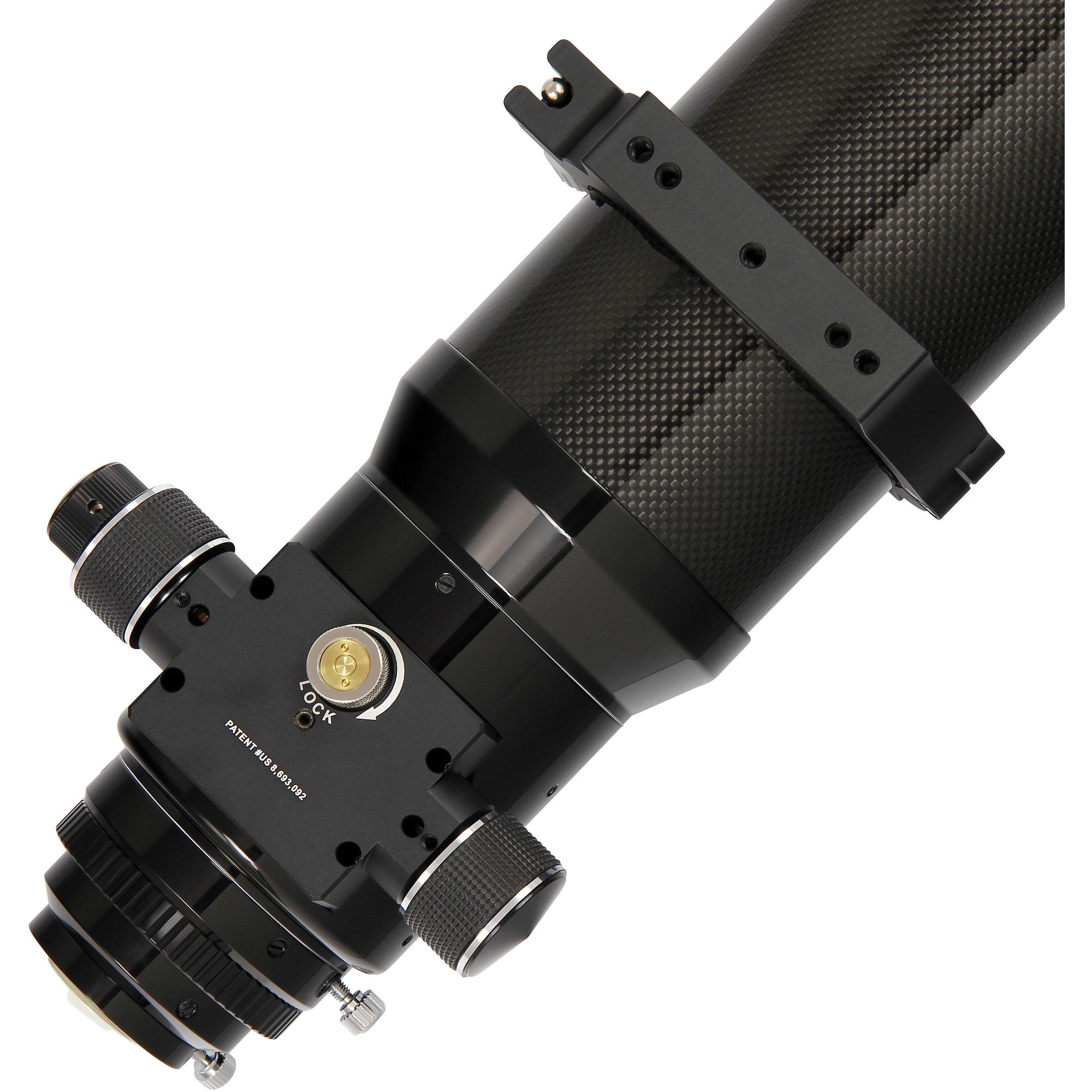

Heavy-Duty 2.7-inch Crayford Focuser

The telescope is fitted with a substantial 2.7-inch Crayford-style focuser designed for demanding astrophotography configurations.

With the additional locking screw engaged, the focuser is designed to support imaging accessories weighing up to 10kg. This makes it suitable for substantial camera, filter-wheel and accessory combinations while helping maintain the chosen focus position as the telescope moves around the sky.

Fine focusing allows very small adjustments when achieving critical focus. The complete focuser assembly can also be rotated through 360°, allowing the camera orientation to be changed without disturbing focus.

• 2.7-inch Crayford focuser
• Fine-focus reduction
• High accessory load capacity
• 360° rotatable focuser
• 2-inch and 1.25-inch accessory compatibility
• M74x1.0 connection available via supplied adapter
• 150mm backfocus

Compact for a 110mm Refractor

The retractable dew shield helps keep the telescope compact for transport and storage. The OTA measures approximately 550mm when retracted and around 670mm fully extended.

At approximately 4.8kg, the carbon-fibre construction also makes the telescope considerably easier to handle than its aperture might suggest.

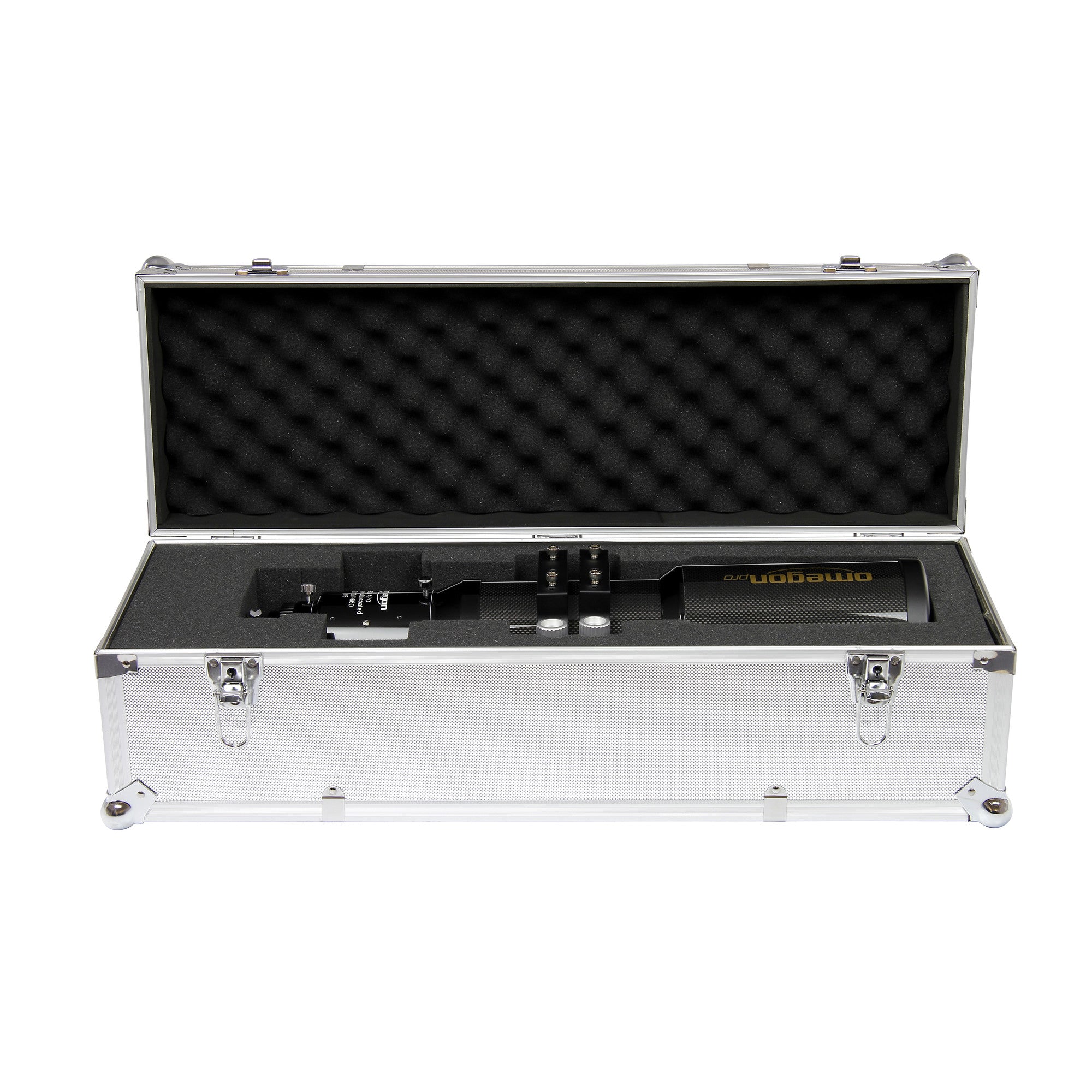

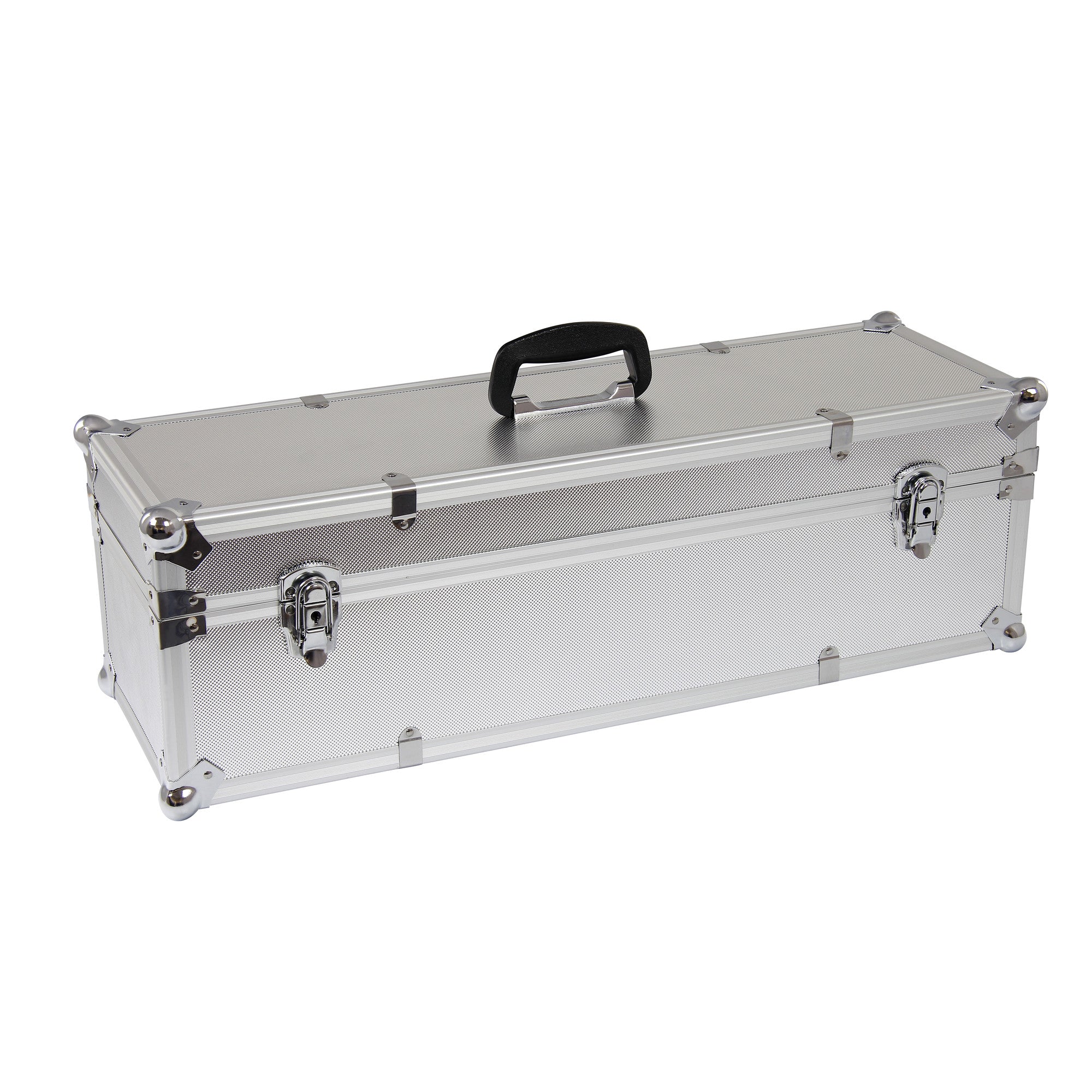

Aluminium Transport Case Included

A protective aluminium carrying case is included for storage and transportation. The fitted foam interior holds the optical tube securely and helps protect the telescope when travelling to observing or imaging locations.

The case measures approximately 71.5 × 22.5 × 22.5cm.

Mounting Note

Please note: this is an optical tube assembly and a prism/dovetail rail is not included. A suitable mounting rail must therefore be selected for your mount and installation.

The telescope is supplied with two 114mm tube rings, allowing an appropriate dovetail plate to be fitted for your chosen equatorial mount.

Specifications

Optics

Focuser

Mounting

Included Accessories

General

Recommended Applications

• Astrophotography: Yes
• Nebulae & galaxies: Yes
• Moon & planets: Yes
• Nature observation: Yes
• Recommended experience: Advanced

Solar observing: Never point the telescope towards the Sun without a suitable securely fitted telescope solar filter.

Why Choose the Omegon Pro APO 110/660 Carbon?

The Pro APO 110/660 occupies an attractive position between compact imaging refractors and much larger premium APOs. Its 110mm aperture provides increased light gathering and resolution while the 660mm focal length and f/6 focal ratio make it particularly useful for deep-sky astrophotography.

Add the lightweight carbon-fibre tube, premium ED glass, heavy-duty rotatable focuser and included aluminium case, and this becomes a highly capable imaging OTA for the advanced astrophotographer looking to move beyond smaller aperture refractors.
