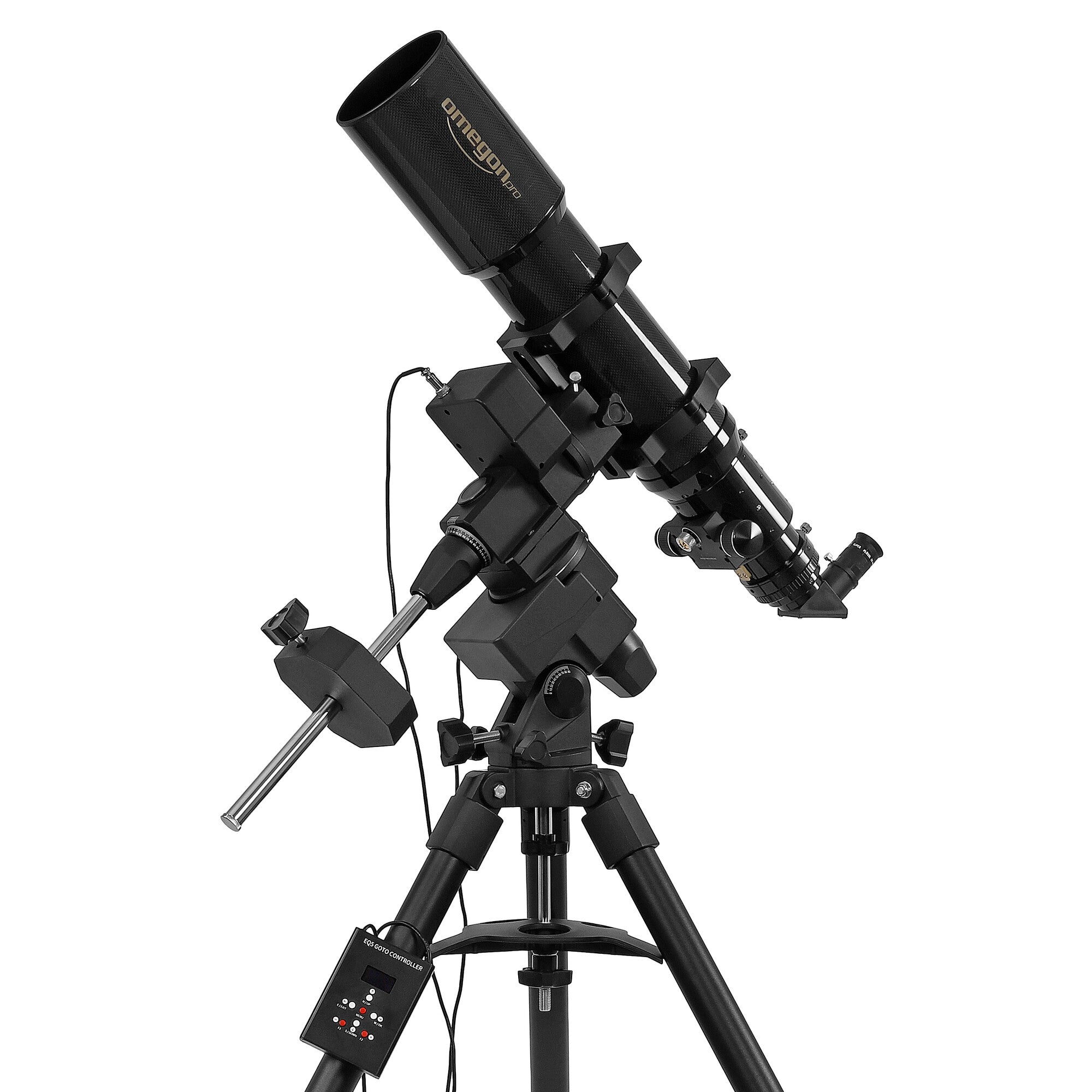

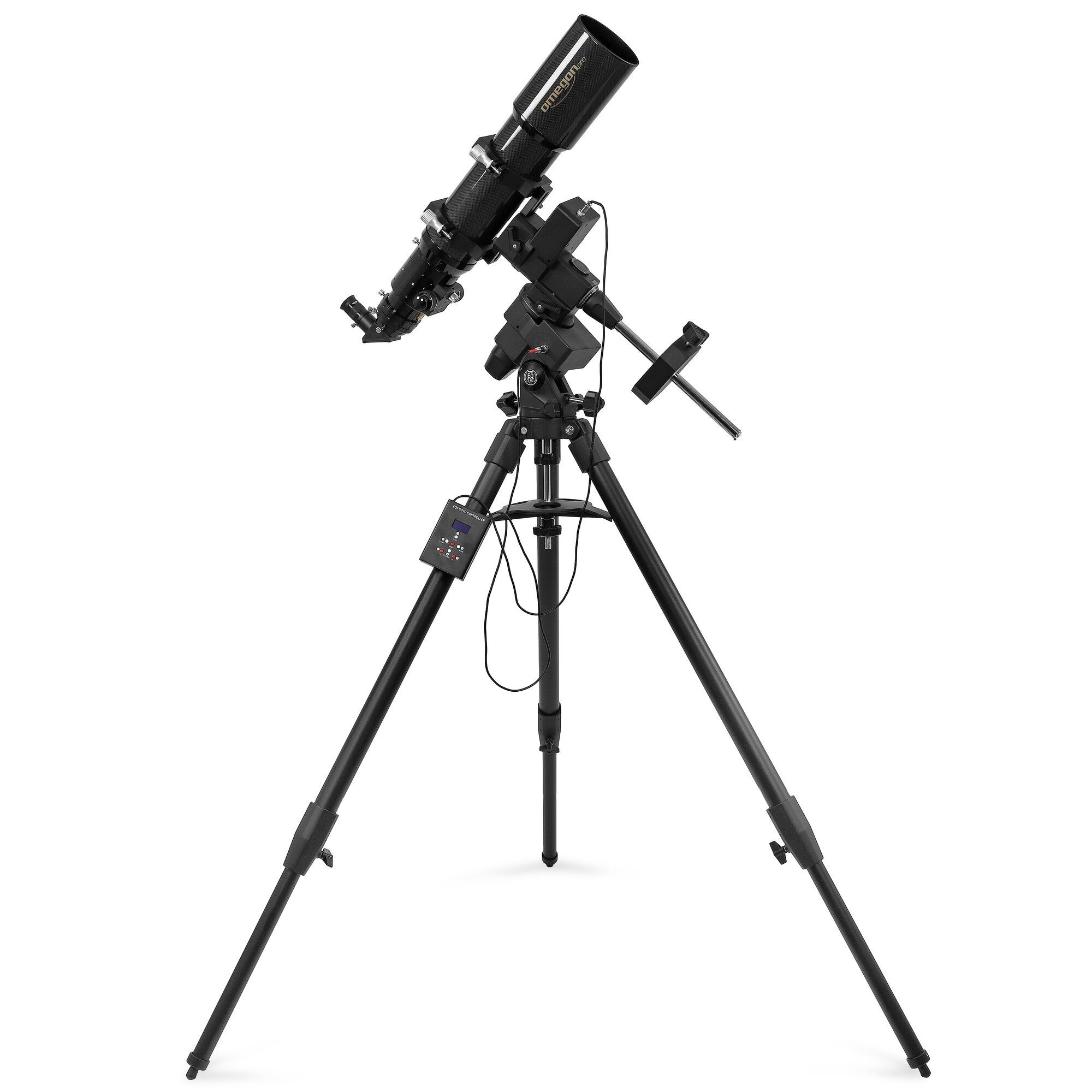

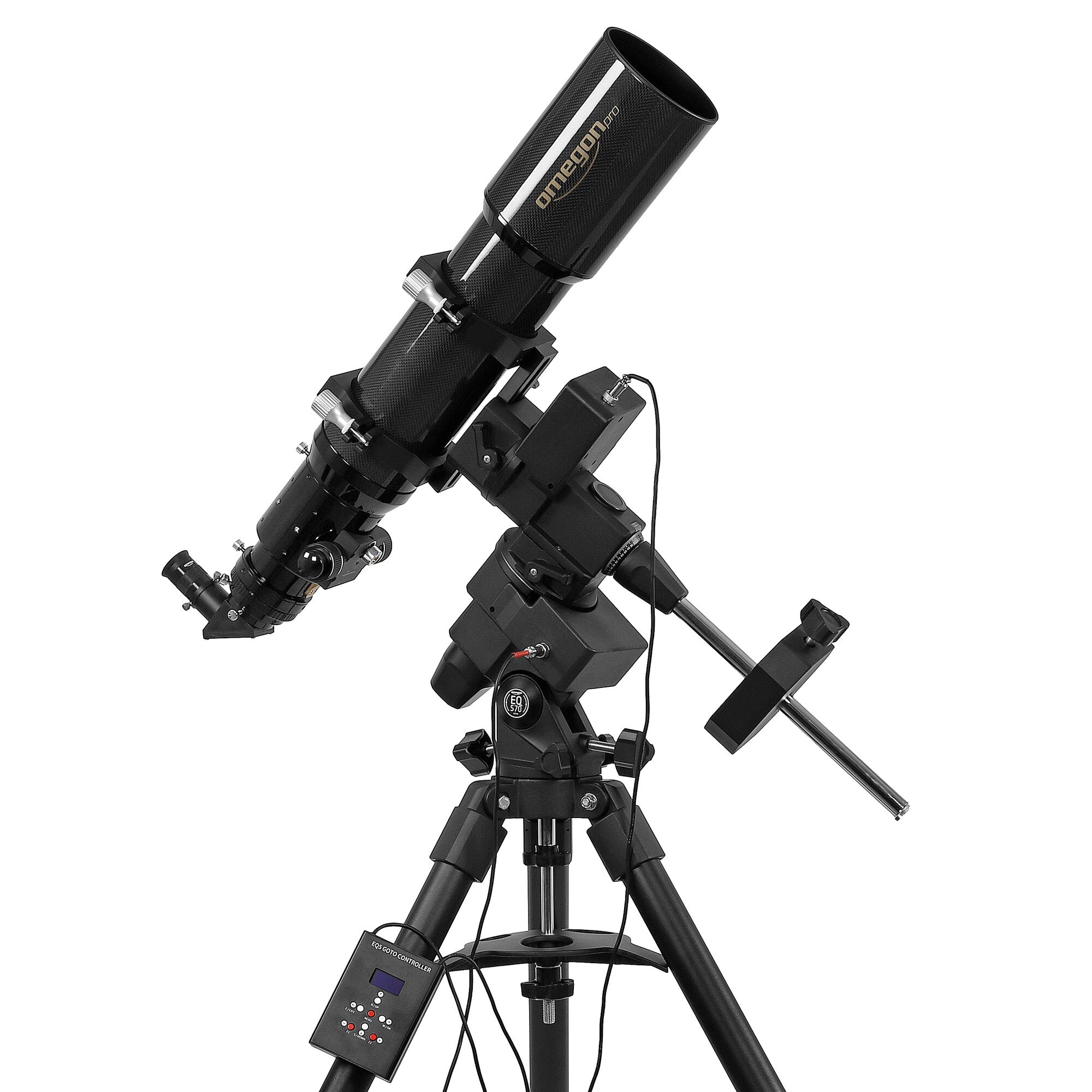

Omegon Pro APO 110/660 ED with EQ570DX GoTo

The Omegon Pro APO 110/660 ED with EQ570DX GoTo combines a fast 110mm ED apochromatic refractor with Omegon's EQ570DX computer-controlled equatorial mount, creating a capable system for both visual astronomy and astrophotography.

With its 110mm aperture, 660mm focal length and f/6 focal ratio, the telescope provides a useful combination of light-gathering power and relatively wide-field performance. The EQ570DX adds automatic GoTo positioning, tracking, Wi-Fi, Bluetooth and a toothed-belt reduction system.

The result is a versatile astronomy system for observers who want to explore visually today while retaining a strong platform for developing an astrophotography setup.

110mm ED Apochromatic Optics

The Pro APO uses a 110mm two-element ED objective built around a combination of OHARA FPL-53 and S-NBM51 glass. This carefully selected glass combination is designed to provide excellent colour correction, high contrast and sharp stellar images.

The 110mm aperture gives the telescope considerably more light-gathering ability than smaller travel refractors while retaining the compact dimensions associated with a relatively fast apochromatic refractor.

All optical surfaces are multi-coated, while an internal baffle system helps suppress stray light and unwanted reflections. The supplied specifications give a light-gathering capacity of 250 and maximum useful magnification of 220x.

Fast f/6 Optics for Astrophotography

A 660mm focal length gives the telescope a focal ratio of f/6. This makes the Pro APO 110/660 particularly interesting for deep-sky astrophotography, while the 110mm aperture also provides useful resolving power for visual observing.

The telescope is suitable for imaging and observing a broad range of celestial targets, including the Moon, planets, nebulae and galaxies.

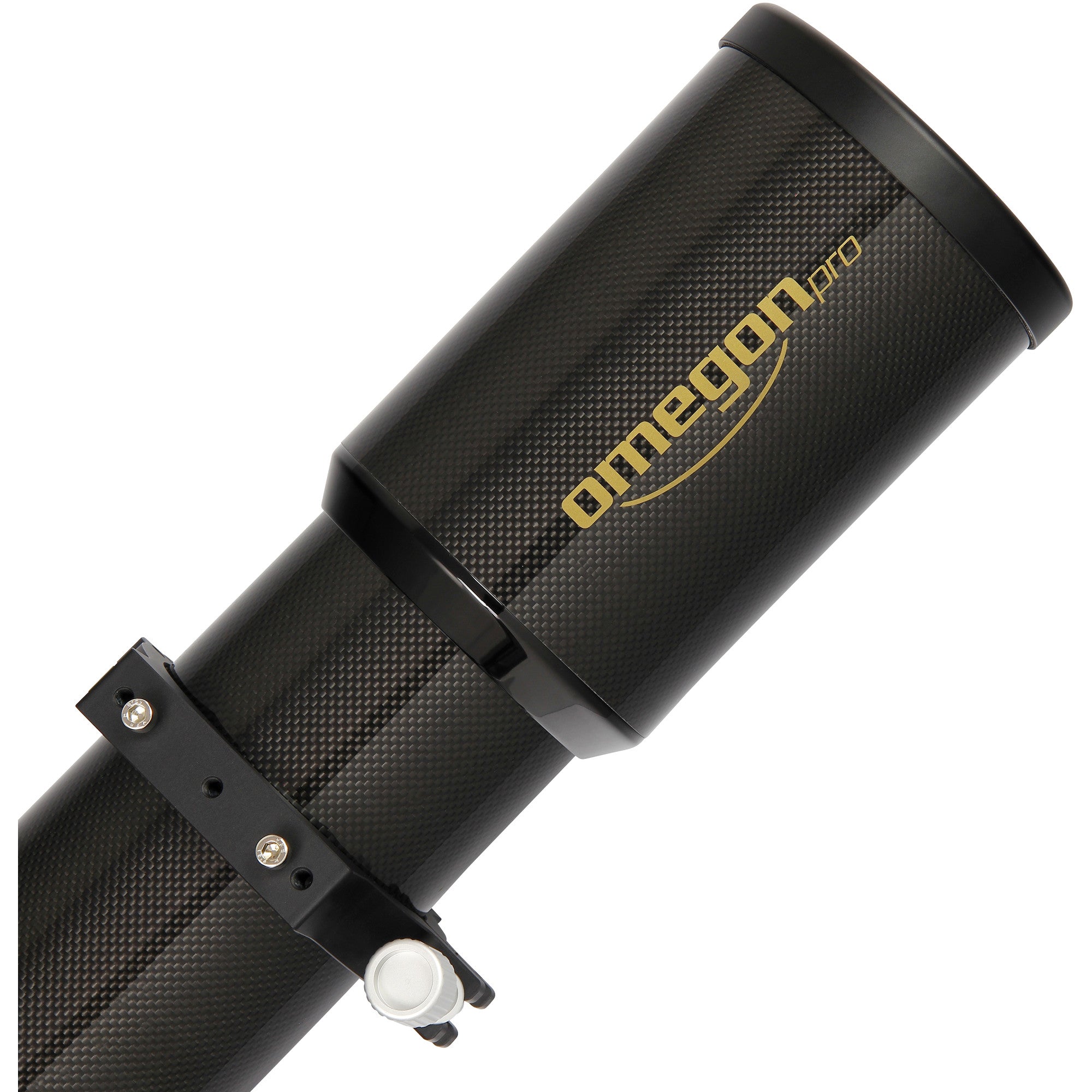

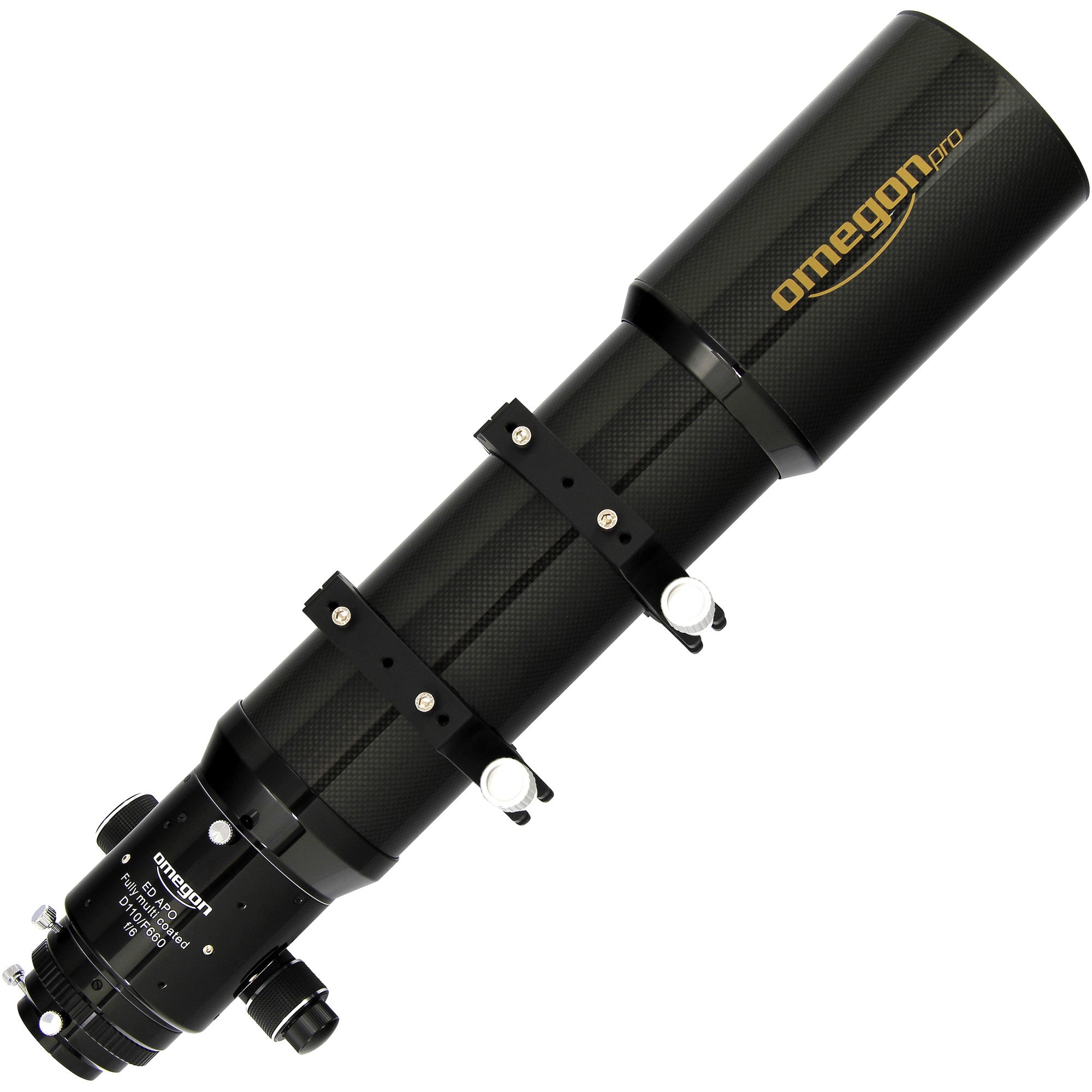

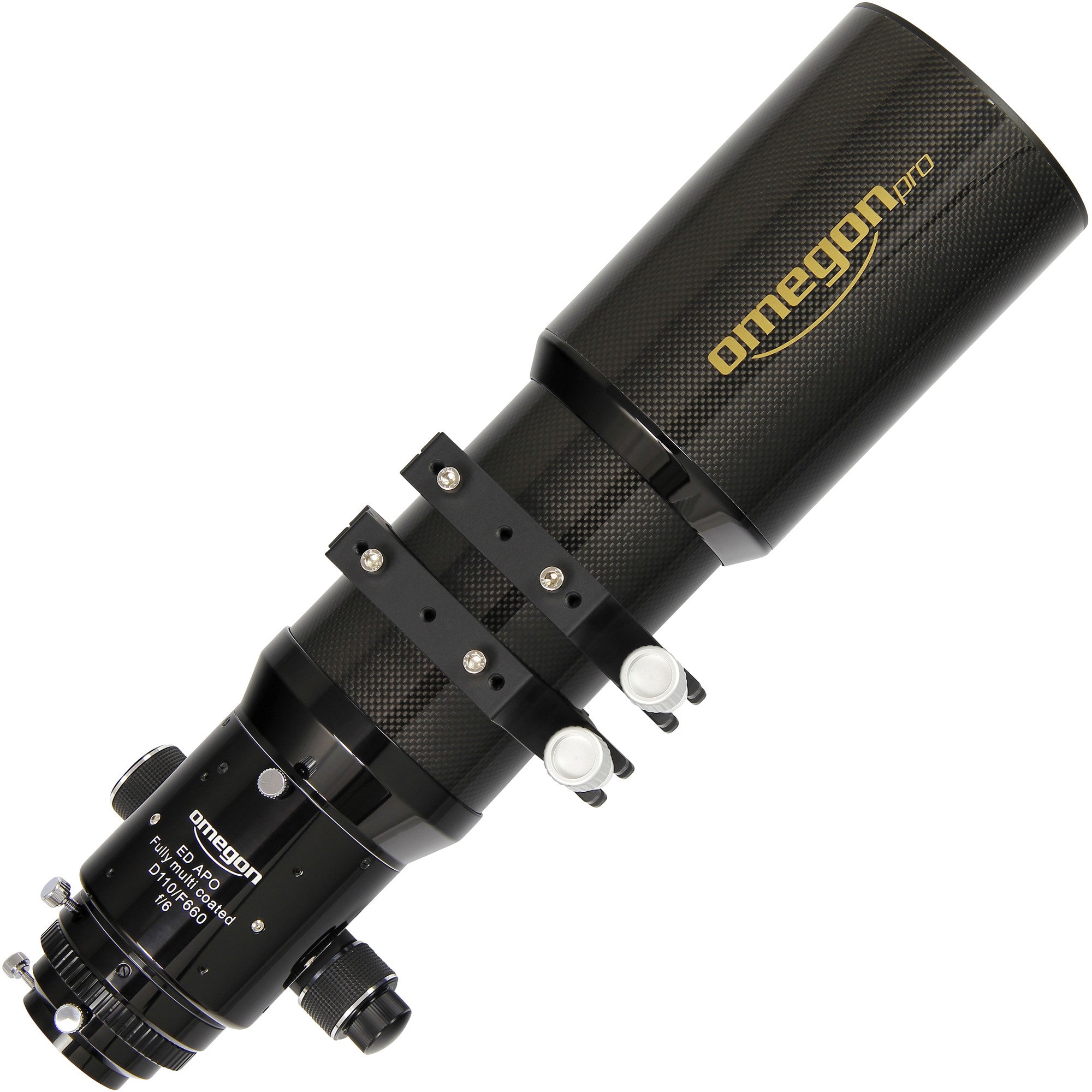

Carbon-Fibre Optical Tube

The Pro APO's optical tube is constructed from carbon fibre, providing a lightweight but rigid structure for the optical system.

The matching carbon-fibre dew shield is internally lined with felt to help suppress stray reflections. Carbon fibre also has relatively low thermal expansion, an advantage when maintaining focus during changing night-time temperatures.

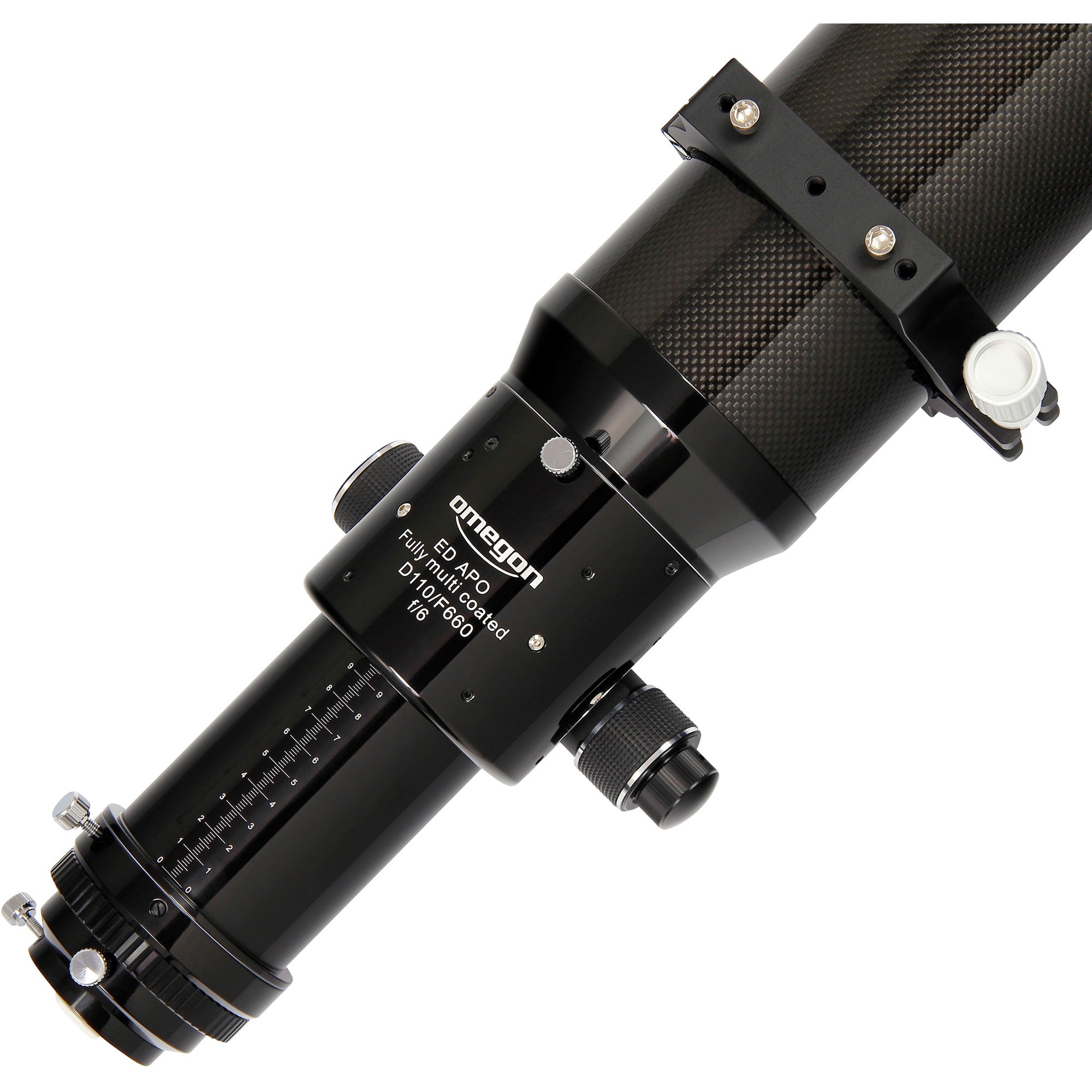

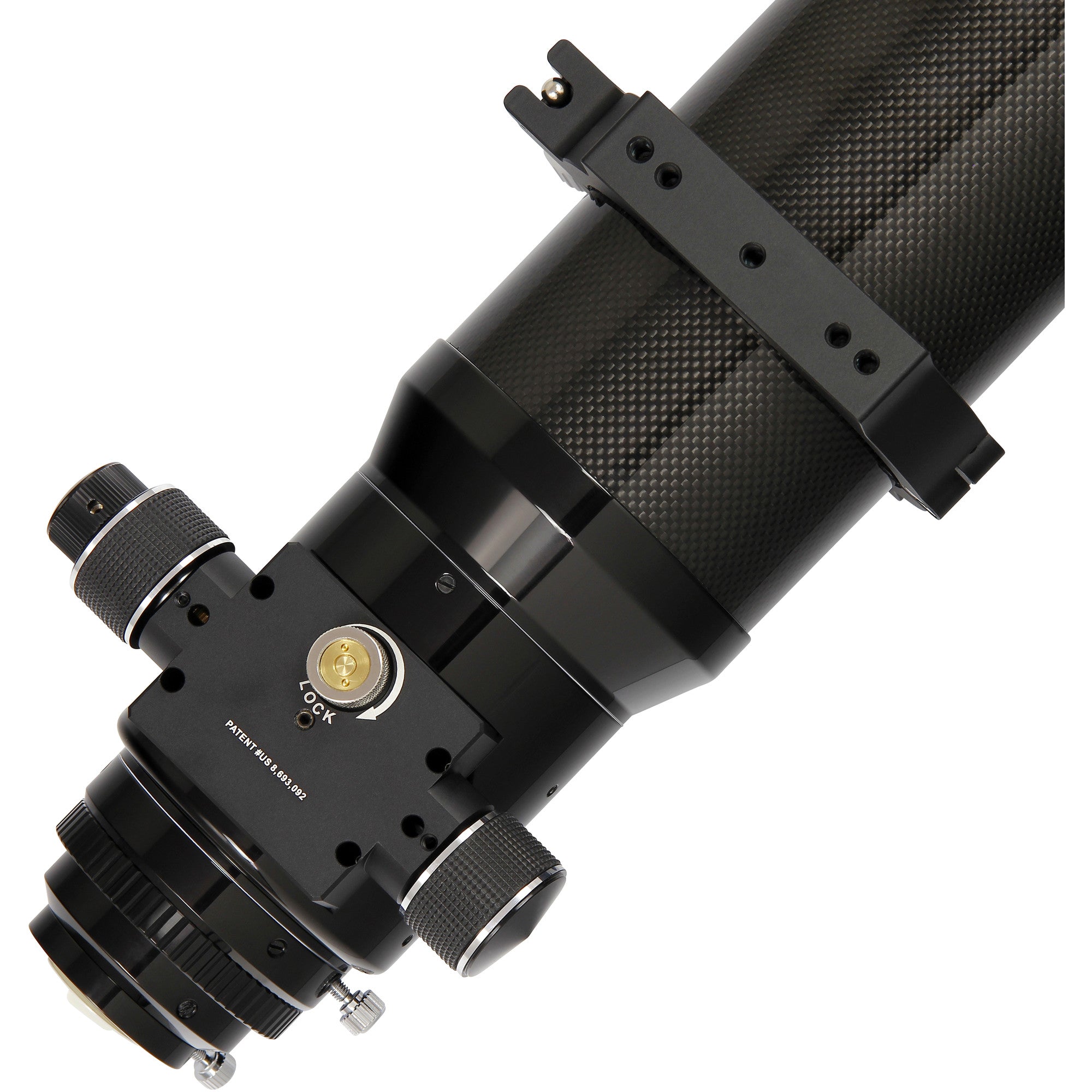

Precision 2.7-Inch Rotating Crayford Focuser

The telescope uses a substantial 2.7-inch Crayford focuser, giving imaging equipment a larger optical connection than a conventional 2-inch focuser.

A 1:10 fine-focus reduction allows very small adjustments when establishing critical focus, while the focuser can also be rotated to help position a camera or eyepiece at the required angle.

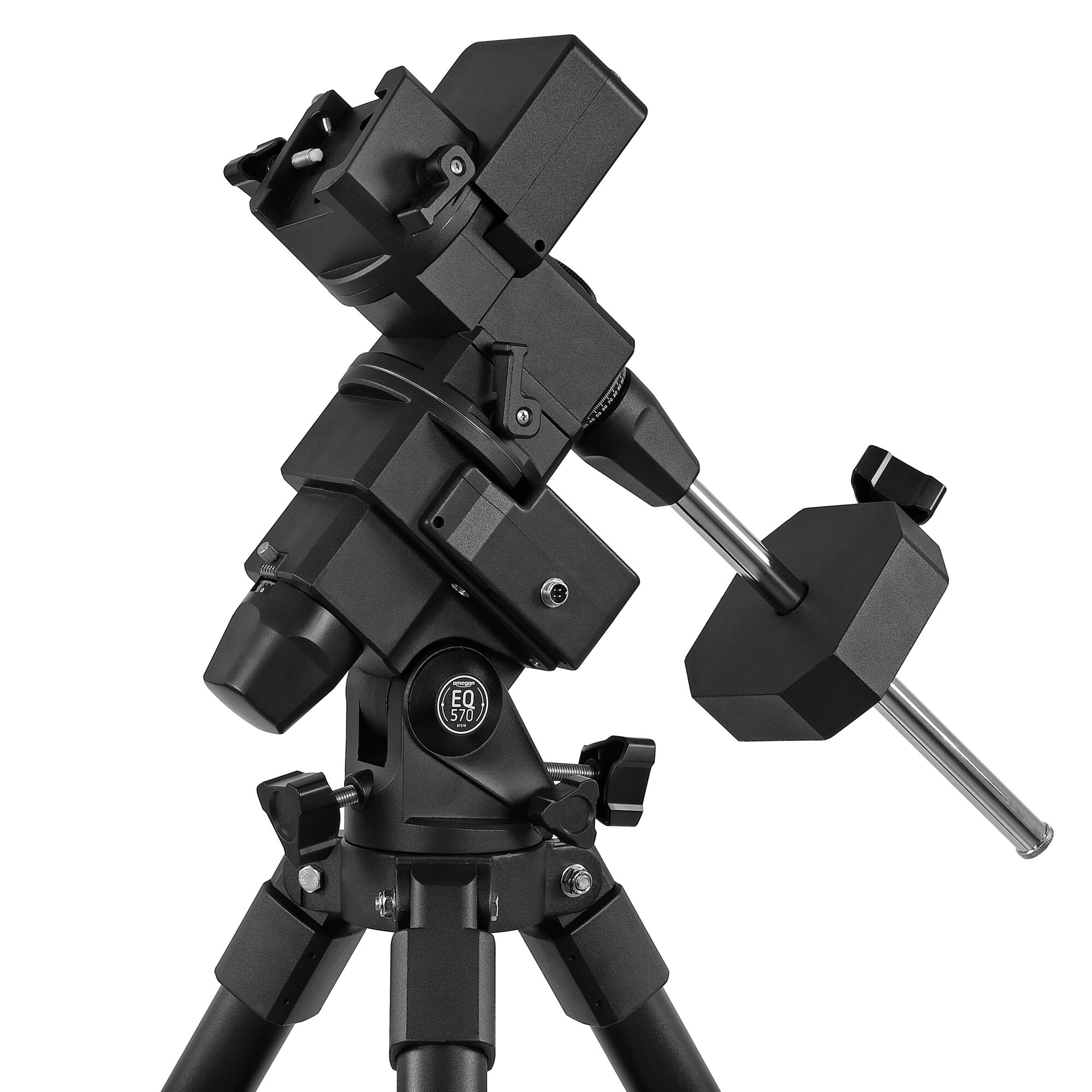

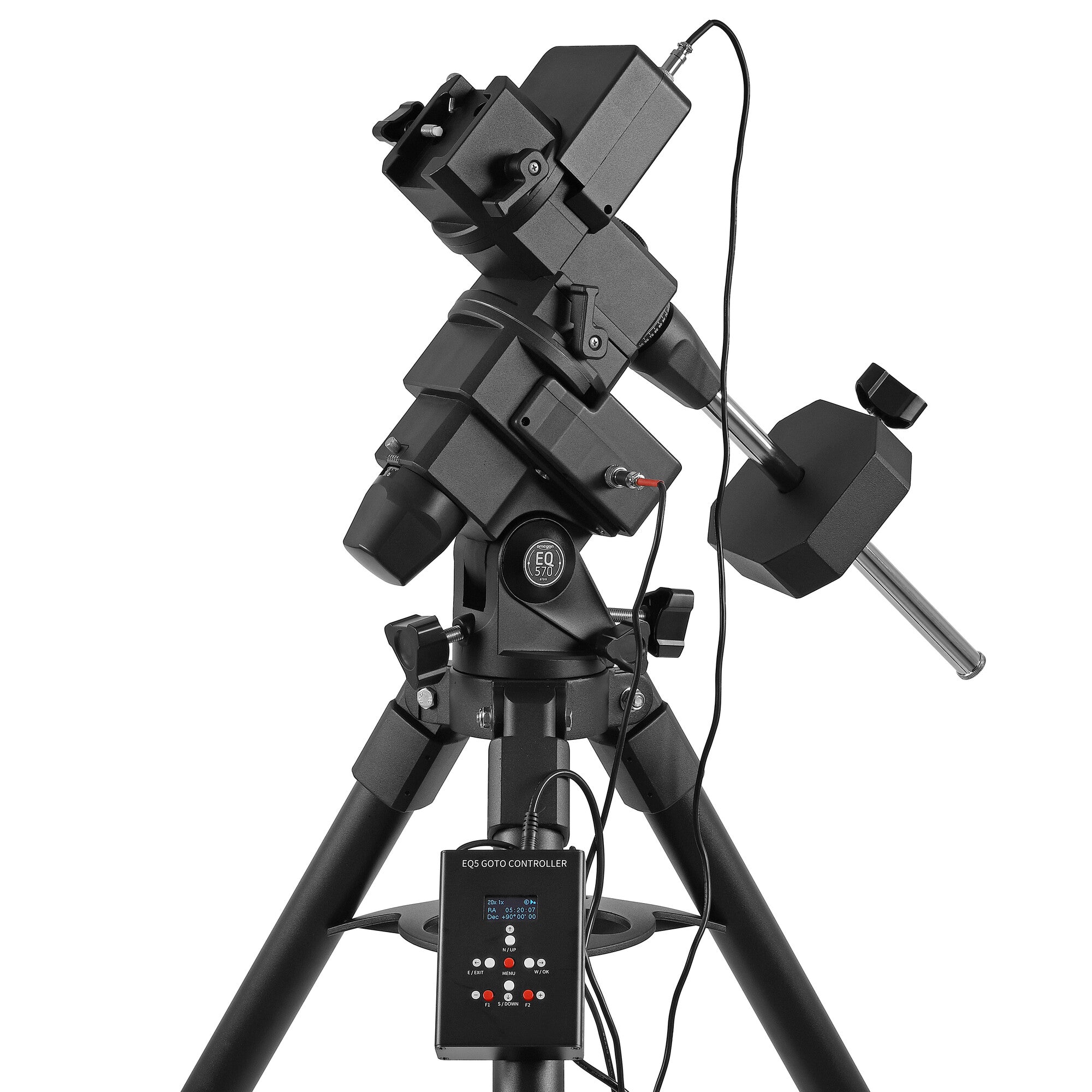

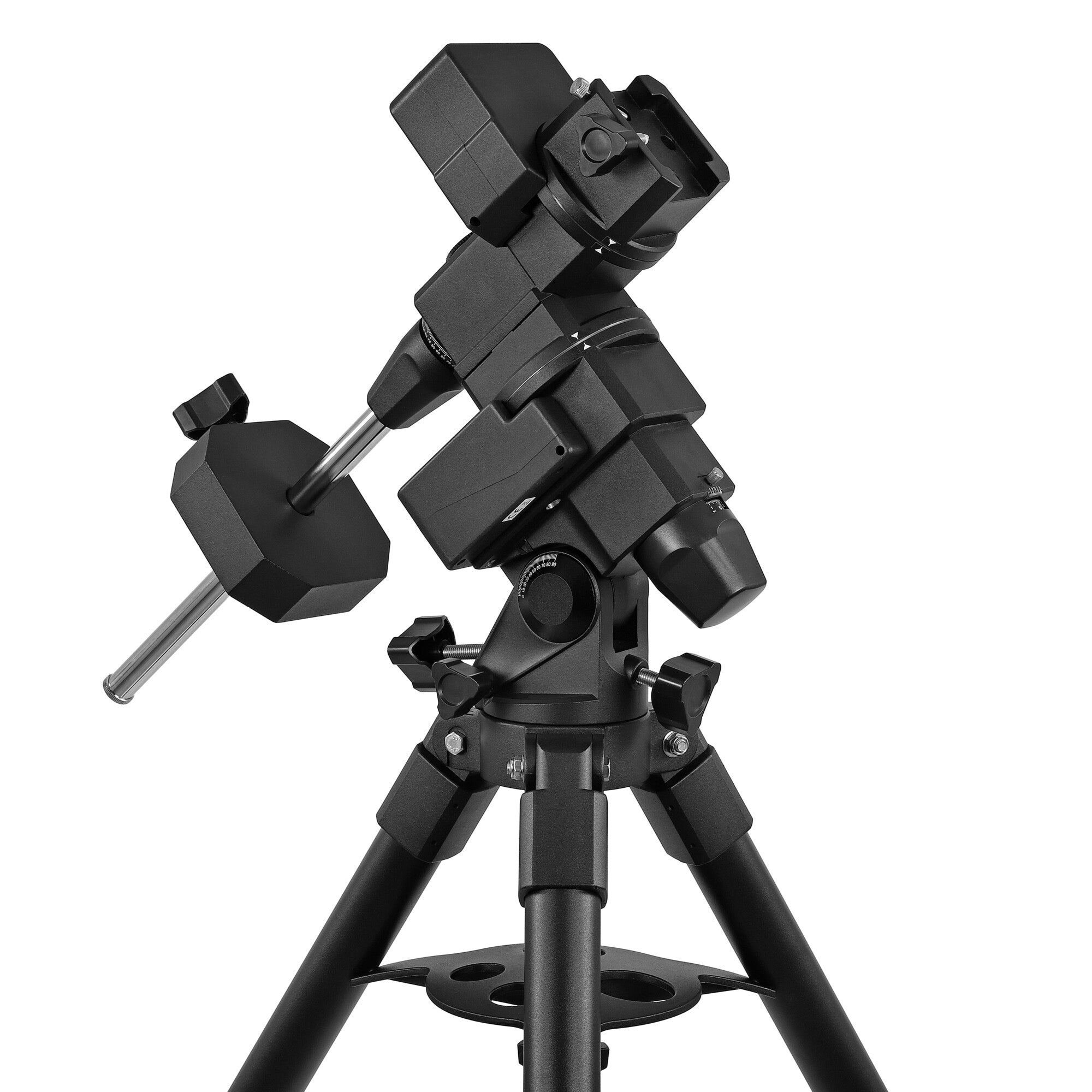

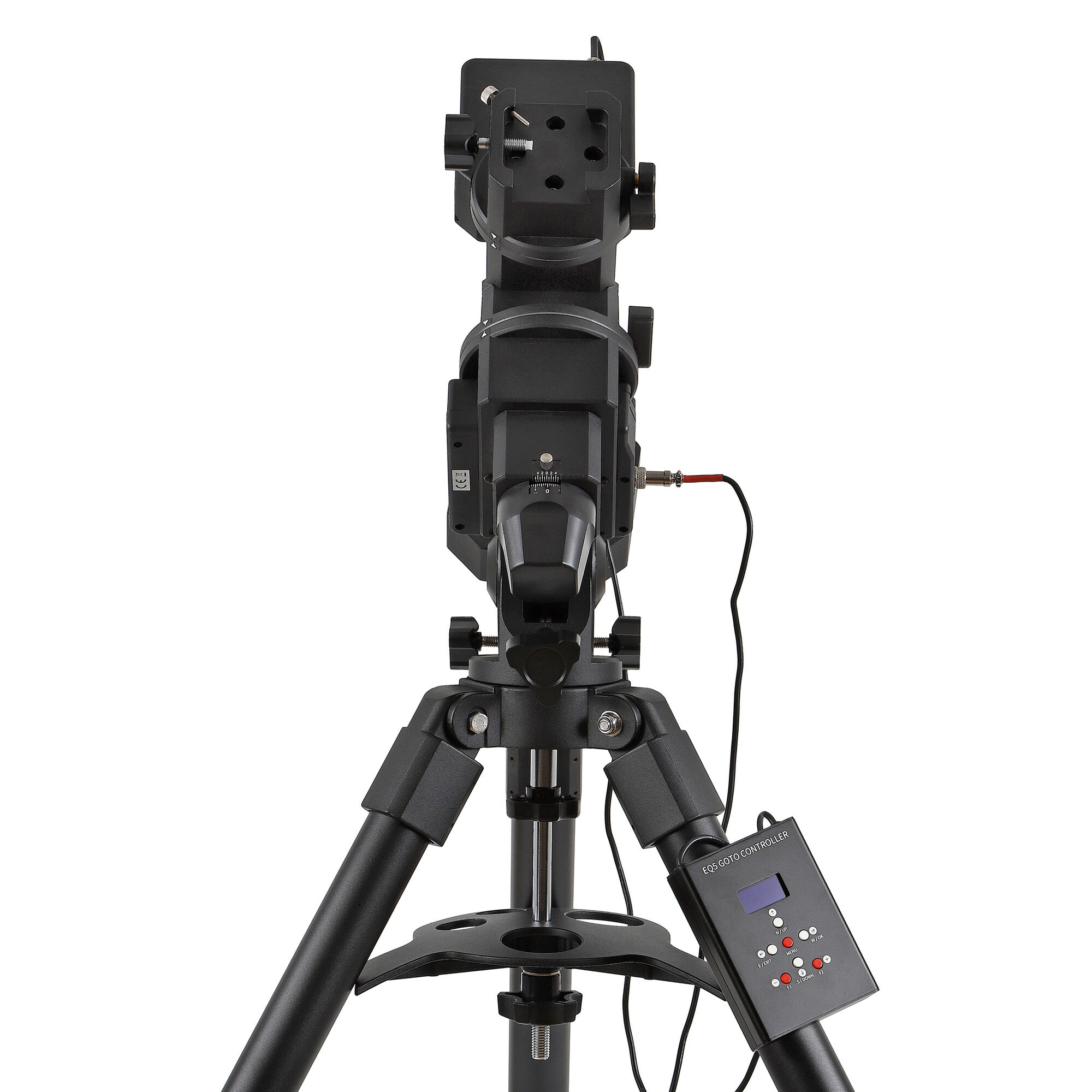

EQ570DX GoTo Equatorial Mount

The included Omegon EQ570DX provides a stable equatorial platform with a specified 15kg load capacity. This provides useful capacity for the telescope itself together with compatible observing or imaging equipment.

Rather than manually searching the sky, the mount's GoTo system can automatically move the telescope to a selected celestial object. This makes it easier to locate targets and allows more observing time to be spent at the eyepiece or camera.

The mount uses stepper motors, a worm-wheel drive and toothed-belt pre-drive. The belt system is particularly useful for providing smooth movement and tracking during astrophotography.

Control by Hand Controller, Wi-Fi or Bluetooth

The EQ570DX offers several ways to control your observing session. A hand controller is included, while integrated Wi-Fi and Bluetooth provide additional wireless control options.

The supplied product information also lists compatibility with astronomy software and systems including ASIAIR, SkySafari, N.I.N.A. and PHD, giving astrophotographers flexibility when building a computer-controlled rig.

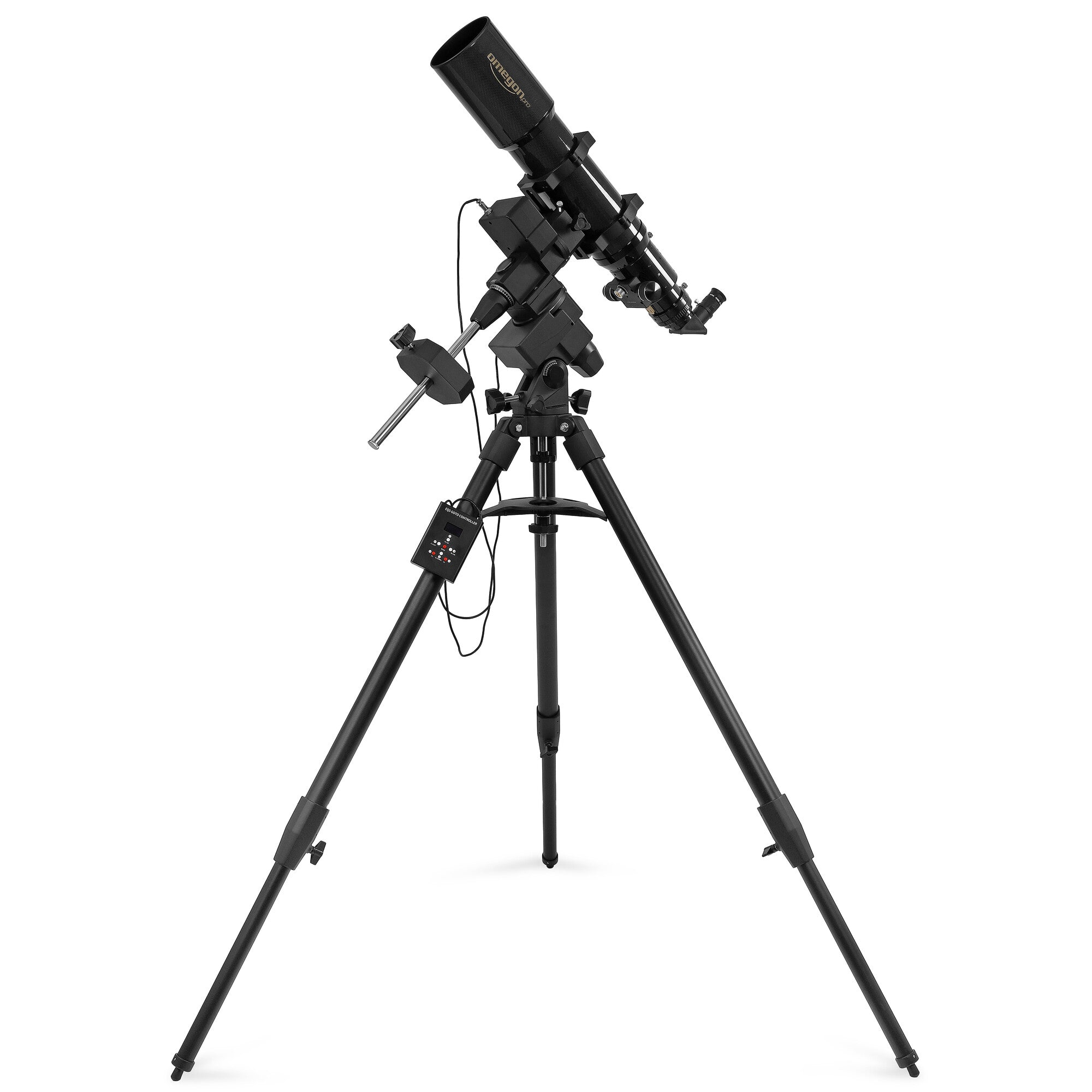

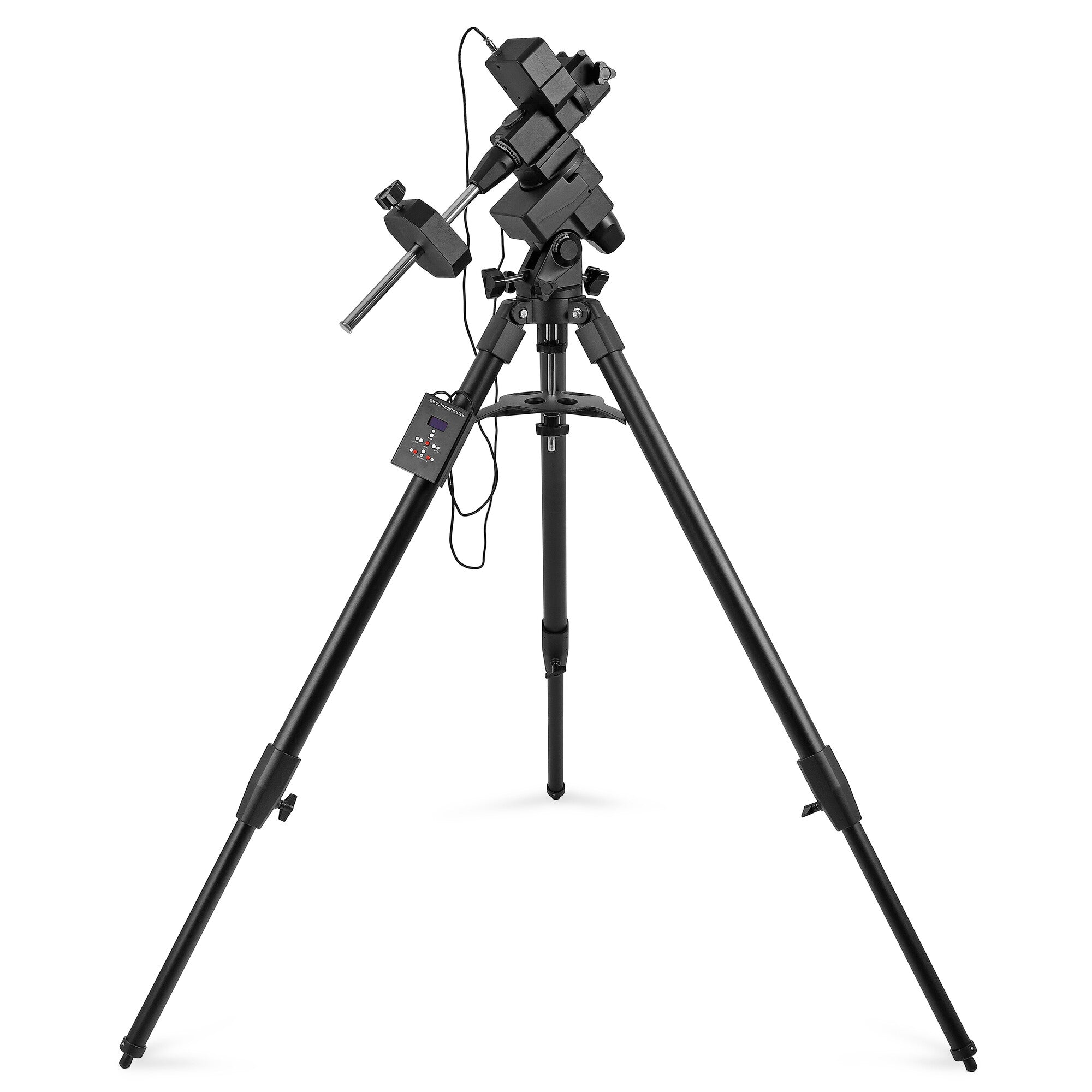

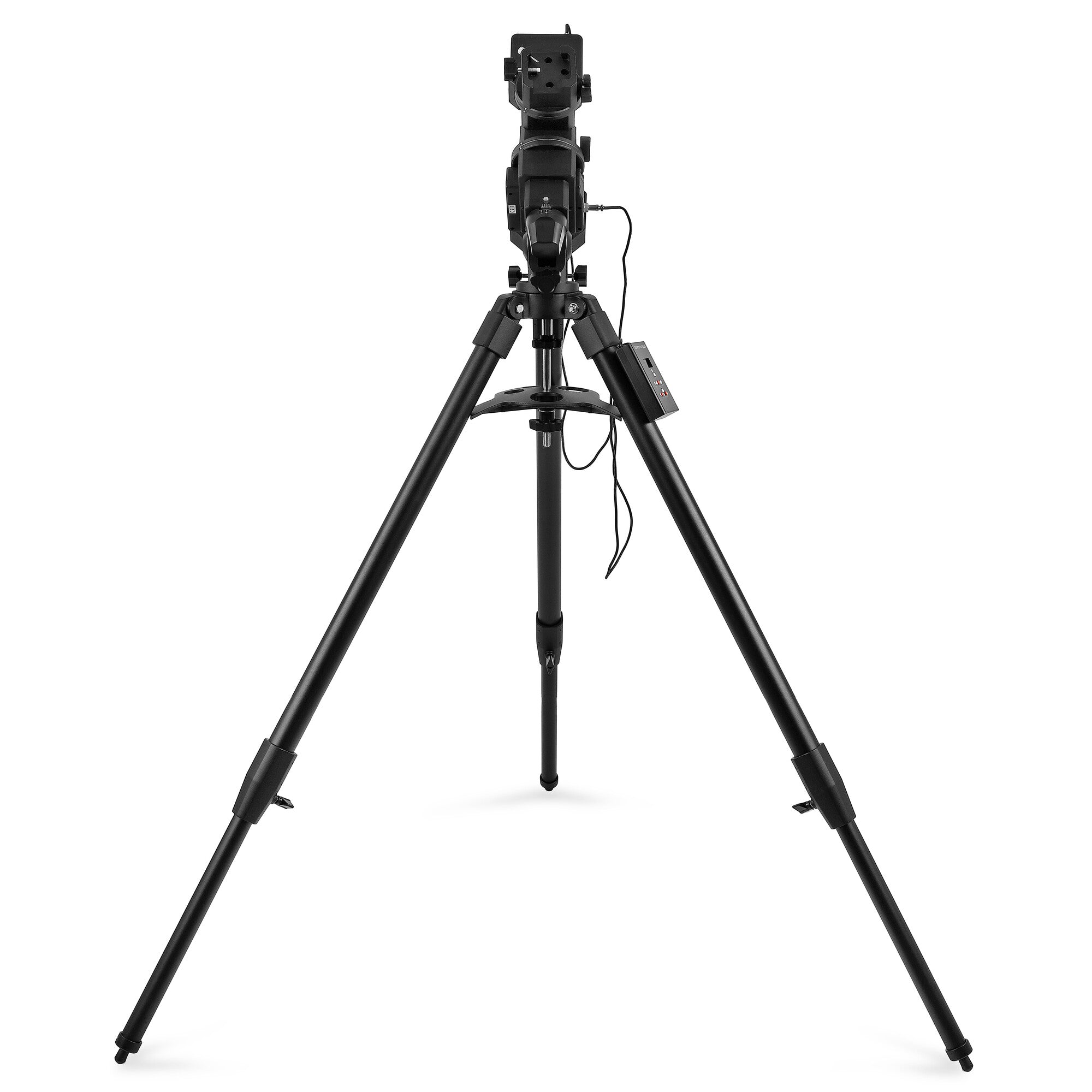

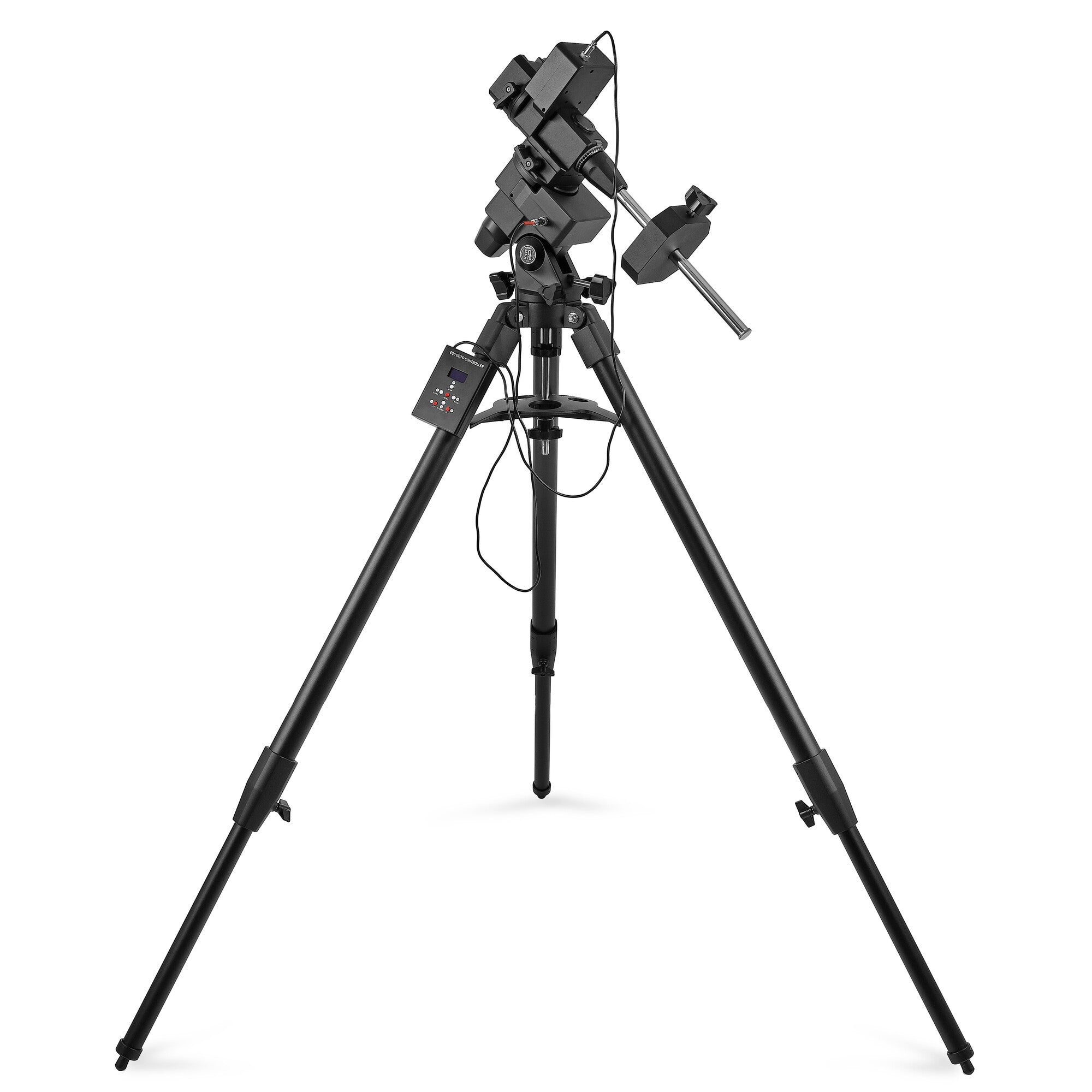

Stable 45mm-Leg Tripod

The EQ570DX is supplied with a substantial tripod using 45mm-diameter legs. The formal product specification lists the tripod material as steel, with an adjustable height of approximately 80–110cm.

The tripod itself weighs approximately 5.9kg, providing a solid foundation for the mount and telescope.

Ready for Visual Observing

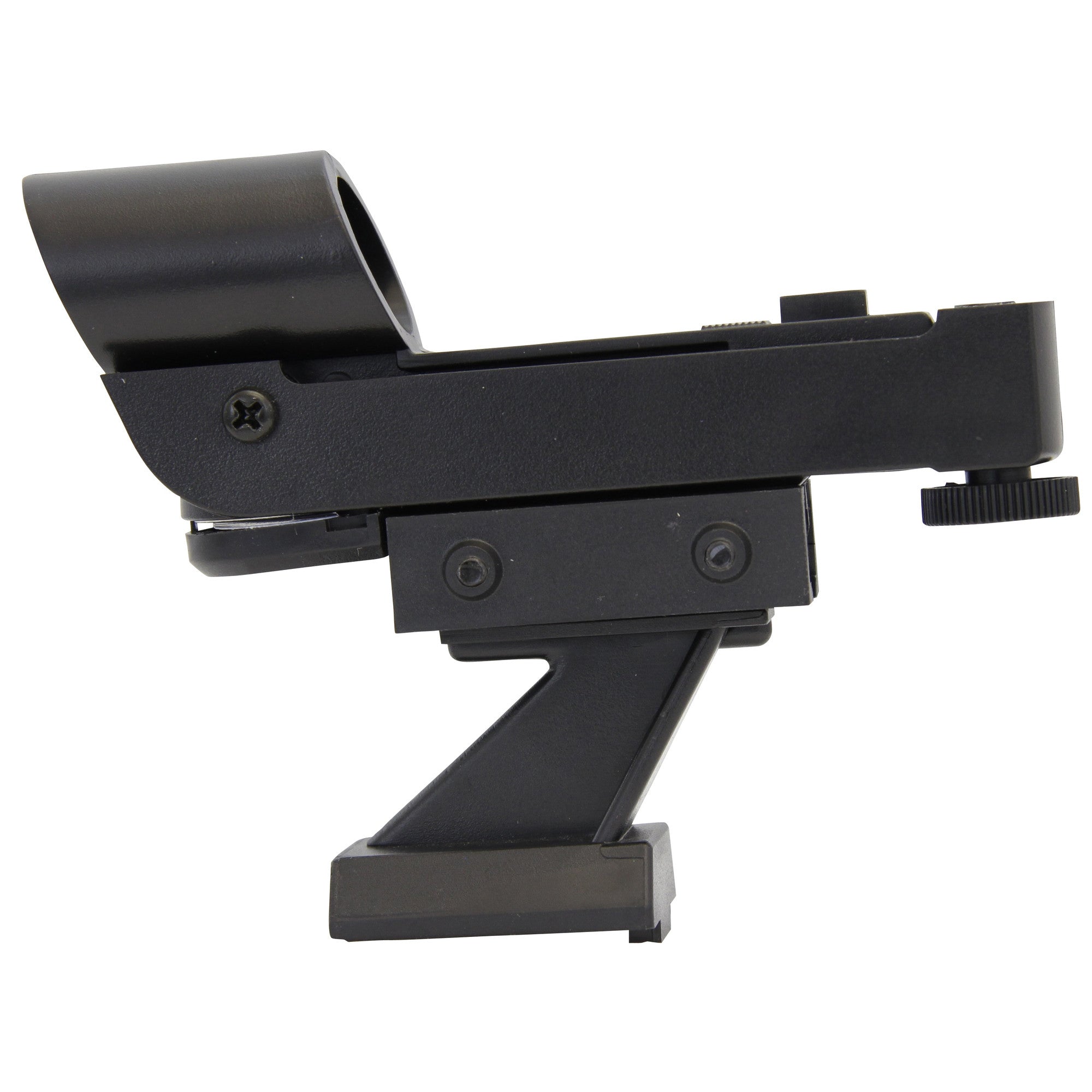

Unlike an OTA-only package, this telescope includes several useful visual accessories. A 26mm 1.25-inch eyepiece, 1.25-inch 90° star diagonal and LED finder are included.

The telescope uses a Vixen-style prism rail, while the finder base is specified as the Vixen/Sky-Watcher style.

What's Included?

• Omegon Pro APO 110/660 ED apochromatic refractor
• Omegon EQ570DX GoTo equatorial mount
• Steel tripod with 45mm-diameter legs
• Counterweight bar
• 1 counterweight
• Hand controller
• Accessory tray

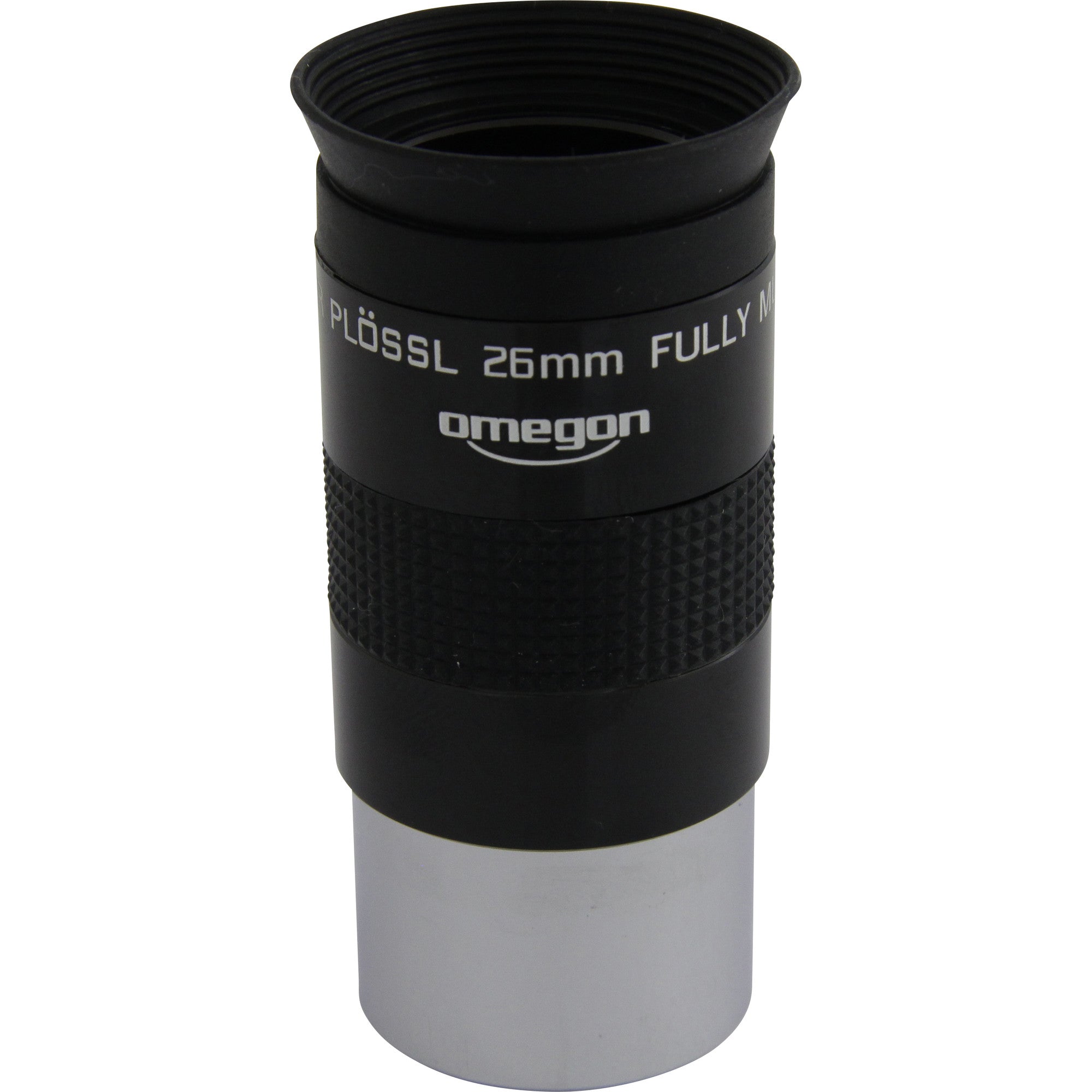

• 26mm 1.25-inch eyepiece

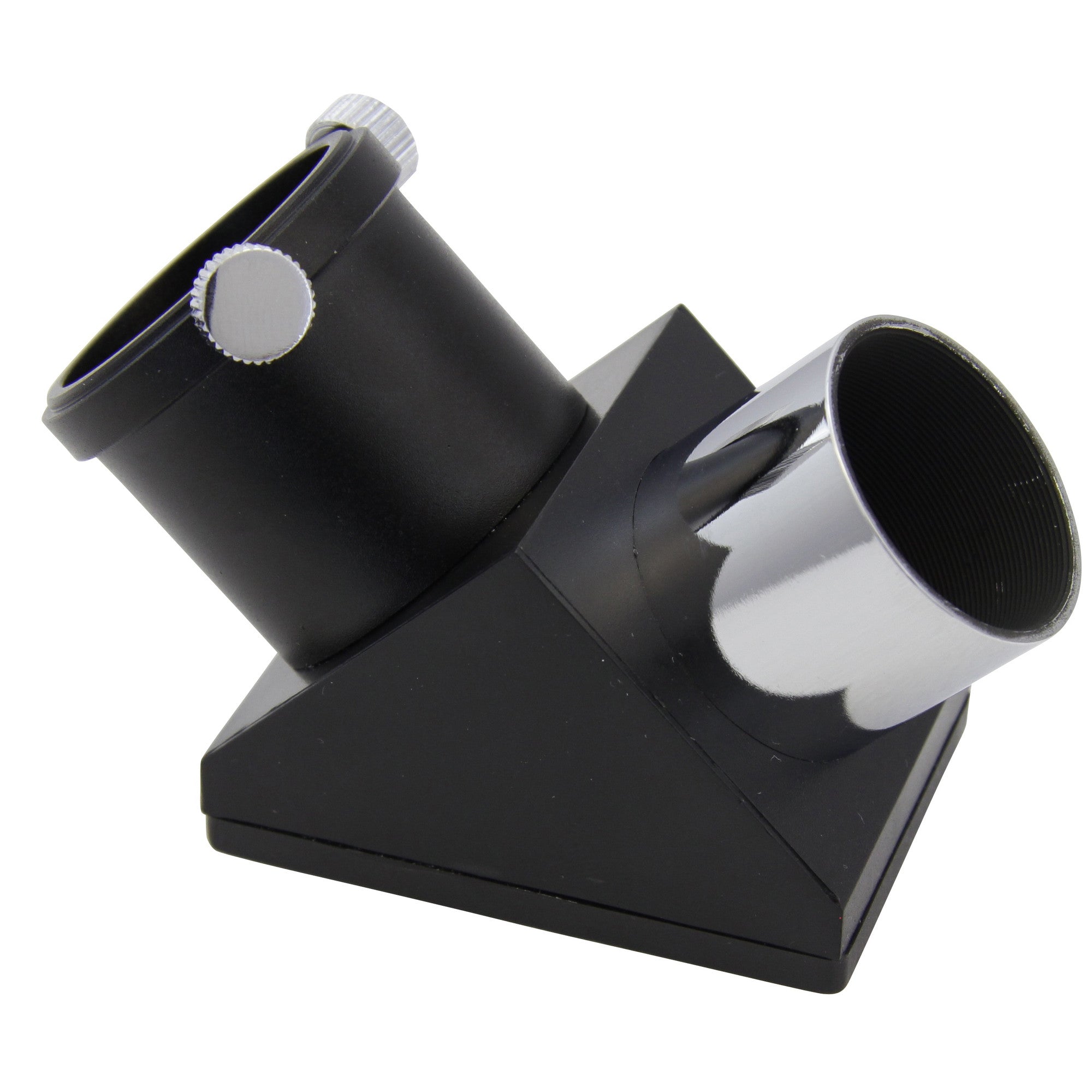

• 1.25-inch 90° star diagonal
• LED finder
• Vixen-style prism rail
• User manual

Technical Specifications

Optics

Focuser

EQ570DX Mount

Tripod

Included Accessories

Area of Application

Recommended For

EQ570DX Instruction Manual

The instruction manual for the included Omegon EQ570DX mount is available below.
