Dark Clear Skies · Player One solar cameras

Apollo 428M MAX

Fine solar detail in a compact, uncooled camera.

The Apollo 428M MAX pairs Sony's 7.1MP IMX428 monochrome global-shutter sensor with 4.5µm pixels and USB 3.0 capture. It suits high-detail solar work, lunar imaging and fast-moving subjects where the optical system and conditions support the required image scale.

This is the uncooled MAX, not the thermoelectrically cooled MAX Pro.

7.1MP3216 × 2208 pixels
4.5µmPixel size
1.1″17.5mm sensor diagonal
51 FPSFull frame, 10-bit

Solar observing: essential safety information. Never point an unprotected telescope or camera at the Sun. Use a correctly specified solar observing system, including every energy-rejection and blocking component required by its manufacturer. A camera is not a solar safety filter. An ordinary night-time H-alpha or photographic filter does not make a telescope solar-safe.

Made for high-detail solar capture

The Sony IMX428's global shutter exposes the frame without the line-by-line timing of a rolling shutter. Its 3216 × 2208 resolution provides finer sampling than the lower-resolution IMX432-based Apollo-M MAX, although the detail actually resolved still depends on telescope aperture, focal length, atmospheric seeing, focus and exposure.

  • Fine pixel sampling: 4.5µm pixels help record small features when the optical system and seeing support that image scale.
  • A broad sensor field: the 14.5 × 9.9mm active area provides room for larger solar and lunar fields, subject to effective focal length and illumination.
  • Rapid capture: up to 51 FPS at full resolution in 10-bit mode over USB 3.0, or 27 FPS in 12-bit mode under suitable conditions.
  • Monochrome output: suitable for filtered solar imaging, including correctly configured dedicated H-alpha solar telescope systems.

Sensor and capture performance

The third-generation Sony Pregius sensor has a manufacturer-quoted peak quantum efficiency of approximately 79% and a 25.3ke⁻ full-well capacity. Specified read noise is approximately 5.5–1.4e⁻ across the gain range. Maximum full well and minimum read noise do not occur at every gain setting; choose the exposure and gain for useful signal without clipping bright detail.

Player One's passive thermal design, onboard DDR3 buffering, Dead Pixel Suppression and sensor-tilt adjustment support the imaging workflow. The tilt adjustment can help manage interference patterns such as Newton rings in suitable solar optical configurations; it does not replace correct optical alignment.

Rated frame rates depend on the selected bit depth and capture area. USB bandwidth, exposure length, software settings and drive speed can reduce sustained recording speed. A buffer cannot compensate indefinitely for storage that is too slow.

Technical specifications

Specification Apollo 428M MAX, uncooled
Sensor / shutter Sony IMX428 monochrome CMOS / global shutter
Sensor format / diagonal 1.1-inch / 17.5mm
Active sensor area 14.5 × 9.9mm
Resolution / pixel size 3216 × 2208, approximately 7.1MP / 4.5µm
Maximum full-frame rate 51 FPS at 10-bit; 27 FPS at 12-bit over USB 3.0
ADC 12-bit
Peak quantum efficiency Approximately 79%, manufacturer figure
Full-well capacity 25.3ke⁻
Read noise Approximately 5.5–1.4e⁻, gain-dependent
Exposure range 32µs–2000s
Data connection USB 3.0 / USB 2.0
Camera attachment 1.25-inch / M42 × 0.75
Back focal length Nominal 12.5mm
Protective window 32mm diameter × 2mm, anti-reflection coated
Camera body / weight 66mm diameter / 160g
Cooling Passive; no built-in regulated TEC cooler

Set up your imaging train

  1. Choose a safe, suitable optical system. For solar capture, establish the correct filtration and energy rejection before fitting the camera.
  2. Check mechanical fit and focus. Match the 1.25-inch or M42 × 0.75 connection, nominal 12.5mm sensor recess and adapter lengths to the telescope's available focus travel.
  3. Connect to a supported capture system. Use the appropriate USB connection and current Player One drivers. Confirm support for the exact model in your computer application or imaging controller.
  4. Record and process suitable sequences. Select sharp frames to make use of steadier seeing, while keeping exposure and gain appropriate to the target.

Read the Apollo 428M MAX manual and technical data for the manufacturer's mechanical and package information.

Which Apollo 428 camera?

Feature 428M MAX 428M MAX Pro
Sensor IMX428 mono IMX428 mono
Resolution 3216 × 2208 3216 × 2208
Cooling Passive Regulated two-stage TEC
Weight 160g 420g
Back focal length 12.5mm 17.5mm

For regulated sensor cooling and longer-exposure work, consider the Apollo 428M MAX Pro. For high-speed capture in a lighter camera body, this uncooled MAX provides a more compact option. Check the different mechanical dimensions when planning a change between models.

Camera package and separate equipment

This is the Apollo 428M MAX camera-only product option, not a complete solar imaging system. A suitable telescope, solar-safe filtration where applicable, computer or supported controller and any application-specific optical adapters are required separately.

A separate Active Cooling System, filters, filter wheel and off-axis guider are not included unless explicitly named in the selected product package. Refer to the model-specific manufacturer manual for the standard supplied accessories.

Before you order

Does the camera make an ordinary telescope safe for solar use?

No. Correct solar filtration, energy rejection and a suitable optical configuration are essential and independent of the camera. Follow the telescope and solar-filter manufacturers' instructions.

Is this the cooled MAX Pro?

No. This listing is for the 160g Apollo 428M MAX with passive cooling. The MAX Pro is a separate TEC-cooled camera with a different body and sensor recess.

Can I use it for lunar or planetary imaging?

Yes, with a suitable connection, image scale and capture setup. It records monochrome images, so colour results require an appropriate filter and processing workflow.

Will the full solar disc fit on the sensor?

That depends on the effective focal length, including any Barlow or telecentric optics. Check the projected disc against the sensor's 9.9mm short dimension and allow framing margin; sensor format alone does not guarantee full-disc coverage.

Player One Apollo 428M MAX (IMX428) Mono Solar Camera

Regular price £619.00
Or £206.33 × 3 interest-free with PayPal

DCS-44591325675697

Dark Clear Skies · Player One solar cameras

Apollo 428M MAX

Fine solar detail in a compact, uncooled camera.

The Apollo 428M MAX pairs Sony's 7.1MP IMX428 monochrome global-shutter sensor with 4.5µm pixels and USB 3.0 capture. It suits high-detail solar work, lunar imaging and fast-moving subjects where the optical system and conditions support the required image scale.

This is the uncooled MAX, not the thermoelectrically cooled MAX Pro.

7.1MP3216 × 2208 pixels
4.5µmPixel size
1.1″17.5mm sensor diagonal
51 FPSFull frame, 10-bit

Solar observing: essential safety information. Never point an unprotected telescope or camera at the Sun. Use a correctly specified solar observing system, including every energy-rejection and blocking component required by its manufacturer. A camera is not a solar safety filter. An ordinary night-time H-alpha or photographic filter does not make a telescope solar-safe.

Made for high-detail solar capture

The Sony IMX428's global shutter exposes the frame without the line-by-line timing of a rolling shutter. Its 3216 × 2208 resolution provides finer sampling than the lower-resolution IMX432-based Apollo-M MAX, although the detail actually resolved still depends on telescope aperture, focal length, atmospheric seeing, focus and exposure.

  • Fine pixel sampling: 4.5µm pixels help record small features when the optical system and seeing support that image scale.
  • A broad sensor field: the 14.5 × 9.9mm active area provides room for larger solar and lunar fields, subject to effective focal length and illumination.
  • Rapid capture: up to 51 FPS at full resolution in 10-bit mode over USB 3.0, or 27 FPS in 12-bit mode under suitable conditions.
  • Monochrome output: suitable for filtered solar imaging, including correctly configured dedicated H-alpha solar telescope systems.

Sensor and capture performance

The third-generation Sony Pregius sensor has a manufacturer-quoted peak quantum efficiency of approximately 79% and a 25.3ke⁻ full-well capacity. Specified read noise is approximately 5.5–1.4e⁻ across the gain range. Maximum full well and minimum read noise do not occur at every gain setting; choose the exposure and gain for useful signal without clipping bright detail.

Player One's passive thermal design, onboard DDR3 buffering, Dead Pixel Suppression and sensor-tilt adjustment support the imaging workflow. The tilt adjustment can help manage interference patterns such as Newton rings in suitable solar optical configurations; it does not replace correct optical alignment.

Rated frame rates depend on the selected bit depth and capture area. USB bandwidth, exposure length, software settings and drive speed can reduce sustained recording speed. A buffer cannot compensate indefinitely for storage that is too slow.

Technical specifications

Specification Apollo 428M MAX, uncooled
Sensor / shutter Sony IMX428 monochrome CMOS / global shutter
Sensor format / diagonal 1.1-inch / 17.5mm
Active sensor area 14.5 × 9.9mm
Resolution / pixel size 3216 × 2208, approximately 7.1MP / 4.5µm
Maximum full-frame rate 51 FPS at 10-bit; 27 FPS at 12-bit over USB 3.0
ADC 12-bit
Peak quantum efficiency Approximately 79%, manufacturer figure
Full-well capacity 25.3ke⁻
Read noise Approximately 5.5–1.4e⁻, gain-dependent
Exposure range 32µs–2000s
Data connection USB 3.0 / USB 2.0
Camera attachment 1.25-inch / M42 × 0.75
Back focal length Nominal 12.5mm
Protective window 32mm diameter × 2mm, anti-reflection coated
Camera body / weight 66mm diameter / 160g
Cooling Passive; no built-in regulated TEC cooler

Set up your imaging train

  1. Choose a safe, suitable optical system. For solar capture, establish the correct filtration and energy rejection before fitting the camera.
  2. Check mechanical fit and focus. Match the 1.25-inch or M42 × 0.75 connection, nominal 12.5mm sensor recess and adapter lengths to the telescope's available focus travel.
  3. Connect to a supported capture system. Use the appropriate USB connection and current Player One drivers. Confirm support for the exact model in your computer application or imaging controller.
  4. Record and process suitable sequences. Select sharp frames to make use of steadier seeing, while keeping exposure and gain appropriate to the target.

Read the Apollo 428M MAX manual and technical data for the manufacturer's mechanical and package information.

Which Apollo 428 camera?

Feature 428M MAX 428M MAX Pro
Sensor IMX428 mono IMX428 mono
Resolution 3216 × 2208 3216 × 2208
Cooling Passive Regulated two-stage TEC
Weight 160g 420g
Back focal length 12.5mm 17.5mm

For regulated sensor cooling and longer-exposure work, consider the Apollo 428M MAX Pro. For high-speed capture in a lighter camera body, this uncooled MAX provides a more compact option. Check the different mechanical dimensions when planning a change between models.

Camera package and separate equipment

This is the Apollo 428M MAX camera-only product option, not a complete solar imaging system. A suitable telescope, solar-safe filtration where applicable, computer or supported controller and any application-specific optical adapters are required separately.

A separate Active Cooling System, filters, filter wheel and off-axis guider are not included unless explicitly named in the selected product package. Refer to the model-specific manufacturer manual for the standard supplied accessories.

Before you order

Does the camera make an ordinary telescope safe for solar use?

No. Correct solar filtration, energy rejection and a suitable optical configuration are essential and independent of the camera. Follow the telescope and solar-filter manufacturers' instructions.

Is this the cooled MAX Pro?

No. This listing is for the 160g Apollo 428M MAX with passive cooling. The MAX Pro is a separate TEC-cooled camera with a different body and sensor recess.

Can I use it for lunar or planetary imaging?

Yes, with a suitable connection, image scale and capture setup. It records monochrome images, so colour results require an appropriate filter and processing workflow.

Will the full solar disc fit on the sensor?

That depends on the effective focal length, including any Barlow or telecentric optics. Check the projected disc against the sensor's 9.9mm short dimension and allow framing margin; sensor format alone does not guarantee full-disc coverage.

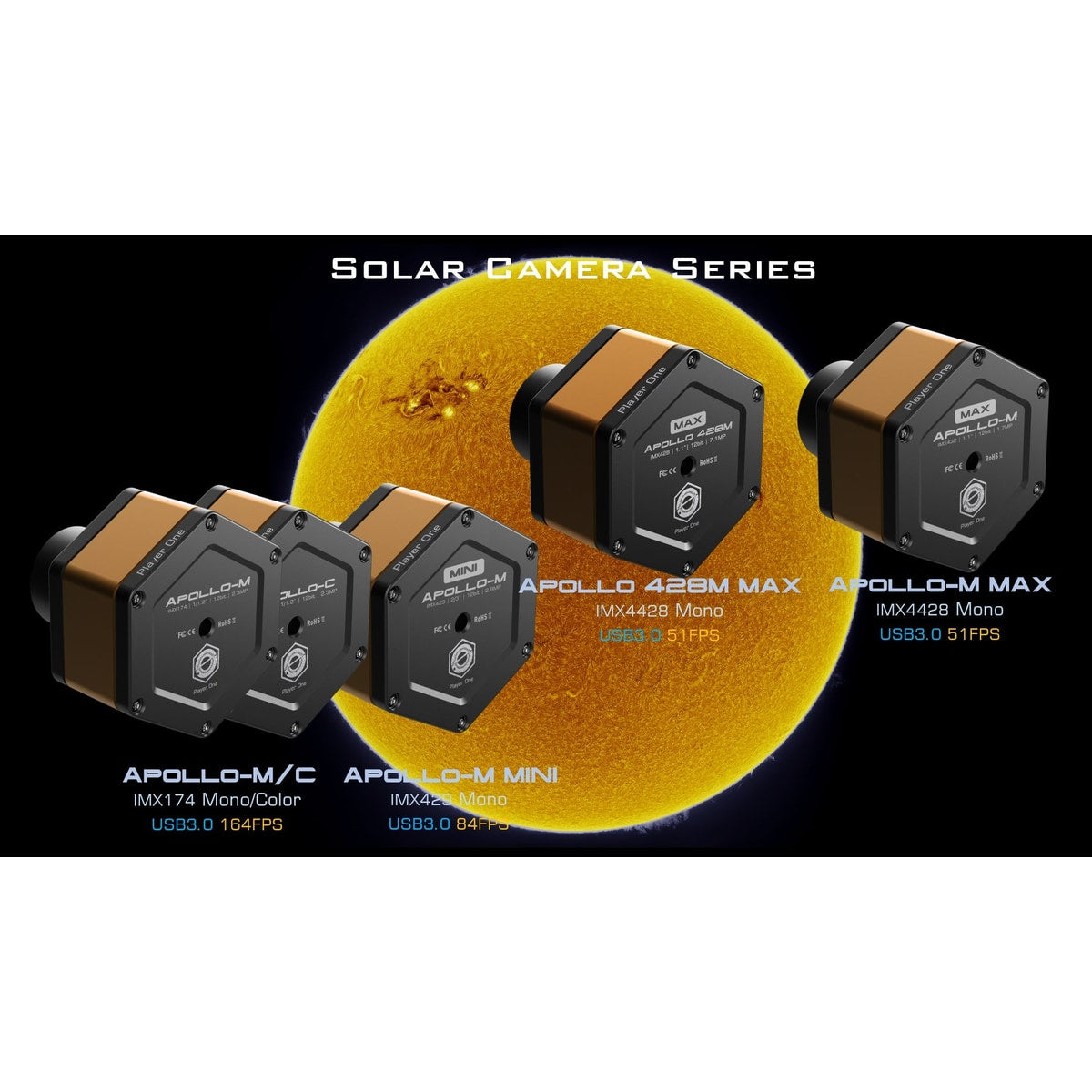

Player One Apollo 428 Max
