Dark Clear Skies · Player One planetary cameras

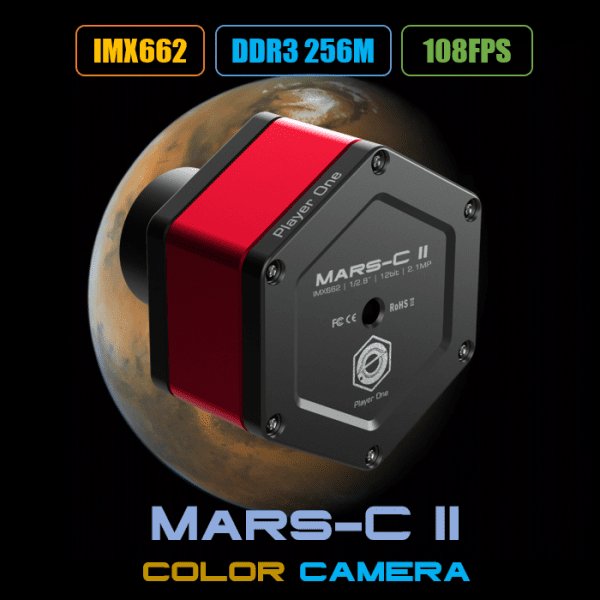

Mars-C II

Colour planetary capture with the Sony IMX662.

The Mars-C II pairs a 2.1MP STARVIS 2 colour sensor with 2.9µm pixels and high-speed USB 3.0 capture. It is designed for planetary imaging and electronically assisted astronomy, with a compact field for smaller subjects and an ST4 port for compatible guiding setups.

IMX662Colour CMOS sensor
2.9µmPixel size
108 FPSFull frame, 10-bit
12-bitSensor ADC

Build a planetary capture workflow

Jupiter, Saturn and Mars reward careful focus, appropriate image scale and short exposures. The Mars-C II records colour through an RGGB Bayer pattern, so a normal colour sequence does not require separate red, green and blue filter runs. Capture a video, select the sharper frames and stack them to make use of moments of steadier seeing.

The 1936 × 1100 sensor covers approximately 5.6 × 3.2mm. This relatively small field suits compact targets, but makes accurate pointing important. A lunar landscape may require a mosaic, and a Barlow should be selected to suit the telescope and seeing rather than to maximise magnification.

Speed depends on resolution and bit depth

Player One's manual specifies the following maximum USB 3.0 rates. The full-frame figure is 108 FPS at 10-bit; higher precision and a larger capture area reduce speed. These ratings are not a guarantee of sustained recording on every computer.

Capture area 10-bit ADC 12-bit ADC
1936 × 1100 108 FPS 76.5 FPS
1920 × 1080 110 FPS 78 FPS
1280 × 720 162 FPS 114 FPS

Exposure time, USB bandwidth, capture settings and storage speed all affect the rate you achieve. The 256MB DDR3 buffer helps manage data transfer; it cannot make a slow drive or restricted connection deliver the rated speed. A RAW16 output file is a storage format, not evidence of a native 16-bit sensor.

Useful sensitivity, with realistic expectations

The manufacturer quotes a 54ke⁻ full-well capacity, read noise of approximately 6.7–0.7e⁻ across the gain range and peak quantum efficiency of approximately 91%. The maximum full-well value and minimum read noise describe different operating conditions: choose gain with highlight preservation as well as faint detail in mind.

Player One describes the IMX662 camera as non-amp-glow. That removes a particular source of unwanted signal, not all noise or the need for calibration. Dead Pixel Suppression uses a stored map of abnormal pixels to replace their values using neighbouring pixels; it is not a substitute for every calibration step.

For electronically assisted astronomy, the camera can also record longer exposures. Its uncooled design and small field remain important considerations when choosing targets and comparing it with a dedicated cooled deep-sky camera.

Connections, filtering and alignment

The camera offers 1.25-inch and M42 × 0.75 attachment options, with a nominal 12.5mm back focal length. Check focus travel and the effective length of any adapter, atmospheric dispersion corrector or Barlow in the complete train.

The protective window is anti-reflection coated rather than specified as a UV/IR-cut filter. For visible-colour imaging, use suitable filtering for your telescope and target, taking account of any filter already fitted. The sensor-tilt plate permits alignment adjustment; it does not correct the telescope's field curvature.

Mars-C II mechanical drawing showing camera dimensions, M42 connection and sensor position
Mechanical reference for checking the camera connection and sensor position. Open the drawing at full size before choosing adapters.

Solar safety: the camera and its protective window provide no solar protection. Solar imaging requires a complete, correctly specified solar-safe telescope and filter arrangement. Never substitute an ordinary night-time or photographic filter for a solar safety system.

Technical specifications

Specification Mars-C II
Sensor Sony IMX662 colour CMOS; STARVIS 2 back illumination
Format / active area 1/2.8-inch; approximately 5.6 × 3.2mm; 6.44mm diagonal
Resolution / pixel size 1936 × 1100, approximately 2.1MP; 2.9µm
Bayer pattern / shutter RGGB / rolling shutter
ADC / full well 12-bit / manufacturer-rated 54ke⁻
Read noise / peak QE Approximately 6.7–0.7e⁻, gain-dependent / approximately 91%
Exposure range 32µs–2000s
Full-frame speed Up to 108 FPS at 10-bit or 76.5 FPS at 12-bit via USB 3.0
Buffer / pixel correction 256MB DDR3 / Dead Pixel Suppression
Data / guiding USB 3.0, USB 2.0 compatible / ST4 port
Attachment / back focal length 1.25-inch or M42 × 0.75 / nominal 12.5mm
Window 21mm diameter × 1.1mm; AR Plus anti-reflection coating
Body diameter / weight 66mm / 150g
Cooling Uncooled; no regulated TEC cooling

What's in the box?

The manufacturer's standard package contains the Mars-C II camera and T-mount, USB 3.0 cable, ST4 cable, M2 hex key, 1.25-inch cover and air blower.

A telescope, suitable mount, computer or supported controller, and any required UV/IR-cut filter, Barlow or other optical accessories are separate equipment. The ST4 cable is for a compatible mount's guide port; USB is still needed for camera control and image transfer.

Before you order

Is this the IMX462 Mars-C?

No. This is the Mars-C II with the IMX662 colour sensor. The original Mars-C uses IMX462, and the Mars-M II is a separate monochrome model. Match accessories and driver information to the complete model name.

Can it guide as well as image?

Yes, in a compatible guiding setup. The ST4 port provides a connection to a suitable mount, but guiding still requires compatible software, a guide-star image and correct calibration. It is not a self-contained guiding computer.

Which software should I install?

Use the current Player One drivers and confirm support for Mars-C II in your chosen capture or guiding application. Controller compatibility must be checked by model, not simply by the presence of a USB port.

Will a higher frame rate always improve the result?

No. Frames must still contain enough signal and avoid clipping bright detail. Choose exposure, gain, region of interest and sequence length for the target and conditions.

Player One Mars-C II IMX662 Colour Planetary Camera

Regular price £194.00
Or £64.66 × 3 interest-free with PayPal

Mars-C II

Dark Clear Skies · Player One planetary cameras

Mars-C II

Colour planetary capture with the Sony IMX662.

The Mars-C II pairs a 2.1MP STARVIS 2 colour sensor with 2.9µm pixels and high-speed USB 3.0 capture. It is designed for planetary imaging and electronically assisted astronomy, with a compact field for smaller subjects and an ST4 port for compatible guiding setups.

IMX662Colour CMOS sensor
2.9µmPixel size
108 FPSFull frame, 10-bit
12-bitSensor ADC

Build a planetary capture workflow

Jupiter, Saturn and Mars reward careful focus, appropriate image scale and short exposures. The Mars-C II records colour through an RGGB Bayer pattern, so a normal colour sequence does not require separate red, green and blue filter runs. Capture a video, select the sharper frames and stack them to make use of moments of steadier seeing.

The 1936 × 1100 sensor covers approximately 5.6 × 3.2mm. This relatively small field suits compact targets, but makes accurate pointing important. A lunar landscape may require a mosaic, and a Barlow should be selected to suit the telescope and seeing rather than to maximise magnification.

Speed depends on resolution and bit depth

Player One's manual specifies the following maximum USB 3.0 rates. The full-frame figure is 108 FPS at 10-bit; higher precision and a larger capture area reduce speed. These ratings are not a guarantee of sustained recording on every computer.

Capture area 10-bit ADC 12-bit ADC
1936 × 1100 108 FPS 76.5 FPS
1920 × 1080 110 FPS 78 FPS
1280 × 720 162 FPS 114 FPS

Exposure time, USB bandwidth, capture settings and storage speed all affect the rate you achieve. The 256MB DDR3 buffer helps manage data transfer; it cannot make a slow drive or restricted connection deliver the rated speed. A RAW16 output file is a storage format, not evidence of a native 16-bit sensor.

Useful sensitivity, with realistic expectations

The manufacturer quotes a 54ke⁻ full-well capacity, read noise of approximately 6.7–0.7e⁻ across the gain range and peak quantum efficiency of approximately 91%. The maximum full-well value and minimum read noise describe different operating conditions: choose gain with highlight preservation as well as faint detail in mind.

Player One describes the IMX662 camera as non-amp-glow. That removes a particular source of unwanted signal, not all noise or the need for calibration. Dead Pixel Suppression uses a stored map of abnormal pixels to replace their values using neighbouring pixels; it is not a substitute for every calibration step.

For electronically assisted astronomy, the camera can also record longer exposures. Its uncooled design and small field remain important considerations when choosing targets and comparing it with a dedicated cooled deep-sky camera.

Connections, filtering and alignment

The camera offers 1.25-inch and M42 × 0.75 attachment options, with a nominal 12.5mm back focal length. Check focus travel and the effective length of any adapter, atmospheric dispersion corrector or Barlow in the complete train.

The protective window is anti-reflection coated rather than specified as a UV/IR-cut filter. For visible-colour imaging, use suitable filtering for your telescope and target, taking account of any filter already fitted. The sensor-tilt plate permits alignment adjustment; it does not correct the telescope's field curvature.

Mars-C II mechanical drawing showing camera dimensions, M42 connection and sensor position
Mechanical reference for checking the camera connection and sensor position. Open the drawing at full size before choosing adapters.

Solar safety: the camera and its protective window provide no solar protection. Solar imaging requires a complete, correctly specified solar-safe telescope and filter arrangement. Never substitute an ordinary night-time or photographic filter for a solar safety system.

Technical specifications

Specification Mars-C II
Sensor Sony IMX662 colour CMOS; STARVIS 2 back illumination
Format / active area 1/2.8-inch; approximately 5.6 × 3.2mm; 6.44mm diagonal
Resolution / pixel size 1936 × 1100, approximately 2.1MP; 2.9µm
Bayer pattern / shutter RGGB / rolling shutter
ADC / full well 12-bit / manufacturer-rated 54ke⁻
Read noise / peak QE Approximately 6.7–0.7e⁻, gain-dependent / approximately 91%
Exposure range 32µs–2000s
Full-frame speed Up to 108 FPS at 10-bit or 76.5 FPS at 12-bit via USB 3.0
Buffer / pixel correction 256MB DDR3 / Dead Pixel Suppression
Data / guiding USB 3.0, USB 2.0 compatible / ST4 port
Attachment / back focal length 1.25-inch or M42 × 0.75 / nominal 12.5mm
Window 21mm diameter × 1.1mm; AR Plus anti-reflection coating
Body diameter / weight 66mm / 150g
Cooling Uncooled; no regulated TEC cooling

What's in the box?

The manufacturer's standard package contains the Mars-C II camera and T-mount, USB 3.0 cable, ST4 cable, M2 hex key, 1.25-inch cover and air blower.

A telescope, suitable mount, computer or supported controller, and any required UV/IR-cut filter, Barlow or other optical accessories are separate equipment. The ST4 cable is for a compatible mount's guide port; USB is still needed for camera control and image transfer.

Before you order

Is this the IMX462 Mars-C?

No. This is the Mars-C II with the IMX662 colour sensor. The original Mars-C uses IMX462, and the Mars-M II is a separate monochrome model. Match accessories and driver information to the complete model name.

Can it guide as well as image?

Yes, in a compatible guiding setup. The ST4 port provides a connection to a suitable mount, but guiding still requires compatible software, a guide-star image and correct calibration. It is not a self-contained guiding computer.

Which software should I install?

Use the current Player One drivers and confirm support for Mars-C II in your chosen capture or guiding application. Controller compatibility must be checked by model, not simply by the presence of a USB port.

Will a higher frame rate always improve the result?

No. Frames must still contain enough signal and avoid clipping bright detail. Choose exposure, gain, region of interest and sequence length for the target and conditions.
