Dark Clear Skies · Player One cooled cameras

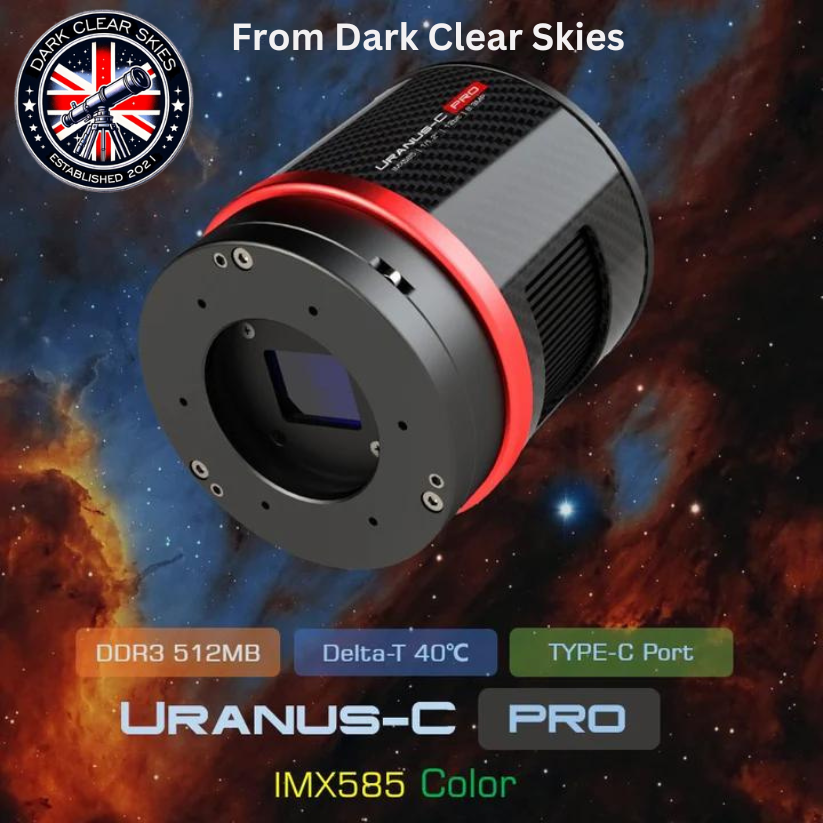

Uranus-C Pro
One-shot colour, compact framing and regulated cooling.
Build a dedicated imaging setup around Sony's IMX585 colour sensor. The Uranus-C Pro combines 8.3MP resolution, 2.9µm pixels and two-stage thermoelectric cooling for deep-sky photography, with faster capture modes for lunar and planetary work.
A practical step into cooled colour imaging
The back-illuminated IMX585 STARVIS 2 sensor records colour through an RGGB Bayer pattern, so you do not need separate red, green and blue exposures to produce a colour image. Its 11.2 × 6.3mm active area offers a rectangular field: useful for framing smaller targets and selected regions of larger nebulae, provided your telescope gives the field of view you need.
The small pixels provide fine sampling, but more pixels across a target do not automatically mean more detail. Match the focal length to your seeing, tracking and intended subjects rather than choosing magnification from pixel size alone.
- Repeatable temperature control. Regulated cooling helps you capture lights and calibration frames at a consistent sensor temperature.
- Colour without a mandatory filter wheel. Start with a suitable telescope connection and add application-specific filters when needed.
- Flexible capture. Use the full sensor for framing or a smaller region of interest for faster lunar and planetary sequences.
Cooling and dew control, clearly explained
The two-stage TEC system has a manufacturer-rated temperature difference of 35–40°C below ambient under stated test conditions: 30°C ambient, 100% fan and 1% dew-heater power. This is a cooling differential, not a guaranteed sensor temperature. Actual performance depends on ambient conditions and settings.
An adjustable window heater helps manage condensation. Choose a sustainable target temperature with spare cooling capacity, and use matched dark frames where appropriate. Player One describes the sensor as non-amp-glow; that does not mean noise-free, hot-pixel-free or calibration-free imaging.
A power supply is not included. For cooled operation, use a suitable 12V DC adapter rated for at least 5A, with the required 5.5 × 2.1mm connector and correct polarity. The camera can operate from USB without running the TEC cooler. See the Player One 12V 5A power supply.
Deep-sky exposures and high-speed capture
The camera supports exposures from 32µs to 2000 seconds. Player One's resolution table specifies up to 46 FPS at 3856 × 2180 and 47 FPS at 3840 × 2160 in 10-bit operation. A smaller 1920 × 1080 region is rated up to 187 FPS. These are maximum capture figures, not promised recording speeds.
The 512MB DDR3 buffer supports data transfer, but exposure length, USB bandwidth, software and drive speed still limit throughput. Use the main USB 3.0 Type-C connection and suitable fast storage for video capture. Saving RAW16 does not turn the camera's 12-bit analogue-to-digital converter into a native 16-bit sensor.
Plan the connections before you buy
The camera offers an M42 × 0.75 connection and a 1.25-inch attachment option, with a nominal 17.5mm sensor recess. Add the effective lengths of every adapter, filter holder and guider when calculating the spacing required by your telescope or reducer.
Player One illustrates 55mm imaging trains, but 55mm is not a universal requirement. The correct distance comes from your optical system. The supplied alternative rear four-point tilt arrangement can help where accessories obstruct the standard front adjustment; tilt adjustment is not a substitute for correct spacing or a field flattener.

Technical specifications
| Specification | Uranus-C Pro |
|---|---|
| Sensor | Sony IMX585 colour CMOS; STARVIS 2 back illumination |
| Format / active area | 1/1.2-inch; 11.2 × 6.3mm; 12.85mm diagonal |
| Resolution / pixel size | 3856 × 2180; approximately 8.3MP; 2.9µm |
| Colour pattern / shutter | RGGB; rolling shutter |
| ADC / full well | 12-bit; manufacturer-rated 47ke⁻ at the relevant gain setting |
| Read noise / peak QE | Read noise down to approximately 0.7e⁻, gain-dependent; peak QE approximately 91%, manufacturer figures |
| Exposure range | 32µs–2000s |
| Maximum 10-bit capture rates | 46 FPS at 3856 × 2180; 47 FPS at 3840 × 2160; 187 FPS at 1920 × 1080 |
| Cooling / dew control | Two-stage TEC; rated 35–40°C below ambient under stated conditions; adjustable anti-dew heater |
| Memory buffer | 512MB DDR3 |
| Connections | Main USB 3.0 Type-C; secondary USB 2.0 Type-C device port; 12V DC power |
| Cooling supply | 12V DC, 5.5 × 2.1mm; supply rated at least 5A recommended, sold separately |
| Camera fitting / back focus | M42 × 0.75 / 1.25-inch; nominal 17.5mm |
| Protective window | 32mm diameter × 2mm; AR Plus anti-reflection coating |
| Body diameter / mass | 78mm / 420g |
What's included and what you need separately
The manufacturer's standard new-camera package includes the camera and metal cover; 17.5mm M48F–M42M and 20mm M42F–M42M extenders; a zero-length M48M–M42F adapter; T-mount and 1.25-inch cover; rear four-point tilter; air blower; 2m USB Type-C–Type-A cable; two 0.5m USB accessory cables; adjustment tools and screws; camera bag and cable tie.
Separate equipment: a compatible telescope and mount, a computer or supported controller, a cooling power supply and any application-specific filters or adapters. A filter wheel, filter drawer or off-axis guider is not included with the camera-only option.
Customer-return option: when offered, this is a separate condition variant. Confirm its individual condition and accessory completeness with DCS; do not assume the standard new-camera package list applies unchanged.
Before you order
Do I need a UV/IR-cut filter?
The protective window is anti-reflection coated, not specified as a UV/IR-cut filter. For visible-colour imaging, choose suitable spectral filtering for your telescope and target; check whether another filter in your imaging train already provides it.
Will my imaging controller recognise the camera?
Check support for the exact Uranus-C Pro model in your controller or capture application's current documentation. A USB socket alone does not establish driver compatibility. Install the appropriate Player One drivers and software for a computer-based setup.
Can I use it on the Moon and planets?
Yes. Short exposures and a smaller capture region can be useful for these subjects. The final result depends on image scale, focus, seeing and processing. Solar use additionally requires a complete, correctly specified solar-safe telescope/filter system; the camera's window provides no solar protection.
How does it differ from the Ares-C Pro?
The Ares-C Pro has a square 3008 × 3008 sensor with 3.76µm pixels and a 14-bit ADC. The Uranus-C Pro has a rectangular 3856 × 2180 sensor with 2.9µm pixels and a 12-bit ADC. Compare the framing and sampling at your telescope's focal length rather than megapixel count alone.
