Built-in Components

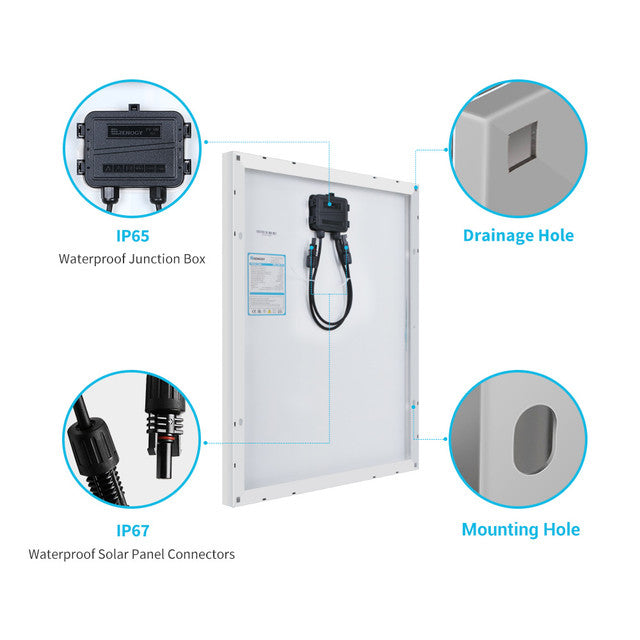

• IP67 Rated Waterproof Solar Connectors: Ensures reliable and durable connections, even in harsh weather conditions.
• IP65 Rated Waterproof Junction Box: Provides protection against dust and water ingress, enhancing the longevity of the system.
• Panel Leads (Pair): 14AWG

Specifications

• Output Cables: 1.3 ft
• Connectors: Male and Female Connectors
• Maximum Power: 50W
• Maximum System Voltage: 600V DC (UL)
• Optimum Operating Voltage (Vmp): 18.6V
• Open-Circuit Voltage (Voc): 22.3V
• Optimum Operating Current (Imp): 2.69A
• Short-Circuit Current (Isc): 2.94A
• Weight: 7.72 lbs (3.5 kg)

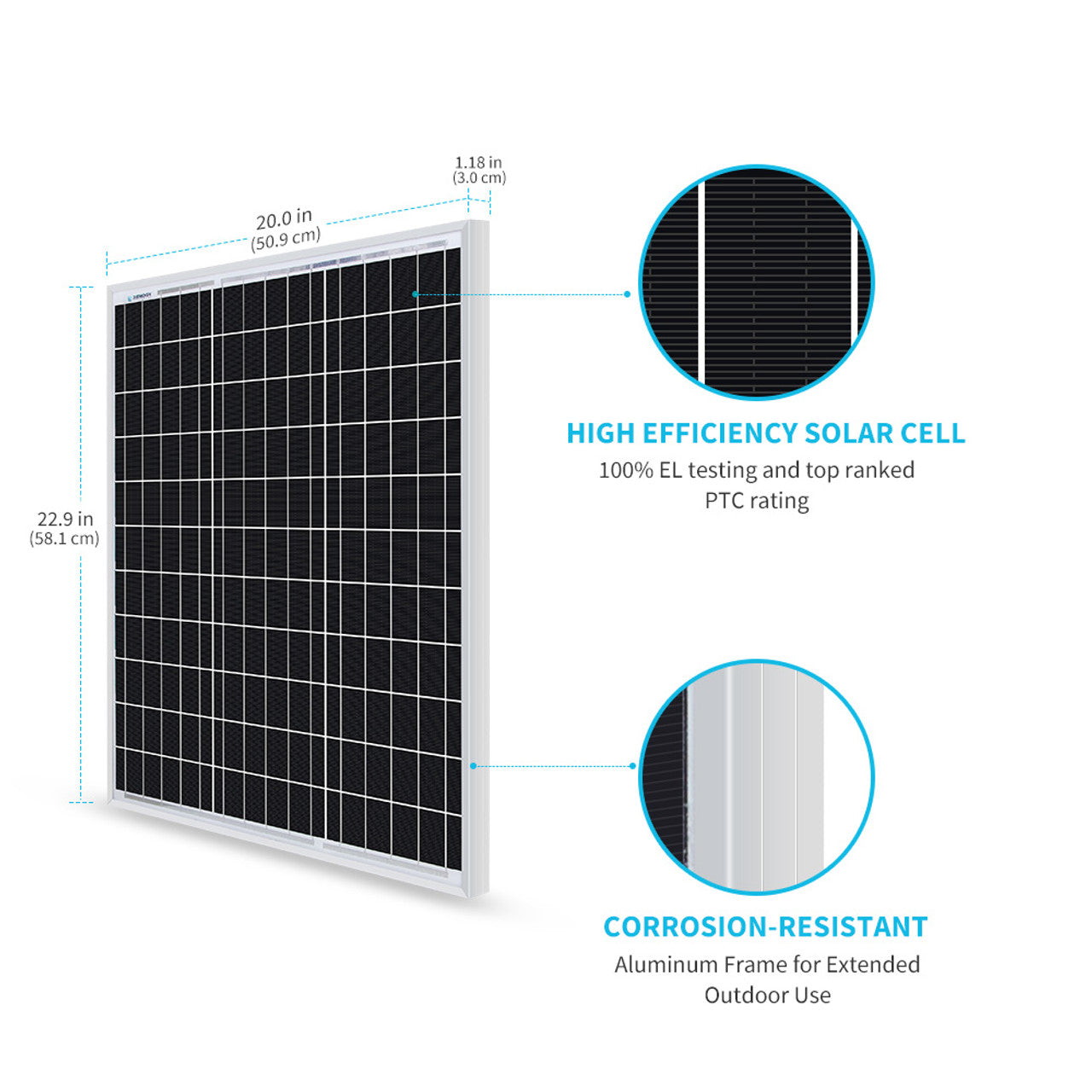

• Dimensions: 22.9 x 20.0 x 1.18 in (581 x 509 x 30 mm)

Warranty Information

• Panels:
• 25-year transferable power output warranty:
• 5 year/95% efficiency rate
• 10 year/90% efficiency rate
• 25-year/80% efficiency rate
• 5-year material and workmanship warranty
• Accessories: 1-year material warranty

Certification

All Renogy products are certified for high quality and safety standards.
