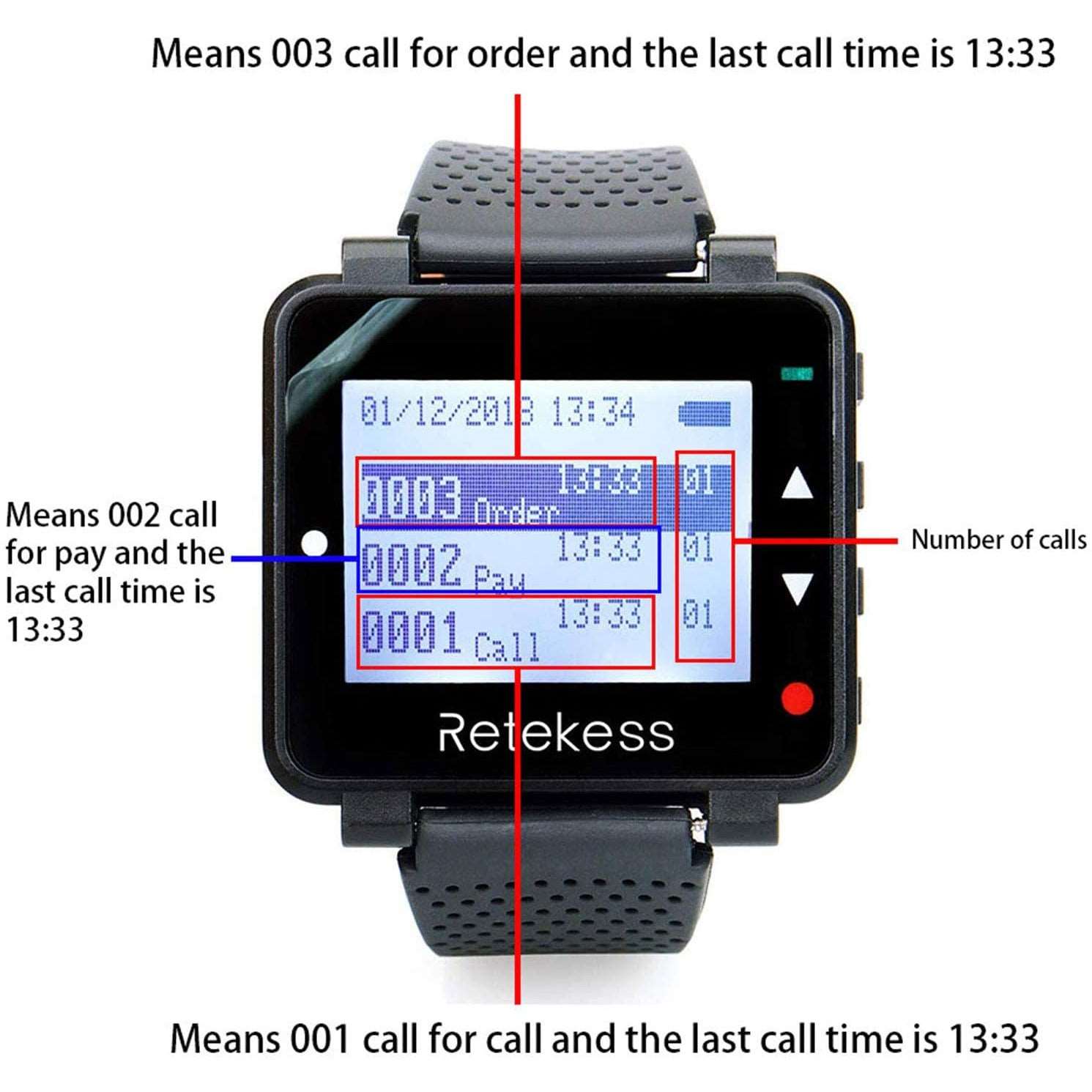

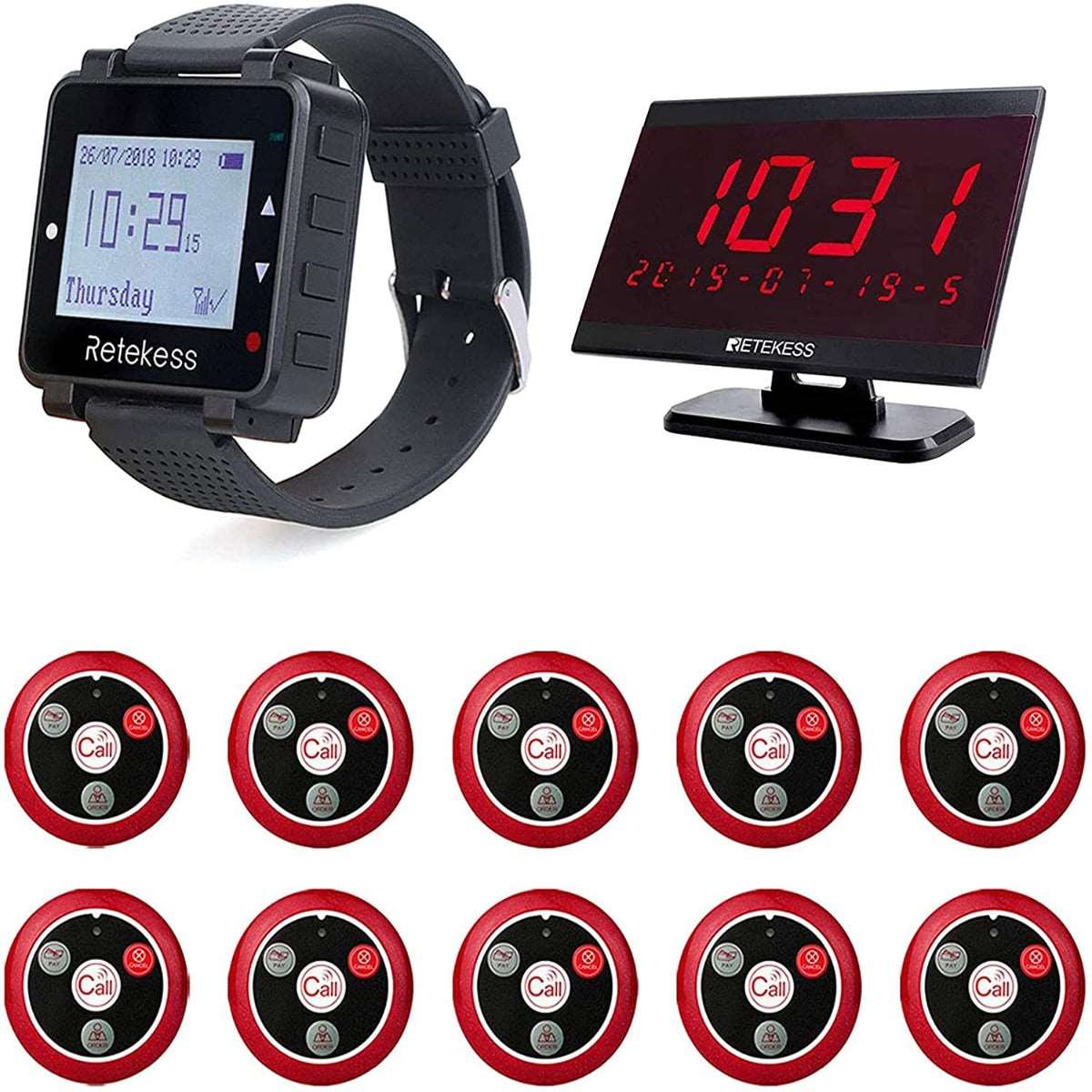

The Retekess T128 is a three-component wireless calling system comprising a T128 wrist watch receiver, a TD105 counter-mounted screen receiver, and an RF signal range extender — used together with T117 four-key call buttons. Customers press a call button at their table; the T128 watch and TD105 screen both receive the alert simultaneously, with the screen displaying up to four call records for staff reference. The system operates at 433 MHz without Wi-Fi or internet connectivity and supports up to 500 paired call buttons, with up to 999 channels available for numbering and configuration.
Key Features
- T128 watch receiver — wrist-worn receiver with built-in 400 mAh rechargeable battery; charges via USB (5 V / 1 A); ASK modulation; operating voltage DC 3.7 V; dimensions 47 × 47 × 14 mm; weight 43.8 g

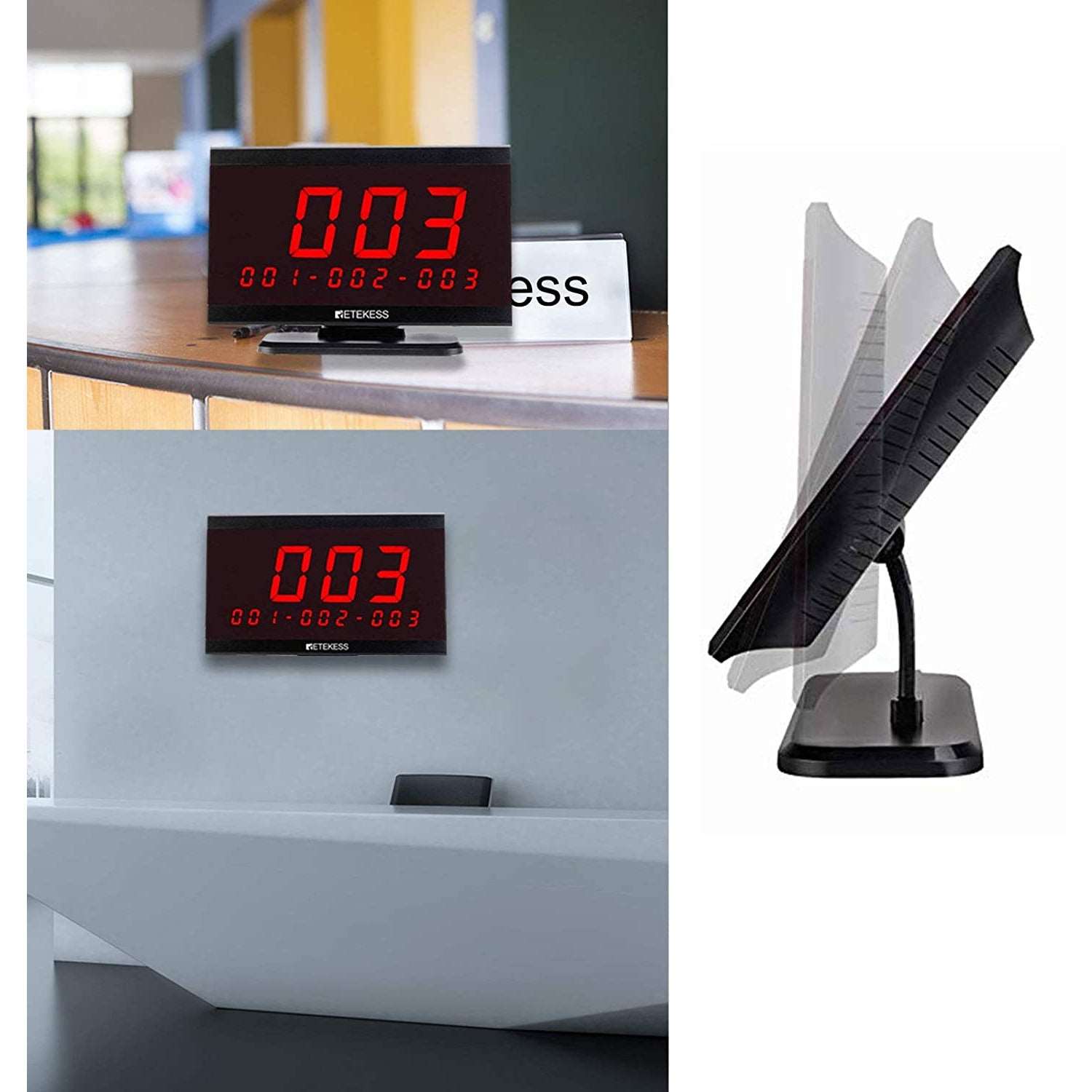

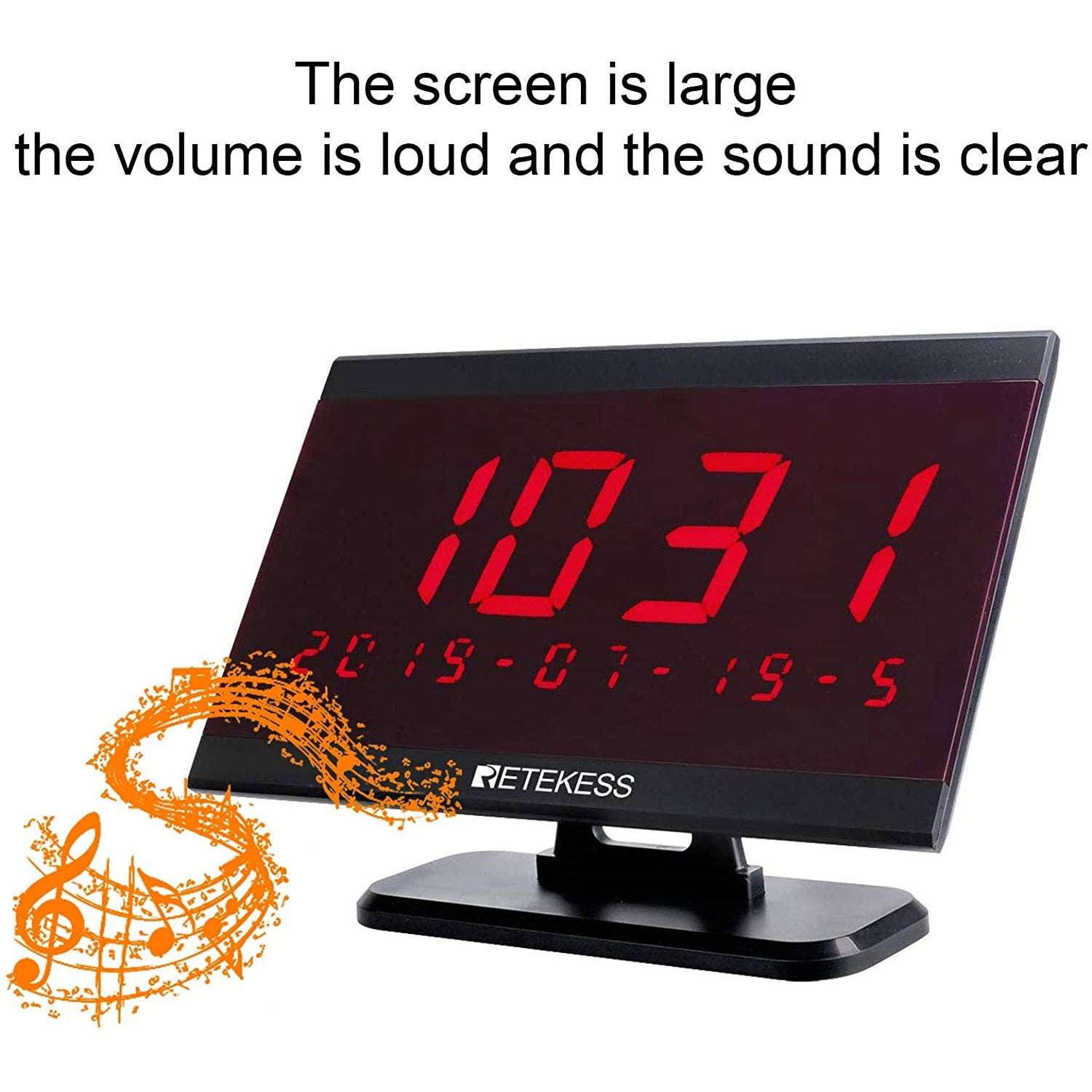

- TD105 screen receiver — counter or wall-mounted display; displays up to four call records; 15-level volume control; 7 selectable voice broadcast modes; audio output socket for connection to external speakers; frequency 433.92 MHz; sensitivity better than −108 dBm; adapter AC 100–240 V, output DC 9 V / 1 A; dimensions 260 × 180 × 70 mm
- RF signal range extender (TD021) — 433.92 MHz; extends coverage in large or complex venues; up to 6 repeaters can be used within a single calling system; suspension hole and adhesive mounting options

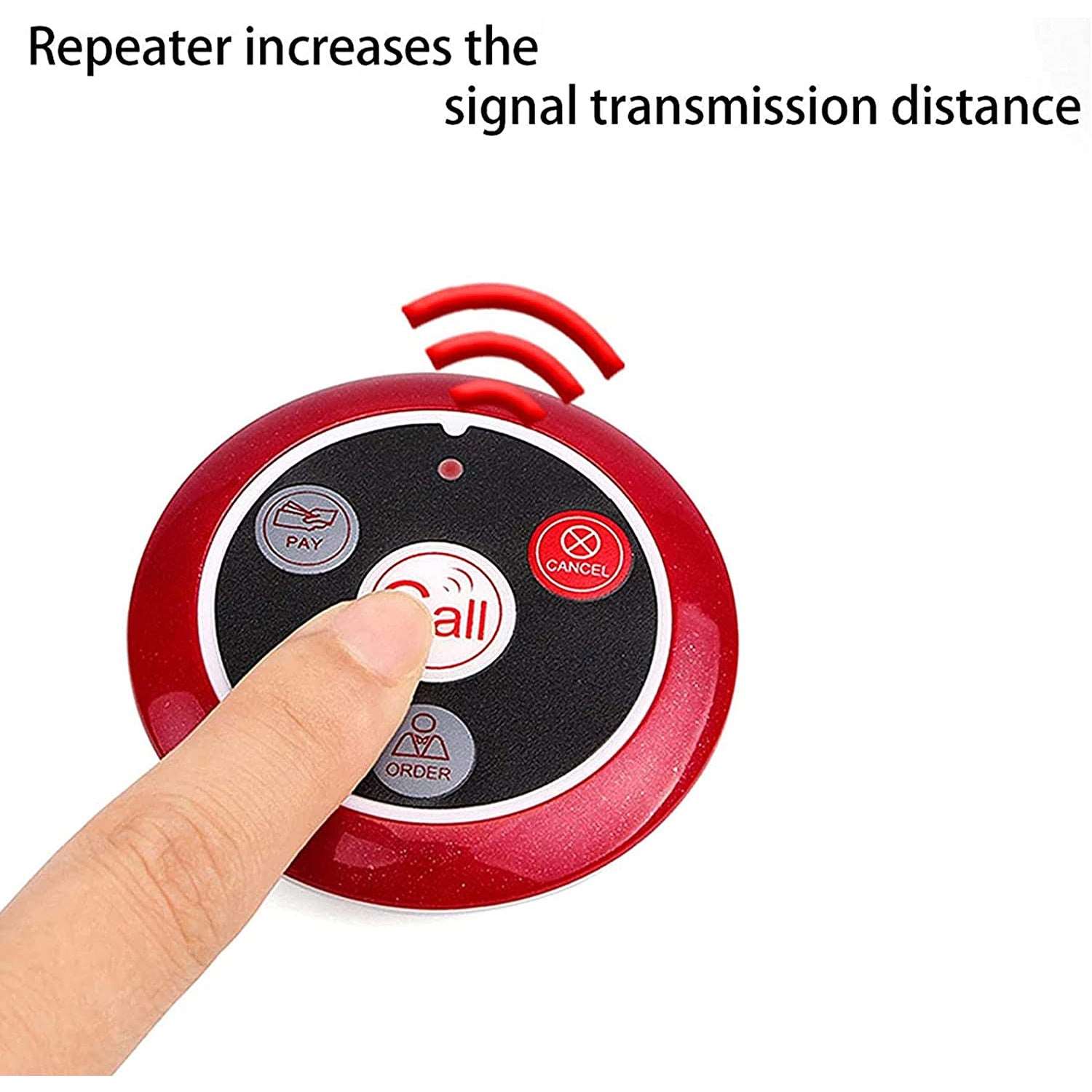

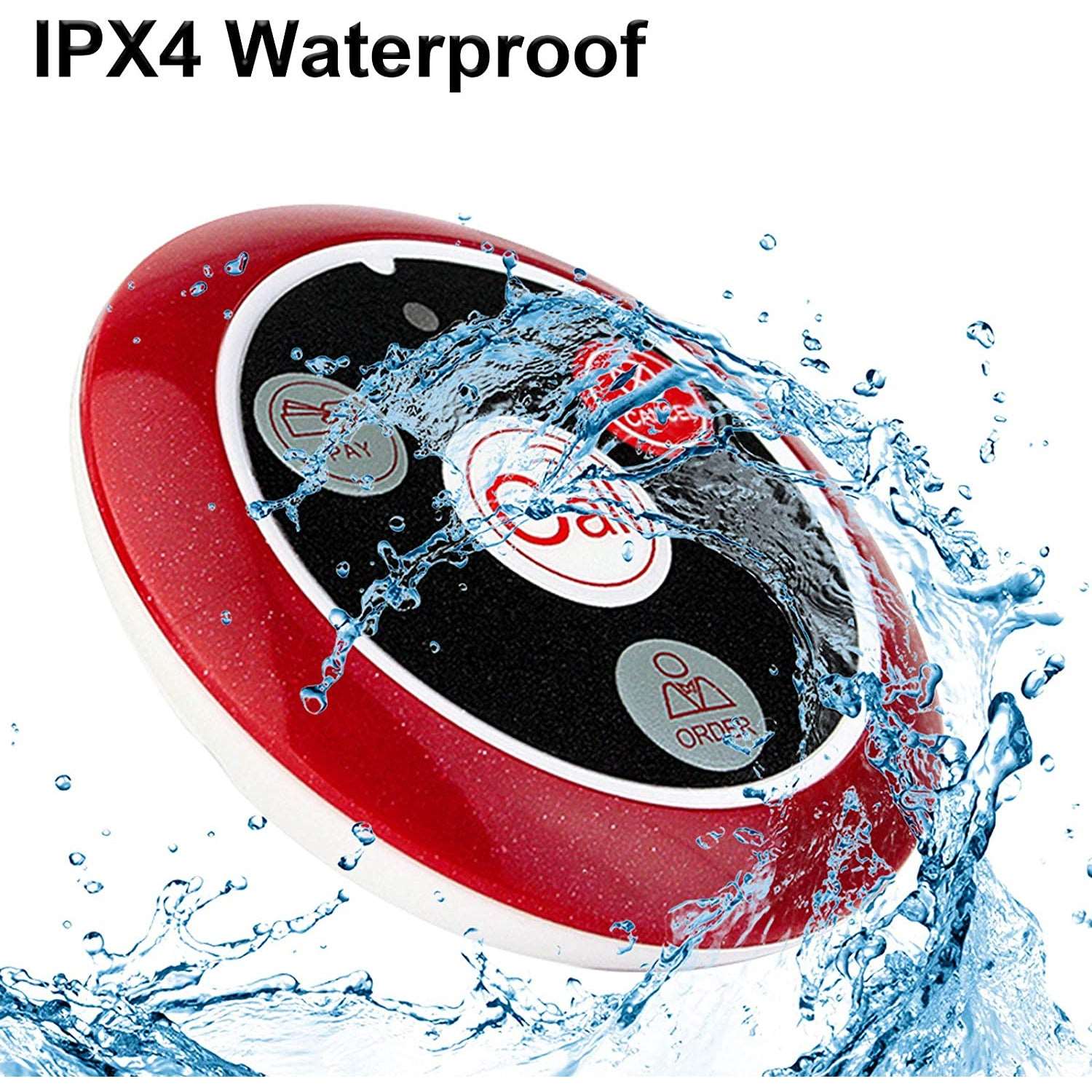

- T117 call button — four function keys: CALL, PAY, ORDER, CANCEL; 433 MHz ASK; powered by 2 × CR2016 3 V batteries (included); splash-resistant for everyday service use; double-sided adhesive or screw mounting; dimensions 64 × 61 × 15 mm; weight 27 g; operating temperature −20 to 55 °C
- Up to 500 paired call buttons per system; up to 999 channels available for numbering and configuration
- Single button pairable to multiple watch receivers — all paired receivers alert simultaneously
- 433 MHz transmission — strong wall penetration; no Wi-Fi or internet required
Product Benefits
- Dual-receiver architecture means both roaming staff (watch) and counter staff (screen) are alerted simultaneously
- TD105 screen displays up to four call records, keeping counter staff informed of outstanding table requests
- 7 voice broadcast modes on the TD105 allow the audio alert style to be matched to the venue atmosphere
- 15-level volume control and external audio output give full flexibility over alert presentation
- Scalable to 500 active buttons with up to 6 repeaters for extended coverage; no proprietary infrastructure required
Ideal Applications
- Restaurants and fast-food venues — simultaneous table-to-watch and table-to-counter alerting
- Bars and cafés
- Banks and service counters
- Hospitals and healthcare waiting areas
- Factories and warehouses requiring inter-area staff notification
- Any venue needing both a roaming and a fixed-station alert receiver
Technical Specifications

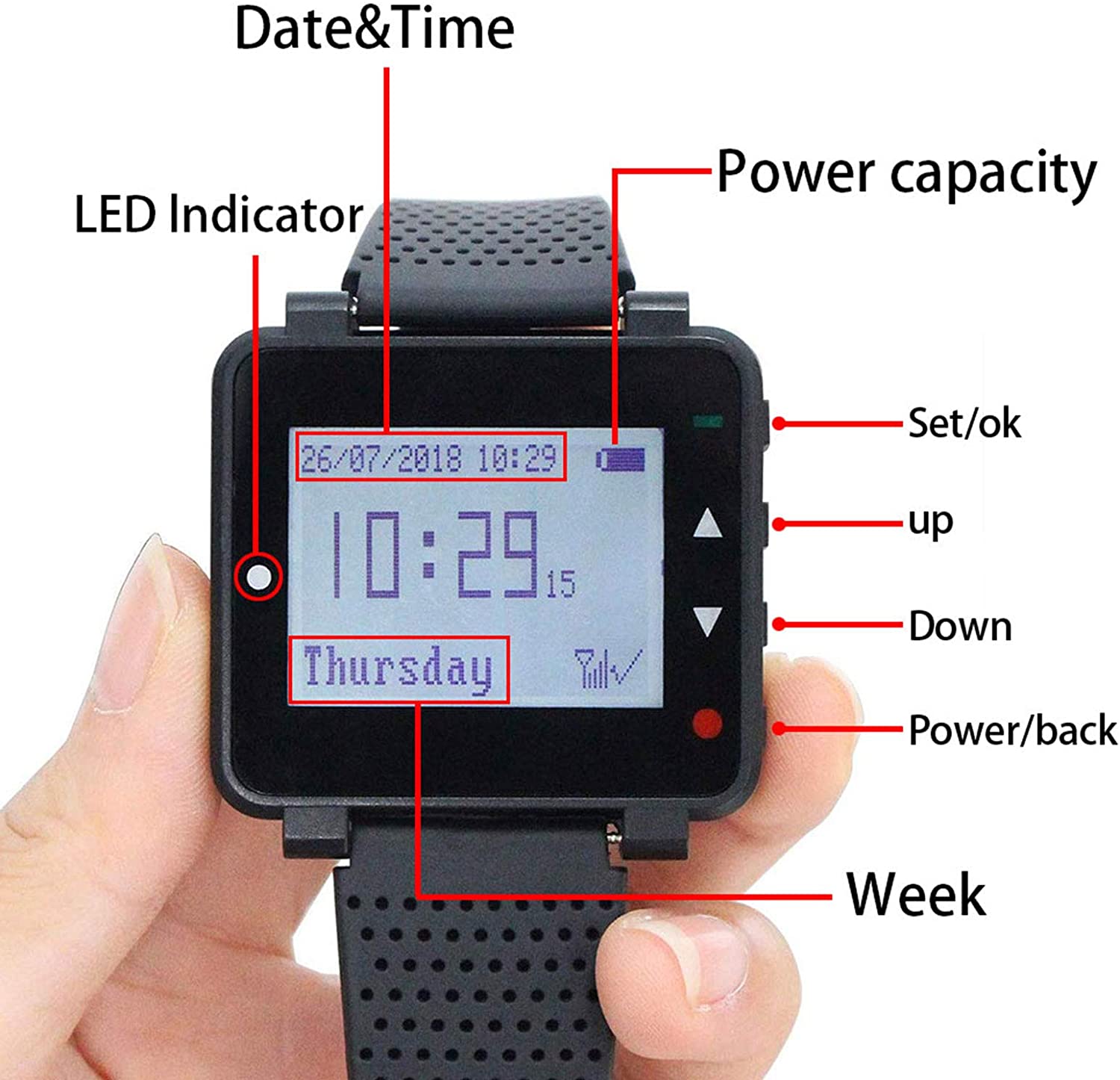

T128 Watch Receiver
- Operating voltage: DC 3.7 V
- Battery: 400 mAh rechargeable (built-in)
- Modulation: ASK
- Charger input: 5 V / 1 A (USB)
- Dimensions: 47 × 47 × 14 mm
- Weight: 43.8 g
TD105 Screen Receiver
- Frequency: 433.92 MHz
- Maximum channels: 999
- Sensitivity: better than −108 dBm
- Adapter: AC 100–240 V 50/60 Hz; output DC 9 V / 1 A
- Operating voltage: 12 V / 2 A

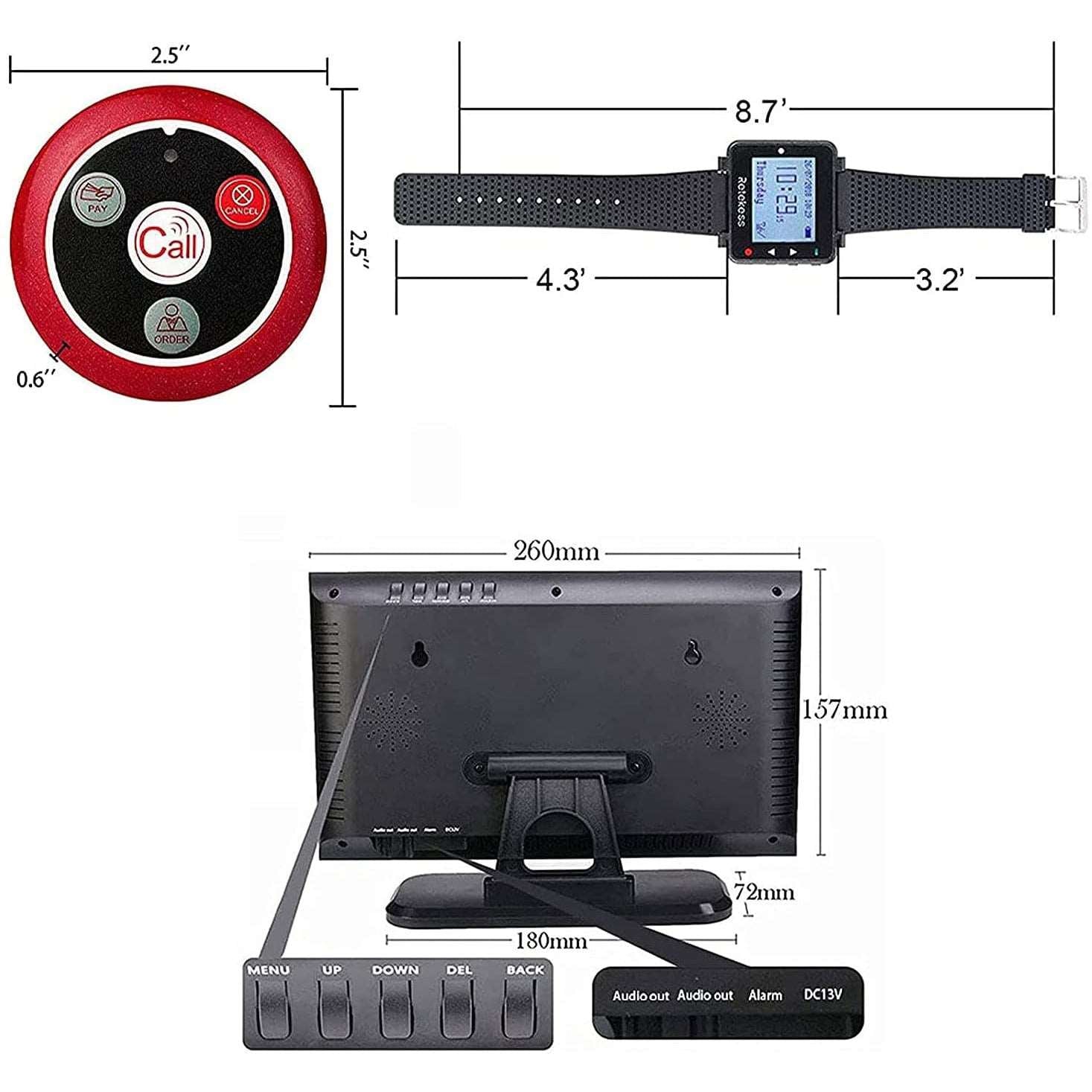

- Dimensions: 260 × 180 × 70 mm
Signal Range Extender (TD021)
- Frequency: 433.92 MHz
- Transmission power: 500 mW
- Operating voltage: DC 12 V
- Adapter: AC 100–240 V 50/60 Hz
- Maximum repeaters per system: 6
T117 Call Button
- Frequency: 433 MHz
- Modulation: ASK (AM)
- Battery: 2 × CR2016 3 V (included)
- Operating temperature: −20 to 55 °C
- Dimensions: 64 × 61 × 15 mm
- Weight: 27 g

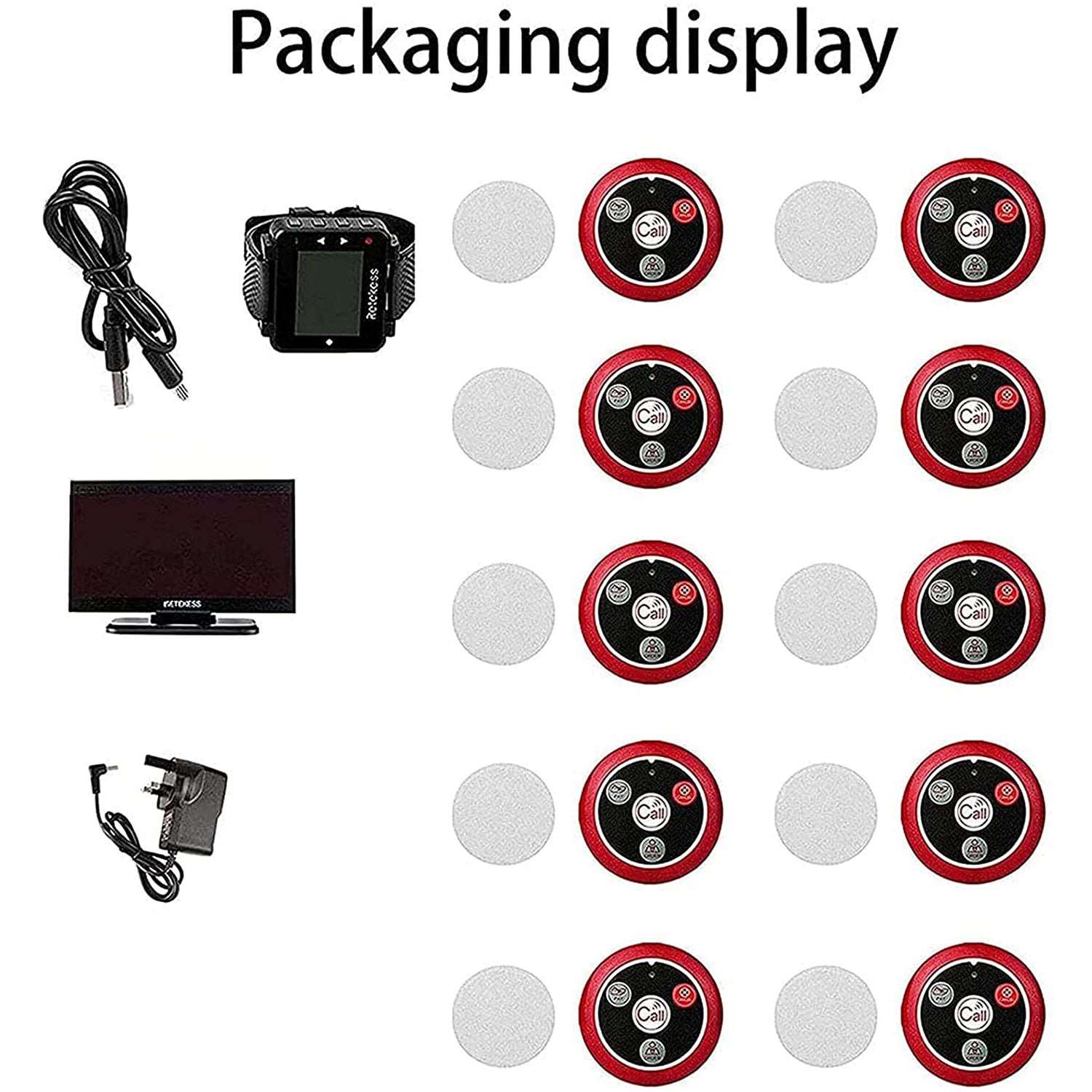

What's Included
- 1 × T128 Watch Receiver
- 1 × USB charging cable
- 1 × TD105 Screen Receiver Host
- 1 × Power adaptor for TD105
- 1 × Audio cable
- 1 × RF Wireless Range Extender (TD021)
- 1 × Signal amplifier power adaptor
- 2 × Antenna
- 10 × T117 Call Button (with CR2016 batteries fitted)
- 10 × Double-sided adhesive sticker
- 2 × English user manual
Additional T117 call buttons and compatible watch receivers can be added to expand coverage as your venue requires.
