The Retekess TD106-TD010 is a wireless call button and watch receiver system designed for table service environments. Ten four-key call buttons (TD010) communicate wirelessly with a wrist-worn receiver watch (TD106), allowing staff to be alerted discreetly at up to 100 m in open areas without the need for Wi-Fi or internet connectivity. The system supports up to 500 paired buttons and requires no complex setup.
Key Features

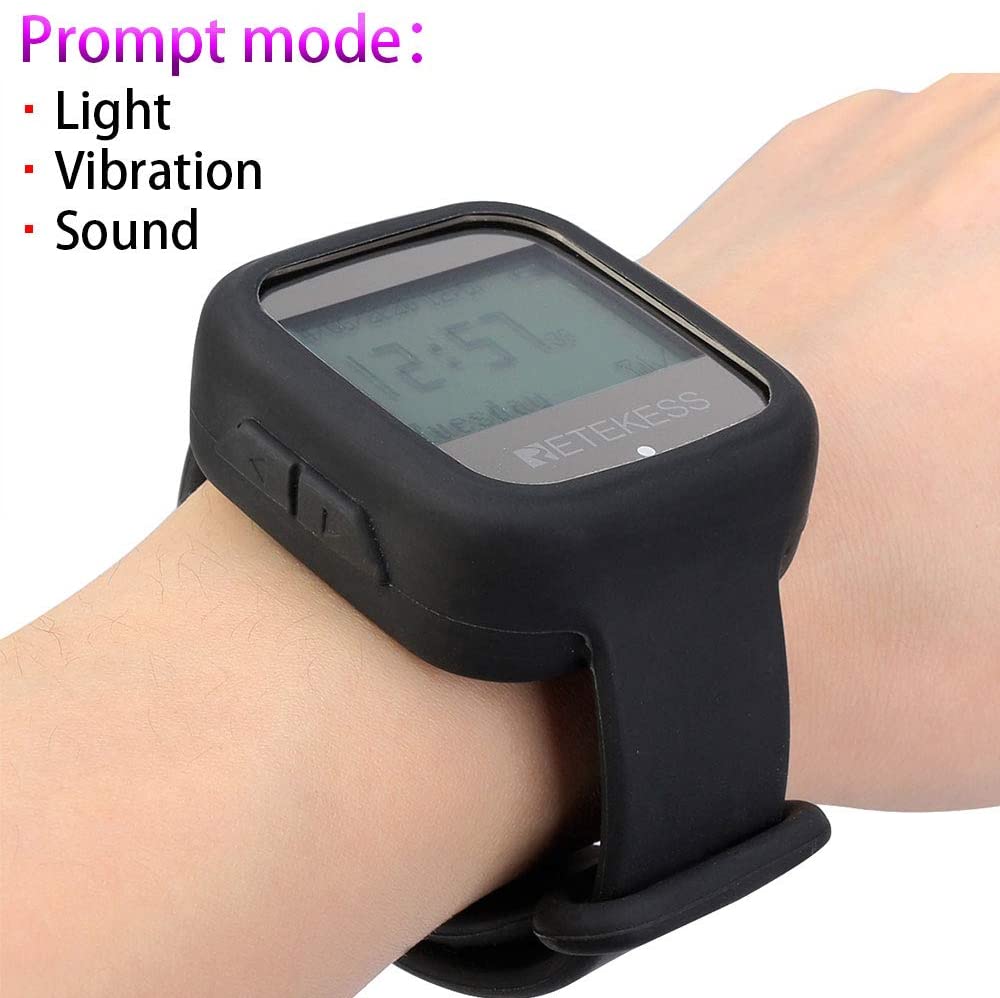

- Watch receiver (TD106) — 1.4-inch display; three alert modes: sound, vibration, and light, freely combined
- 400 mAh rechargeable battery — up to 50 hours standby; charges via Micro USB; red light indicates charging, steady red indicates full
- Silicone watchband — soft, comfortable to wear; direction indicator on the strap guides correct installation
- IP54 rated — splash and dust resistant

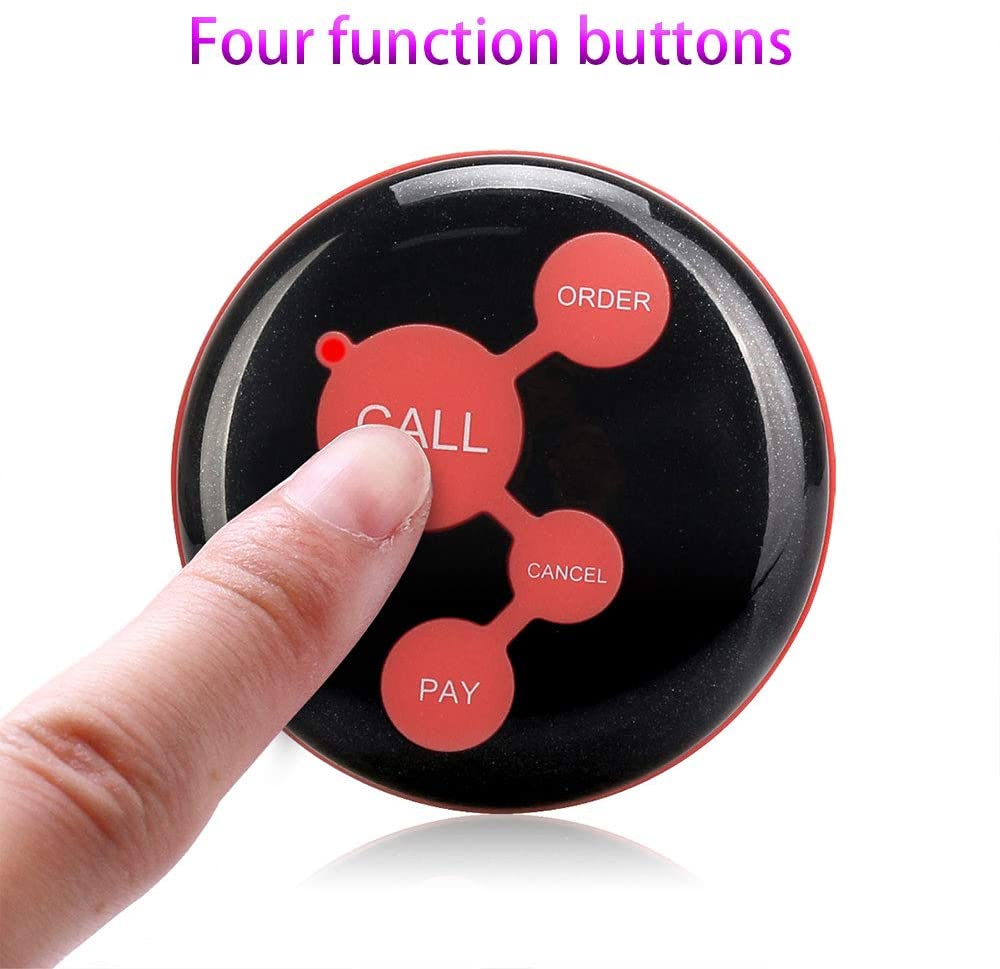

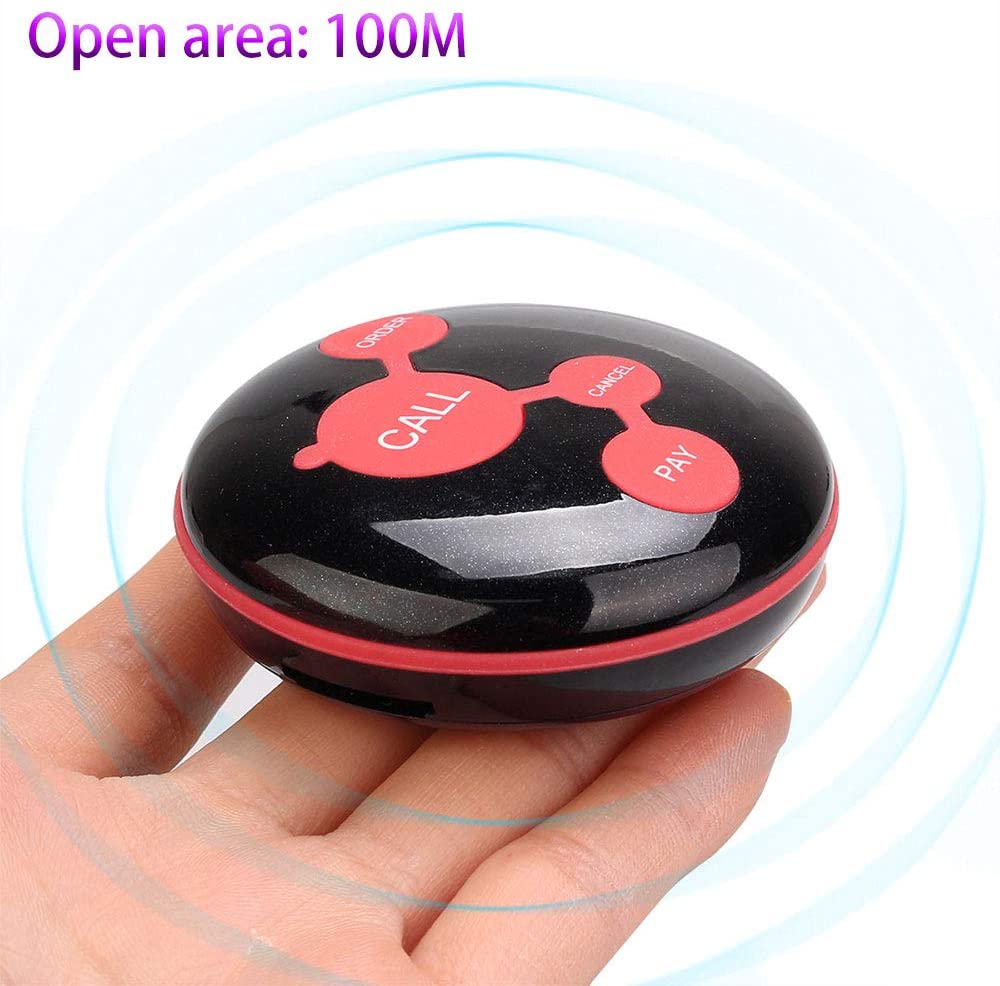

- Call button (TD010) — four function keys: CALL, PAY, ORDER, CANCEL; labels can be customised to suit your application
- Constellation-style design — high-gloss PU surface finish; wear- and scratch-resistant
- Call indicator light — illuminates on the button when a signal is transmitted
- 433 MHz transmission — up to 100 m range in open areas; EV1527 wireless coding
- 12V 23A button battery — operating current 15 ± 3 mA; up to 8 months battery life depending on usage

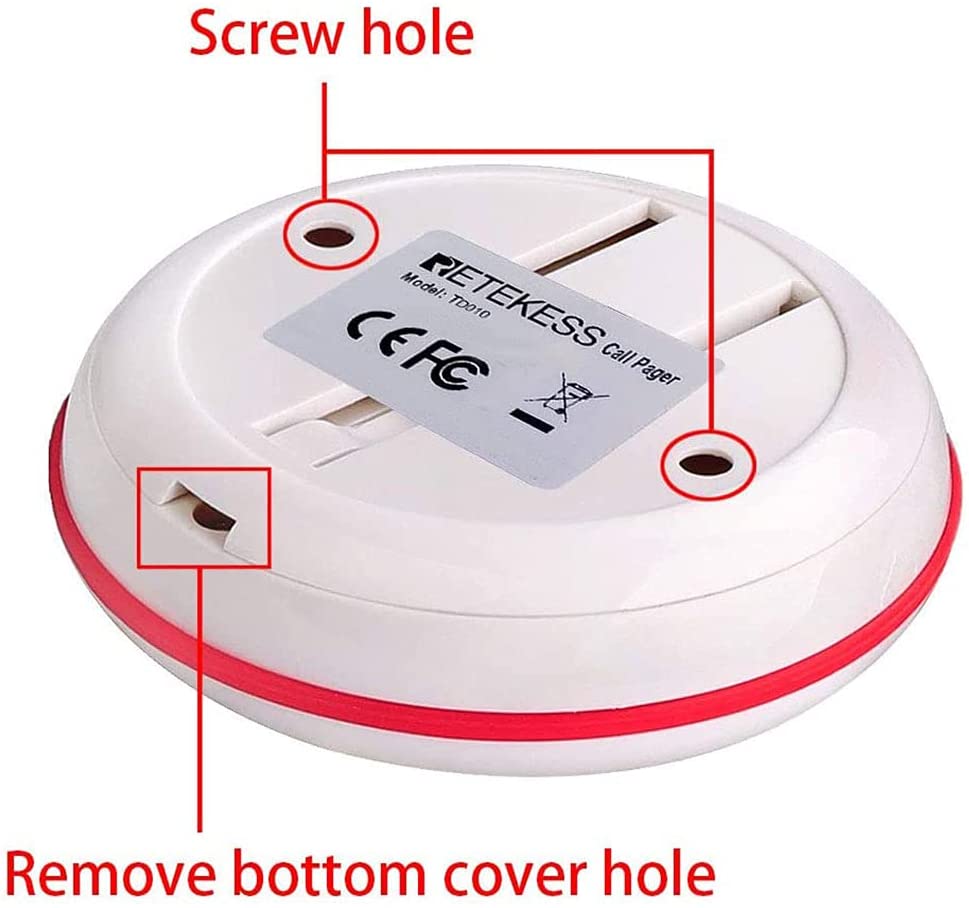

- Flexible mounting — double-sided adhesive stickers or screw fixing via rear shell holes
- Up to 500 call buttons supported per watch receiver
- 40 multi-key function settings available
Product Benefits
- Eliminates the need for staff to remain within earshot of a table — alerts are delivered directly to the wrist
- Three-mode alert (sound, vibration, light) suits both busy and noise-sensitive environments
- Long button battery life reduces maintenance overhead
- Customisable button key labels allow the system to adapt to different service workflows
- No Wi-Fi, no app, no ongoing subscription — plug-and-play from the box
Ideal Applications

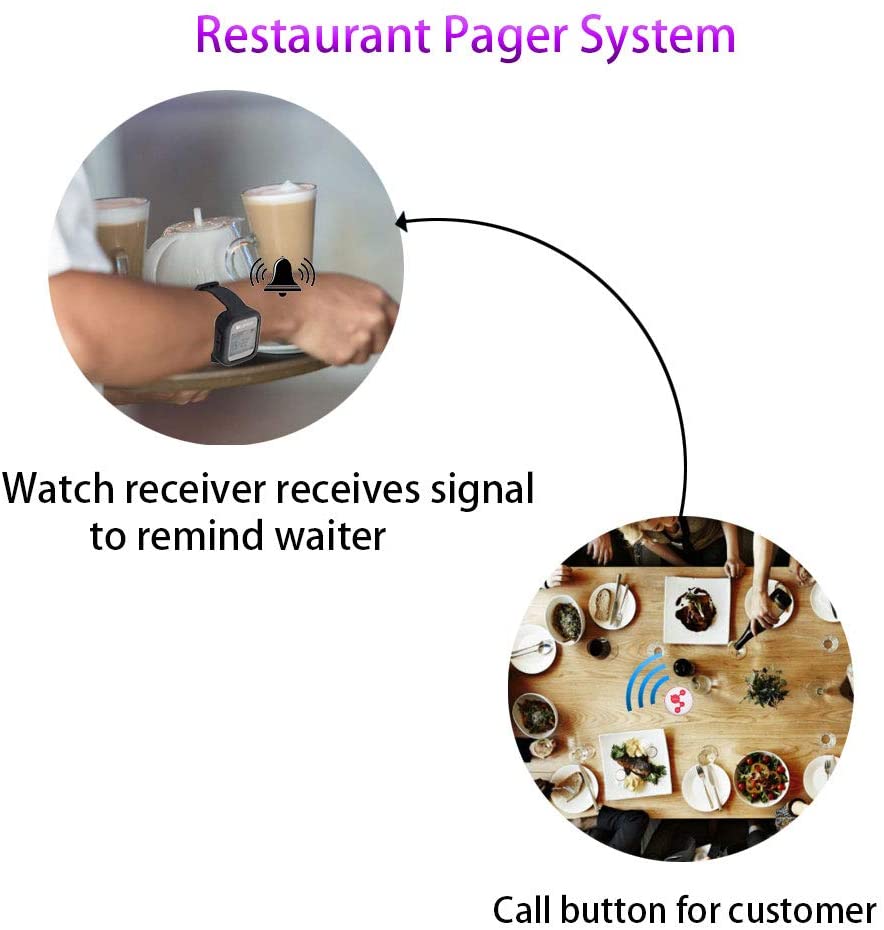

- Restaurants, bars, and cafés — table-to-staff service calls
- Hotels and hospitality venues
- Healthcare waiting areas — discreet patient-to-staff alerting
- Offices and meeting rooms
- Any environment where staff need to be called without raised voices or fixed intercoms
Technical Specifications

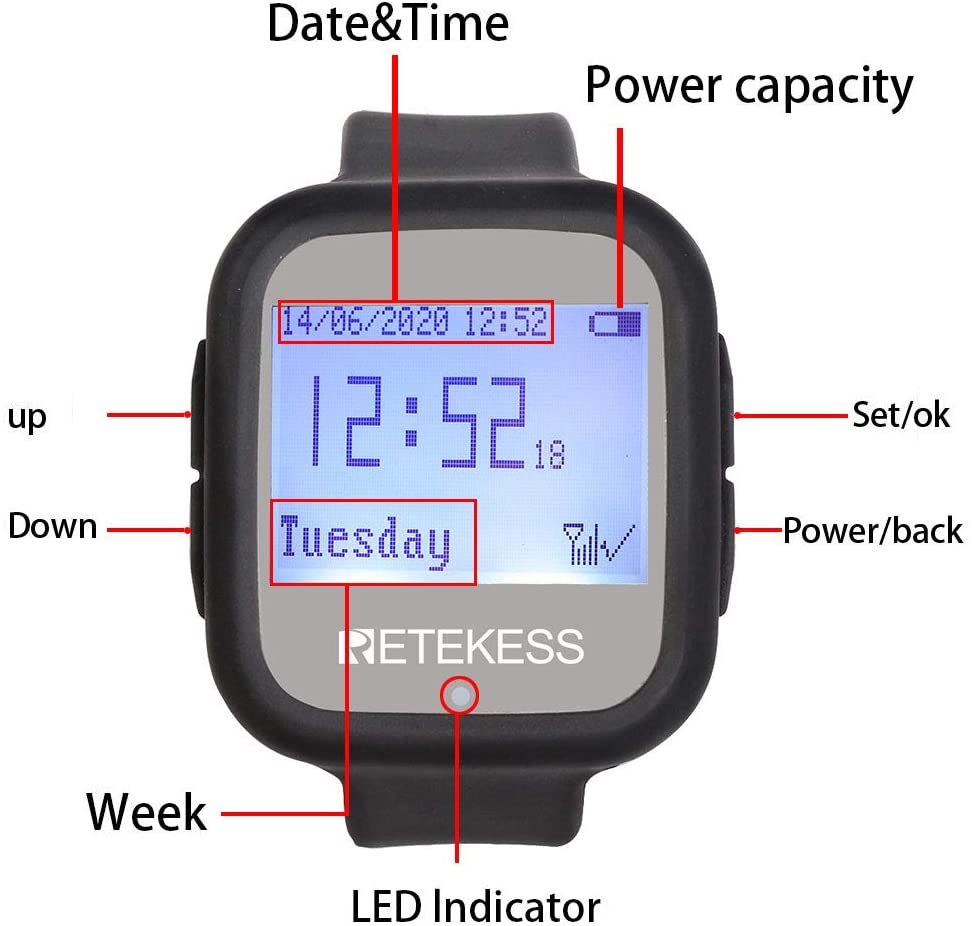

Watch Receiver — TD106
- Screen: 1.4 inches
- Modulation: Amplitude modulation
- Battery: 400 mAh lithium (built-in)
- Standby time: up to 50 hours
- Charging time: approx. 2.5 hours
- Operating current: 8 mA
- Waterproof rating: IP54
- Dimensions: 47 × 45 × 18 mm (including watchband)
Call Button — TD010
- Frequency: 433 MHz
- Wireless coding: EV1527
- Battery: 12V 23A
- Operating current: 15 ± 3 mA
- Battery life: up to 8 months depending on usage
- Operating temperature: −10 to 50 °C

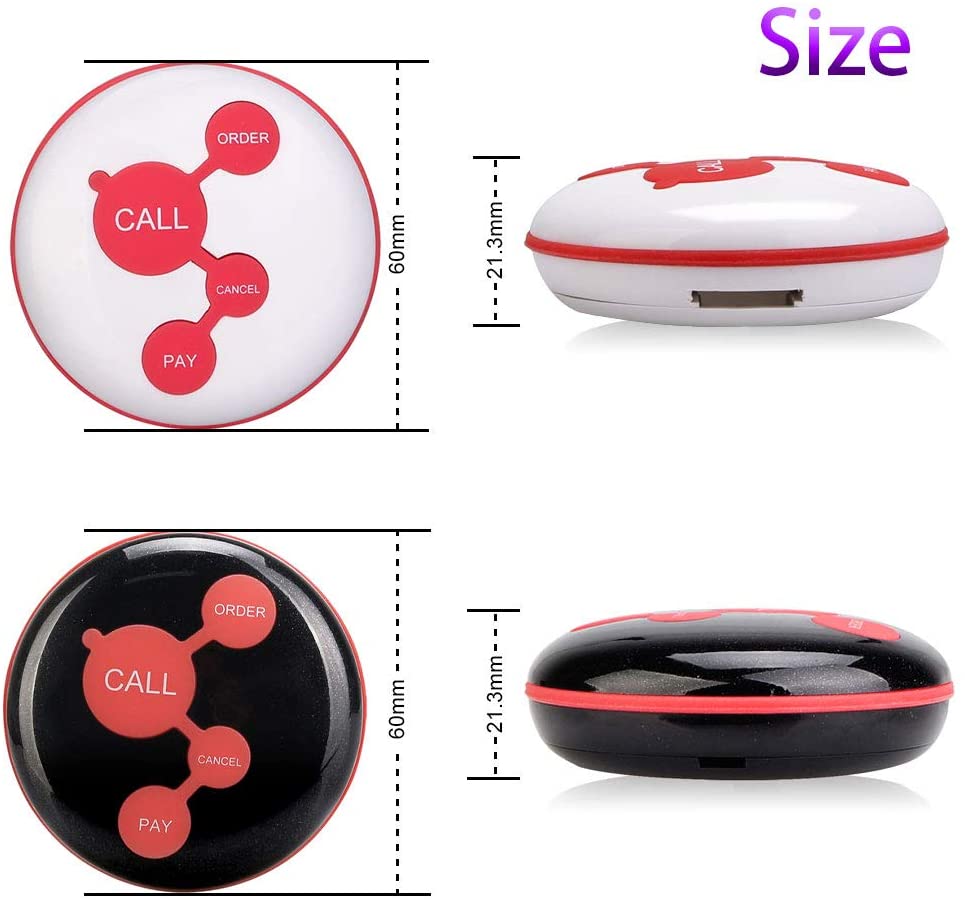

- Dimensions: Ø60 × 21.3 mm
- Weight: 38 g
What's Included

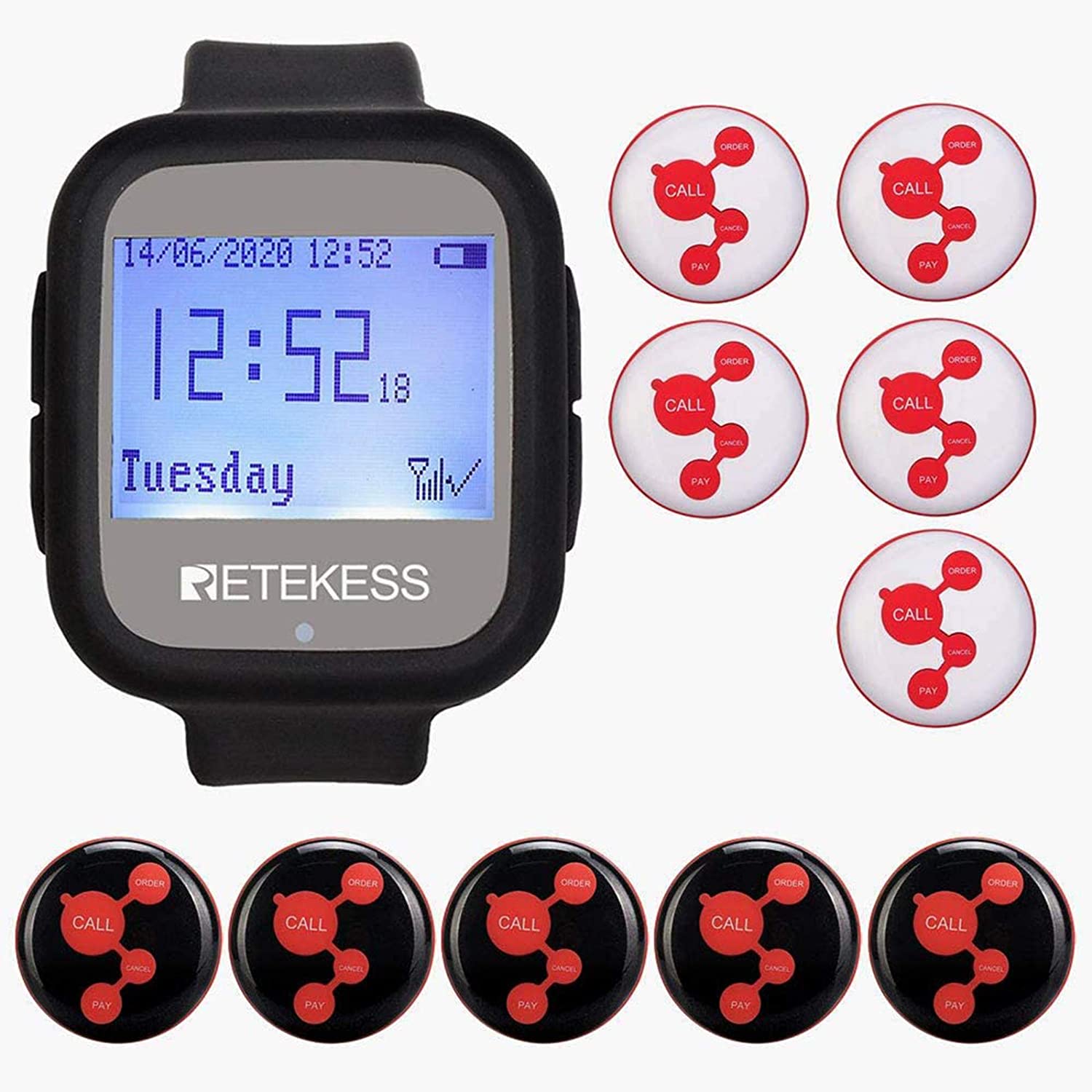

- 10 × TD010 Four-Key Call Button (5 × black, 5 × white)
- 10 × Double-sided adhesive sticker
- 1 × TD106 Watch Receiver
- 1 × Micro USB charging cable
- 1 × Instruction manual
Additional TD010 call buttons can be paired to the same watch receiver, allowing the system to scale as your venue grows.
