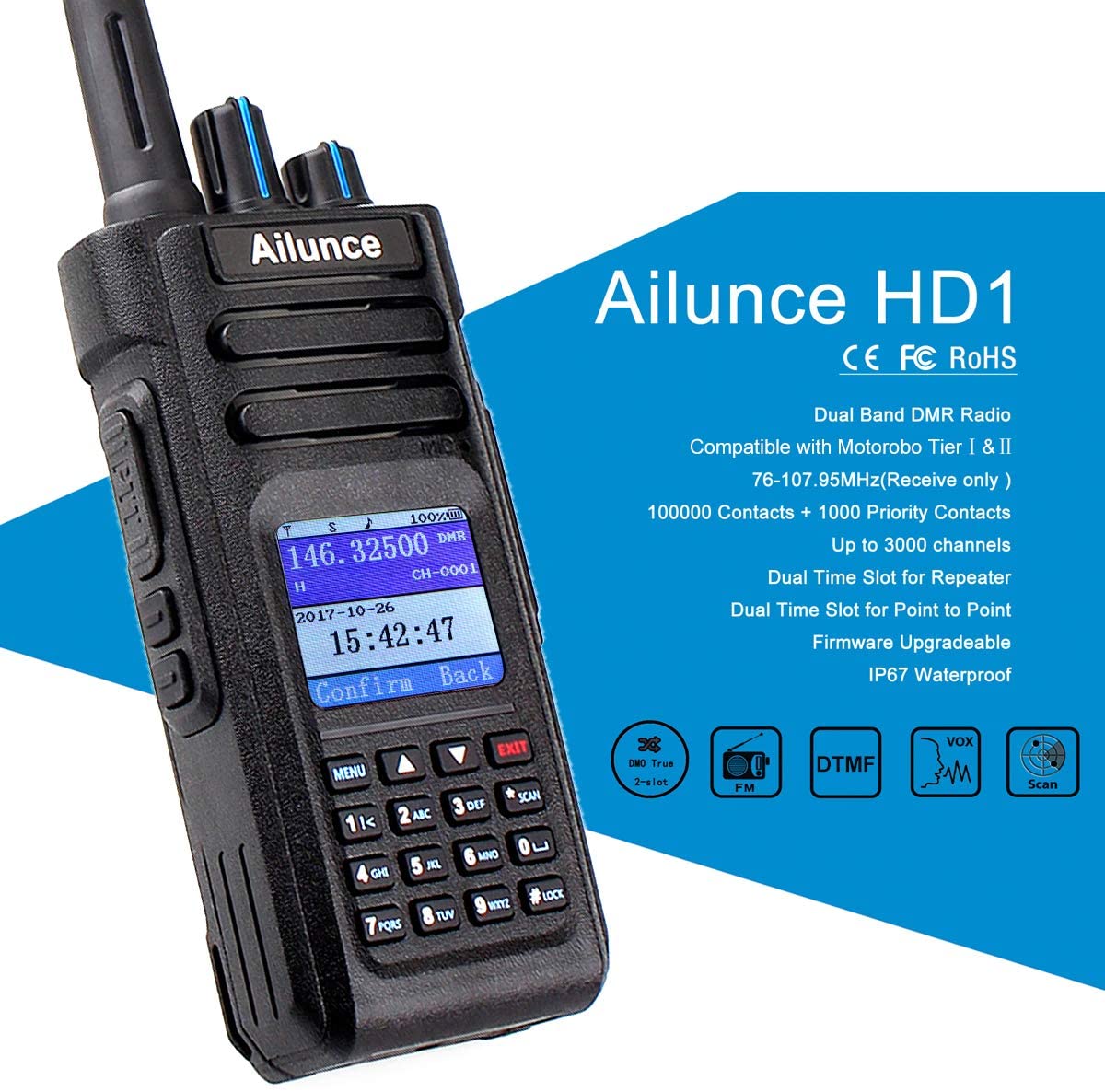

AILUNCE HD1 DMR Digital VHF/UHF Handheld Radio With CTCSS/DCS TONE SQUELCH long range waterproof walkie talkies
The AILUNCE HD1 amateur radio digital DMR handheld radio operates in analogue and digital modes using TDMA technology and is fully DMR compliant, Tier I and Tier II compliant. Thanks to the possibility to work also in analog mode, the use of the HD1 radio will facilitate the migration from analog to digital system in the future.
DMR (Digital Mobile Radio) is a new standard that has been introduced by ETSI (European Telecommunications Standards Institute) for communications using digital signals.
DMR is a response to the growing requirements of companies and institutions regarding security and unwanted data leakage (information has the greatest value). This solution enabled a quick expansion of the communication system, remote management, sending SMS messages, GPS position, telemetry and encryption.
Devices designed for DMR communication can work in an analog system - this facilitates the transition from one system to another.

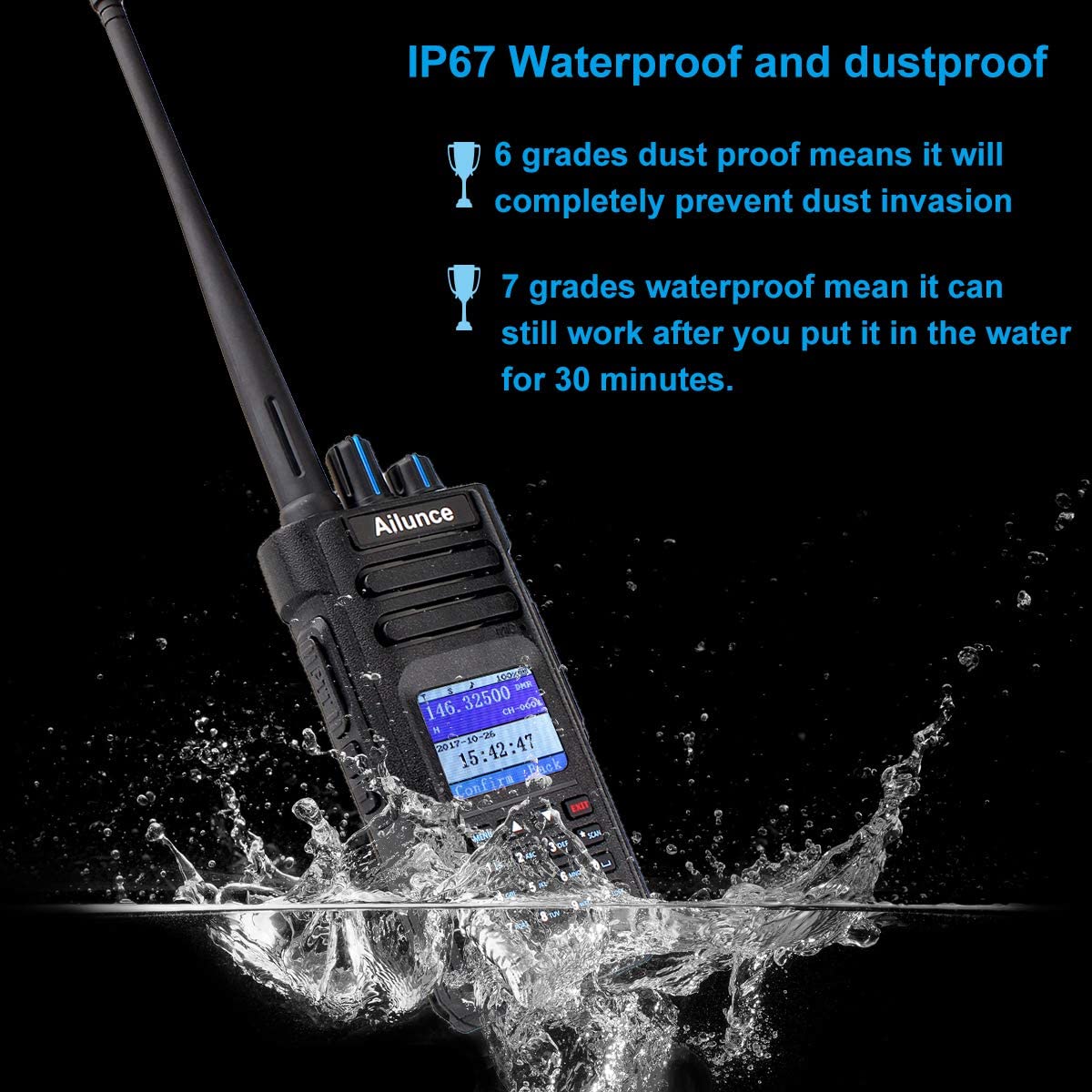

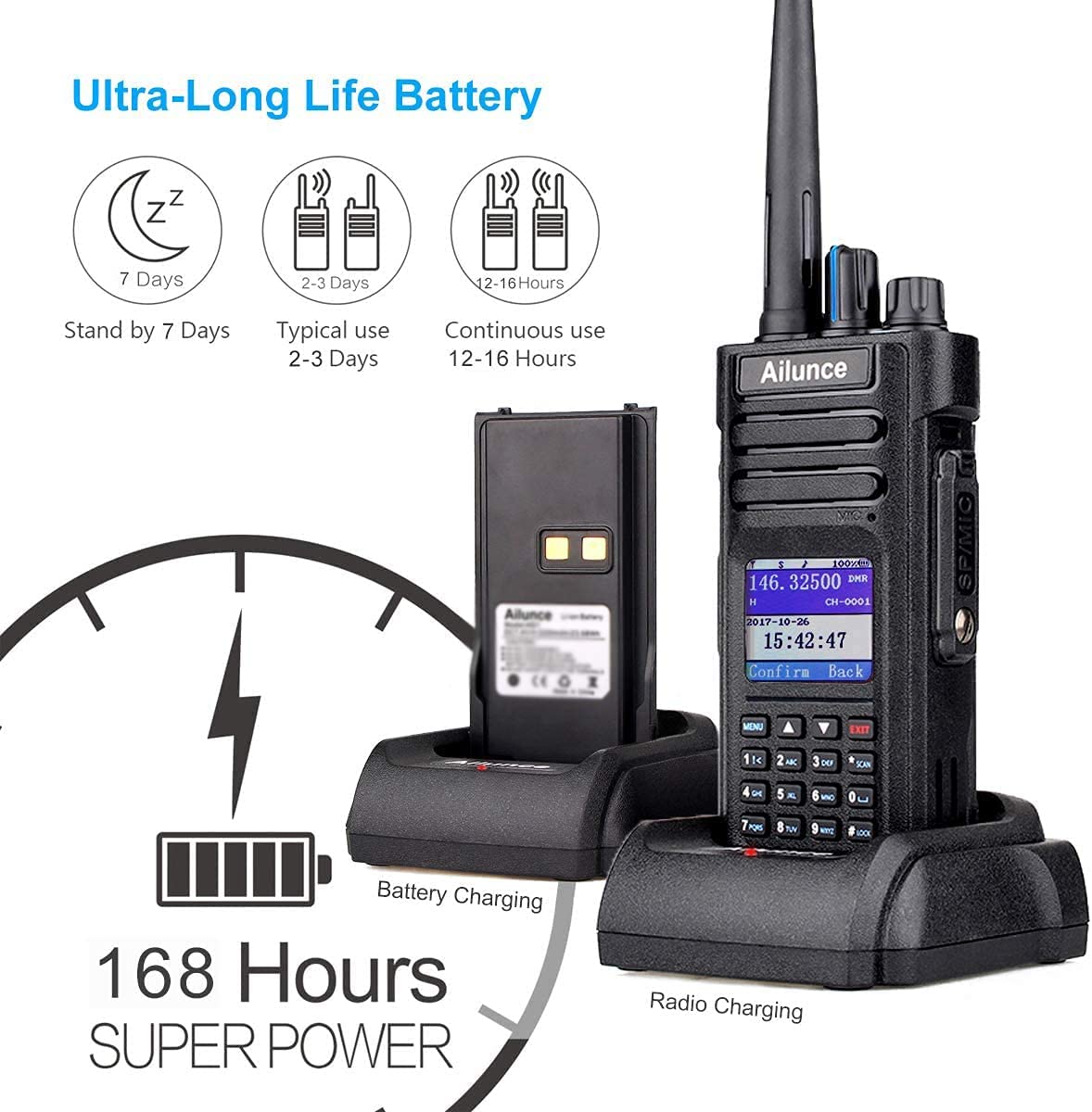

Waterproof walkie-talkie HD1 has VFO mode; very easy to learn and use.3200mAh battery enable normal use 7 days standby / 2-3 days typical use / Continues use 12-16 hours.
Tri group call models make you call freely without the group restrictions; supports to save 32 radio ID and edit radio ID via keypad; special digital secure system allows team members communicate safely.
Dual time slot for point to point supports two group calls in one channel under direct model; 20000 priority contacts enable you to call the people important to you more convenient; supports DTMF connecting.

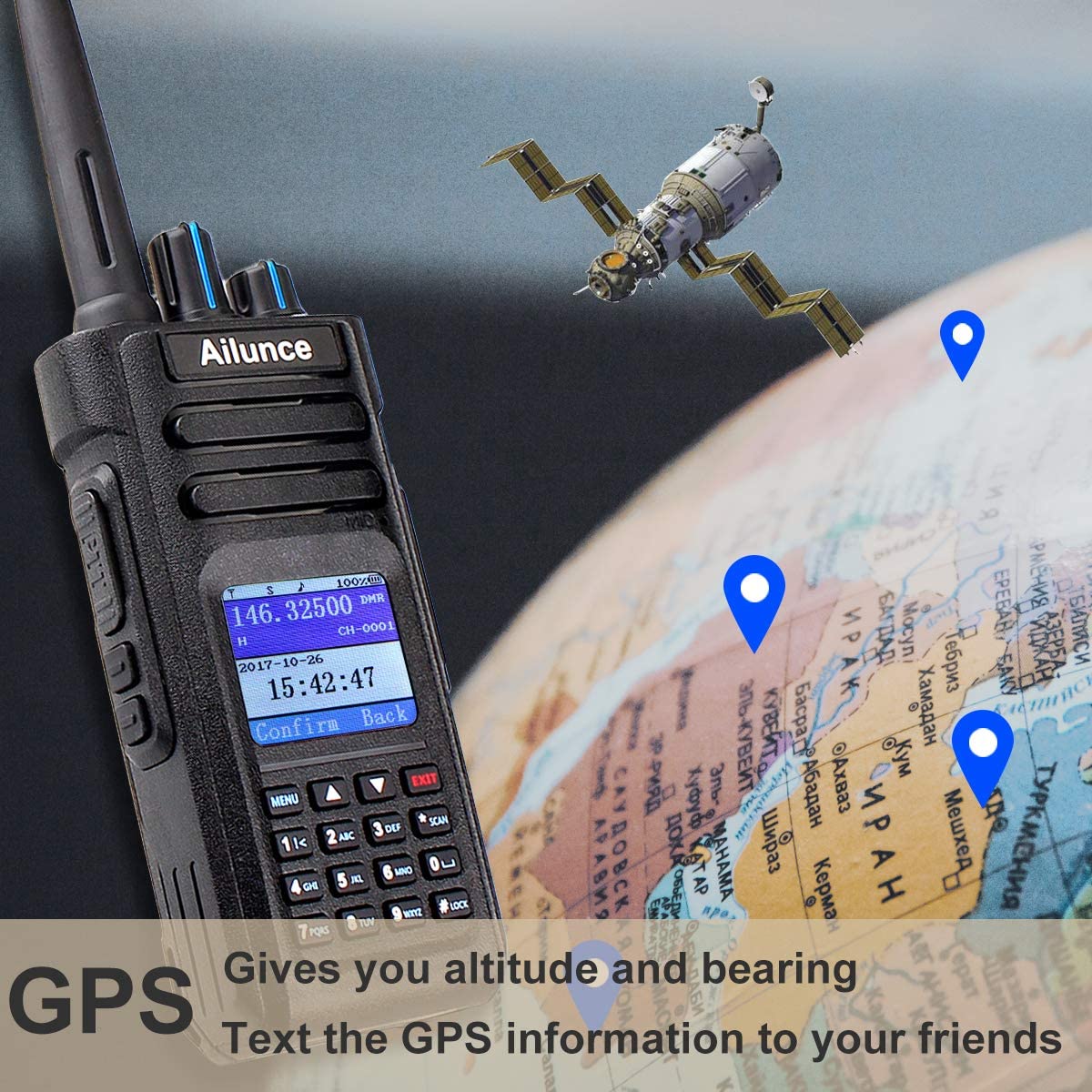

GPS function gives you latlong; altitude; bearing; and speed information SMS function support to text the information to another radio with the same DNA protocol.
Frequency | 136-174 /400-480MHz /76-107.95MHz (Receive only ) |
Channels | 3000 |
Operating Temperature | -30℃~+60℃ |
Operating Voltage / Power supplied voltage | 7.4V DC / 12V DC |
Dimension / Weight / Display | 150 x 64x 40mm / 360g (with battery ) / LCD Colour |
Channel Spacing | Analog 25/20/12.5KHz / Digital 12.5KHz |
Battery Type / Battery Capacity | Li-ion / 3200mAh |
Global Position System (GPS) | TTFF – 49sec Cold start / 8sec Warm start / Horizontal accuracy ≤2.98meter |
Antenna Impedance | 50 Ω |
Transmitter | |
Transmit Power/ Current | VHF 10W/5W/1W / UHF 8W/4W/1W - Selectable |
Frequency Stability | + - 1.0 ppm |
FM modulation mode | 12.5KHz@11K0F3E 25KHz@16K0F3E |
4FSK Digital Mode | 12.5KHz(data only):7K60 FXD / 12.5KHz (data and voice):7K60FXW |
Modulation distortion | <5% |

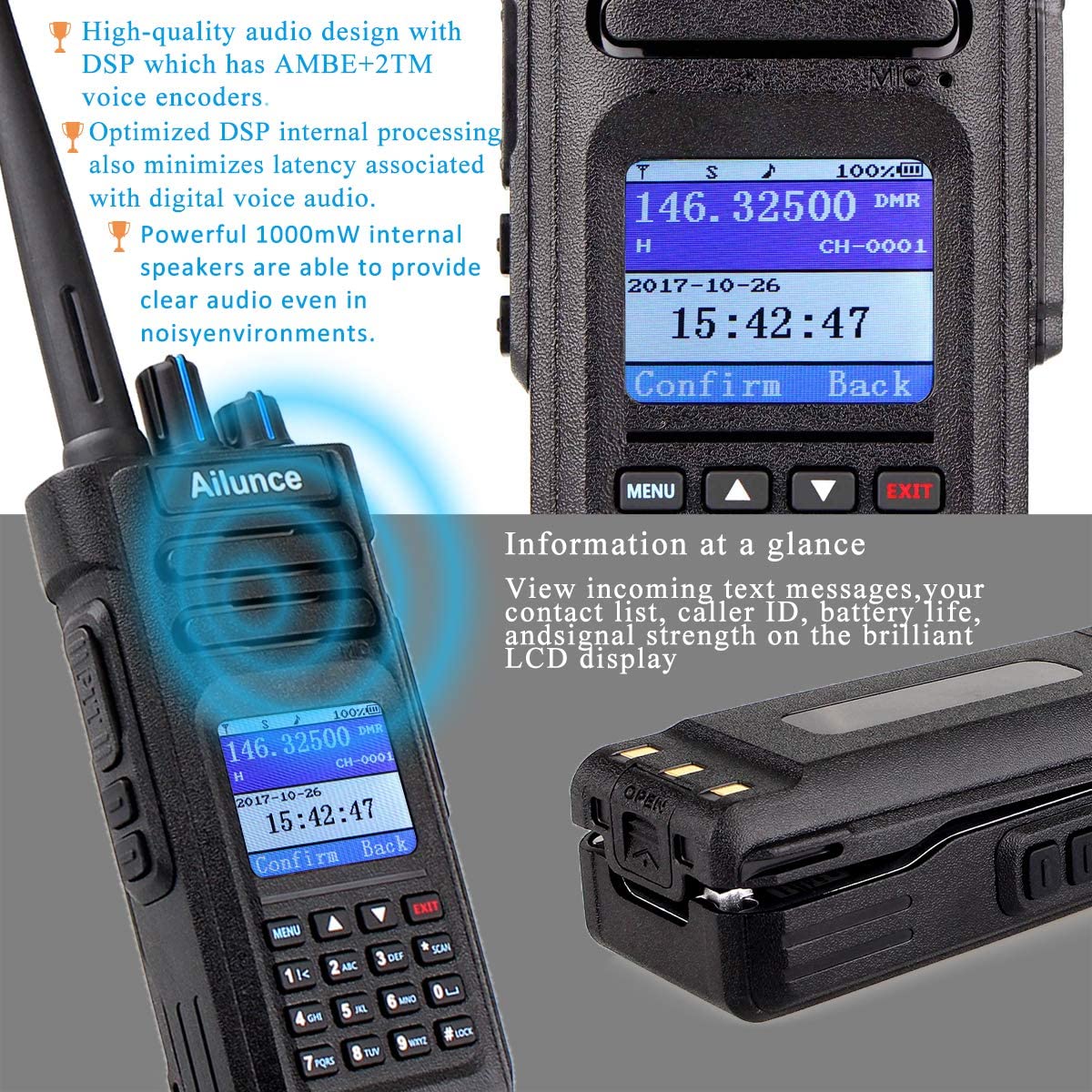

Vocoder | AMBE+2TM |
Adjacent channel power | 60dBm@12.5KHz / 70dBm@25KHz |
Audio Response | +1~ -3dB |
Digital Protocol | ETSI-TS102 361-1,-2,-3 |
Receiver | |
Analogue Sensitivity | 0.16 uV (12dB SINAD) |
Digital Sensitivity | 0.14 uV (5% BER) |
Inter modulation | 70dB |
Spurious Response | TIA603C:75dB ETSI:70dB |
Audio Response | +1~-3dB |
Rated Audio Distortion | ≤3% (Type) |
Audio Power | ≥500mW |
