Retevis

HD1 GPS

Retevis HD1 GPS

£155.00

Shipping calculated at checkout.

Quantity

Generally In Stock, Please Confirm Before Ordering

Ailunce HD1 GPS Version Dual Band DMR Digital DCDM TDMA Waterproof Two Way Radio

Description:

The AILUNCE HD1 handheld radio operates in analogue and digital modes using TDMA technology and is fully DMR compliant, Thanks to the possibility to work also in analog mode, the use of the HD1 radio will facilitate the migration from analog to digital system in the future.

  • DMR is a response to the growing requirements of companies and institutions regarding security and unwanted data leakage (information has the greatest value). This solution enabled a quick expansion of the communication system, remote management, sending SMS messages, GPS position, telemetry and encryption.

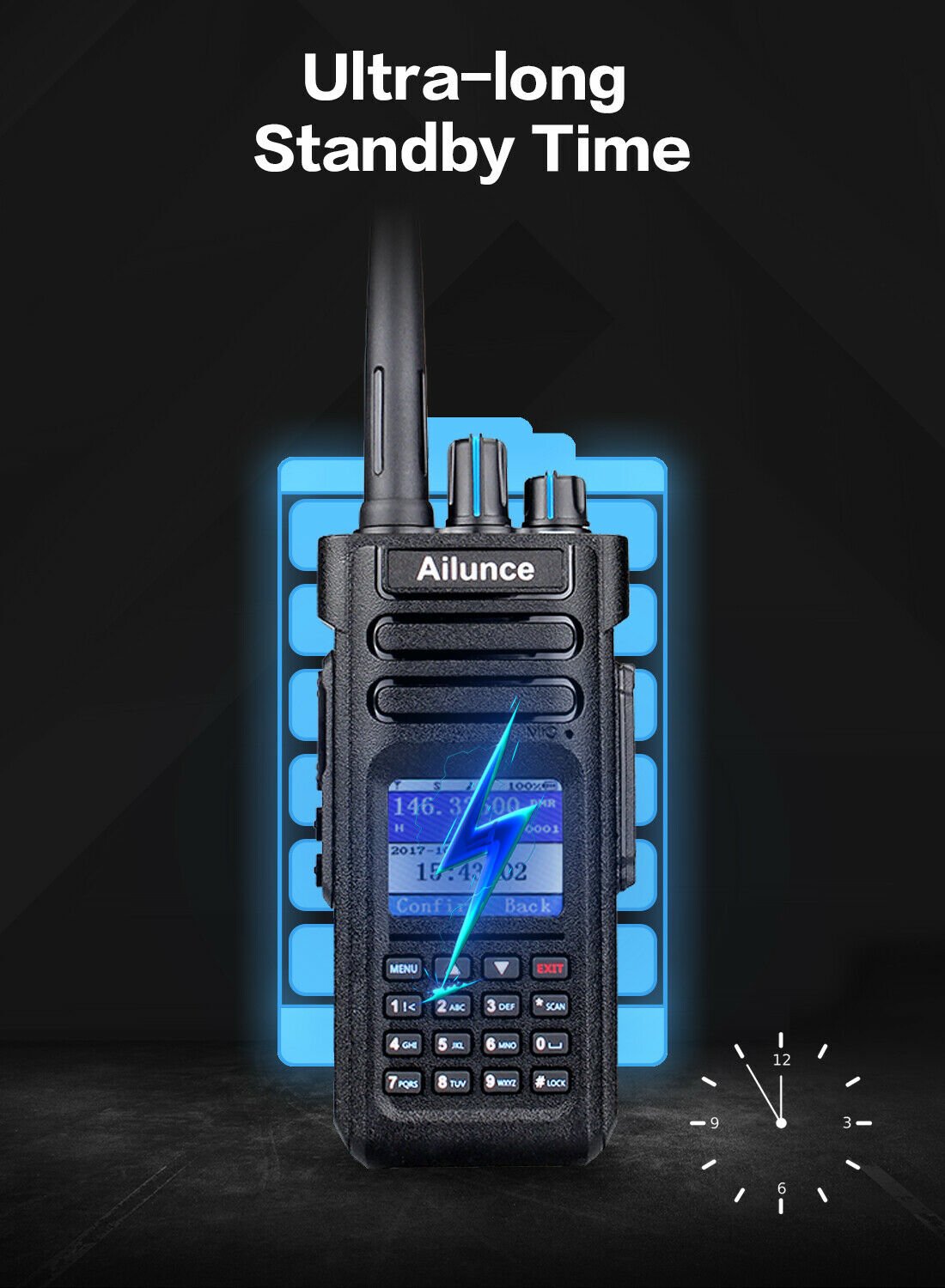

  • Waterproof walkie-talkie HD1 has VFO mode; very easy to learn and use.3200mAh battery enable normal use 7 days standby / 2-3 days typical use / Continues use 12-16 hours.
  • Tri group call models make you call freely without the group restrictions; supports to save 32 radio ID and edit radio ID via keypad; special digital secure system allows team members communicate safely.
  • Dual time slot for point to point supports two group calls in one channel under direct model; 20000 priority contacts enable you to call the people important to you more convenient; supports DTMF connecting.

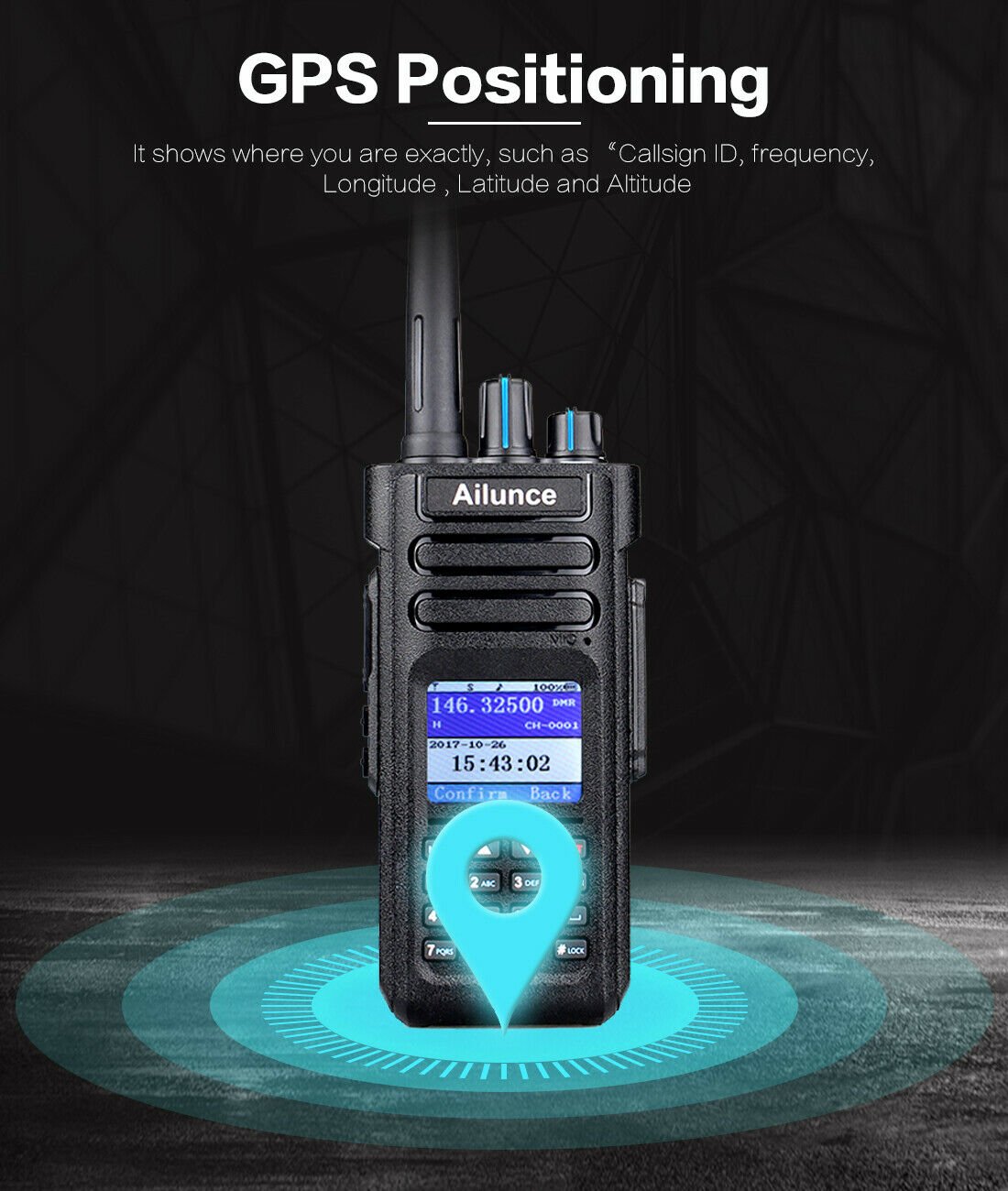

  • GPS function gives you latlong; altitude; bearing; and speed information SMS function support to text the information to another radio with the same DNA protocol.

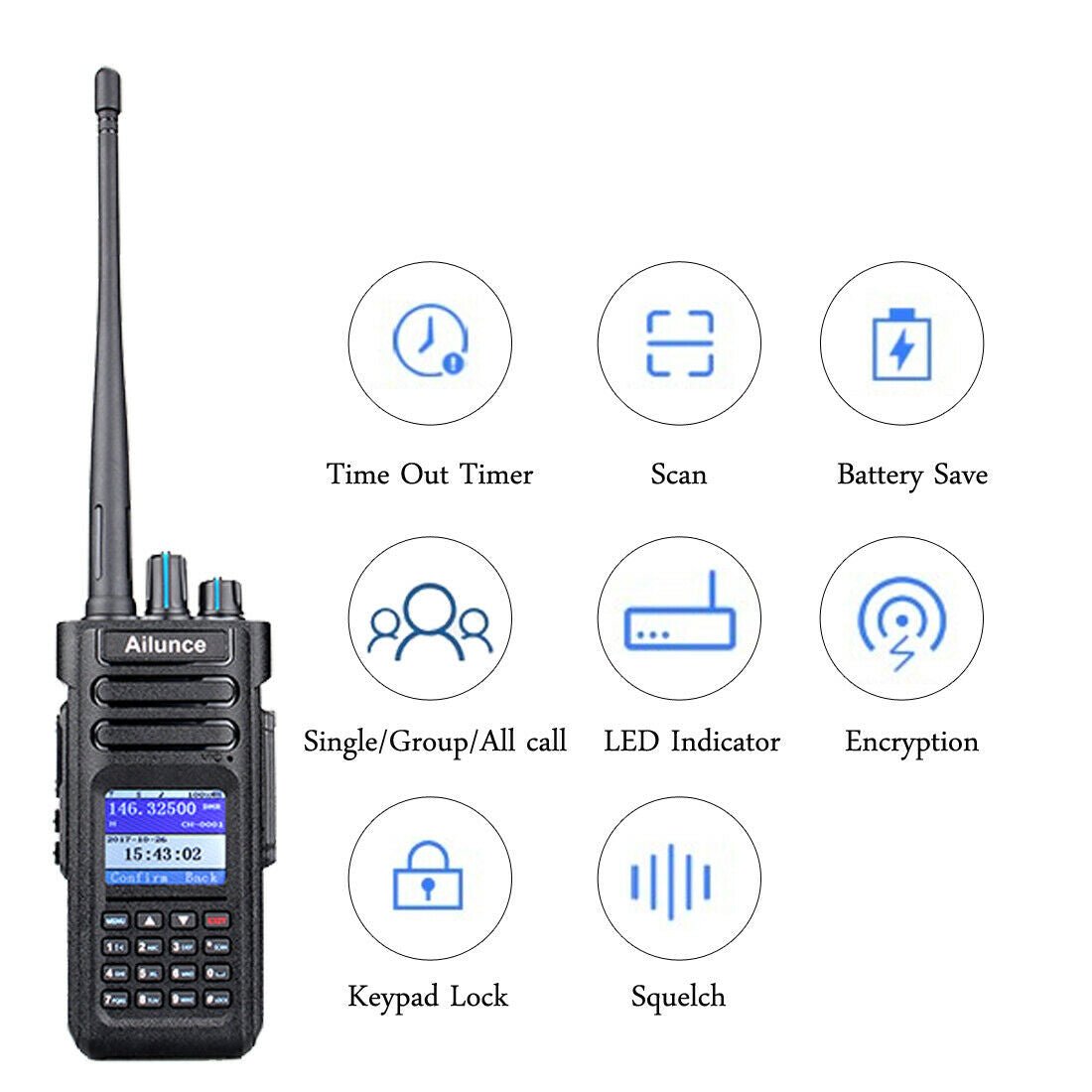

Main Feature:

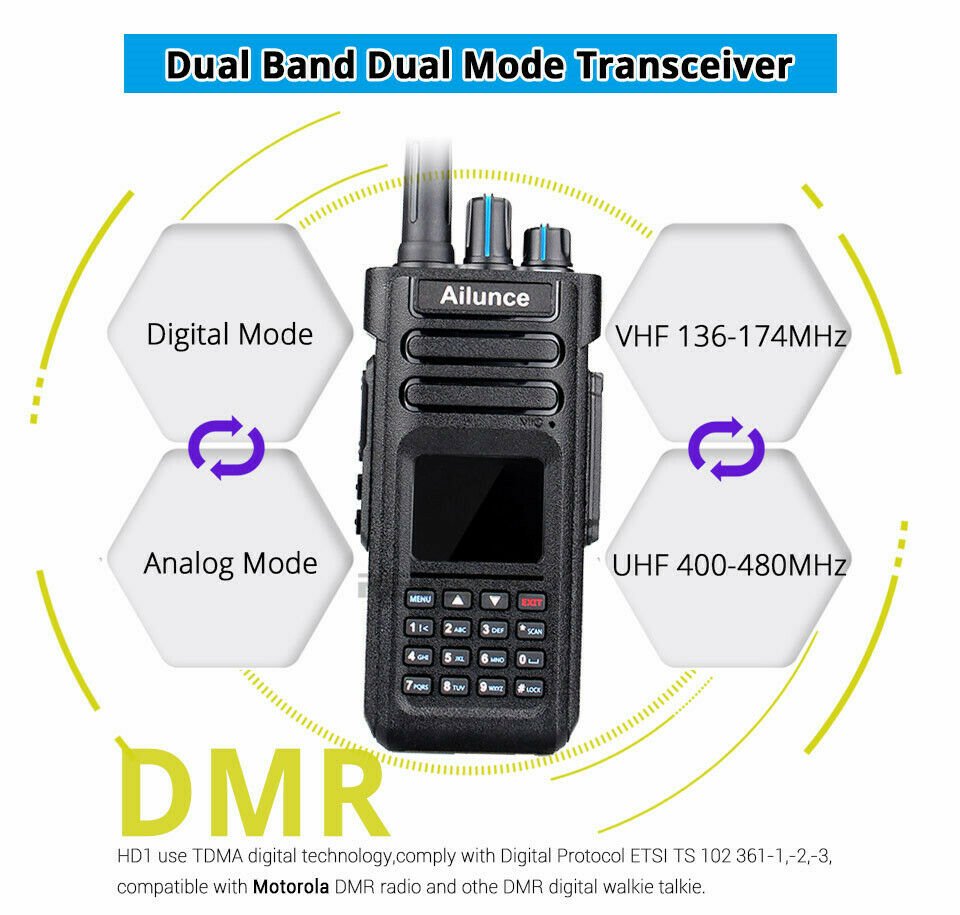

Dual Band DMR Radio
Analog and Digital Combined
Comply with Digital Protocol ETSI TS 102 361-1,-2,-3
Use Time-Division Multiple-Access(TDMA) Digital Function
Frequency Band: 136-174 & 400-480MHz & 76-107.95MHz(Receive only )
200000 Contacts + 1000 Priority Contacts
Up to 3000 channels
Dual Time Slot for Repeater
Dual Time Slot for Point to Point
Firmware Upgradeable

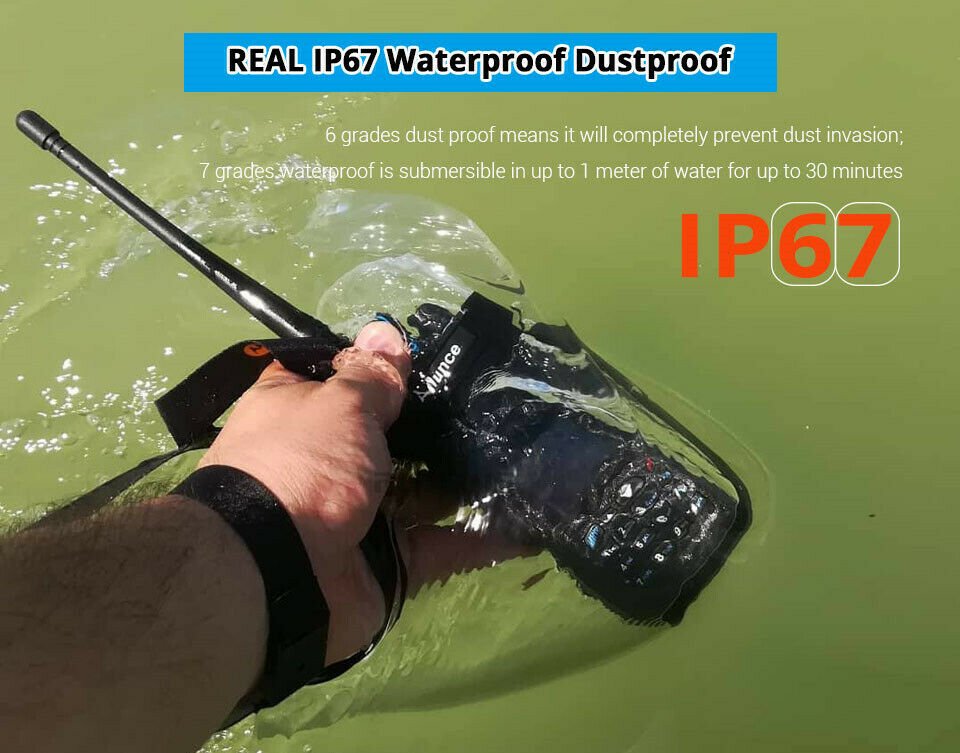

IP67 Waterproof
Scan:Time/Search/Carrier
Encryption Function
Lone Worker
Single/Group/All call
Remote kill/stun/activate
Color LCD Display
Transmit/Transceive interruption
Promiscuous Function
CTCSS/DCS
Analog Monitor
VOX
TOT
Talkaround
Squelch
Keypad Lock
LED Indicator
Password Lock
Battery Save
Voice Annunciation
1000/1450/1750/2100Hz Single tone
ID Setting

General specifications

Frequency

136-174&400-480MHz
&76-107.95MHz(Receive only )

Channels

3000

Operating Temperature

-30℃~+60℃

Operating Voltage

7.4V DC

Dimension

150 x 64x 40mm

Weight

360g (with battery)

Battery Type

Li-ion

Battery Capacity

3200mAh

Antenna Impedance

50Ω

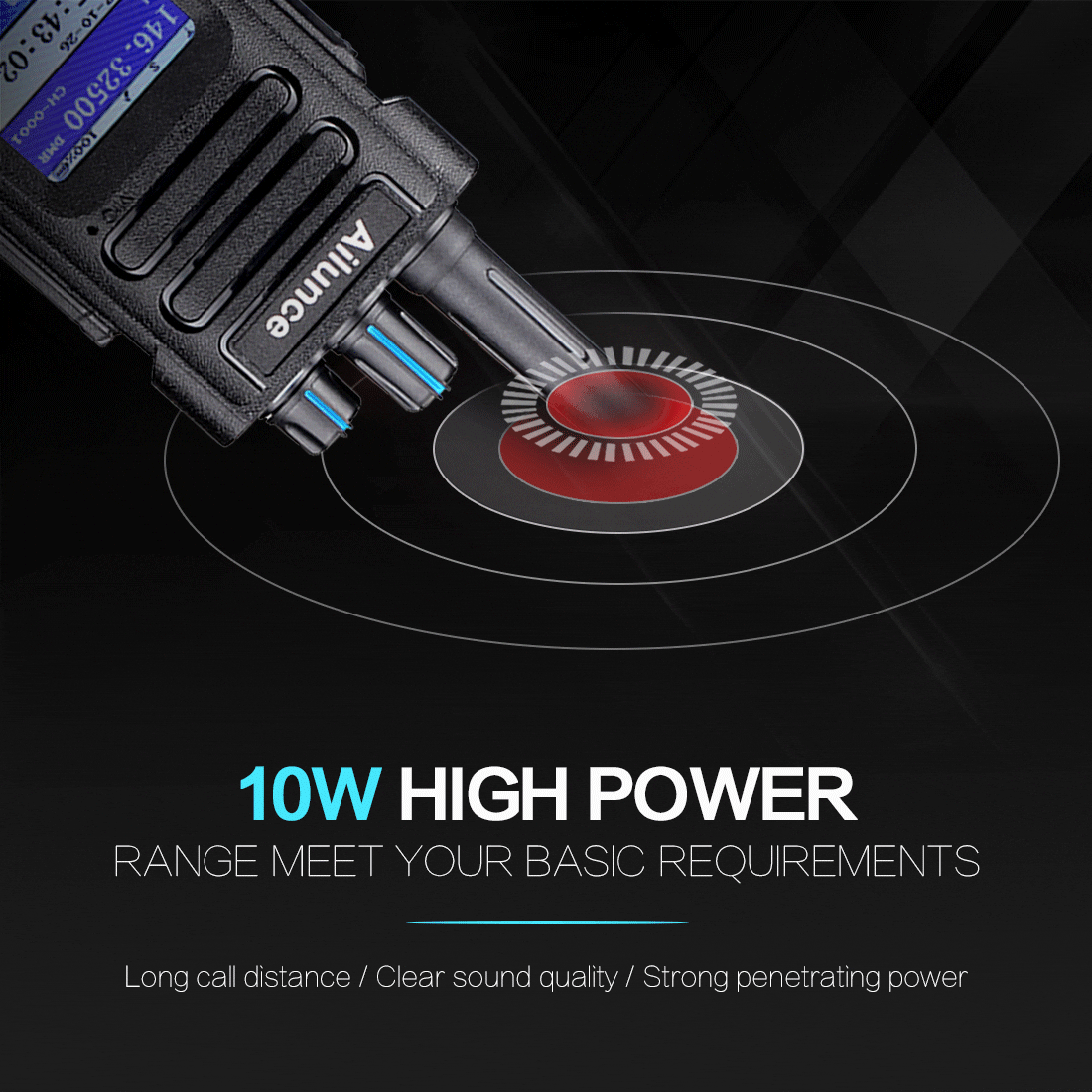

Transmitter

Power



Transmit current

Analog≤1.6A Digital≤0.9A

Frequency Stability

±1.0ppm

FM modulation mode

12.5KHz@11K0F3E 25KHz@16K0F3E

4FSK digital mode

12.5KHz(data only):7K60FXD
12.5KHz(data and voice):7K60FXW

Modulation distortion

<5%

Vocoder

AMBE+2TM

Adjacent channel power

60dBm@12.5KHz 65dBm@25KHz

Audio Response

+1~-3dB

Digital Protocol

ETSI-TS102 361-1,-2,-3

Receiver

Analog Sensibility

0.35uV/-116dBm(20dB SINDA)
0.22uV/-120dBm(Type)

Digital Sensibility

0.30uV/-117dBm(BER 5%)
0.70uV/-110dBm(BER 1%)

Adjacent Channel Selectivity

TIA603C:65dB ETSI:60dB

Spurious Response

TIA603C:75dB ETSI:70dB

Audio Response

+1~-3dB

Rated Audio Distortion

≤3%(Type)

Audio Power

≥500mW

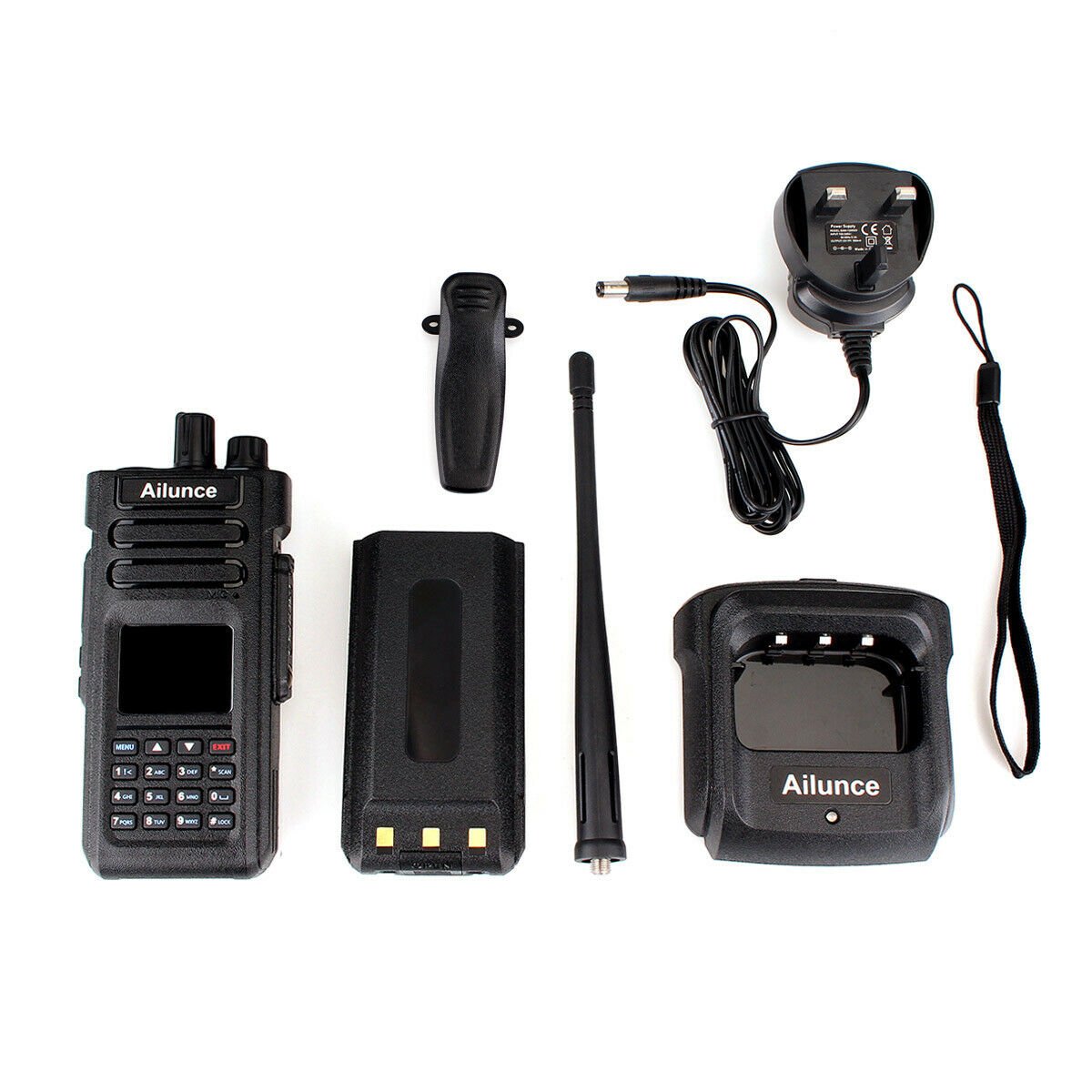

Package included:

  • 1 x HD1 two way radio(GPS Version)
  • 1 x Battery
  • 1 x Antenna
  • 1 x Charger
  • 1 x User’s manual
  • 1 x Sling

Earpiece and Programming Cable not included
