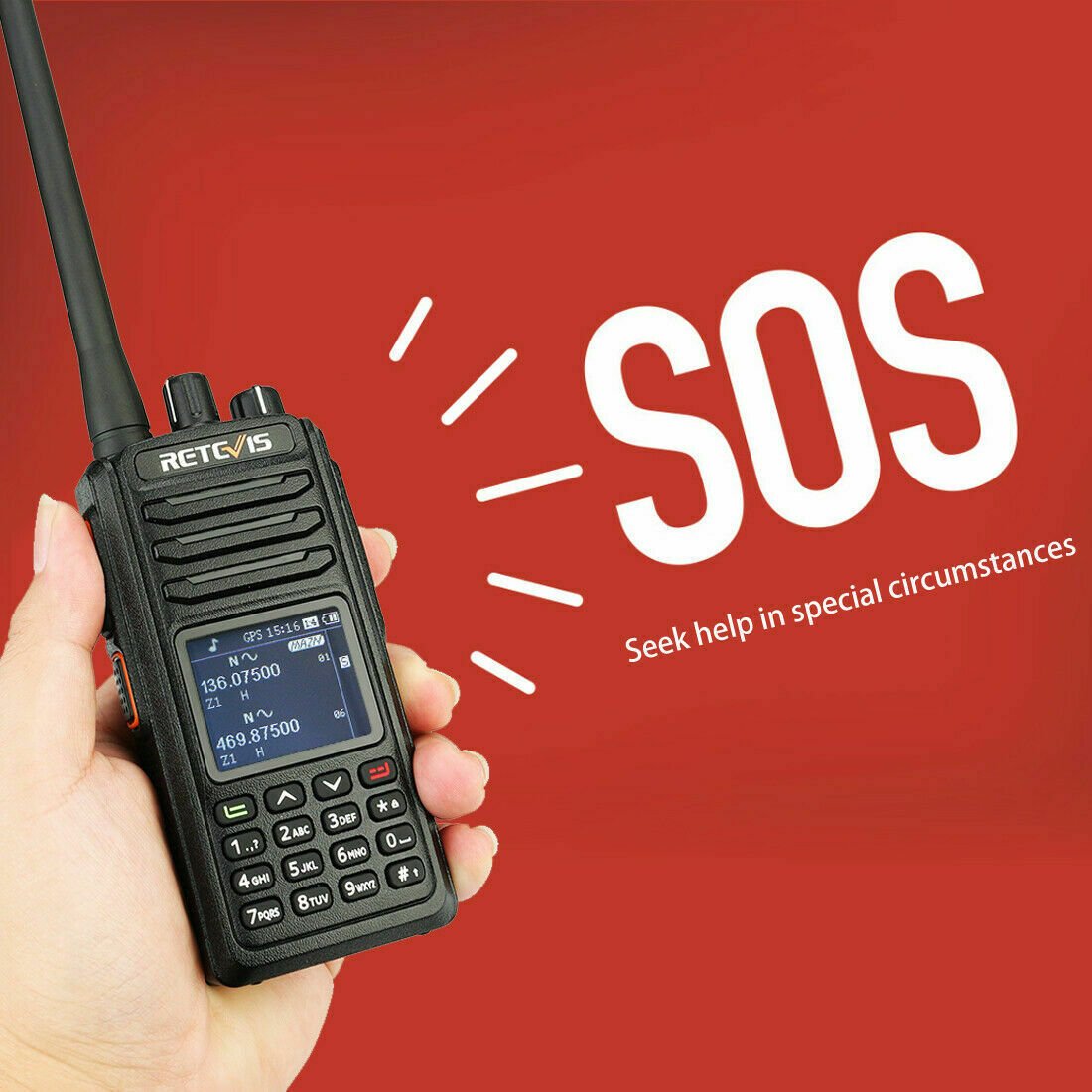

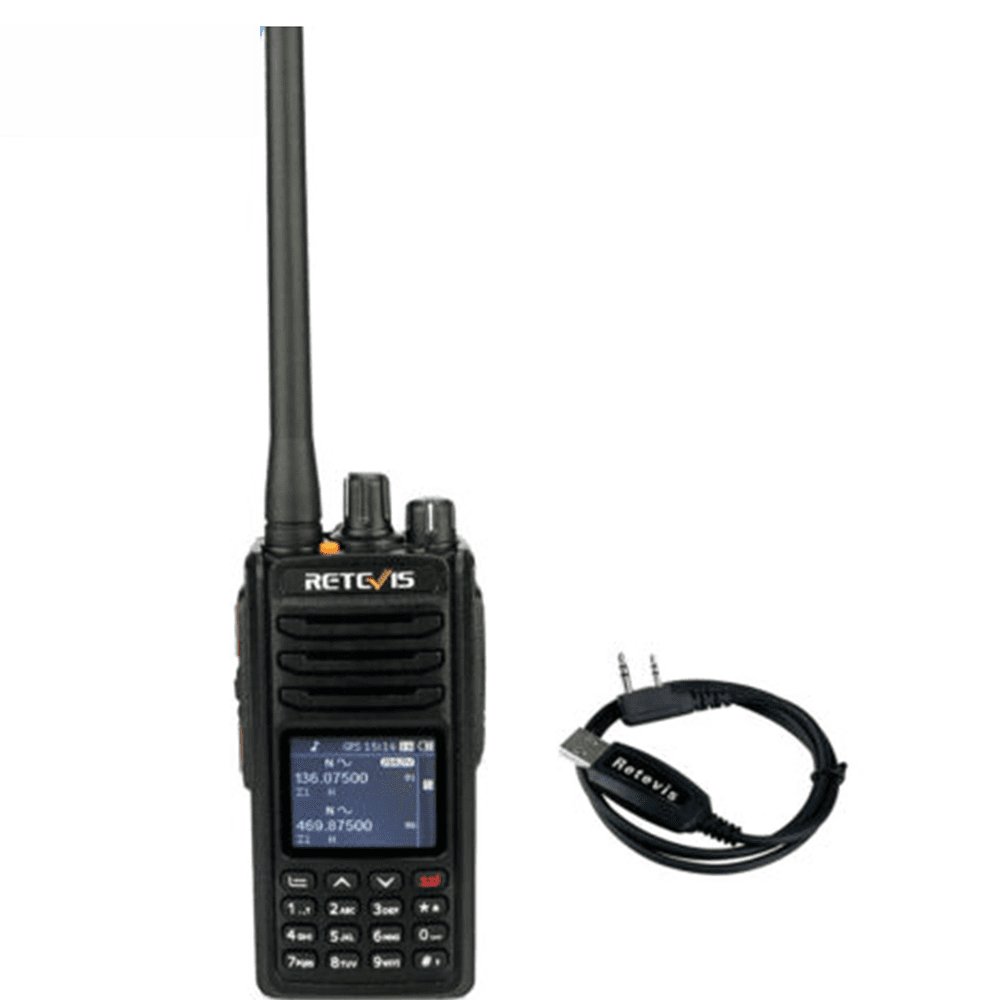

Retevis
RT52
Free UK Shipping - Estimate US & Europe Shipping at checkout.
Technical parameters:
General specification |
|||
Frequency range |
VHF:136-174MHz |
Memory Channel |
4000 Channels |
UHF:400-470MHz |
Operating Voltage |
7.4V DC |
|
Frequency Stability |
±1.0ppm |
Operating Temperature |
-30℃~+60℃ |
Size(H*W*D) |
134x61x40mm |
Weight |
About 280g(Include in battery and antenna) |
Transmitter |
|||
Output power |
High:≤5W Low:≤1W |
Standby Current |
0.15A |
Transmit Current |
Analog≤1.6A Digital≤0.9A |
Modulation Distortion |
12.5KHz date and voice:7K60FXW<5% |
FM modulation Mode |
11K0F3E@12.5KHz /141K0F3E@20KHz |
FM Noise |
≥45dB@25KHz/≥40dB@12.5KHz |
Adjacent Power |
≤-65dB@12.5KHz |
||
Audio Response |
+1~-3dB |
||
4FSK digital modulation |
16K0F3E@25KHz |
Antenna Port Stray |
9KHz-1GHz:≤-36dBm |
Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
||
Receiver |
|||
Analog receive sensitivity |
0.2µV@12dB SINAD |
Spurious Response |
≥70dB |
Digital receive sensitivity |
0.25µV (BER:5%) |
Intermediation(Wide/narrow) |
≥65dB |
Audio Distortion |
<5% |
Adjacent channel selectivity |
≤-60dB@12.5KHz |
Audio response |
+1 ~ -3dB |
Modulation Noise |
≥45dB@25KHz /≥40dB @12.5KHz |
