Retevis
EU-A9162BX1

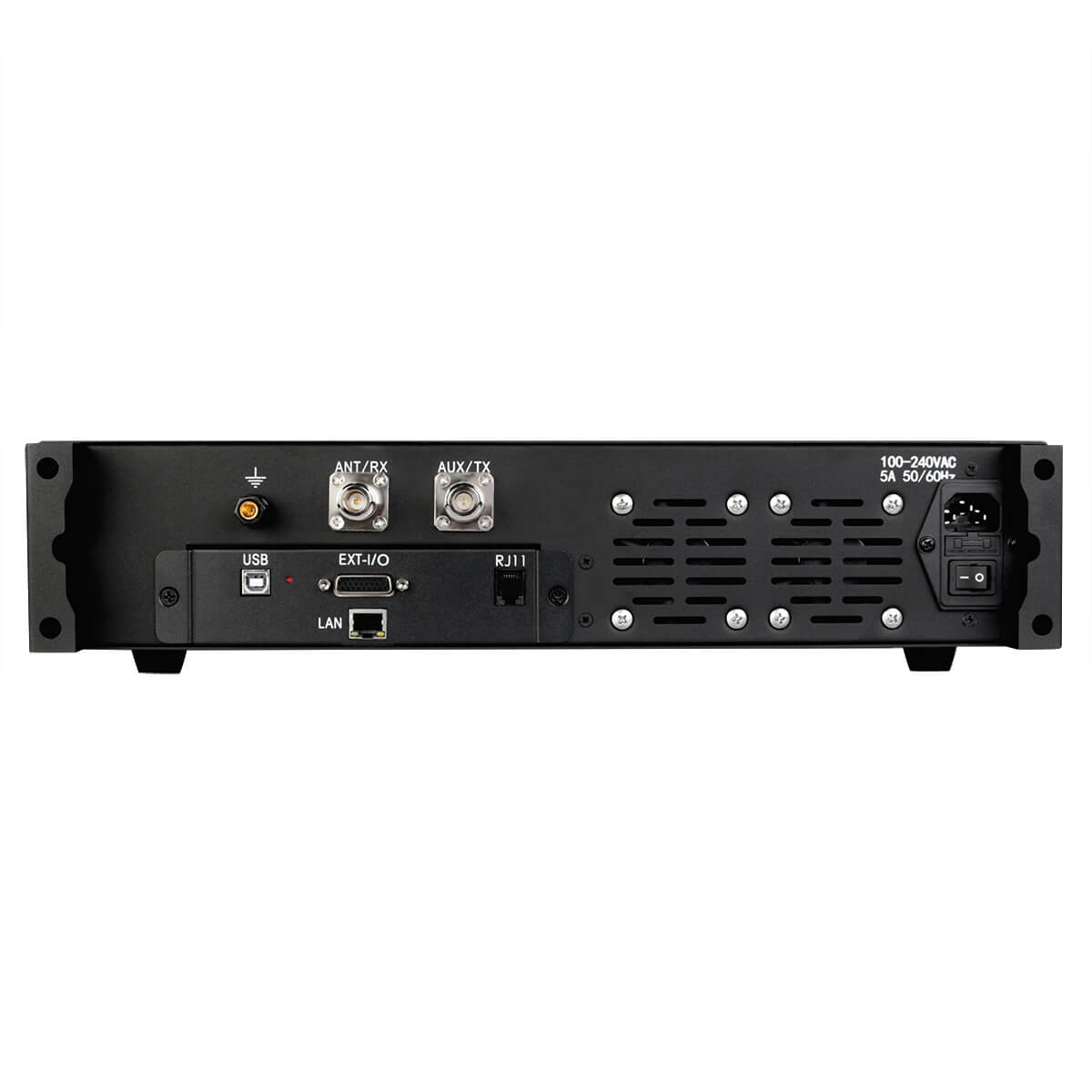

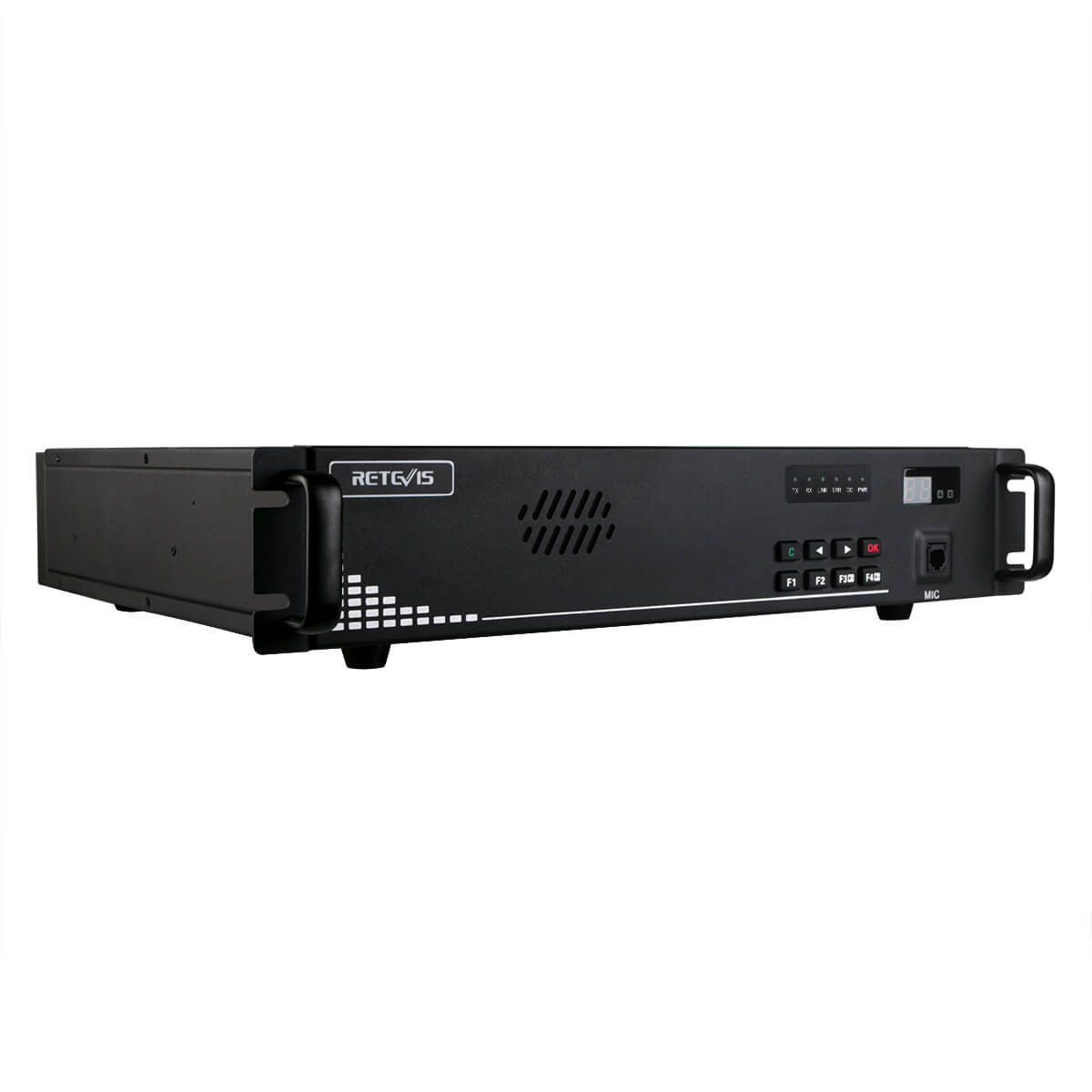

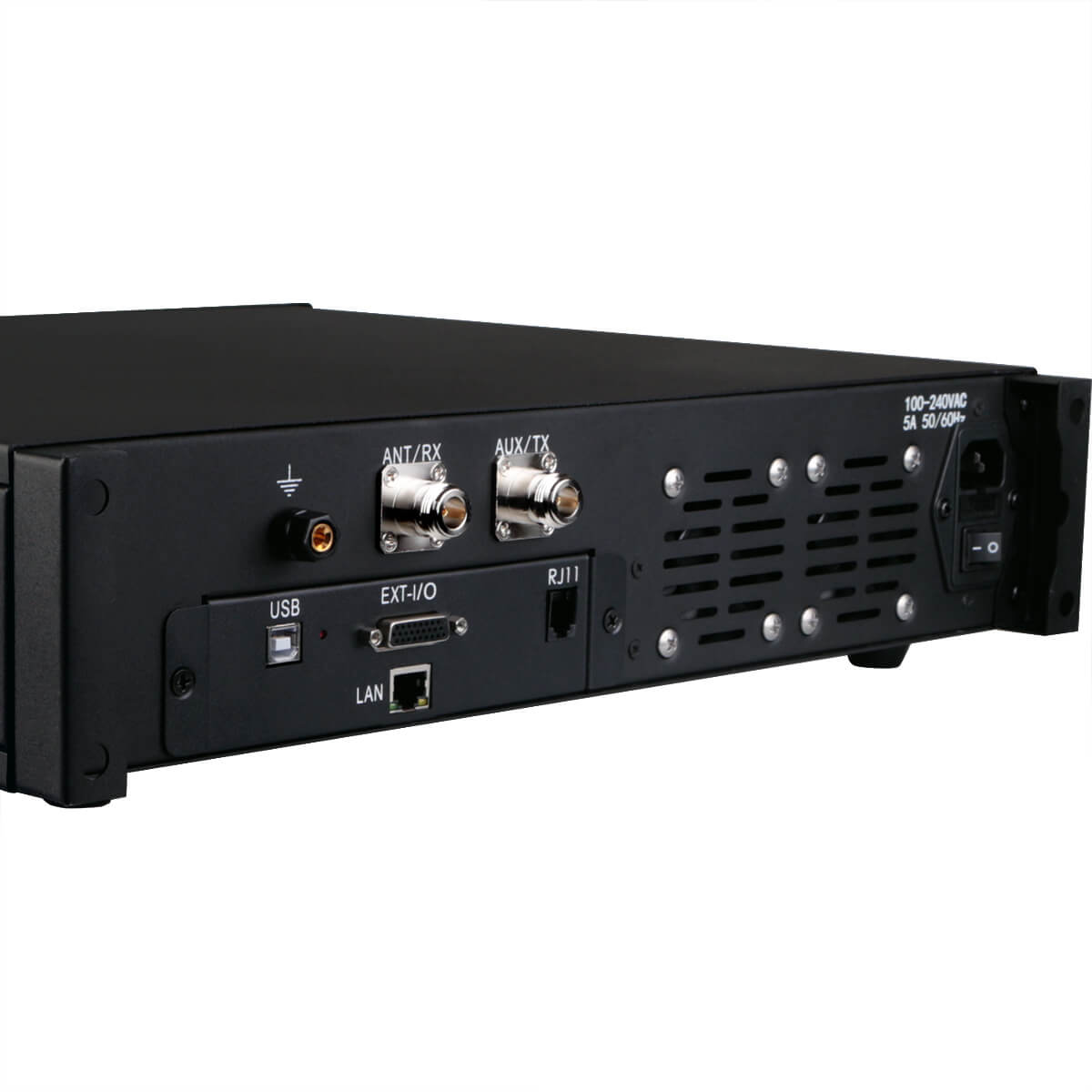

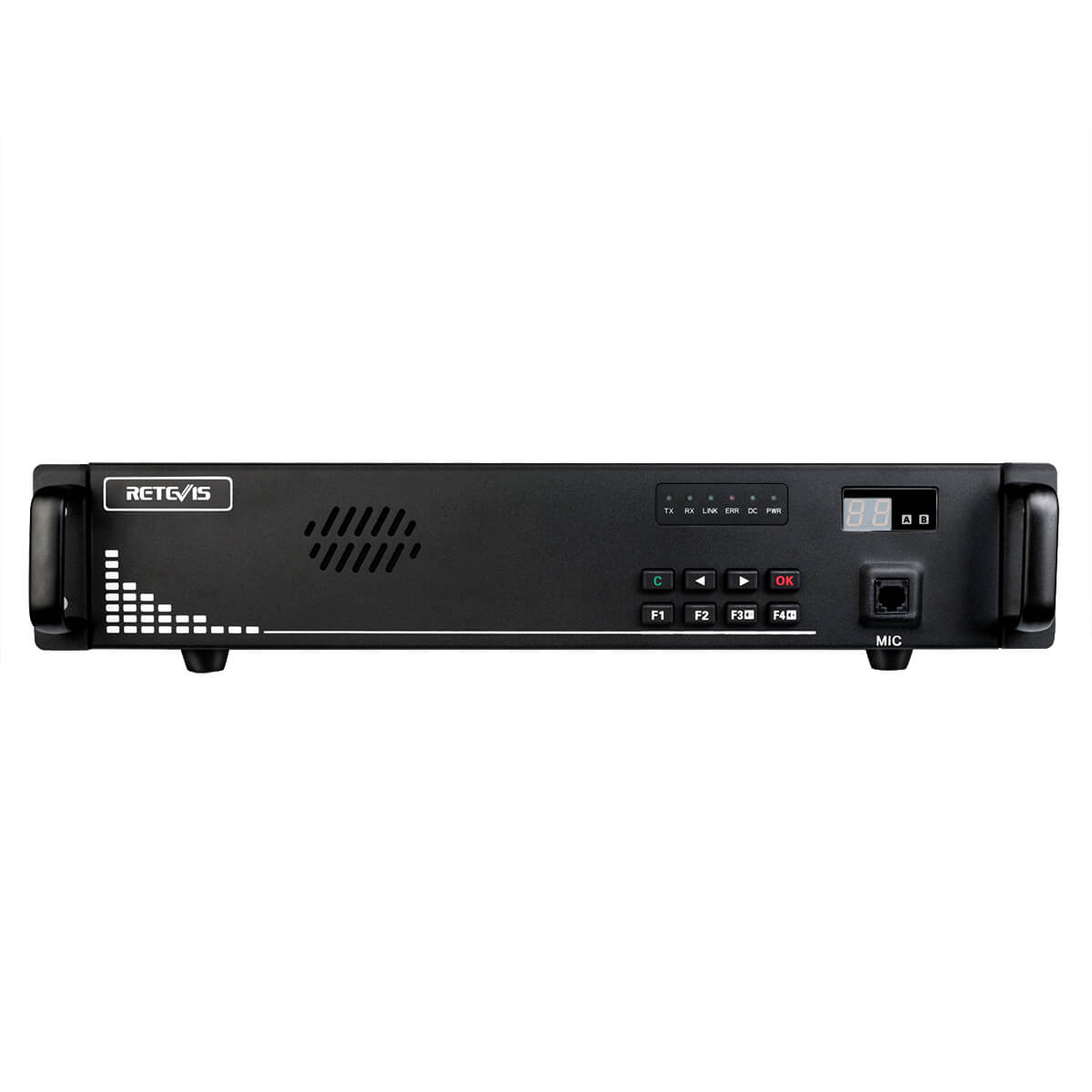

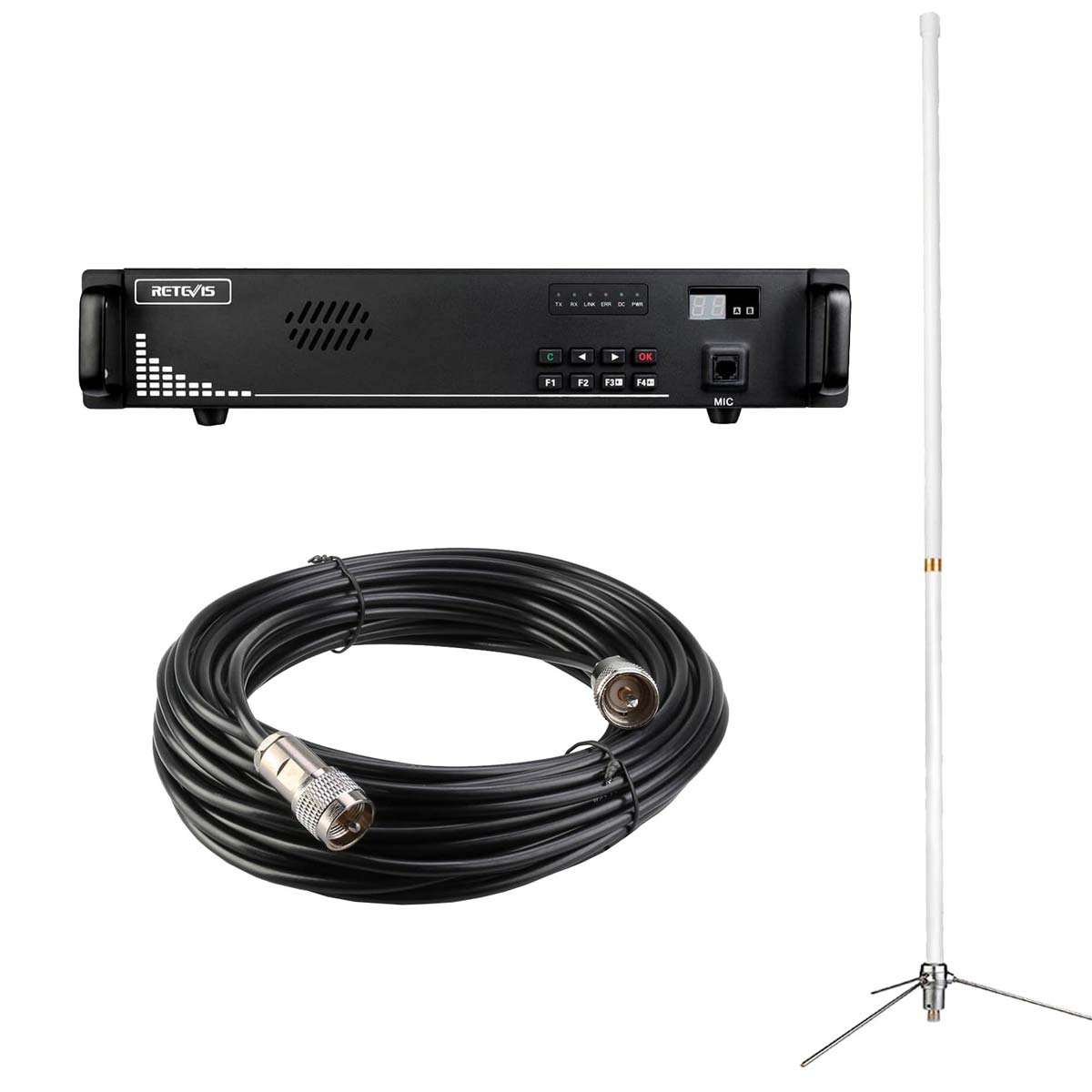

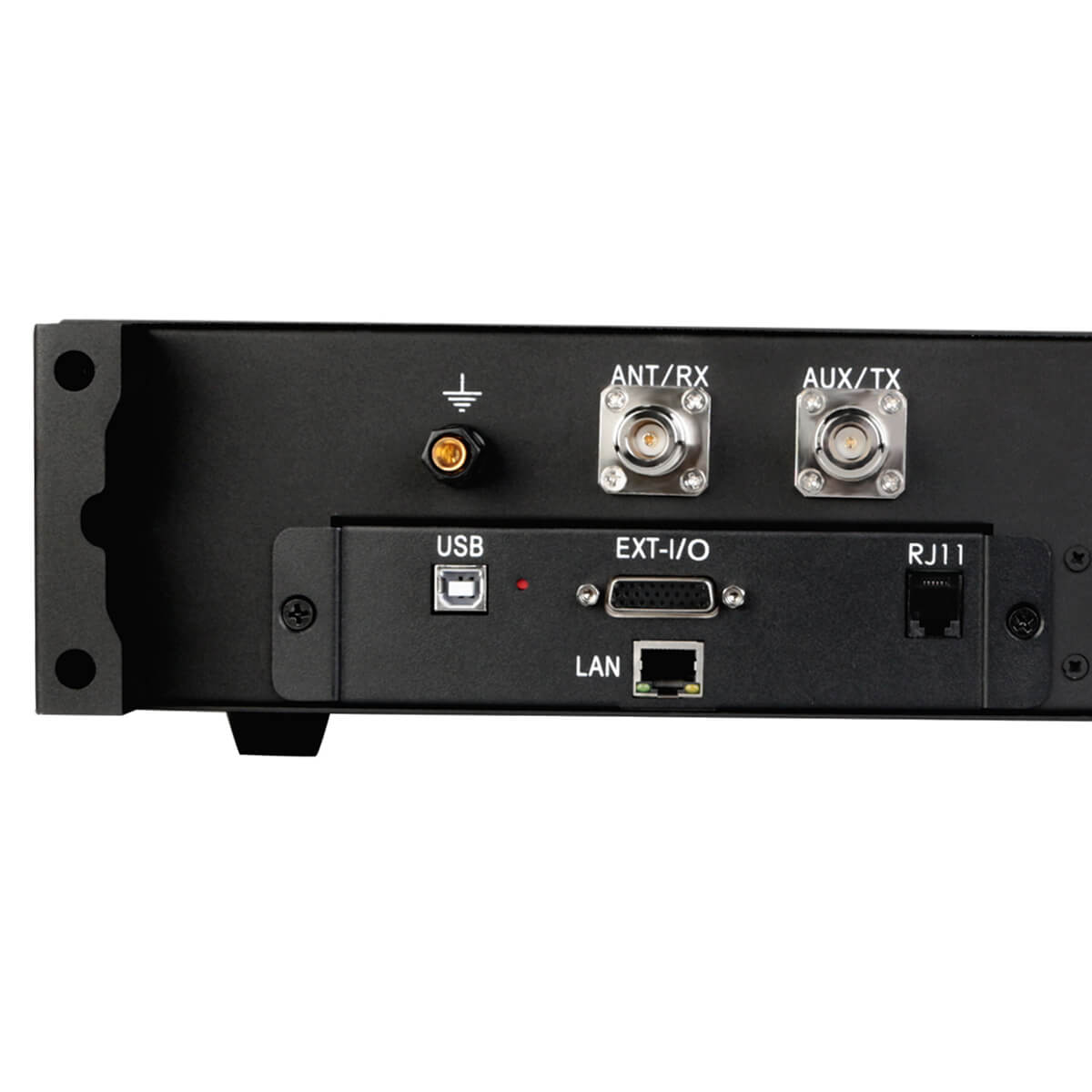

RT92 DMR Digital Repeater
Quantity
Generally In Stock, Please Confirm Before Ordering
RETEVIS RT92 Digital dmr radio programming Repeater 1U IP Multisites 50W Base station mode and dispatcher mode available
-
Tier-2 DMR Standard of ETSITS102-361.TIA/EIA-603C and MIL-STD-810 Standard.
Base station mode and dispatcher mode available.
Maximal power 25W/50W, increases the communication distance and reliability.Unaffected sensitivity even under transmitting mode with full power.
Fast transmitting for analog signaling and sub-tone signaling, support CDCSS grouping at same frequency, make multiple CDCSS could be transmitted at the same frequency.
Spec
Specification:
| General Specifications | |
| Model | RT92 |
| Frequency | 400-470MHZ |
| Channel spacing | 25 kHz/12.5 kHz |
| Operating Voltage | 100~264VAC~50/60Hz |
| Antenna port transmitting spurs 9KHz~1GHz: | ≤-36dBm(Launch mode) ≤-57dBm(Idle mode) |
| 1GHz~12.75GHz: | ≤-30dBm(Launch mode) ≤-47dBm(Idle mode) |
| Chassis port radiation spurs 9KHz~1GHz: | ≤-36dBm(Launch mode) ≤-57dBm(Idle mode) |
| 1GHz~12.75GHz: | ≤-30dBm(Launch mode) ≤-47dBm(Idle mode) |
| Antenna impedance | 50Ω |
| Speaker impedance | 40Ω |
| Operating temperature | -10 C~+55 C |
| Connector | Type N(M) |
| Volume (length × width × height) | 482mm×440mm×89mm |
| weight | ≤12KG |
| Safety Specifications | |
| Insulation resistance | ≥100MΩ（Test voltage DC500V），Insulation resistance in hot flashes≥2MΩ |
| Dielectric strength | AC withstand voltage 1000V（Leakage current≤5mA），1min，No breakdown, arcing and corona |
| Reception Specifications | |
| Digital sensitivity (BER5%) | ≤-117dBm |
| Adjacent channel selectivity | ≥65dB |
| Intermodulation immunity | ≥70dB |
| Intermodulation immunity | ≥90dB |
| Audio output power | 3.0W |
| Transmission specifications | |
| Frequency error | ≤2.5 ppm |
| Transmit power | 50W |
| Adjacent channel power | ±12.5kHz：≤-60 dB，±25kHz：≤-70 dB |
| Transient switching adjacent channel power | ±12.5kHz：≤-50 dB，±25kHz：≤-60 dB |
| Modulation | 4FSK |
| 4FSK digital modulation | data 7K60FXD、Data plus voice 7K60FXW |
| Digital speech encoder | AMBE++ or SELP |
| Transmitted bit error rate | ≤1.5% |
Feature
- Tier-2 DMR Standard of ETSITS102-361.
- TIA/EIA-603C and MIL-STD-810Standard.
- Maximal power 25W/50W, increases the communication distance and reliability.
- Unaffected sensitivity even under transmitting mode with full power.
- Modular design and optimized RF performance, easy maintenance.
- Many technology patents applied.
- Fast transmitting for analog signaling and sub-tone signaling, support CDCSS grouping at same frequency, make multiple CDCSS could be transmitted at the same frequency.
- Base station mode and dispatcher mode available.
- Communication between radio sand cable telephone (PABX/PSTN) and mobile phones.
- RT92 is Type N F connector
Extended Functions:
- Auto-configuration, Self-diagnostic, Remote monitor and Network management (Monitor system software need).
- Communication between radio sand cable telephone and mobile phones.
- Via Ethernet network, connect with GPRS/ CDMA/ 3G/ 4G/ LTE/ WIFI wirelessly (Extend to support the wireless IP network), support IP soft switch and multiple sites networking.
