Sharpstar

SHS-F4.5-61

Sharpstar 0.8x Reducer and Flattener

£205.00

Tax included. Shipping calculated at checkout.

Quantity

Generally In Stock, Please Confirm Before Ordering

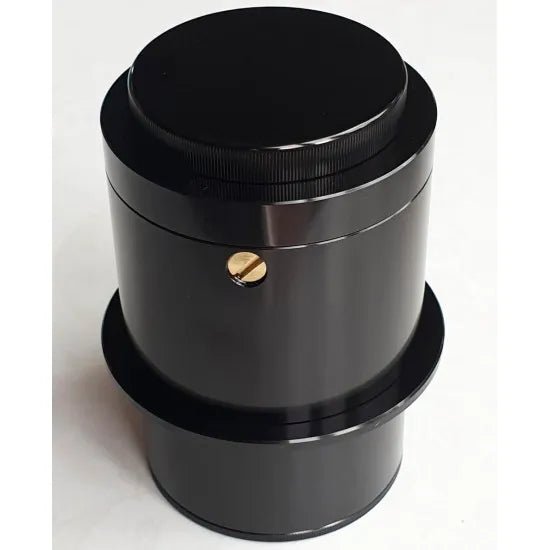

Sharpstar 0.8x Reducer and Field Flattener for FULL FRAME Cameras for Sharpstar 61EDPH Telescope - M48 Camera Connection.

  • Male M63 Connection Thread to the 61EDPH telescope
  • Designed for Full Frame cameras
  • 360-degree rotation


This Reducer/Flattener has been specifically designed for the Sharpstar 61EDPH APO telescopes.

(It might possibly work with other similar telescopes as well, but we cannot offer any recommendations )

It will connect to your telescope via a male M63 x 1 thread. For the correct framing, the reducer/flattener features a 360-degree rotation adapter. The back focus is 55 mm from the M48 thread.

It offers a corrected and fully illuminated field for full frame cameras.

Connections and Back Focus:

  • connection to telescope: M63x1 male thread
  • connection to camera: M48x0.75 male thread
  • Back focus from M48 thread: 55mm

Specifications:

  • connection to telescope: M63x1 male thread
  • connection to camera: M48x0.75 male thread
  • recommended distance from connecting thread to focal plane: 55mm
  • focal length reduction: 0.8x
  • lenses: 3 lenses fully multicoated
  • fully corrected and illuminated field: TBC (but most likely around 44-45mm)
  • length: 91mm (without the M48 thread)
  • diameter: 76mm (66mm without the collar)
  • weight: appr. 460 g

Sharpstar 0.8x Reducer and Flattener

£205.00
