SVBONY SV113 Wide Angle Eyepieces – 9mm, 12mm, 16mm & 20mm

The SVBONY SV113 wide-angle range covers four focal lengths for lunar, planetary and general visual astronomy. Choose the eyepiece by the magnification it gives in your telescope, with the field and weight clearly separated below.

9–20mmfour focal lengths
60° / 65°field varies by version
1.25″standard barrel

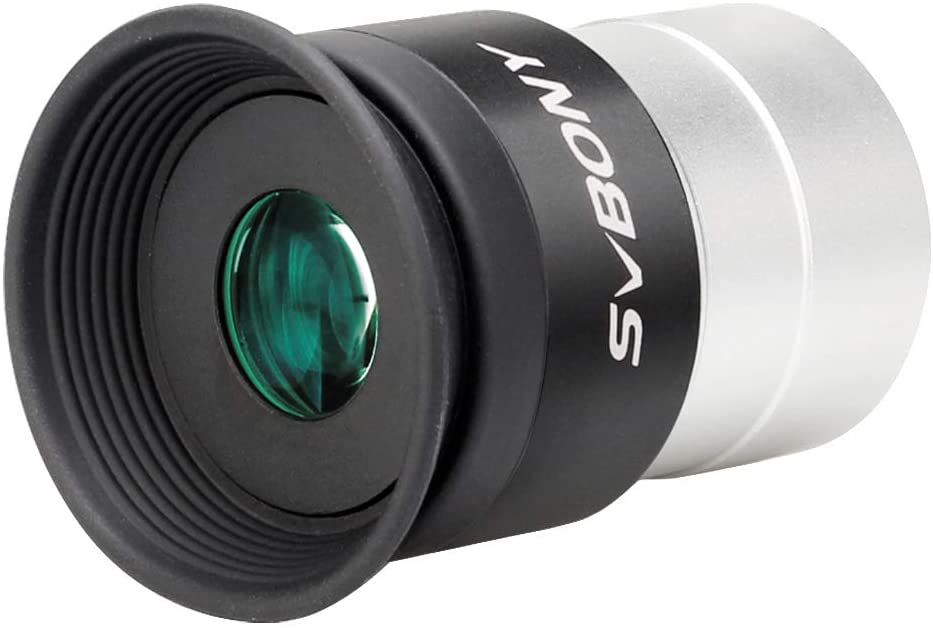

SV113 Svbony 60° and 65° 1.25" Wide Angle Eyepieces.

Choose the SV113 that fits your observing plan

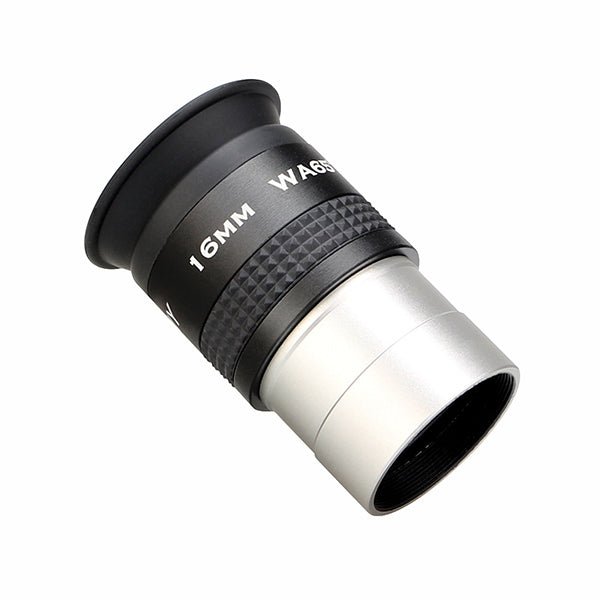

The shorter 9mm and 12mm versions have a 60° apparent field, while the 16mm and 20mm versions offer 65°. All four use a standard 1.25-inch barrel and fully multi-coated four-element optics. The longer focal lengths are useful for finding and framing objects; the shorter focal lengths provide more magnification in the same telescope.

Focal length SKU Apparent field Weight
9mm F9184A 60° 120g
12mm F9184B 60° 135g
16mm F9184C 65° 150g
20mm F9184D 65° 150g

Comfort and stray-light control

A rubber grip helps with eyepiece changes, while the folding rubber eyeguard shields the viewing position. Blackened lens edges and a matte interior reduce unwanted reflections. The aluminium housing has a satin anodised finish.

Product views and technical illustrations

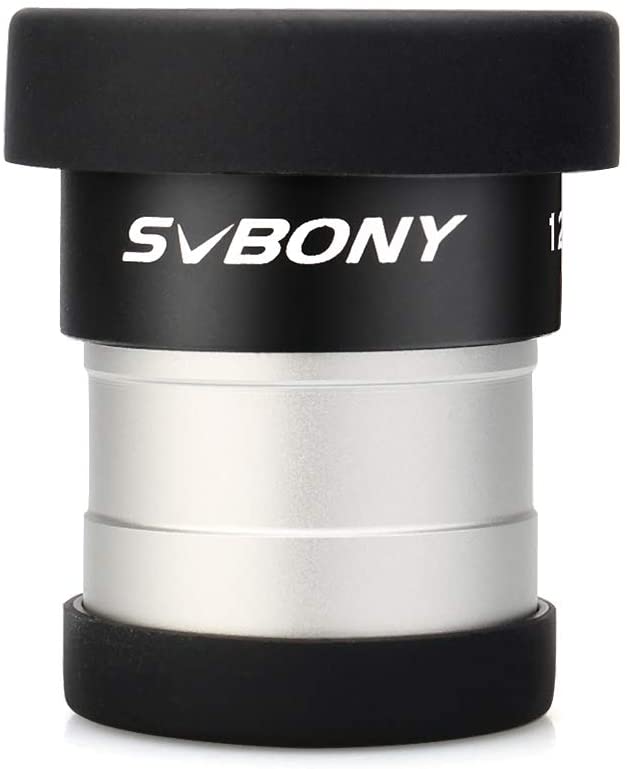

SVBONY 12mm 60° Eyepiece view side

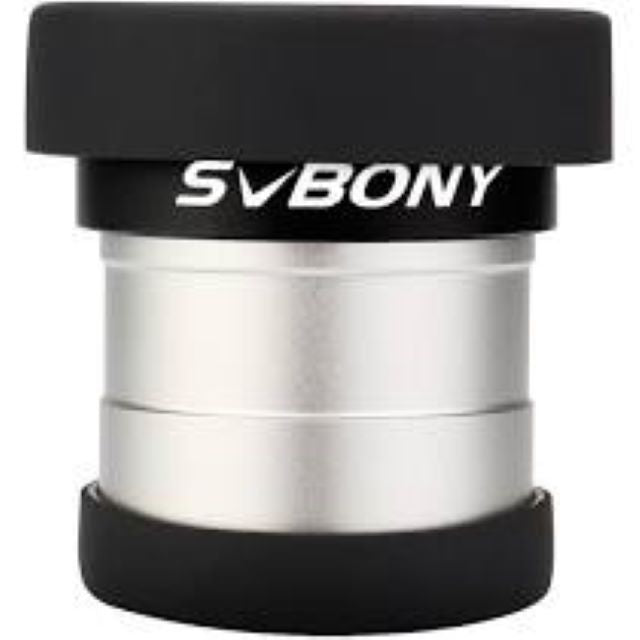

SVBONY eyepiece body finish

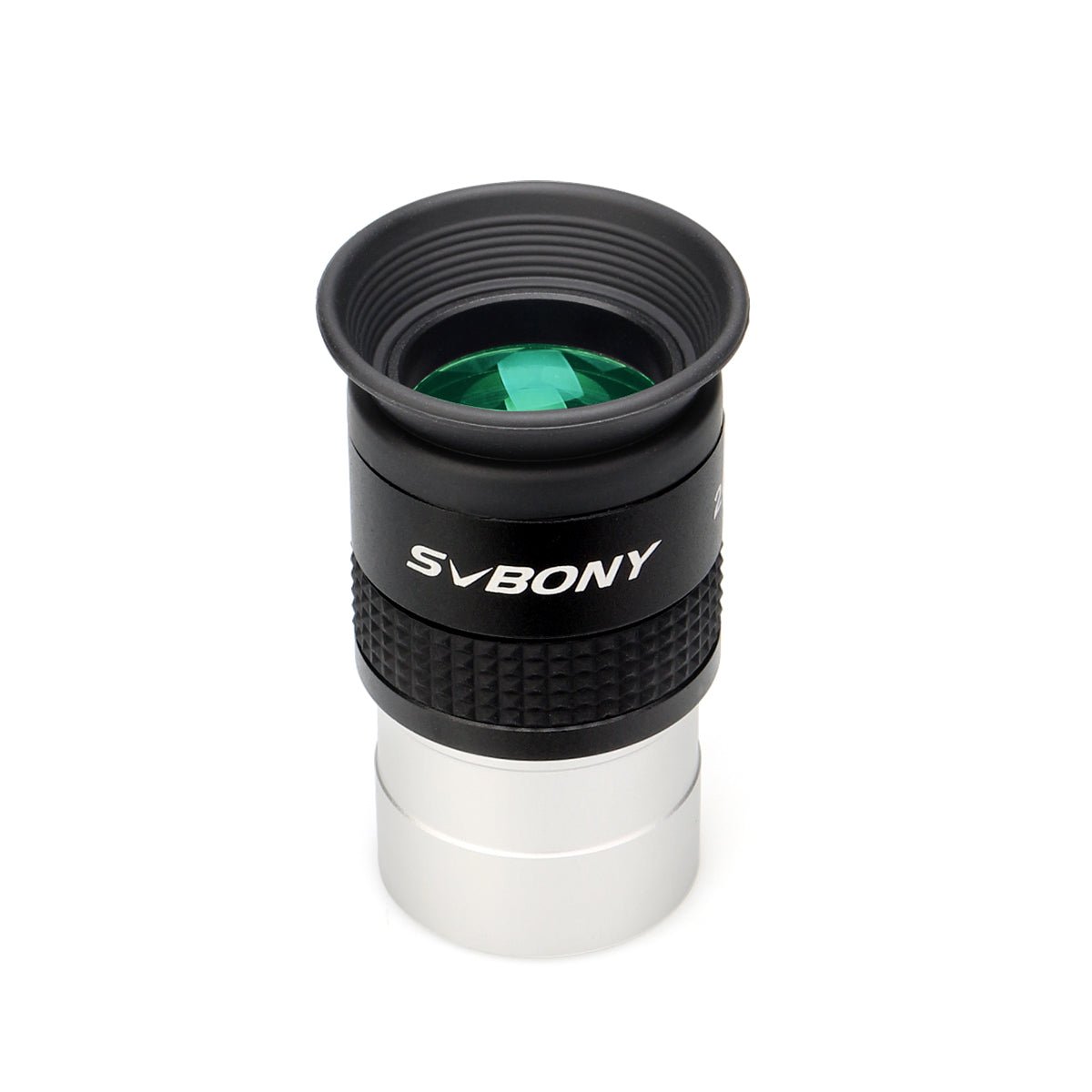

SVBONY eyepiece lens view

Compatibility and setup

Use a matching eyepiece holder or diagonal and secure the barrel before observing. Magnification is your telescope's focal length divided by the eyepiece focal length. Start at a lower power to find the target, then increase magnification while the image remains clear.

The barrel accepts matching M28.5 × 0.6 filters. One selected focal-length eyepiece is supplied; the four options are not a four-piece set.

SVBONY SV113 Wide Angle Eyepieces – 9mm, 12mm, 16mm & 20mm

Regular price £29.99
Or £9.99 × 3 interest-free with PayPal

In stock · 2 available

F9184A

  • 9mm 60° WA Eyepiece F9184A
  • 12mm 60° WA Eyepiece
  • 16mm 65° WA Eyepiece
  • 20mm 65° WA Eyepiece

Specifications

Dark Clear Skies · SVBONY

SVBONY SV113 Wide Angle Eyepieces – 9mm, 12mm, 16mm & 20mm

The SVBONY SV113 wide-angle range covers four focal lengths for lunar, planetary and general visual astronomy. Choose the eyepiece by the magnification it gives in your telescope, with the field and weight clearly separated below.

9–20mmfour focal lengths
60° / 65°field varies by version
1.25″standard barrel
SV113 Svbony 60° and 65° 1.25" Wide Angle Eyepieces.

Choose the SV113 that fits your observing plan

The shorter 9mm and 12mm versions have a 60° apparent field, while the 16mm and 20mm versions offer 65°. All four use a standard 1.25-inch barrel and fully multi-coated four-element optics. The longer focal lengths are useful for finding and framing objects; the shorter focal lengths provide more magnification in the same telescope.

Focal length SKU Apparent field Weight
9mm F9184A 60° 120g
12mm F9184B 60° 135g
16mm F9184C 65° 150g
20mm F9184D 65° 150g

Comfort and stray-light control

A rubber grip helps with eyepiece changes, while the folding rubber eyeguard shields the viewing position. Blackened lens edges and a matte interior reduce unwanted reflections. The aluminium housing has a satin anodised finish.

Product views and technical illustrations

SVBONY 12mm 60° Eyepiece view side
SVBONY eyepiece body finish
SVBONY eyepiece lens view

Compatibility and setup

Use a matching eyepiece holder or diagonal and secure the barrel before observing. Magnification is your telescope's focal length divided by the eyepiece focal length. Start at a lower power to find the target, then increase magnification while the image remains clear.

The barrel accepts matching M28.5 × 0.6 filters. One selected focal-length eyepiece is supplied; the four options are not a four-piece set.
