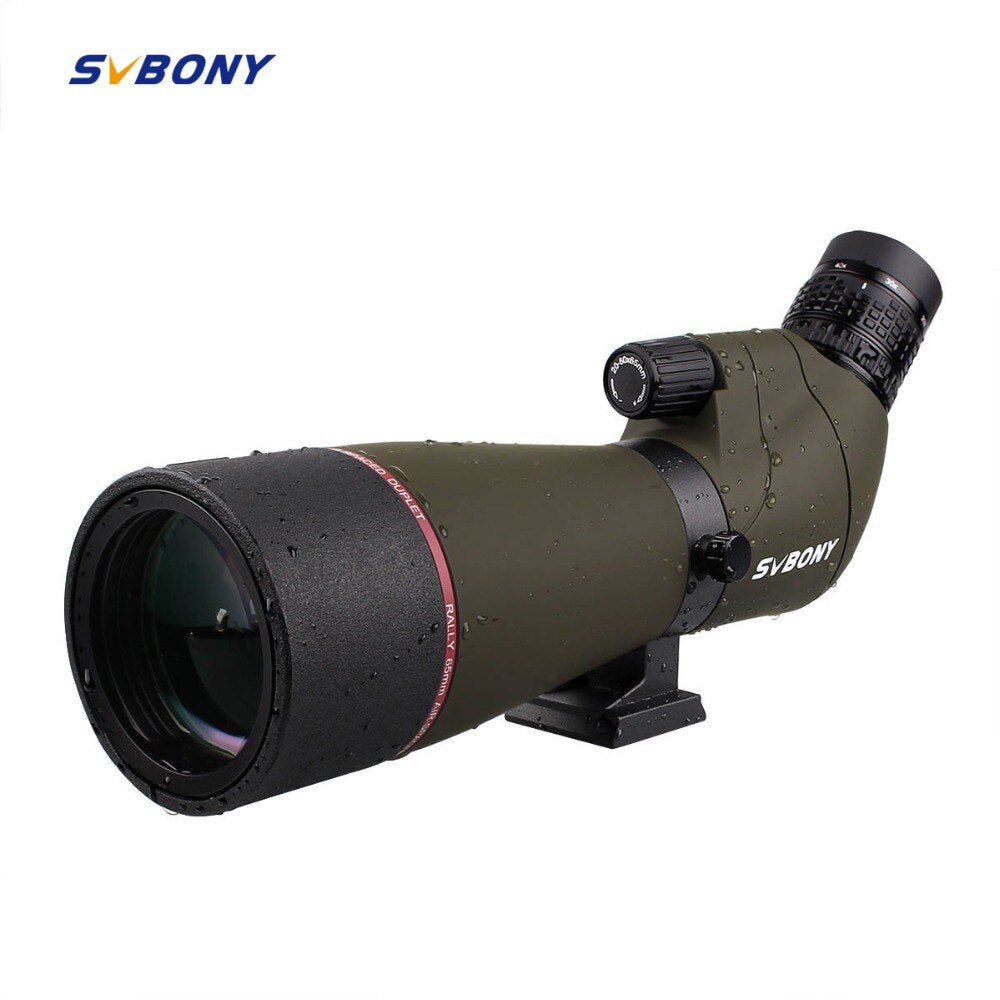

SVBONY SV13 20–60×65 & 20–60×80 Spotting Scopes

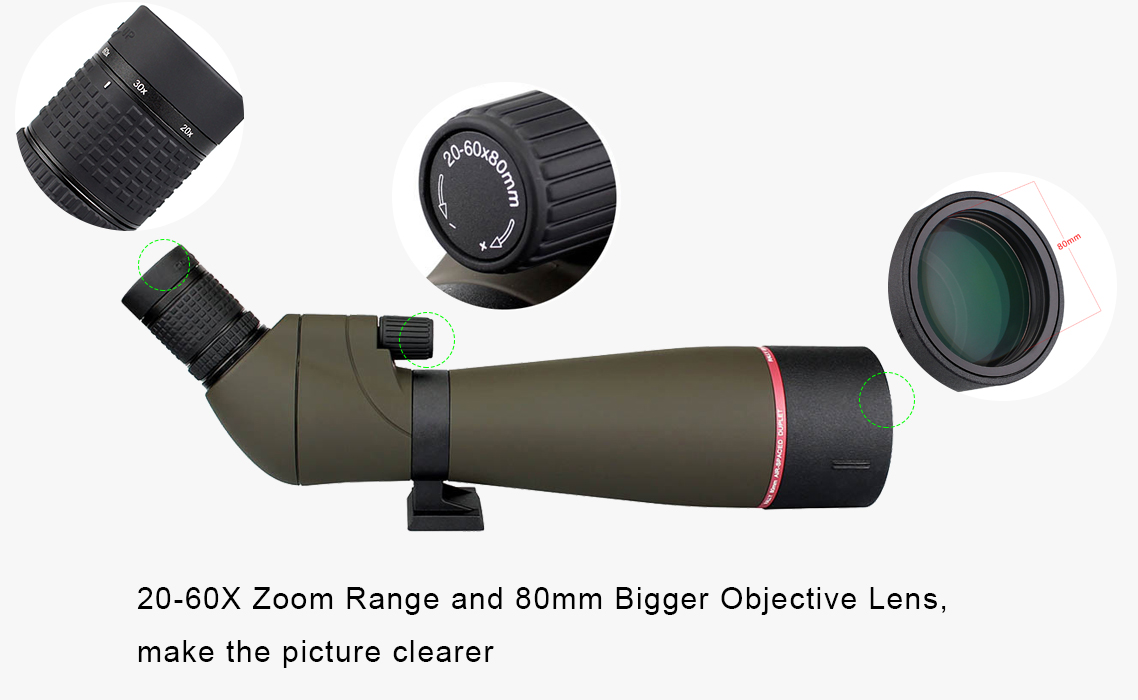

The SV13 offers 20–60× zoom magnification in a choice of 65mm and 80mm objective sizes. Use it on a stable tripod for wildlife, landscapes and other distant subjects where a binocular view does not provide enough magnification.
Choose the scope size for your outings
The 65mm version is the more compact of the two listed formats. The 80mm objective gives you a larger aperture if a little extra size and weight suit your setup. Compare the size-specific specification table before selecting the version in the product options.
Getting the most from the zoom
Locate your subject at the lowest magnification, focus, then increase the zoom as the conditions allow. Higher power narrows the view and makes vibration and heat shimmer more obvious, so a stable tripod and a careful final focus are useful when examining fine detail.
Viewing comfort
Adjust the eyecup to suit whether you wear glasses, then place your eye where the full circular view is visible. A stable tripod is particularly useful above the low end of the zoom range. For phone or camera capture, choose an adapter that fits the eyepiece and check that the combined setup can be focused.
Product specifications
|
Model |
F9314AA |
F9314AB |
|
Magnification |
20x-60x |
20x-60x |
|
Objective lens diameter (mm) |
65 |
80 |
|
Field of Angle (Degree) |
1.58- 0.96 |
1.58°- 0.91° |
|
Field of View (ft/1000yds) |
82.9ft - 50.6ft |
82.9ft - 48ft |
|

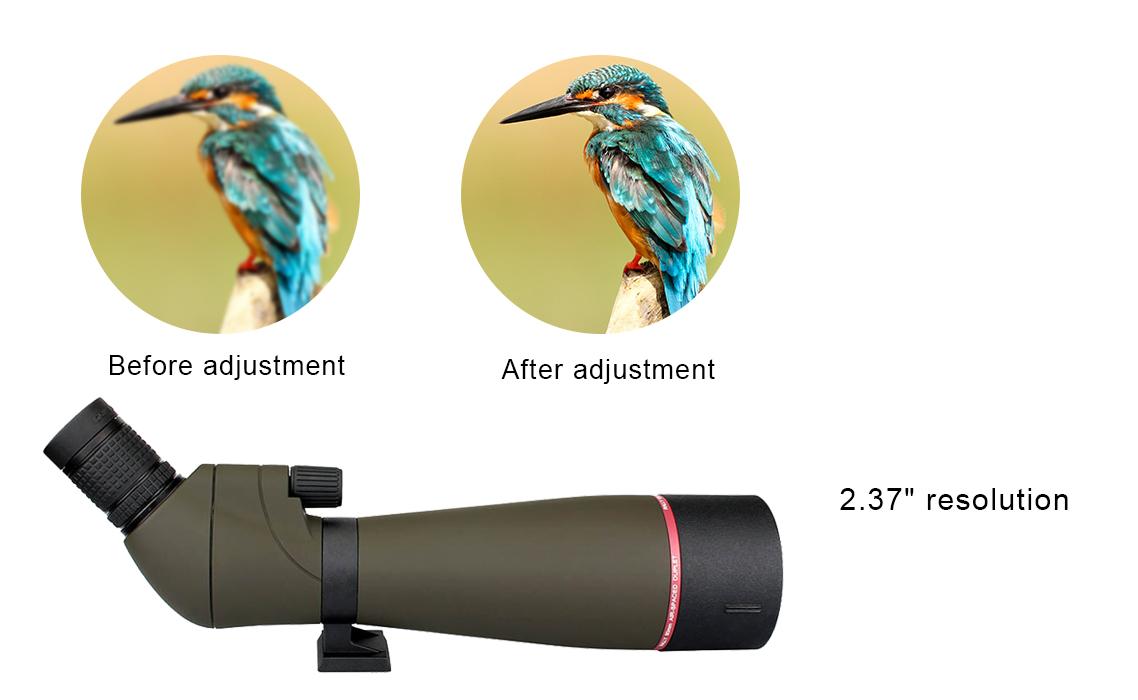

Resolution (") |
2.37" |
2.37" |
|
Exit Pupil (mm) |
2.8mm-0.98mm |
3.3mm-1.22mm |
|
Eye Relief (mm) |
14.54mm-11.5mm |
17.9mm-15mm |
|
Near Focus (m) |
6m |
6m |
|
Waterproof |
YES |
YES |
|
Nitrogen Filled |
Yes |
Yes |
|
WP- Depth/Mins |
1m/5mins |
1m/5mins |
|
Prism Material |
Bk7 |
Bk7 |
|
Prism Coating |
Silver + MC |
Silver + MC |
|
Lens Pcs/Groups |
7pcs/5groups |
7pcs/5groups |
|
Lens Coating |
Fully Multi Coated |
Fully Multi Coated |
|
Eye Cup Type |
Twist-up |
Twist-up |
|
Net Weight |
1.48kg |
1.75kg |
|
Dimension |
420x190x110mm |
420x160x83mm |
