SVBONY SV138 · 1.25″ · W9107A

A natural view. A comfortable angle.

Enjoy correctly orientated views of landscapes and distant subjects with a 45° prism diagonal that fits a compatible 1.25-inch telescope setup.

The SVBONY SV138 1.25″ 45° Correct-Image Prism Diagonal combines a metal body with a BK7 prism to provide an angled eyepiece position. Its upright, left-to-right correct image makes it particularly useful for terrestrial observing, where recognising a scene in its natural orientation matters.

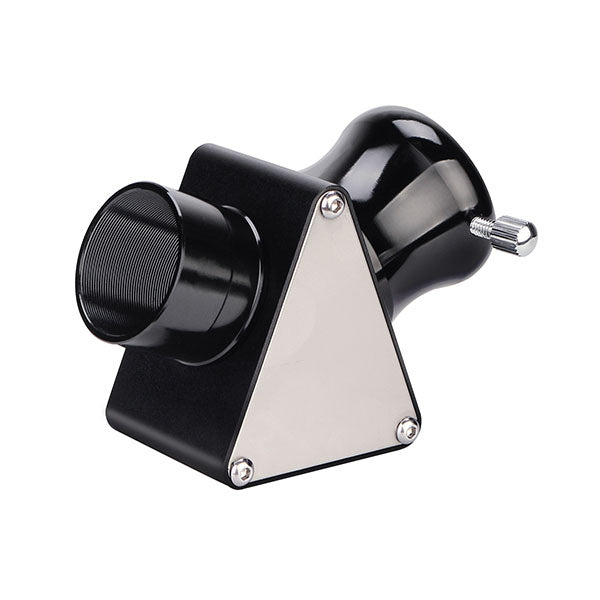

SVBONY SV138 1.25-inch 45-degree prism diagonal with black metal body and silver side cover

Why choose the SV138?

  • Correct-image viewing: presents the scene upright and the right way round from left to right, making daytime observing more intuitive.
  • 45° viewing angle: offers an alternative to looking straight through the telescope when observing subjects closer to the horizon.
  • BK7 prism: redirects the light through the diagonal’s prism optical system.
  • Metal construction: provides a solid housing for regular use.
  • Internally blackened barrel: helps reduce unwanted internal reflections and stray light.
  • 1.25-inch fitting: designed for a compatible telescope eyepiece holder and 1.25-inch eyepiece.

Choose the right diagonal for your observing

The SV138 is especially suited to daytime and terrestrial viewing. For astronomical targets high above the horizon, consider whether a 90° diagonal would give you a more comfortable observing position. A prism can also introduce additional colour aberration in a fast, short-focus telescope, so choose the optical arrangement to suit your instrument.

Check focus compatibility before ordering

A matching barrel size alone does not guarantee that a diagonal will reach focus. Your telescope needs sufficient focus travel for the added optical path. SVBONY specifically reports that the SV138 does not reach focus with the SV106 60 mm guidescope/finder. If you are unsure, contact Dark Clear Skies with your telescope and eyepiece details before ordering.

Specifications

Brand / model SVBONY / SV138
Manufacturer SKU W9107A
Optical design Correct-image prism diagonal
Viewing angle 45°
Prism glass BK7
Fitting size 1.25-inch telescope-side barrel and eyepiece holder
Housing Metal

Using your diagonal

Secure the diagonal in the telescope’s compatible 1.25-inch eyepiece holder, insert your eyepiece, tighten its retaining screw and refocus. Check both connections before observing and support the diagonal and eyepiece when making adjustments.

What’s included?

One SVBONY SV138 1.25-inch 45° prism diagonal. Telescope and eyepiece are not included.

Explore our diagonals, prisms and binoviewers to compare other viewing arrangements.

SVBONY SV138 1.25″ 45° Correct-Image Prism Diagonal

Regular price £44.99
Or £14.99 × 3 interest-free with PayPal

In stock · 3 available

W9107A
