SVBONY SV17 25–75×70 Straight Spotting Scope
The SV17 is a straight-view 70mm spotting scope with 25–75× zoom magnification. Its viewing arrangement follows the direction in which the scope is pointing, making it a useful choice for observers who prefer a direct sight line from a seated or standing tripod setup.
Direct viewing with variable magnification
The straight eyepiece format can make it easier to transfer your line of sight from the subject to the scope. Set the tripod height so you can look comfortably through the eyepiece without bending or stretching, especially during longer sessions.
Getting the most from the zoom
Locate your subject at the lowest magnification, focus, then increase the zoom as the conditions allow. Higher power narrows the view and makes vibration and heat shimmer more obvious, so a stable tripod and a careful final focus are useful when examining fine detail.

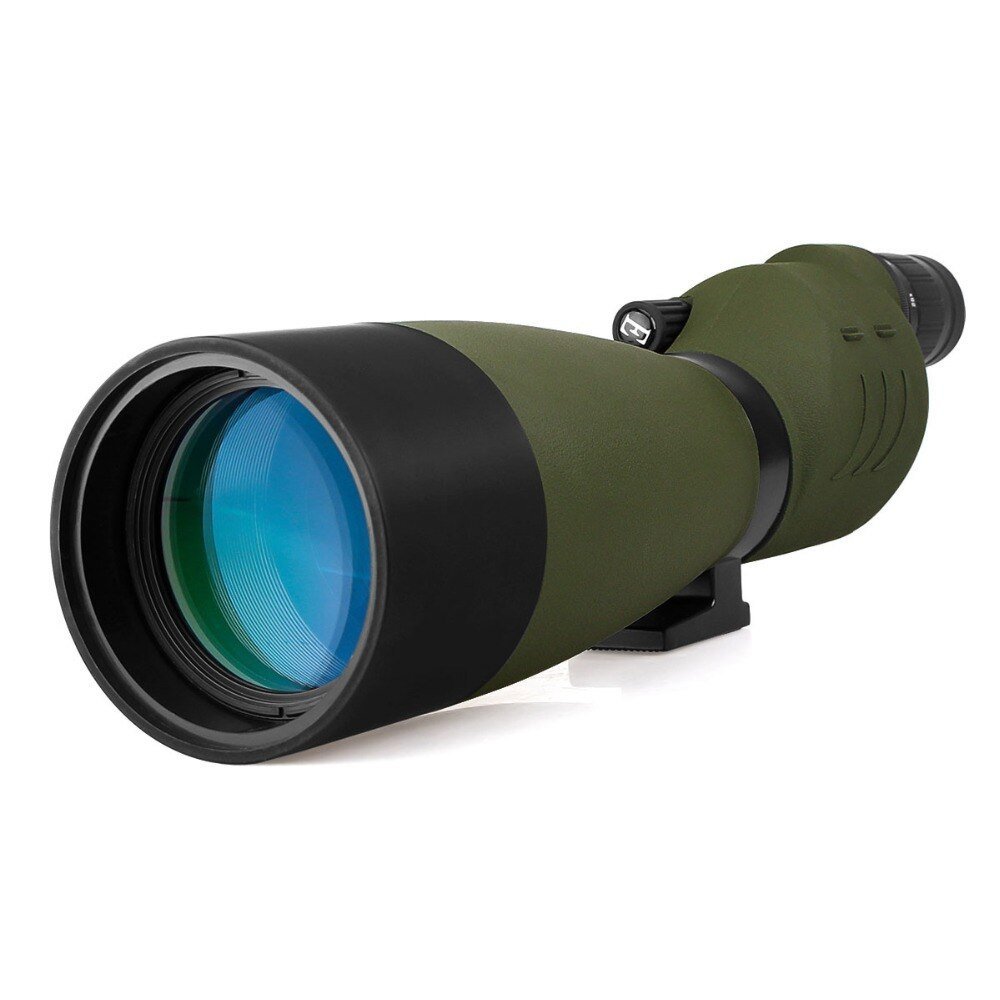

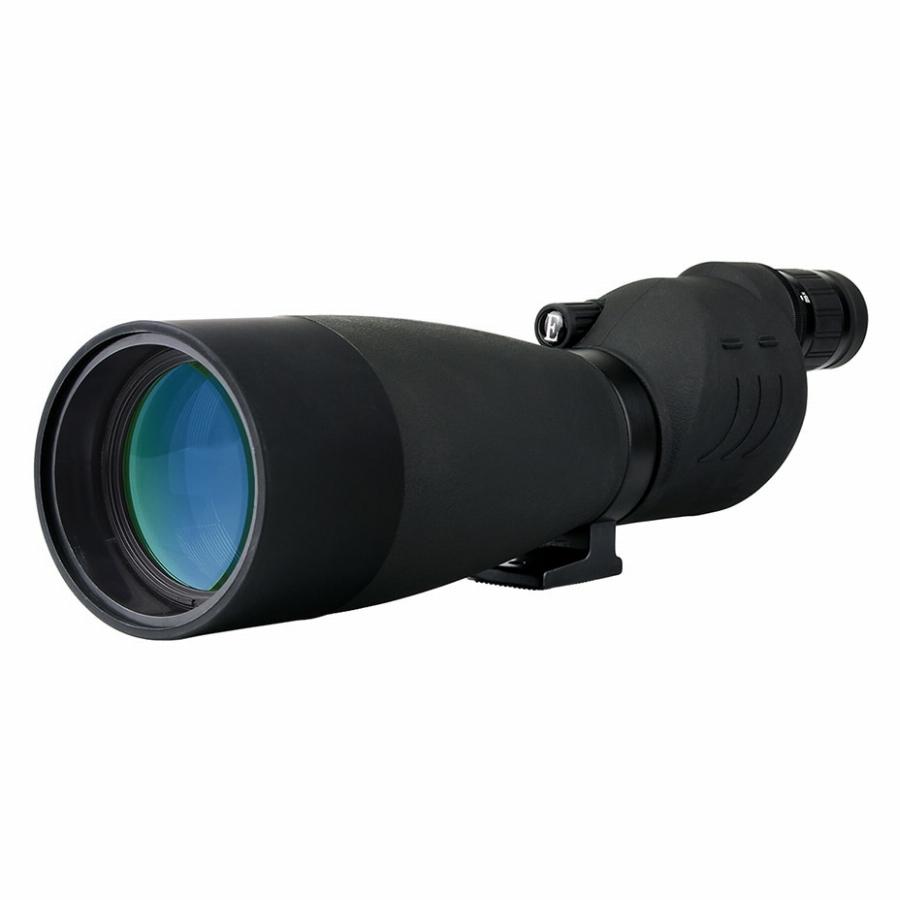

Two colour choices, the same optical format

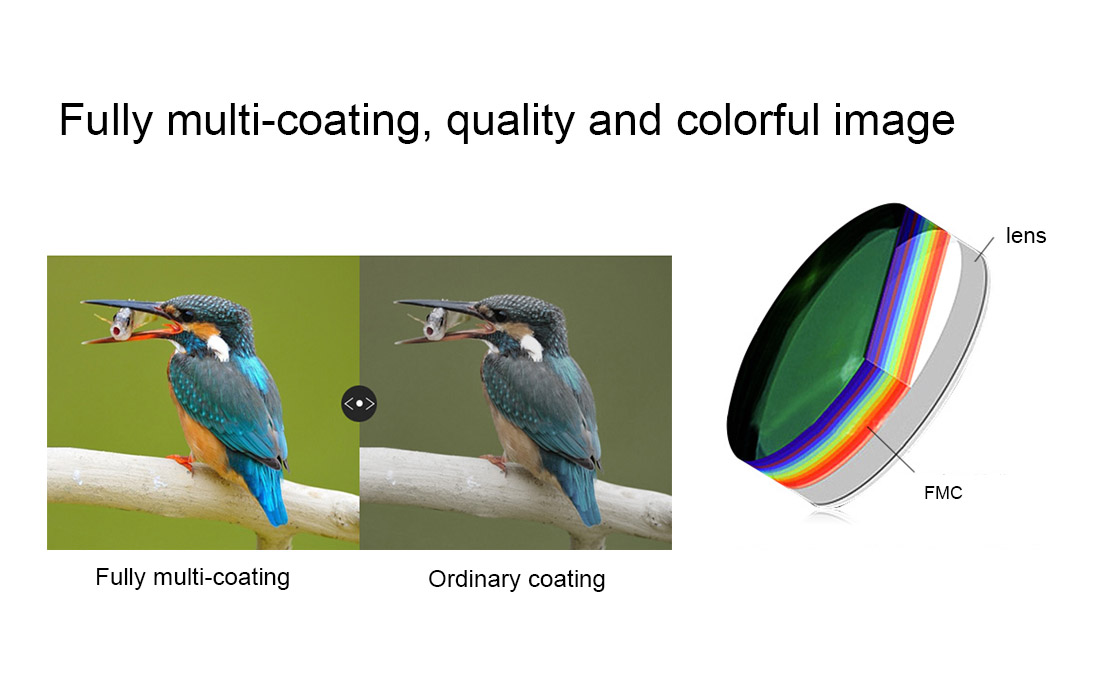

Choose black or green in the product options. Both are listed as the SV17 25–75×70 format. Fully multi-coated optics, a fold-down eyecup and the extending sunshade form part of the existing specification; the shade helps reduce oblique light reaching the objective.
Product specifications
|
Model |
F9326A |
F9326G |
|
Type |
Straight Spotting Scopes |
Straight Spotting Scopes |
|
Magnification |
25x-75x |
25x-75x |
|
Objective lens diameter |
70mm |
70mm |
|
Eyepiece diameter |
15mm |
15mm |
|
Focal length |
380mm |
380mm |
|
Prism Glass |
BaK4 |
BaK4 |
|
Prism Type: |
Porro |
Porro |
|
Lens Coating: |
FMC |
FMC |
|
Field of view |
64-43 ft/1000 yds |
64-43 ft/1000 yds |
|
Eye cup |
Fold Down |
Fold Down |
|
Product of Skin |
Rubber |
Rubber |
|
Tripod Adapter Material |
Metal |
Metal |
|
Close Focusing Distance |
8M |
8M |
|
Exit Relief |
16-14mm |
16-14mm |
|
Water-resistant |
Yes |
Yes |
|
Fogproof |
Yes |
Yes |
|
Color |
Black |
Green |
