SVBONY CA1 1.25″ Telescope Extension Tube – All-Metal
The SVBONY CA1 is an all-metal photography extension tube with a 1.25-inch telescope barrel and T2 connections. Its removable tube provides space for a suitable eyepiece in an eyepiece-projection arrangement, while the camera connects through a camera-specific T-ring.
Build a telescope-to-camera connection
The CA1 is intended for telescope photography, providing a metal housing between the telescope and camera adapter. The aluminium body keeps the connection rigid, with a black finish and a removable extension section for assembling the required arrangement.

Eyepiece projection and focus
In an eyepiece-projection setup, a suitably sized eyepiece sits inside the extension cylinder and projects its image towards the camera. Check the eyepiece body diameter and available space before purchase; a 1.25-inch barrel does not mean every eyepiece housing will fit inside.
Adding a tube changes the spacing in the optical path. Successful focus depends on the telescope, eyepiece, camera and available focuser travel, so the CA1 should be chosen as part of a complete, compatible camera arrangement.
Compatibility and setup
A camera-specific T-ring is required to connect a DSLR or mirrorless camera and is sold separately. Match the camera mount and T2 thread, then check the telescope has enough focus travel. T2 uses a 0.75 mm thread pitch and is not interchangeable with an M42 × 1 camera-lens thread.
Technical specifications
| Specification | Details |
|---|---|
| Model | CA1 / F9105A |
| Telescope barrel | 1.25 inch |
| Thread standard | T2 / M42 × 0.75 |
| Extension tube length | 68 mm |
| Overall length | 105 mm |

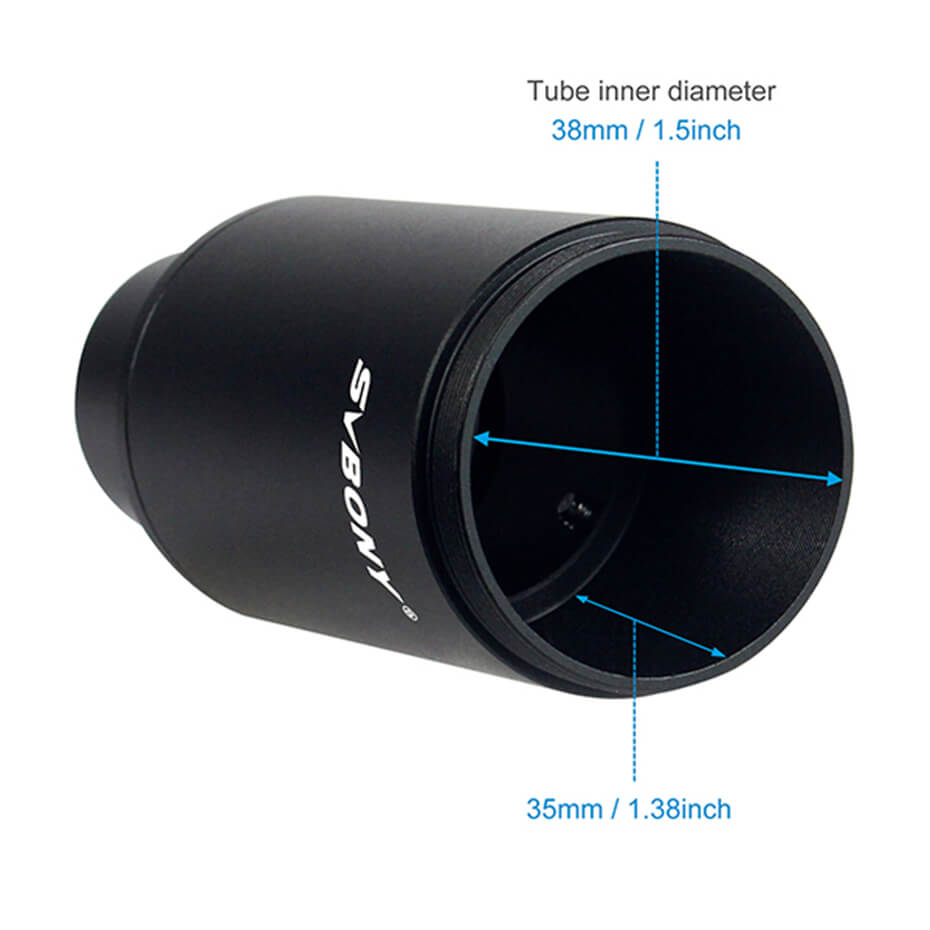

| Tube diameter | 44 mm |
| Material / finish | Aluminium alloy / black |
| Weight | 157 g |
