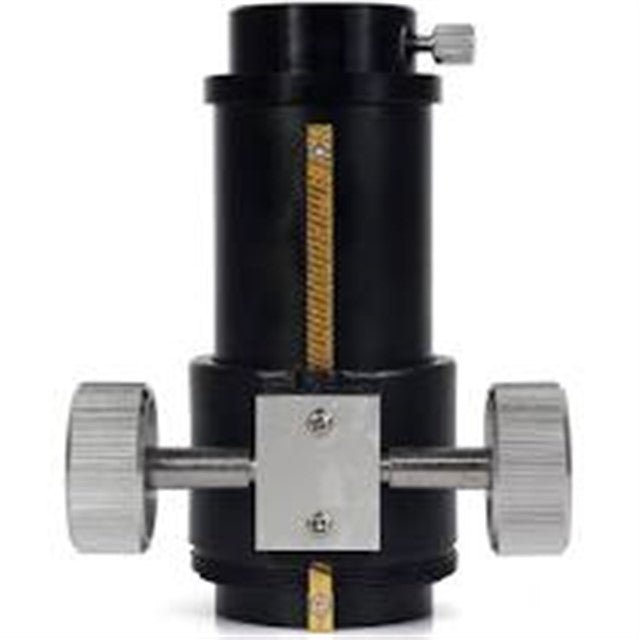

SVBONY SV181 1.25″ Rack & Pinion Newtonian Reflector Focuser
The SVBONY SV181 is a 1.25-inch rack-and-pinion focuser for compatible Newtonian reflectors. Its metal drawtube and 65mm focusing travel provide a straightforward manual focusing connection for eyepieces and suitable lightweight camera adapters.
With a generous 65 mm travel range and a rigid metal drawtube, the SV181 is suitable for both visual observing and lightweight imaging setups. Its straightforward design makes it an ideal replacement or upgrade for entry-level and mid-sized Newtonian reflectors.

Key Features
- Precision rack & pinion focusing for smooth, accurate focus adjustments
- CNC-machined metal construction for durability and rigidity
- Low vibration design for steadier views and improved imaging stability
- Replacement fitting for compatible Newtonian reflector tubes; check the mounting dimensions
- 1.25″ eyepiece compatibility for standard accessories
Specifications
| Model | SV181 |
| Focuser Type | Rack & Pinion |
| Focuser Tube Length | 105 mm |
| Focuser Travel | 65 mm |
| Eyepiece Adapter | 1.25″ |
| Material | Metal (CNC-machined aluminium) |
| Suitable For | 114 mm–150 mm Newtonian reflector telescopes |
This focuser is well suited for users looking to improve focusing accuracy and mechanical stability without moving to a more complex dual-speed system.
Compatibility and setup
SVBONY lists the SV181 for 114–150mm Newtonian reflectors. Aperture alone does not confirm a fit: compare the mounting-base curvature, fixing-hole spacing, opening and focuser height with your telescope. Check that your eyepiece or camera can reach focus before choosing a replacement focuser.
