SVBONY SV503 80ED 80mm f/7 ED Refractor OTA

The SV503 80ED is an 80mm ED doublet refractor with a 560mm focal length. It offers a manageable optical tube for visual observing and an adaptable starting point for tracked astrophotography.

80mmObjective aperture
560mm · f/7Native optical specification
1:10Fine-focus reduction

ED optics for visual observing and imaging

The objective uses an S-FPL51 extra-low-dispersion element to reduce colour fringing. Multi-layer coatings help retain useful light and contrast. ED glass improves colour correction, but focus, seeing and the rest of the imaging system still influence the final result.

Focus and frame with control

The dual-speed rack-and-pinion focuser combines coarse positioning with a 1:10 fine adjustment for small corrections. The rotatable focuser allows the camera angle to be changed when composing an image without rotating the entire tube in its mounting rings.

Building an observing setup

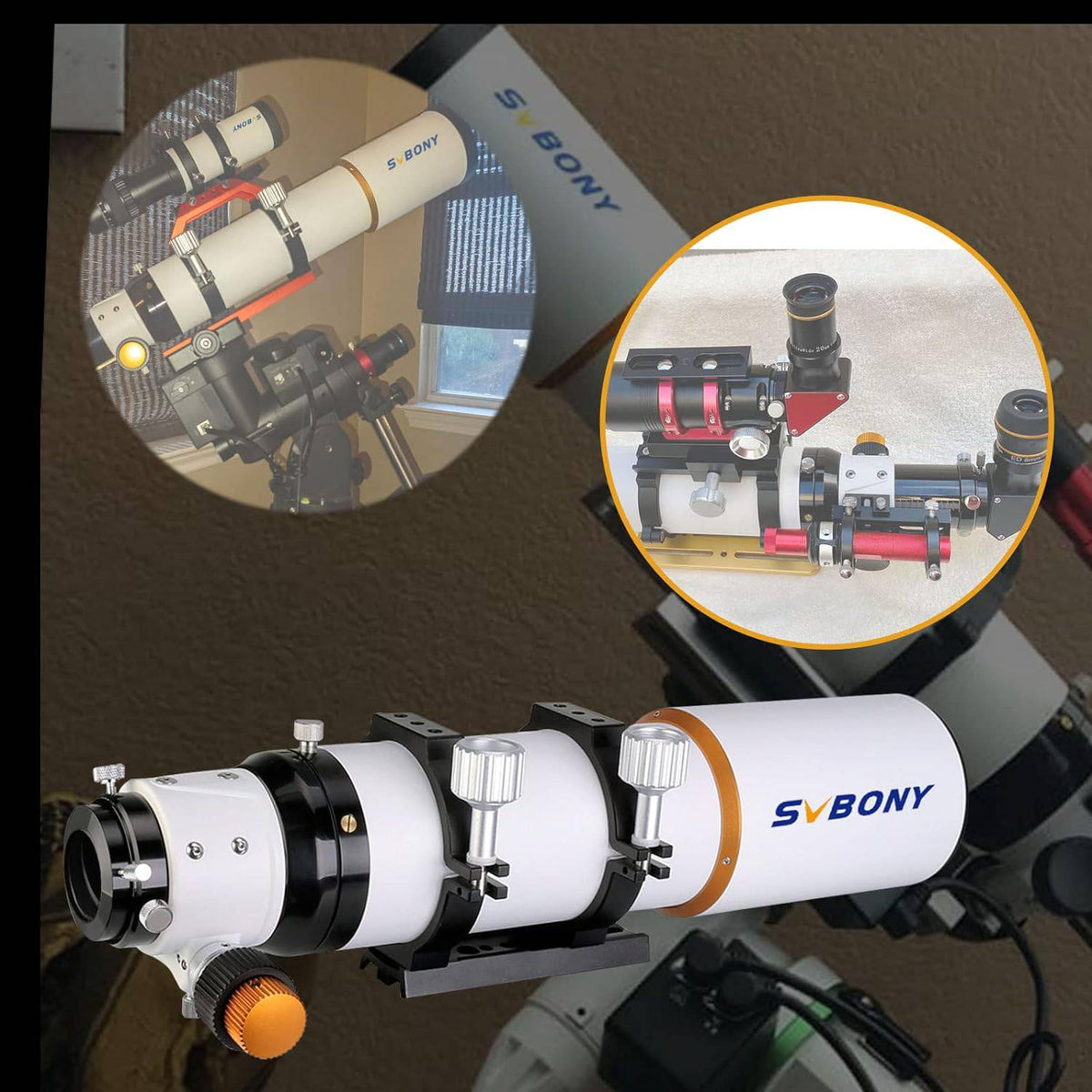

Use a suitable mount, eyepiece and diagonal for visual observing. For long-exposure photography, plan for tracking, camera spacing and the correct field correction accessories. The matched SV193 0.8× reducer/flattener for the 80ED is an optional imaging accessory; accessories pictured in example setups should not be assumed to be included with this OTA.

Product photographs and details

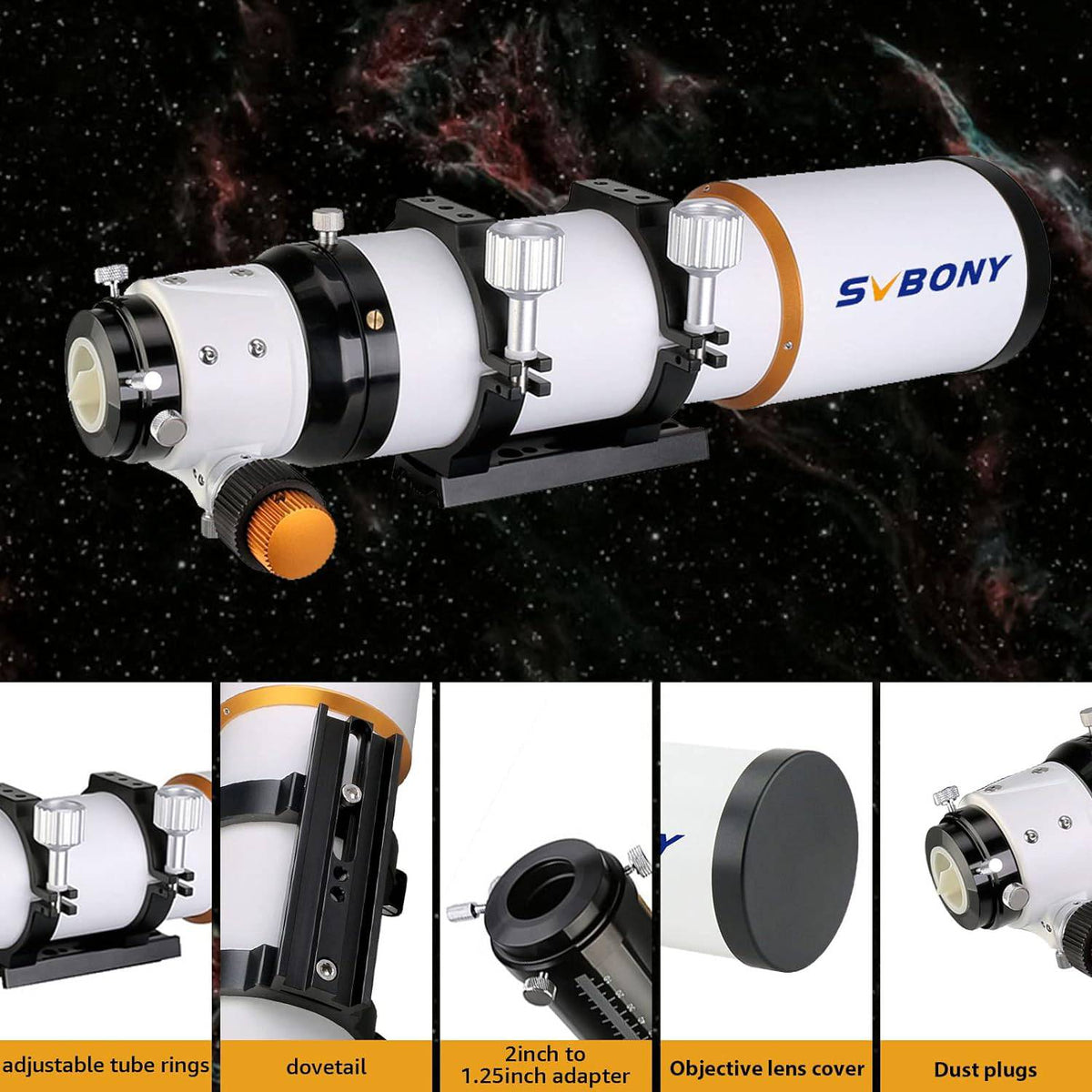

SVBONY SV503 80ED F7 Telescope OTA with 'Explore' text and features on a dark background

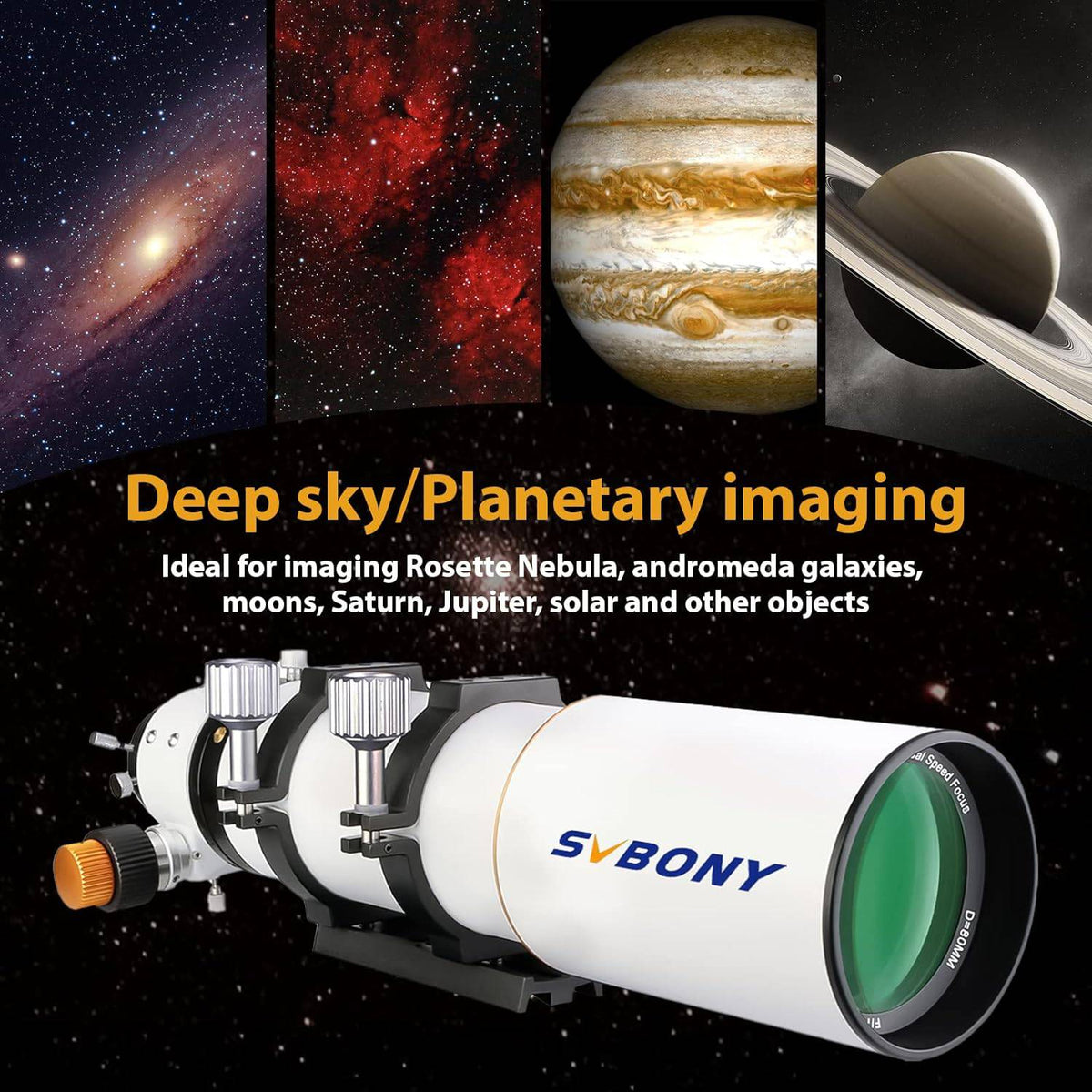

Sybony 80mm ultra-clear refracting telescope with close-up of lens on a dark background
Optical lens with text 'ED lens' and 'Effectively eliminate chromatic aberration' on a dark background.

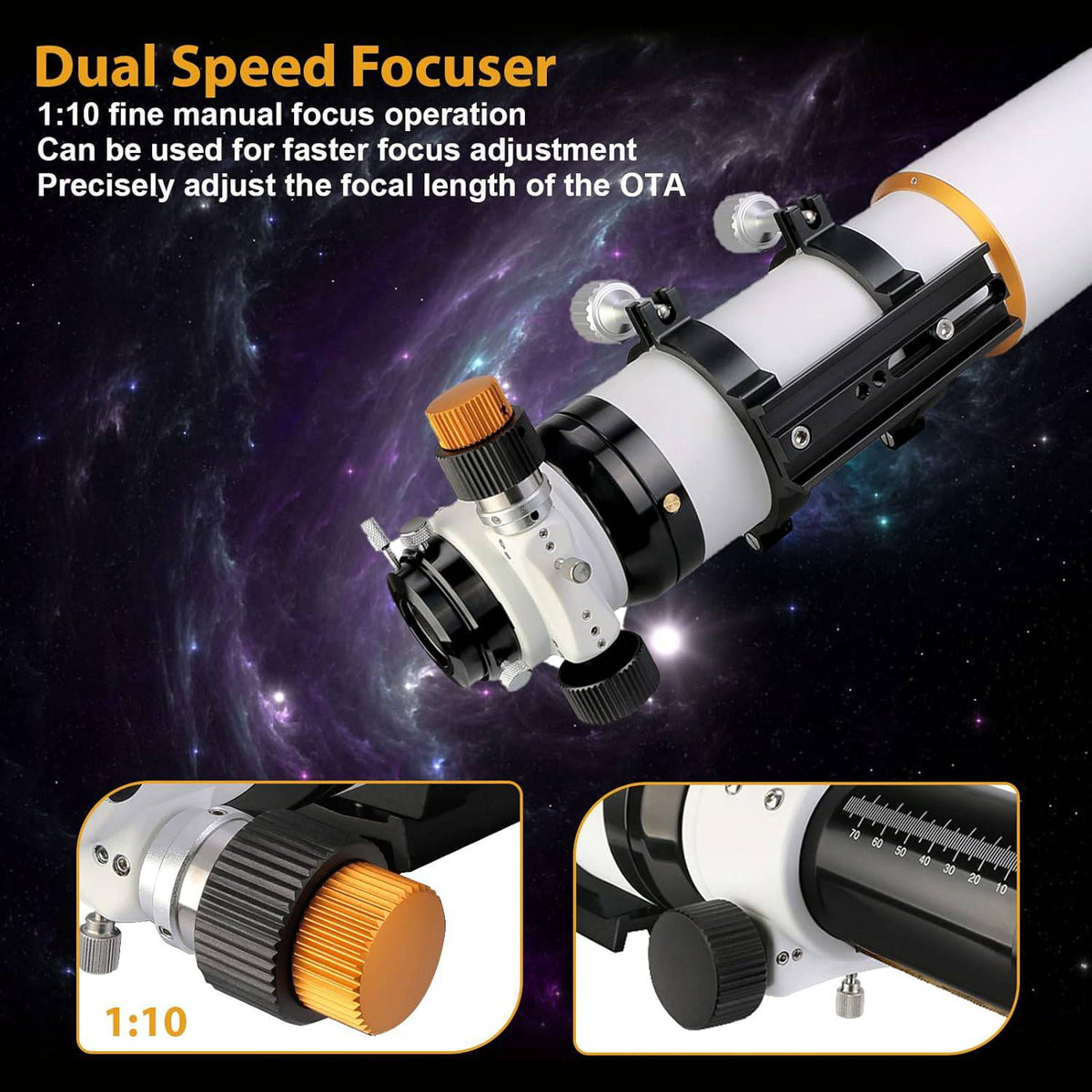

Telescope with dual speed focusing feature and astrophotography images on a dark background
SVBONY SV503 80ED focuser showing 360 degree rotation for precise astrophotography camera framing

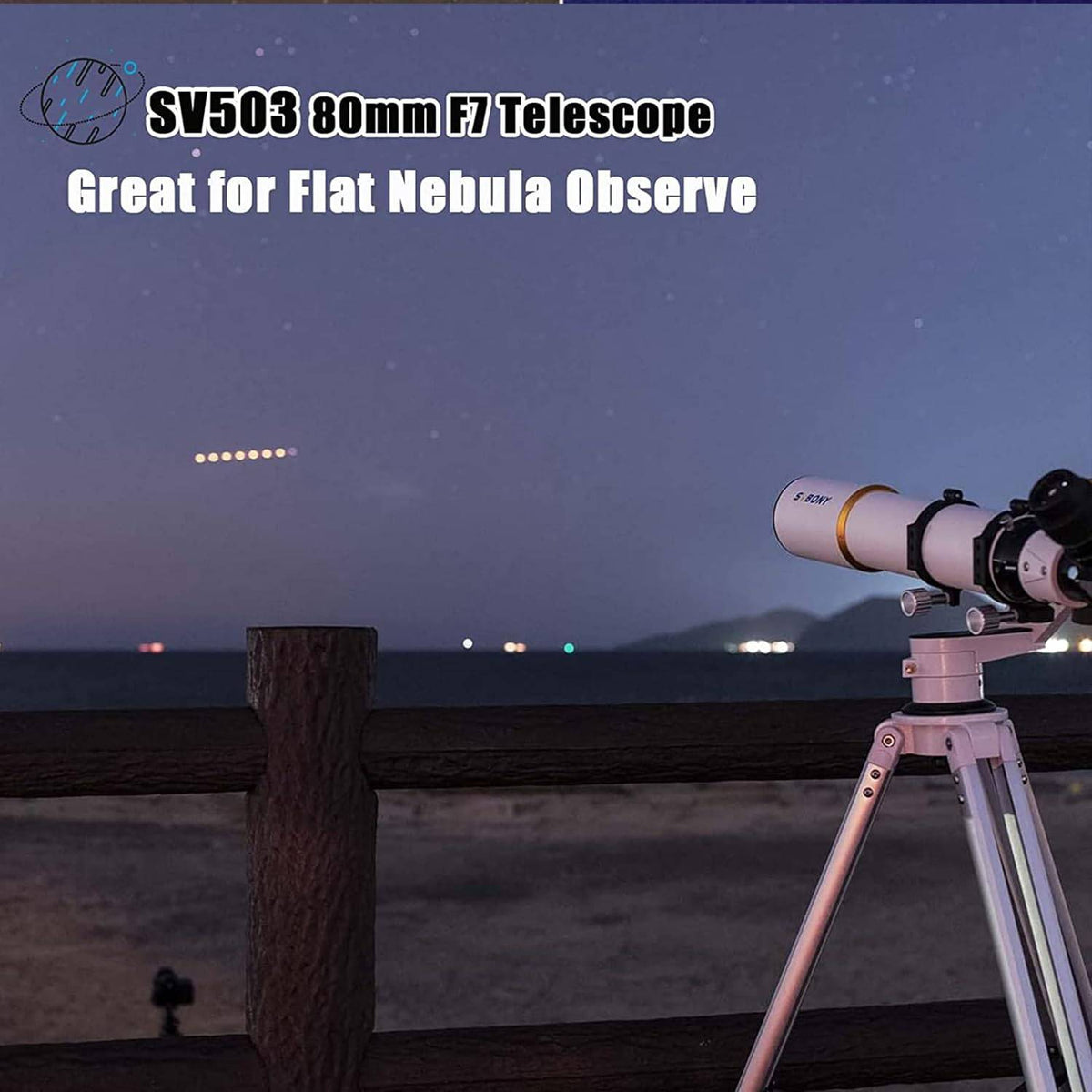

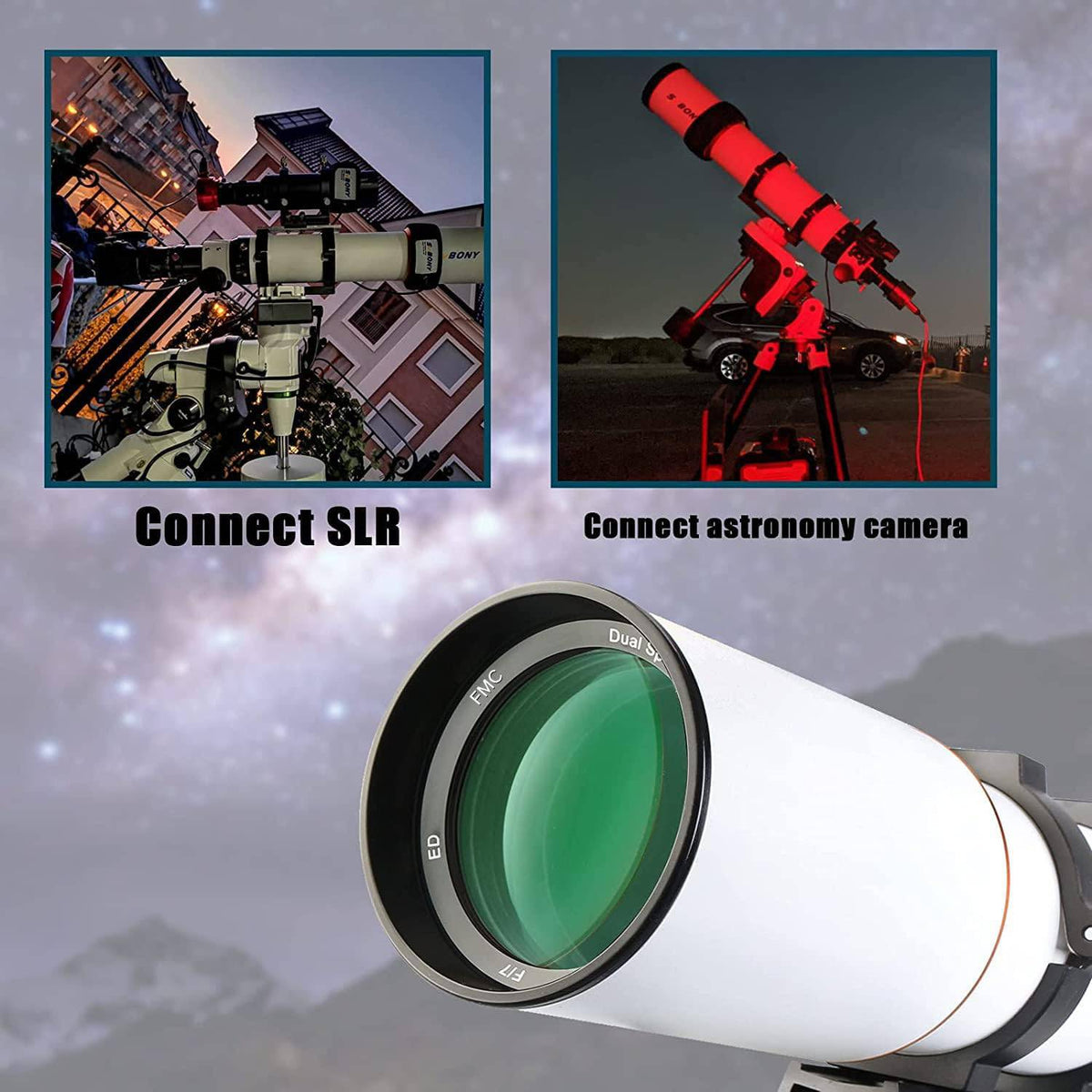

SVBONY SV503 80ED refractor telescope used for astrophotography and visual astronomy

Compatibility and setup

Match the mount to the complete setup weight, including camera or diagonal and eyepiece. Reducer spacing is a separate requirement from the telescope's focuser travel; follow the instructions for the exact reducer model you use.

Technical specifications

Specification Details
Model / SKU SV503 80ED / F9359B
Optical design ED doublet refractor
Aperture 80mm
Native focal length 560mm
Native focal ratio f/7
ED element S-FPL51
Focusing Rack-and-pinion, 1:10 fine adjustment

SVBONY SV503 80ED 80mm f/7 ED Refractor OTA

Sale price £399.00
Or £133.00 × 3 interest-free with PayPal
£599.00 £200.00 OFF
