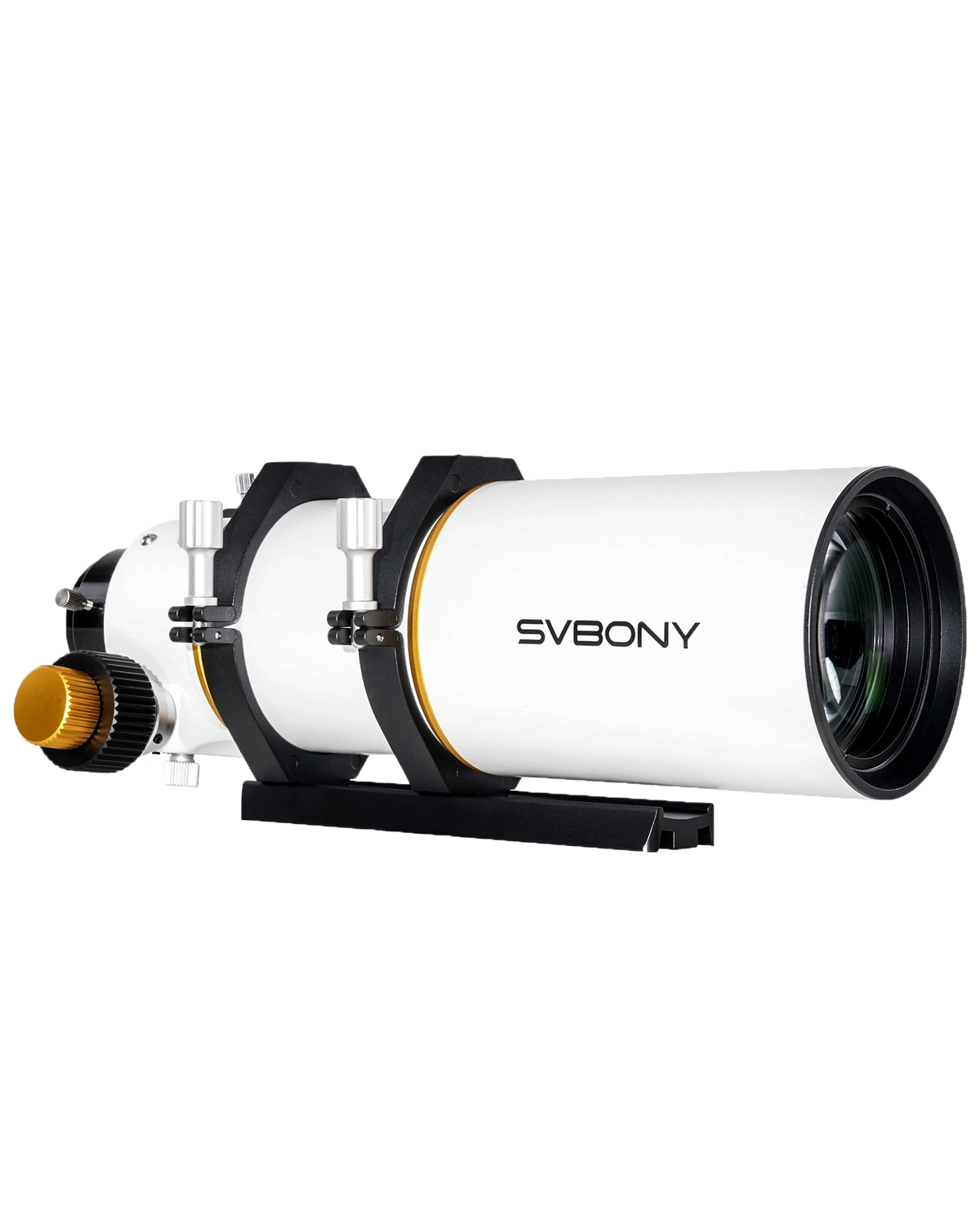

Build your next imaging setup around the SV530

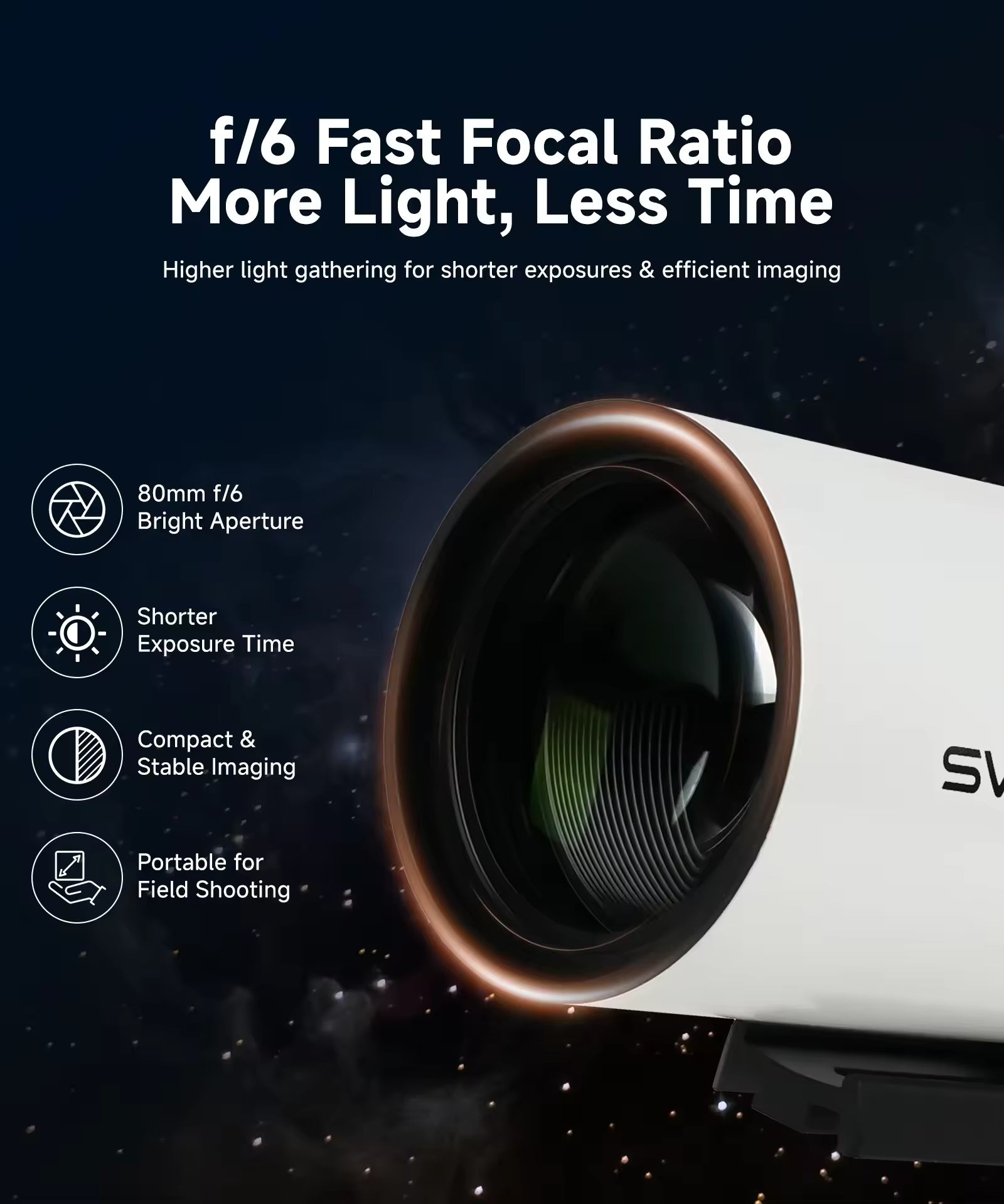

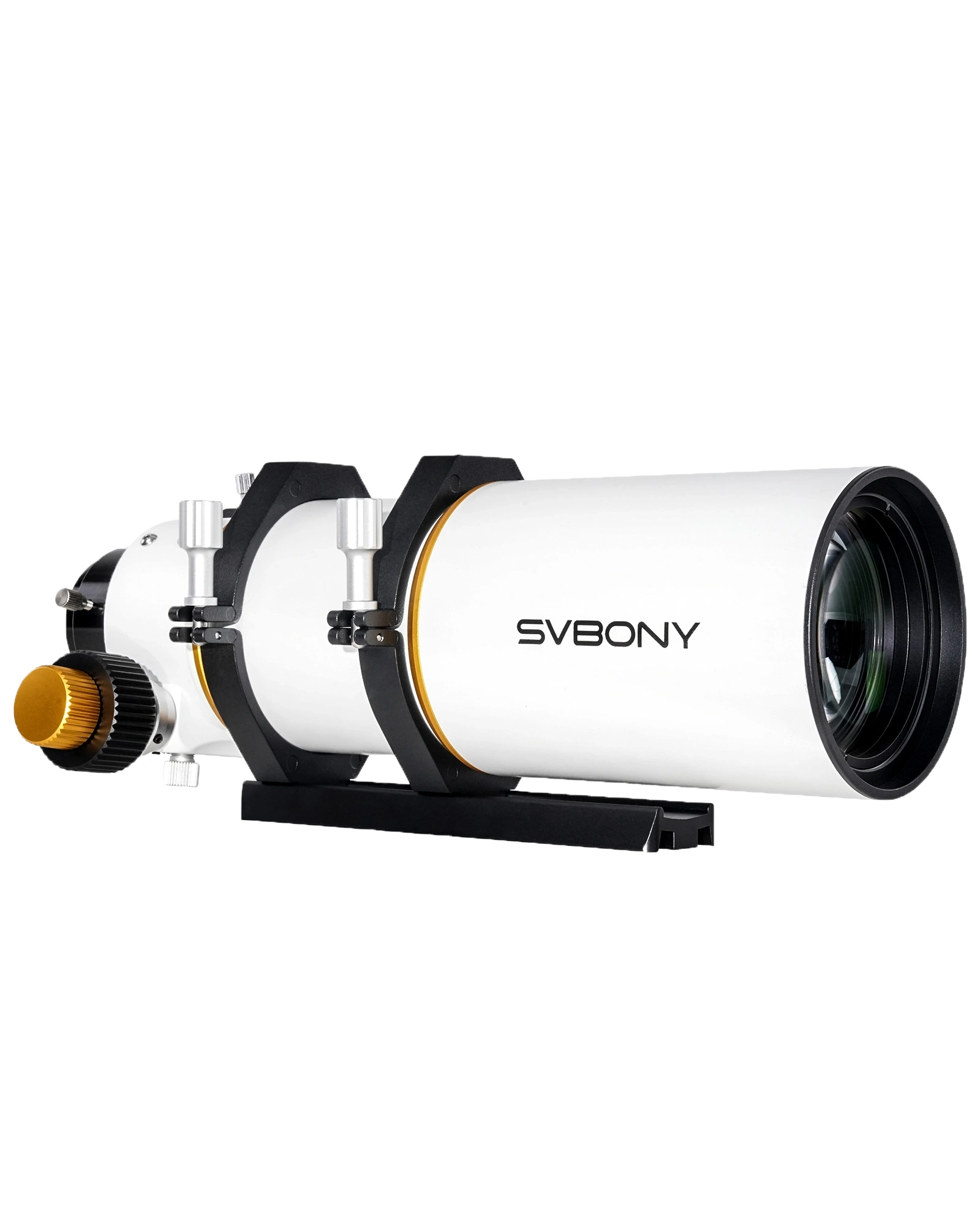

Bring nebulae, star clusters and lunar landscapes into your observing plans with the SVBONY SV530 80mm ED refractor. Its 480mm focal length and f/6 focal ratio provide a versatile starting point for a dedicated astronomy setup, with field correction built into the telescope.

Choose your camera, mount and accessories around the subjects you want to capture. The SV530 is an optical tube assembly (OTA): allow a separate budget for the supporting equipment that completes your system.

Why choose the SV530?

• ED doublet objective with an integrated flattening element: combines colour correction with reduced field curvature.
• Built-in field flattener: avoids purchasing a separate flattener for the telescope’s native optical design.
• 2.5-inch rack-and-pinion focuser: 10:1 fine adjustment, 60mm travel, adjustable tension and a focus lock.
• M63-to-M48 adapter supplied: a threaded starting point for a compatible camera connection.
• Electronic focuser mounting provisions: supports a future autofocus upgrade, subject to bracket and motor compatibility.
• Aluminium alloy tube with metal rings: multi-layer anti-reflection coatings, blackened lens edges and a matte interior help control unwanted light.

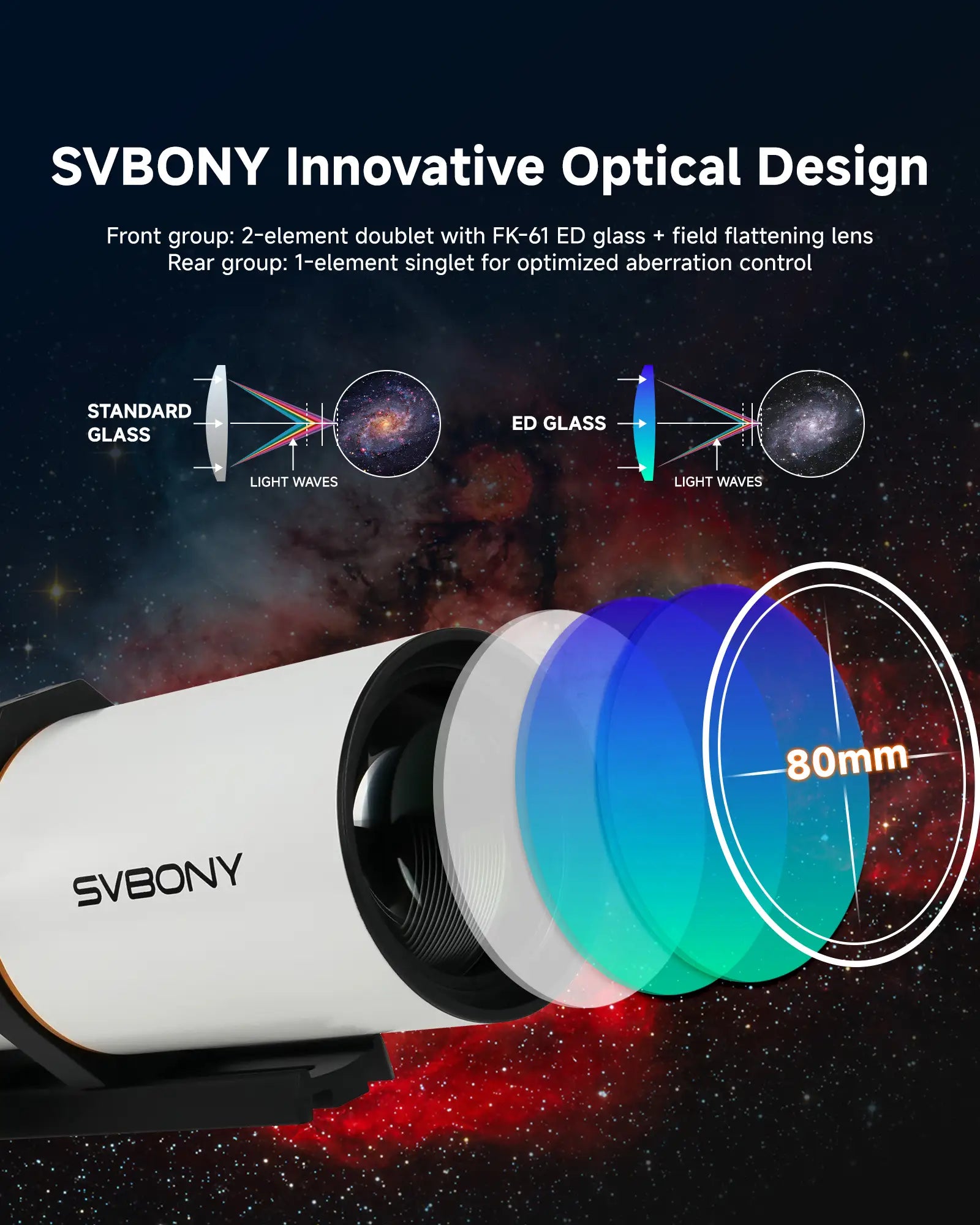

ED optics with integrated field correction

The ED objective and built-in flattening element work together to control colour fringing and field curvature. Check your intended camera’s sensor coverage when planning the complete system.

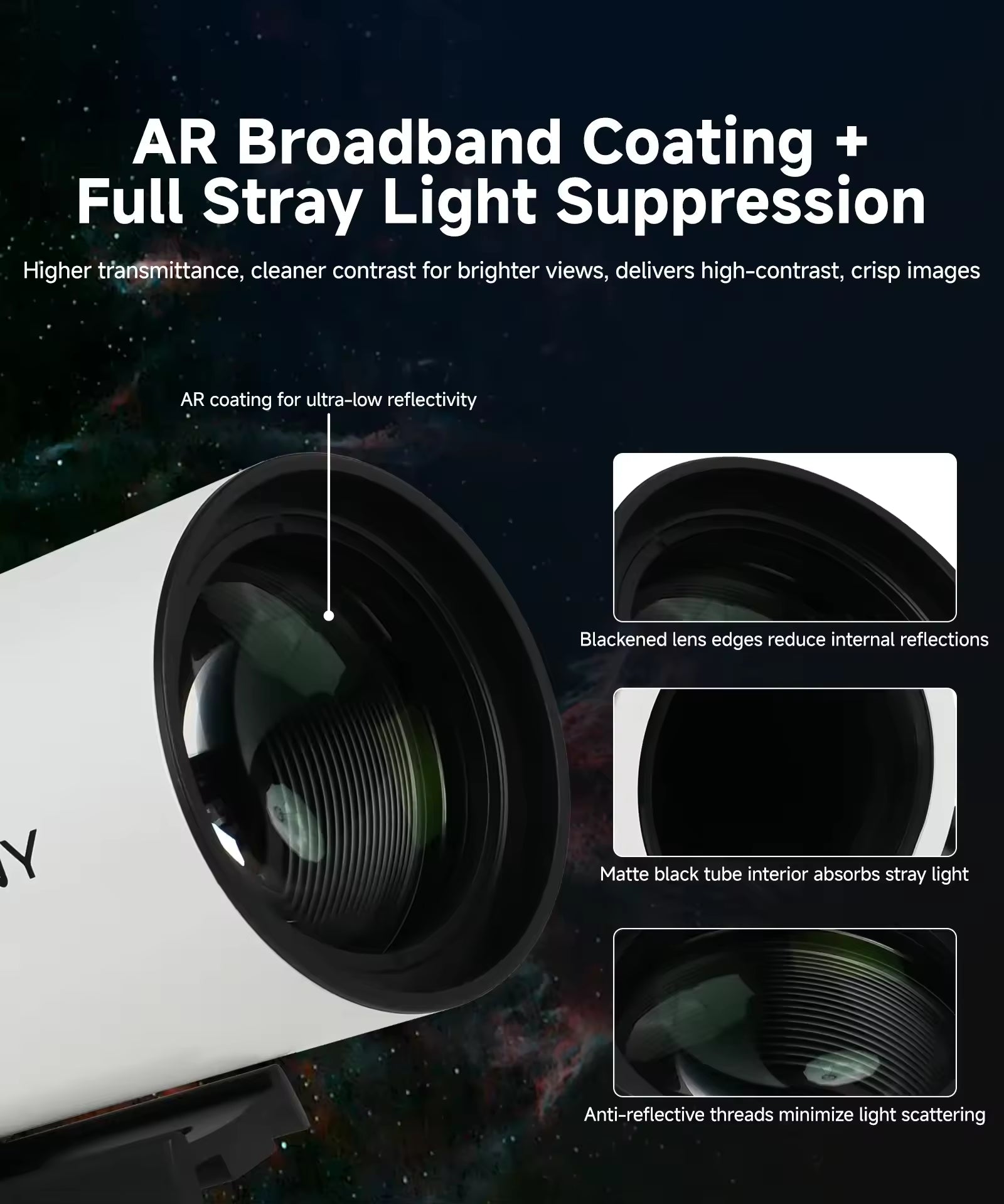

Coatings and internal light control

Anti-reflection coatings, blackened lens edges and the dark tube interior help reduce unwanted reflections within the telescope.

Plan the view around your camera

A telescope’s focal length is only half the framing decision: your camera’s sensor size determines how much sky fits in each image. Before choosing a target, check its angular size against the field of view of your intended telescope and camera combination.

For deep-sky photography, build the setup around a suitable tracking mount. Include the camera, guidescope, cables and other accessories when assessing the load. Good polar alignment, secure connections and careful focusing all contribute to the finished image. Our astrophotography guides explain how these choices work together.

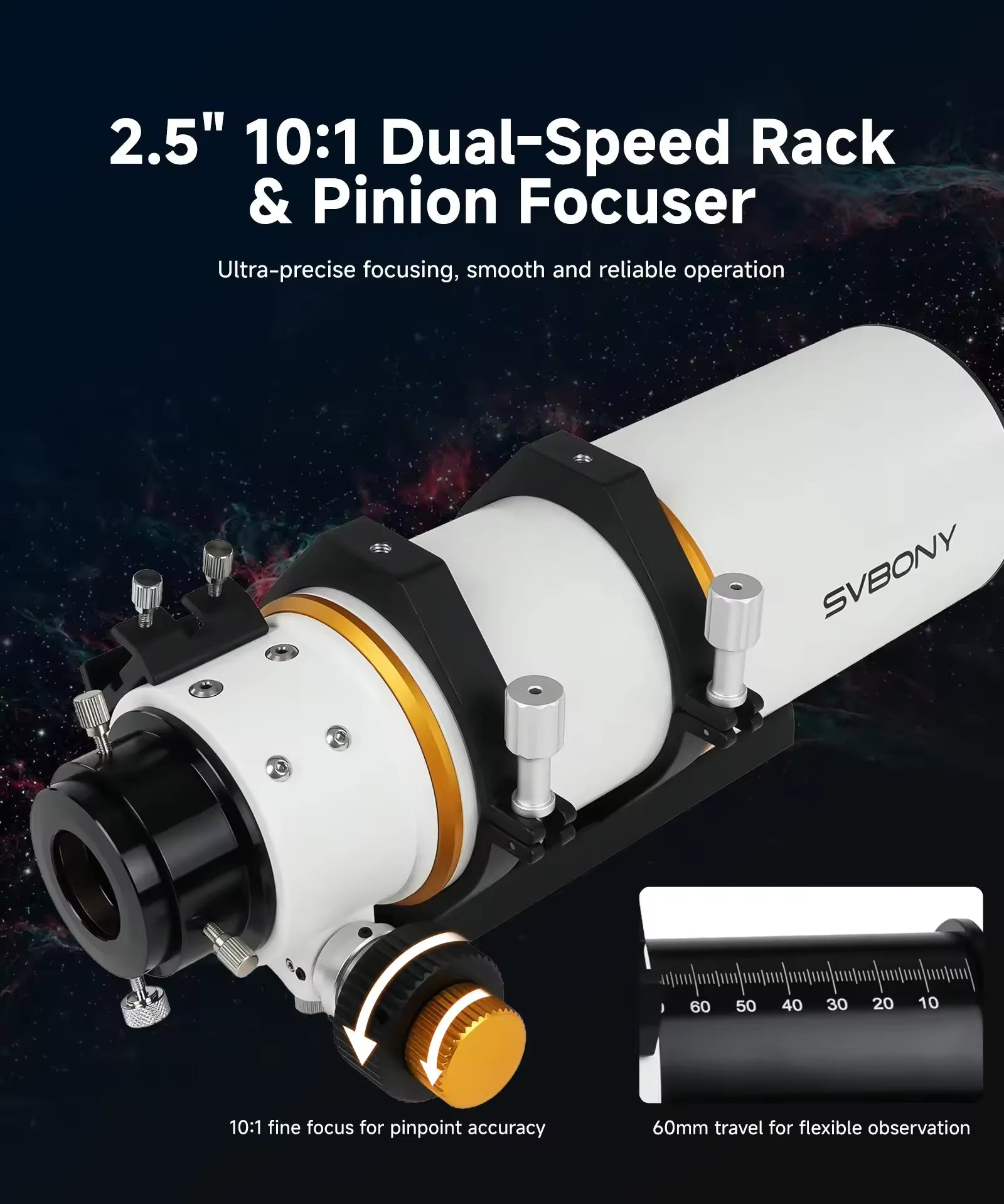

Precise manual focusing

The coarse adjustment brings the image close to focus, while the 10:1 fine control helps you make the final small corrections. Adjust the focuser tension to suit your attached equipment.

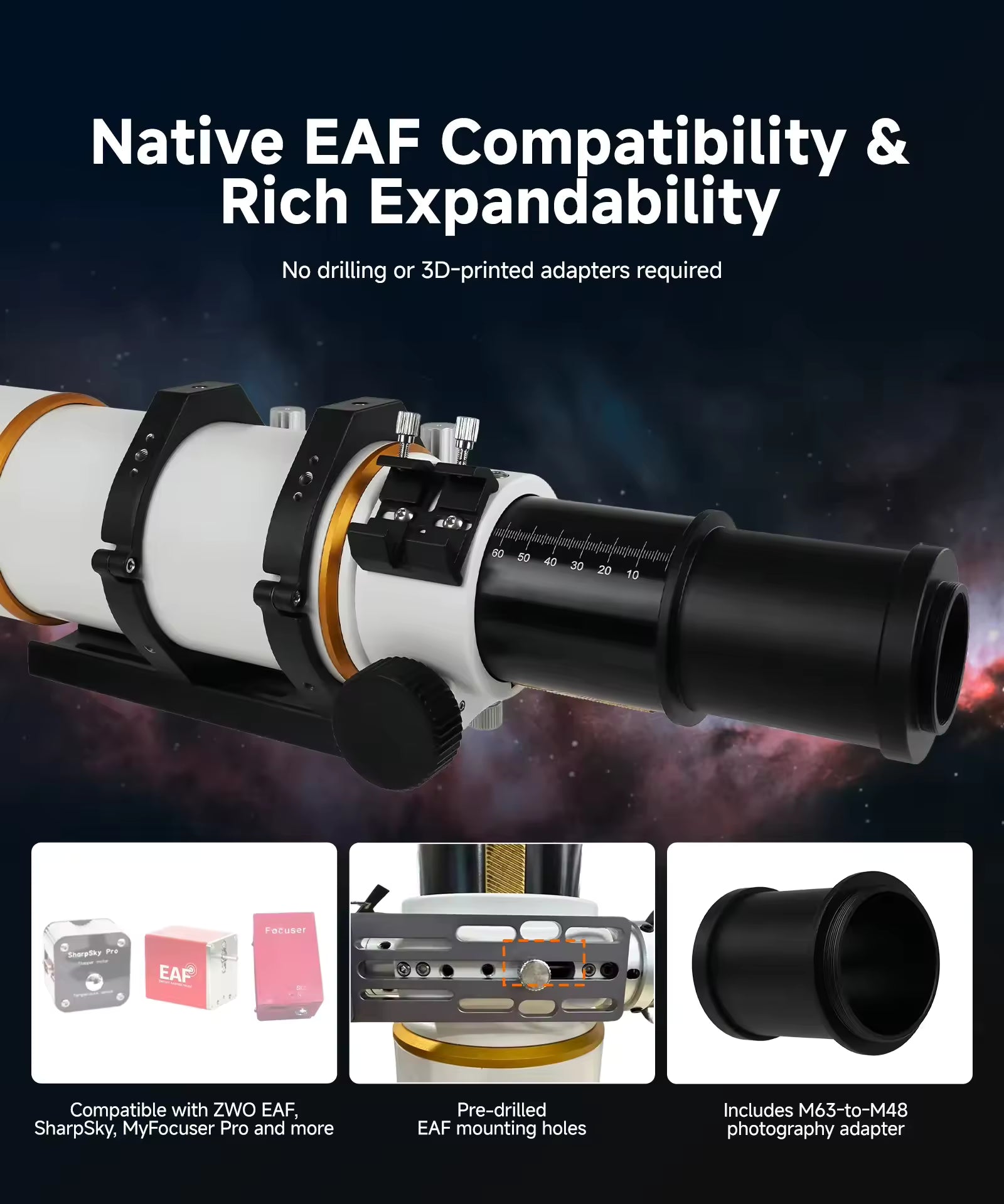

Camera connections and autofocus upgrades

A threaded adapter does not make every camera a direct fit. DSLR and mirrorless bodies may require a camera-specific T-ring; astronomy cameras may need additional adapters or spacers. Filter drawers and wheels also add optical length.

Before ordering adapters, confirm the thread sizes, available focus range and requirements of your complete imaging train. If you plan to use a large sensor, ask us to check the corrected image coverage for your camera. Send your equipment list through our contact page for help choosing the connections.

Technical specifications

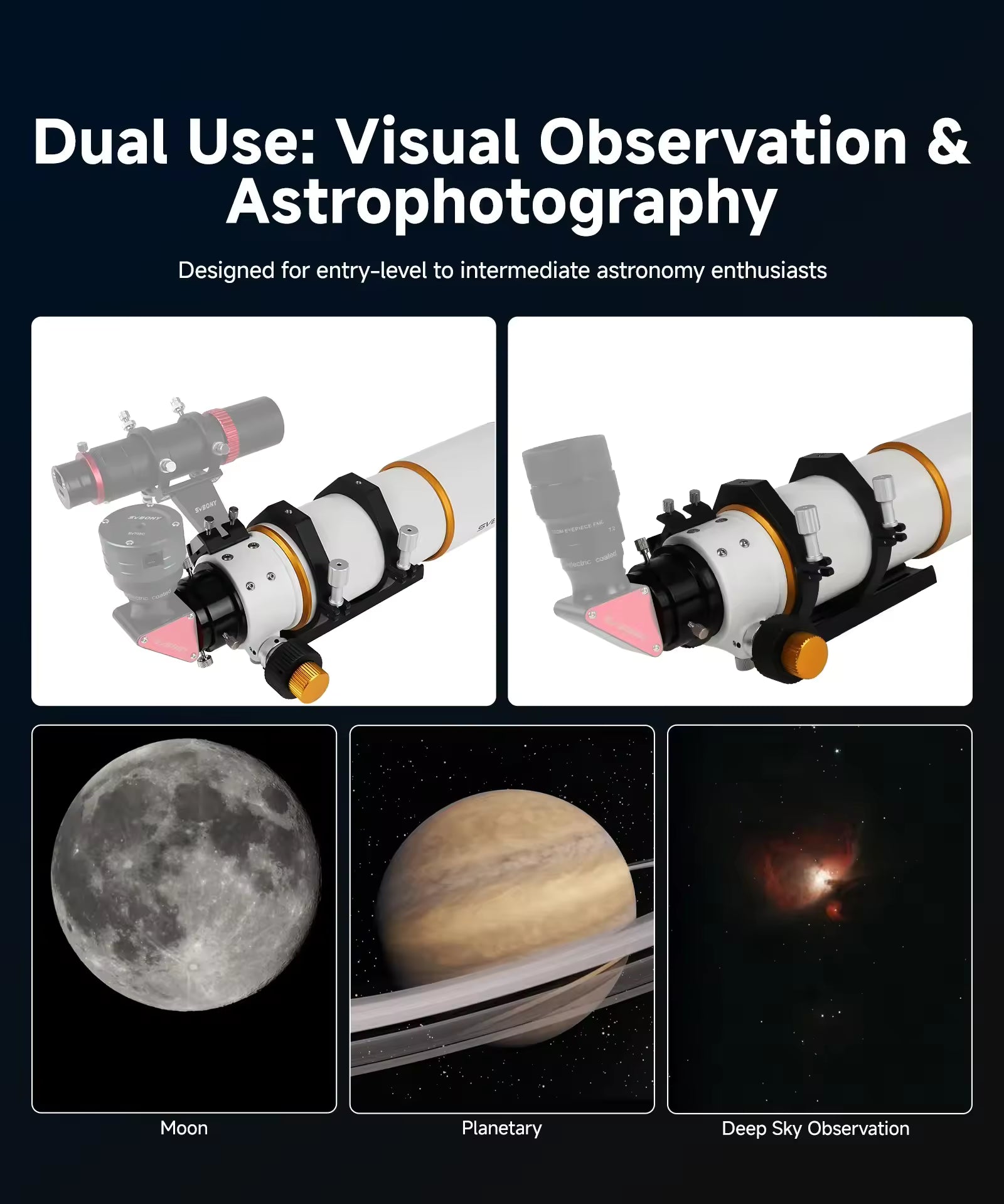

Visual observing and imaging

Plan the accessories around how you will use the telescope: an eyepiece and suitable diagonal for observing, or a compatible camera connection for imaging.

Complete your setup

• Mount and tripod: choose for the complete assembled load and your intended observing or imaging use. Start with our mounts and tripods hub.
• Camera or visual accessories: select a compatible camera connection for imaging, or a suitable diagonal and eyepieces for observing. Confirm that your chosen arrangement reaches focus.
• Power and dew control: plan enough power for the whole session and keep cables clear of moving equipment. Read our setup, power and dew control guides.
• Guiding: assess your exposure length and mount performance before adding a guiding system.

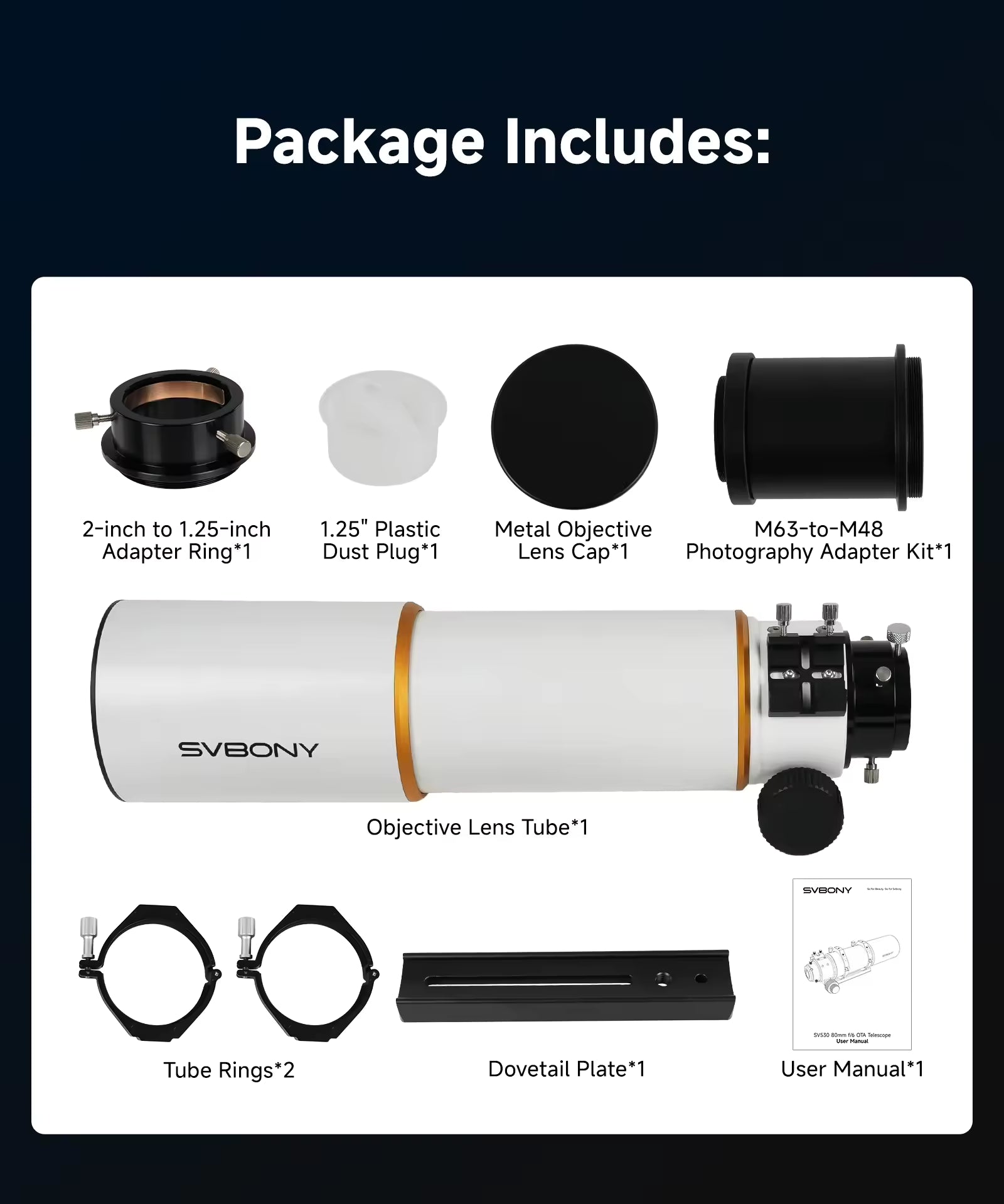

What’s in the box?

SVBONY’s supplied package illustration identifies the following items:

• SV530 optical tube assembly
• Two tube rings and one dovetail plate
• 2-inch to 1.25-inch adapter ring
• 1.25-inch plastic dust plug and metal objective lens cap
• M63-to-M48 photography adapter kit
• User manual

Frequently asked questions

Is this a complete telescope kit?

This listing is for the SV530 OTA configuration. Budget separately for a mount, tripod, camera and observing accessories. Contact us to confirm any specific accessory you require in the supplied package.

Is the objective a triplet?

The objective is an ED doublet. The third optical element provides field flattening elsewhere in the optical system.

Do I need to buy an autofocus motor immediately?

You can begin with manual focusing. Autofocus becomes useful when you want software to refocus during a session; check the motor, bracket and control-system requirements before choosing an upgrade.

Can you help me choose the rest of the equipment?

Contact Dark Clear Skies with your existing equipment, main targets and total budget. We can help you plan the next additions to your setup.
