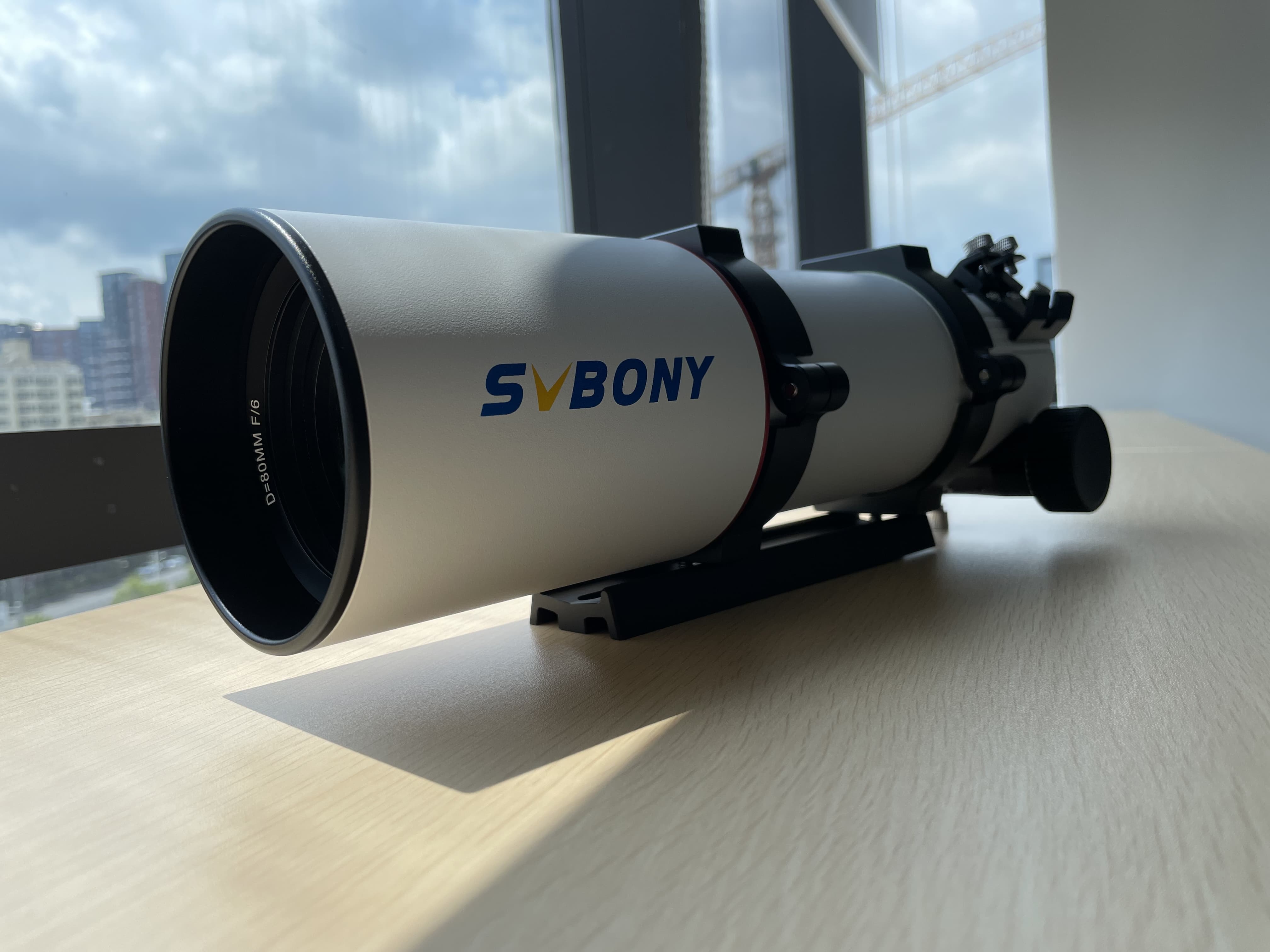

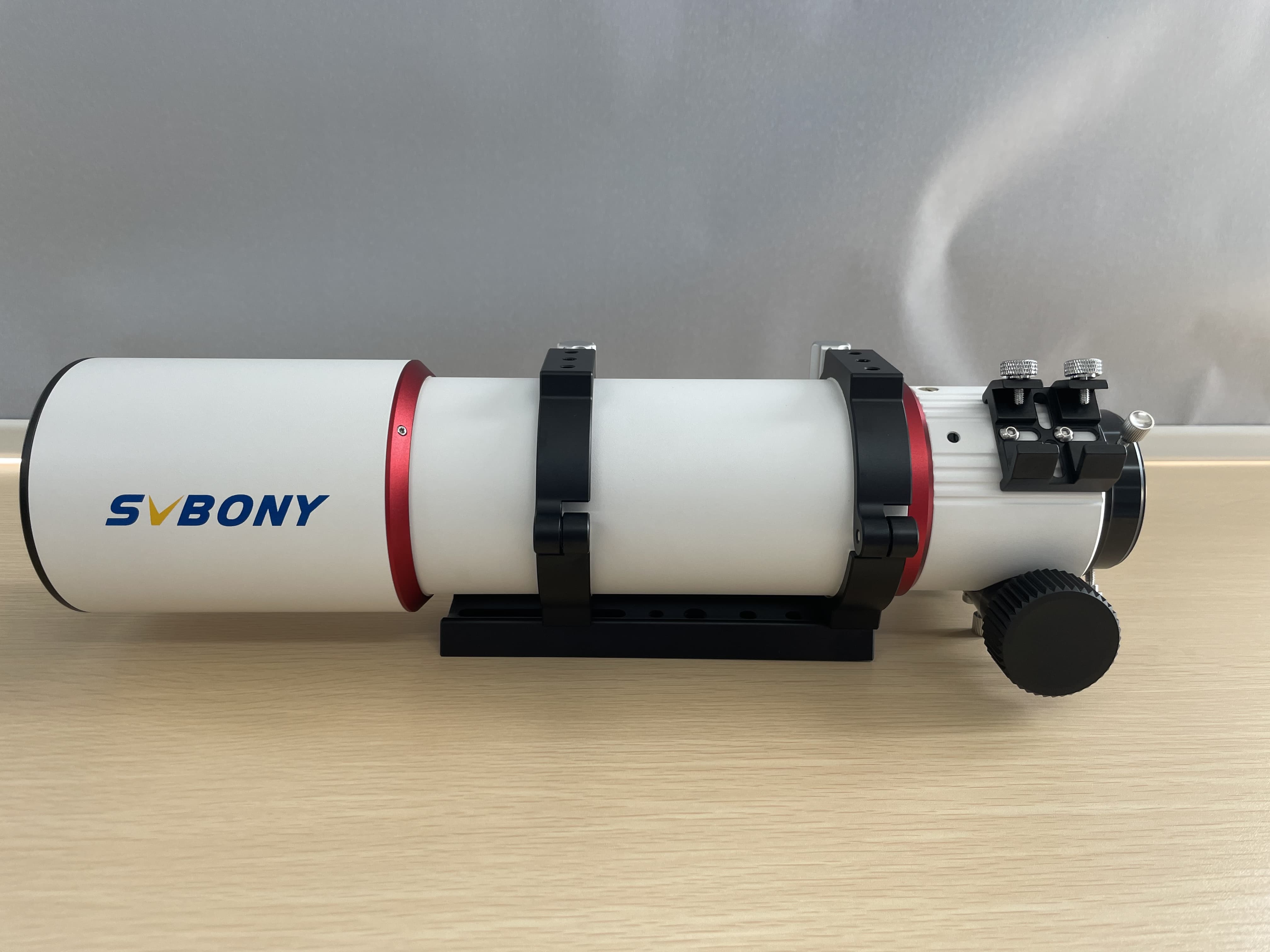

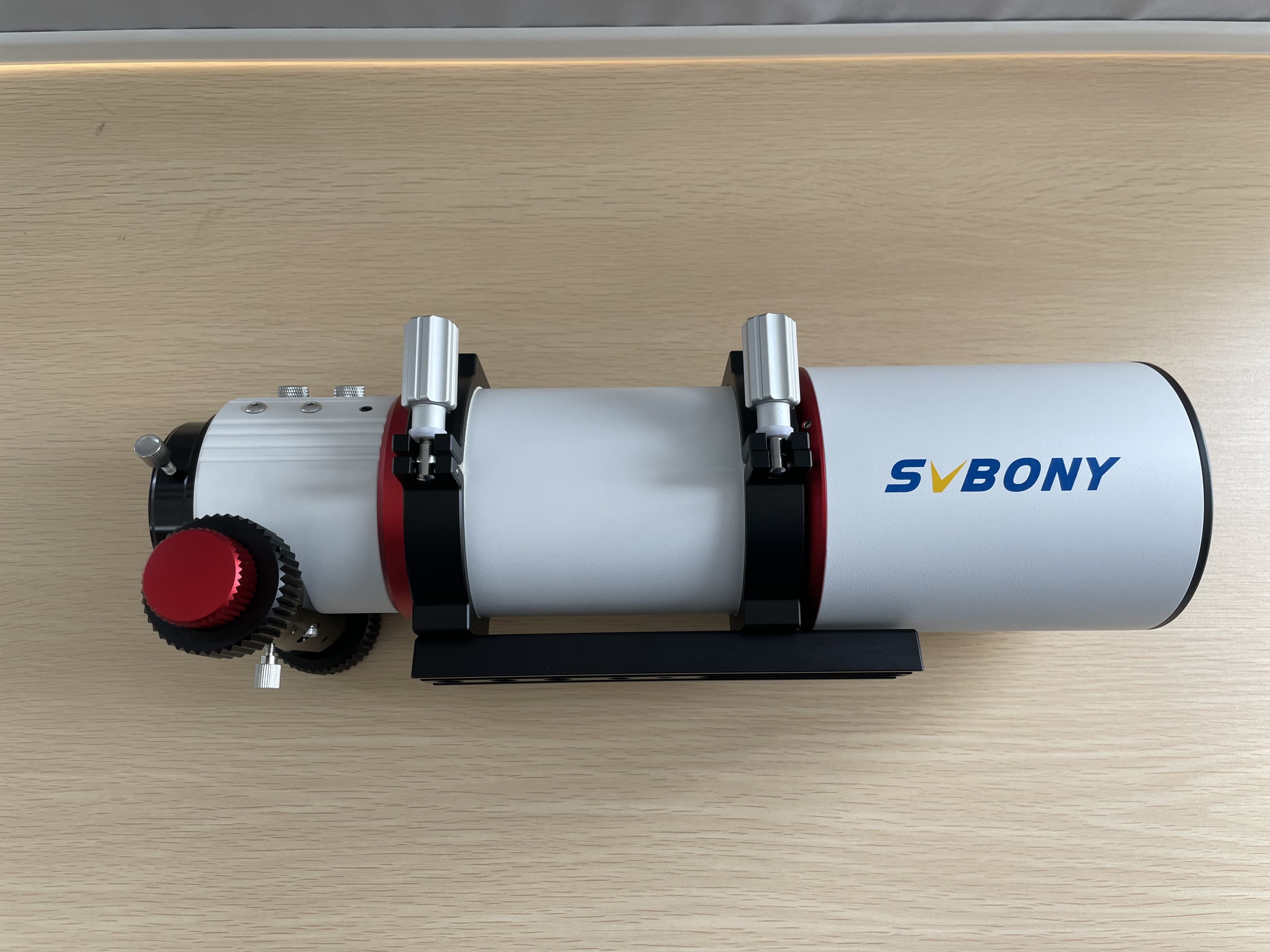

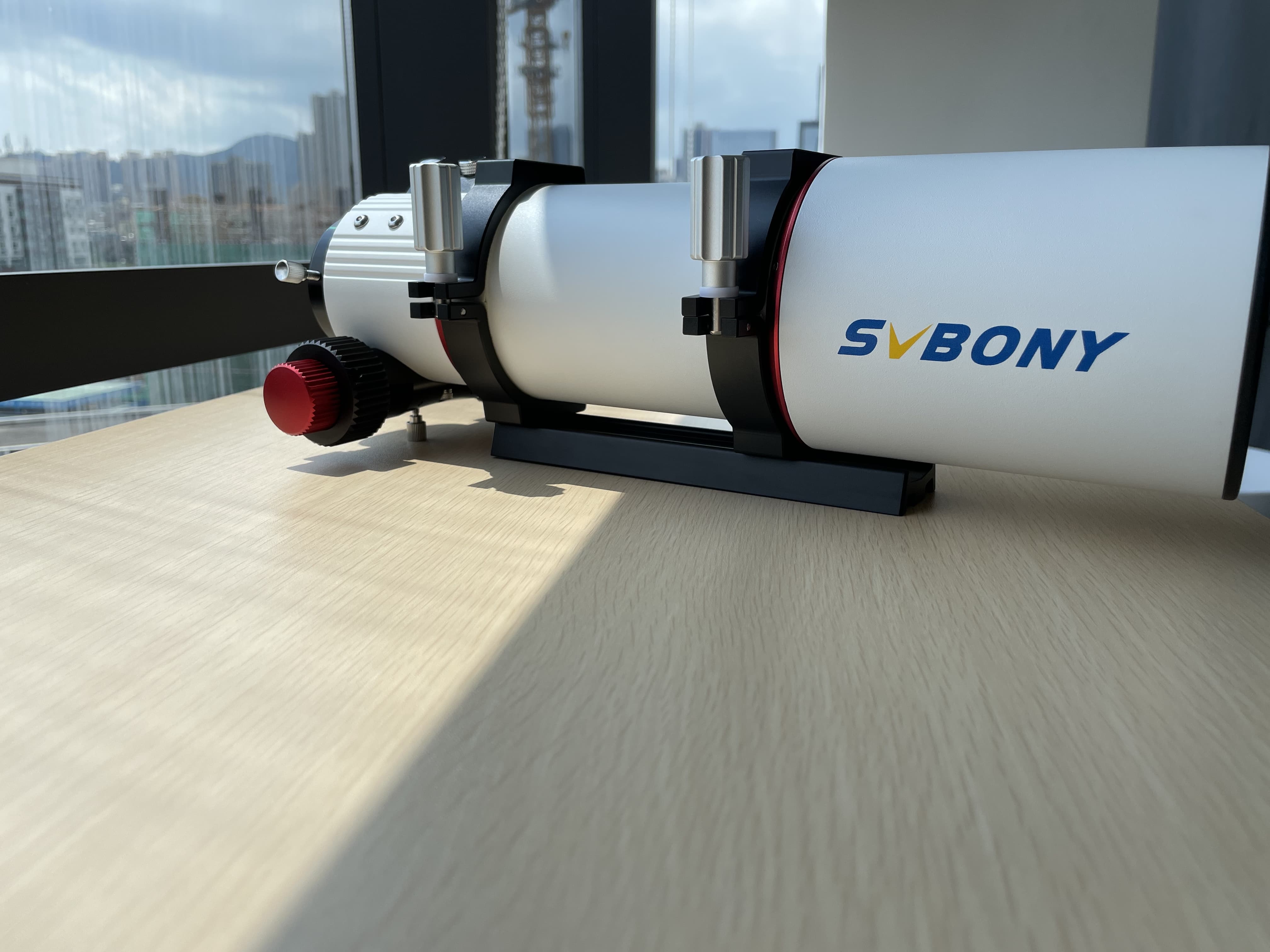

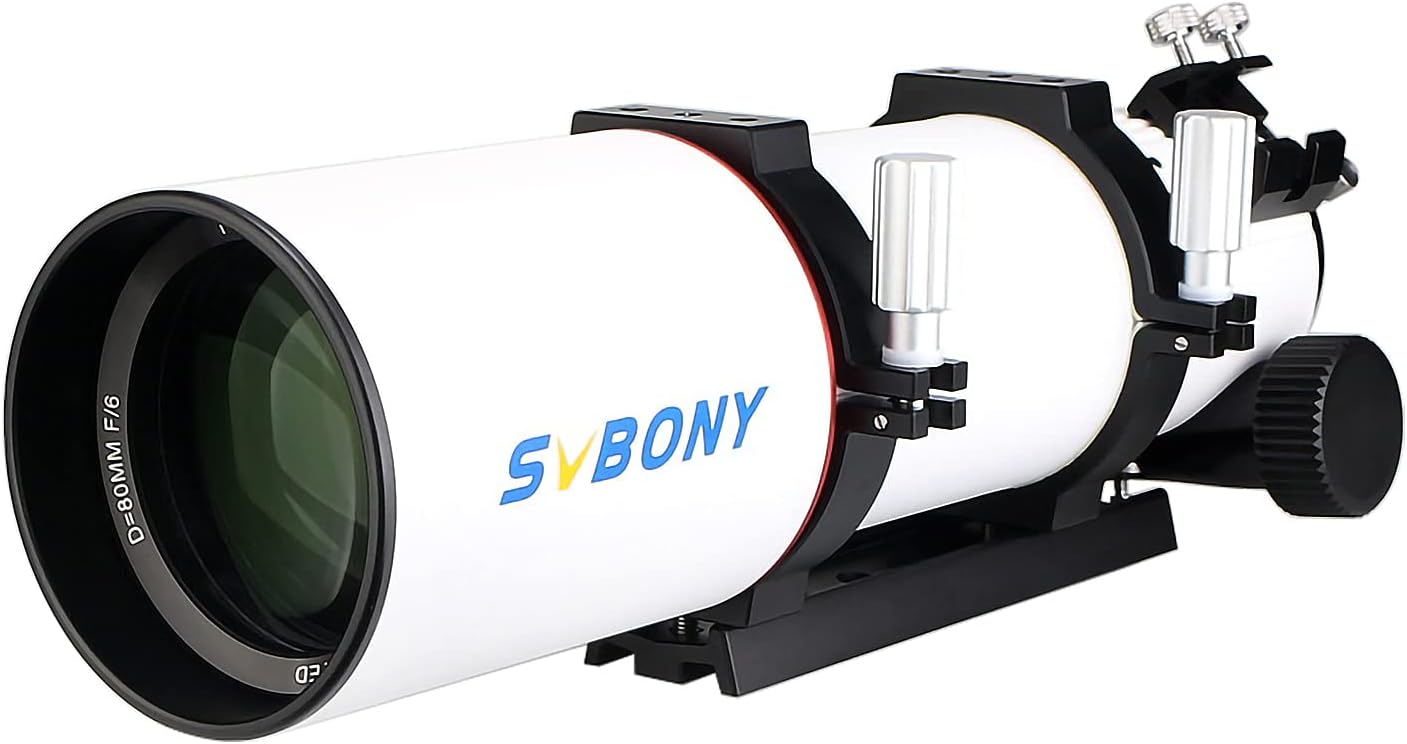

SVBONY SV550 80mm f/6 Triplet APO Refractor OTA

The SV550 80mm uses an air-spaced triplet objective with an S-FPL51 ED element and a 480mm focal length. It is a compact imaging and visual OTA for users building a refractor setup around a suitable mount, camera or eyepiece arrangement.

80mmAperture
480mm · f/6Focal length / ratio
Triplet APOS-FPL51 ED element

SVBONY SV550 APO Triplet Refractor 80mm F6 Telescope OTA For Deep Sky Astrophotography and Visual Observation

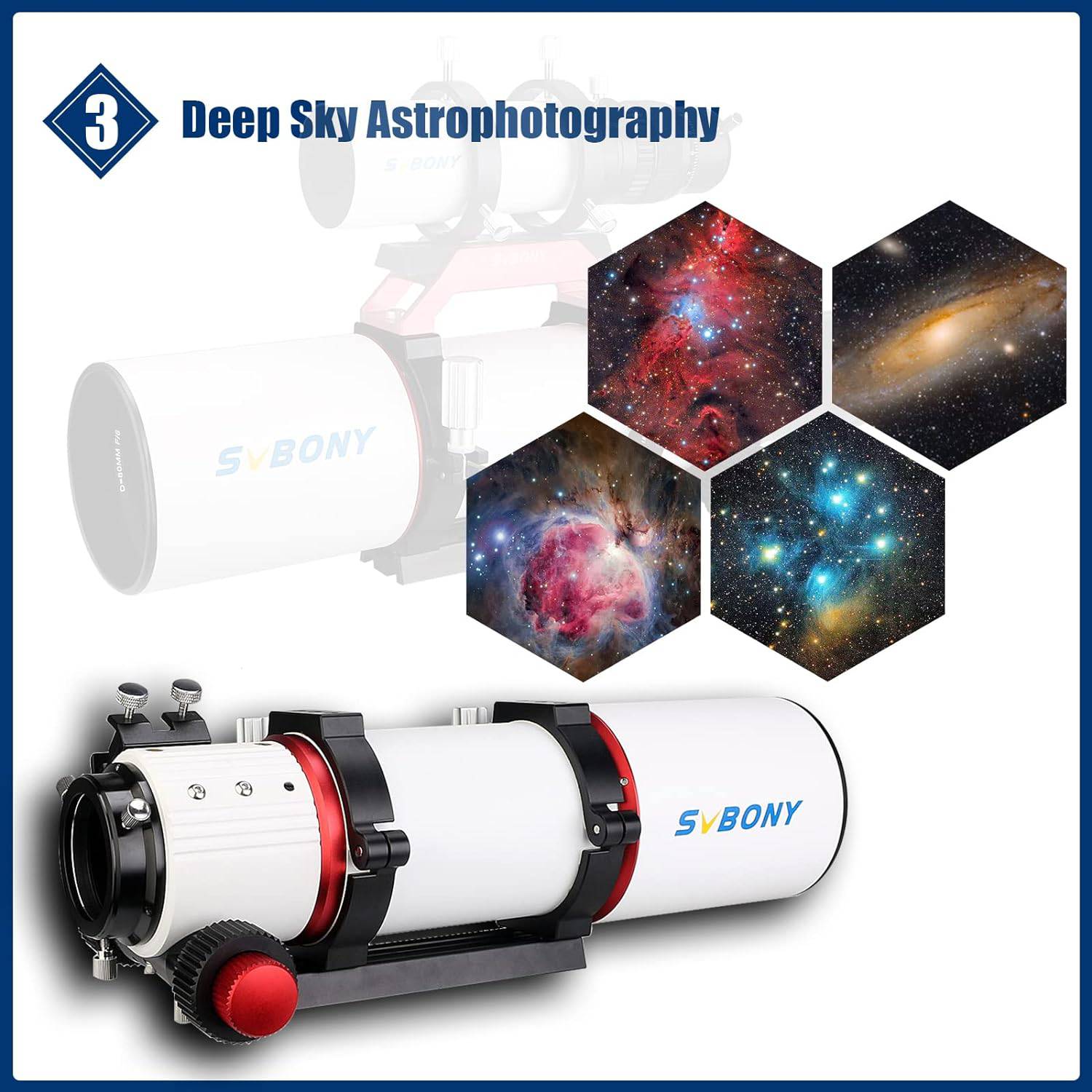

The SV550 APO Triplet refractor with 80mm aperture and fast f/6 focal ratio, it is definitely a great travel telescope for observation and astrophotography.

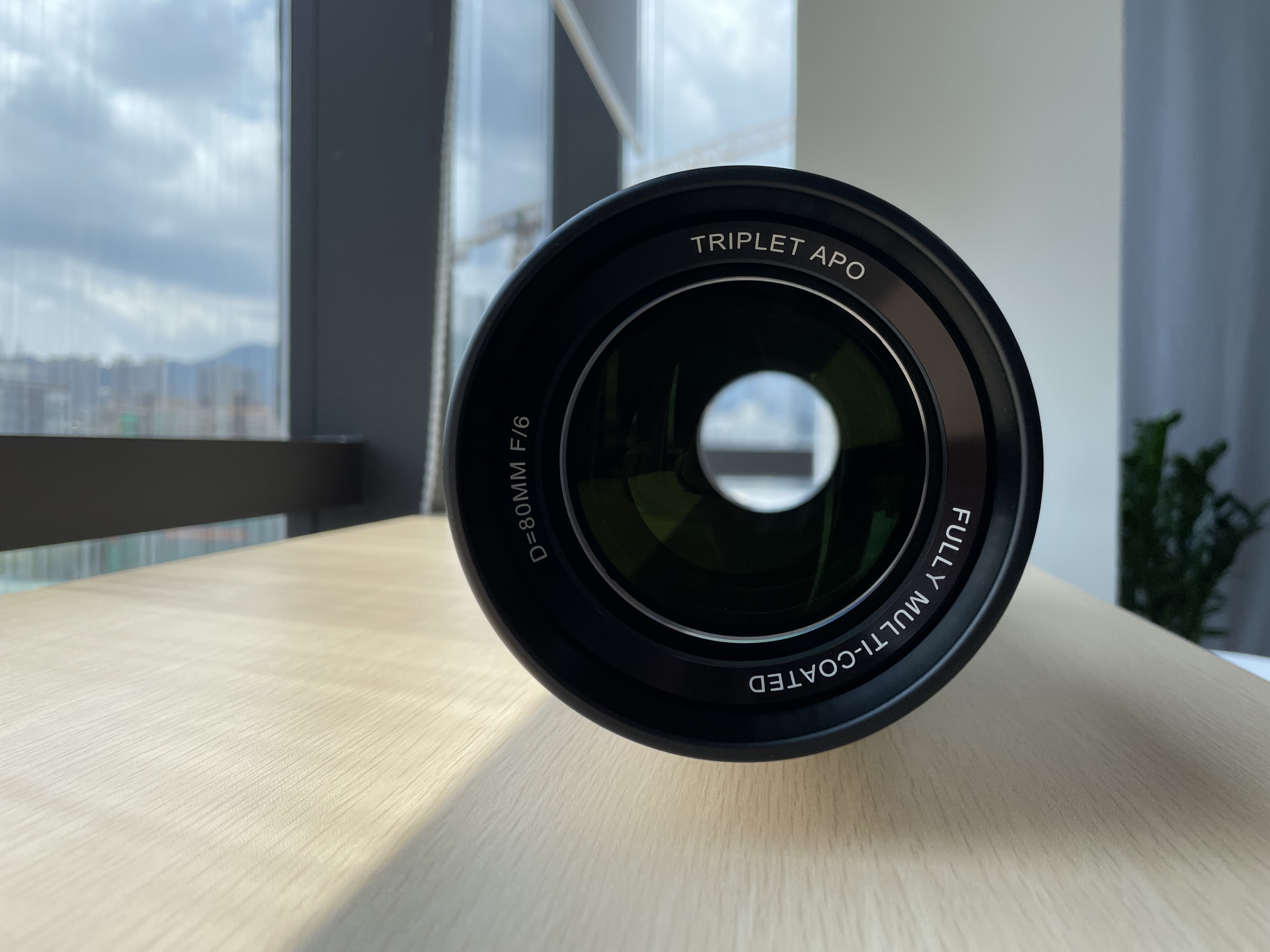

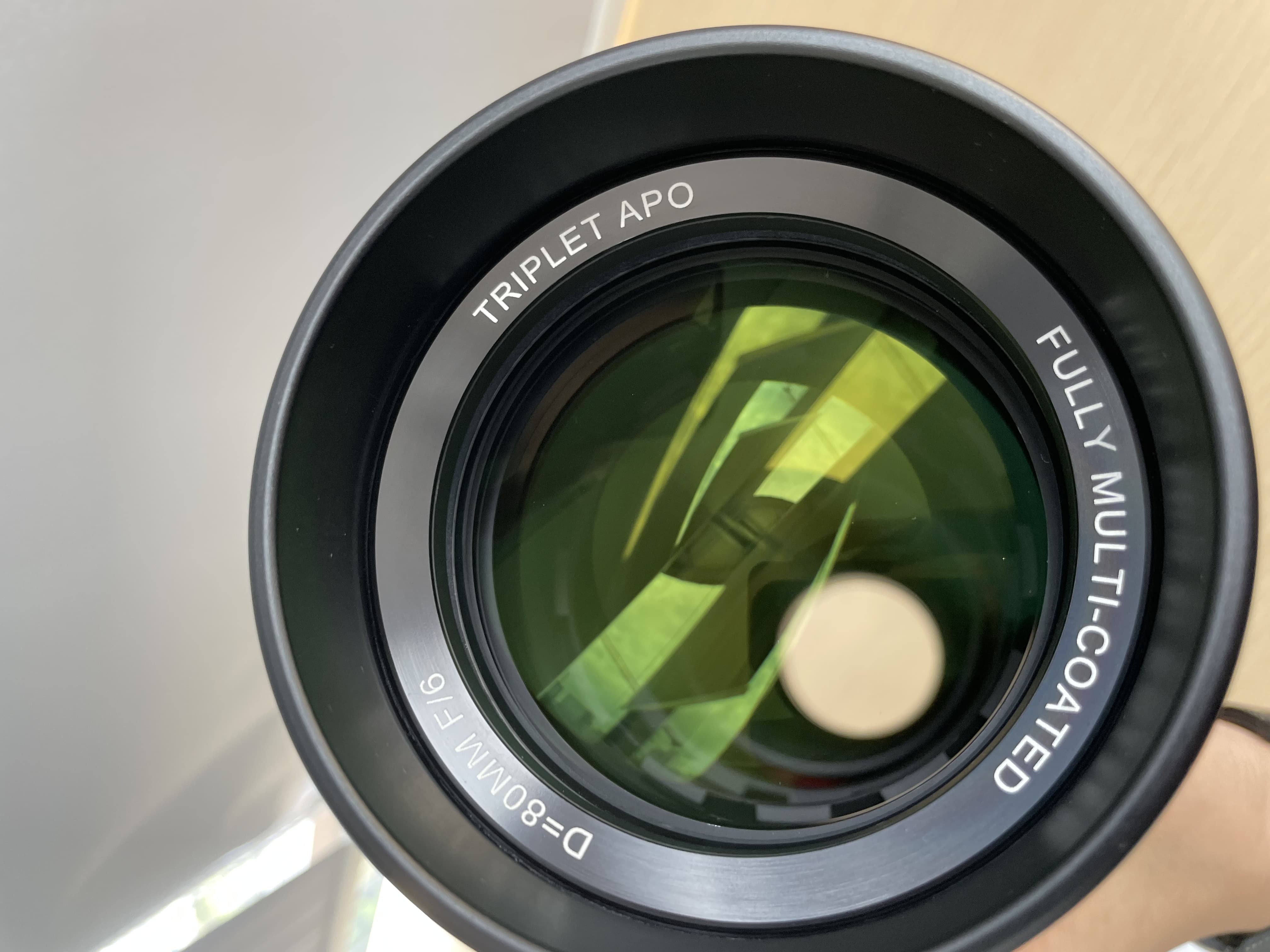

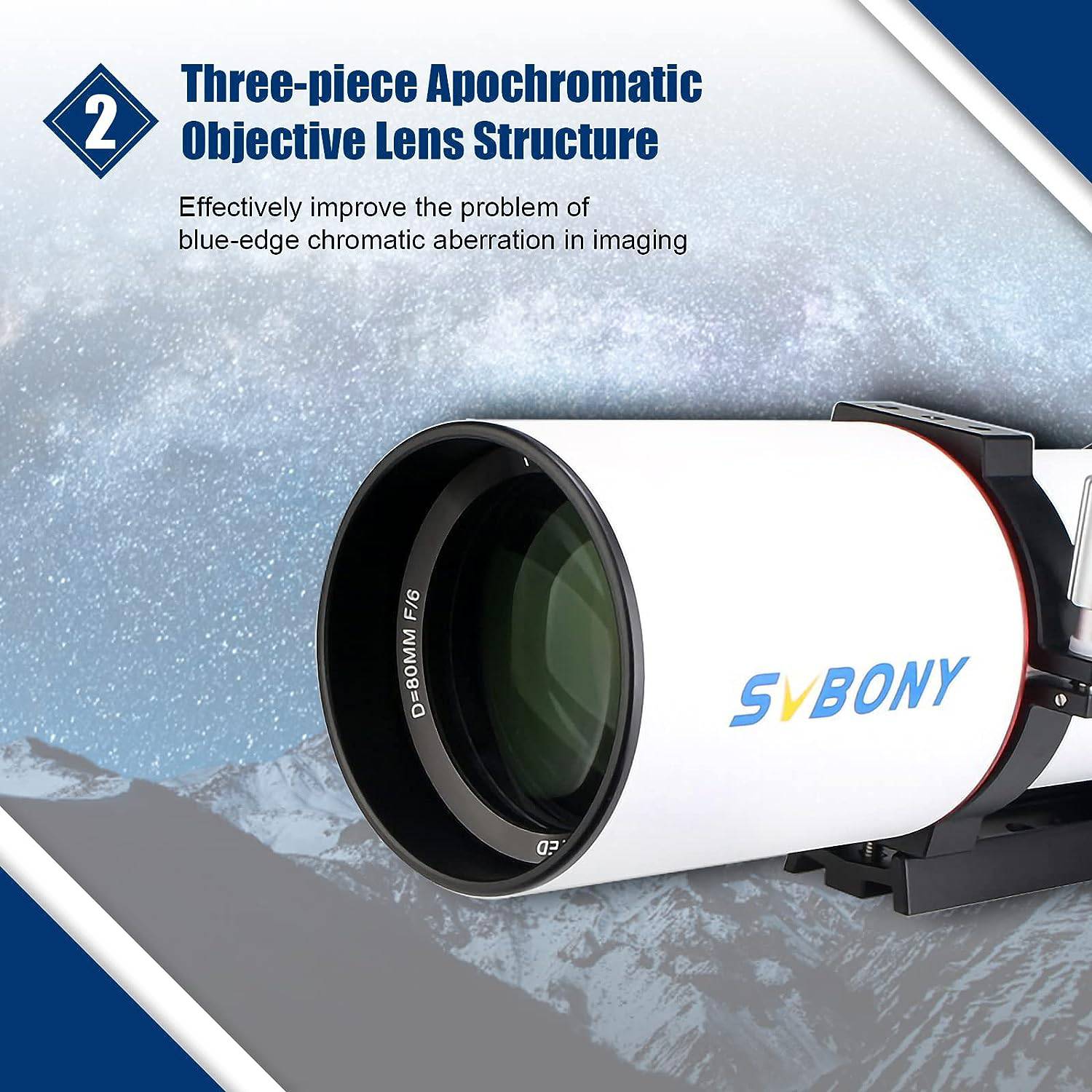

Apochromatic 3-element Objective

The air-spaced triplet objective combines an S-FPL51 ED element with two correcting elements to reduce chromatic aberration and colour fringing.

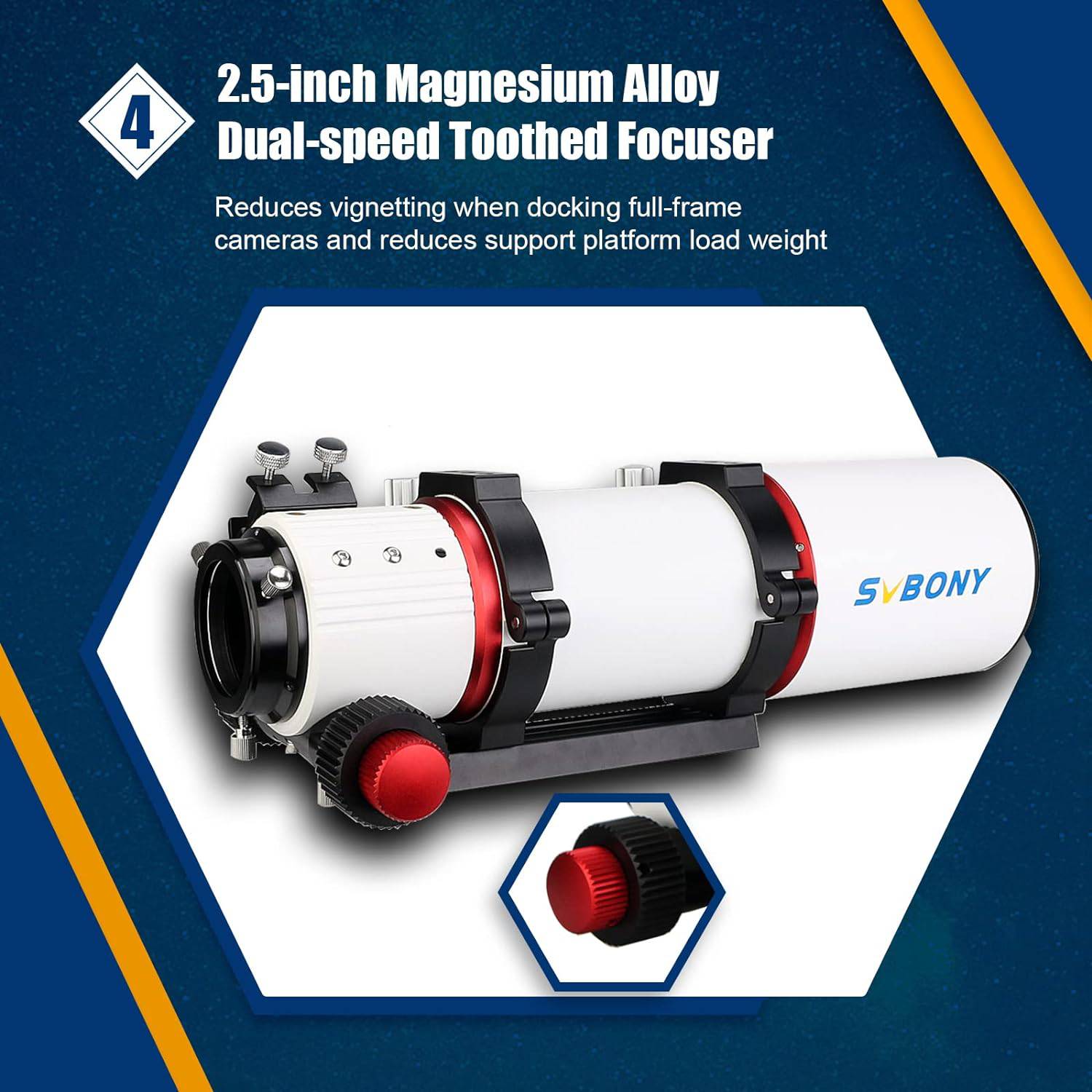

2.5 inches 1:10 Dual-speed Focuser

The 2.5-inch focusing base can effectively reduce the vignetting problem when connecting to a full-frame camera, and the FPL51 APO can improve the quality of the captured images.

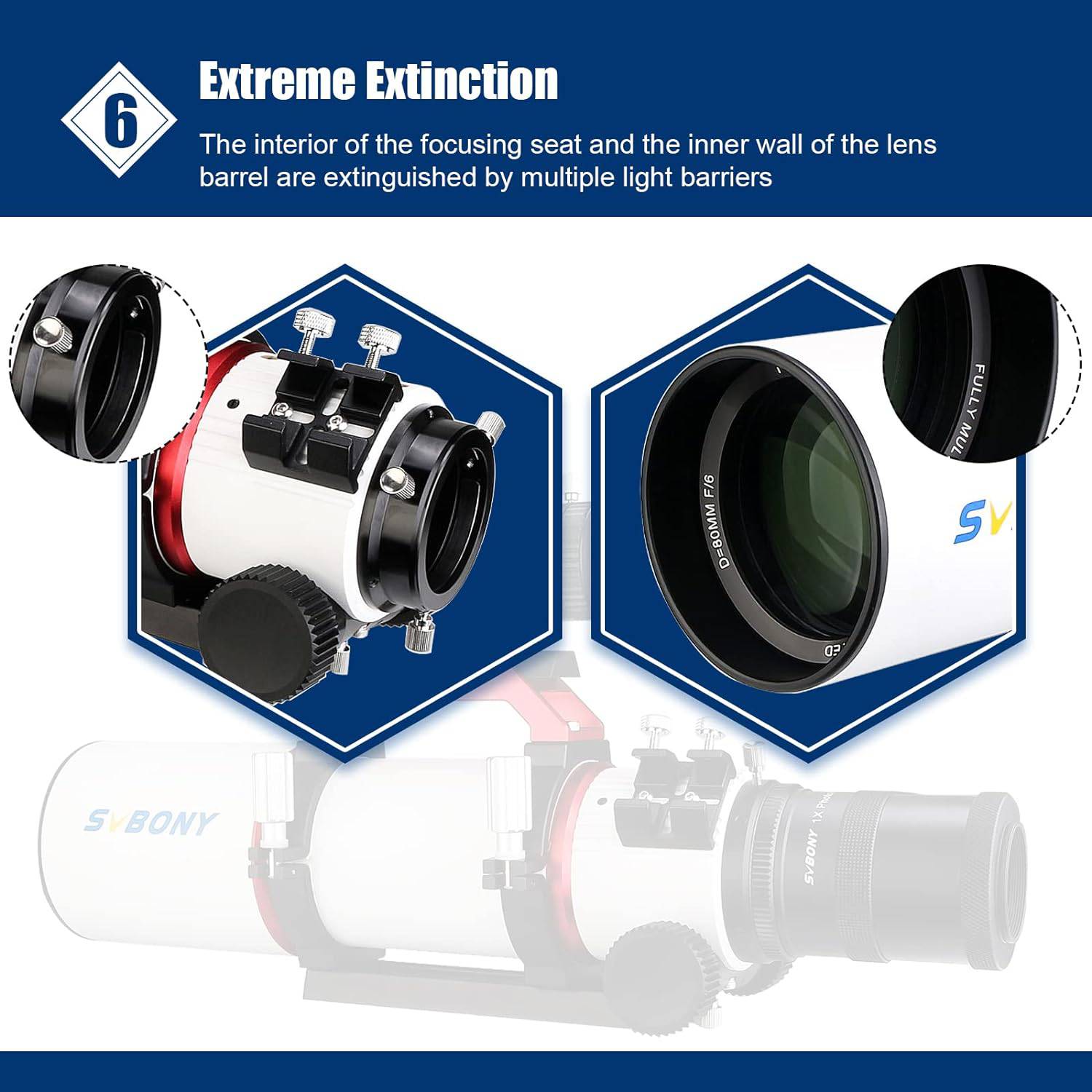

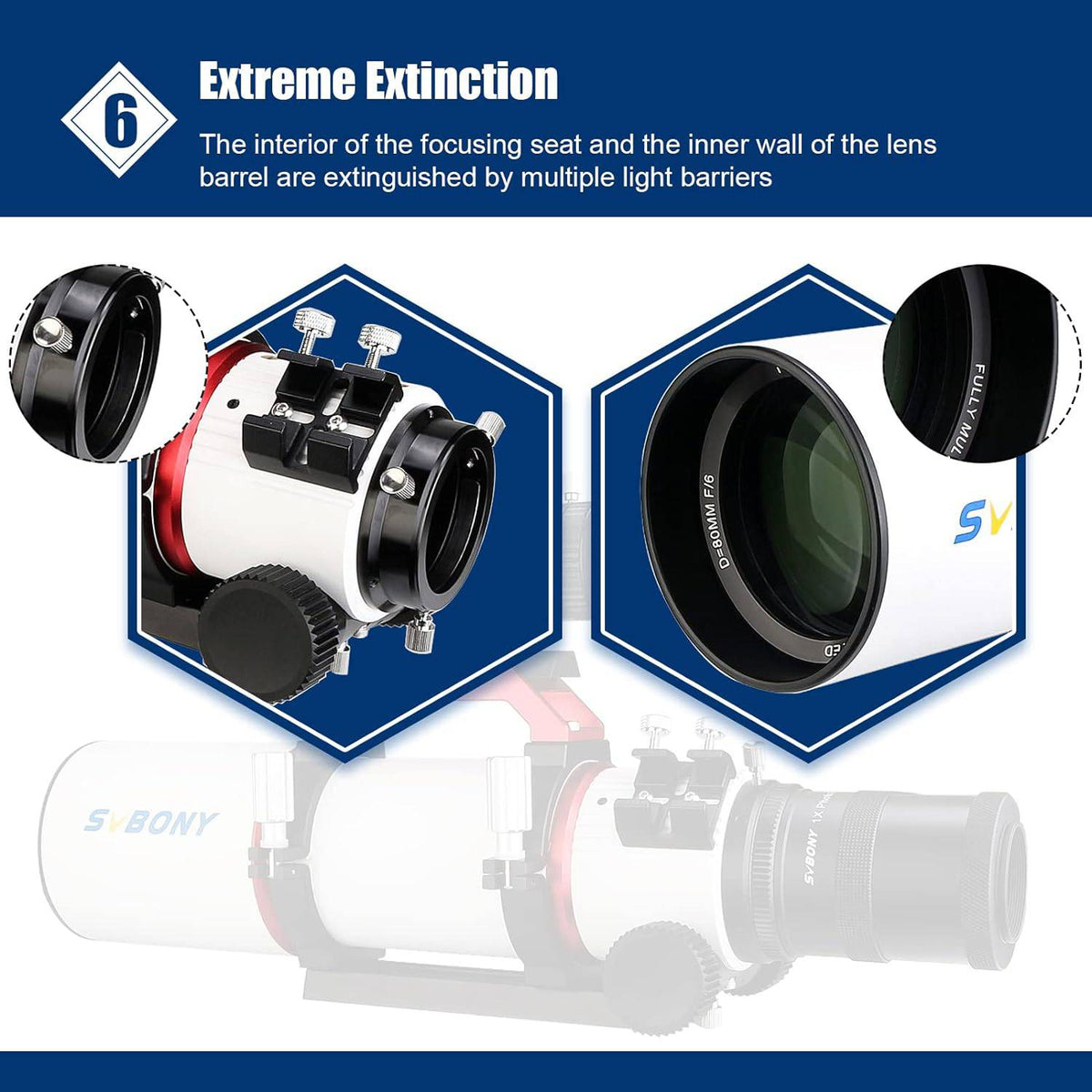

Stray-light control

Four internal baffles help control stray light within the tube and preserve image contrast.

480mm focal length


To remove the 2-inch adapter from the focuser, you will need to loosen the three small screws on the side of the adapter (as indicated in the red circle in the image). Please use an appropriate Allen wrench to gently loosen these screws; there is no need to completely remove them down. Once the three screws are sufficiently loosened, you can turn the adapter counterclockwise to detach it, allowing you to proceed with installing the SV209 flat field lens.

Additionally, if you experience any loosening of the focuser adapter during use, you can also adjust the tightness of the small screws to secure it properly.

Plan the complete imaging train

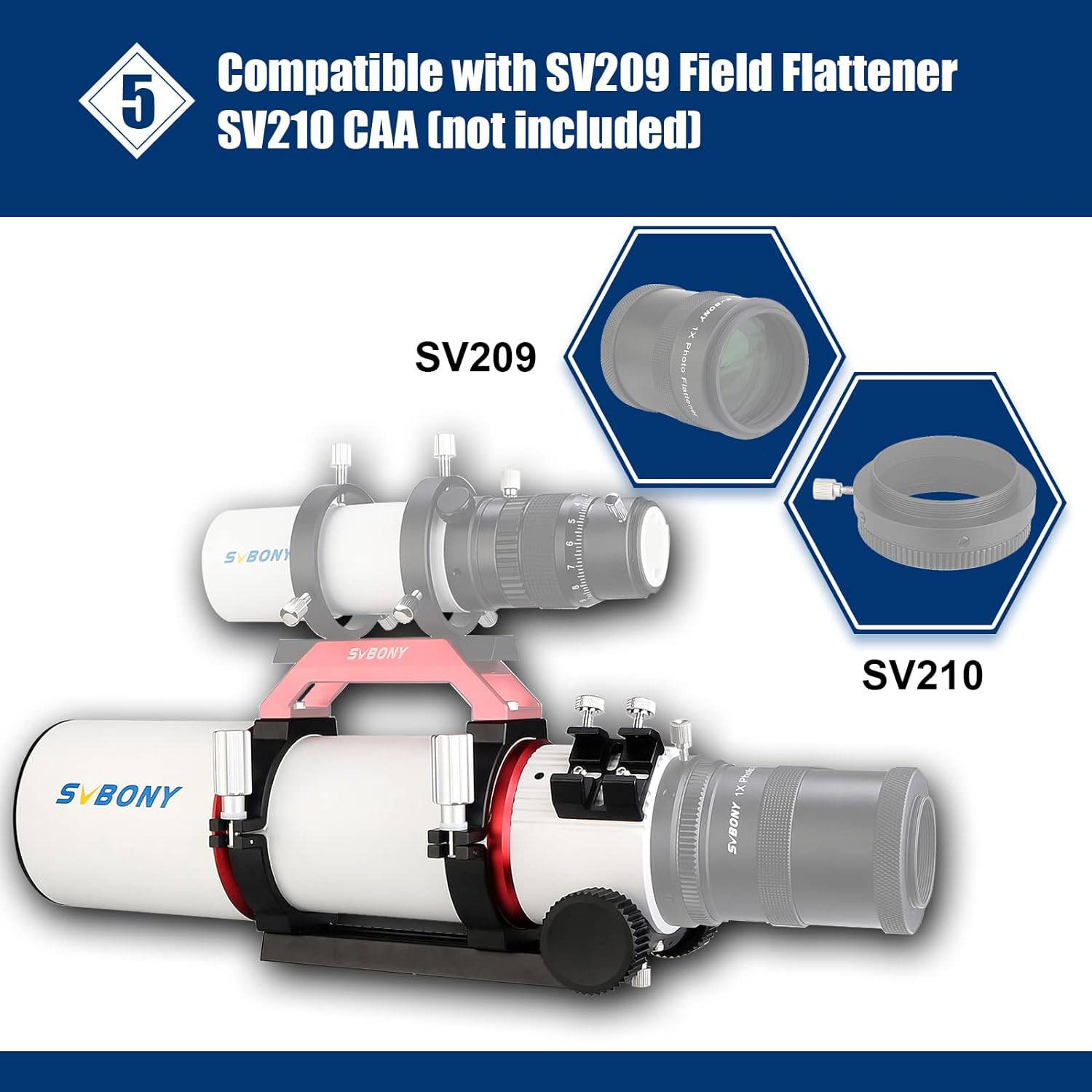

The OTA needs a suitable mount, camera connection and focusing arrangement. For imaging across a larger sensor, consider the SV209 corrector designed for the 80mm SV550 and follow its spacing requirements; a corrector is a separate item unless explicitly included in your selected package. Check the mount capacity using the total weight of the telescope, camera, guide equipment and accessories.

SVBONY SV550 80mm f/6 Triplet APO Refractor OTA

Sale price £499.00
Or £166.33 × 3 interest-free with PayPal
£699.00 £200.00 OFF

F9381A
