Dark Clear Skies · SVBONY

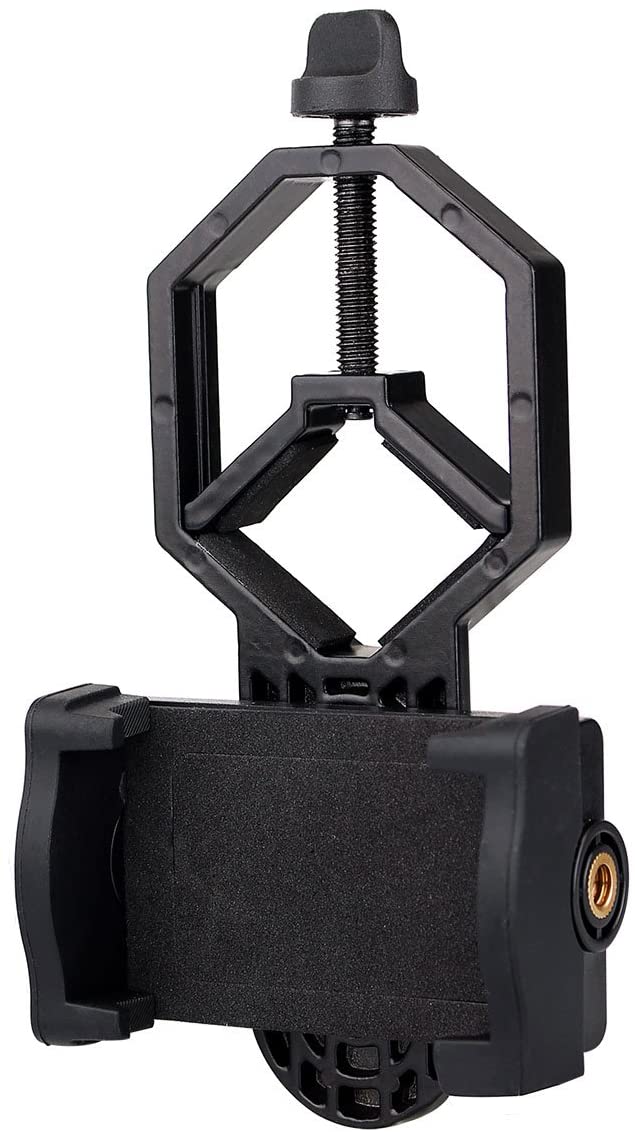

Svbony Telescope Phone Mount Adapter

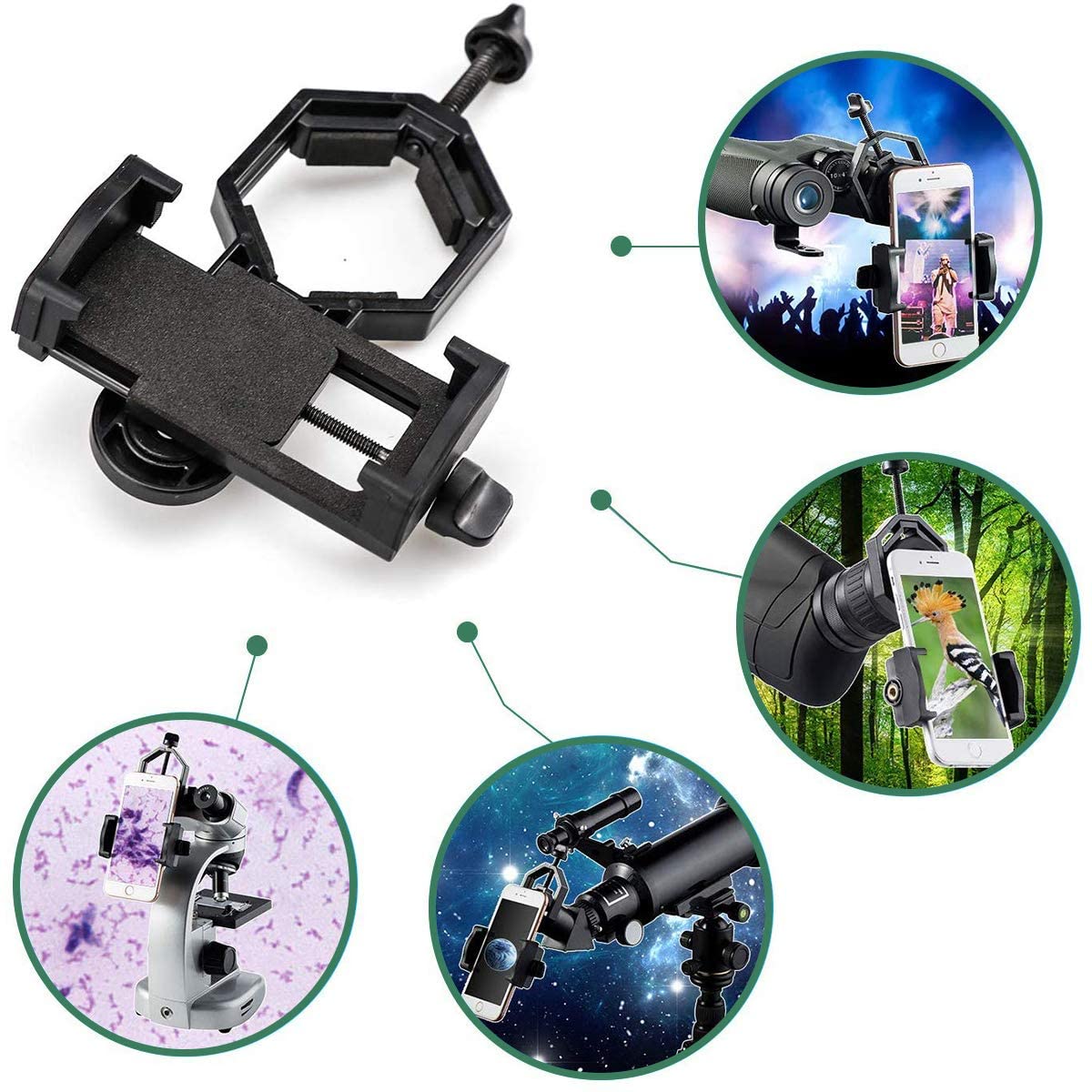

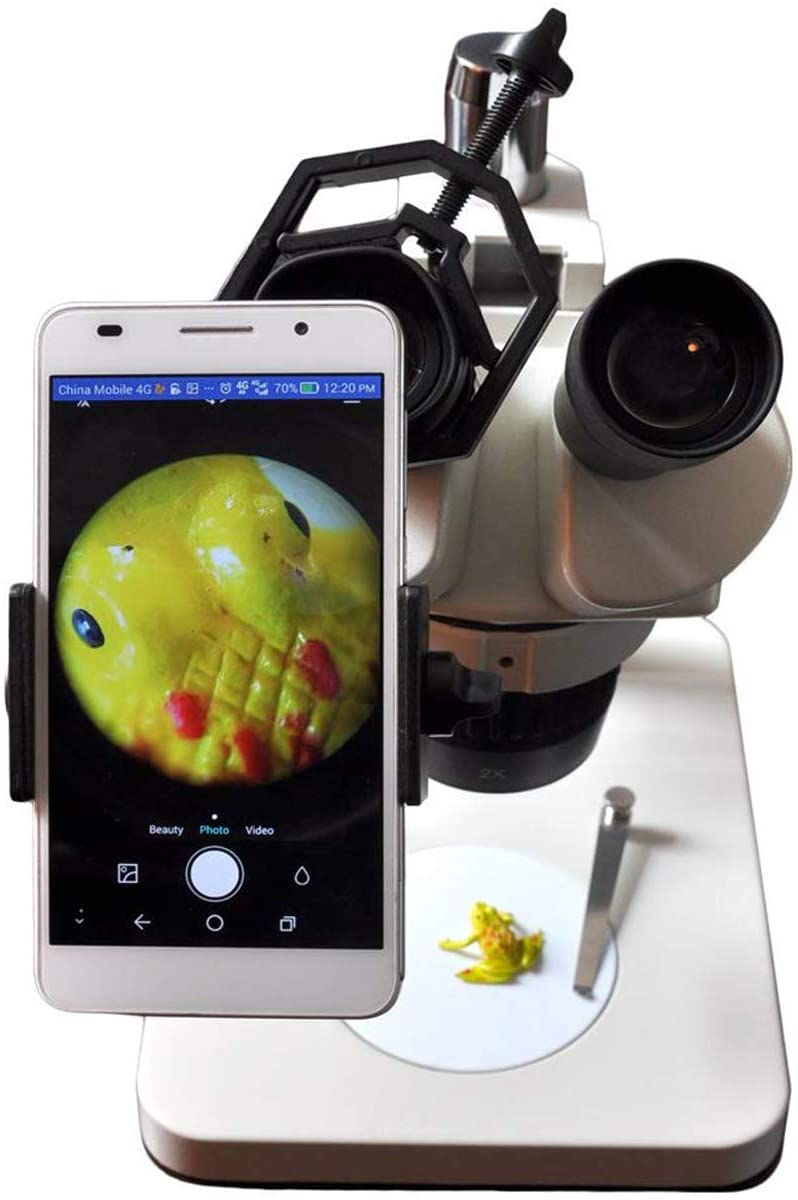

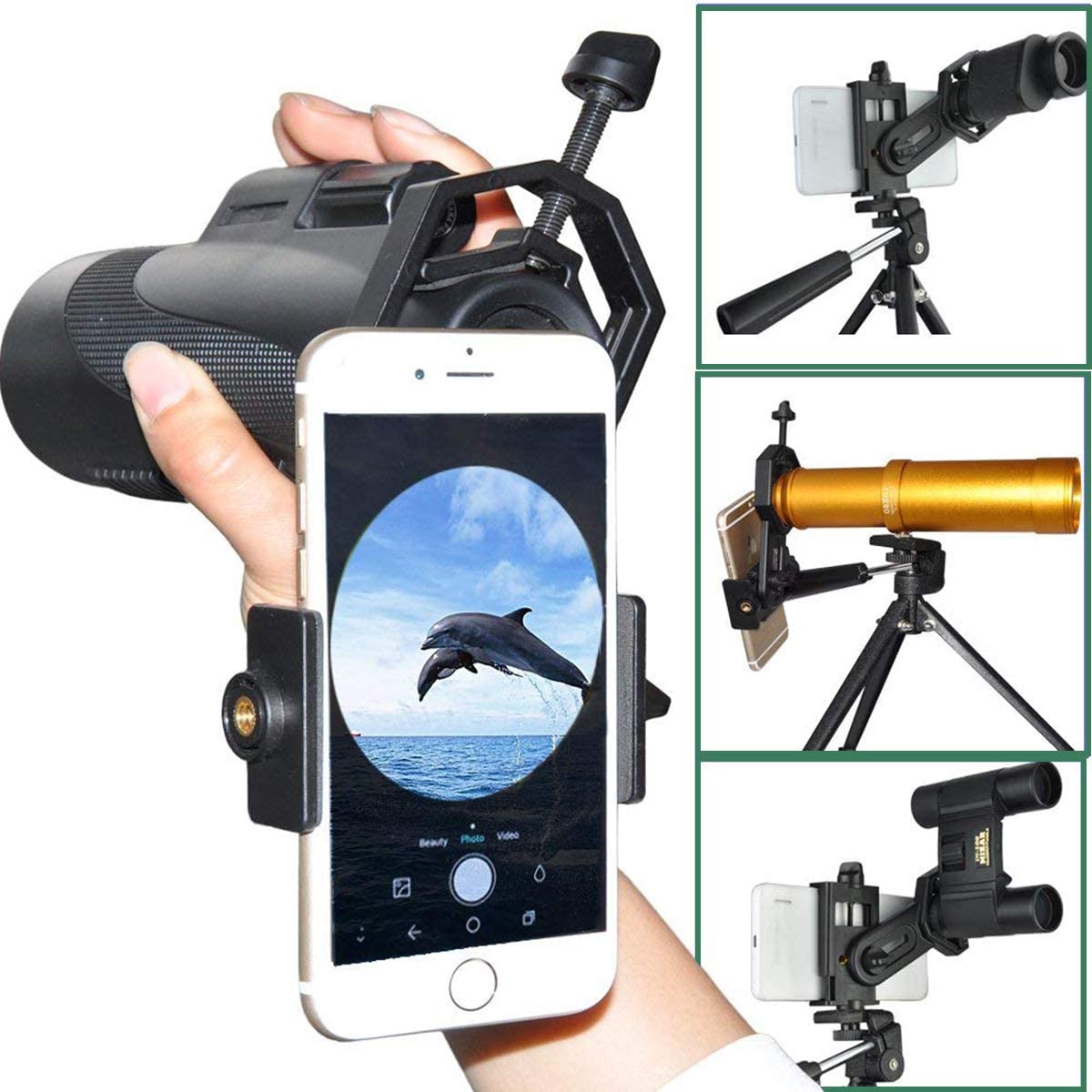

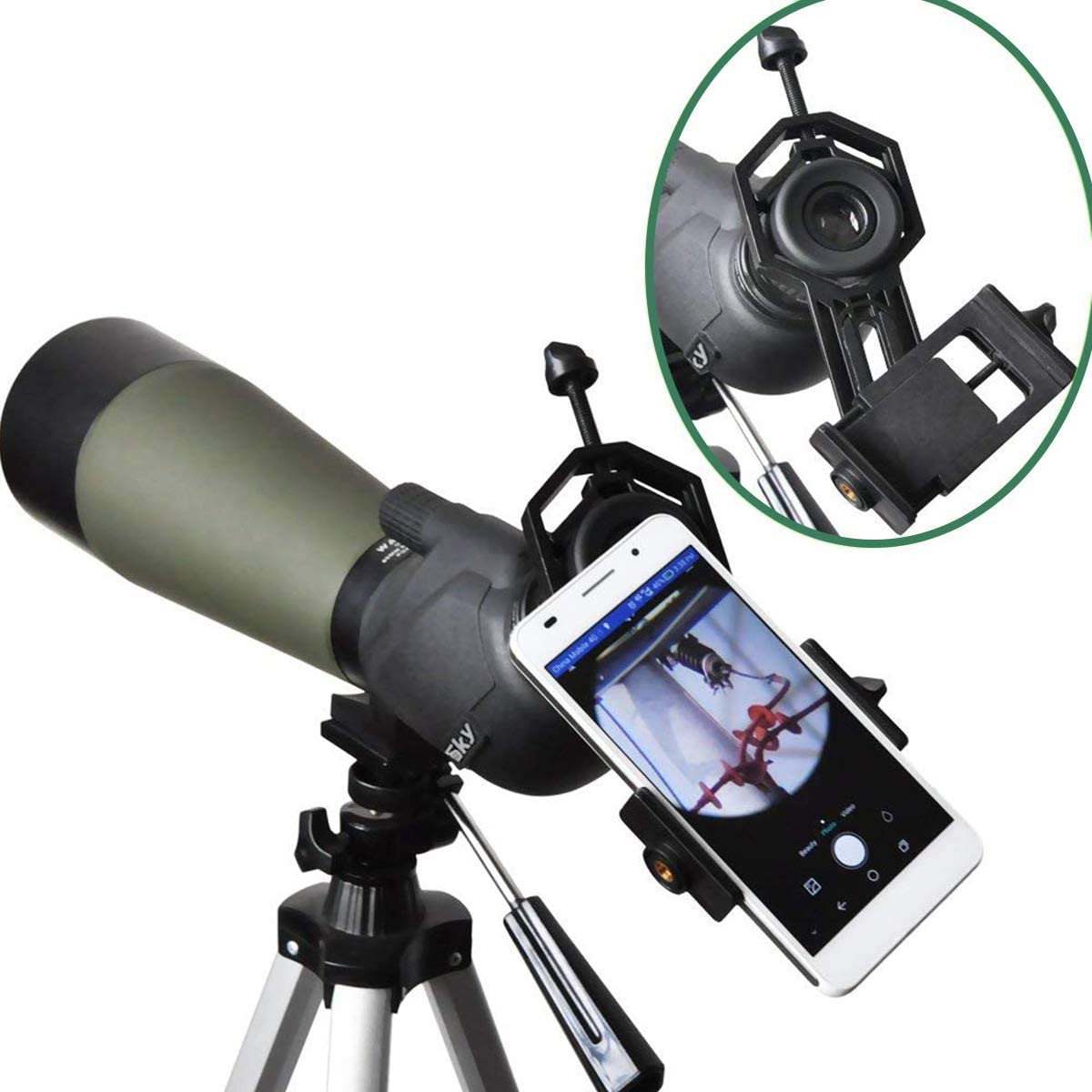

The SVBONY W2546A phone adapter holds a compatible smartphone over an optical eyepiece for photos and video. Its adjustable clamps fit 55–100 mm phone widths and 25–48 mm eyepiece outside diameters, helping you choose by the dimensions that determine a usable fit.

55–100 mmPhone width
25–48 mmEyepiece outside diameter
360°Phone clip rotation

Secure support with protected contact points

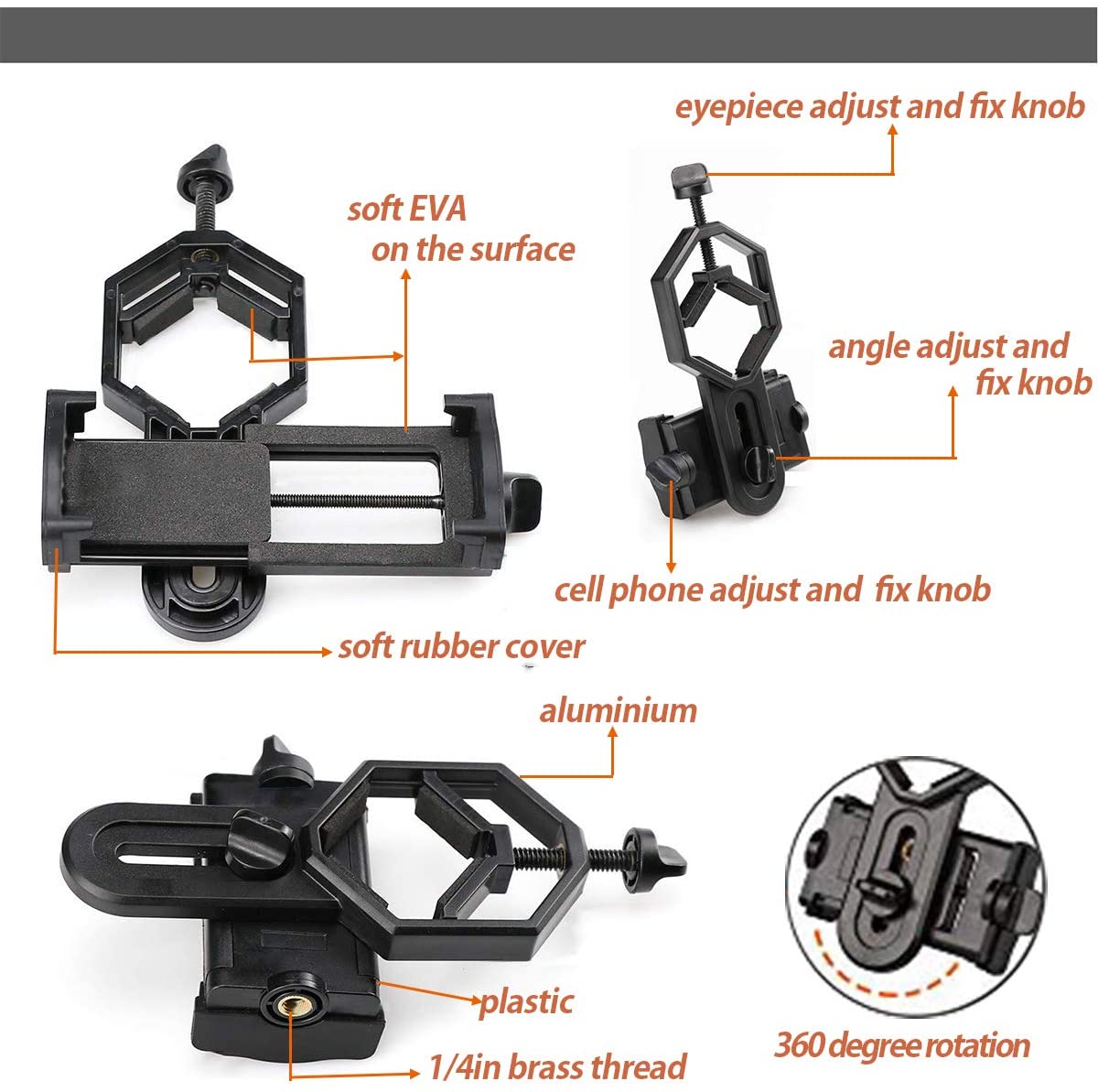

The aluminium main body supports a screw-adjusted phone clamp. Rubber and EVA contact pads cushion the contact points against the phone and eyepiece. The rotating phone clip lets you choose portrait or landscape framing, and the 1/4-inch tripod connection provides an additional support option where the arrangement allows.

spotting scope smartphone adapter telescope smartphone adapter telescope smartphone adapter spotting scope smartphone adapter mount spotting scope smartphone adapter mount spotting scope smartphone adapter mount telescope smartphone adapter

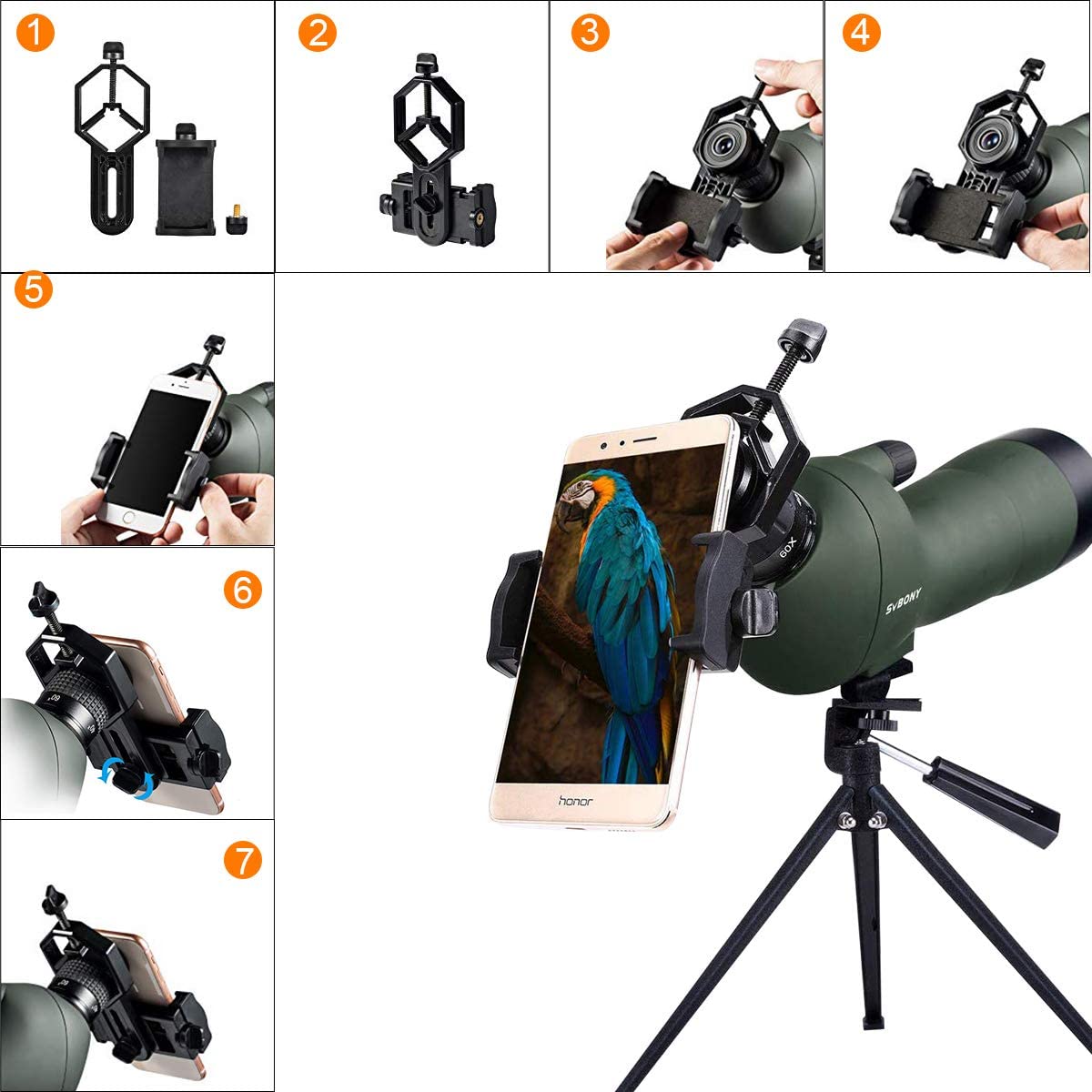

Align the phone with the eyepiece

  1. Assemble the adapter and secure its eyepiece clamp around a compatible eyepiece body.
  2. Adjust the phone clamp to the handset width and secure the phone without pressing its side buttons.
  3. Move the phone so its active camera lens is centred over the eyepiece.
  4. Tighten the adjustment, then focus the telescope or spotting scope while watching the phone screen.
  5. Use a timer or remote shutter to reduce vibration during a photograph.

Precise alignment takes some adjustment, particularly with multiple-camera phones. If the phone automatically changes camera lenses, select the intended lens before completing alignment.

Compatibility and setup

Measure the outside of the eyepiece where the clamp will sit, not just its insertion-barrel size. A 1.25-inch telescope eyepiece may still have a wider body that does not fit. Check the phone with its case fitted and ensure the camera can reach the eyepiece centre. SVBONY excludes the SV406P, SA405 and SA401 series from this adapter’s compatibility.

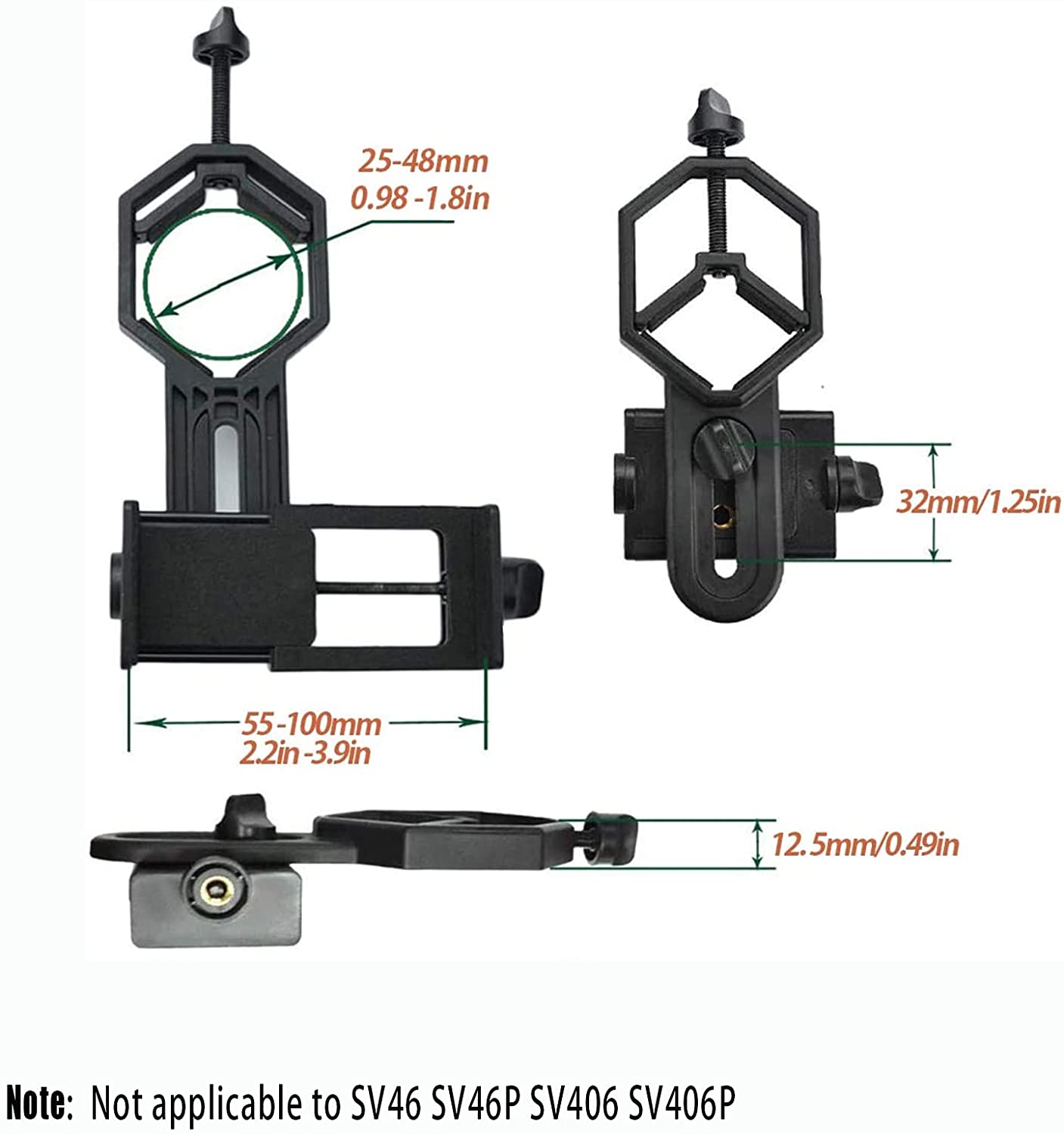

Technical specifications

Specification Details
Model / SKU W2546A
Phone clamp range 55–100 mm width
Eyepiece clamp range 25–48 mm outside diameter
Main body Aluminium alloy
Contact protection Rubber / EVA pads
Phone clip rotation 360°
Tripod connection 1/4 inch
Weight 106 g
Colour Black

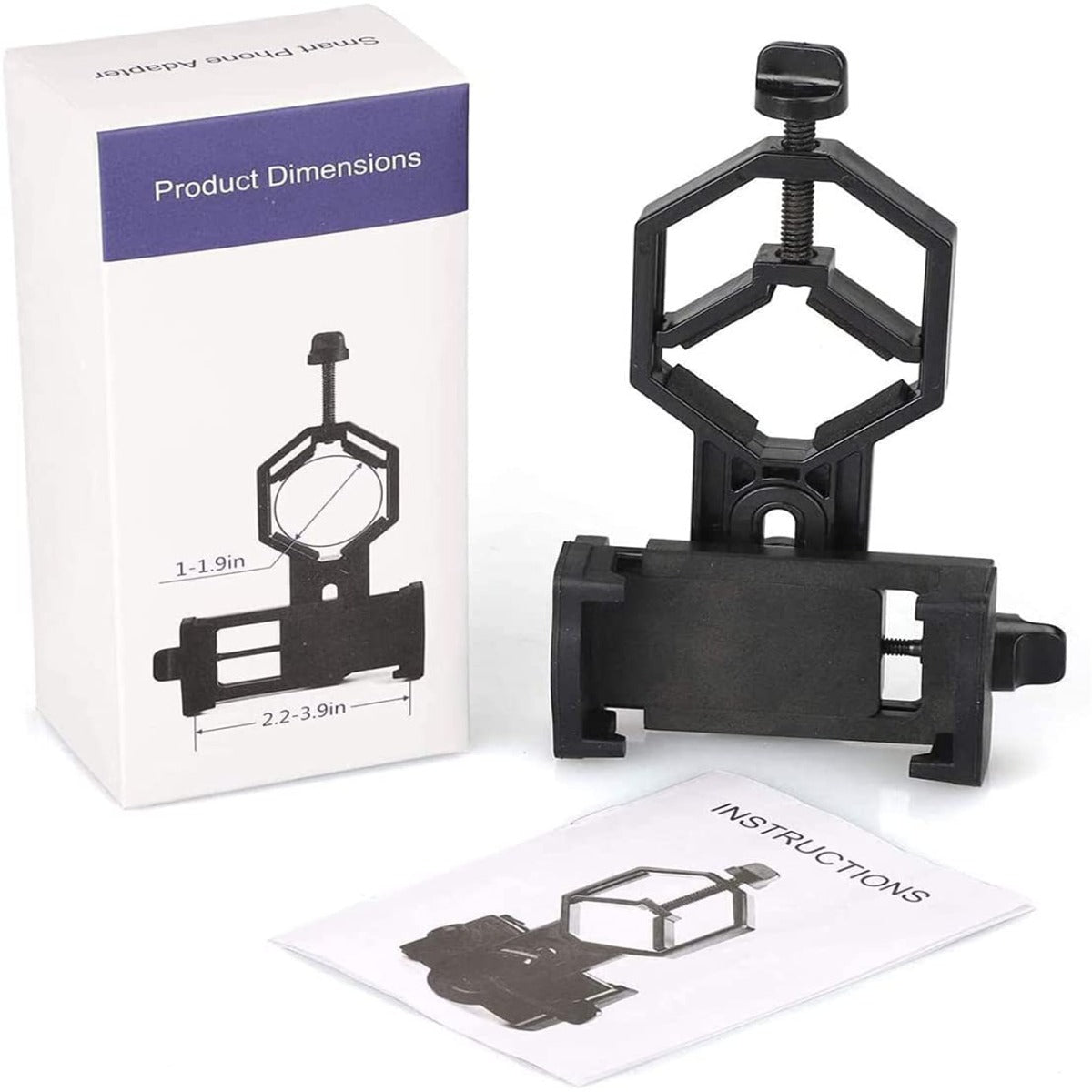

What's included

  • W2546A phone adapter
  • Instructions

The phone and optical equipment shown are not included.
