ToupTek

GPM462C

ToupTek GPM462C Guide Camera – High Sensitivity & Precision Imaging

£179.00

Free UK Shipping - Estimate US & Europe Shipping at checkout.

Quantity

ToupTek GPM462C Guide Camera with Sony IMX462 Sensor

Elevate your astrophotography with the ToupTek GPM462C Guide Camera, equipped with the high-sensitivity Sony IMX462 back-illuminated sensor. Engineered for excellence, it provides a large full well capacity, minimal readout noise, and a wide dynamic range, perfect for planetary, solar, and lunar imaging.

ToupTek Astro GPM462C guide camera side view in blue, featuring high precision for astrophotography, available at Dark Clear Skies.

Key Features:

  • IMX462 Color CMOS Sensor: High-resolution 2.1MP (1920x1080) sensor
  • High Sensitivity: Enhanced for clear images under low-light conditions
  • Low Noise: 0.76-2.4e- read noise for sharper detail
  • High Frame Rate: 18 FPS at full resolution
  • Wide Dynamic Range: 74.1 dB for capturing rich tonal details

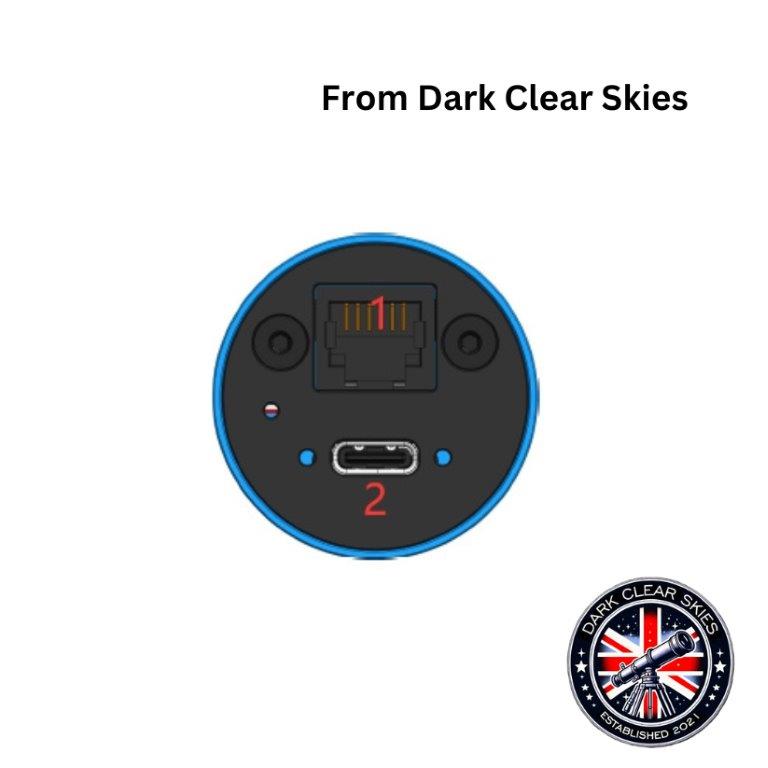

  • Connectivity: USB 2.0 Type-C and ST4 autoguider port
  • Multi-Platform Support: Compatible with Windows, macOS, Linux, and Android

Advanced Specifications:

The ToupTek GPM462C offers a 12-bit ADC for rich detail and a built-in frame buffer to maintain stable data transmission. Covering a spectral range of 380-690nm, the IR-cut window ensures exceptional image quality.

Versatile Mounting Options:

This camera includes a 1.25” nosepiece for telescope mounting and a C-mount adapter for industrial lenses. Its durable alloy body and passive cooling ensure lasting, stable performance.

Enhance your astronomical imaging setup with the ToupTek GPM462C Guide Camera, delivering precision, durability, and high performance across all major operating systems.

Optimized for Precision Imaging:

The ToupTek GPM462C Guide Camera brings innovative imaging technology with its Sony IMX462 sensor. Its high sensitivity in the infrared range, combined with ultra-low noise and high dynamic range, makes it an ideal choice for capturing intricate planetary, solar, and lunar details, as well as general guiding and deep-sky imaging applications.

Performance chart of ToupTek GPM462C in HCG mode, highlighting e/ADU, read noise, full well, and dynamic range for astrophotography.

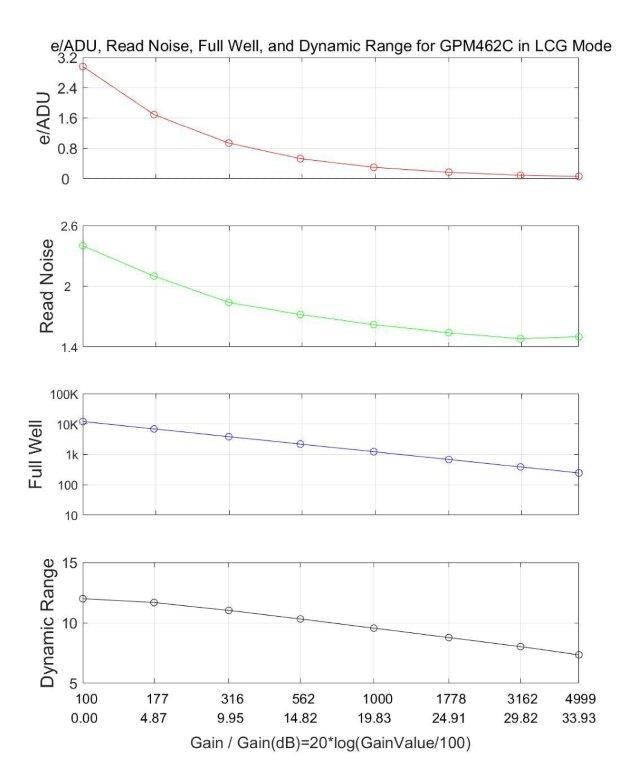

Performance chart of ToupTek GPM462C in LCG mode, displaying e/ADU, read noise, full well, and dynamic range at various gain levels.

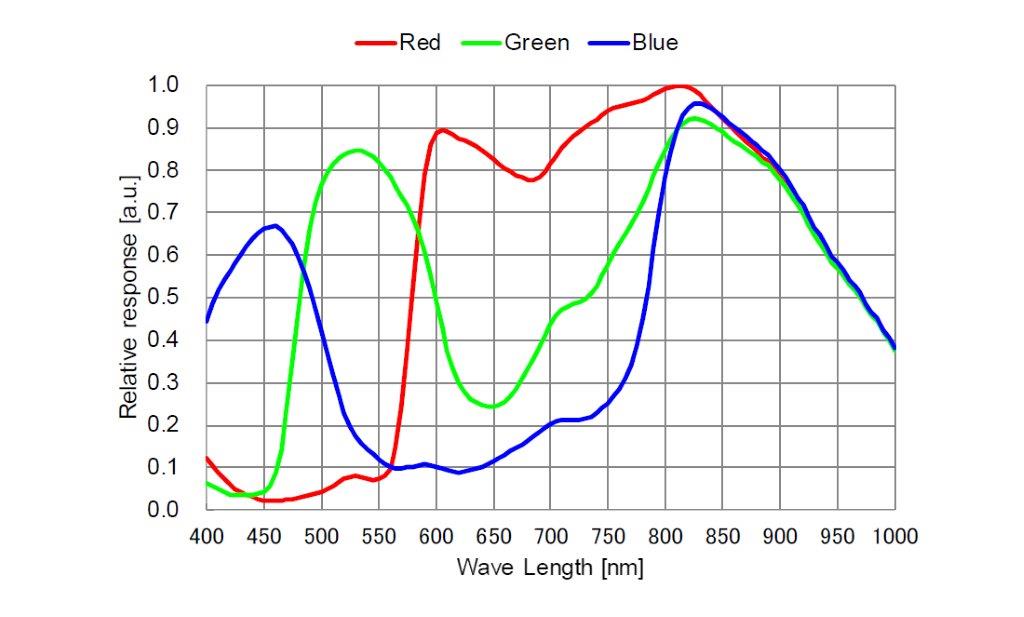

Color response graph of the ToupTek GPM462C camera sensor, showing sensitivity across red, green, and blue wavelengths for optimal imaging.

Technical Advantages:

This guide camera supports digital binning from 1x1 to 8x8, offering both stacking and averaging options. With conversion gain switch modes (HCG and LCG) and hardware ROI, users can adapt settings based on their needs, achieving higher frame rates with smaller ROI sizes and optimal performance for various imaging conditions.

Durable and User-Friendly Design:

The ToupTek GPM462C is crafted from tough alloy, providing a durable and reliable build for extensive use. Designed with an IR-CUT or AR-coated window, it prevents reflection, enhancing the sensor's longevity and performance. Its passive cooling system maintains optimal operating temperatures for sustained, reliable usage, even during extended imaging sessions.

Seamless Integration and Control:

With a USB 2.0 Type-C interface, the ToupTek GPM462C supports plug-and-play operation across multiple platforms, including Windows, macOS, Linux, and Android. The included SDK enables full customization and control, offering compatibility with C/C++, C#/VB.NET, Python, Java, DirectShow, and Twain for a tailored imaging experience.

Package Includes:

  • 1 x ToupTek GPM462C Guide Camera
  • 1 x USB3.0 A to C cable (2m)
  • 1 x 1.25-inch telescope nosepiece
  • 1 x ST4 guiding cable
  • 1 x CS-mount adapter ring

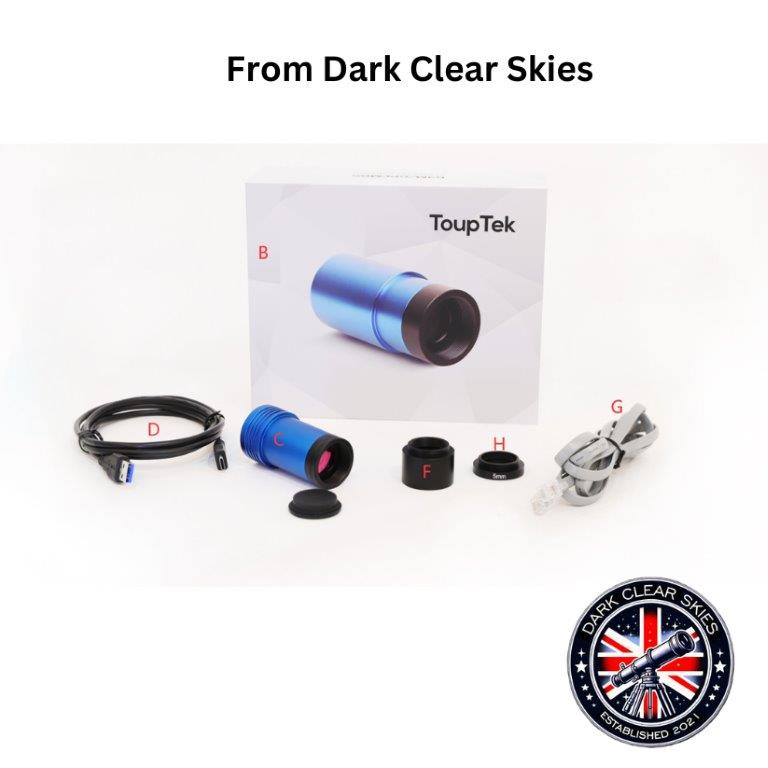

Complete accessory kit for ToupTek Astro GPM462C guide camera, including cables and adapters, ideal for astrophotography setups.

For astrophotographers and astronomers seeking advanced guiding and imaging capability, the ToupTek GPM462C Guide Camera offers a feature-rich, high-performance solution. Order now to capture the night sky with unparalleled detail and clarity.
