MOVE SHOOT MOVE · TRIPOD ACCESSORIES
Level your setup with a simple tilt and lock

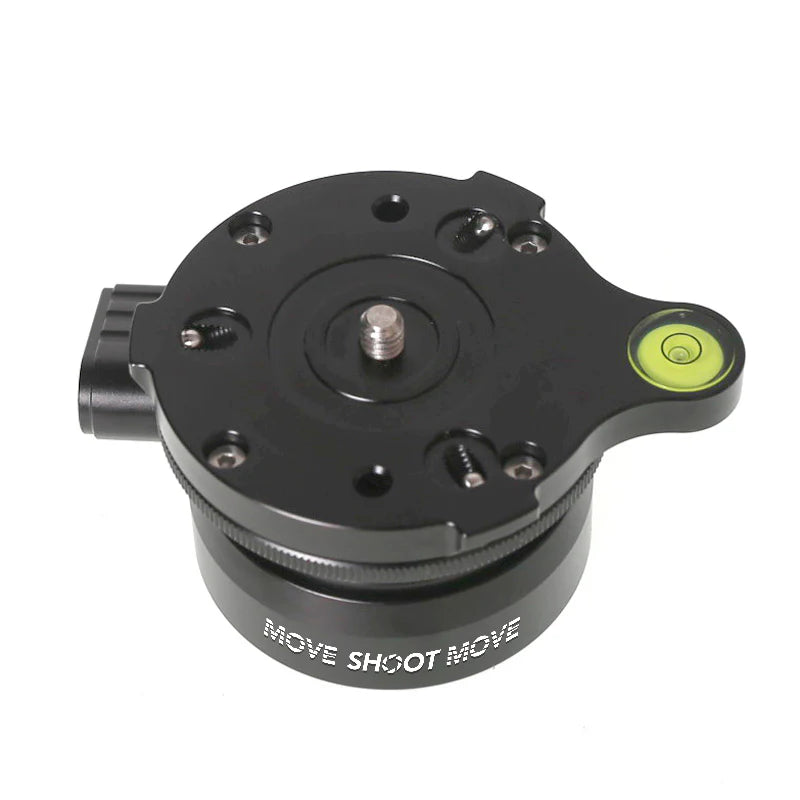

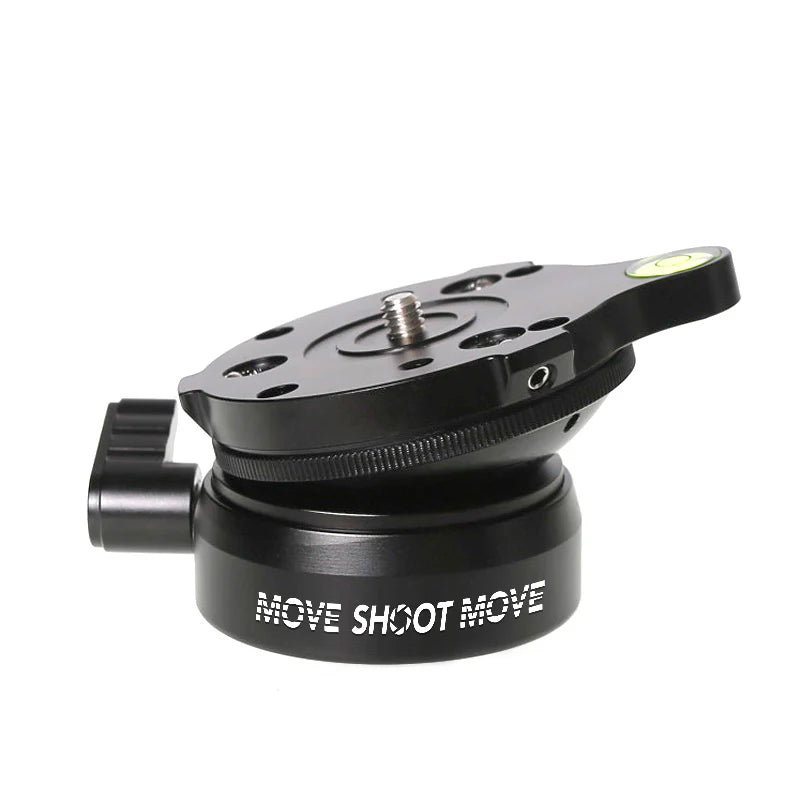

The MSM levelling base makes small corrections at the tripod head, helping you establish a level platform without repeatedly readjusting individual tripod legs. A built-in bubble level shows your progress as you adjust.
Tilt in any direction
290 g base weight
Side locking lever

Useful for photography and portable astro setups
A level starting platform is particularly useful when setting up for panoramas or repositioning equipment between locations. The half-ball mechanism lets you make the correction at one point; the side lever locks the selected position.
Check the mounting connections

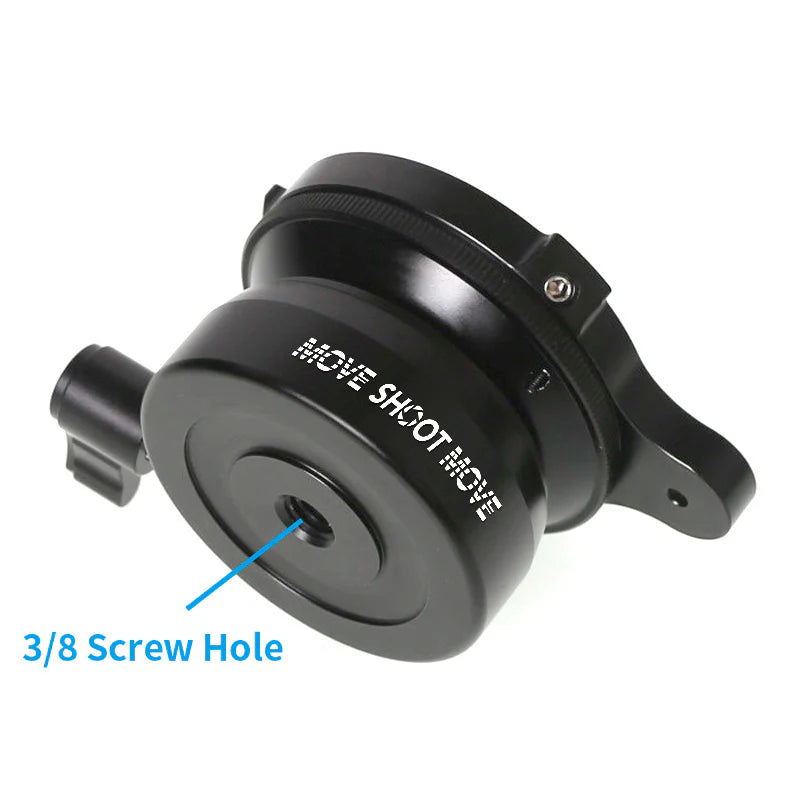

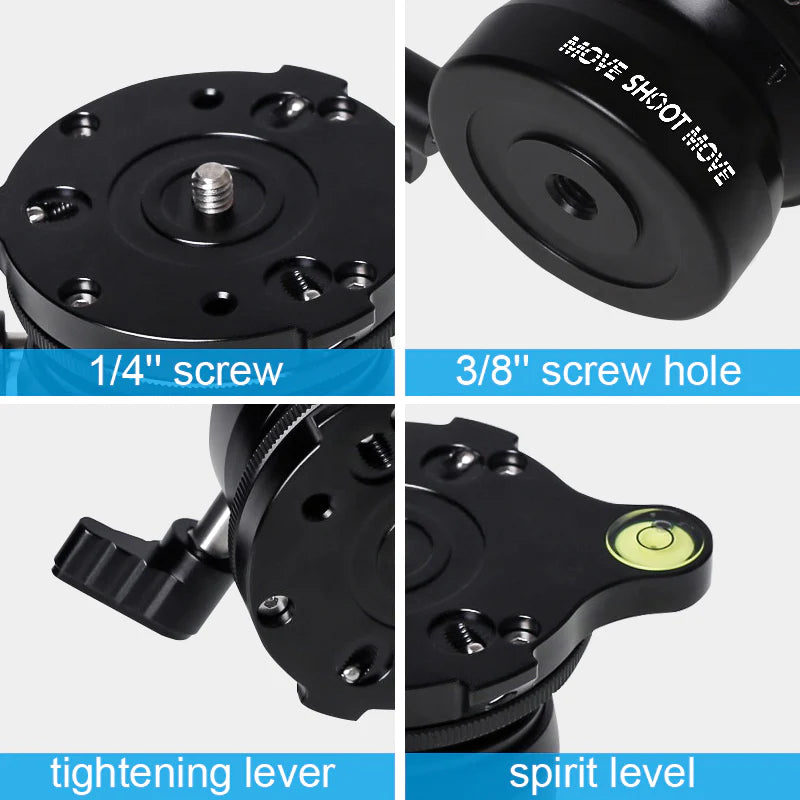

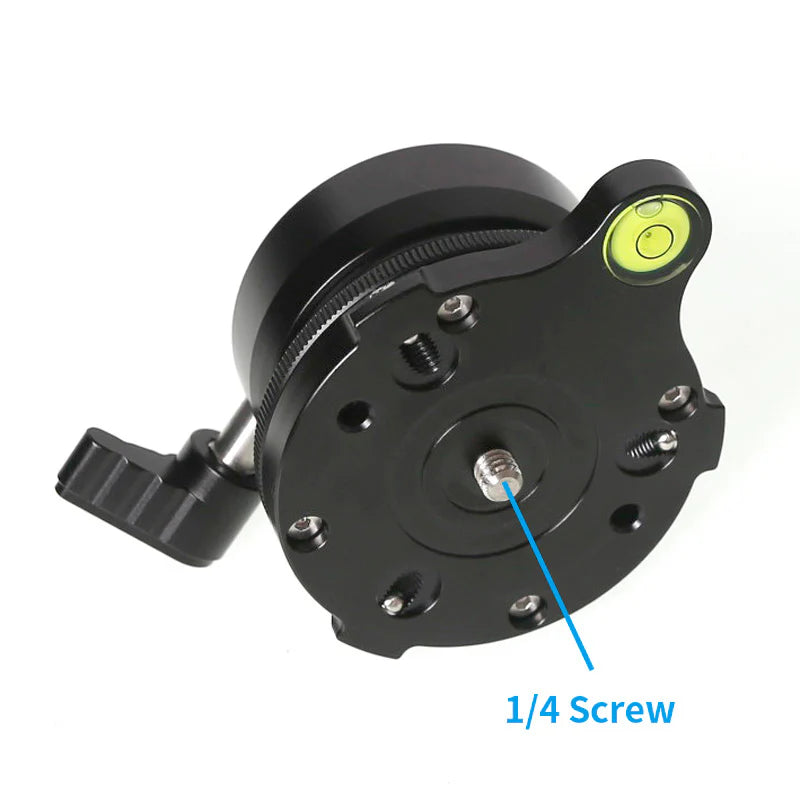

The base has a ¼″ male screw on top and a ⅜″ female socket underneath. Match both connections to your camera, head and tripod; some combinations need a separate thread adapter.
Levelling and polar alignment are separate steps. This base does not replace an equatorial wedge or the polar-alignment process for a star tracker. For that purpose, see the MSM NOMAD polar-alignment wedge.

Specifications
| Specification | MSM levelling base |
|---|---|
| Adjustment | Up to 15° in any direction |
| Maximum rated load | 5 kg |
| Top connection | ¼″ male screw |
| Tripod connection | ⅜″ female socket |

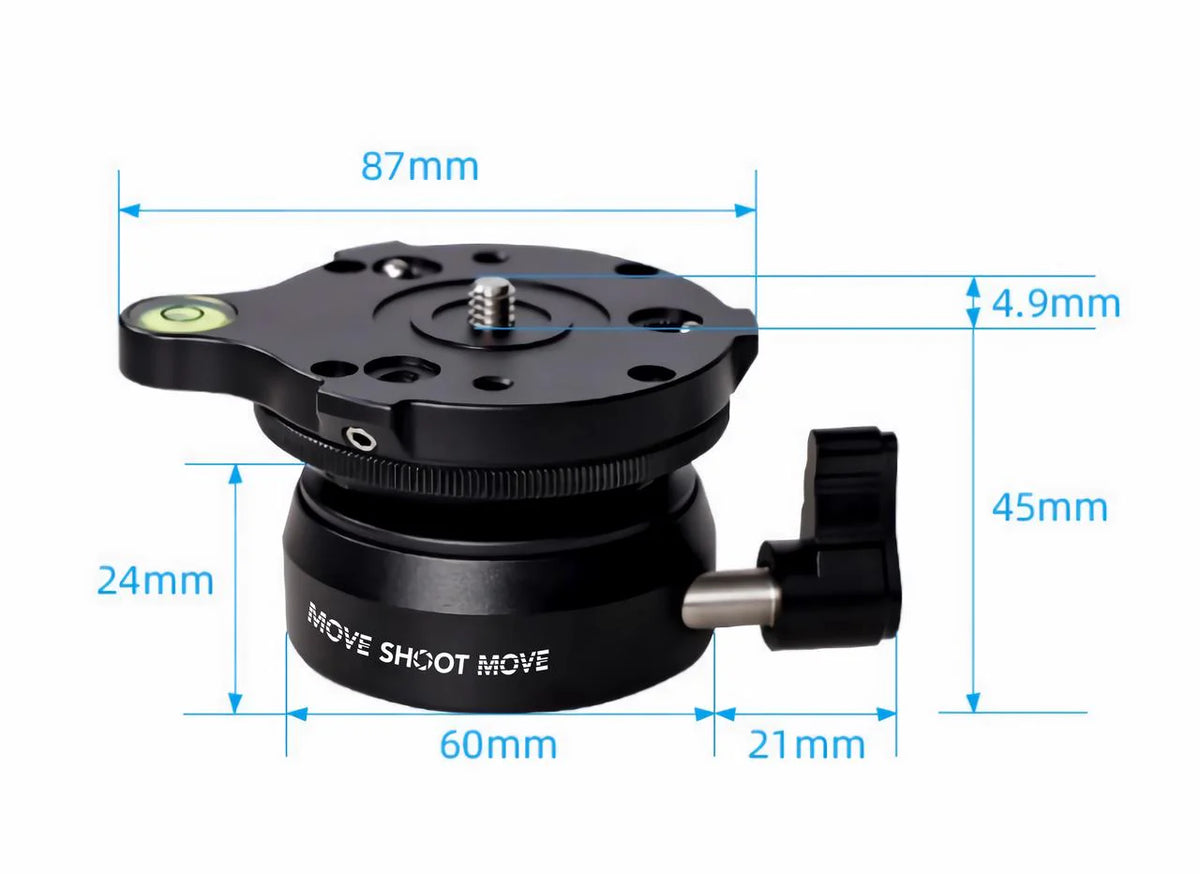

| Base diameter | 60 mm |
| Height | 49.9 mm |
| Weight | 290 g |
| Construction | Aluminium |
The 5 kg figure is the manufacturer’s rating for this base. Keep the complete setup within the limits of every component, including the tripod and any tracker.
Simple setup
- Place the tripod securely and roughly level it within the base’s adjustment range.
- Fit the base and your compatible camera or head, checking both threaded connections.
- Support the equipment, release the side lever, centre the bubble and lock the platform.

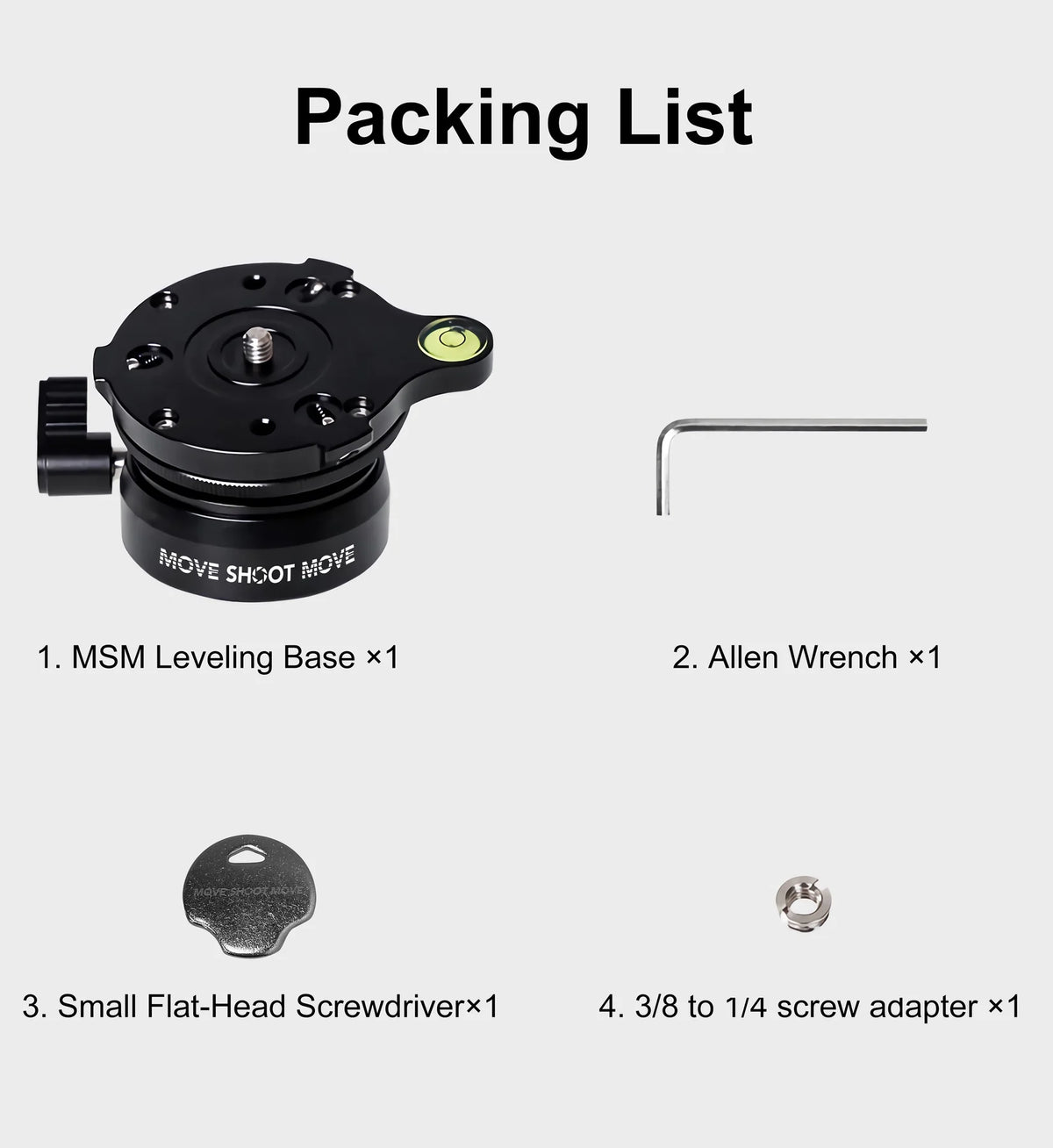

What is included?
MSM levelling base with integrated bubble level and locking lever. Camera, tripod, ball head, tracker and wedge are not included.
Will it correct a badly leaning tripod?
Its adjustment is limited to 15°. Reposition the legs first if needed, and keep the tripod stable before using the base for the final correction.
