Dark Clear Skies · Player One guiding cameras

Ceres-C

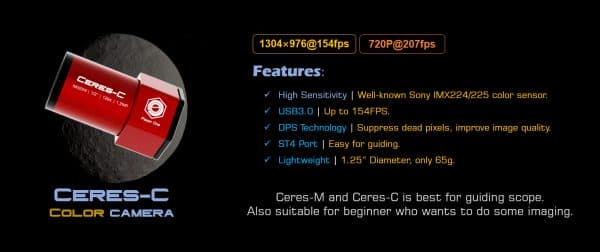

A compact colour camera for guiding and planetary capture.

The Ceres-C uses Sony's IMX224 colour sensor with 3.75µm pixels, USB 3.0 and an ST4 guiding connection. Its small, lightweight body and 1.25-inch fitting suit a separate guide scope, while high-speed capture makes it useful for colour lunar and planetary imaging.

IMX224Sony colour sensor
3.75µmPixel size
154 FPSRated 10-bit capture
65gCamera weight

One camera, two practical roles

In a guiding system, the camera records a guide star so compatible software can measure drift and send corrections to the mount. The Ceres-C's ST4 port provides one route for those corrections when used with a compatible mount; it does not make the camera a standalone autoguider.

For planetary imaging, its colour sensor records red, green and blue information in the same sequence. That avoids separate colour-filter runs for a normal colour result. Its approximately 4.9 × 3.7mm sensor gives a compact field, so accurate centring and suitable telescope focal length matter.

A colour guiding camera can be useful when you also want to image. For a dedicated guiding purchase, compare the required field, sensitivity, software support and mechanical fit with a monochrome option rather than choosing on frame rate alone.

Understand the capture settings

Player One rates Ceres-C at up to 154 FPS at 1304 × 976 in 10-bit operation over USB 3.0. Exposure time, USB bandwidth and storage performance determine the speed actually recorded. Normal guiding uses exposures chosen for reliable star measurement, not the highest possible video rate.

The sensor has a 12-bit ADC. Manufacturer figures include a 19.4ke⁻ full-well capacity and approximately 3.0–0.74e⁻ read noise across the gain range. These are operating-condition-dependent ratings: minimum read noise and maximum full well do not occur at every gain setting.

Dead Pixel Suppression corrects mapped abnormal pixels using nearby pixel values. It can help with persistent pixel defects, but should not be described as removing all image noise or replacing a complete calibration workflow.

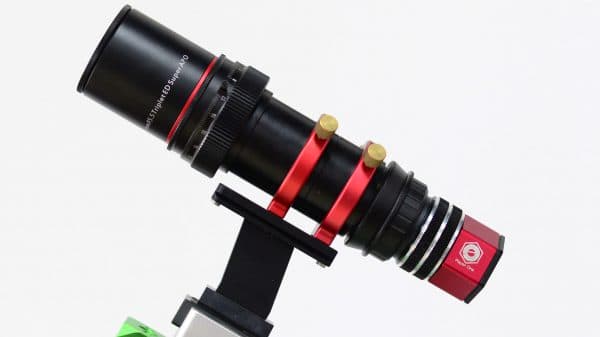

Check the fit of your guide scope

The camera's 1.25-inch insertion section can fit an appropriate guide-scope holder, and Player One specifies an M28.5 × 0.6 connection. The wider rear housing is approximately 40mm across; the complete camera is not a uniform 1.25-inch cylinder. Its nominal sensor recess is 7.5mm.

Check that your guide scope or off-axis guider has enough focus adjustment and insertion clearance. Sharing a nominal barrel size does not guarantee focus, and the 1/3-inch sensor covers a relatively small guide field. Guide scopes, lenses and mounting brackets pictured in examples are separate accessories.

Ceres-C mechanical drawing showing the insertion section, rear housing and sensor position
Use the mechanical drawing to check focus and clearance, especially with an off-axis guider. Open the image for the full-size dimensions.

Technical specifications

Specification Ceres-C
Sensor Sony IMX224 colour CMOS; the manufacturer's detailed table groups the IMX224/225 sensor family
Format / active area 1/3-inch; approximately 4.9 × 3.7mm; 6mm quoted diagonal
Resolution / pixel size 1304 × 976, approximately 1.2MP; 3.75µm
Colour pattern / shutter RGGB / rolling shutter
ADC / maximum capture rate 12-bit ADC; up to 154 FPS in the published 10-bit USB 3.0 mode
Full well / read noise 19.4ke⁻ / approximately 3.0–0.74e⁻, gain-dependent
Peak quantum efficiency Approximately 80%, manufacturer figure
Exposure range 32µs–2000s
Data / guiding connection USB 3.0, USB 2.0 compatible / ST4
Attachment / back focal length 1.25-inch / M28.5 × 0.6; nominal 7.5mm
Protective window 21mm diameter × 1.1mm; AR Plus anti-reflection coating
Rear body diameter / weight 40mm / 65g
Cooling Uncooled; no regulated TEC system

Package and additional equipment

This listing is for the Ceres-C camera package. The standard package illustration below identifies its supplied camera accessories; a guide scope, telescope, lens, mount and computer are not included.

Standard Ceres-C camera package with USB and ST4 cables, 1.25-inch accessories and air blower
Ceres-C standard package illustration. Check the separate requirements of your intended guiding or imaging setup.

Before you order

Is this the AR0130 model?

No. The Ceres-C is the Sony IMX224 colour camera. The Ceres-M is the Aptina AR0130 monochrome model. These are different sensors and should not share the same technical specification.

Does the ST4 cable carry the camera image?

No. USB carries the camera image and control connection. ST4 is a guiding connection to a compatible mount. The software must still recognise the camera and be configured for the chosen guiding method.

Do I need an infrared-cut filter?

The protective window is AR coated, not specified as an infrared-cut filter. For visible-colour planetary imaging, choose filtering appropriate to your optical system and target.

Is it a cooled deep-sky camera?

No. It supports longer exposures, but has no regulated TEC cooling and a small sensor. Its guiding and planetary roles should not be confused with those of a larger cooled deep-sky camera.

Is this model still manufactured?

Player One lists Ceres-C as discontinued. Check the current DCS purchase area for dealer-stock availability; no future manufacturer restock date is promised.

Player One Ceres-C IMX224 Colour Guiding & Planetary Camera

Regular price £112.00
