Description

Dark Clear Skies · Player One guiding cameras

Ceres-M

Compact monochrome capture for a practical guiding setup.

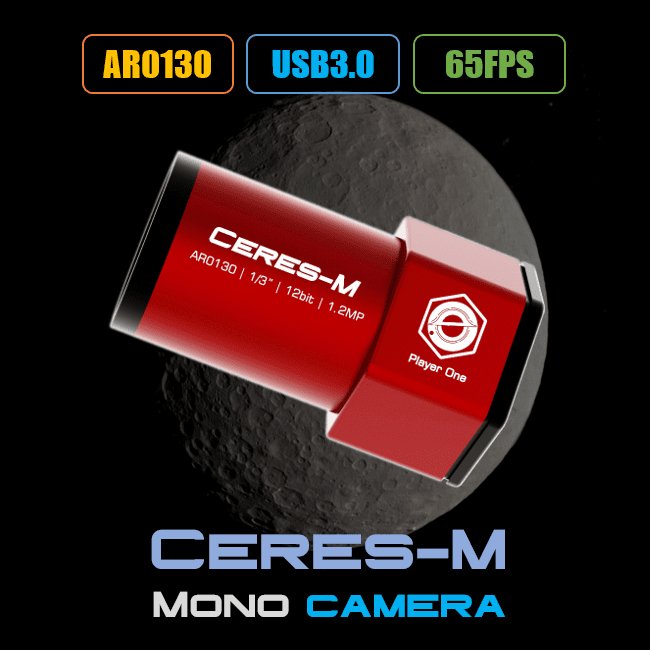

The Ceres-M is an uncooled mono camera built around the Aptina AR0130 sensor. It combines 3.75µm pixels, USB 3.0 and an ST4 guiding port in a 65g body, with a 1.25-inch insertion section for compatible guide scopes.

AR0130Monochrome CMOS
3.75µmPixel size
65 FPSRated 1280 × 960 mode
65gCamera weight

A guide camera, not a standalone autoguider

Use the Ceres-M to record guide stars through a separate guide scope or a mechanically compatible off-axis guider. Guiding software measures movement and sends corrections to the mount. The camera's ST4 connection can provide that correction path when the mount and software support it; a computer or compatible controller is still required.

Its monochrome sensor records intensity rather than a colour Bayer pattern. That suits guide-star measurement and monochrome imaging, but a colour planetary result would require suitable filters and separate captures. The approximately 4.8 × 3.6mm sensor gives a small field, so consider guide-star coverage as well as mechanical fit.

Capture settings that match the job

Player One publishes a 1280 × 960 capture mode at up to 65 FPS using a 10-bit readout over USB 3.0. This can be useful for short lunar and planetary sequences. Guiding normally calls for an exposure that gives a reliable star measurement rather than the maximum frame rate.

The AR0130 has a 12-bit ADC. The manufacturer quotes an 18ke⁻ full-well capacity and read noise of approximately 7.3–3.6e⁻ across the gain range. These figures depend on settings; a higher gain changes the balance between read noise and highlight capacity.

Dead Pixel Suppression uses a stored map of abnormal pixels and nearby pixel values to correct those locations. This helps with mapped pixel defects, but does not remove all noise or guarantee that every bright pixel is a usable guide star.

Measure the connection and focus range

The insertion section fits an appropriate 1.25-inch holder, with an M28.5 × 0.6 connection specified by Player One. The rear housing is approximately 40mm across and the nominal sensor recess is 7.5mm. Do not treat the complete camera as a uniform 1.25-inch barrel.

Check available insertion depth, focus travel and clearance around the guider. An off-axis guider needs to bring both the guide sensor and main imaging sensor to focus; a shared barrel size alone does not establish compatibility. Any guide scope, lens or mounting bracket is separate equipment.

Ceres-M mechanical drawing showing barrel dimensions, M28.5 thread and sensor position
Mechanical reference for checking the sensor position and guide-scope clearance. Open the full-size drawing before selecting adapters.

Technical specifications

Specification Ceres-M
Sensor Aptina AR0130 monochrome CMOS
Format / active area 1/3-inch; approximately 4.8 × 3.6mm; 6mm diagonal
Resolution Approximately 1.2MP; published high-speed capture mode 1280 × 960
Pixel size / shutter 3.75µm / rolling shutter
ADC / published speed 12-bit ADC; up to 65 FPS at 1280 × 960 in 10-bit USB 3.0 operation
Full well / read noise 18ke⁻ / approximately 7.3–3.6e⁻, gain-dependent
Peak quantum efficiency Approximately 80%, manufacturer figure
Exposure range 32µs–2000s
Data / guiding USB 3.0, USB 2.0 compatible / ST4 port
Attachment / back focal length 1.25-inch / M28.5 × 0.6; nominal 7.5mm
Protective window 21mm diameter × 1.1mm; AR Plus anti-reflection coating
Rear housing / weight 40mm diameter / 65g
Cooling Uncooled; no regulated TEC cooling

Player One's specification table separately lists a maximum raster of 1284 × 964; its description and 65 FPS capture-mode table use 1280 × 960. The speed above refers specifically to the published 1280 × 960 mode.

Package and additional equipment

This listing is for the Ceres-M camera package shown below. The guide scope, telescope, mount, computer and any lenses or mounting hardware used in setup examples are not part of the camera package.

Ceres-M standard camera package with USB and ST4 cables, 1.25-inch accessories and air blower
Standard Ceres-M package illustration. Allow separately for the optical and control equipment needed by your guiding system.

Before you order

How is Ceres-M different from Ceres-C?

Ceres-M uses an Aptina AR0130 monochrome sensor. The Ceres-C uses the Sony IMX224 colour sensor and has different capture performance. Neither is a regulated cooled deep-sky camera.

Can it be used with any guiding application?

Check support for the exact Ceres-M model in your application's current camera-driver list and install the appropriate Player One drivers. A USB connection alone does not establish software compatibility.

Can I connect only the ST4 cable?

No. The camera still needs its USB connection for image transfer and control. ST4 connects to a compatible mount's guide input; it is not an image or computer connection.

Does it produce colour images?

Not in a single exposure. It records monochrome images. A colour imaging workflow needs appropriate filters, multiple captures and processing.

Is this model still manufactured?

Player One lists Ceres-M as discontinued. Check current DCS availability rather than assuming a manufacturer replenishment date.
