Svbony SV190 Ultra Flat Field Eyepiece10mm, 1.25"
Svbony SV190 Ultra Flat Field Eyepiece10mm, 1.25"
SKU:w9149a
Couldn't load pickup availability
Svbony SV190 Ultra Flat Field Eyepiece10mm, 1.25"
Product Description

The SV190 ultra flat field eyepiece have flat and sharp imaging, which is one of the must-choice eyepiece types for enthusiasts pursuing the ultimate visual experience.
Package Include:
1 x SV190 10mm 1.25" Ultra Flat Field Eyepiece
2 x Lens Covers
1 x Lens Cleaning Cloth

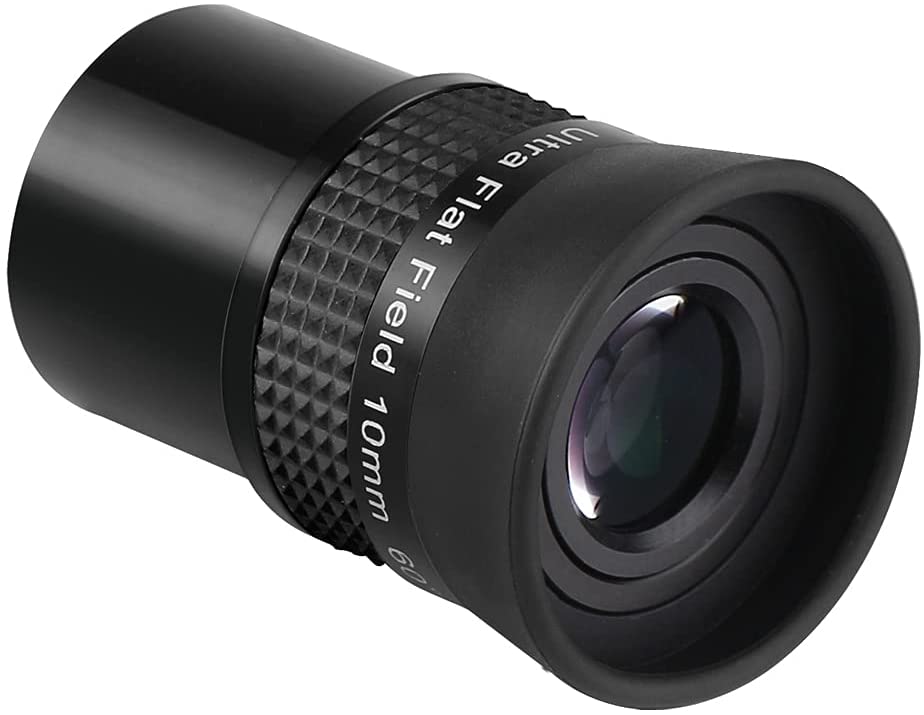

Ultra Flat Field Eyepiece
Ultra flat field providing an ultra-sharp, ultra-clear, less chromatic aberration image from the center all the way to the edge of the field of view

Clear image
FMC film maximizes the light transmission and minimizes internal reflection.
5 elements in 4 groups structure design delivers crisp and sharp images.
|
|
|
---|---|---|
60°Field of View 60 degree ultra wide angle eyepiece provides wide field views,makes acquiring and centering target objects a breeze |

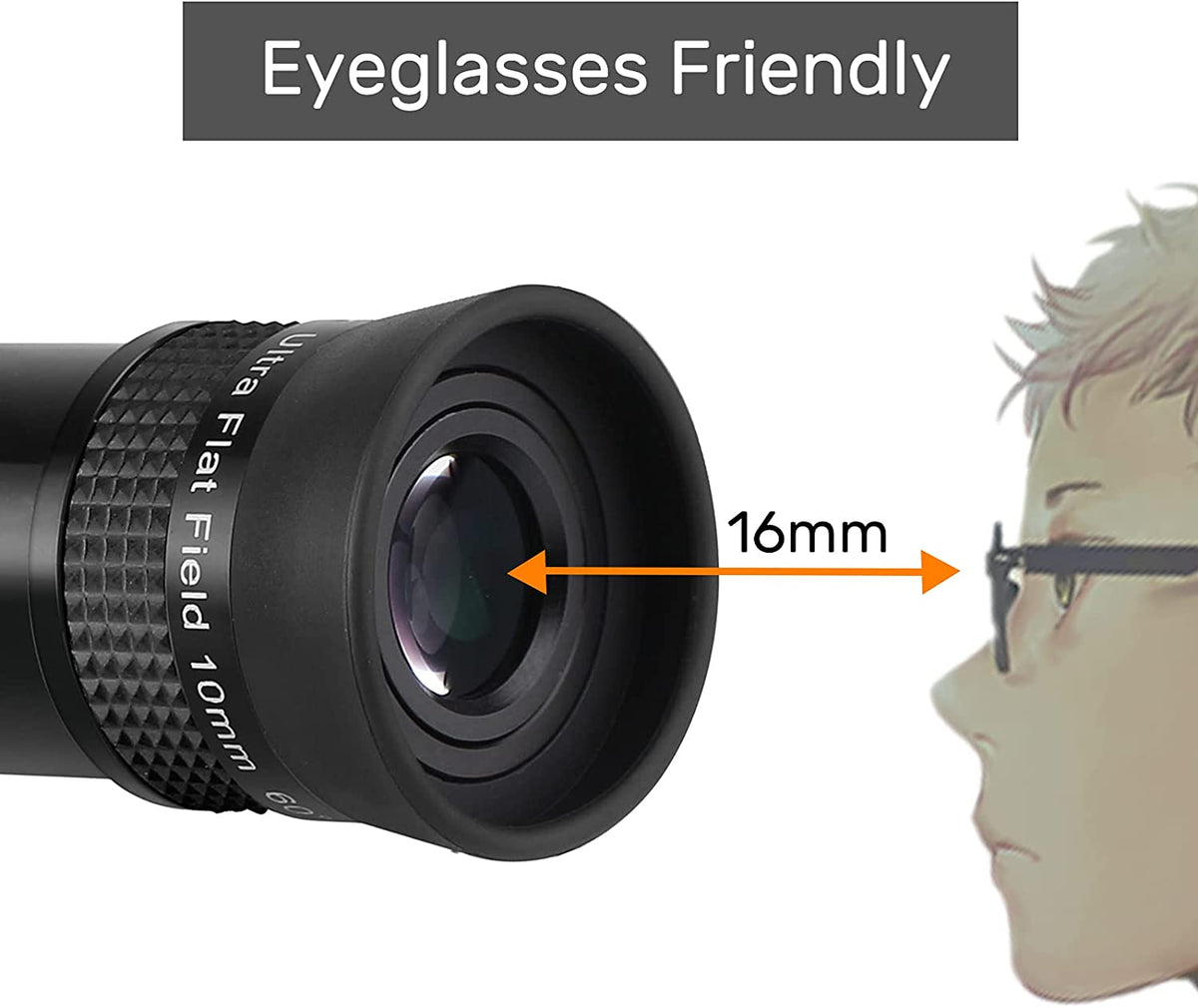

16mm Eye Relief Folding down rubber eyecup and long eye relief provide comfortable long term viewing for people with or without glasses. |
Blackened Lens Edges Lens edges is blackened to reduce scattering of stray light |
|
|
|
|
---|---|---|---|

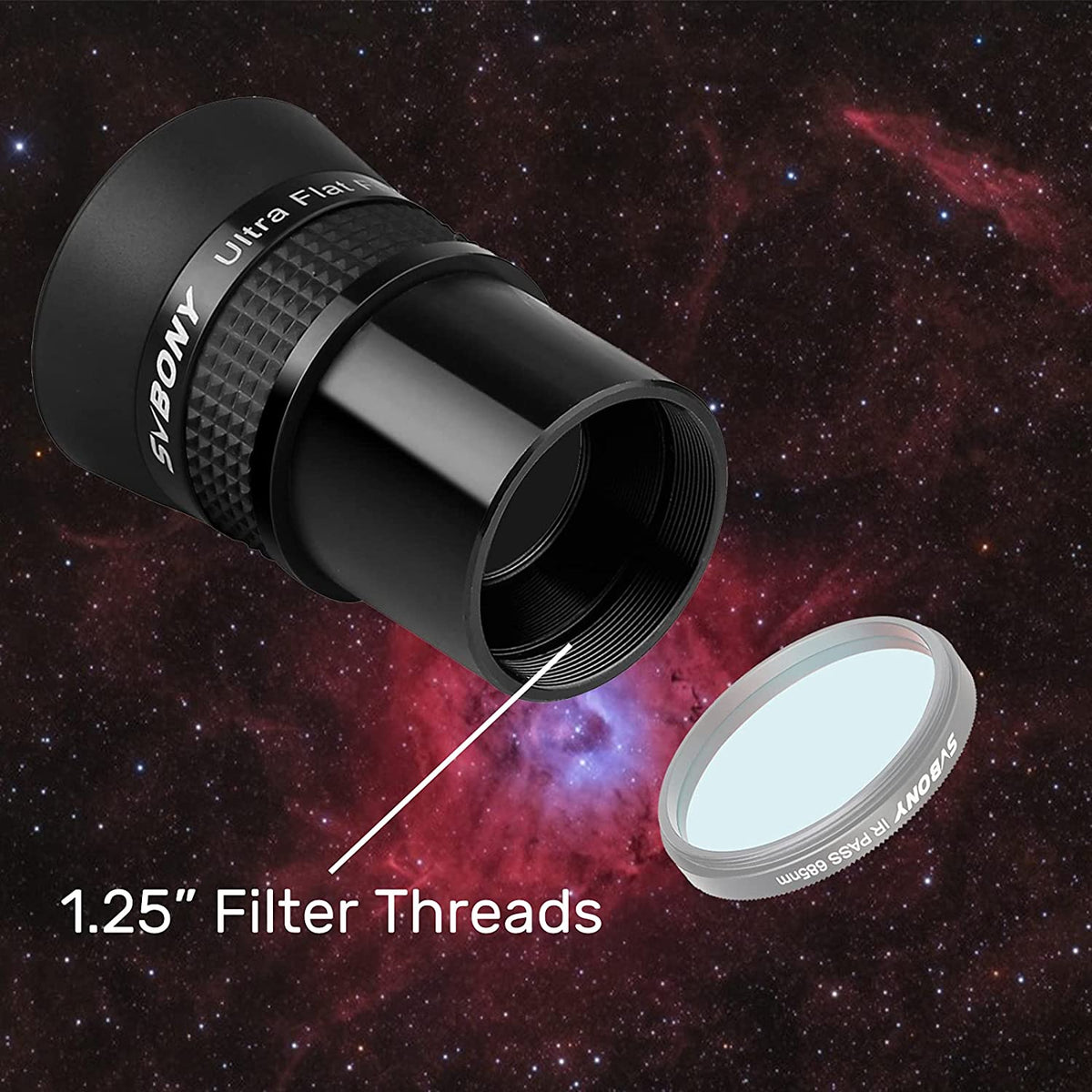

M28.5x0.6 filter threads compatible with any 1.25in filter |

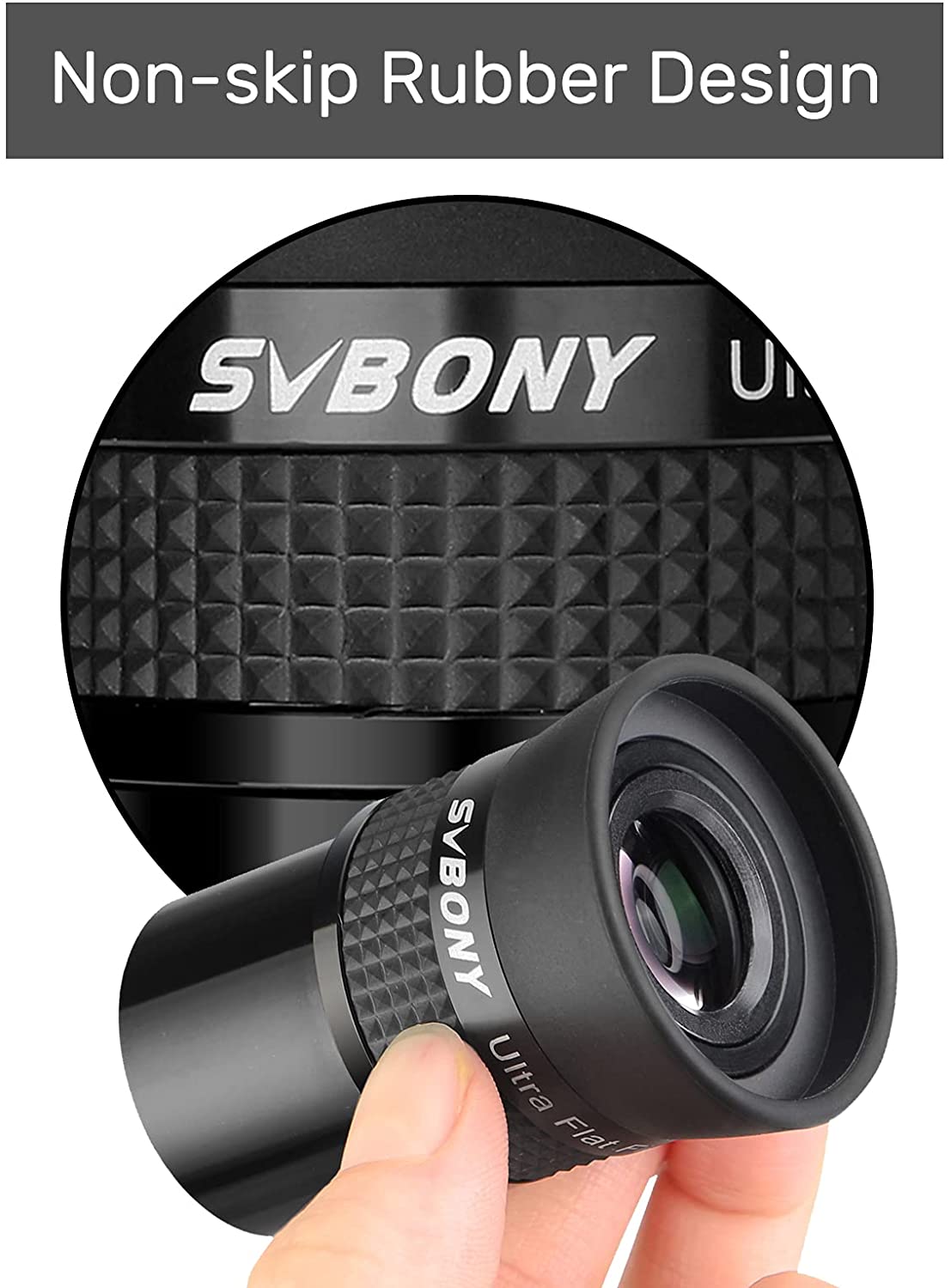

Anti-skid Rubber Thread Molded rubber grip ring for non-slip handling and more comfortable for you to hold it |
Solid Construction Machined aluminum and stainless steel can be used for a long time. |
Blackened Barrels Internal surface of the barrel be machined with threads that are painted matte black to cut down on internal reflections |
Specification
Interface Size: | 1.25" |
Focal length: | 10mm |
Exit pupil distance: | 16mm |
Lens Structure: | 5-Elements/4Groups |
Field of view: | 60-Degrees |
Coatings: | Fully Multi-Coated |
Filter Thread: | M28.5*0.6 |
Material: | Metal |
Color: | Black |
Net weight: | 84g/ 2.95oz |
Thread : | M34x0.75(under the eyecup) |
