SVBONY SV550 122mm f/7 Triplet APO Refractor OTA
The SV550 122mm is a triplet APO refractor with an 854mm focal length, FPL-51 ED glass and a 2.5-inch dual-speed focuser. It suits an imaging or visual setup built around a mount capable of carrying the complete telescope and accessory load.

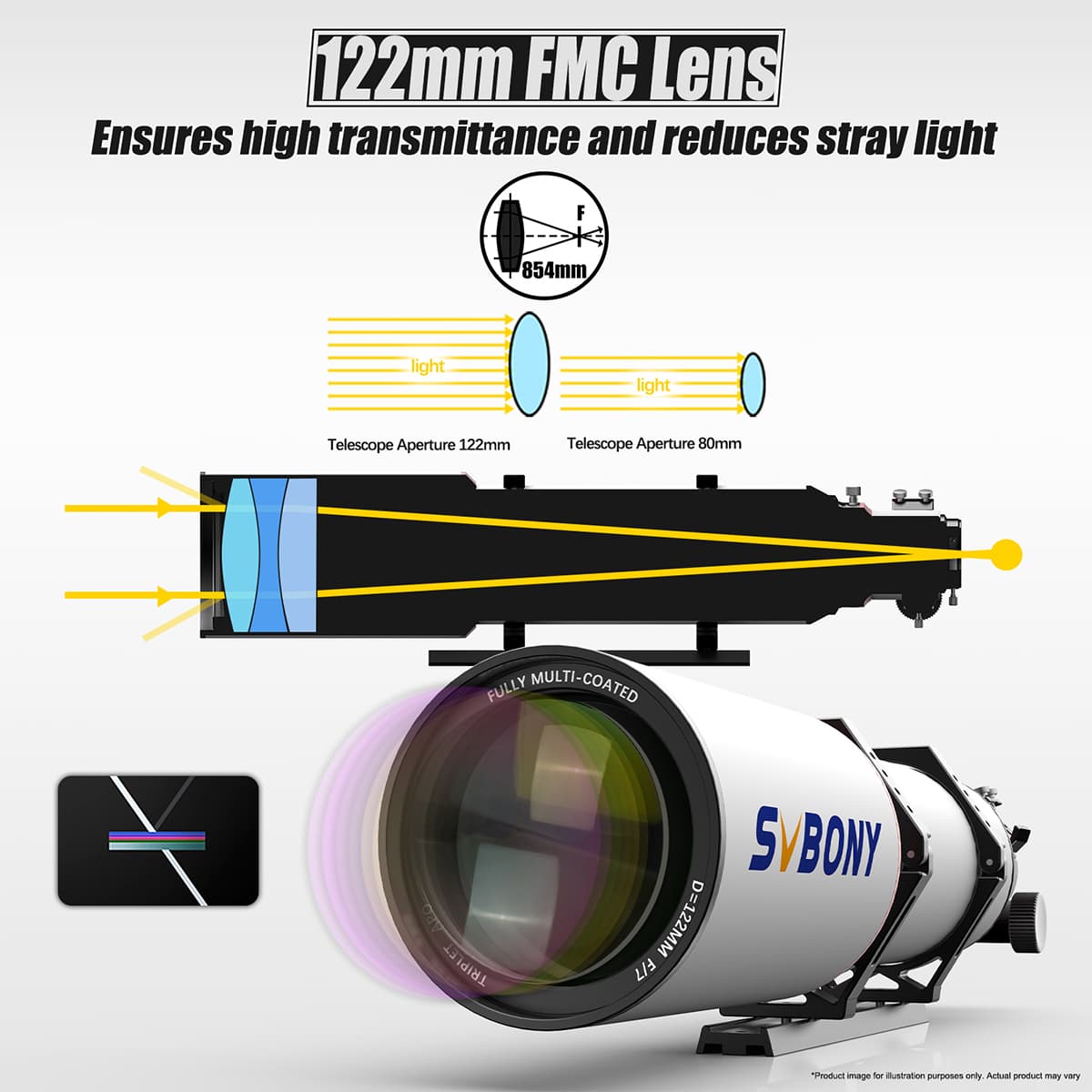

The SVBONY SV550 122mm f/7 Triplet APO Refractor is a serious deep-sky imaging telescope designed for astrophotographers and advanced visual observers who demand sharp stars, excellent colour correction, and a mechanically robust OTA. With its 122mm aperture, 854mm focal length, and FPL-51 triplet apochromatic objective, it is exceptionally well suited to galaxies, nebulae, star clusters, lunar imaging, and high-resolution visual work.
This larger-aperture evolution of the popular SV550 platform gathers significantly more light than the 80mm version, delivering improved faint-object reach, stronger contrast, and more detailed astrophotography results.

Built for Deep Sky Astrophotography
The 122mm aperture and f/7 focal ratio strike an excellent balance between resolution, speed, and framing flexibility. This makes the SV550 ideal for:
- large nebulae
- galaxy imaging
- globular clusters
- wide lunar mosaics
- high-detail broadband astrophotography

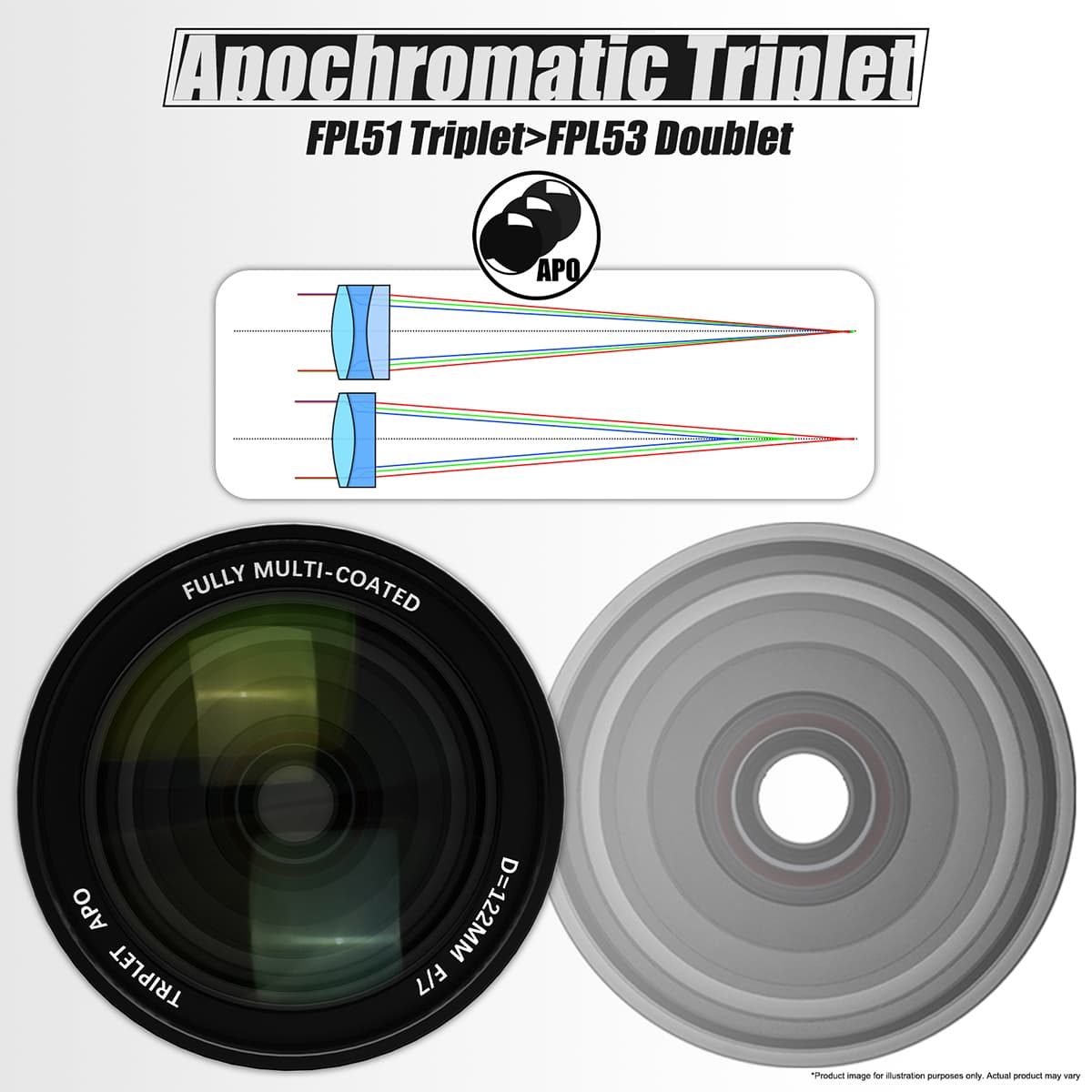

FPL-51 Triplet Optics for Superior Correction
The heart of the SV550 is its triplet apochromatic lens design with FPL-51 ED glass, designed to reduce chromatic aberration. The result is tighter stars, cleaner colour correction, and a colour-corrected image for visual observing and imaging.
This makes it an excellent match for Player One, ZWO, and DSLR imaging setups.

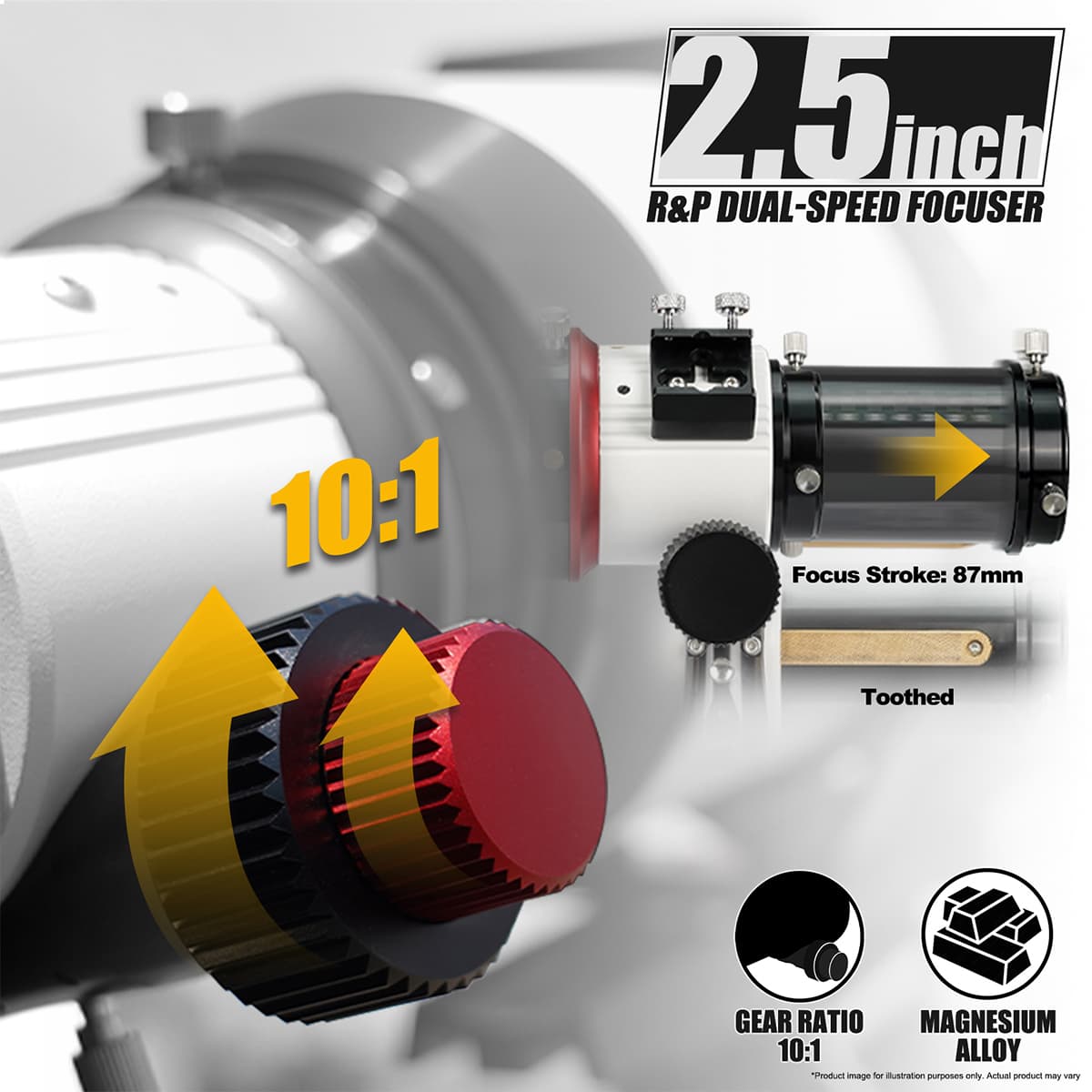

2.5" Dual-Speed Rack & Pinion Focuser
A premium 2.5-inch rack and pinion dual-speed focuser with 10:1 fine focus reduction provides precise focusing control for demanding imaging sessions. This larger focuser is especially useful when supporting heavy filter wheels, cooled cameras, OAGs, and flatteners.

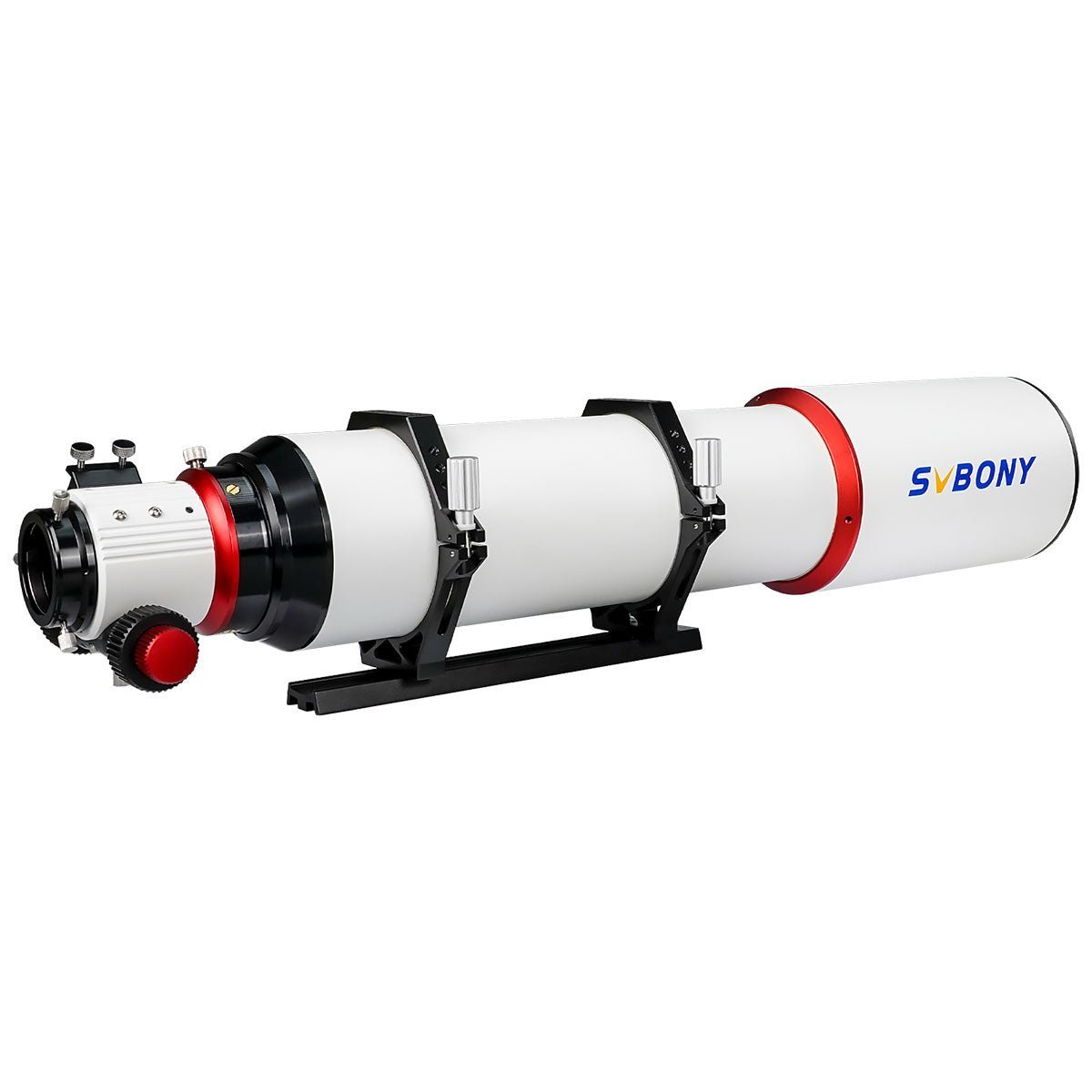

Excellent Mechanical Platform for Imaging
The CNC-machined aluminium tube rings include an impressive 26 threaded mounting points plus top carry handle, making this OTA highly adaptable for:
- guide scopes
- EAF motors
- ASIAIR / mini PCs
- dew controllers
- cable routing systems
The included 300mm dovetail plate also makes balancing on EQ mounts far easier than shorter bars.

Accessory Compatibility & Imaging Threads
The focuser supports both 2" accessories and M63x1 threaded imaging accessories, making it ideal for field flatteners, reducers, rotators, and modern astrophotography imaging trains.
The focuser supports 2-inch accessories and an M63×1 threaded connection. The SV209 reducer/flattener designed for the 122mm SV550 is an imaging option; check its exact version, camera-side spacing and sensor coverage before ordering.

EAF & Autofocus Ready
An electronic focuser can be added when its bracket and shaft connection match the focuser. Check the motor and driver support for your chosen capture and control software.

Visual and Imaging Versatility
While primarily an imaging refractor, the 122mm aperture also makes this an outstanding visual scope for lunar, planetary, double star, and brighter deep-sky observation.

Match the target, camera and mount
At 854mm focal length, framing depends on the camera sensor as well as the target. Very large nebulae may require a smaller focal length or a mosaic. For photography, choose a mount with room for the OTA, camera, guiding equipment and cables, and use the corrector designed for this telescope if your sensor requires field correction.
