ZWO

ZWO-FS-II

ZWO Finder Scope Shoe for Asiair

£19.00

Shipping calculated at checkout.

Quantity

Generally In Stock, Please Confirm Before Ordering

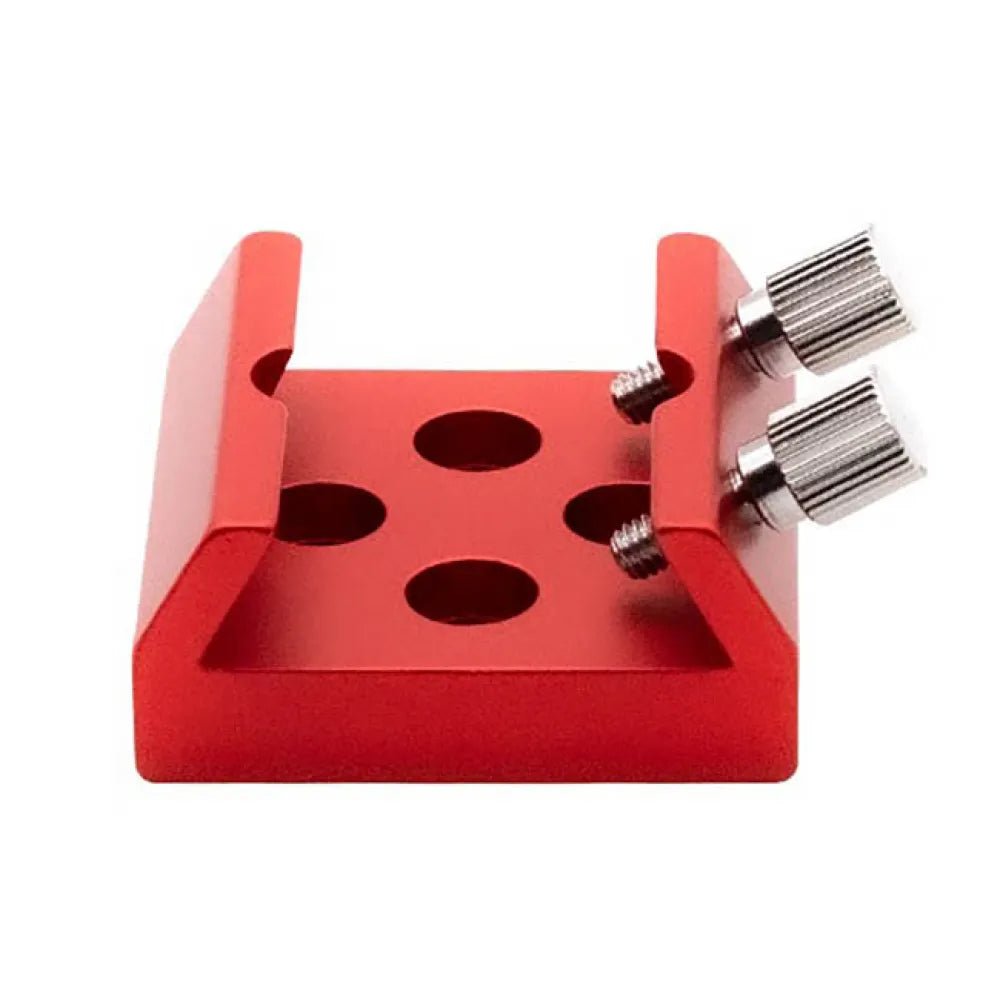

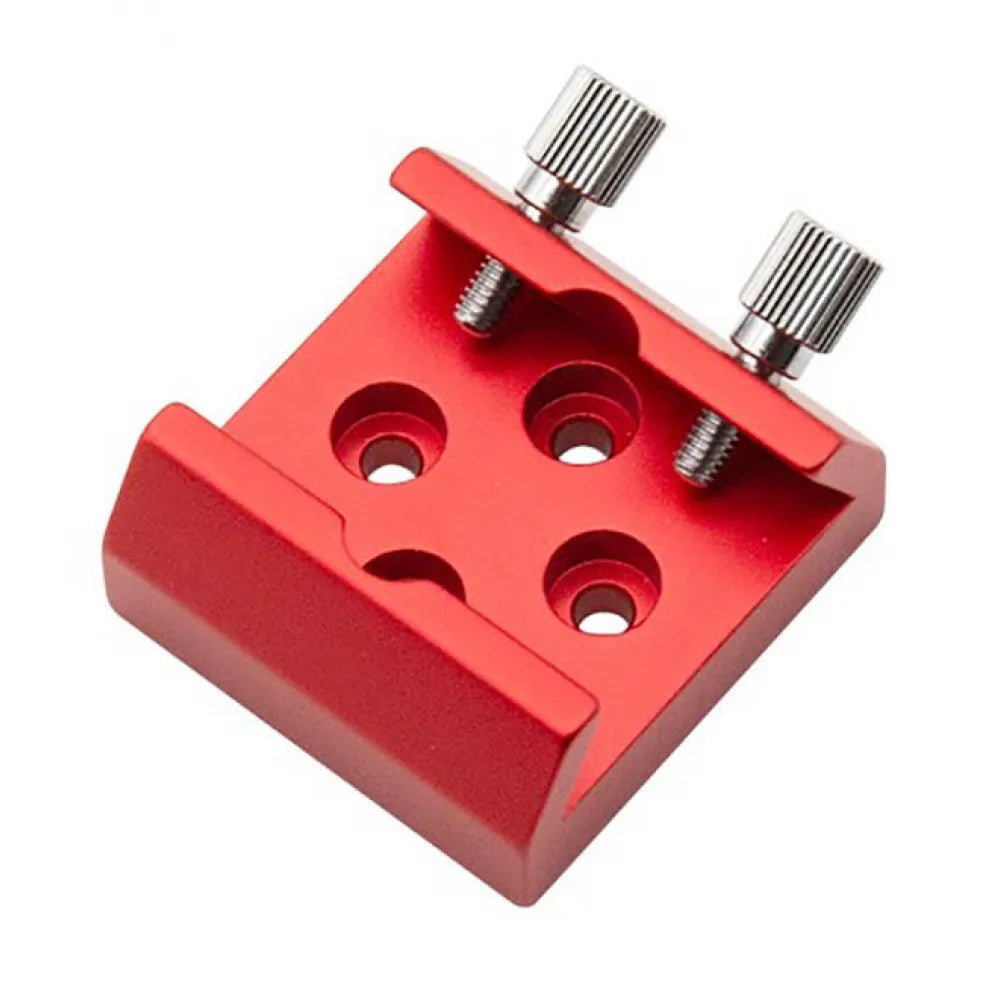

ZWO Finder Shoe Groove for ASIAIR PRO and ZWO Holder Rings.

123

Connecting Methods:

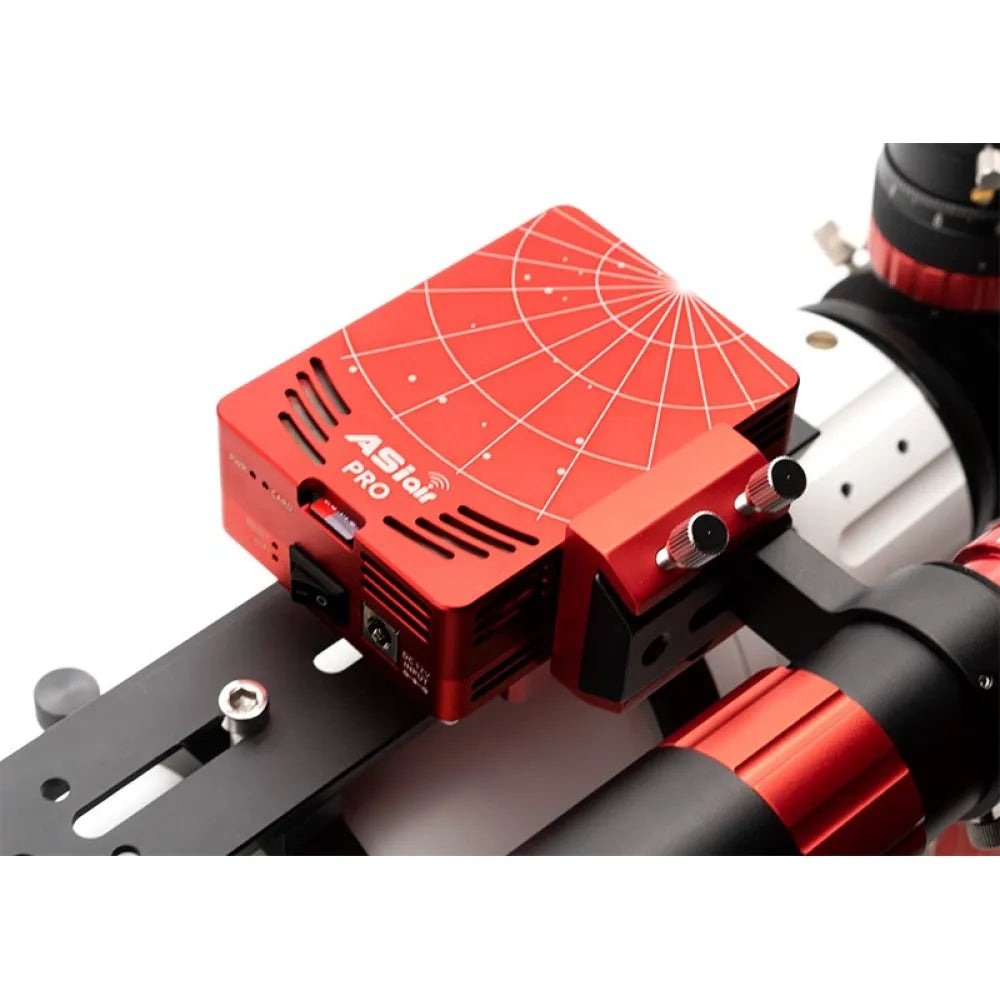

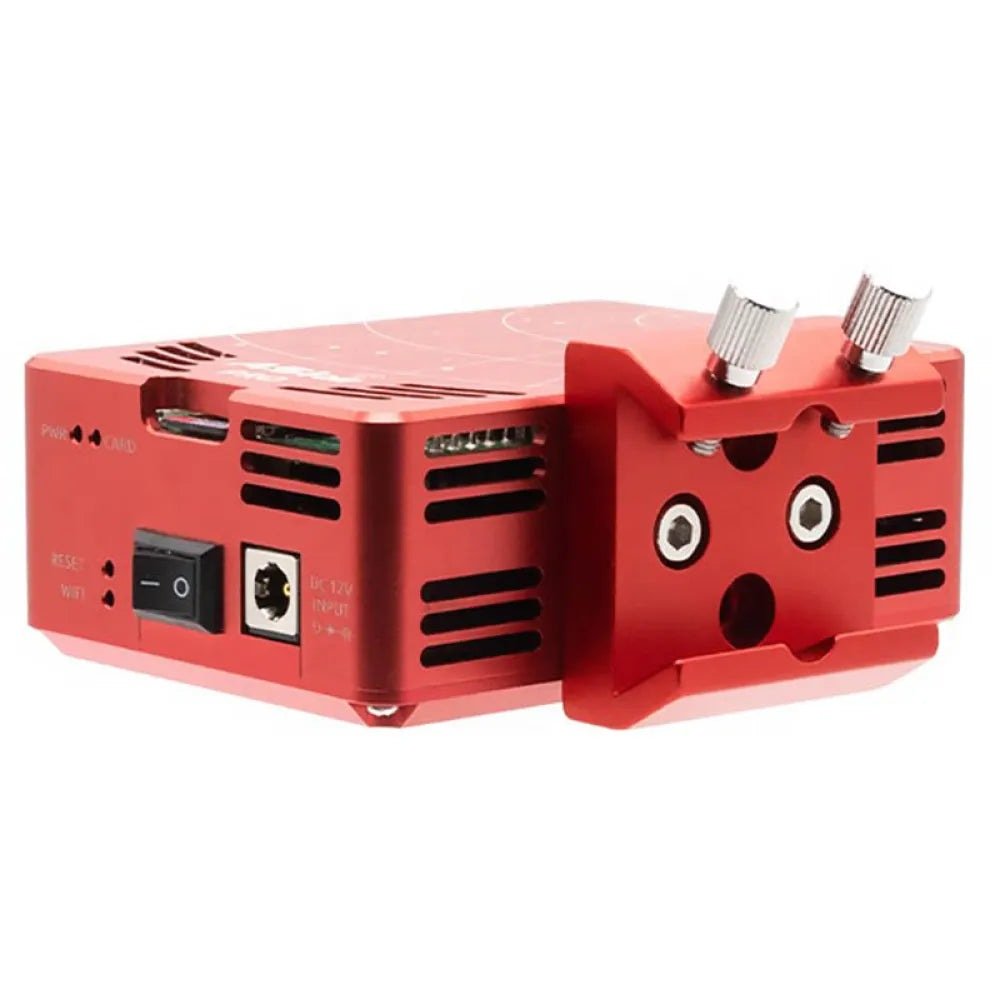

1. Connecting to ASIAIR PRO:

To connecting to ASIAIR PRO, you need to use the two M4x8mm screws in the package. The connecting method can be rather flexible, you can either attach the finder shoe to the back or the sides of ASIAIR PRO.

4

2. Connecting to finder scope:

After done connecting the finder show to ASIAIR PRO, directly attach the finder shoe to your finder scope and adjust the tightness via the long screws on the side.

Then use the Dovetail groove to fix ASIAIR PRO to your telescope.

56

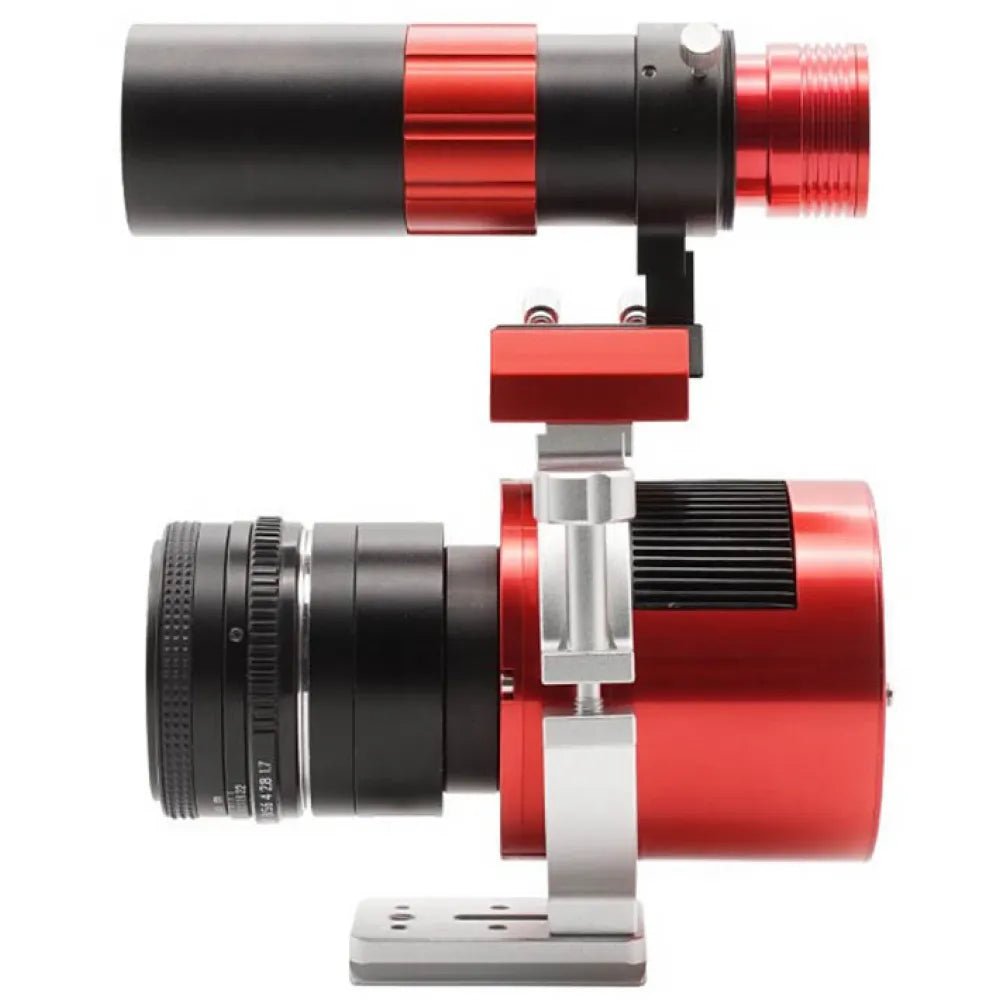

3. Connecting to the ZWO holder ring:

Use the two M4x8mm screws in the package to connect the finder shoe to the holder ring for ASI cameras.

7

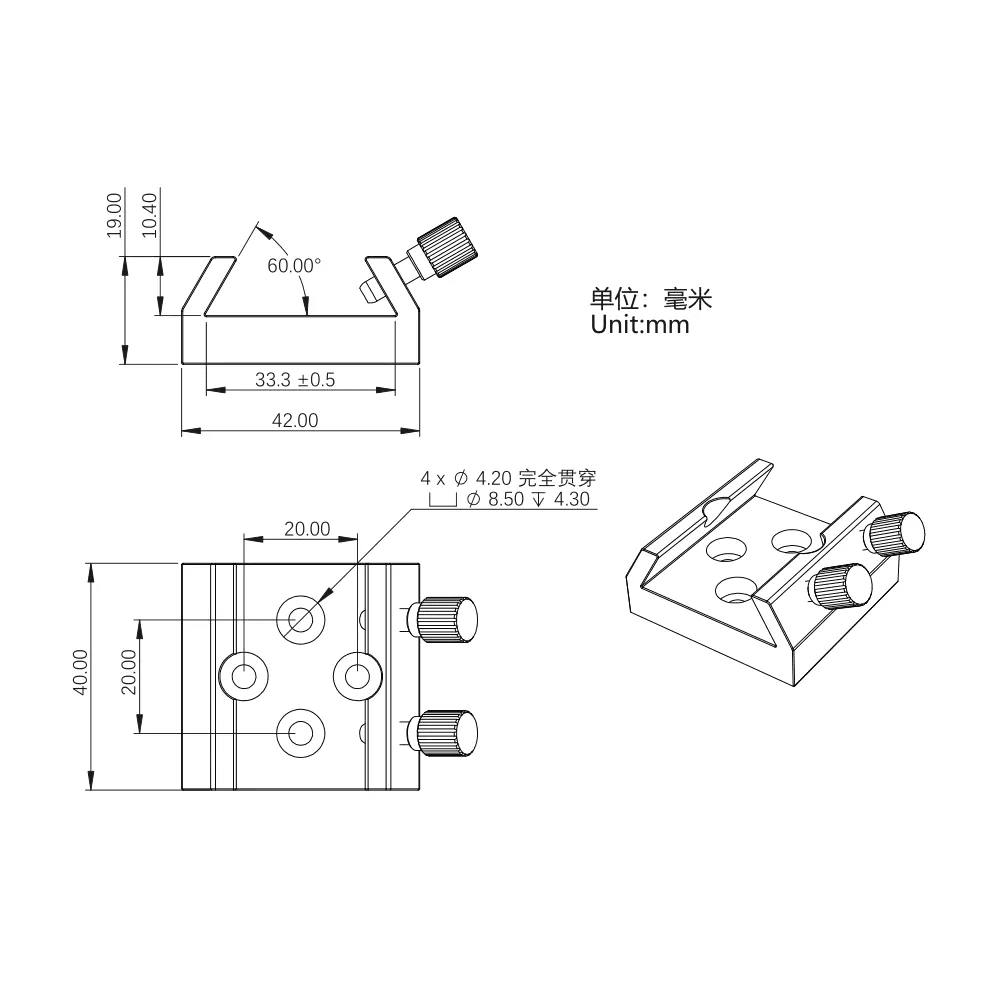

Mechanical Diagram:



8

What’s in the box?

Finder shoe *1

M4x8mm screws *2

9
