Simple manual control for a portable observing setup

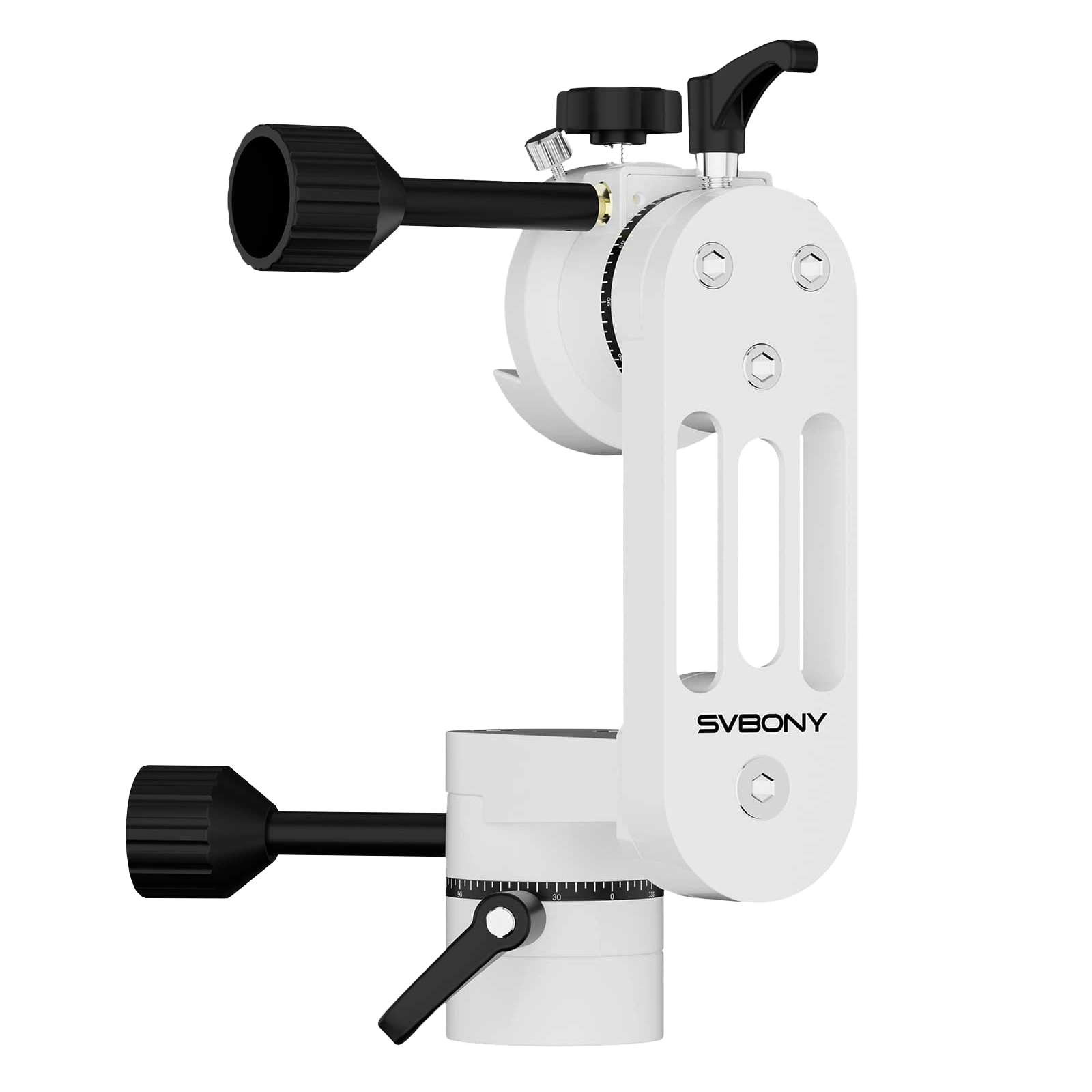

The SVBONY SV225 MINI is a compact alt-azimuth mount for small telescopes. Slow-motion controls on both axes help you centre objects and follow the Moon and planets during visual observation.
Its hollow CNC-machined aluminium body weighs approximately 1.55kg. A Vixen-style saddle accepts compatible telescope dovetails, while the base attaches to a suitable tripod with a 3/8-inch screw.
Specifications
| Model | SV225 MINI |
|---|---|
| Maximum payload | 5kg |
| Mount weight | 1546g |

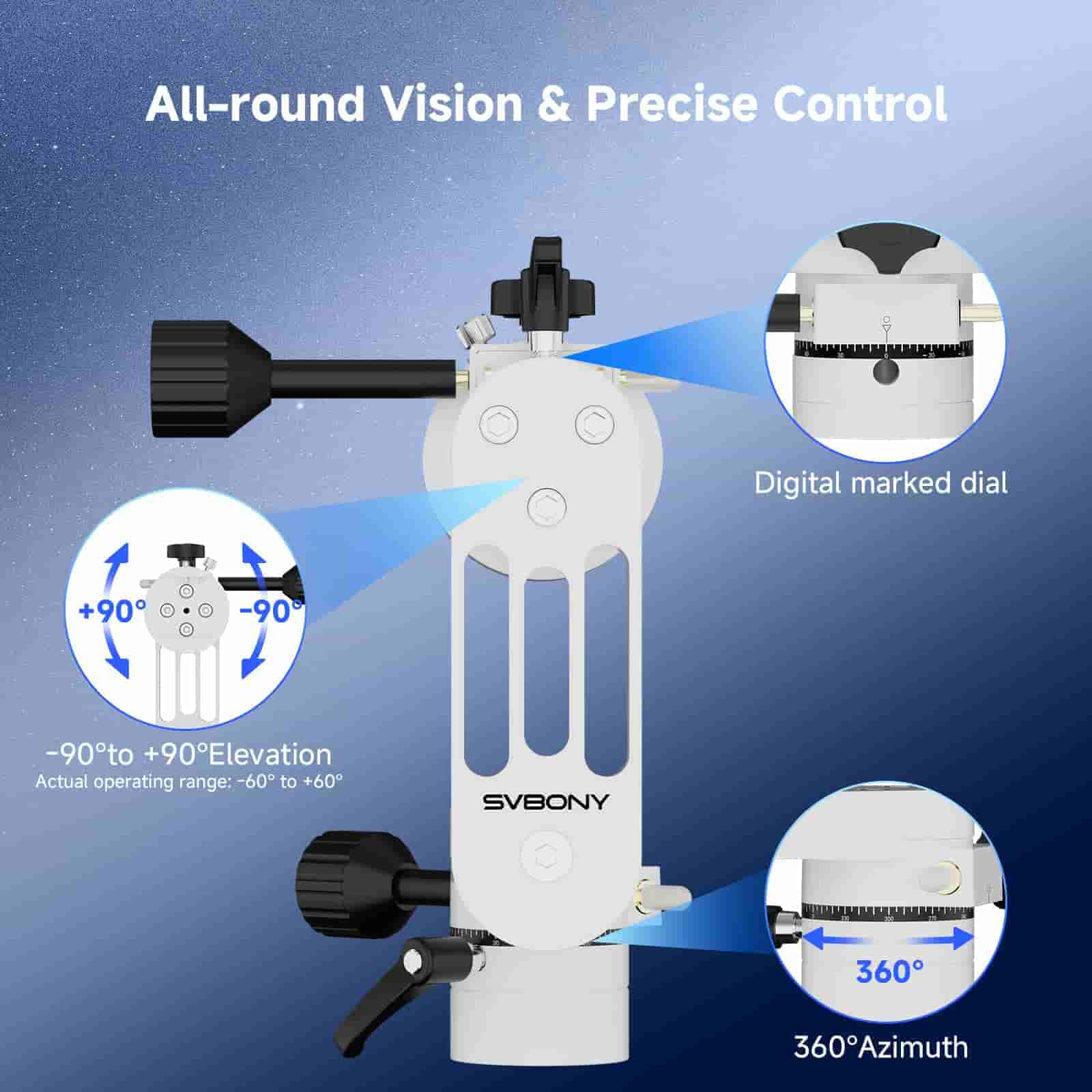

| Movement | 360° azimuth; −60° to +60° altitude |
| Tripod connection | UNC 3/8-16 female thread |
| Tracking | Manual, with dual-axis fine adjustment |
Supplied accessories
Mount head, altitude and azimuth flexible slow-motion cables, main and secondary dovetail locking knobs, two locking screws and an 8mm hex key.
Mount-only version: telescope, tripod and riser are not included. Choose a sturdy tripod and keep the complete telescope assembly within the stated payload.
