SVBONY MK105 105mm Maksutov-Cassegrain Telescope OTA
The MK105 combines a 105mm aperture with a 1365mm focal length in a compact Maksutov-Cassegrain optical tube. It is well suited to lunar, planetary and double-star observing when you want a long focal length in a relatively short telescope.

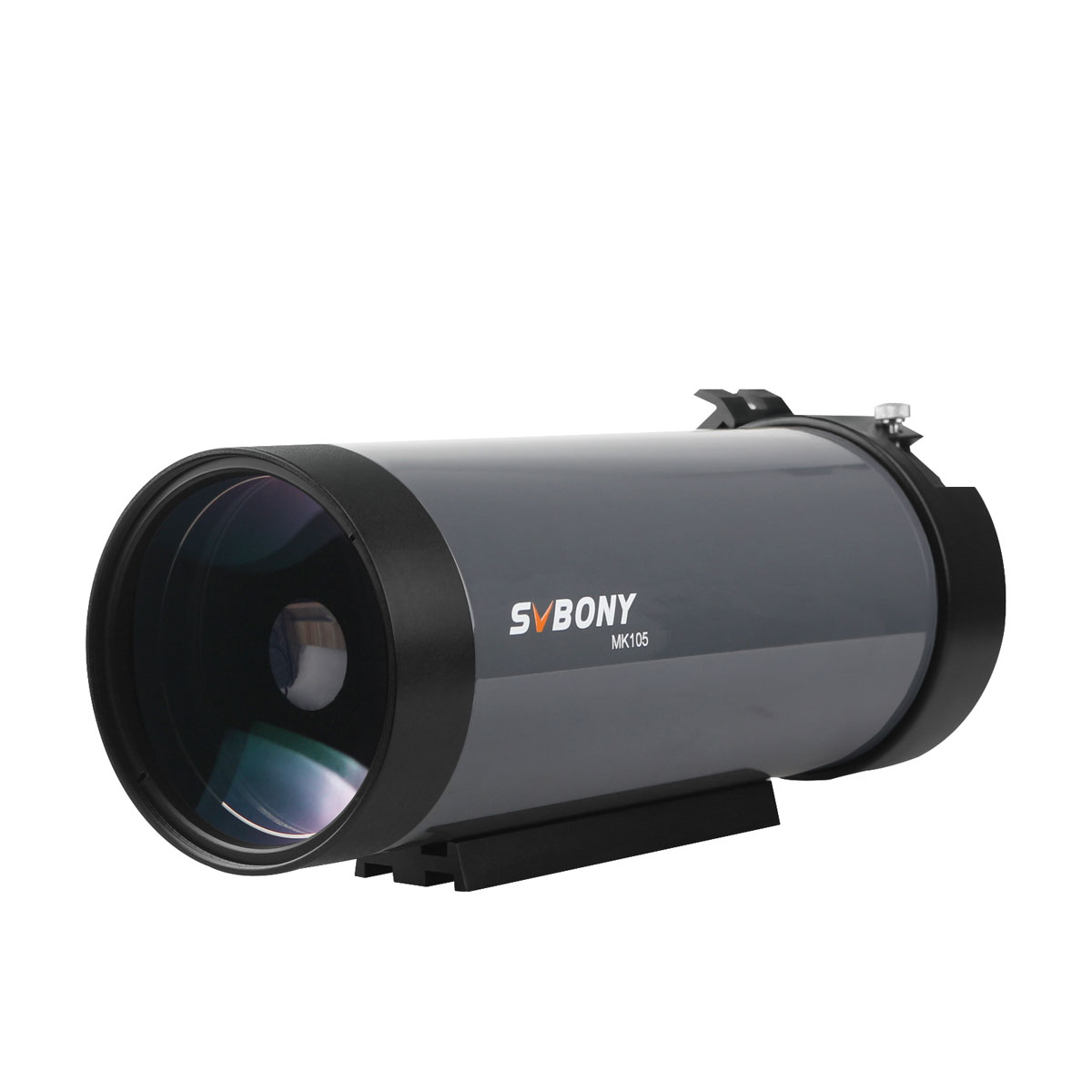

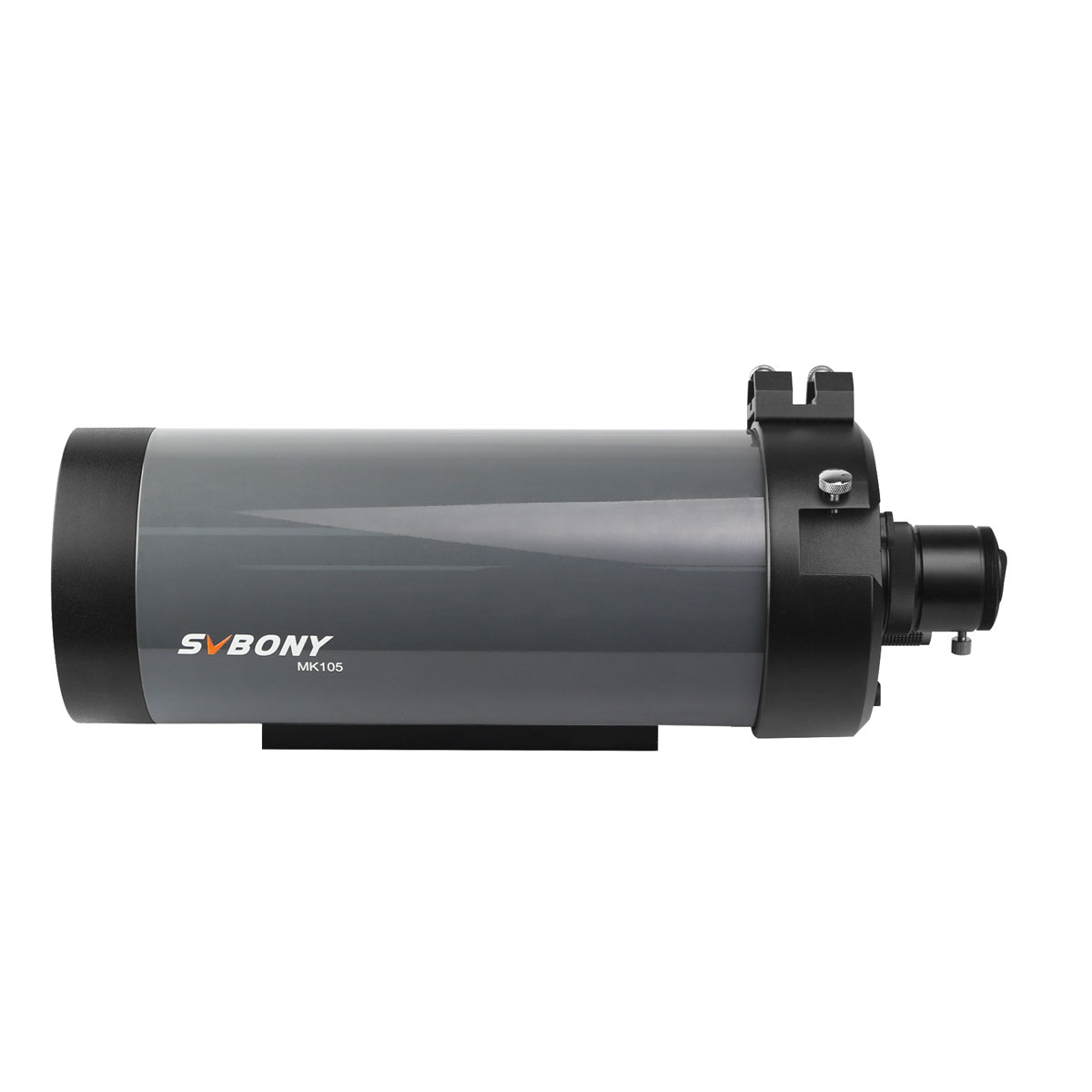

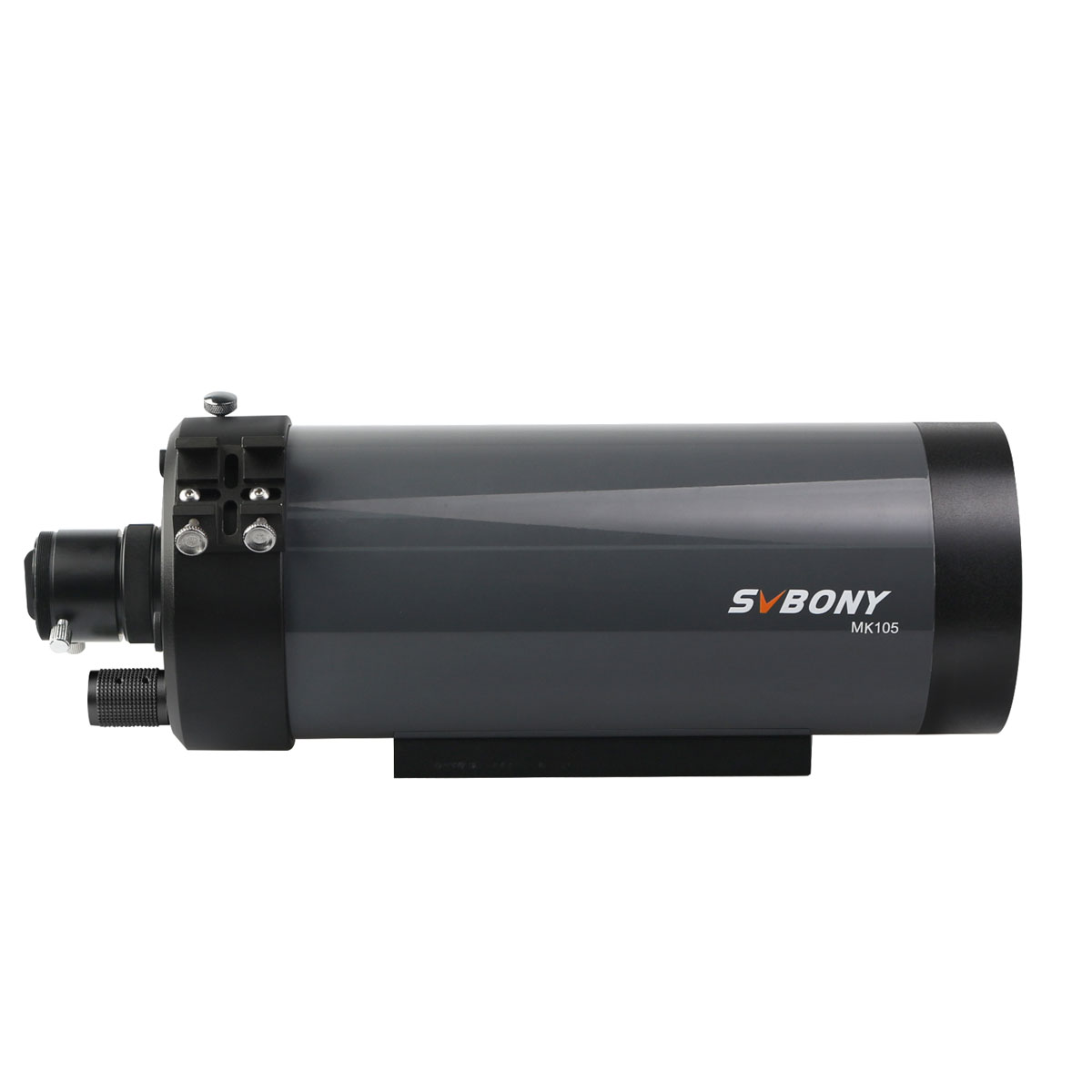

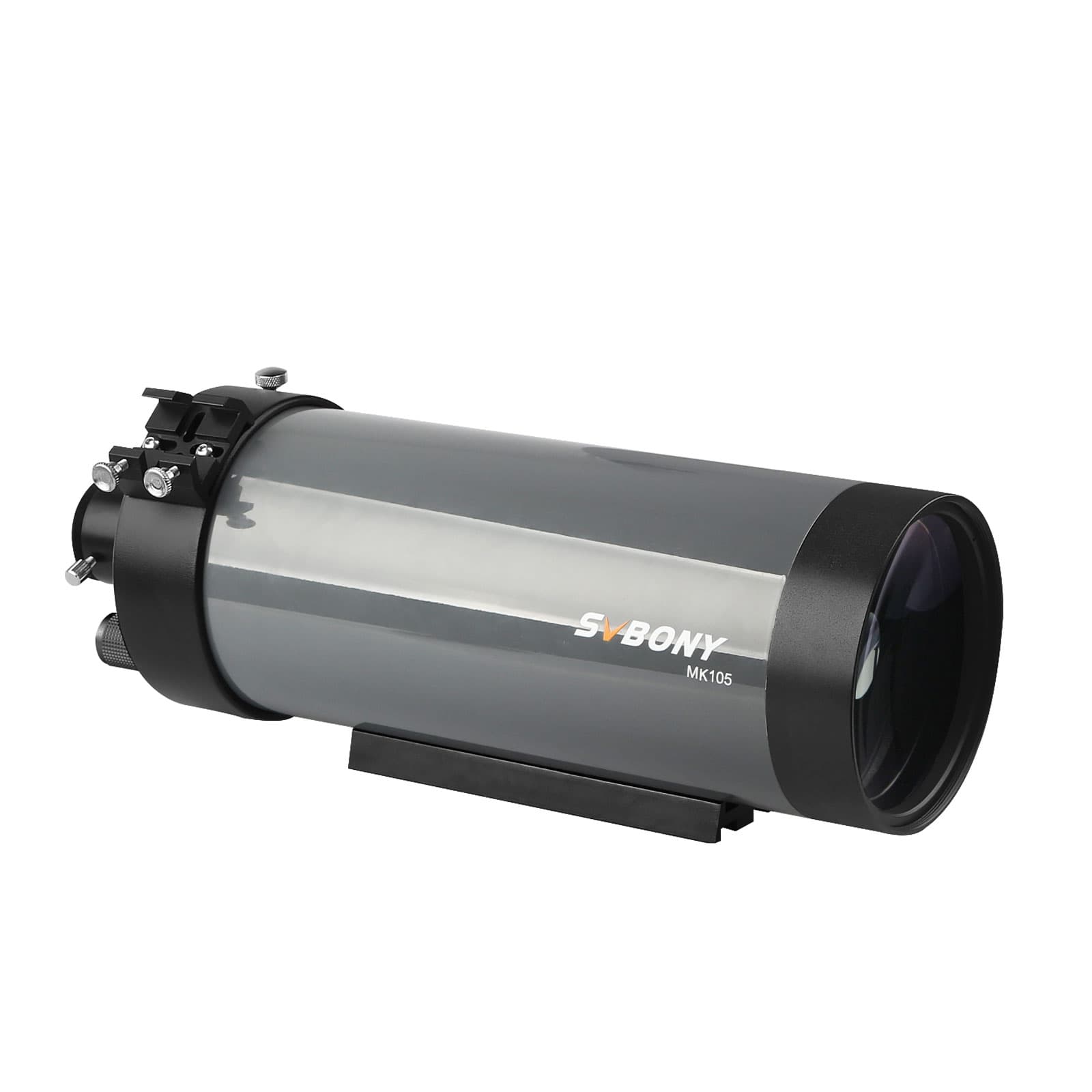

SVBONY MK105 Maksutov-Cassegrain OTA (105mm f/13)

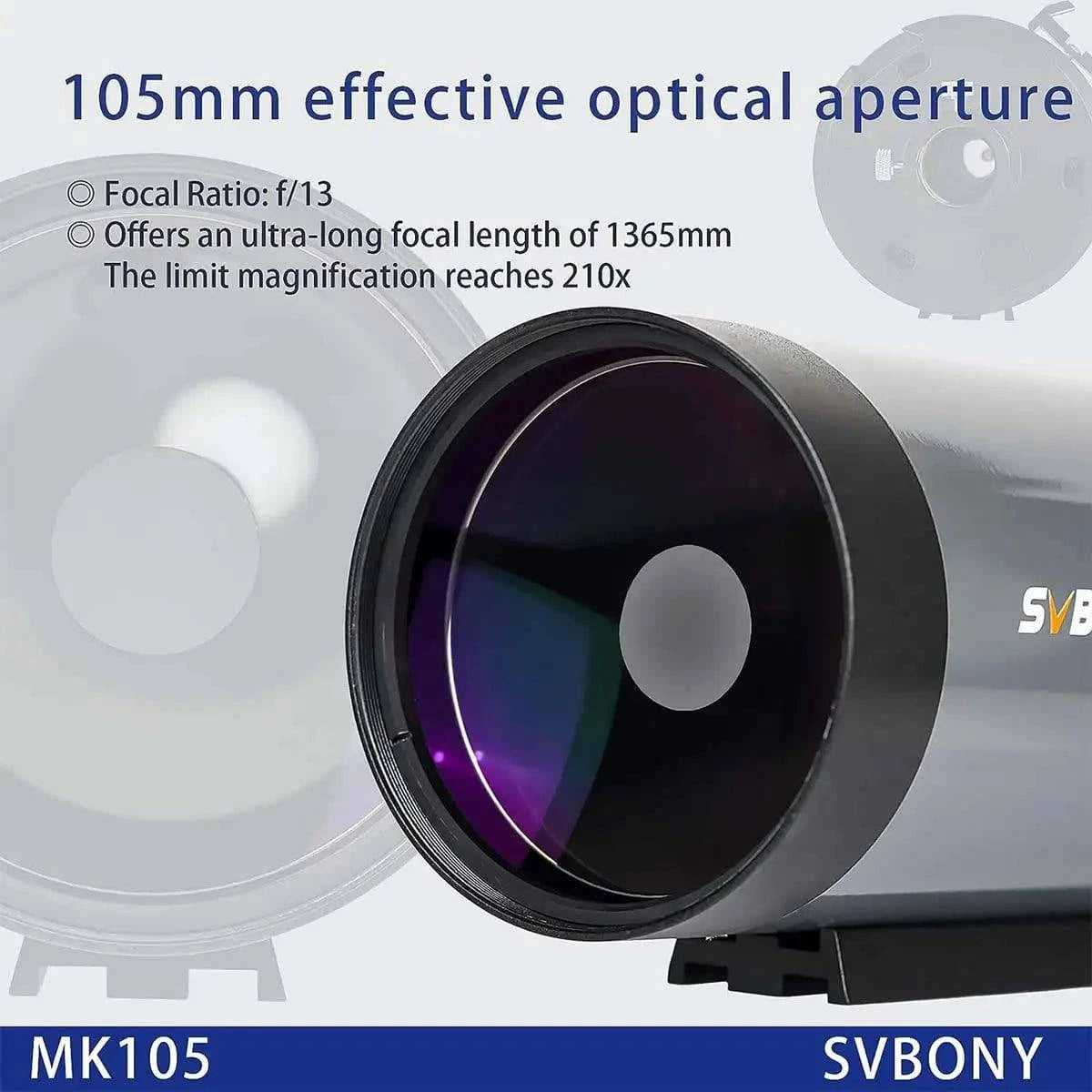

The SVBONY MK105 is a compact 105mm Maksutov-Cassegrain optical tube designed for high-contrast lunar and planetary viewing in a highly portable form. With a long 1365mm focal length and f/13 focal ratio, it’s well suited to detailed observing, double stars, and bright deep-sky targets where magnification and contrast matter most.
Why the MK105 optical design works so well
- Maksutov-Cassegrain meniscus corrector helps deliver sharp, high-contrast images in a short tube.
- Compact grab-and-go OTA: long focal length performance without a long telescope tube.
- Internal focusing keeps the exterior clean and simple, with fewer parts to snag in transport.
- Conical internal baffling helps reduce stray light for improved perceived contrast.
Durable build + easy mounting
- Sturdy metal construction designed for travel and regular handling.

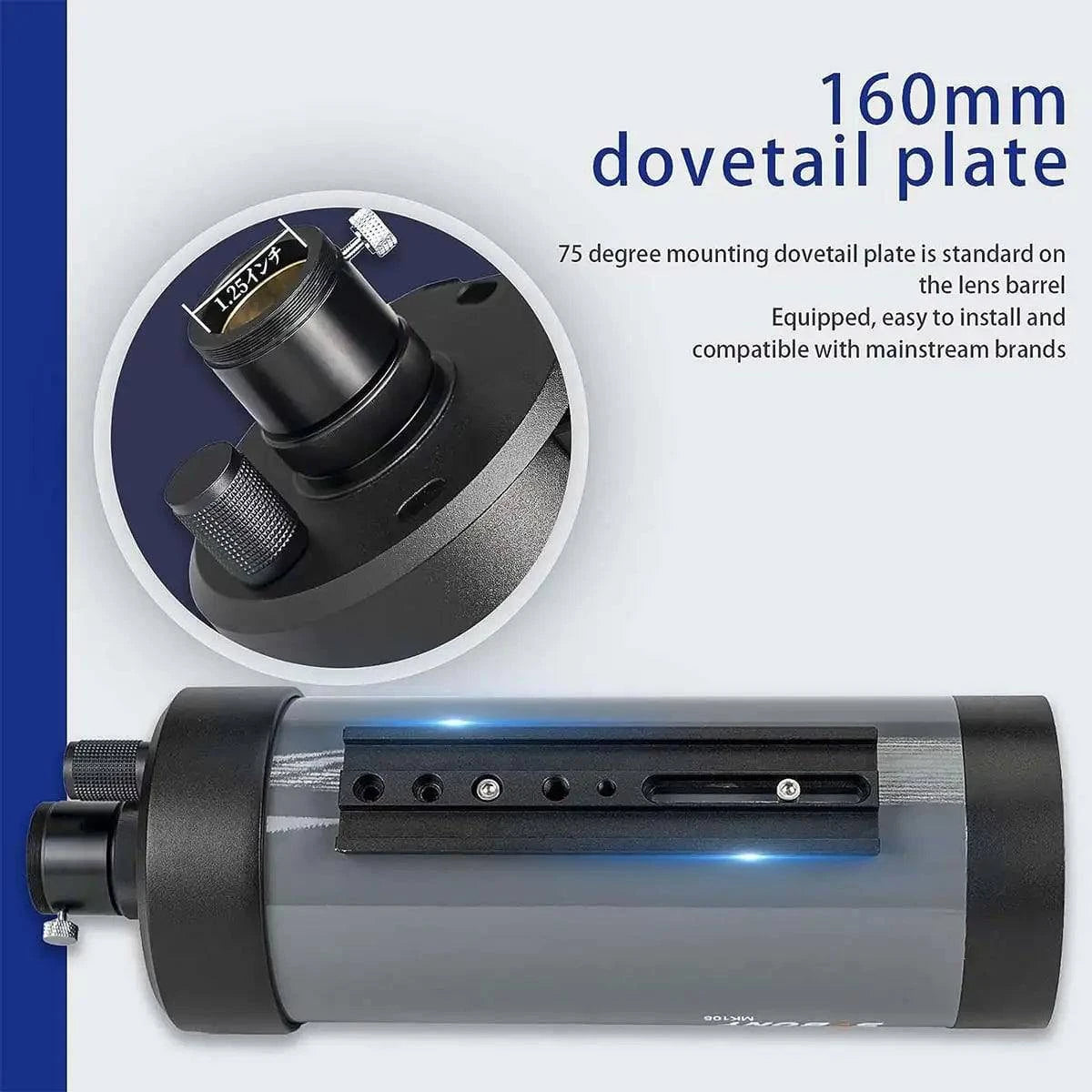

- Vixen-style dovetail compatibility for easy attachment to most common mounts and saddles.

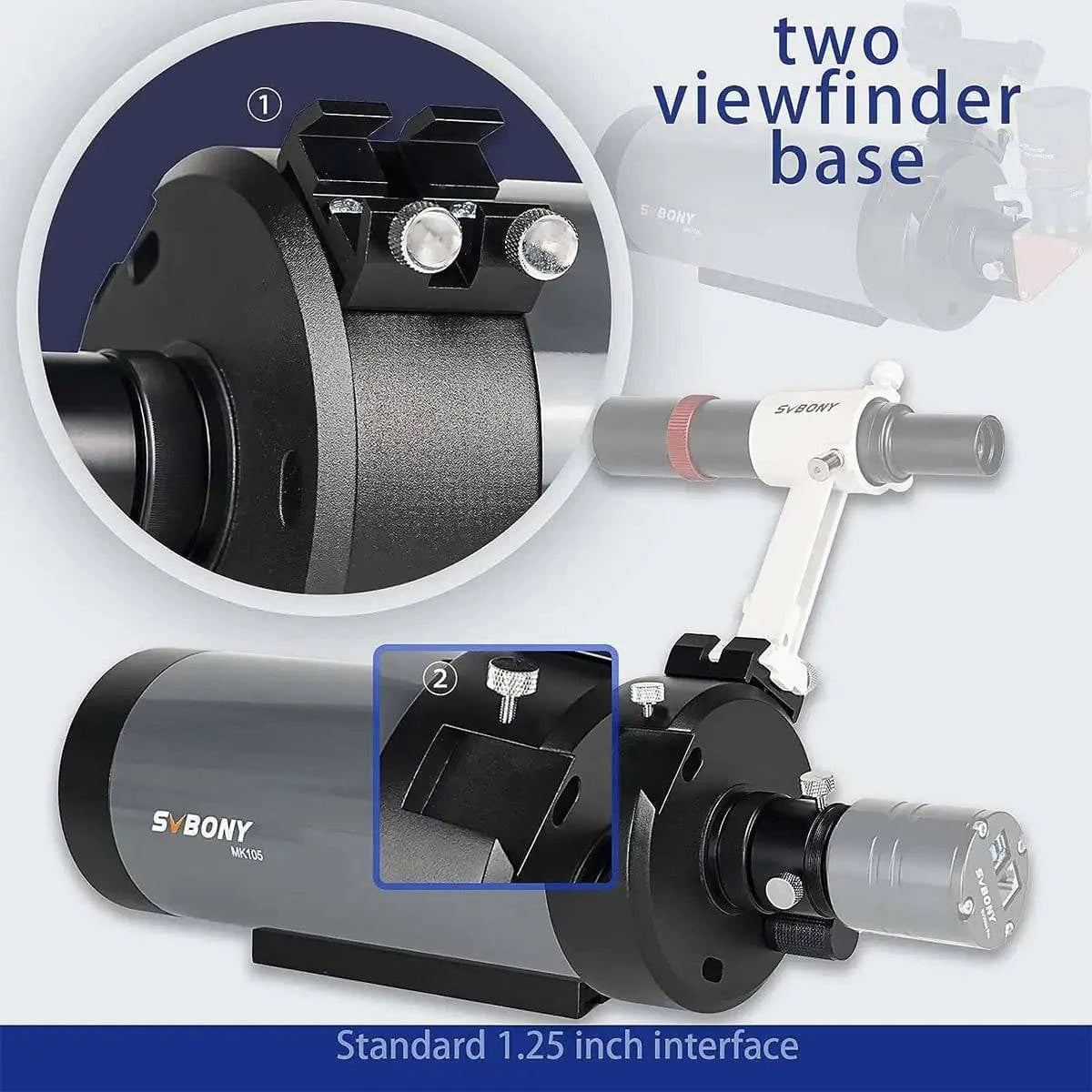

- Dual finder mounting bases (2x) allow two accessories (e.g., finder + red dot) with no drilling required.

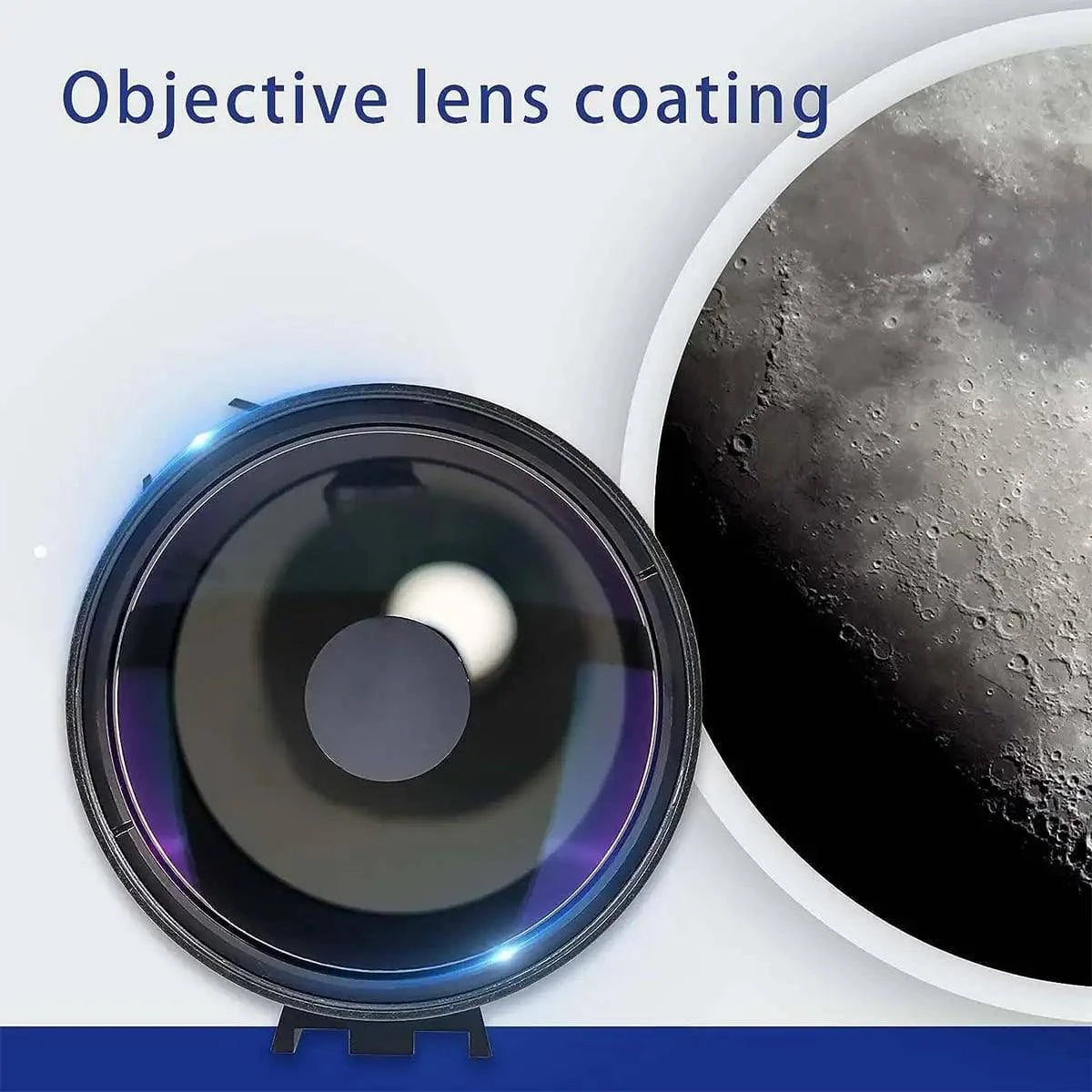

Coatings & contrast
- Secondary mirror dielectric coatings (up to 99% reflectivity) to support bright, high-contrast views.
- Multi-coated optical surfaces to help maximise light throughput.
Note: Like most Maksutov designs, the MK105 typically holds alignment well. If performance ever seems off, a simple star test can confirm whether adjustment is needed.
Best for
- The Moon: crisp crater and rille detail at high magnification

- Planets: fine detail on Jupiter, Saturn and Mars (seeing conditions permitting)


- Double stars and bright clusters
- Bright deep-sky objects (galaxies/nebulae) where compactness and magnification are priorities
What’s included

- 1x MK105 Maksutov-Cassegrain OTA
- 1x Versatile dovetail mounting base
- 1x Vixen-style dovetail plate (160mm)
Specifications
| Model | MK105 |
| Optical Design | Maksutov-Cassegrain |
| Aperture | 105mm (4.13") |
| Focal Length | 1365mm (53.74") |
| Focal Ratio | f/13 |
| Focuser | Internal |
| Mounting | Vixen-style |
| Resolving Power | 1.1 arc seconds |
| Limiting Magnitude | 12.1 |
| Tube Length | 377mm (14.84") |
| Tube Diameter | 119mm (4.68") |
| Net Weight | 2193g (4.83lb) |
| Adapter Thread | M42x0.75 (for T-ring) |
Choose magnification to suit the conditions
The long focal length makes useful lunar and planetary magnifications accessible with ordinary eyepiece focal lengths. Begin at low power, allow the telescope to settle towards outdoor temperature, and increase magnification only while the view remains sharp. The narrower field makes this a different choice from a short refractor used for very large star fields.
