BRESSER Nebula 5 EQ/AZ Wifi-Network Mount

The new BRESSER Nebula 5 EQ/AZ Wifi-Network Mount is a precise and quiet telescope mount – ideal for astrophotography. The controller box offers numerous central connectivity options for various accessories such as cameras, filter wheels, and motor focusers via USB (2.0/3.0), simplifying the setup of a professional astrophotography machine.

Quality and Innovation

BRESSER has relied on innovation coupled with quality Made in Italy for this top-notch product. The manufacturer's long experience in mount construction guarantees a high-end device with first-class functionality and utmost reliability. Additionally, the in-house development team in Italy ensures quick response times in technical support and the adaptation of new device drivers. Truly, "Professionals at work!"

Control and Connectivity

The mount is controlled via pre-installed web-app software, accessible via WIFI and Ethernet cable connection. The philosophy behind the Nebula GoTo system is to provide the user with a control system independent of a standard PC, which can be remotely controlled via a smart device such as a mobile phone or tablet. However, this does not exclude the traditional use of computers of all types and brands, which can be connected to the system either wired or wirelessly.

The BRESSER Nebula GoTo System Controller is a Raspberry Pi 4 microcomputer, which allows complete control of the setup (mount, camera, etc...) without the need for any other external device. The BRESSER Nebula GoTo system comes equipped with all Linux-based applications required for performing all astrophotographic functions. The existing INDI environment allows for the control of almost all devices (cameras, filter wheels, rotators, etc., including observatory domes) needed for local or remote astrophotography sessions.

The system also offers high flexibility for users who prefer to use traditional computer client applications such as Cart du Ciel (Star Chart), TheSkyX, SkySafari, Stellarium, and other planetarium programs as well as SGP, Nina, CCD Ciel, and other astrophotography tools. This complete compatibility is ensured through the adoption of the Alpaca communication protocol, which allows for the use of traditional ASCOM platform drivers for native INDI devices.

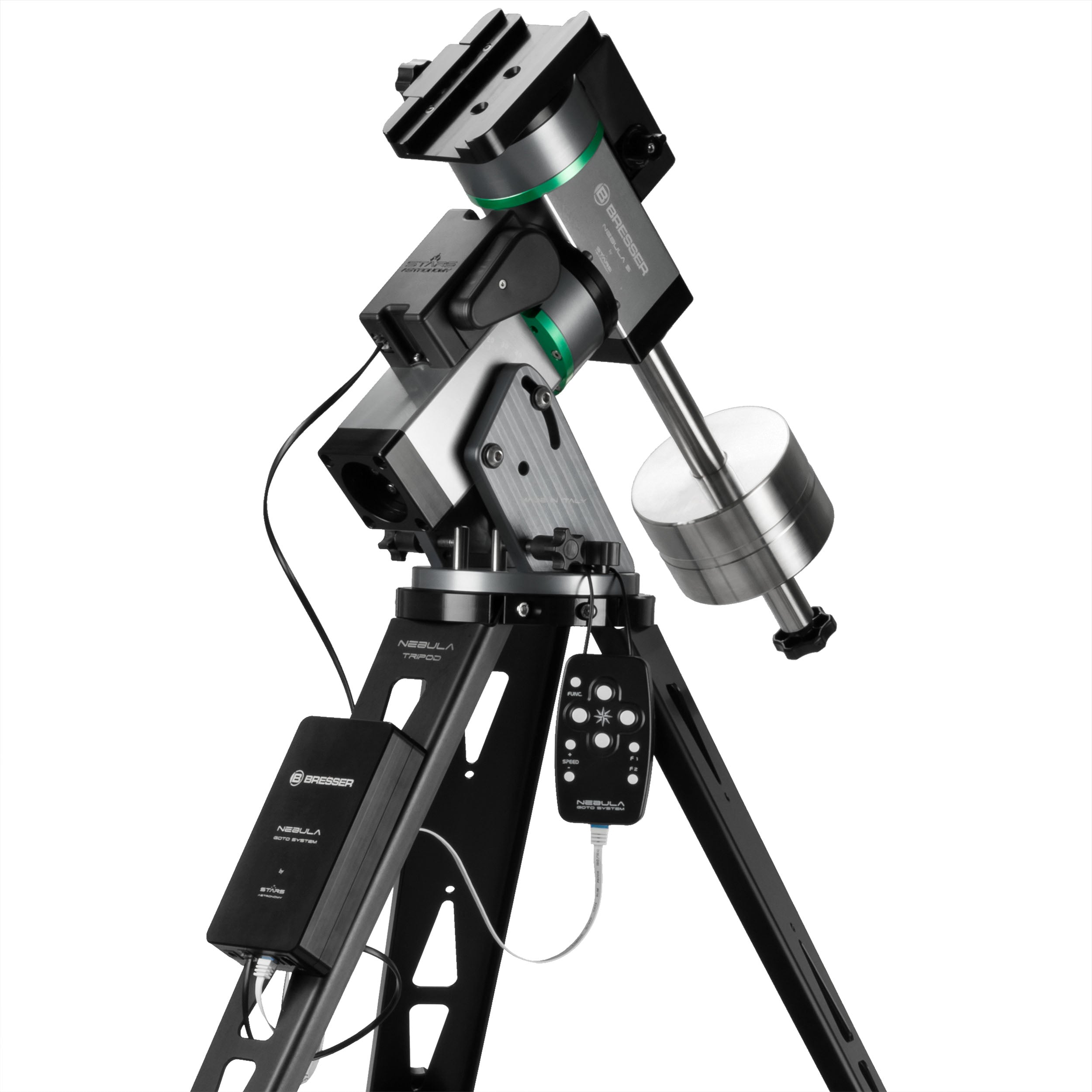

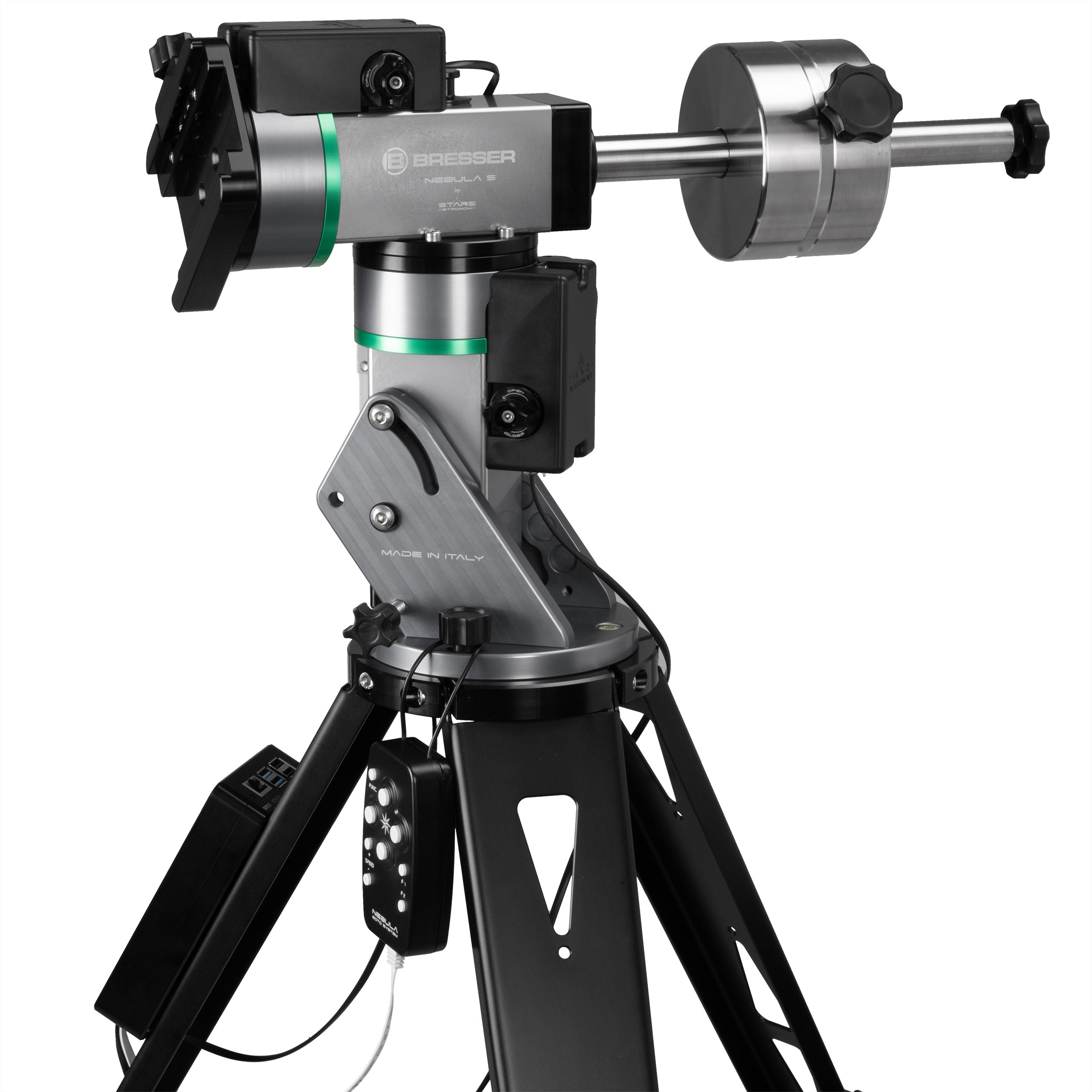

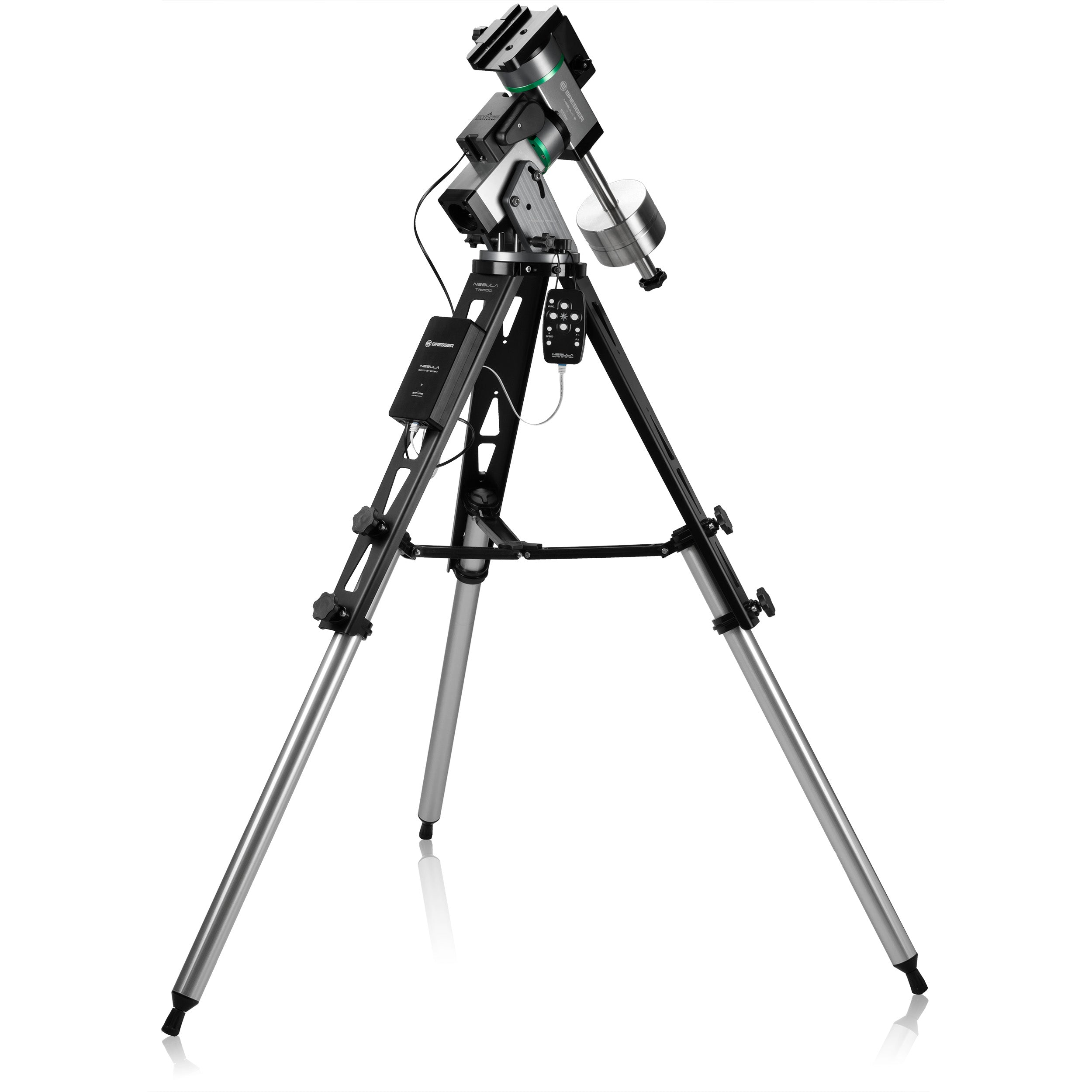

State-of-the-Art Mount Construction

The BRESSER Nebula mounts are CNC-manufactured from stainless steel and aluminium. The sleek and functional design is courtesy of a renowned Italian mount manufacturer, who has licensed the design and now manufactures these fine BRESSER products 100%. So, look forward to a stable yet easily portable mount, which despite its light weight of only 13 kg (incl. tripod), allows for a high load capacity of up to 20 kg.

Visual Observation

For visual observation and direct use, control the mount with the hand control box included in the package. Alternatively, connect the Nebula 5 via WLAN directly to your smartphone or tablet and use the virtual hand control box. Of course, all adjustment parameters can also be set via the web application. The user interface is deliberately simple and clear to ensure intuitive operation.

Astrophotography

Here, the Nebula mount shows its full strength. Whether mobile or stationary, the capability for remote operation is crucial. Connect your laptop or PC either via WLAN or with an Ethernet cable (recommended for faster data transmission) directly to the Raspberry-Pi control unit of the mount. Then use the pre-installed Kstars/EKOS software to control the mount and all external devices such as cameras, motor focus, filter wheel, etc. Alternatively, you can also directly control the unit with your own software. Applications such as Cart du Ciel (Star Chart), TheSkyX, SkySafari, Stellarium, and other planetarium programs as well as SGP, Nina, CCD Ciel, and other astrophotography tools can be used without any issues.

2-in-1 Mount with EQ and AZ Mode

If required, the Nebula can be switched from the equatorial mode to the azimuthal mode. This is particularly advantageous for observing nature or tracking satellites. Thus, the mount can be used for various applications and is not limited to astronomy.

Attachment of up to Two Optics

Would you like to adapt multiple optics? No problem. Simply use the option to replace the counterweight bar with another telescope. Use the second optic as a counterweight to the main telescope. Set the Nebula 5 to azimuthal mode, remove the counterweight bar, and screw a suitable second telescope clamp directly onto the mount.

Features

• Precise and quiet telescope mount – ideal for astrophotography
• Extensive connectivity options for various accessories via USB
• Integrated web app software enables central control of all components
• Integrated Raspberry Pi with USB-3 ports and Ethernet port
• Compatible with client applications such as Cart du Ciel (Star Chart), TheSkyX, SkySafari, Stellarium
• Compatible with SGP, Nina, CCD Ciel, and other astrophotography tools
• Virtual hand control box and settings menu for smartphones and tablets
• PC control – ASCOM and INDI compatible
• USB ports for cameras, motors, filter wheels, etc.
• Conversion from parallactic to azimuthal mode possible
• Small hand box for basic functions included
• High load capacity and yet lightweight
• Mount CNC-manufactured from stainless steel and aluminium
• Tooth belt drive for precise and quiet tracking
• Load capacity: 15 kg in EQ mode and 20 kg in AZ mode
• Dual prism clamping for Vixen GP and Losmandy
• Weight of the mount: 8 kg
• Weight of the tripod: 5 kg

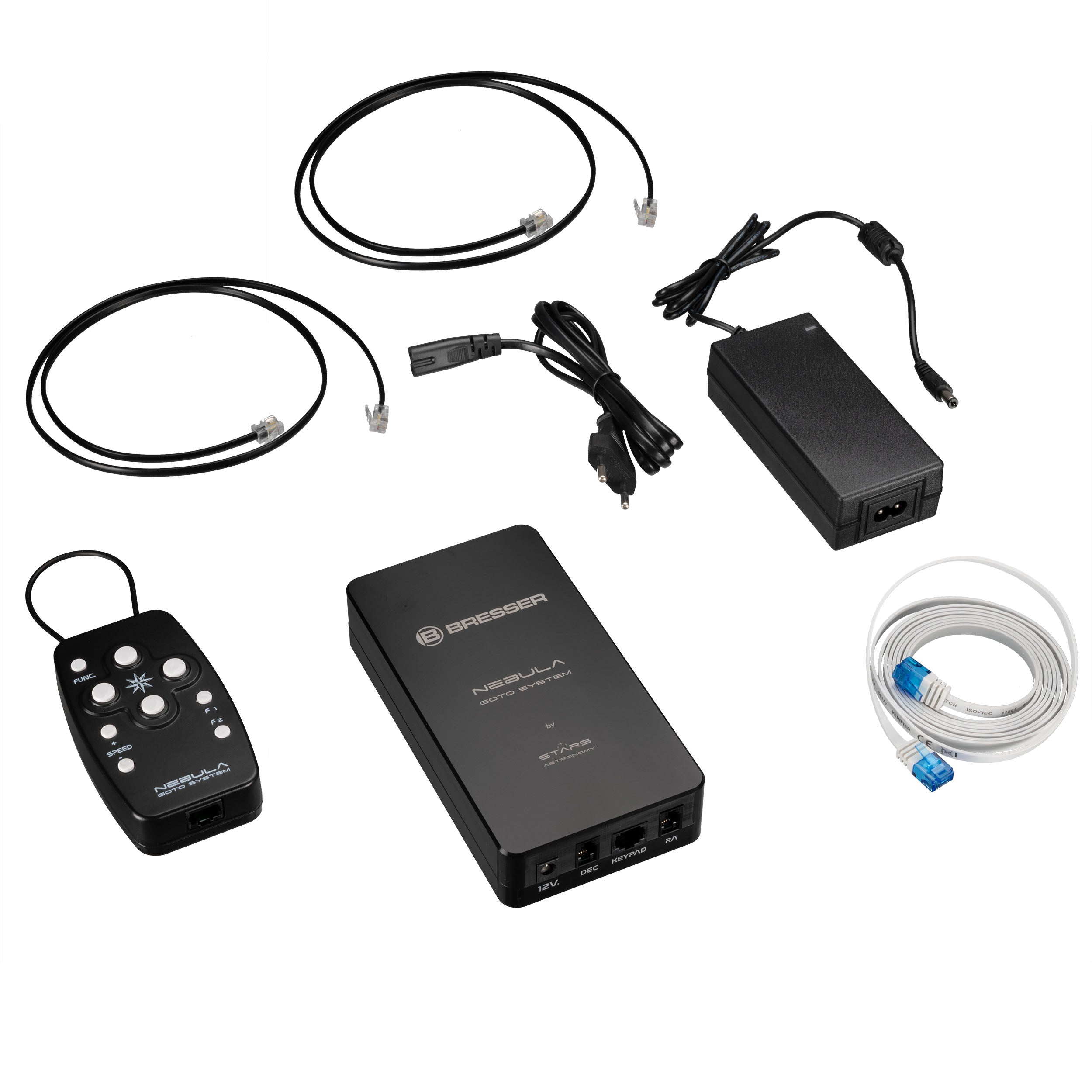

Scope of Delivery

• Nebula 5 EQ/AZ Mount
• Field tripod
• Central control unit with Raspberry Pi
• Counterweight: 6 kg (1 piece)
• Basic hand box
• Connection cables
• Power supply 230V/12V/3A
