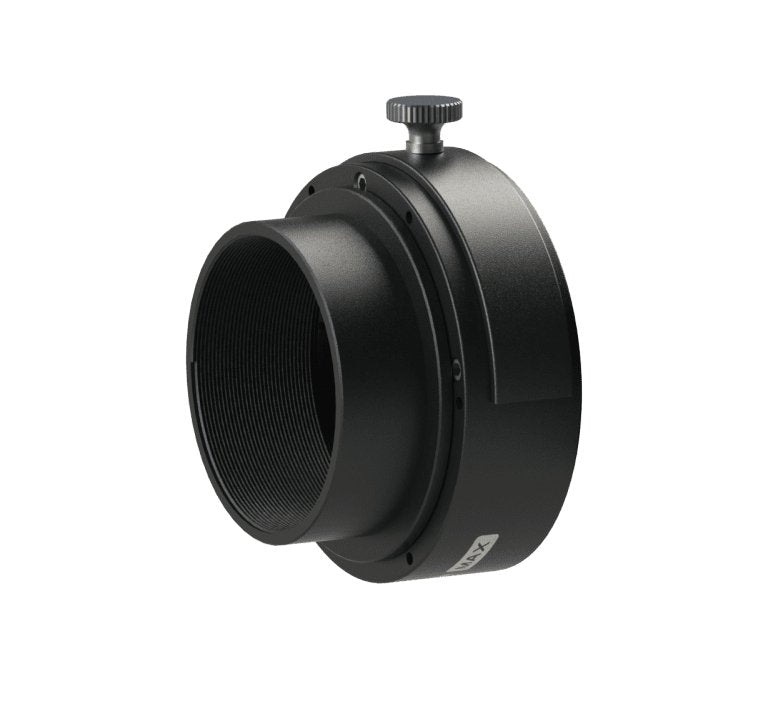

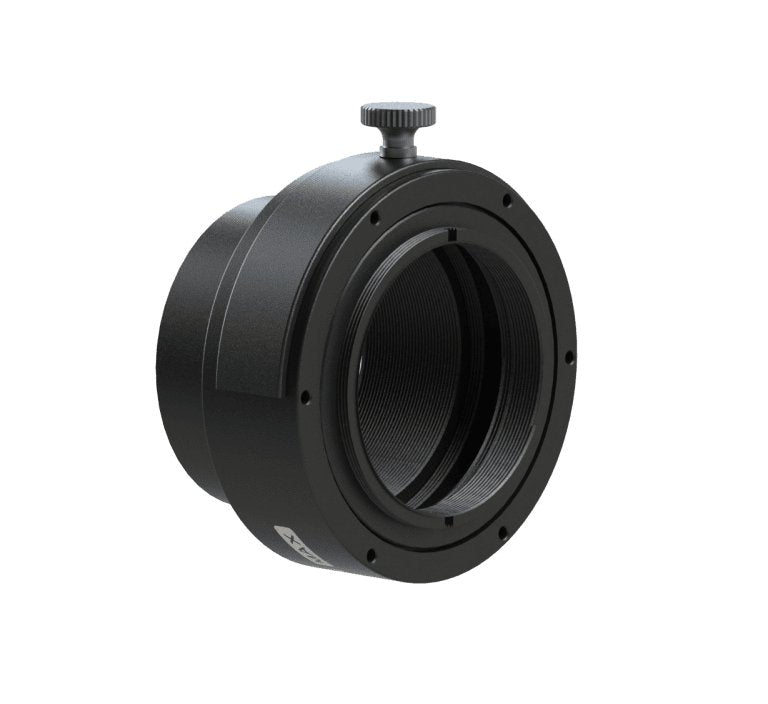

Simplify your astrophotography setup with the Filter Drawer MAX. Designed to support models from the Poseidon, Zeus, and Artemis series, this filter holder is crafted from durable Aluminum 6061-T6 material for reliable performance.

Key Features:

• Stable Lock: The Filter Drawer MAX utilizes a metal bead screw with a 3-point lock system, ensuring exceptional stability during imaging.
• Support Filters: The drawer itself features an M48*0.75 female thread, capable of securely holding a 2″ filter.
• Setup with M2.5 Screws: The Filter Drawer MAX includes 6 M2.5 screw holes on both sides. The telescope-side holes connect to the FHD-OAG MAX, while the camera-side holes are compatible with cooled cameras.
• Setup with Threads: Enjoy the versatility of threads connection, expanding the range of applications for the Filter Drawer MAX.

Simplify your astrophotography workflow and optimize your filter usage with the Filter Drawer MAX. Package includes:

• Filter Drawer MAX

Order now from Dark Clear Skies and streamline your astrophotography experience.

Product description:

Filter Drawer MAX

Support model: Poseidon series, Zeus series, Artemis series.

Filter size: 2″ filter is required

Material：Aluminum 6061-T6

Extention Length: 21mm

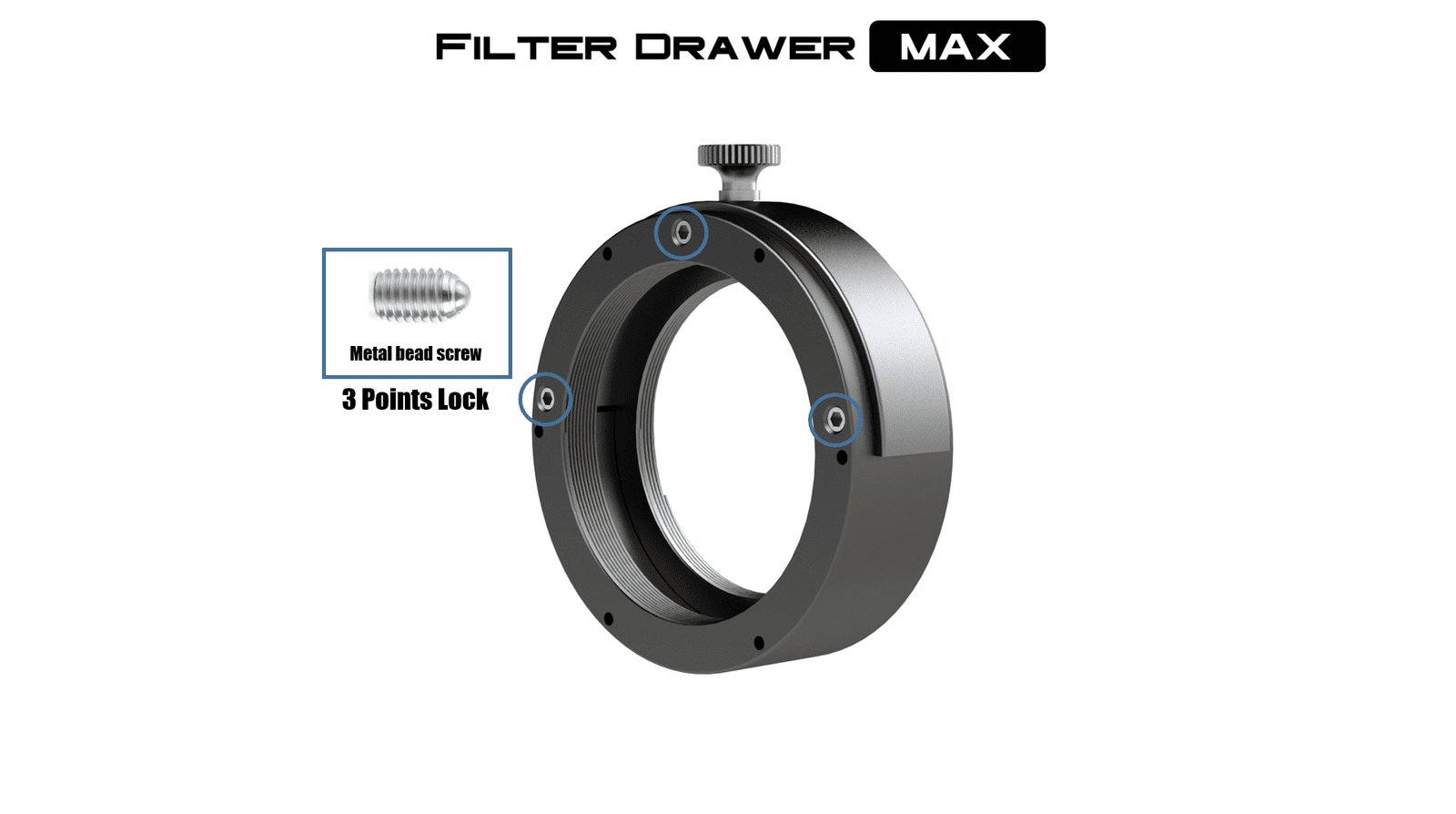

Stable Lock

Filter Drawer MAX using metal bead screw to lock the drawer, 3 point lock can make sure the drawer is very stable in imaging.

Support filters

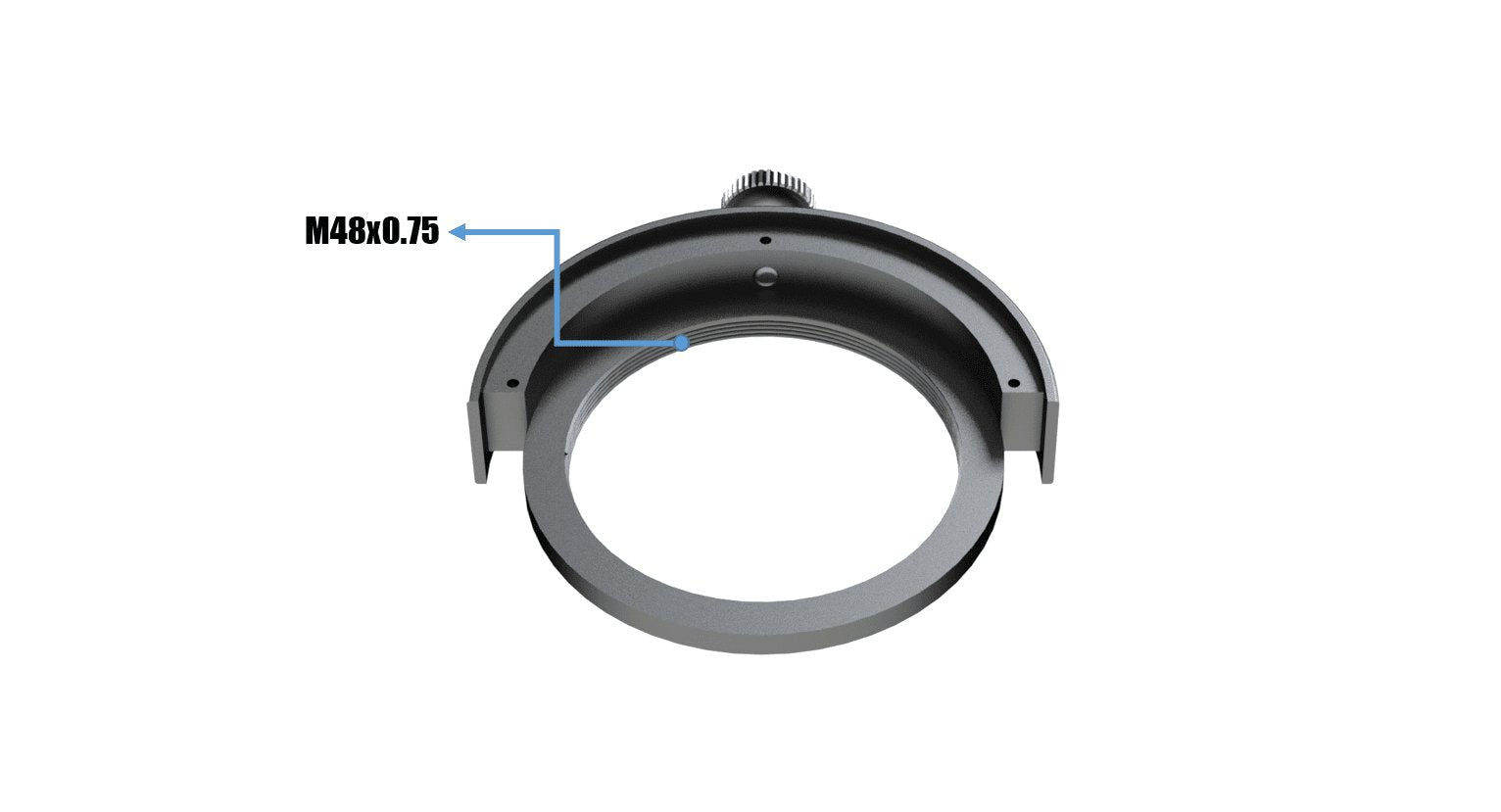

Drawer itself has M48*0.75 female thread, can hold a 2″ filter in it.

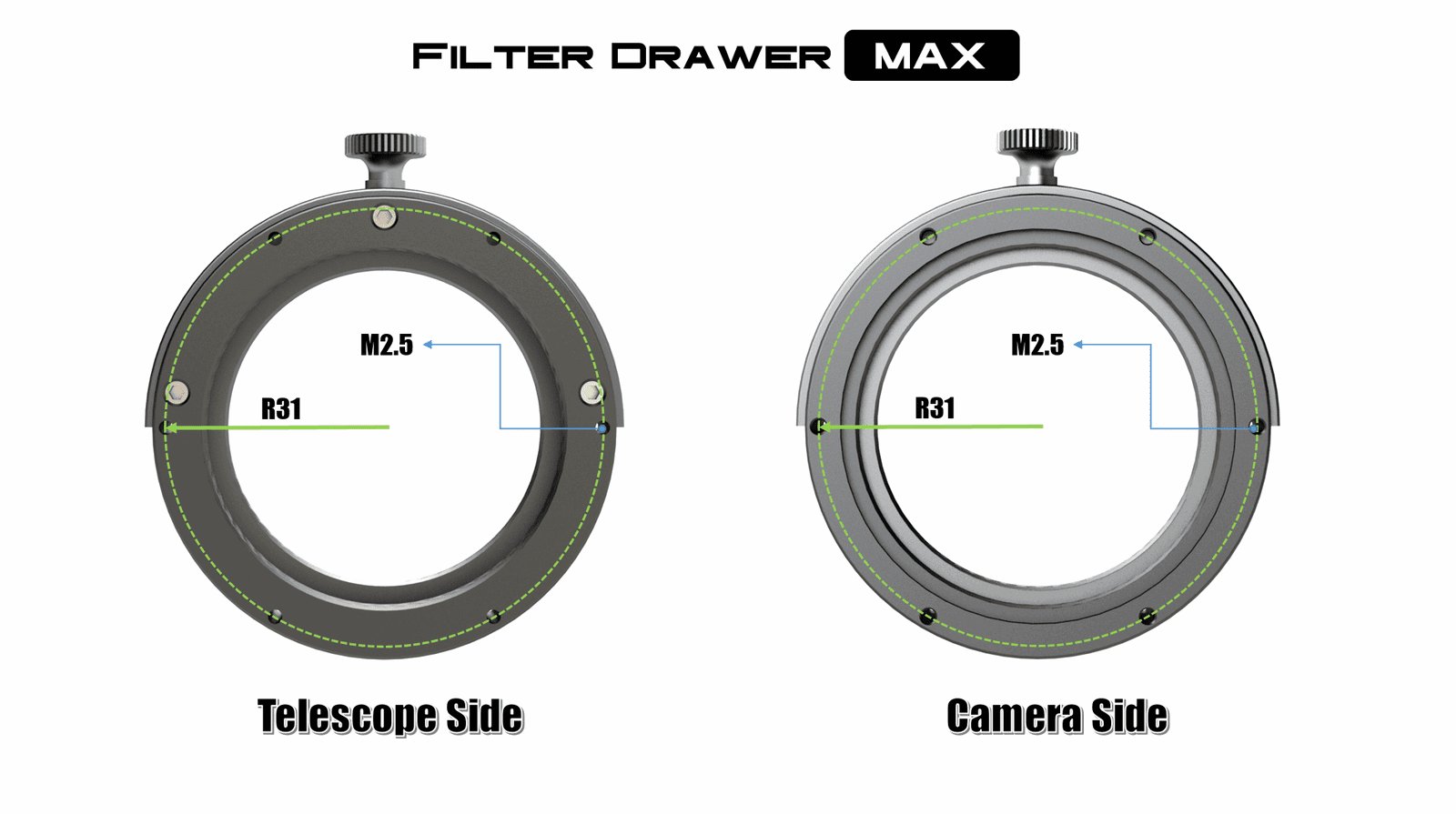

Setup with M2.5 screws

On both side of the Filter Drawer MAX, has 6 M2.5 screws holes. Screw holes on telescope side used to connect the FHD-OAG MAX, Screw holes on camera side used to connect cooled cameras.

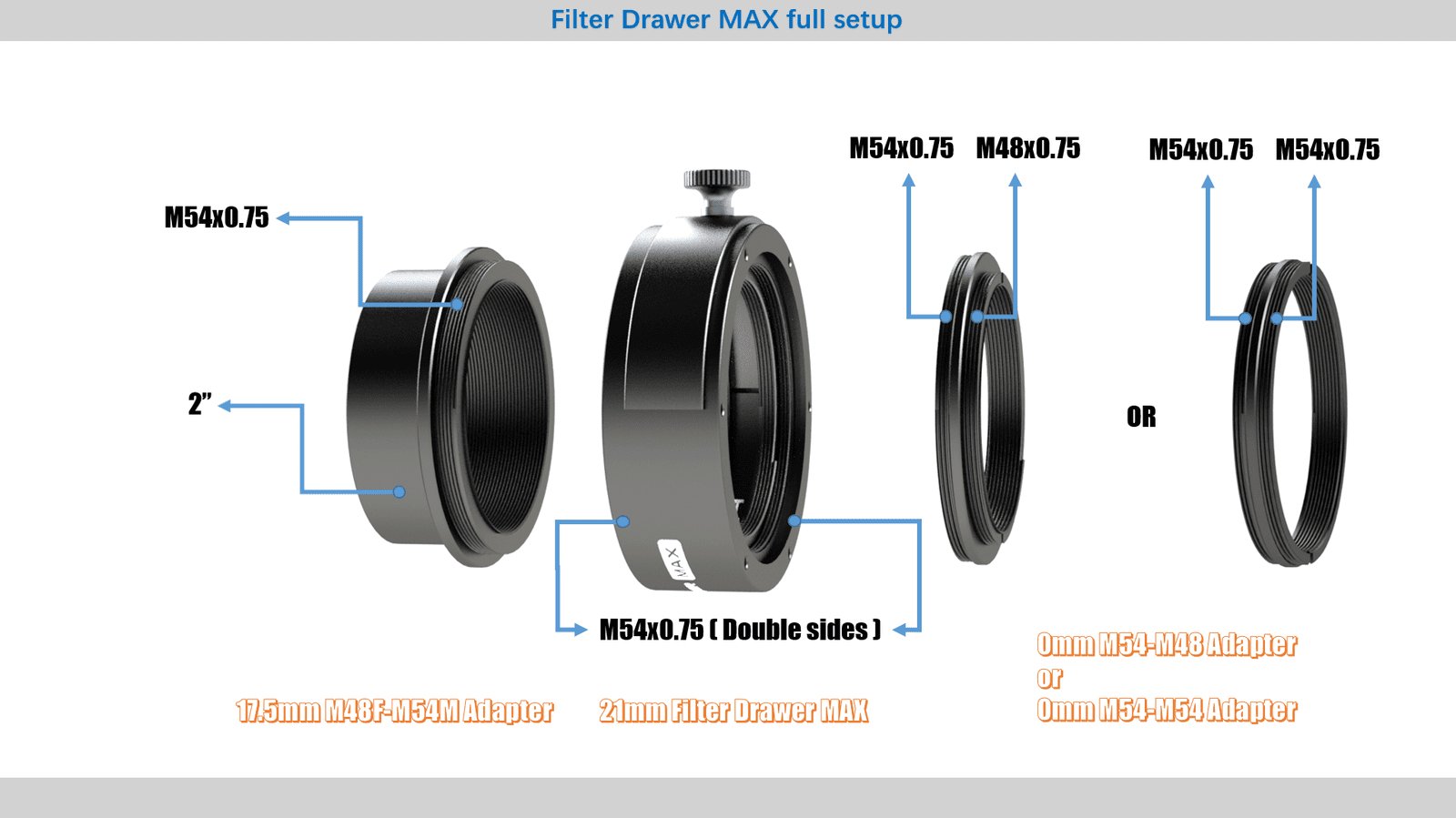

Setup with threads

Filter Drawer MAX also support threads connection, this will extend the using range of it.

Package List
