Player One

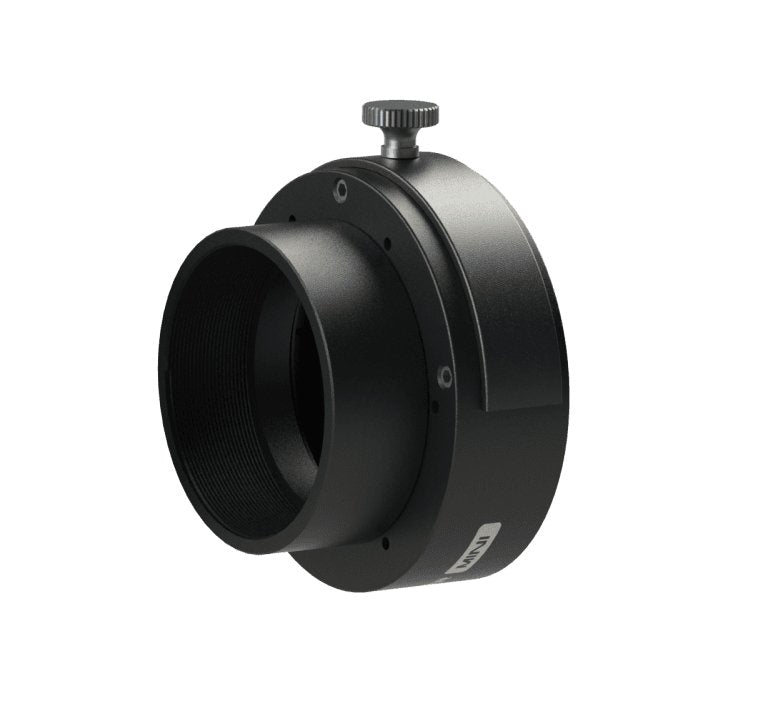

Filter Drawer MINI: Filter Holder for Ares Series

Filter Drawer MINI: Filter Holder for Ares Series

SKU:FD-MINI

Regular price £139.00
Regular price Sale price £139.00
Sale Sold out
FREE UK SHIPPING

Filter Drawer MINI: Filter Holder for Ares Series

Simplify your astrophotography setup with the Filter Drawer MINI. This filter holder is specifically designed for the Ares series. Made of durable Aluminum 6061-T6 material, it provides a stable locking mechanism and supports 2″ filters. Additionally, we offer two options for the drawer size: 2″ and 1.25″, accommodating different filter preferences.

Key Features:

  • Stable Lock: The Filter Drawer MINI utilizes a metal bead screw with a 3-point lock system, ensuring stability during imaging.
  • Support Filters: The 2″ drawer features an M48*0.75 female thread, while the 1.25″ drawer has an M28.5*0.6 female thread, securely holding the respective filters.
  • Setup Options: The Filter Drawer MINI includes 6 M2.5 screw holes on both sides for easy connection to the FHD-OAG MINI on the telescope side and cooled cameras on the camera side. It also supports threads connection for extended versatility.

Simplify your astrophotography workflow and enhance your filter usage. Order the Filter Drawer MINI now from Dark Clear Skies


Support model: Ares series.

Filter size: 2″ filter is required

Material:Aluminum 6061-T6

Extention Length: 21mm

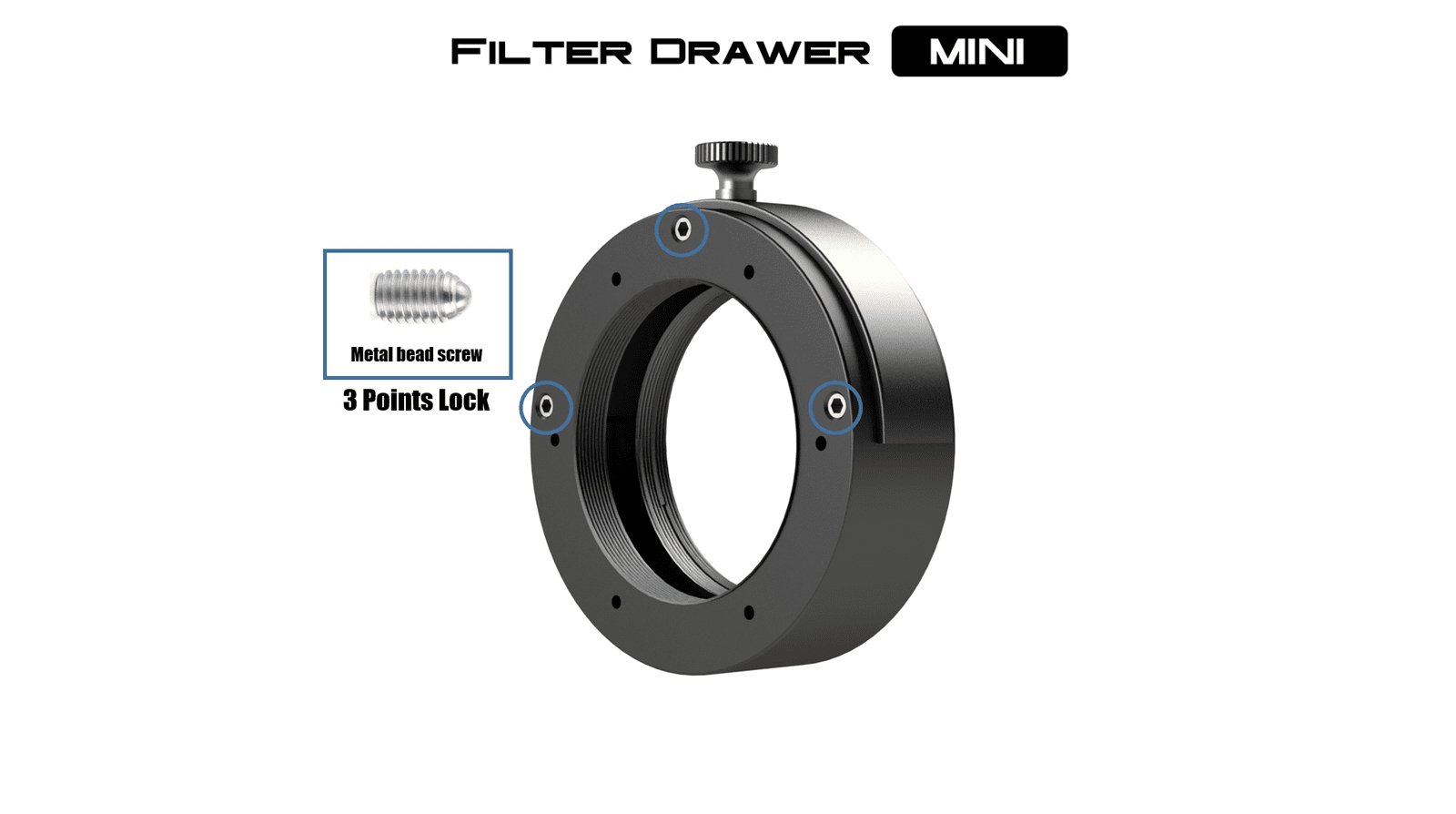

Stable Lock

Filter Drawer MINI using metal bead screw to lock the drawer, 3 point lock can make sure the drawer is very stable in imaging.

Support filters

We know most users choose 2″ filter for drawers, even the camera only has 1″ format. But 2″ filters usually more expensive. So we provide 2 different drawer, 2″ and 1.25″.

2″ drawer has M48*0.75 female thread, can hold a 2″ filter in it.

1.25″ drawer has M28.5*0.6 female thread, can hold a 1.25″ filter in it.

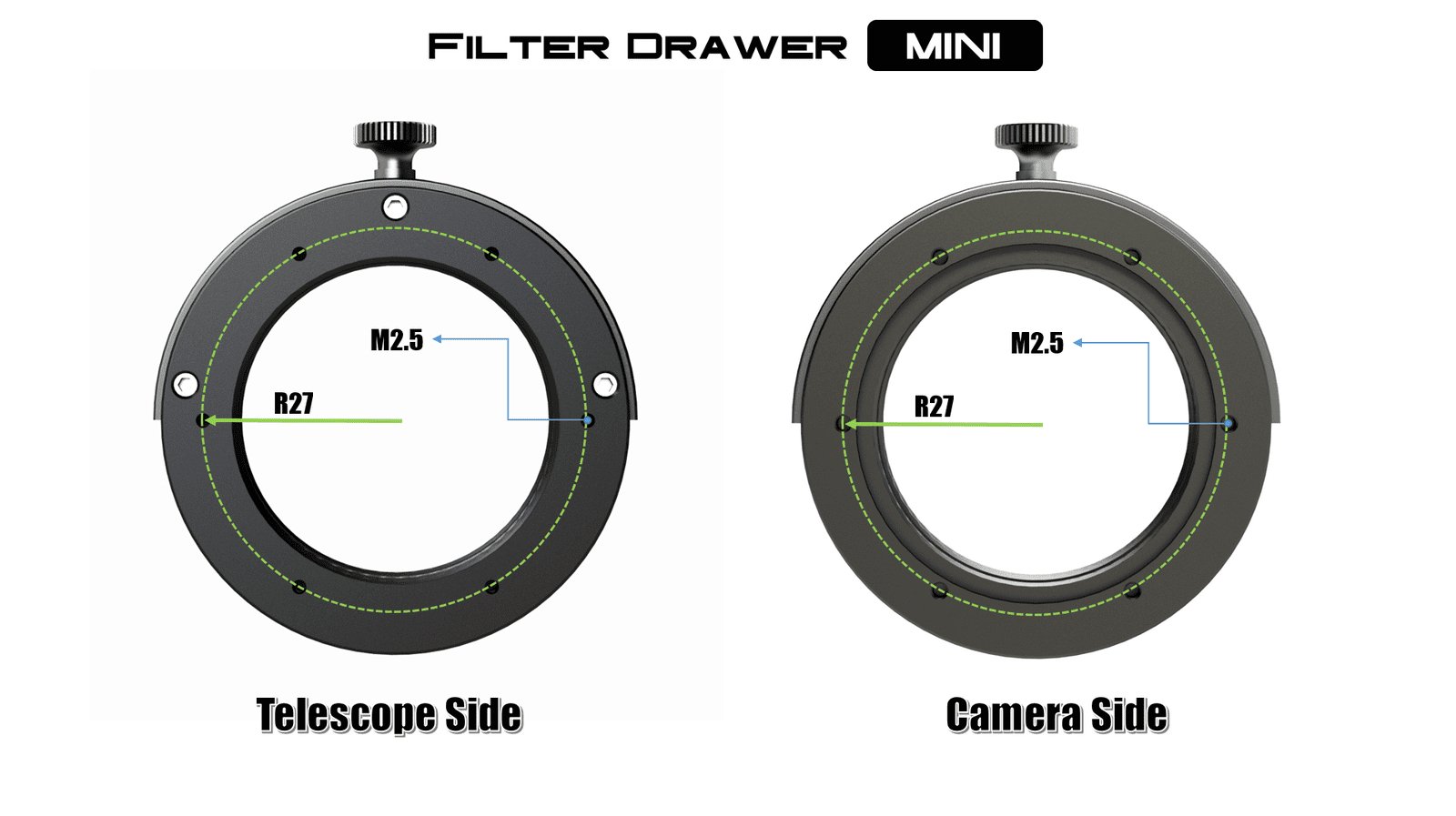

Setup with M2.5 screws

On both side of the Filter Drawer MINI, has 6 M2.5 screws holes. Screw holes on telescope side used to connect the FHD-OAG MINI, Screw holes on camera side used to connect cooled cameras.

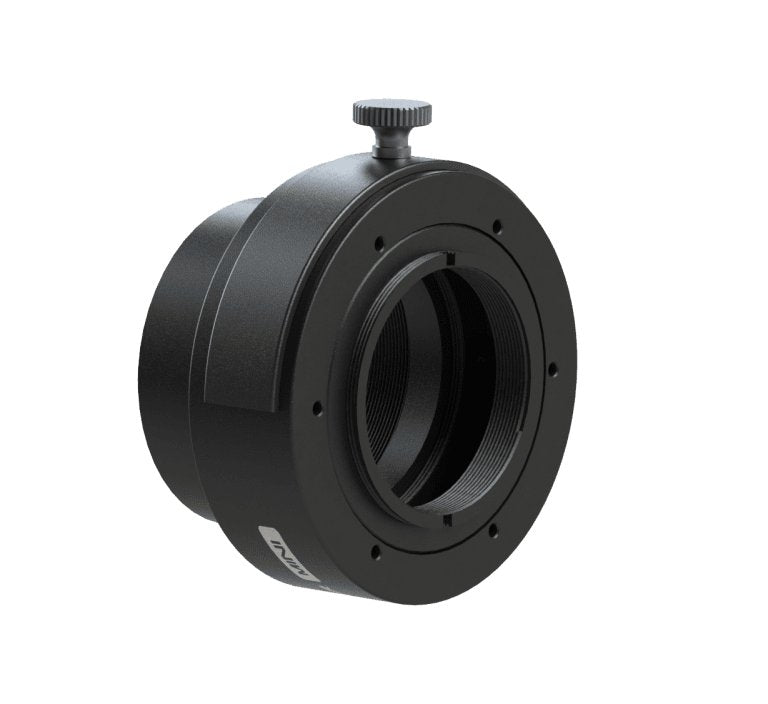

Setup with threads

Filter Drawer MINI also support threads connection, this will extend the using range of it.

Package List
