RT97P UHF Mini portable DMR Repeater
RT97P UHF Mini portable DMR Repeater
SKU:EU-A9150D
Couldn't load pickup availability
Retevis RT97P full duplex mini base station mobile repeater designed to expand the transmission range of walkie talkies or mobile radios, greatly improving your communication capabilities.
OverView

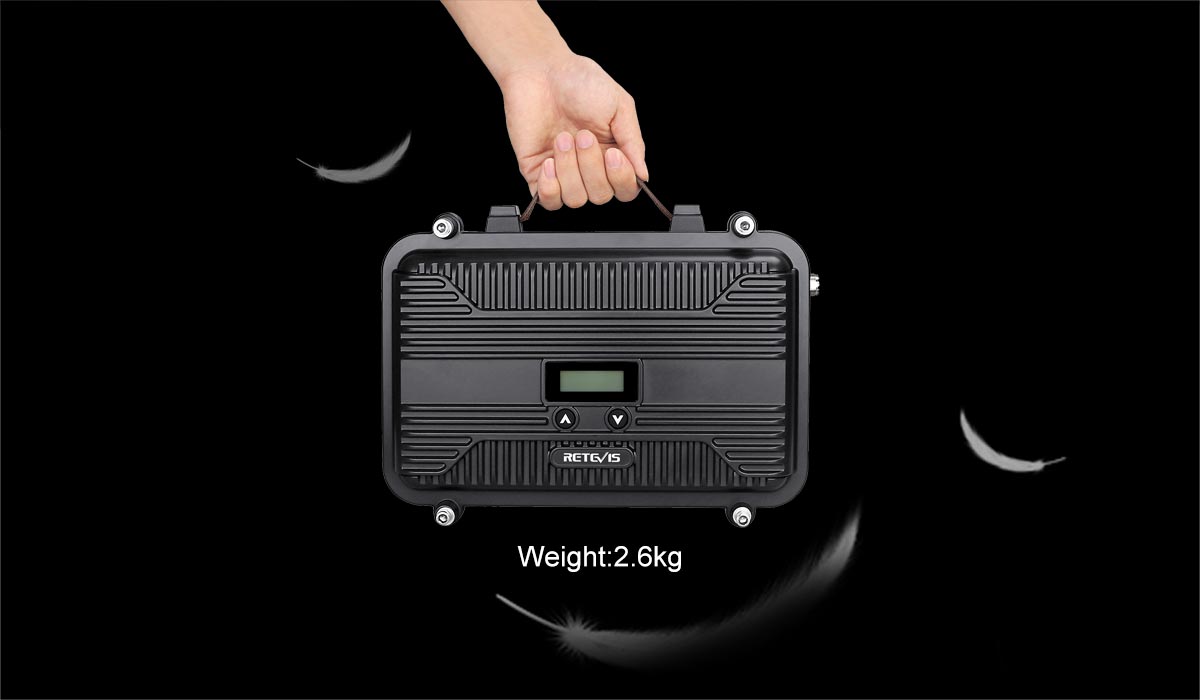

Mini and Portable size
You may think repeater is always big size and high weight? No.RT97P digital repeater, With the package size:310×283×170mm. Weight less than 3kgs. Very small and easy to carry, you can use it outdoor.
Frequency customizable
The TX and RX frequencies can be customized between UHF (400-470MHZ) or VHF(136-174MHZ). You can order it based on your handheld radio working frequencies. It takes around half a month to customize frequency. 8 groups frequencies selectable.
Dual mode
Both digital and analog model workable. You can use it to expand the communication range of not only digital radio, but also analog radio.
Spec
Main Technological Specification
| Frequency | TX 463.3125MHz / RX 453.3125MHz |
| Standard form | DMR/FM/DMR+FM |
| Channel Capacity | 8CH |
| Channel Spacing | ±12.5KHz Narrow/±25KHz Wide |
| Operating Temperature | -30℃~+60℃ |
| Operating Voltage | DC12V-24V |
| Antenna Impedance | 50Ω |
| Frequency Stability | ±0.5ppm |
| Dimension | 280×210×75mm |
| Weight | 2624g |
Transmitter
| Output power | 10W |
| Transmission Current | ≤2.5A |
| FM Modulation | 11kφF3E/16kφF3E |
| Digital modulation | 4FSK |
| Modulation Distortion | ≤5% |
| FM Noise | ≥40dB（25KHz）/≥35dB（12.5KHz） |
| Adjacent Channel Power | ≥70dB（25KHz）/≥60dB（12.5KHz） |
| Audio Response | +1～-3dB |
| DMR Protocol | ETSI-TS102 361-1,-2,-3 |
Receiver
| Analog receive Sensitivity | 0.25μν（12dB）SINAD |
| Digital receive sensitivity | -120dBm (BER≤5%) |
| Adjacent channel selectivity | ≥70dB（25KHz）/≥60dB（12.5KHz） |
| Inter-modulation | ≥60dB/≥65dB |
| Signal imitation | ≥70dB |
| Audio Response | +1～-3dB |
| Audio distortion | <5% |
| FM Noise | ≥45dB（25KHz）/≥40dB（12.5KHz） |
Feature
- Simple installation and flexible operation; the repeater can be operated flexibly as fixed or mobile.
- Solid body and more flexibility: Rugged design meets military specifications to prevent dust, wind and other adverse conditions
- Multiple charging options: matching power adapter can work under DC12V~24V power or car power, and meet your needs.
- The antenna can be selected according to the actual demand.
1.Most economical/cheap digital repeater
2.Mini and Portable size
You may think repeater is always big size and high weight? No.RT97P digital repeater, With the package size:310×283×170mm. Weight less than 3kgs. Very small and easy to carry, you can use it outdoor.
3.Dual mode
Both digital and analog model workable. You can use it to expand the communication range of not only digital radio, but also analog radio.
4.Frequency customizable
The TX and RX frequencies can be customized between UHF (400-470MHZ) or VHF(136-174MHZ). You can order it based on your handheld radio working frequencies. It takes around half a month to customize frequency. 8 groups frequencies selectable.
5. Multi-charger way
Not only Provide the car charger to help you build the repeater in your car, but also provide the DC12V~24V power. Very convenient.
6. LCD display
Retevis RT97P comes with the LCD display, help you to know the working TX and RX frequencies and CTCSS/DCS codes. You can also switch to other frequency groups to use different working frequencies.
7. Can be widely used for different Applications
Retevis RT97P with the mini size, and multi-charger, help you to extend your handheld radio, and easy to install and easy to use, can be widely used for different applications, such an fleets, construction site, industrial park, hotel/office buildling, farm and etc.
