NEW ZWO 2″ Filter Drawer with M54 male / M54 female Connections (one filter holder included) - new 2023 model

New 2″ filter drawer featuring a new, improved anti-light-leaking design for long exposures.

Please note, the below product desription contains details about both available versions, the M42 version as well as the M54 version.

Please rely on the product title when placing your order.

Above image shows the M42 version

Above image shows the M54 version

Two sizes available: M42 and M54.

Double strong magnets adopted for stronger adsorption, easier installation and pulling out.

Lock screw on the side for you to adjust the tension of the holder to eliminate gap. Double insurance.

(M42)

(M54)

Additional adapters provided with the filter drawer for equipment connection.

The differences between the old and new filter drawer

What’s in the Box?

M42 filter drawer:

Filter drawer *1M48-M42F adapter *1

M54 filter drawer:

Filter drawer *1M54-M48F-2mm *1

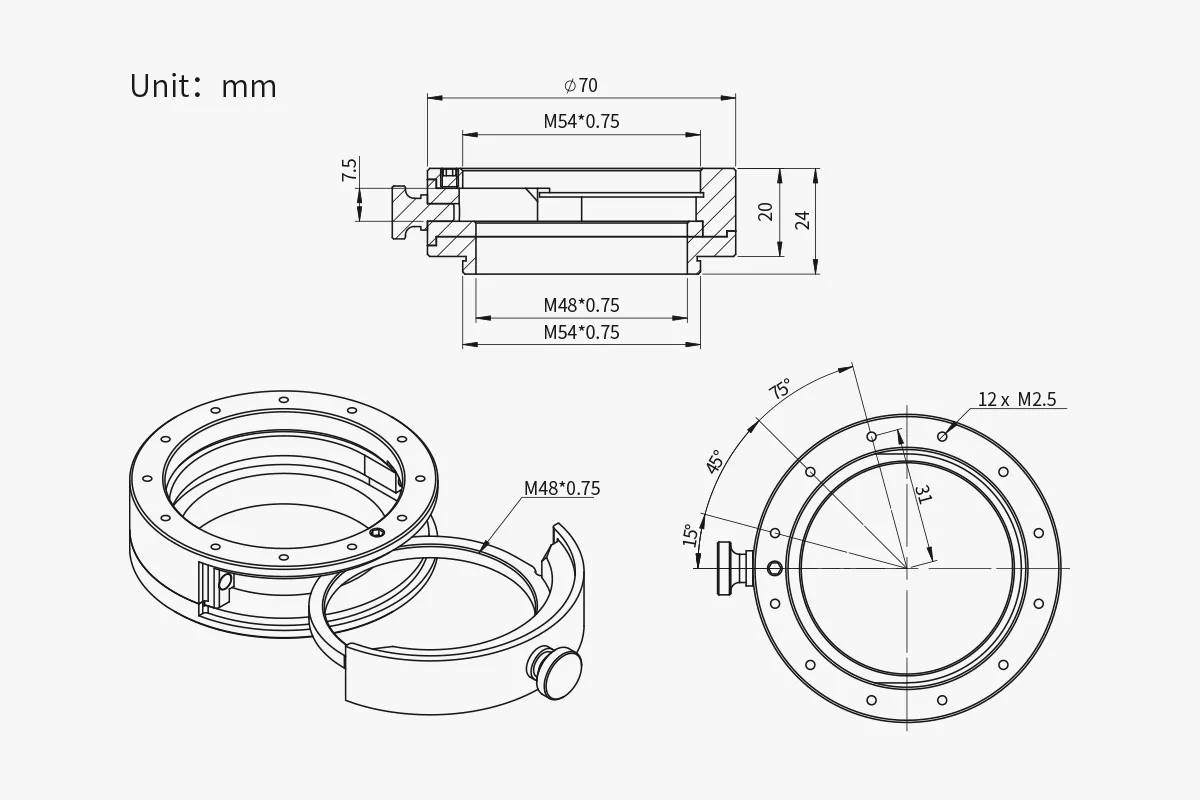

Mechanical Diagram

M42 filter drawer:

Diameter 70mm * Thickness 21mmM42 * 0.75 male (external) thread (camera side) M48 * 0.75 female (internal) thread (filter end) M48 * 0.75 female (internal) thread (telescope side)

Suitable for 2-inch astronomical filters。

M54 filter drawer:

Diameter 70mm * Thickness 20mmM54 * 0.75 male(external) thread (camera side) M48 * 0.75 female (internal) thread (filter end) M54 * 0.75 female (internal) thread (telescope side)

Suitable for 2-inch astronomical filters and full frame cameras, such as ASI6200 and ASI2400.
