Retevis

EU-A9183A

RT93 LTE&DMR Digital Repeater scheduling management

£3,200.00

Tax included. Shipping calculated at checkout.

Quantity

Generally In Stock, Please Confirm Before Ordering

Flexible IP networking: The device is connected in an IP interconnection mode, and supports wired access mode or wireless access modes such as WIFI, 3G/4G, and satellite communication to implement voice and data communication.

OverView

  • RETEVIS RT93 LTE&DMR Digital two way radio Mobile Repeater scheduling management Backpack system

  • Flexible IP networking: The device is connected in an IP interconnection mode, and supports wired access mode or wireless access modes such as WIFI, 3G/4G, and satellite communication to implement voice and data communication.
  • Powerful scheduling management: Scheduling platform can implement scheduling management functions such as device management, terminal management, group logical allocation, and voice scheduling.
  • Analog/digital back to back: The back-to-back solution enables analog and digital walkie-talkies to interoperate in different modes of operation, ensuring a smooth transition of analog users to numbers.

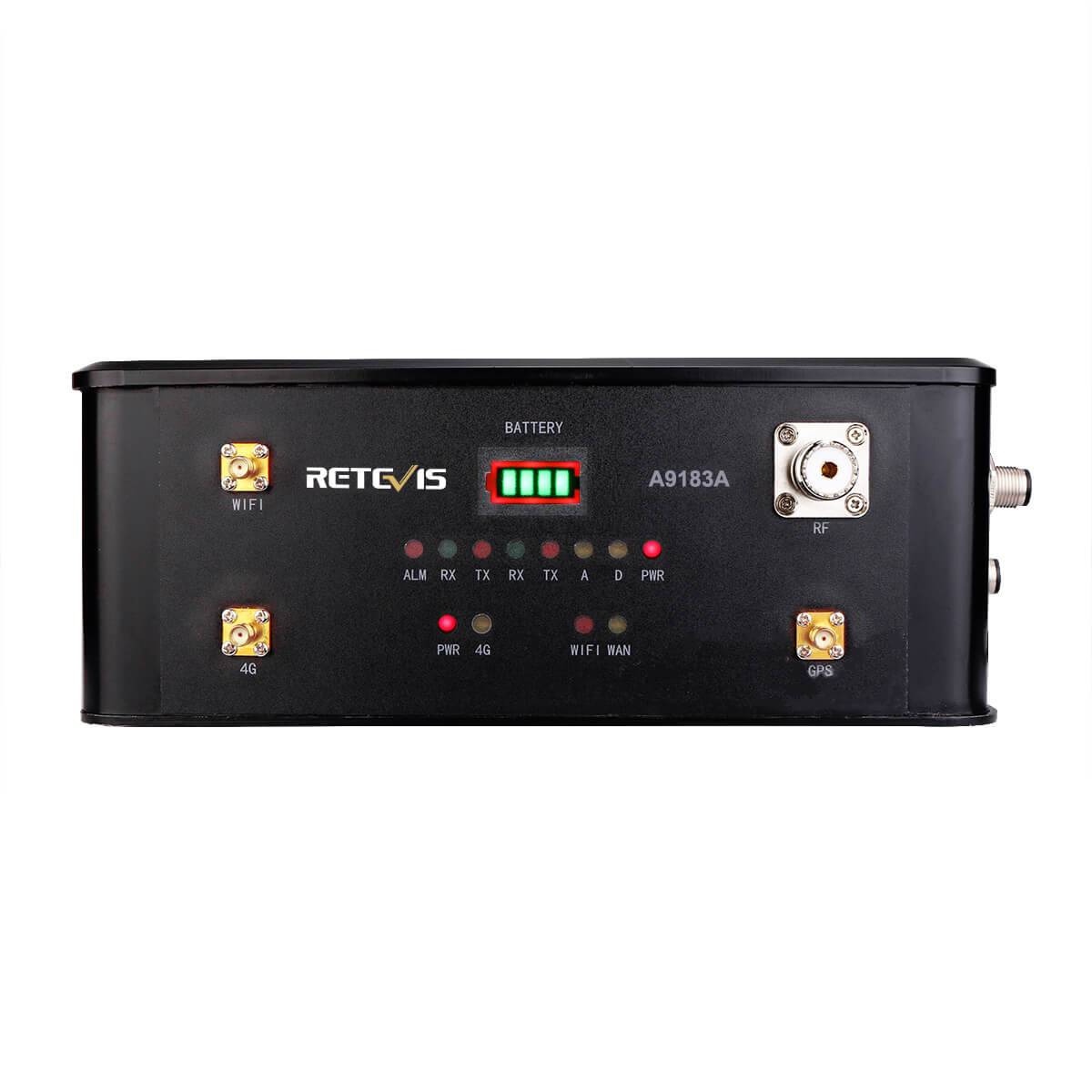

  • The intuitive status panel: The host panel comes with various status indicators and interface identifiers, which is very User-friendly.
  • Dual time slot channel: Support standard DMR dual-slot working mode.
  • Channels supported: Up to 1024 channel switching with PC tools.
  • Adjustable transmit power: The transmit power can be adjusted according to actual needs, from 1 to 25 watts.

Spec

Technical parameters:

Transmitter
Output power 1~25W Continuous adjustable
FM modulation Mode 11KOF3E@12.5KHz
14KOF3E@20KHz
16KOF3E@25KHz
4FSK digital modulation 12.5KHz
Only data:7K60FXD
Data and voice
Transmit Spurious -36dBm<1GHz
-30dBm>1GHz
Modulation limit ±2.5KHz@12.5KHz
±4KHz@20KHz
±5KHz@25KHz
FM Noise 40dB@12.5KHz
43dB@20KHz
45dB@25KHz
Adjacent Power 60dB@12.5KHz
70dB@20/25KHz
Audio Response +1~-3dB
Audio distortion ≤3%
Digital voice encoder AMBE++/SELP
Digital Protocol ETSI-TS102 361-1、2&3
Receiver
Sensitivity Analog 0.3μV(12dB SINAD)
0.22μV(Typical)(12dB SINAD)
0.3μV(20dB SINAD)
Digital 0.3μV/BER5%
Adjacent channel selectivity TIA603 65dB@12.5KHz/75dB@20/25KHz
ETSI 60dB@12.5KHz/70dB@20/25KHz
Intermediation TIA603 75dB@12.5/20/25KHz
ETSI 70dB@12.5/20/25KHz
Spurious Response TIA603 75dB@12.5/20/25KHz
ETSI ≥70dB@12.5/20/25KHz
Block TIA603 90dB
ETSI 90dB84dB
Signal-to-noise 40dB@12.5KHz
43dB@20KHz
45dB@25KHz
Audio Distortion ≤3%
Audio response +1~-3dB
Conducted emission ≤-57dB
