RT97 Long Range Full Duplex Mini Portable Repeater
RT97 Long Range Full Duplex Mini Portable Repeater
RT97 Long Range Full Duplex Mini Portable Repeater
RT97 Long Range Full Duplex Mini Portable Repeater
RT97 Long Range Full Duplex Mini Portable Repeater

Retevis

a9150ax1

RT97 Long Range Full Duplex Mini Portable Repeater

£399.00

Tax included. Shipping calculated at checkout.

Quantity
Version:

Generally In Stock, Please Confirm Before Ordering



RT97 Long Range Full Duplex Mini Portable Repeater

GMR RT97

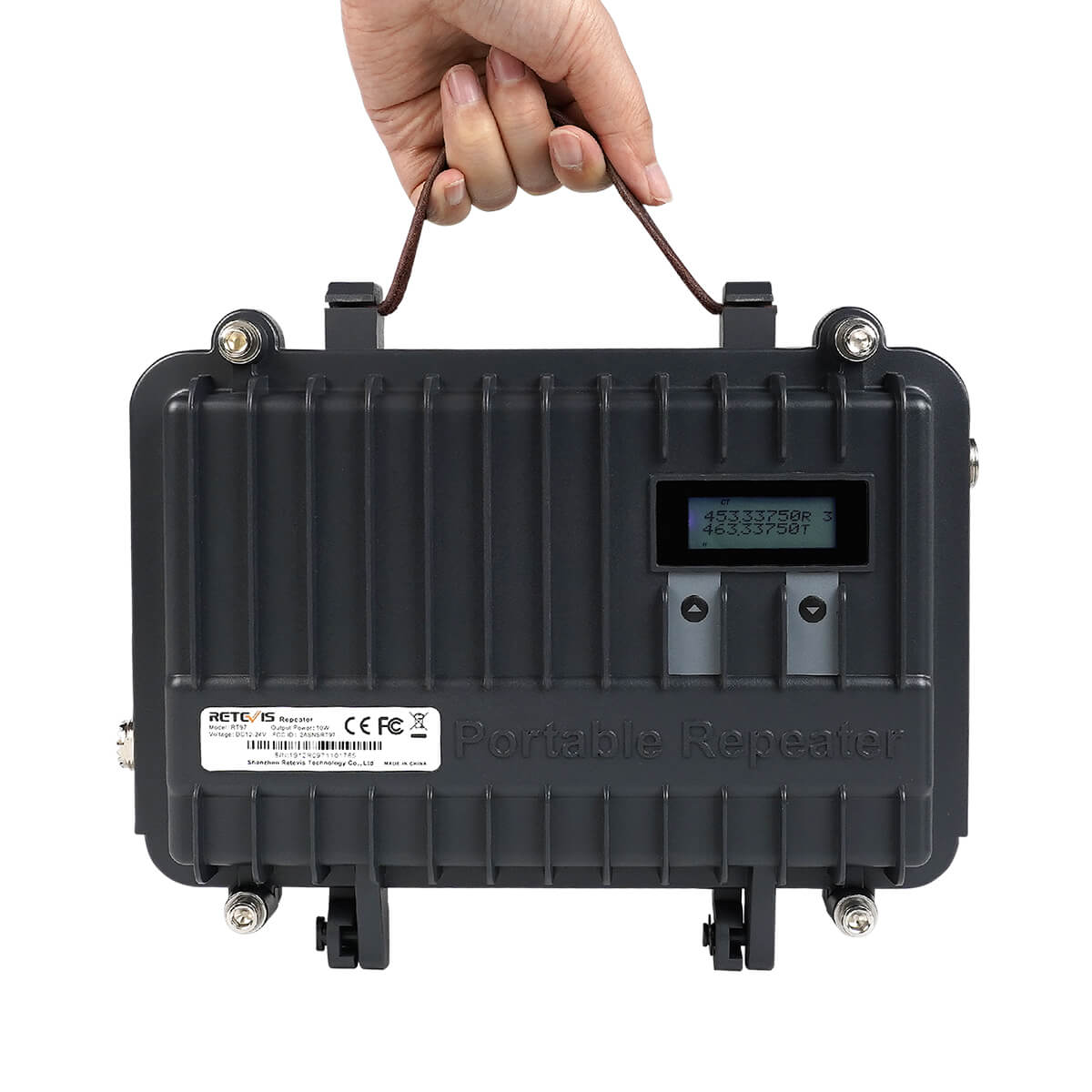

Small and compact, solid and dust-proof.

Light

Simple and convenient installation, flexible operation, can be operated as fixed or mobile.

RT97 Portable Repeater Power Amplifier UHFSimple and convenient installation, flexible operation

Can be widely used for different Applications

Retevis RT97 with the mini size, and multi-charger, help you to extend your handheld radio, and easy to install and easy to use, can be widely used for different applications, such fleets, construction site, industrial park, hotel/office building, farm and etc.

Full-duplex mobile RepeaterMulti working power selectionMulti working power selectionRT97 Portable Repeater Power Amplifier UHFRT97 Portable Repeater Power Amplifier UHF

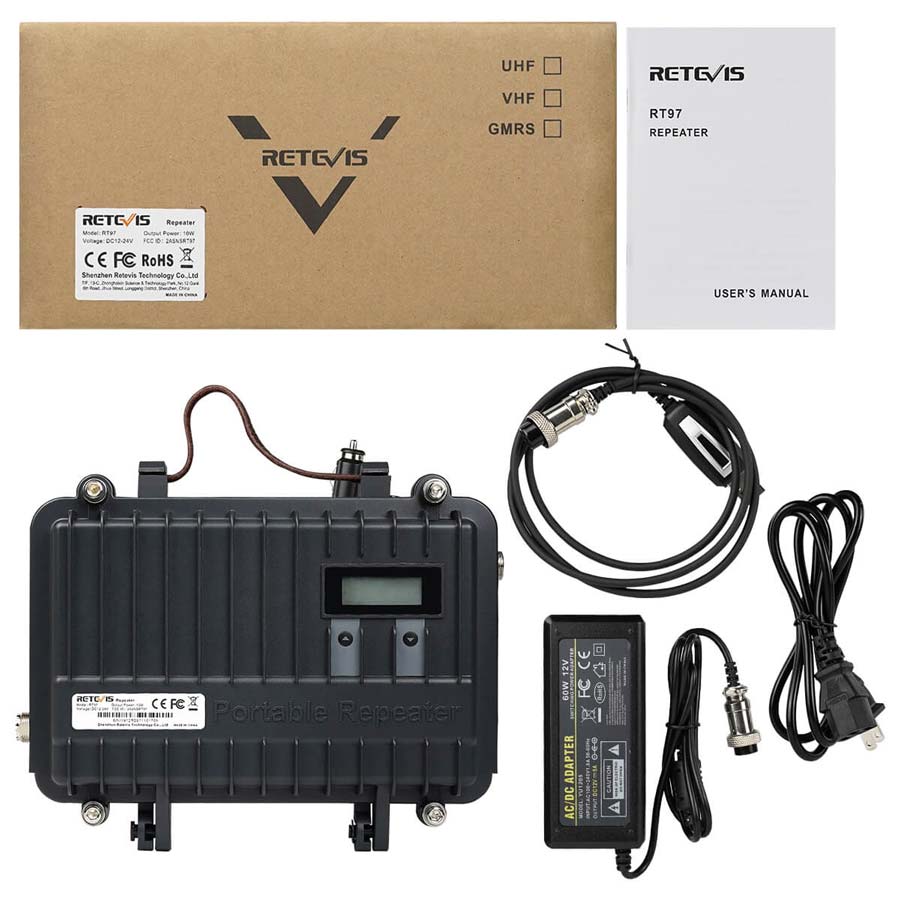

What’s in the Box？
    • Package Includes:
    • 1 x RT97 Stock version Long Range Portable Repeater
    • 1 x Charger
    • 1 x Power Supply
    • 1 x Car Charger Cable
    • 1 x Programming Cable
    • 1 x User's Manual

Spec

Technical parameters:

Specifications
Frequency Range Tx:162.6125mhz and RX:152.6125MHZORTX: 463.3125mhz and RX: 453.3125MHZ
Channel Capacity 16CH
Channel Spacing ±12.5KHz Narrow/±25kHz Wide
Operating Voltage DC12V ~24V
Operating Temperature -30°C~ +60°C
Frequency Stability ±2.5ppm
Antenna Impedance 50Ω
Dimension 260*210*70mm
Weight 1.66kg
Transmitter
Intermediate Frequency Tx:162.6125mhz and RX:152.6125MHZORTX: 463.3125mhz and RX: 453.3125MHZ
Power Output ≤10W
Modulation F3E
Spurious Emission -60dB or less
Maximum Frequency Deviation Wide: ±5kHz Narrow: ±2.5kHz
Audio Distortion 5% or less
FM Noise Wide:≤45dB Narrow :≤40dB
Receiver
Intermediate Frequency Tx:162.6125mhz and RX:152.6125MHZORTX: 463.3125mhz and RX: 453.3125MHZ
Sensitivity(12dB SINAD) 0.2μV (Wide) 0.25μV (Narrow)
Squelch Sensitivity 0.15μV (Wide) 0.2μV (Narrow)
Adjacent Channel Selectivity ≥ 70dB (Wide) / ≥65dB (Narrow)
Intermodulation ≥ 55dB
Spurious Rejection ≥ 55dB
Image Rejection ≥ 55dB
FM Ham and Noise ≤-45dB(Wide) / ≤ -40dB(Narrow)
Modulation Type F3E
Operating Bandwidth ≤±7KHz / ≤±5KHz
Audio Distortion ≤ 5%






Feature

Retevis RT97 Portable Mobile Analog Mode Repeater

1, VHF-10mHz-Stock: Offset 10mhz, Tx:162.6125mhz and RX:152.6125MHZ.

2, UHF-10mhz-Stock：Offset 10mhz, TX: 463.3125mhz and RX: 453.3125MHZ

3, Output power: 10W.

4, Small size: With the package size: 310×283×170mm. Very small and easy to carry, you can use it outdoor.

5, Car charger: Provide the car charger, you can use this repeater in your car.

6, Multi-charger way: Not only provide the car charger, but also provide the DC12V~24V power. Very convenient.

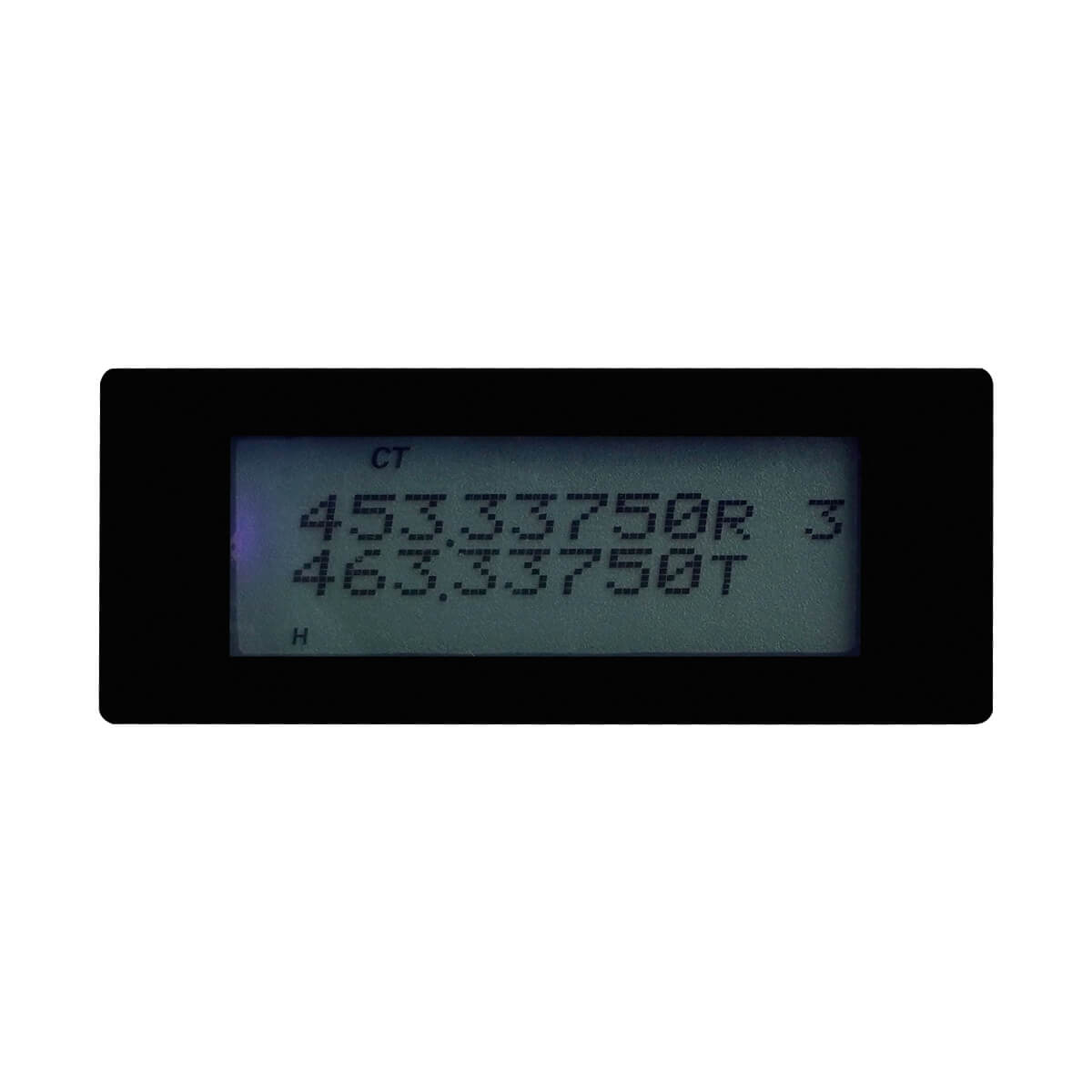

7, LCD display will help you know the TX and RX frequencies, CTCSS/DCS code.

RT97 Long Range Full Duplex Mini Portable Repeater

£399.00
RT97 Long Range Full Duplex Mini Portable Repeater
RT97 Long Range Full Duplex Mini Portable Repeater
RT97 Long Range Full Duplex Mini Portable Repeater
RT97 Long Range Full Duplex Mini Portable Repeater
RT97 Long Range Full Duplex Mini Portable Repeater
